ELECTRONIC BALANCER Quick-Lift Arm Clean 75i – design for food industry

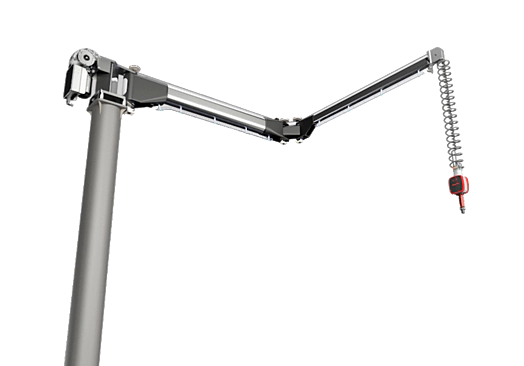

Electronic balancer Quick-lift Arm Clean 75i - column construction is a sophisticated balance lifting device with its own column construction suitable for the food industry, manual rotation and electronic lifting.

Description:

Intelligent lifting device which meets the highest standards of ergonomics, working environment, safety, and efficiency.
Optimized to use in an industrial environment with high sanitary requirements and daily cleaning procedures, e.g. food industry.

Precision response through easy to use controls and light triple-hinged arm of anodized aluminium.
Unique integrated mechanical, electric, pneumatic swivel simplifies usage and minimizes maintenance.

The best autobalance available regardless of load weight.

High reliability and low power consumption, results in superior cost efficiency.

Application:

Electronic balancer Quick-lift Arm Clean (QLACi) - column construction is a lifting device that is installed on the concrete floor of the user's hall with chemical anchors, or on a mobile steel pallet (option) Manipulator with a fixed arm, suitable for handling loads under the center of gravity.
This balancer can be realized with a load capacity of 75 kg.

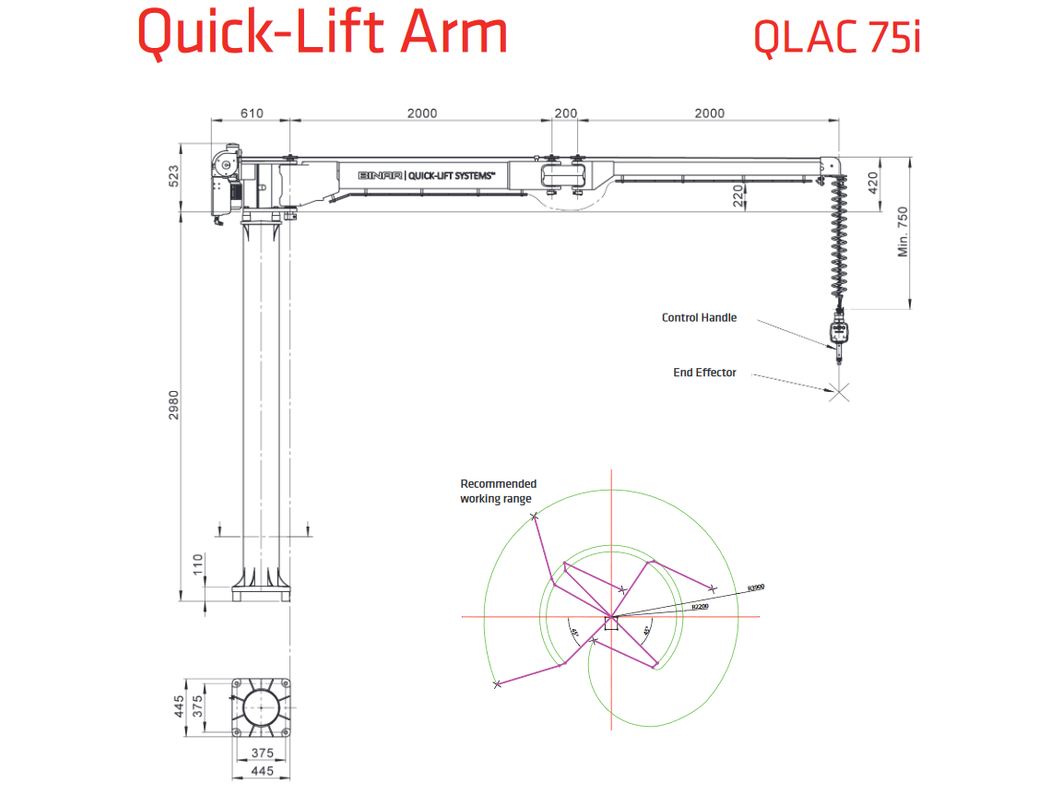

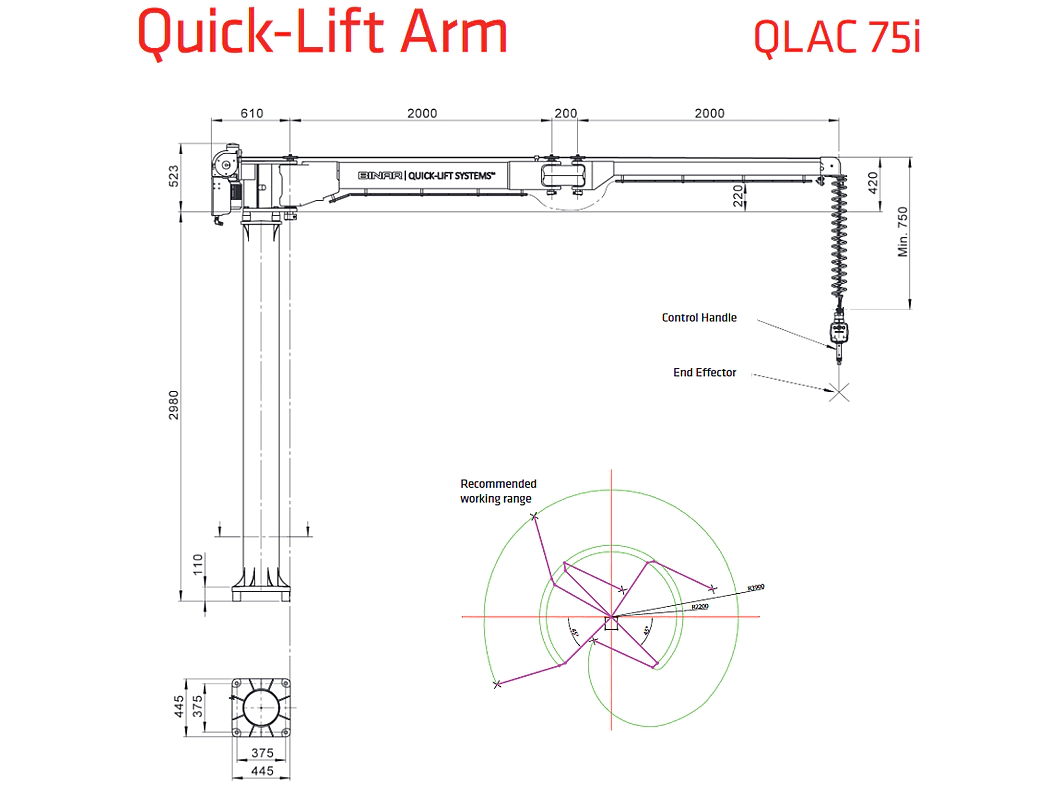

Basic technical data:

TYPEQLAC 75i
Maximum load:75 kg
Stroke drive:Continuously controlled asynchronous electric motor
Lift:2700 mm
Arm boom length:4200 mm
Electrical connection:230V, 50–60 Hz, 1 phase, 10 A
Product-sheet-QLAC-75i.pdf

Benefits:

  • RELIABLE
    - electronic system guarantees high reliability and minimal maintenance
  • SAFE
    - guaranteed safe and ergonomic for the operator in every situation
  • VARIABLE
    - cooperates with vacuum, pneumatic, mechanical tools for gripping the load
    - suitable for handling loads under the center of gravity
  • EFFECTIVE
    - suitable for the food industry
    - with its versatility and wide range of construction systems, it will meet even the most demanding requirements of the industry
