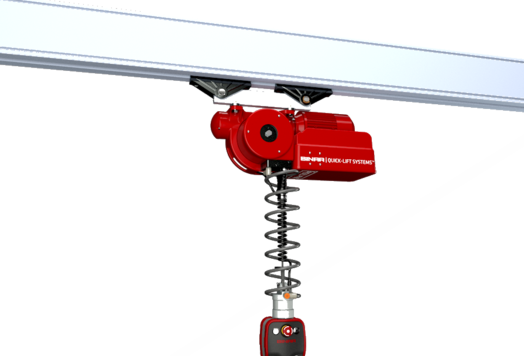

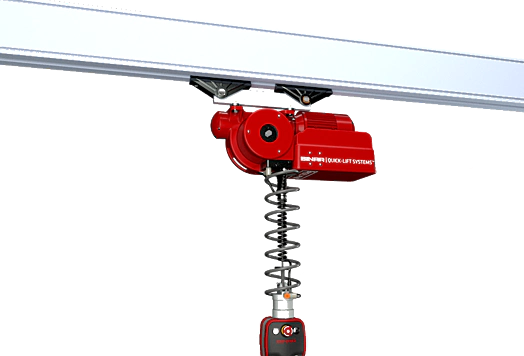

The Quick-Lift Rail is an intelligent lifting device that meets the highest standards of ergonomics, working environment, safety and efficiency.
The QLR is easy to use, thanks to outstanding reaction and it is also equipped with the best auto balancing available, regardless of load weight.
Exceptional safety is achieved using our intelligent control systems.
The QLR enables high-cost efficiency through low power consumption, high reliability and long durability.

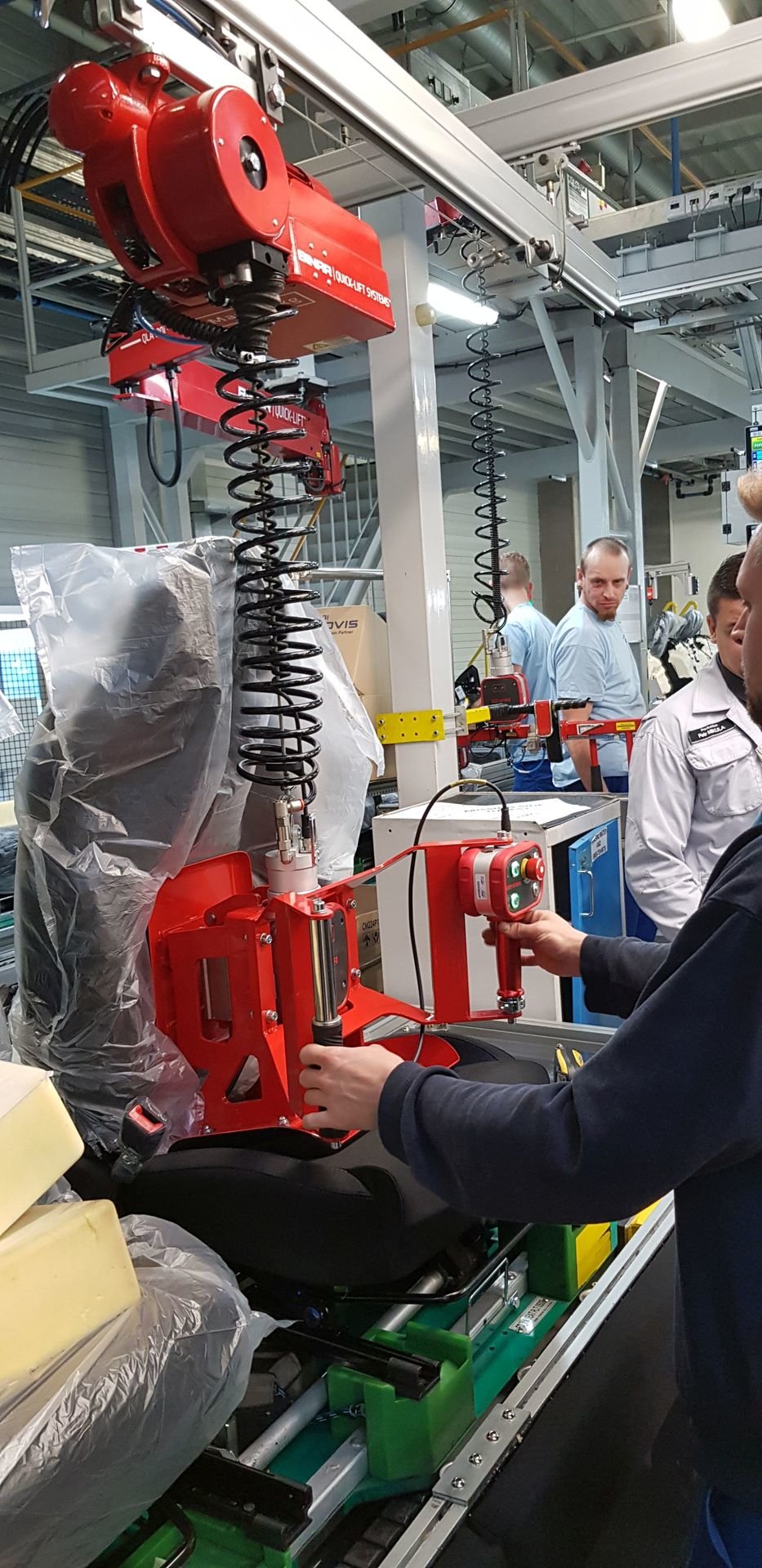

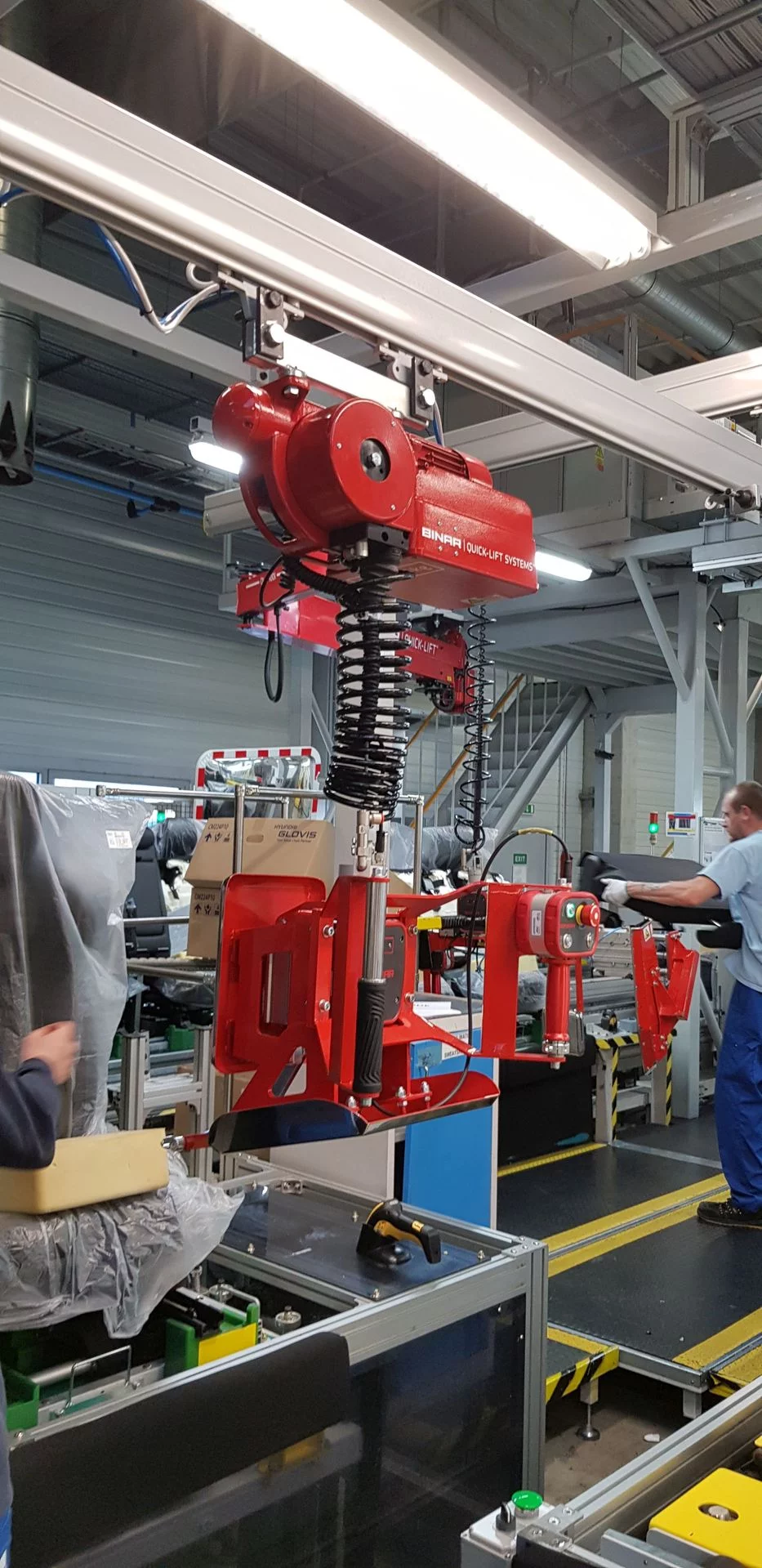

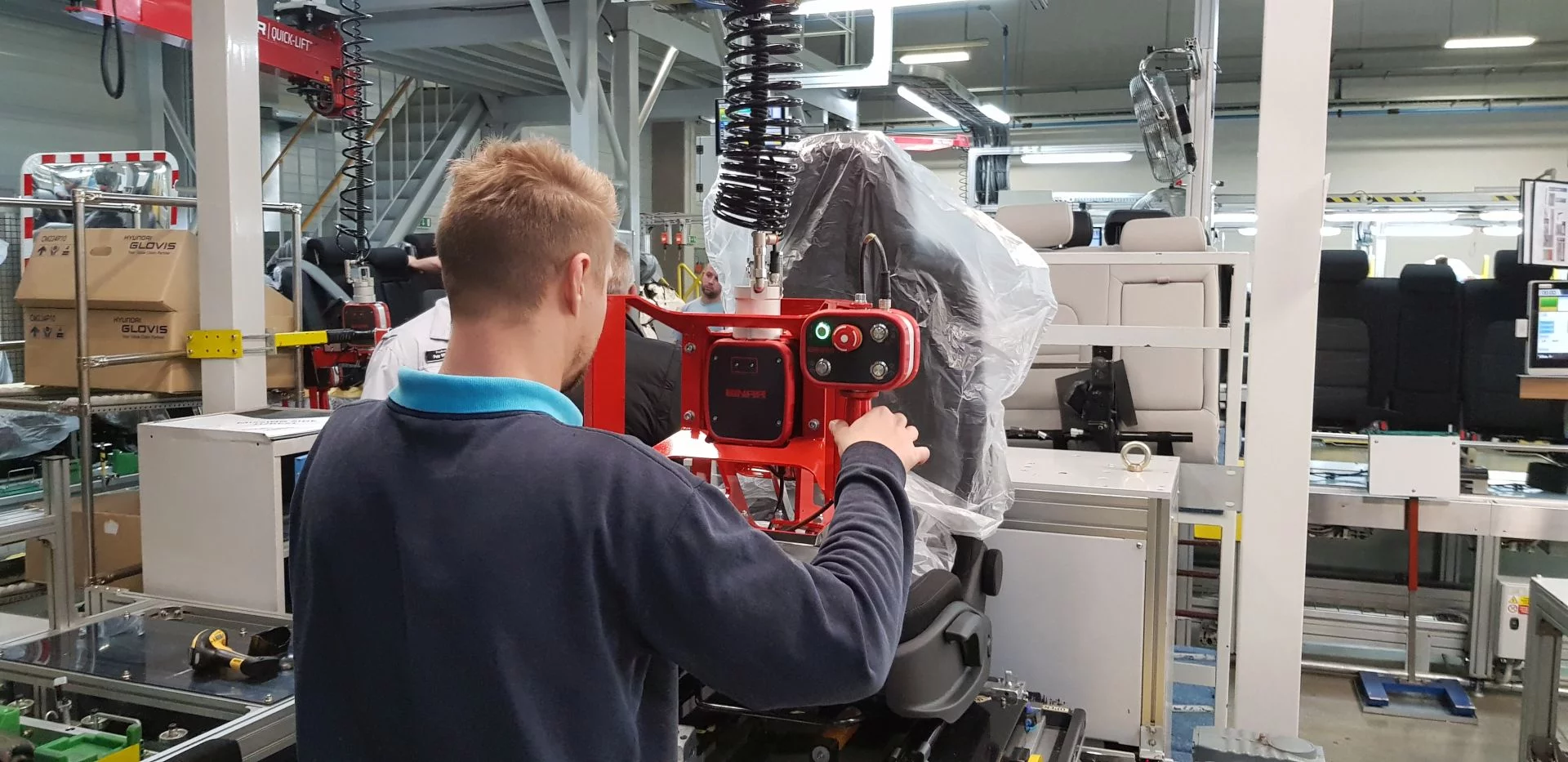

Electronic balancer for the rail system in the user's hall. The manipulator is suitable for handling loads under the center of gravity.
This balancer can be realized in graduated load ranges from 125 kg to 300 kg.

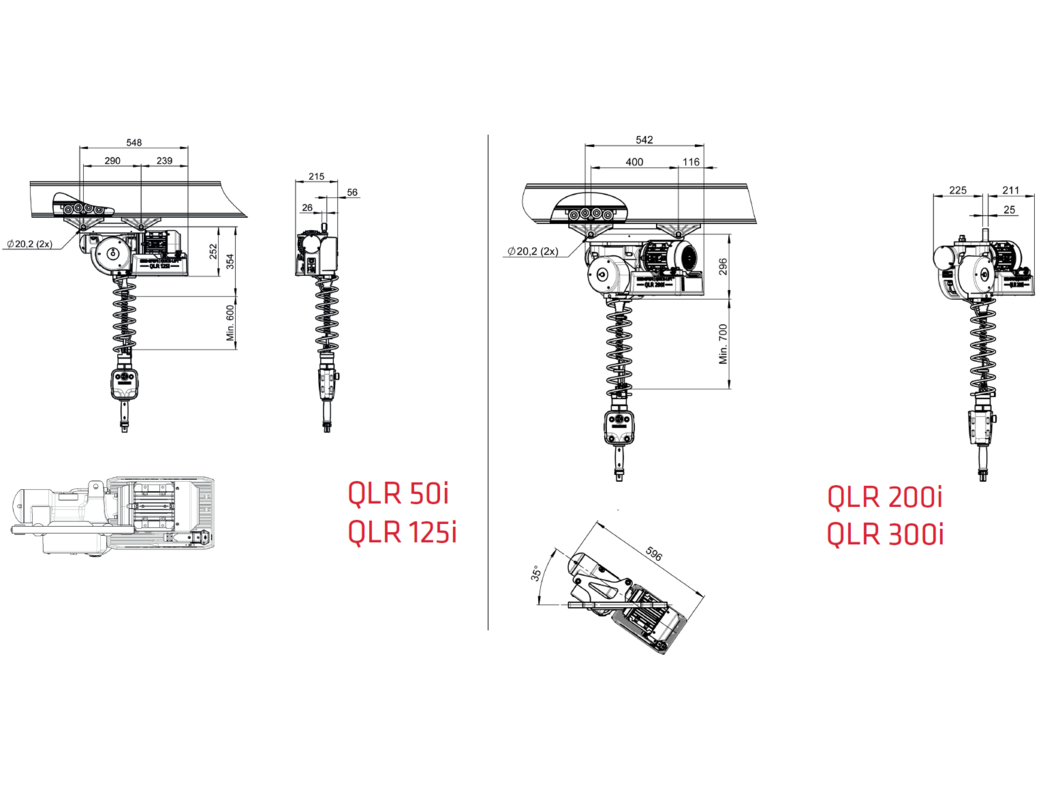

| TYPE | QLR 50i | QLR 125i | QLR 200i | QLR 300i |
|---|---|---|---|---|
| Maximum load: | 50 kg | 125 kg | 200 kg | 300 kg |
| Stroke drive: | Continuously controlled asynchronous electric motor | Continuously controlled asynchronous electric motor | Continuously controlled asynchronous electric motor | Continuously controlled asynchronous electric motor |
| Weight: | 25 kg | 28 kg | 43 kg | 43 kg |
| Lift: | 2700 mm | 2700 mm | 2700 mm | 2700 mm |
| Electrical connection: | 230V, 50–60 Hz, 1 phase, 10 A | 230V, 50–60 Hz, 1 phase, 10 A | 230V, 50–60 Hz, 1 phase, 10 A | 230V, 50–60 Hz, 1 phase, 10 A |
| Product_Leaflet_QLR_50i_EN_BQLS.pdf |
|
| Product_Leaflet_QLR_125i_EN_BQLS.pdf |
|
| Product_Leaflet_QLR_200i_EN_BQLS.pdf |
|
| Product_Leaflet_QLR_300i_EN_BQLS.pdf |
