Thanks to the low weight of the aluminum boom, the boom can be easily rotated. It is suitable for handling loads that are fragile, valuable and require precise positioning.
LIGHT JIB CRANE - OVS Basic
Light column jib crane - OVS Basic is clever lifting device without own column construction, with lightweight aluminum boom with manual rotation and travel and electric lift.
Application:
Light jib crane - OVS Basic is a universal lifting device which is install on a side wall or structure. The device is suitable for the transport of materials along the boom route. This device can be implemented in graduated load ranges from 150 kg to 1000 kg.
Benefits:
- easy manipulation
- high reliability
- guaranteed safe
- manual guidance of the suspended tool in the "x" axis
Basic technical information:
| Lifting capacity (WLL) | 150, 250, 500 a 1000 kg |
| Lifting speed | 17/2,8 m/min (125 kg), 10/1,7 m/min (250 kg), 7,6/1,3 m/min (500 kg), 7,1/1,2 m/min (1000 kg) |
| Travel speed of electric hoist | manual pusher |
| Speed of rotation jib crane | manual pusher |
| Power supply | 3 PE (PEN) 50 Hz 400V / TN-C |
Information table:

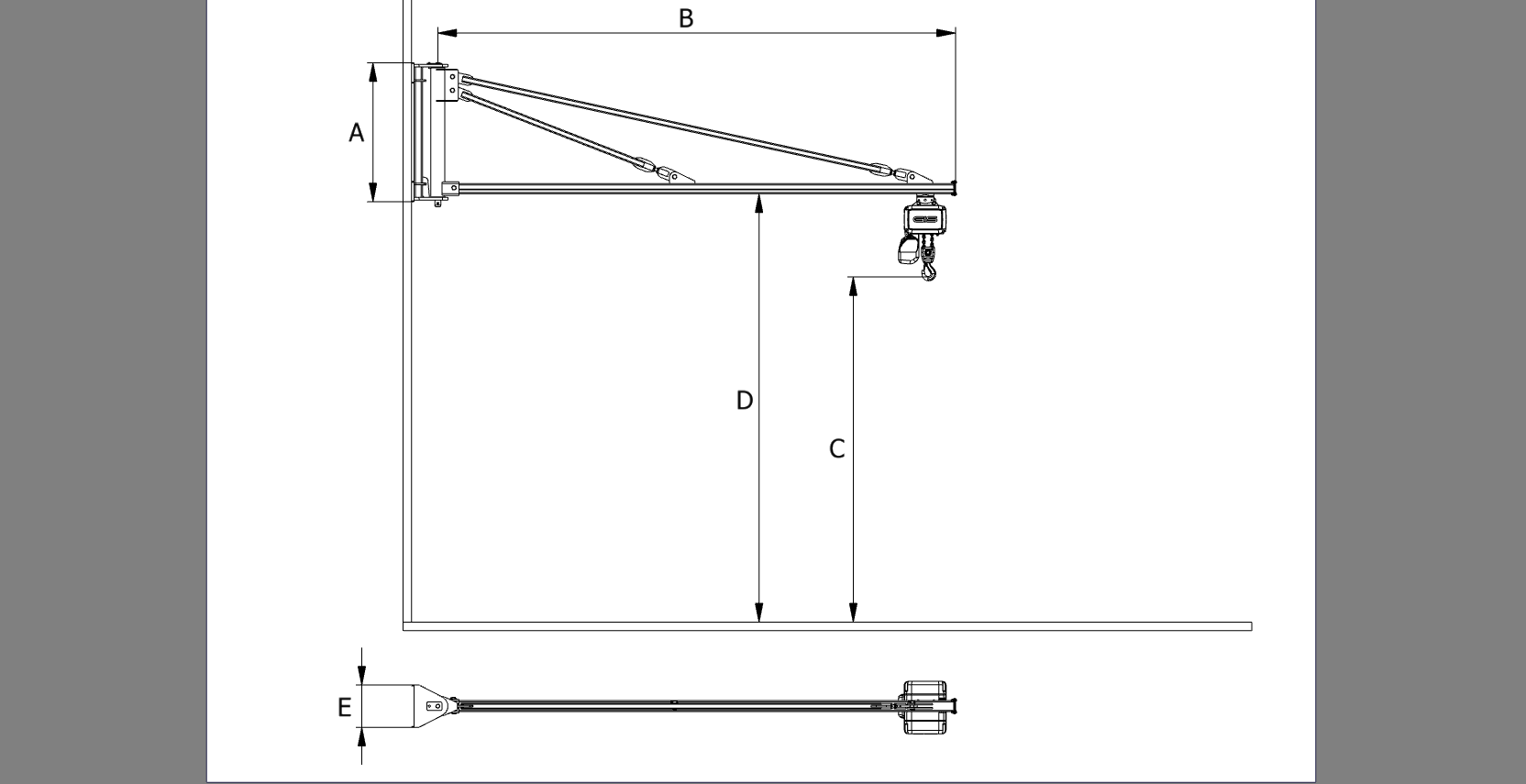

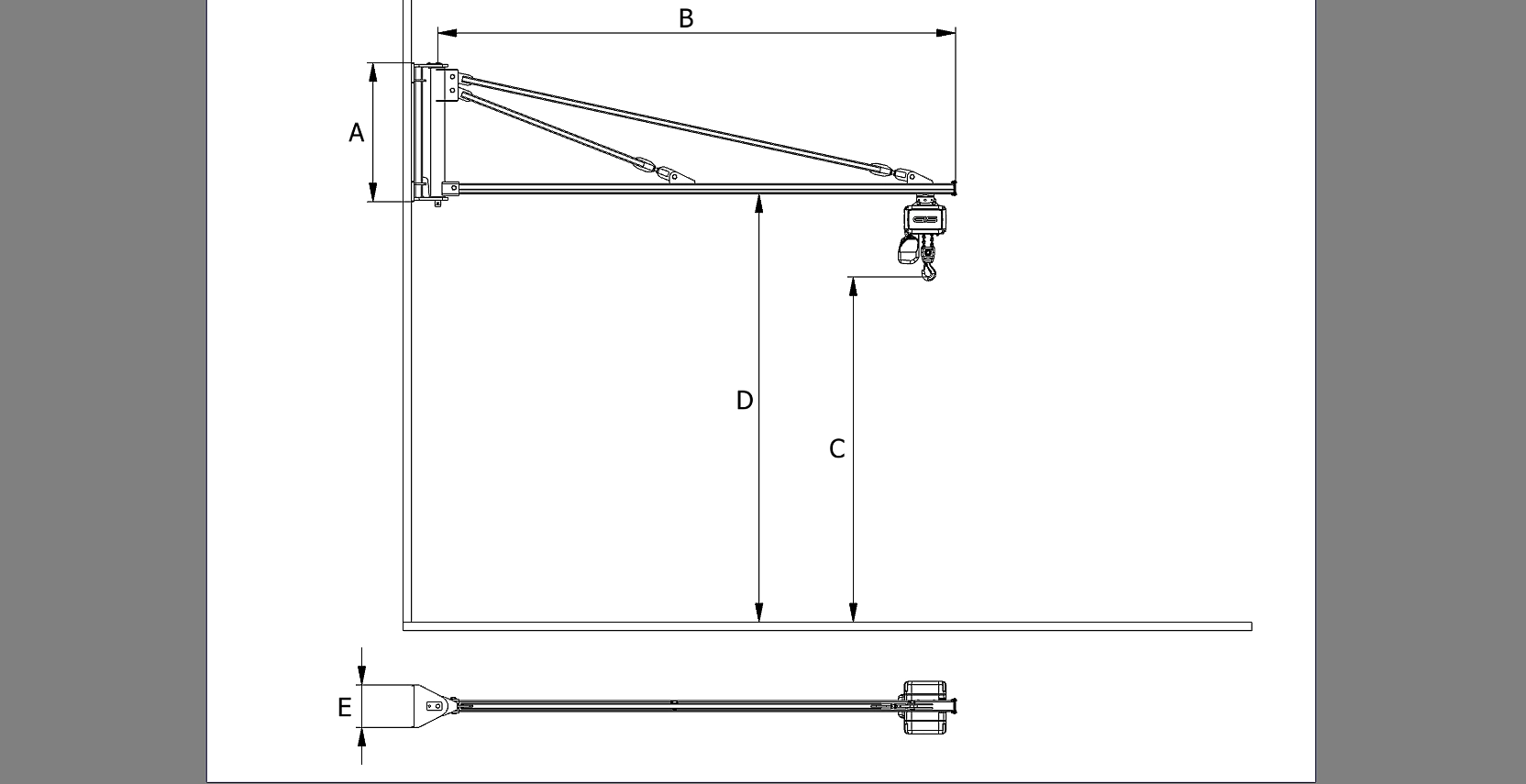

| TYPE OVS Basic | ELECTRIC HOIST (kg) | MAX. CAPACITY (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|
| OVS Basic 125 | EQ001IS | 150 | min. 550 max. 850 mm | min. 2000 max. 6000 mm | min. 2500 max. 3500 | min. 3000 max. 4500 | 295 |
| OVS Basic 250 | EQ003IS | 250 | min. 550 max. 850 mm | min. 2000 max. 6000 mm | min. 2500 max. 3500 | min. 3000 max. 4500 | 295 |
| OVS Basic 500 | EQ005IS | 500 | min. 850 max. 1250 mm | min. 2000 max. 6000 mm | min. 2500 max. 3500 | min. 3000 max. 4500 | 295 |
| OVS Basic 1000 | EQ010IS | 1000 | min. 850 max. 1250 mm | min. 2000 max. 6000 mm | min. 2500 max. 3500 | min. 3000 max. 4500 | 295 |
