VACUUM MANIPULATOR - VM 800/8 - 90°-90°/HYD

Basic description:

  • Main supporting steel structure with a multipositional suspension
  • Hydraulic tilting suction cups with max. angle 90°
  • Hydraulic rotation suction cups with max. angle 90°
  • Eight suction cups 365 mm in diameter
  • manually telescopically adjustable suction cups with locking
  • vacuum pump - 400V three-phase system
  • the vacuum tank ensures safe lifting of the load even in the event of an unexpected failure of the compressed air.
  • acoustic and visual signalisation of insufficient vacuum in suction cups
  • GRIP - through push-button remote control conveniently located at the control handles on the spiral cable up to 3 m
  • RELEASE - through push-buttons remote control conveniently located at the control handles on the spiral cable up to 3 m
  • TILTING the load by 0 ° / 90 ° through push-button control on a spiral cable up to 3 m
  • ROTATION of the load by 0 ° / 90 ° through push-button control on a spiral cable up to 3 m
  • spiral cable for connecting a manipulator up to 3 meters
  • quick-clamping system el. connection through connector

Application:

The vacuum manipulator VM 800/8-90°/90°/HYD
is a handy grasping device that allows you to grasp and handle large-sized flat loads up to 800 kg in both horizontal and vertical position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the grasper will be suspended on.

Potential types of loads to be handled:

  • Glass plates and boards
  • Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
  • Plastic plates and boards
  • Stone with grinded surface
  • Wooden plates and boards covered with air-tight finish

Benefits:

  • Simple – very convenient anddedicated device that is easy to operate
  • Variable - possibility to manually and easily telescopically adjust the suction cups themselves after the traverse
  • Reliable - guarantees high reliability and minimal maintenance
  • Safe – safety guaranteed in every situation

Basic technical information:

Maximum load capacity 800 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin horizontal and vertical position, to be lifted on a lifting device
Weight300 kg
Max. dimensions of load3210x3210 mm
Min. dimensions of load1000x2000 mm
Power supply3+PE (PEN) 400VAC/50Hz/15VAC

Information table:

Number of suction cups / diameter (mm)MAX. CAPACITY (kg)WEIGHT (kg)Max. width (mm)Max. depth (mm) Max. height (mm)Suction cup diameter (mm)
8/36580030018766092214365

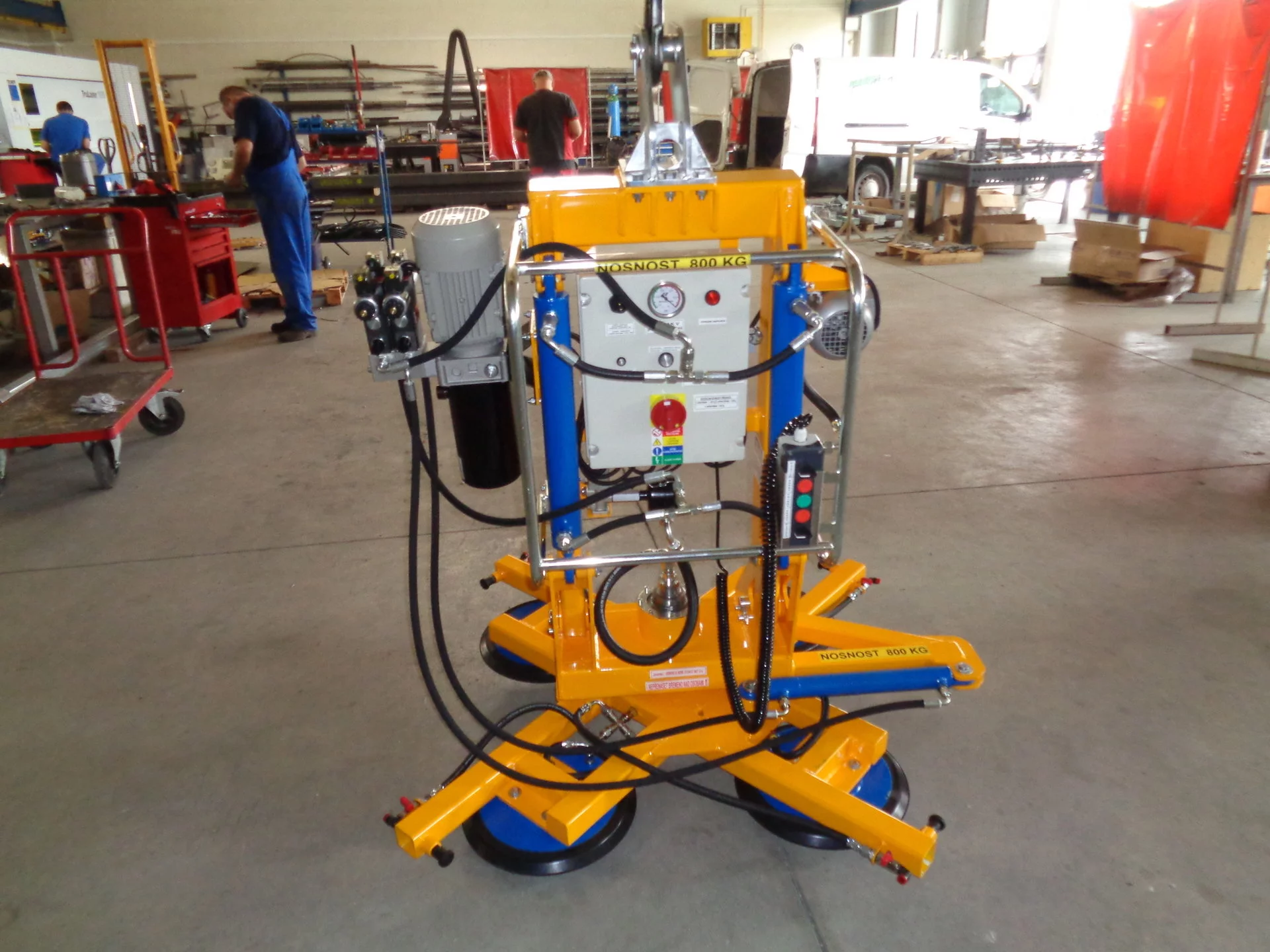

Photo gallery

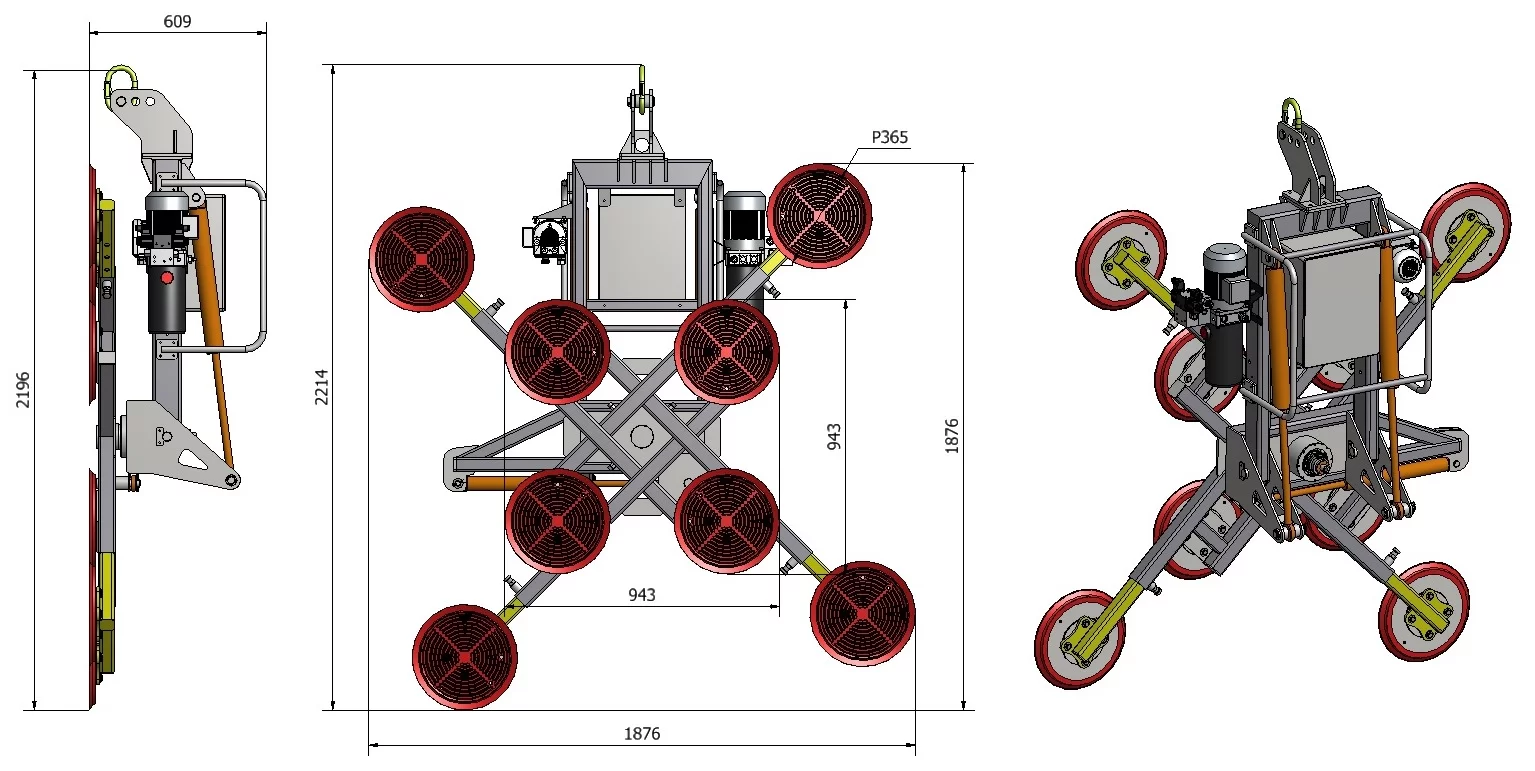

3D models + drawings
