Basic description:

  • main supporting steel structure with a multipositional suspension
  • manually rotating suction cup by max. 360 ° angle
  • four suction cups 365 mm in diameter
  • vacuum pump - design (400V three-phase system)
  • acoustic and visual signalisation of insufficient vacuum in suction cups
  • vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
  • GRIP/ RELEASE the load through a manual valve conveniently located on the VM control handle
  • double-acting control for mechanical load extraction via manual valve (electromagnetic - via spiral push-button controller - extra charge)
  • ROTATION by 0° / 360° - manually
  • spiral hose for connecting a manipulator up to 3 meters
  • quick-clamping system el. connection via connector

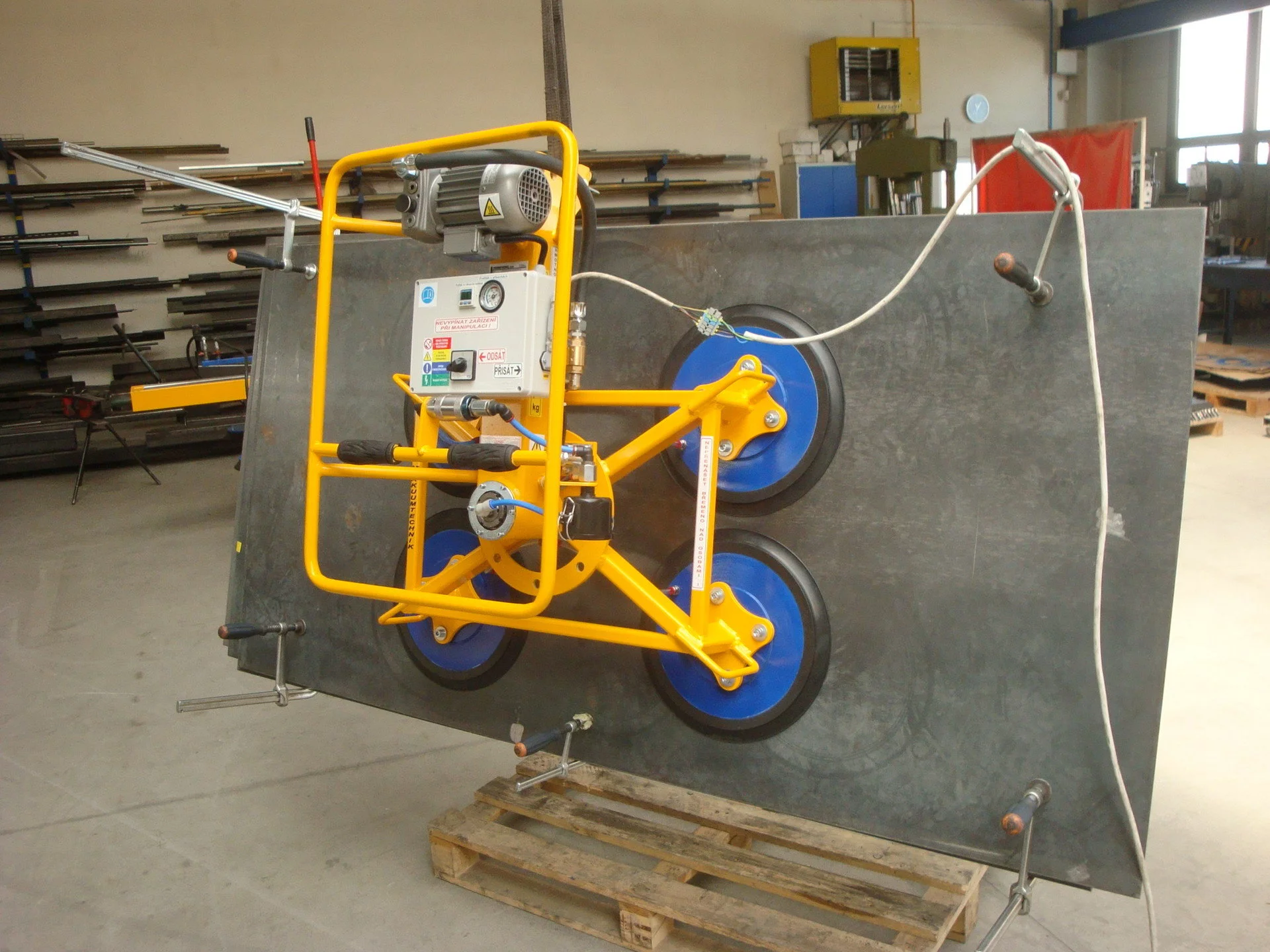

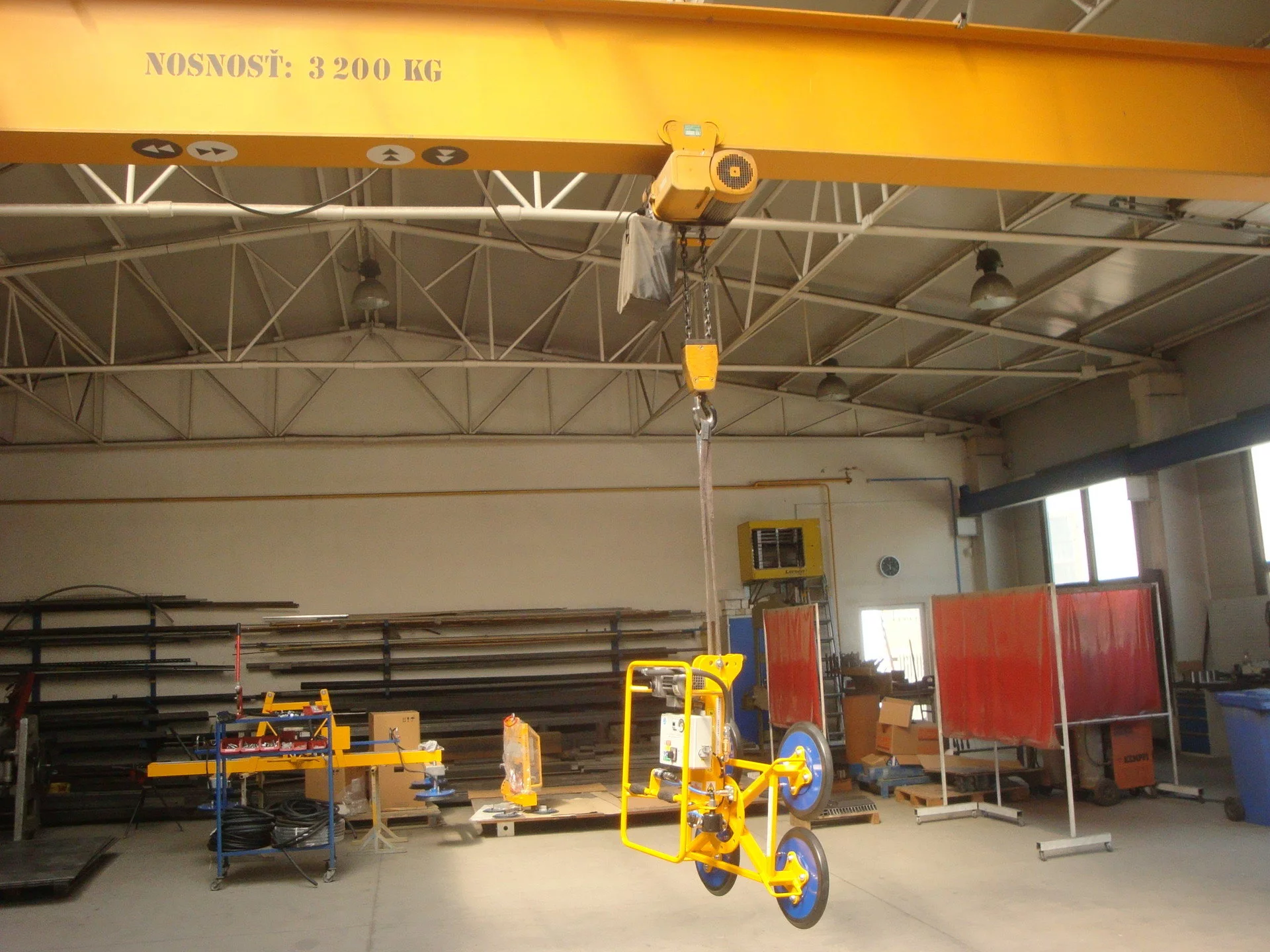

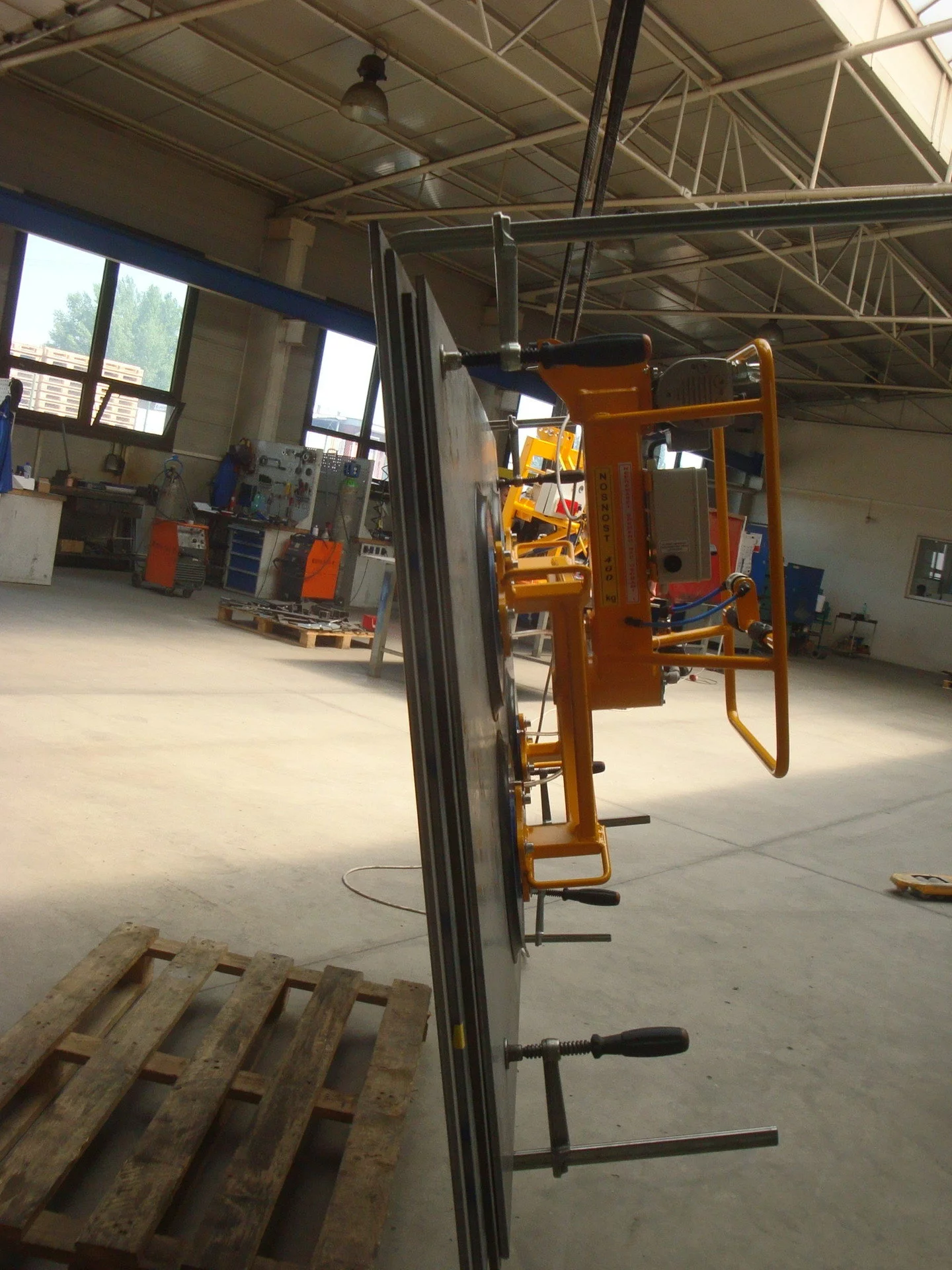

The vacuum manipulator VM 400/4-360°/EL js a handy little grasping device that allows you to grasp and handle large-sized flat loads upto 400 kg in a vertical position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the grasper will be suspended on. zavesený.

Potential types of loads to be handled:

  • Glass plates and boards
  • Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
  • Plastic plates and boards
  • Stone with grinded surface
  • Wooden plates and boards covered with air-tight finish


  • Simple – very convenient anddedicated device that is easy to operate
  • Reliable high reliability and minimal maintenance are ensured
  • Safe safety guaranteed in every situation

Basic technical information:

Maximum load capacity400 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin vertical position, to be lifted on a lifting device
Weight76 kg
Max. dimensions of load2500x2500 mm
Min. dimensions of load800x1000 mm
Power supplya) 3 PE (PEN) 400VAC/50Hz/15VAC
b) 1 N PE 230VAC/50Hz/24VDC

Information table:

Number of suction cups / diameter (mm)LOAD CAPACITY(kg)WEIGHT (kg)Overall width (mm)Overall depth (mm)Overall height (mm)
Suction cup area (mm)Suction cup spacing (mm)
982x757256 mm

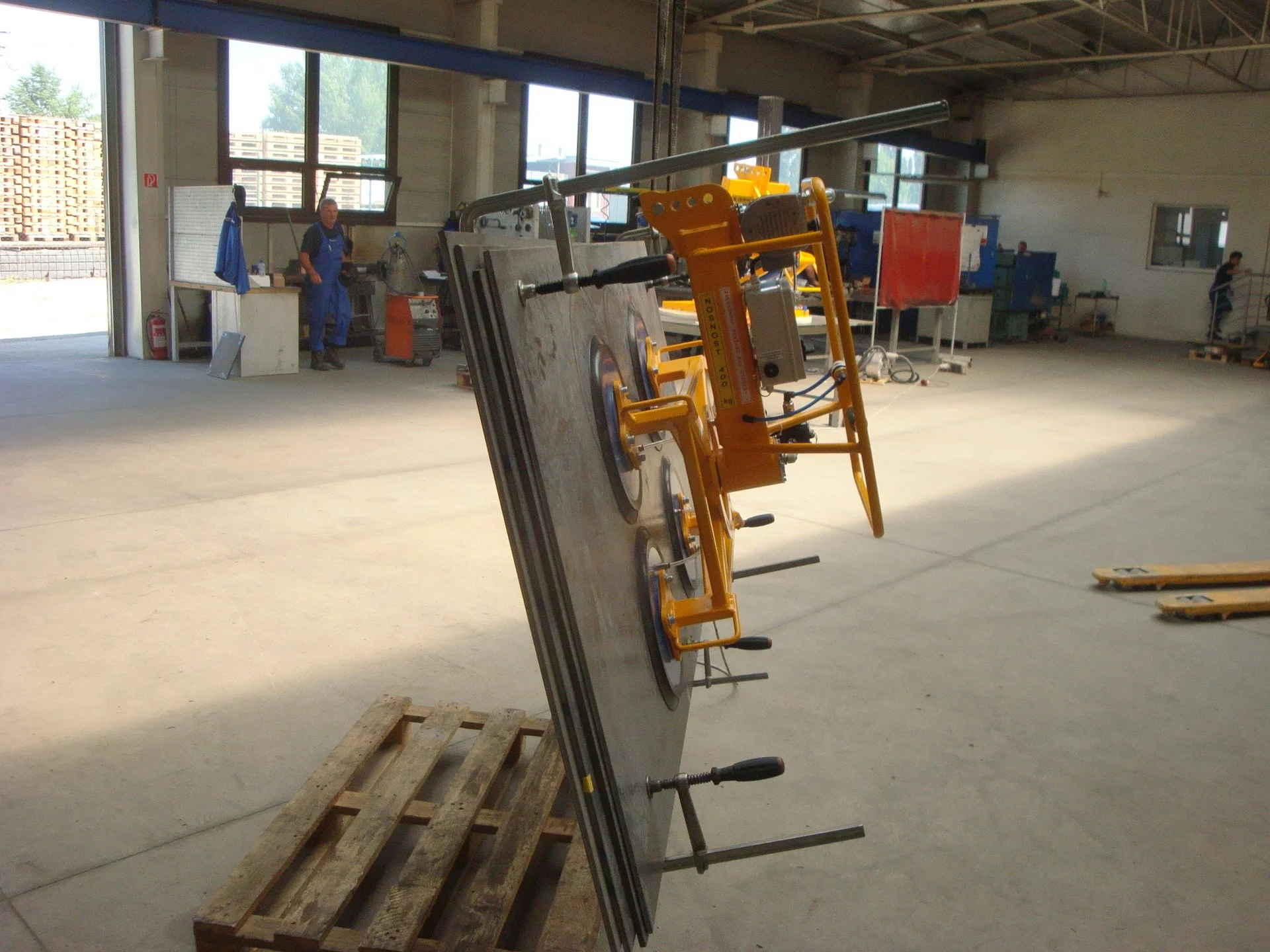

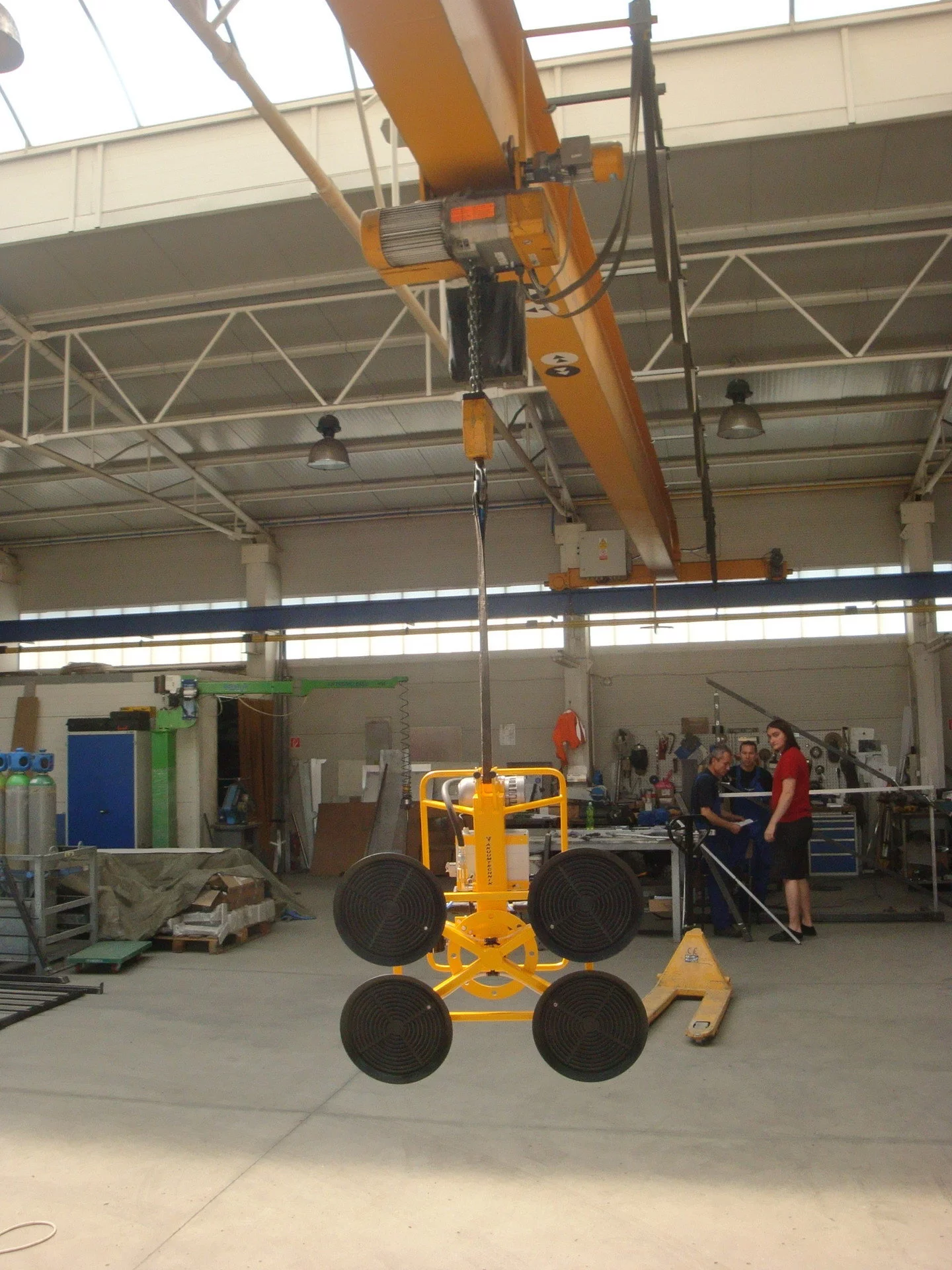

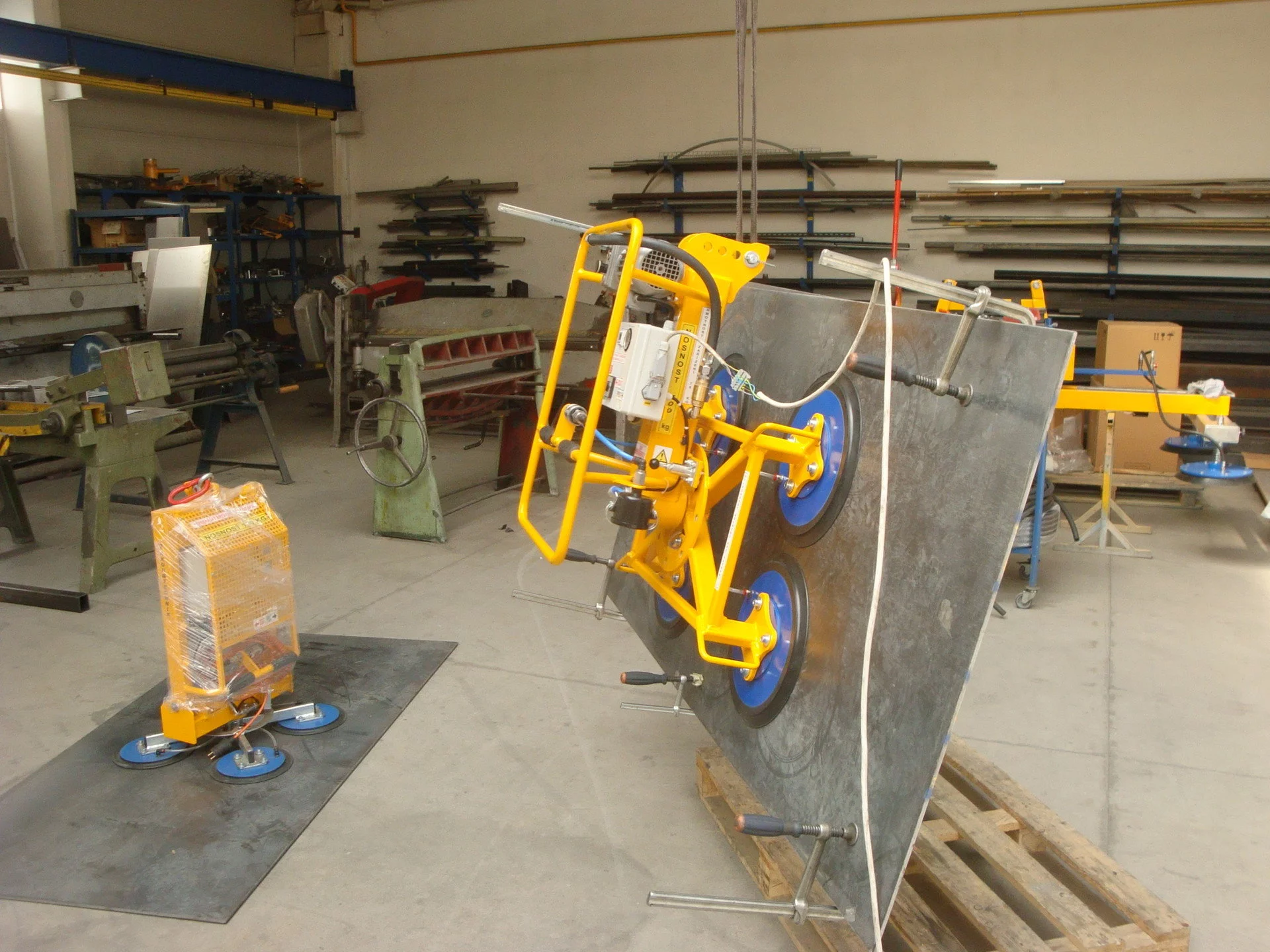

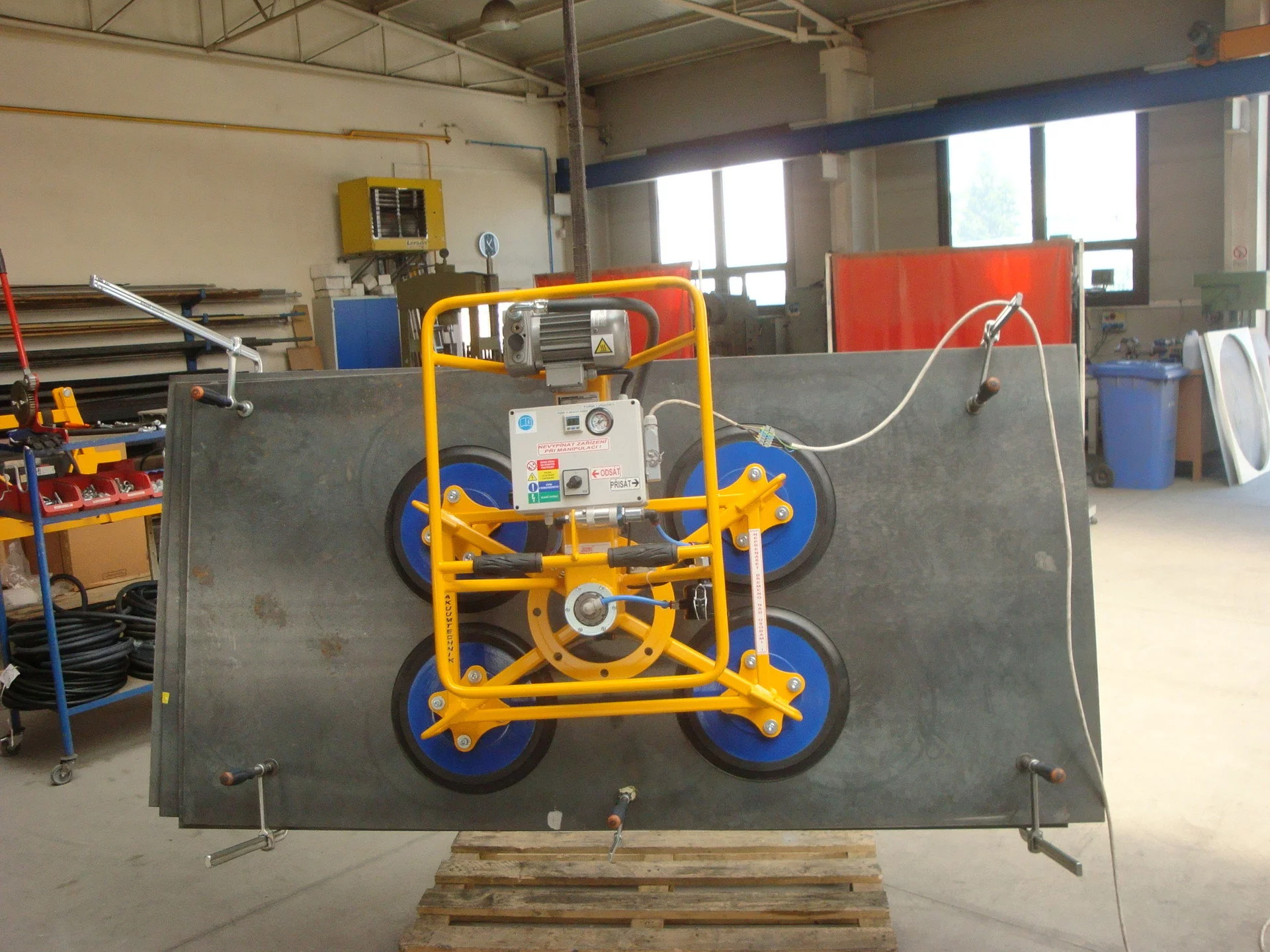

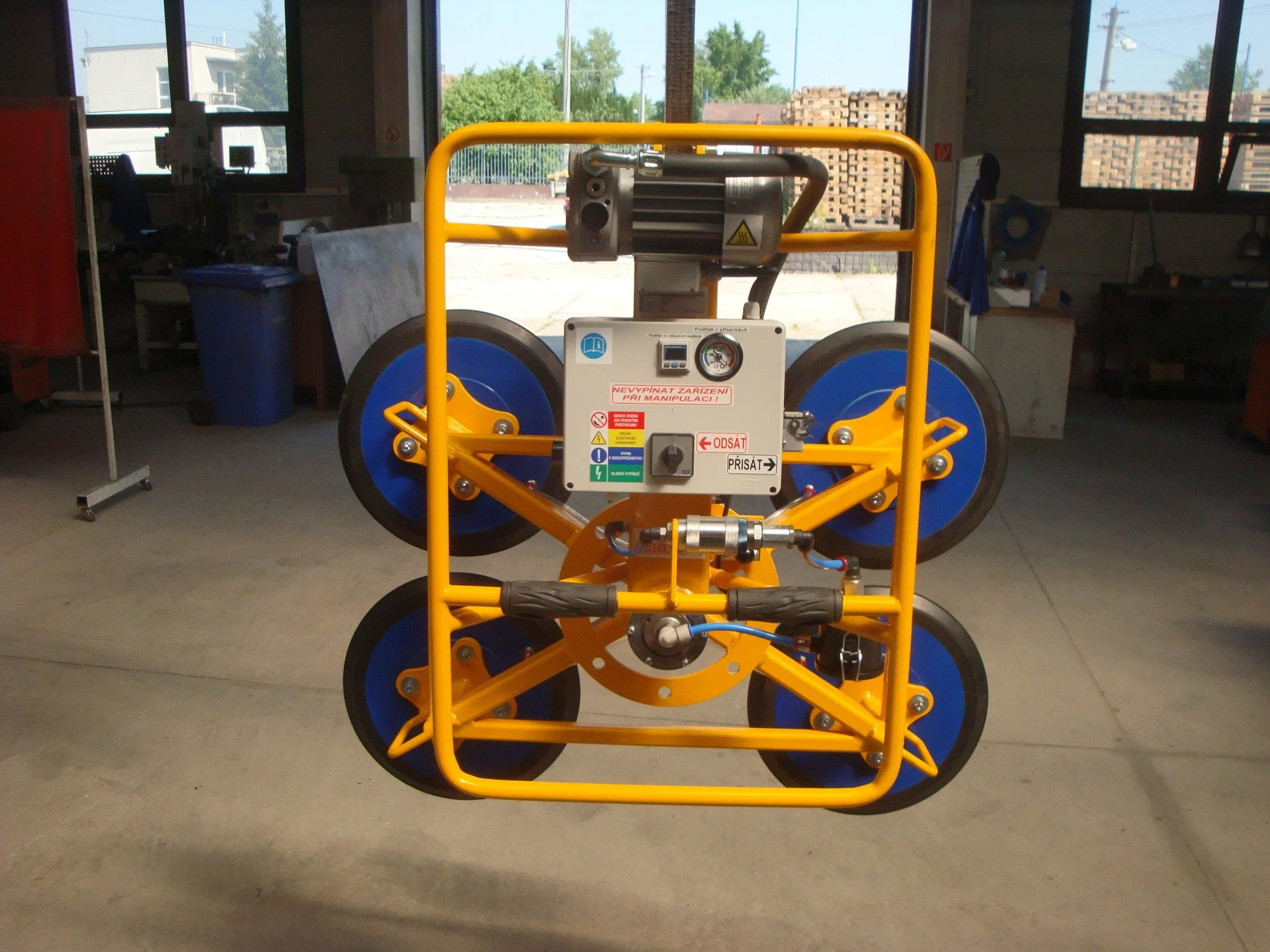

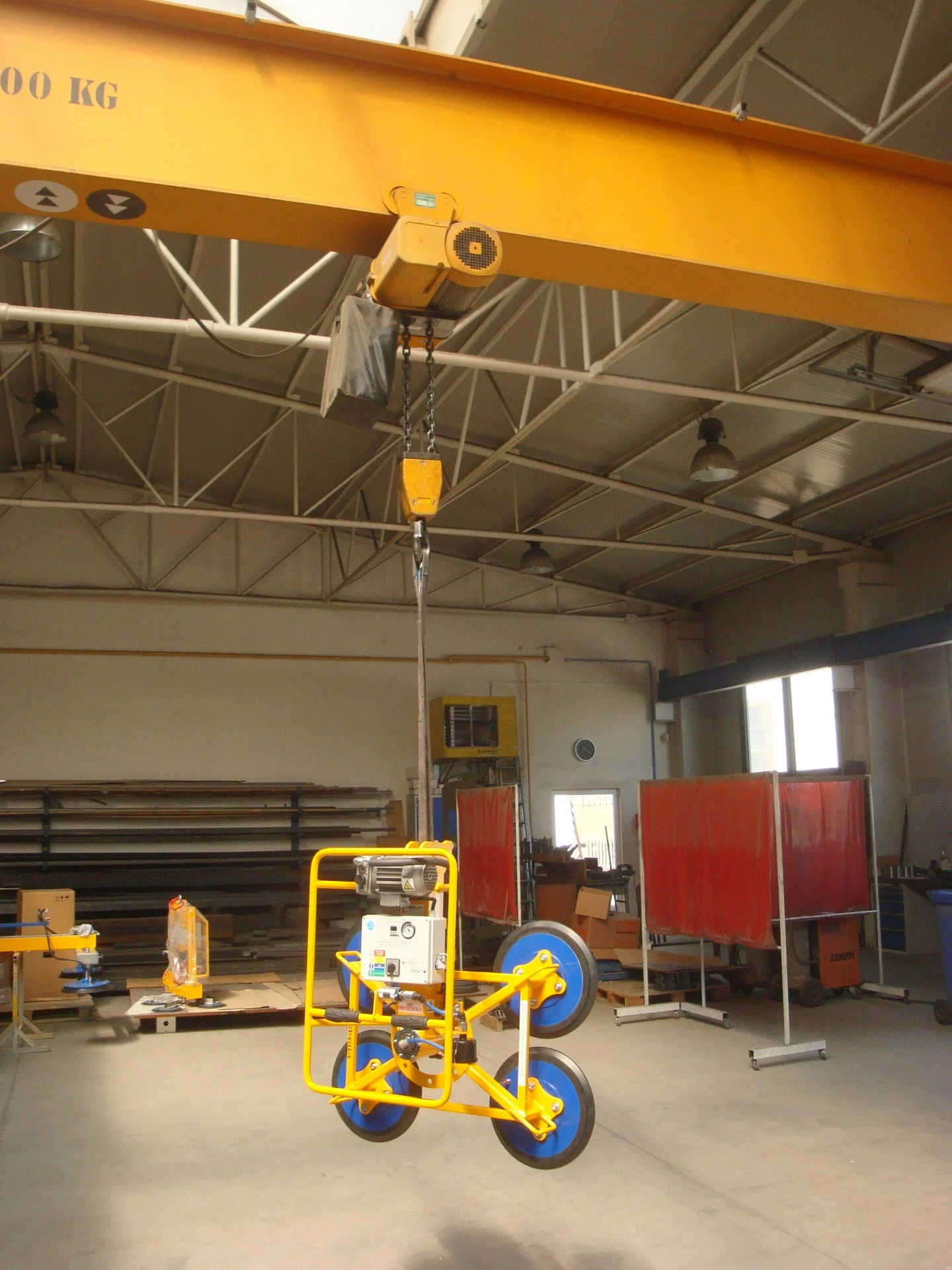

Photo gallery

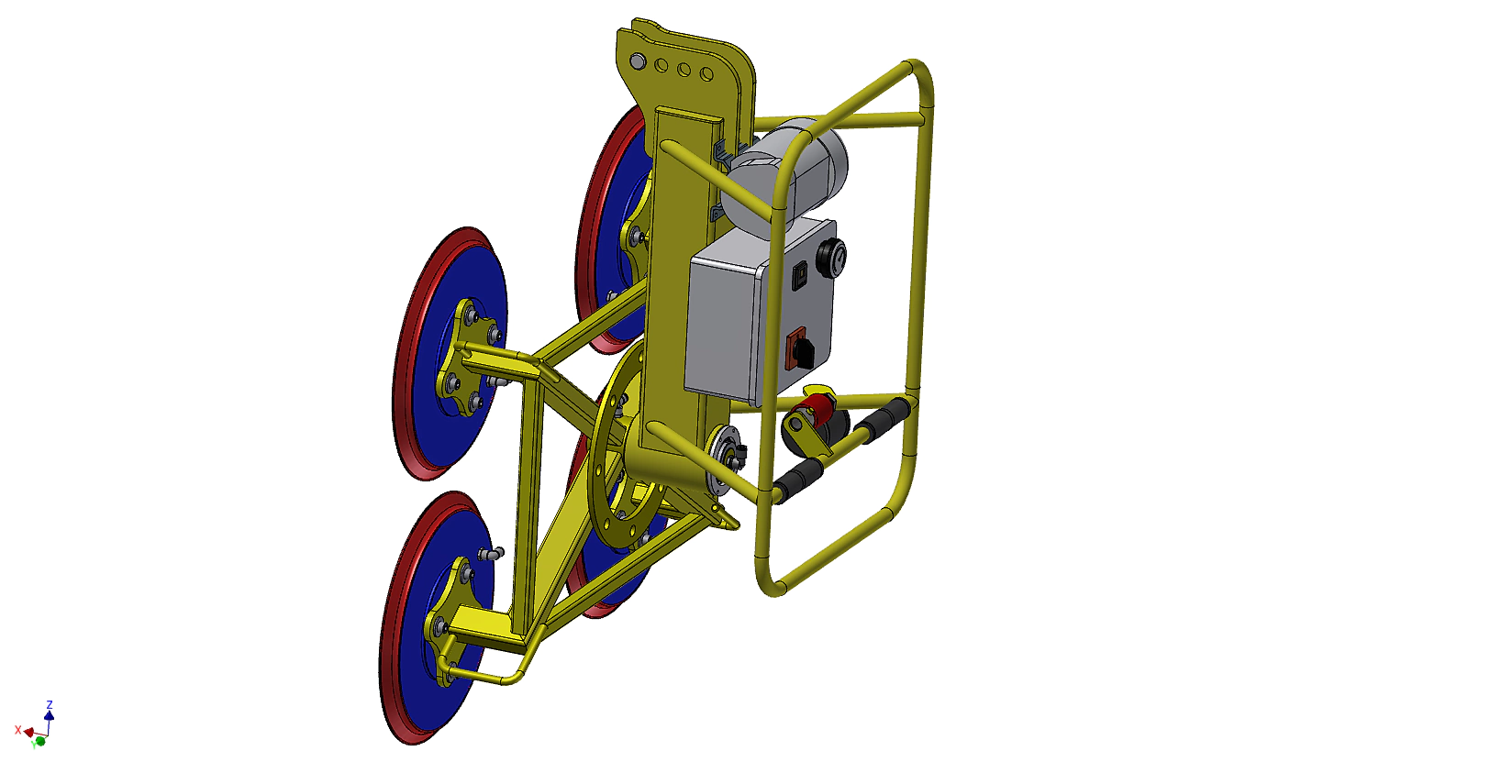

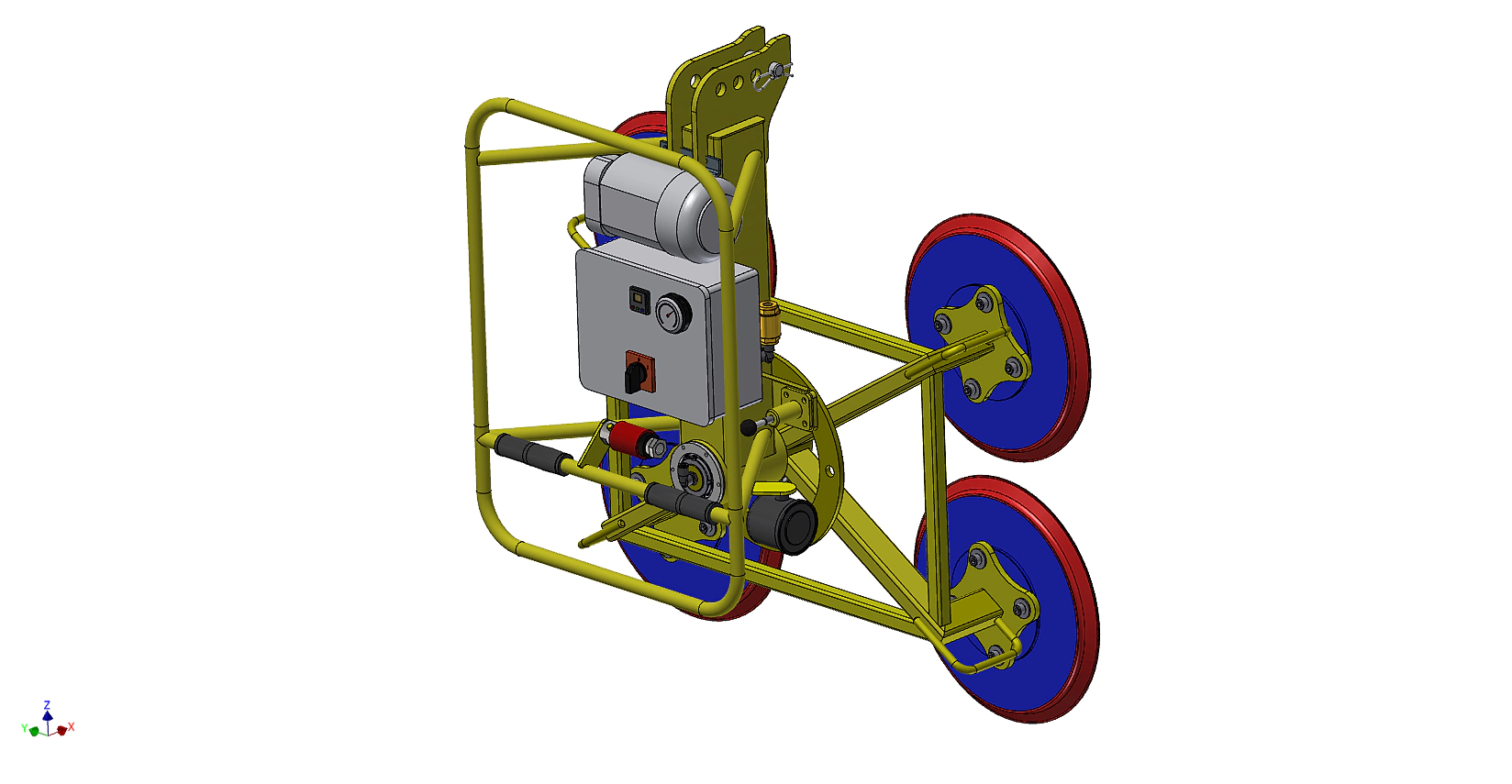

3D models + drawings
