MANUAL LIGHT OVERHEAD CRANE - JV-ZK

JV-ZK Manual Overhead Crane is a universal lifting device with a light manual travel and electricall ift.


JV-ZK Manual Overhead crane is suitable where it is necessary to cover a large handling area and at the same time have valuable floor space free for work and production areas.
Jeho silnou stránkou je ľahkosť ručného pojazdu, ktorý zaručuje rýchlo, spoľahlivo a hospodárne dopravovať materiál. Jeho flexibilita je umožnená z veľkého počtu modulárnych súčastí, poskytuje záruku realizácie na mieru.

Application:

JV-ZK Manual Overhead Crane is a universal lifting device suitable fortransporting materials on linear routes as well as for transporting materialswithin the entire site. This device can be mounted with lifting capacityranging from 150 kg to 1000 kg.

Benefits:

  • Aluminum construction, underpass on all sides
  • Variable dimensions, option to connect additional sections
  • System of closed-profile rails
  • Possibility to mount several bridges
  • Manual guidance of the suspended tool in two axes “x¨ and “y¨

Basic technical information:

Lifting capacity (WLL)150, 250, 500 a 1000 kg
Lifting speed17/2,8 m/min (125 kg), 10/1,7 m/min (250 kg), 7,6/1,3 m/min (500 kg), 7,1/1,2 m/min (1000 kg)
Travel speed of electric hoistmanual pusher
Speed of crane travelmanual pusher
Power supply3+PE (PEN) 50 Hz 400V / TN-C

Information table:

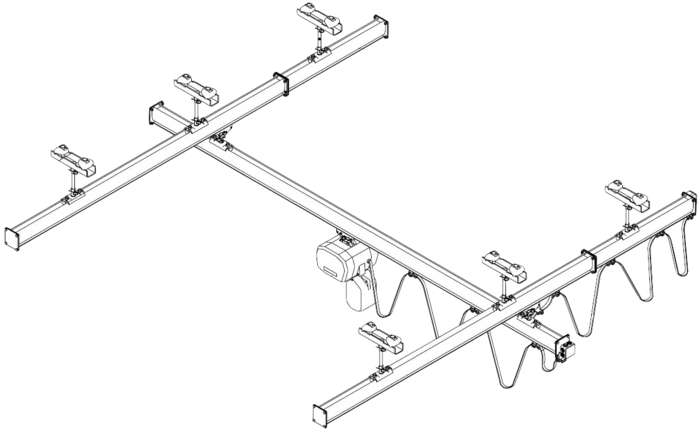

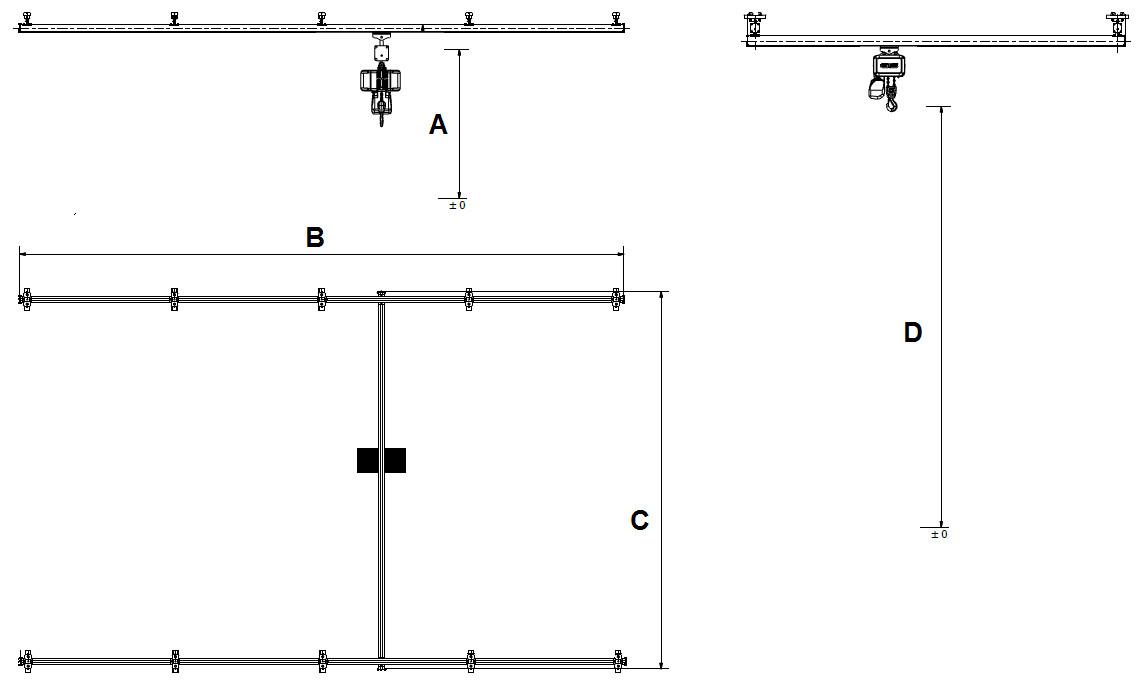

TYPE JV-ZKMAX. CAPACITY (kg)Profile systemA (mm)B (mm)C (mm)D (mm)E (mm)
JV-ZK 150150EEPOSmin. 3500 max. 5000min. 2000 max. 99000min. 1000 max. 8000min. 3000 max. 4500min. 2500 max. 3500
JV-ZK 250250EEPOSmin. 3500 max. 5000min. 2000 max. 99000min. 1000 max. 8000min. 3000 max. 4500min. 2500 max. 3500
JV-ZK 500500EEPOSmin. 3500 max. 5000min. 2000 max. 99000min. 1000 max. 8000min. 3000 max. 4500min. 2500 max. 3500
JV-ZK 10001000EEPOSmin. 3500 max. 5000min. 2000 max. 99000min. 1000 max. 8000min. 3000 max. 4500min. 2500 max. 3500

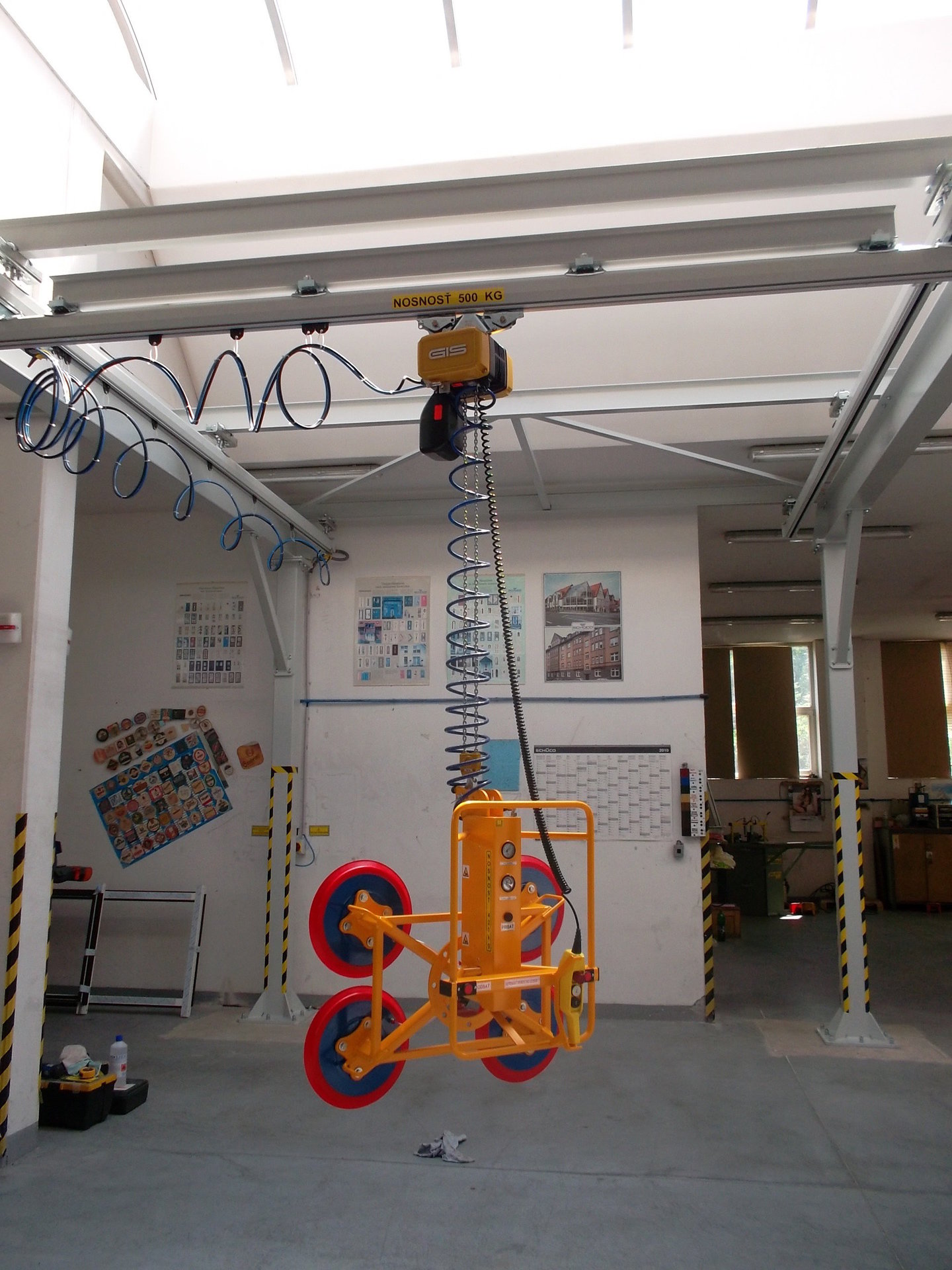

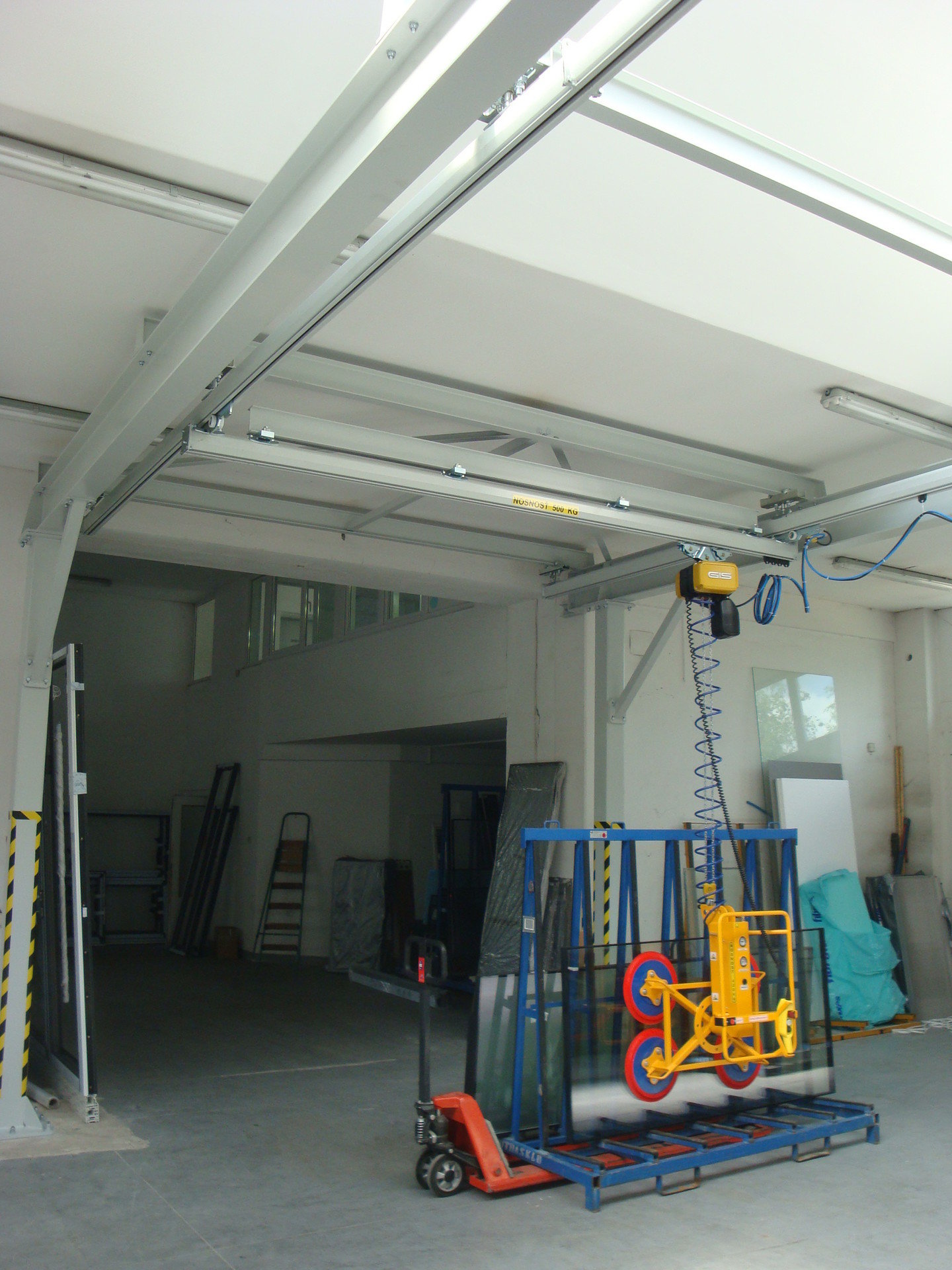

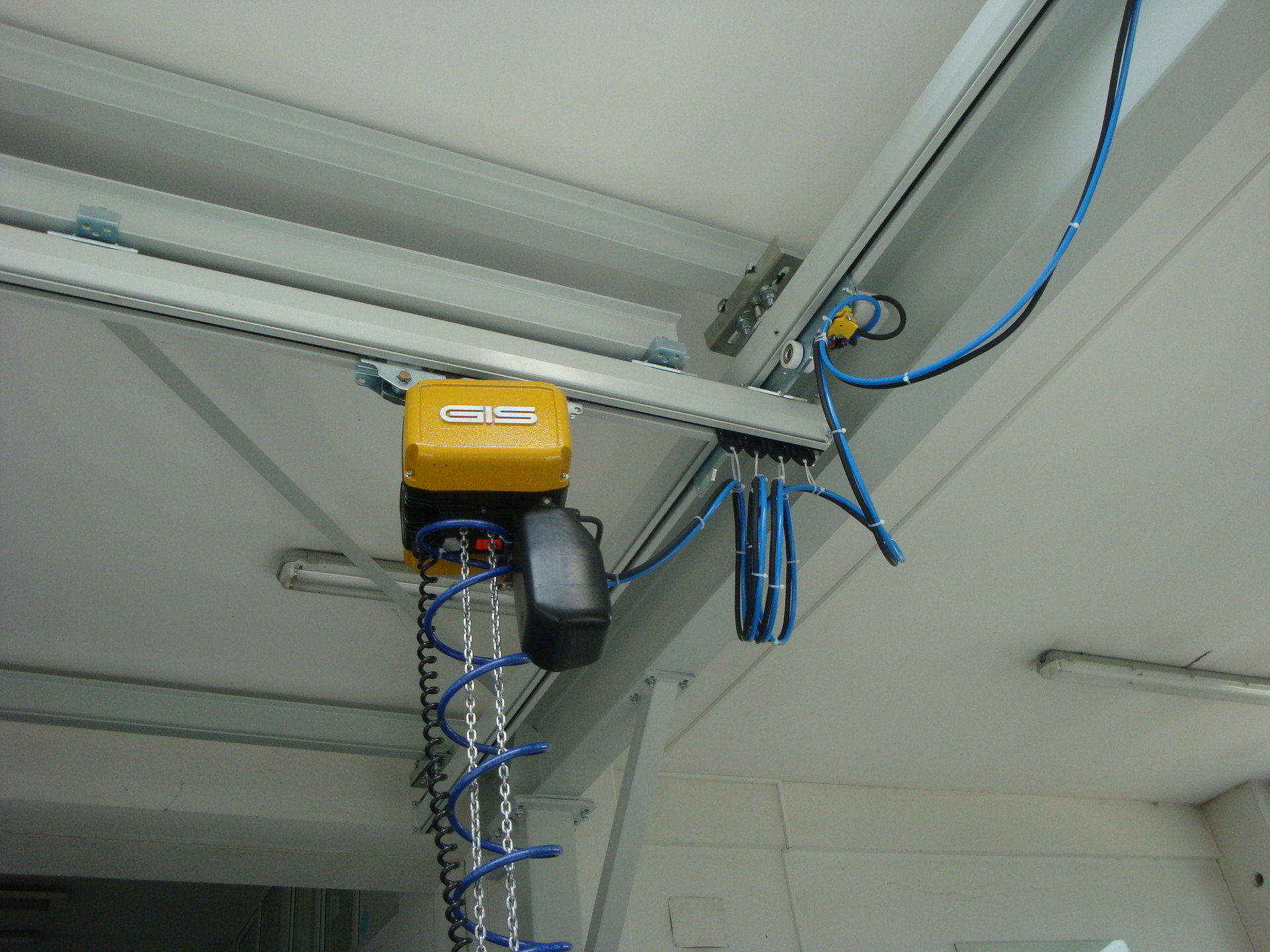

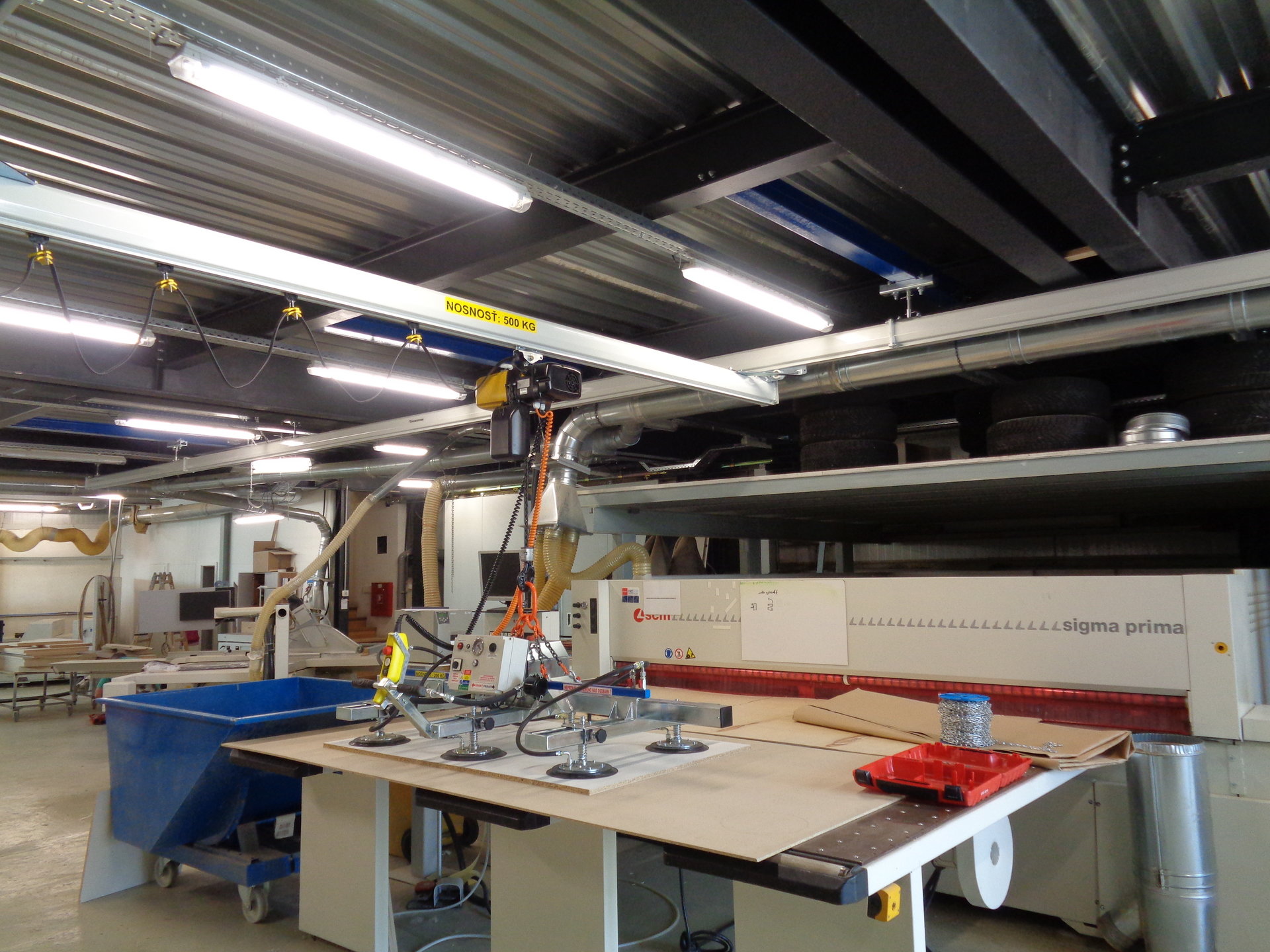

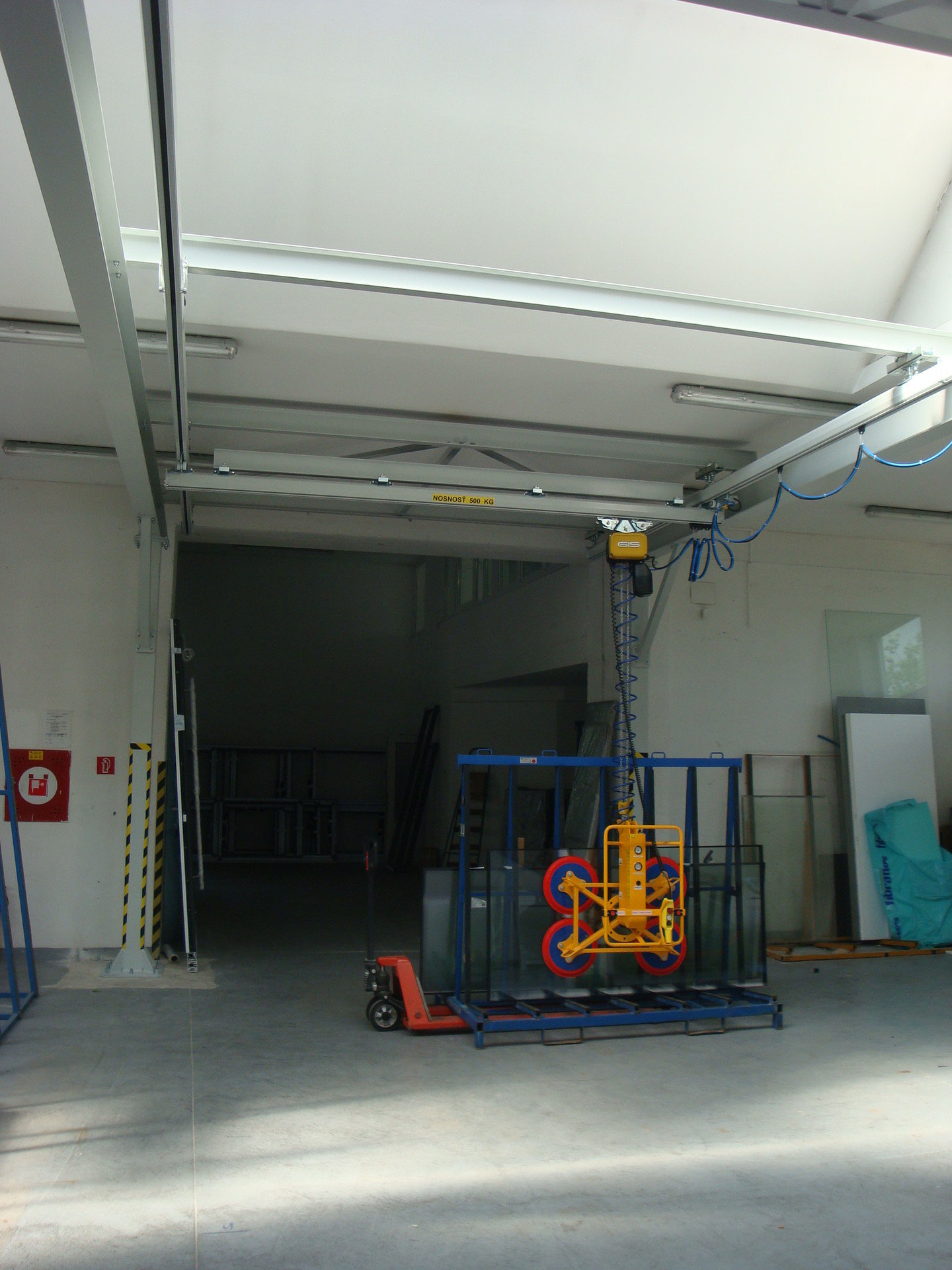

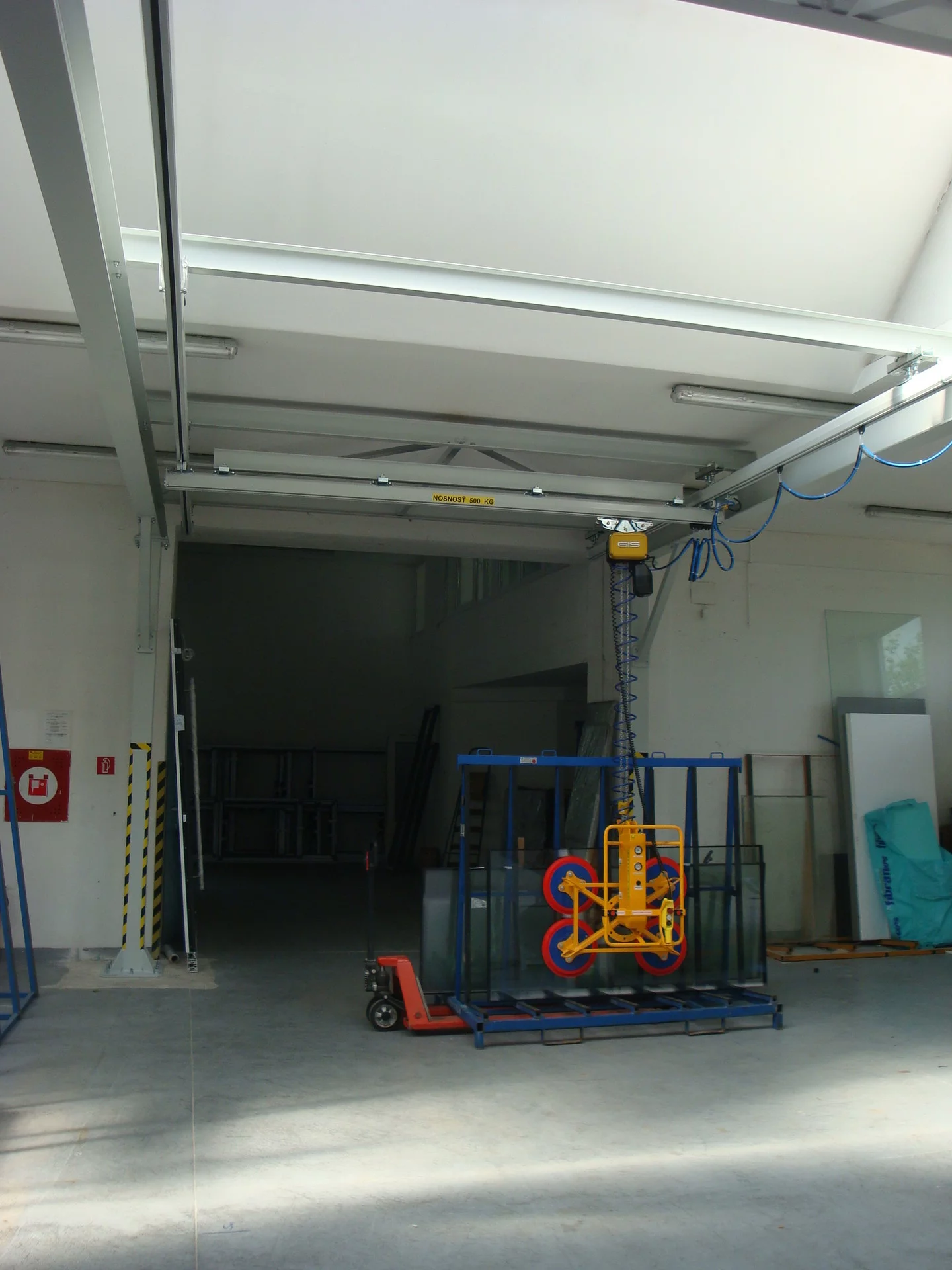

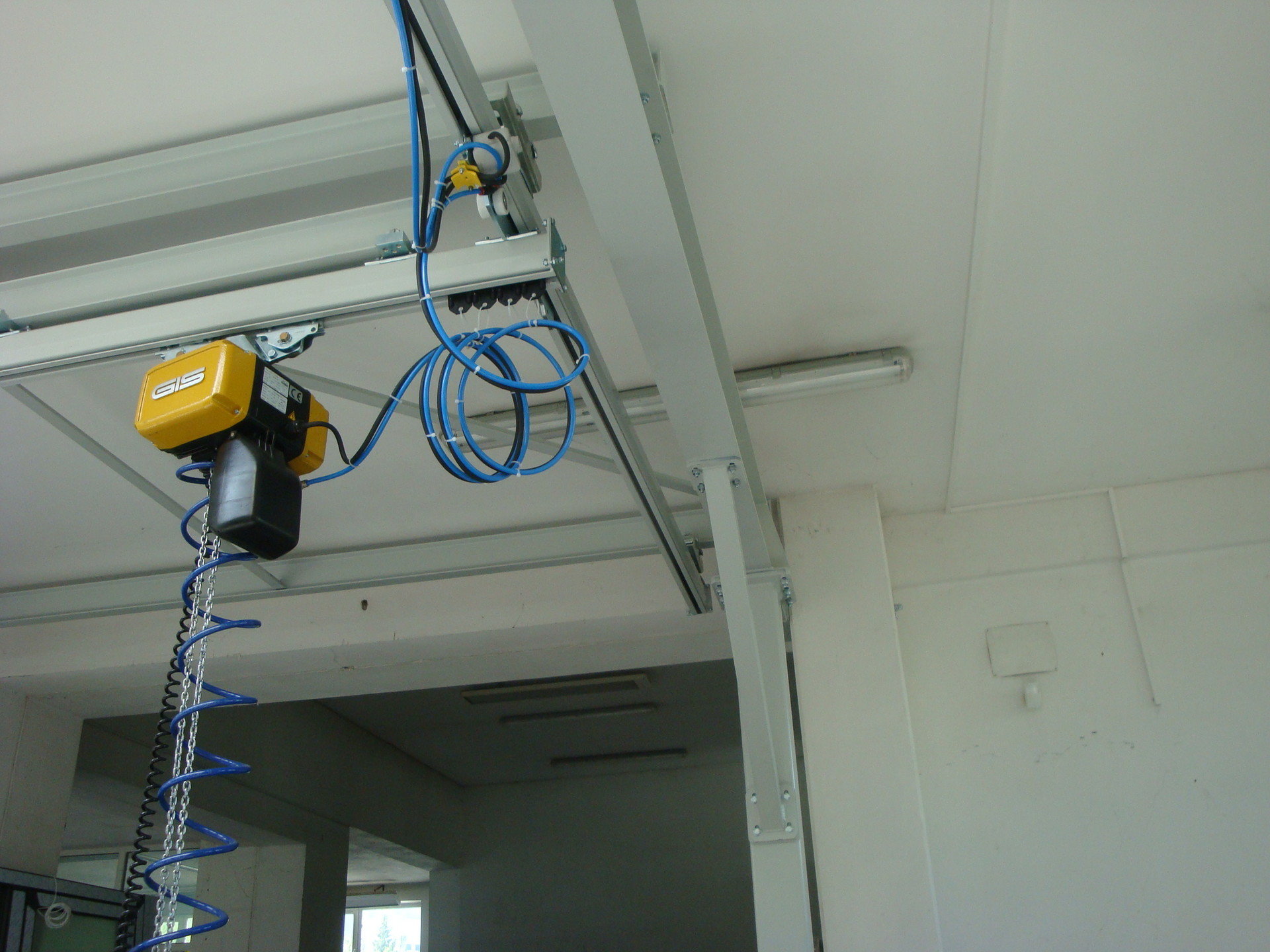

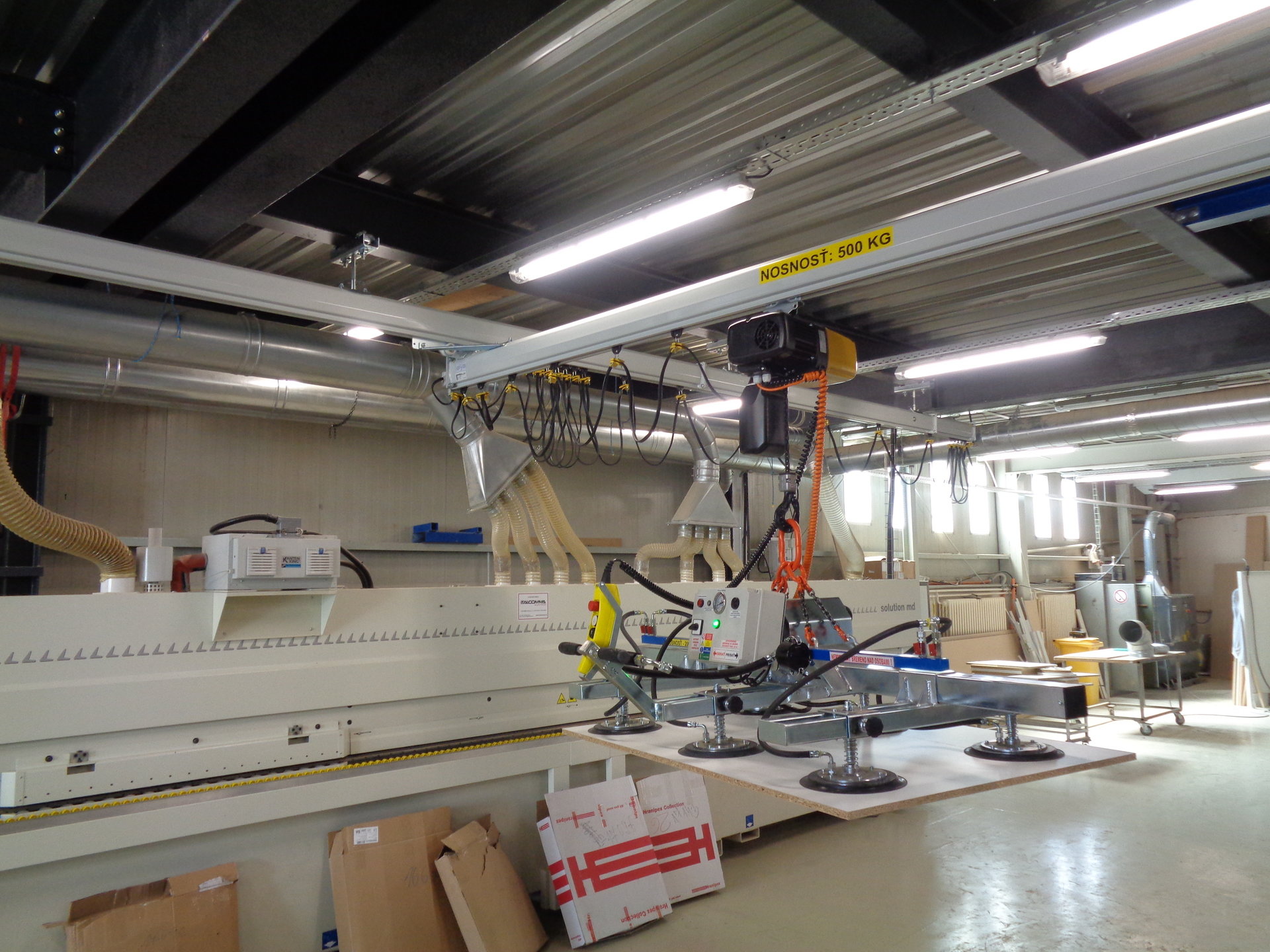

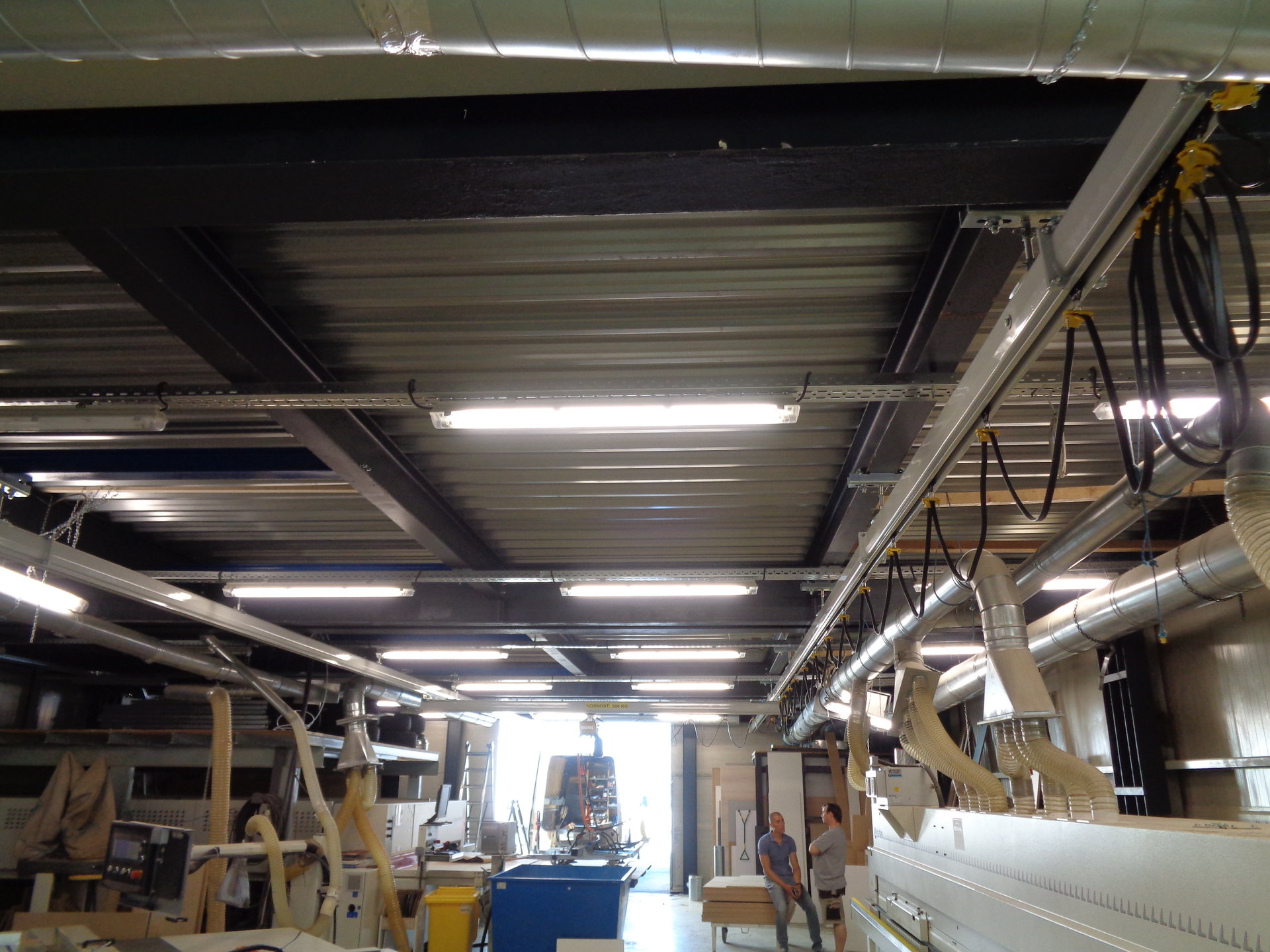

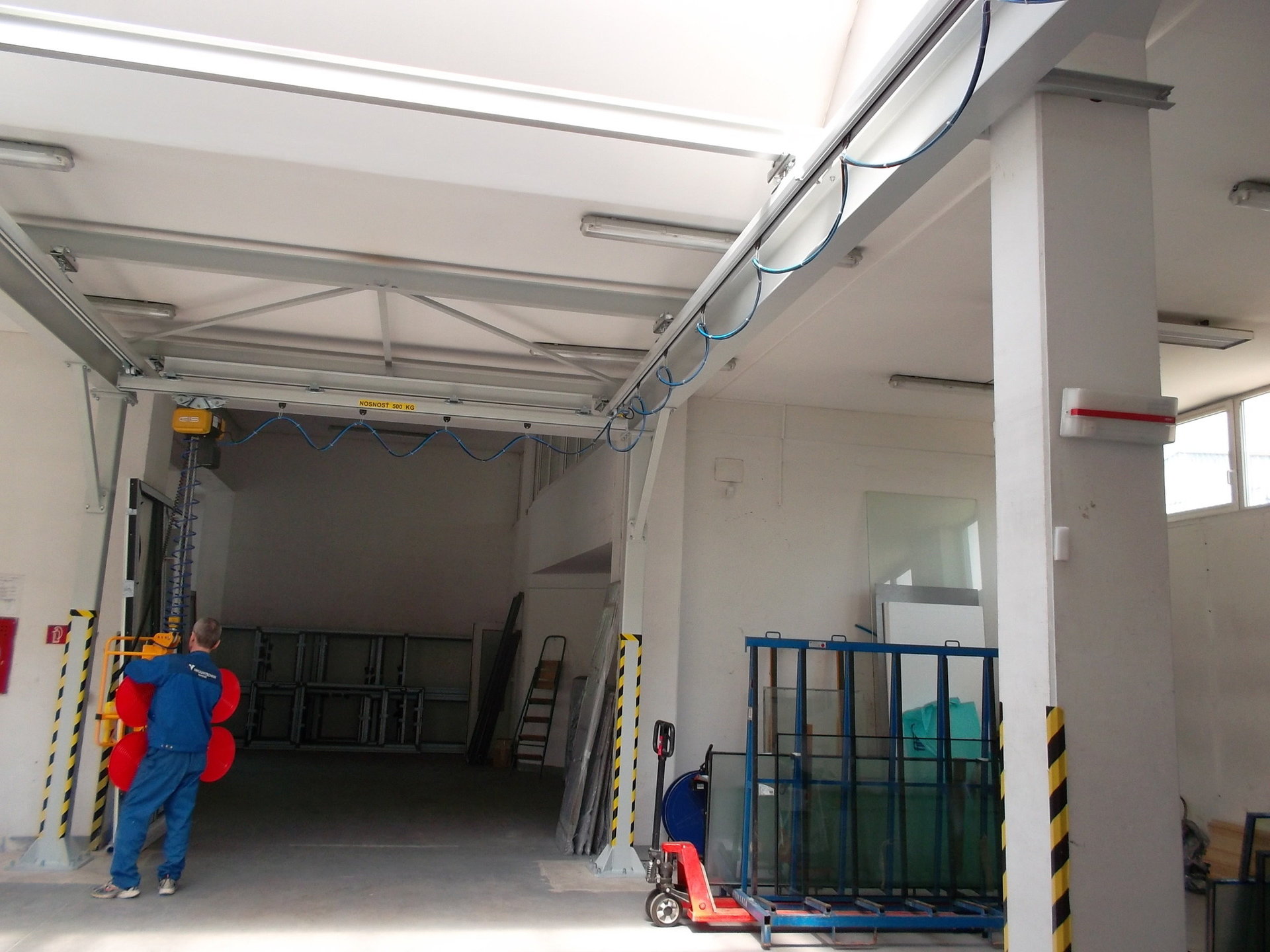

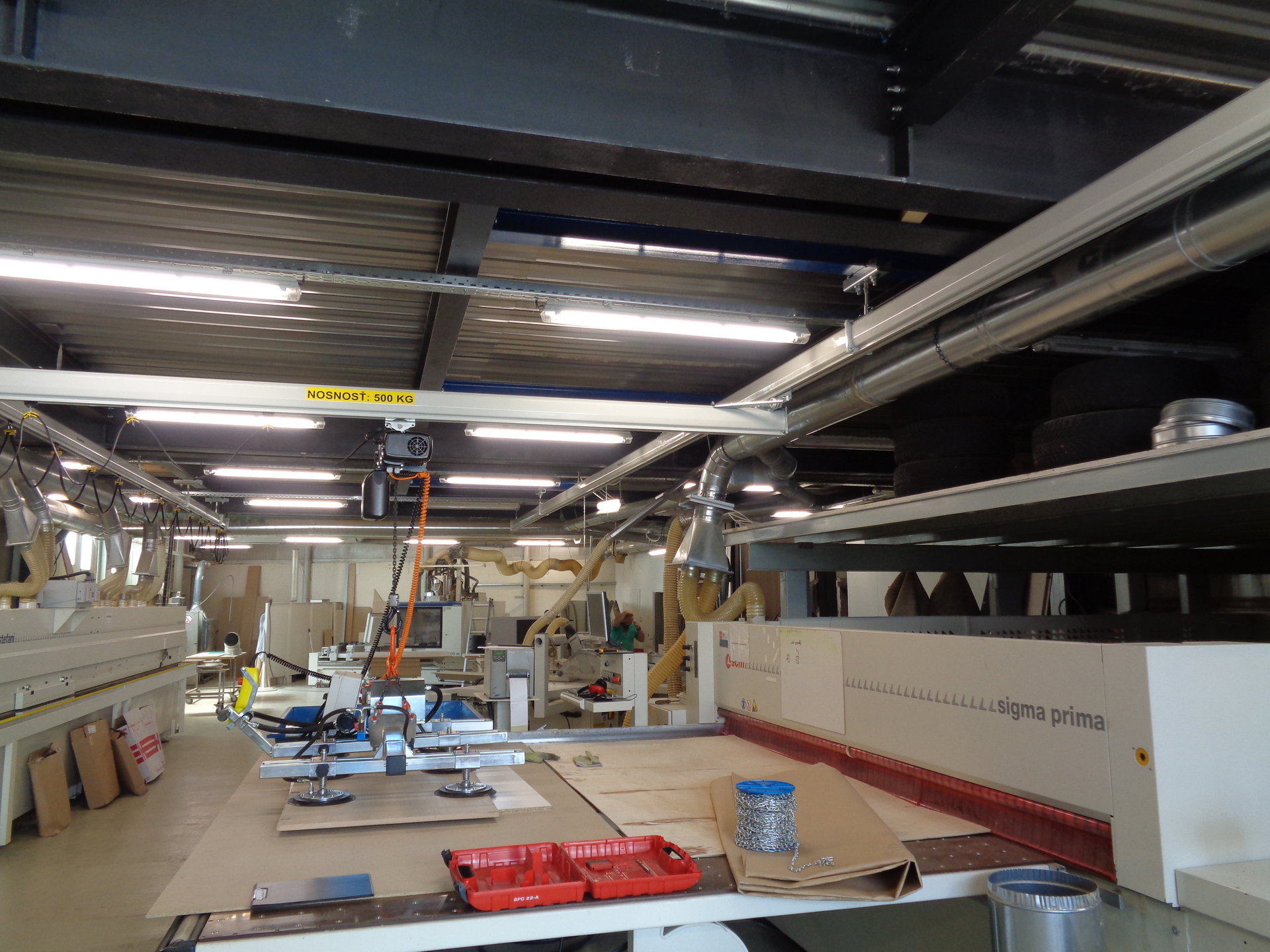

Photo gallery

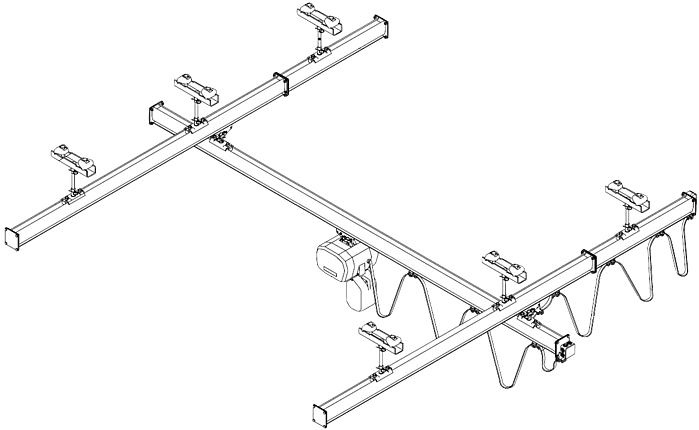

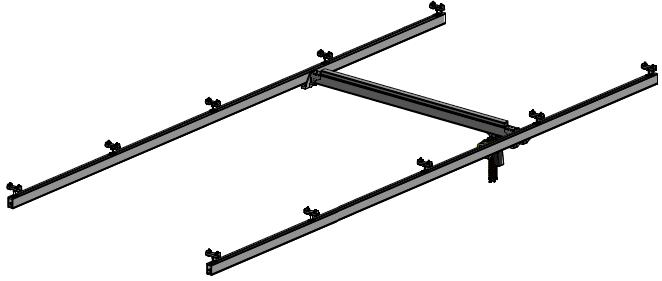

3D models - drawings
