VACUUM MANIPULATOR - VM 250/10-180°HYD

Basic description:

  • main supporting steel structure with a multipositional suspension
  • Hydraulically tilting suction cup with max. angle 180°
  • cross beams manually adjustable in the "x" axis
  • eight suction cups in size 400x100 mm a suction cups in size 250x100 mm
  • suction cups manually adjustable in “y¨ axis
  • Vacuum pump – 400V design, three phase system
  • vacuum tank ensures safe lifting of the load even in the event of an unexpected power failure of the pump
  • acoustic and visual signalisation of insufficient vacuum in suction cups
  • GRIP - thrugh push-button control conveniently located at the control handles on the spiral cable up to 3 m
  • RELEASE - thrugh a push-buttons control conveniently located at the control handles on the spiral cable up to 3 m
  • TILTING the load by 0 ° / 180 ° via push-button control on a spiral cable up to 3 m
  • spiral cable for connecting a manipulator up to 3 meters
  • quick-clamping system el. connection via connector

Application:

The vacuum manipulator VM 250/10-180°/HYD is a handy little gripping device that allows you to grip and handle small, medium or large-sized flat loads up to 250 kg in a horizontal or vertical position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the vacuum manipulator will be suspended on.

Potential types of loads to be handled:

✓    Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
✓    Glass plates and boards
✓    Plastic plates and boards
✓    Stone with grinded surface
✓    Wooden plates and boards covered with air-tight finish

Benefits:

Simple – very convenient anddedicated device that is easy to operate

Variable – transverse beams and suction cups on the beam can beeasily adjusted by hand

Safe – safety guaranteed in every situation

Basic technical information:

Maximum load capacity250 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin a horizontal or vertical position
Weight240 kg
Max. load dimensions3000x1500 mm
Min. load dimensions2000x1000 mm
Power supplya) 3+PE (PEN) 400VAC/50Hz/15VAC

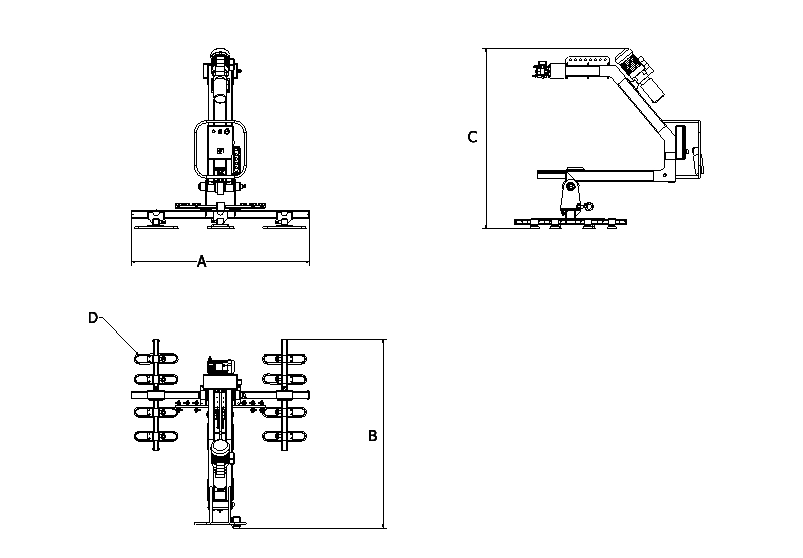

Information table:

Number of suction cups / dimensions (mm)MAX. CAPACITY (kg)WEIGHT (kg)A (mm)B (mm)C (mm)D (mm)E (mm)
8/400x1002502401610167615281651400x100
2/250x100250x100

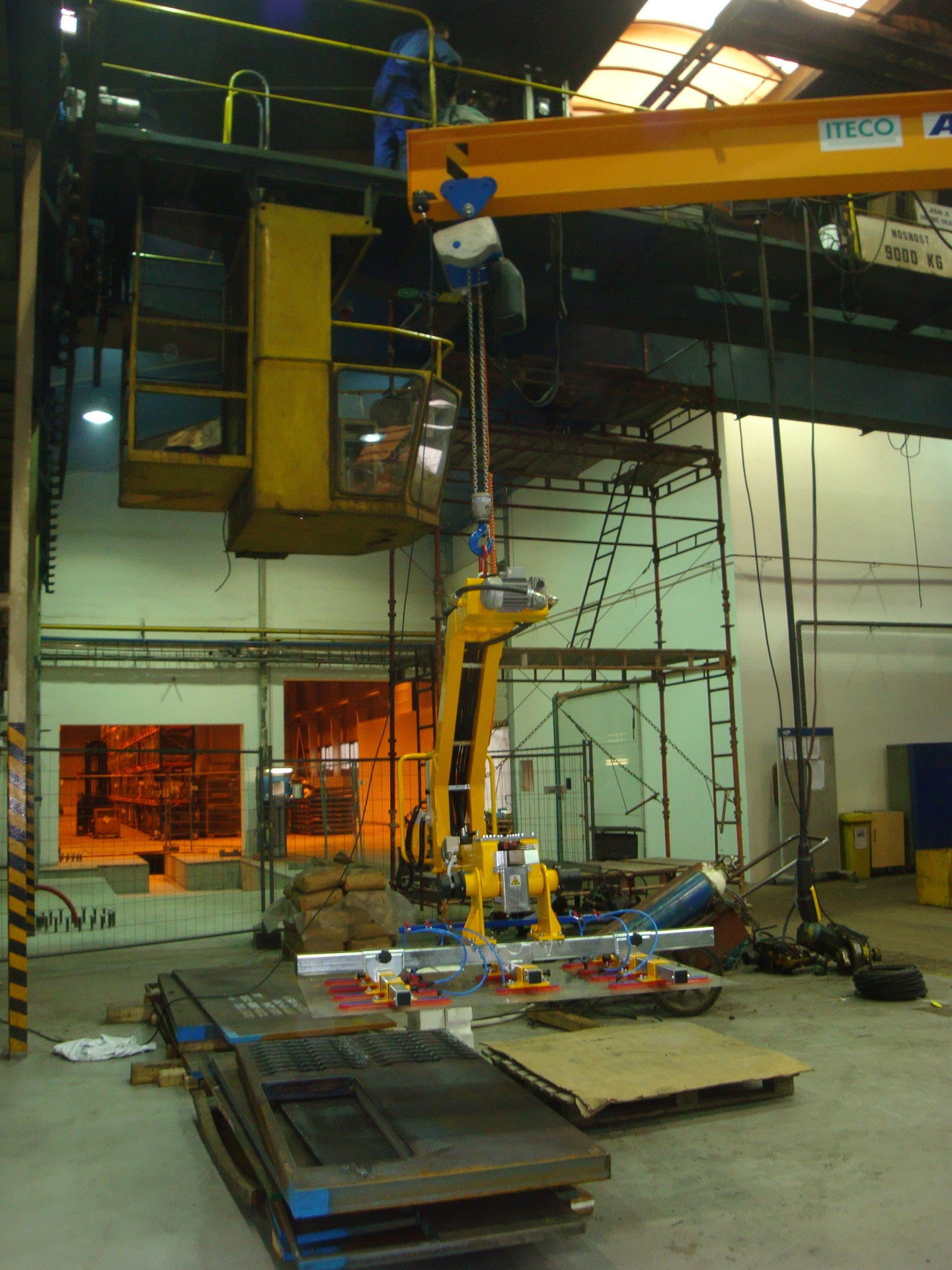

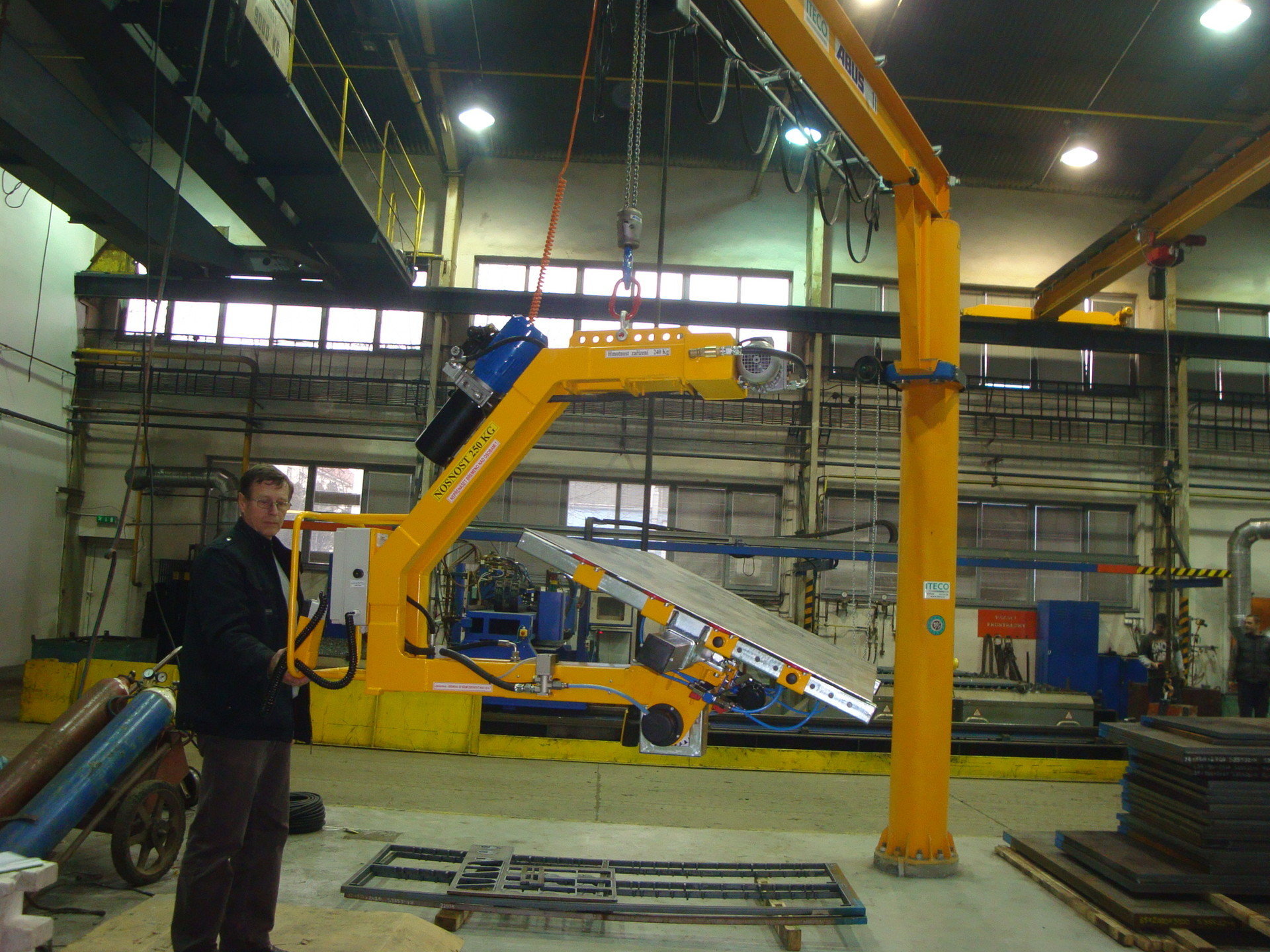

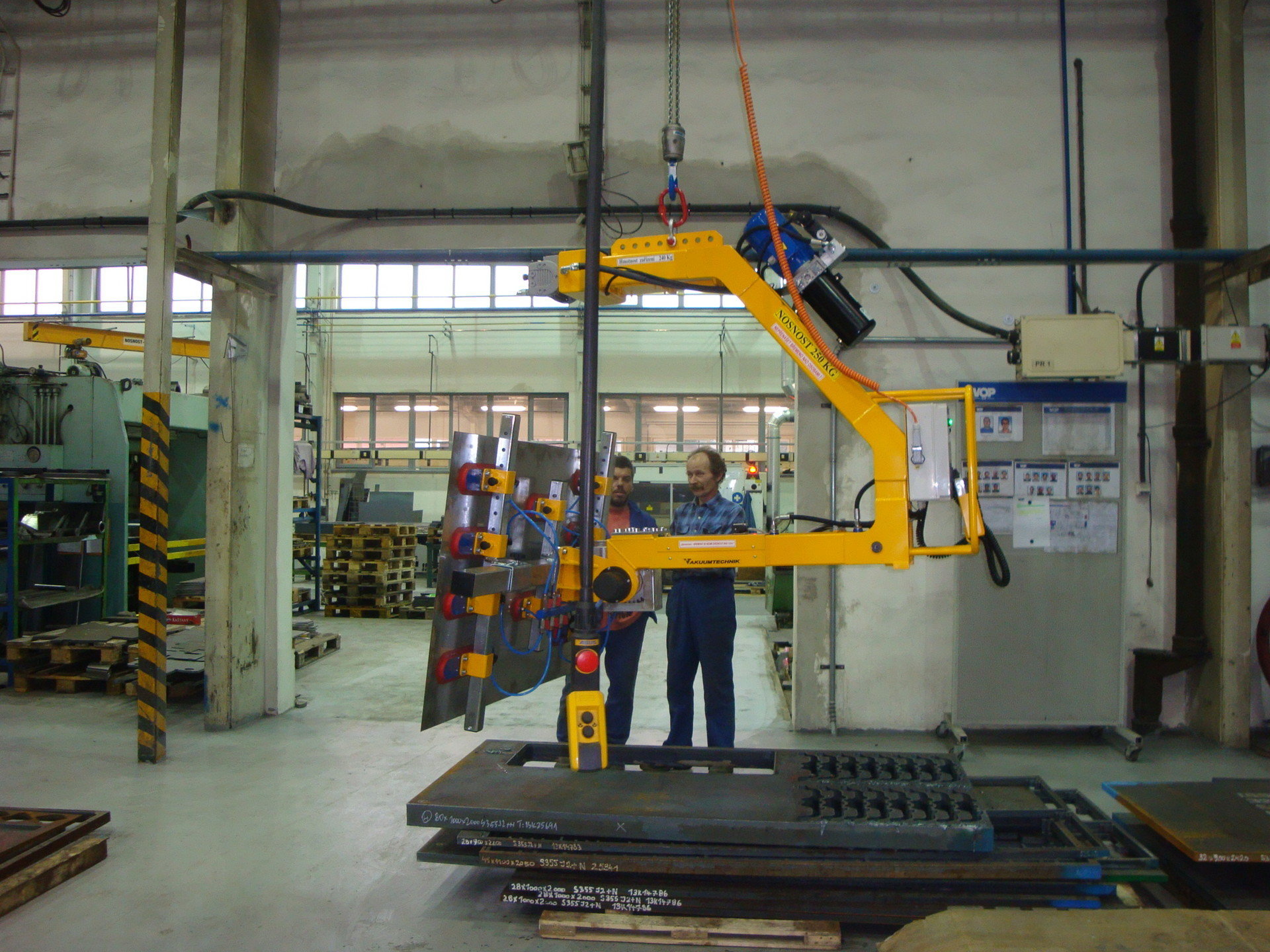

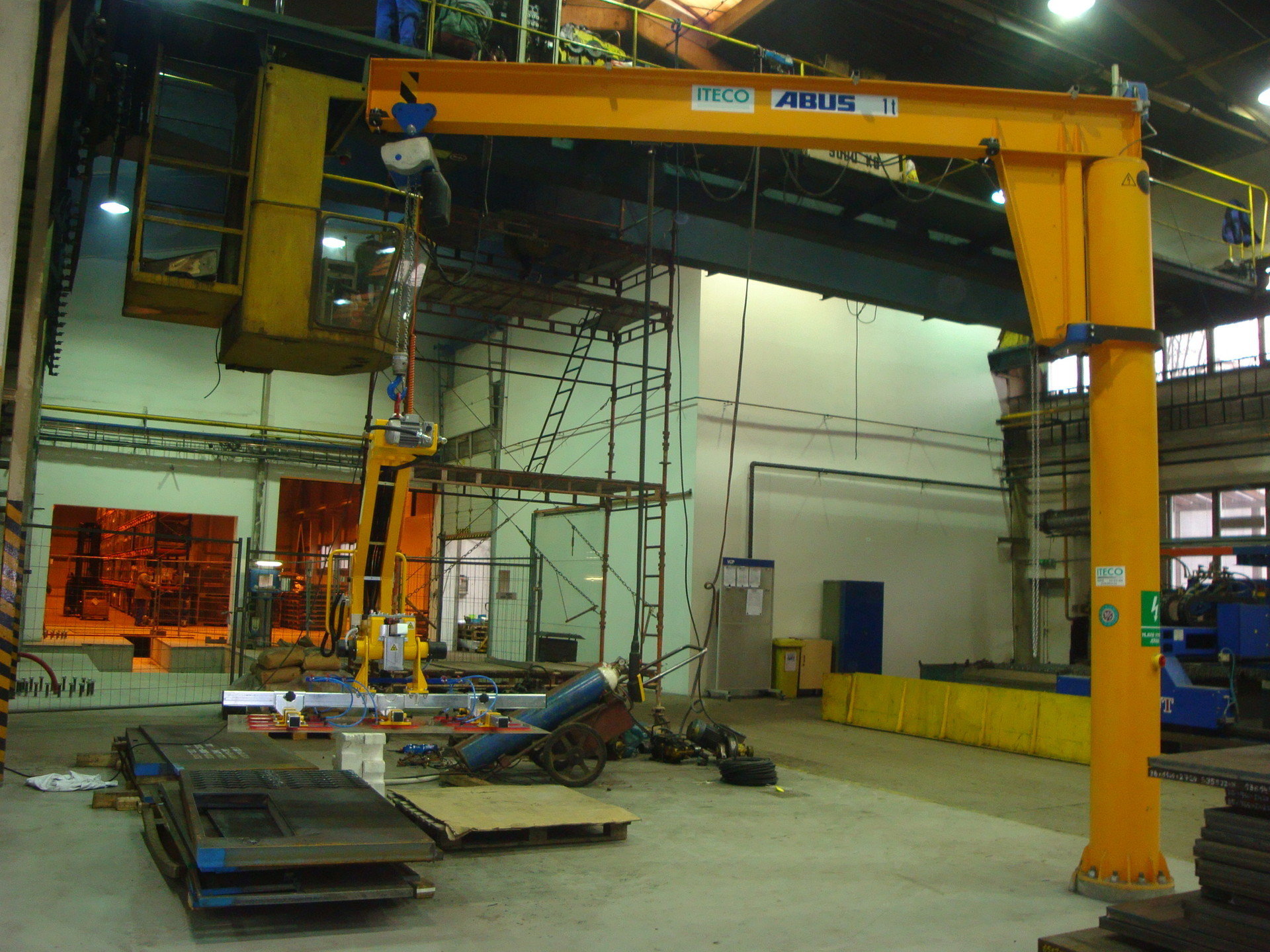

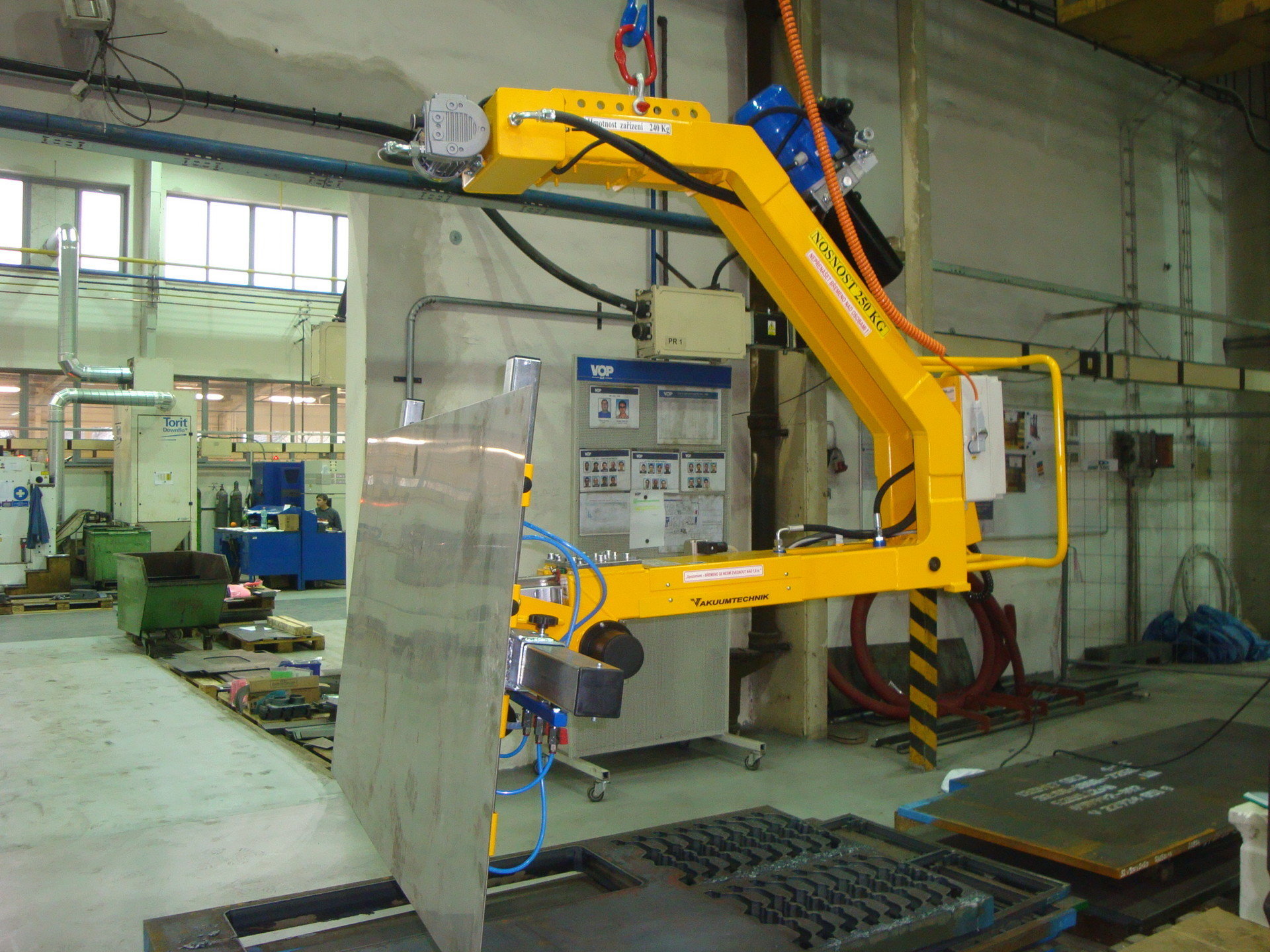

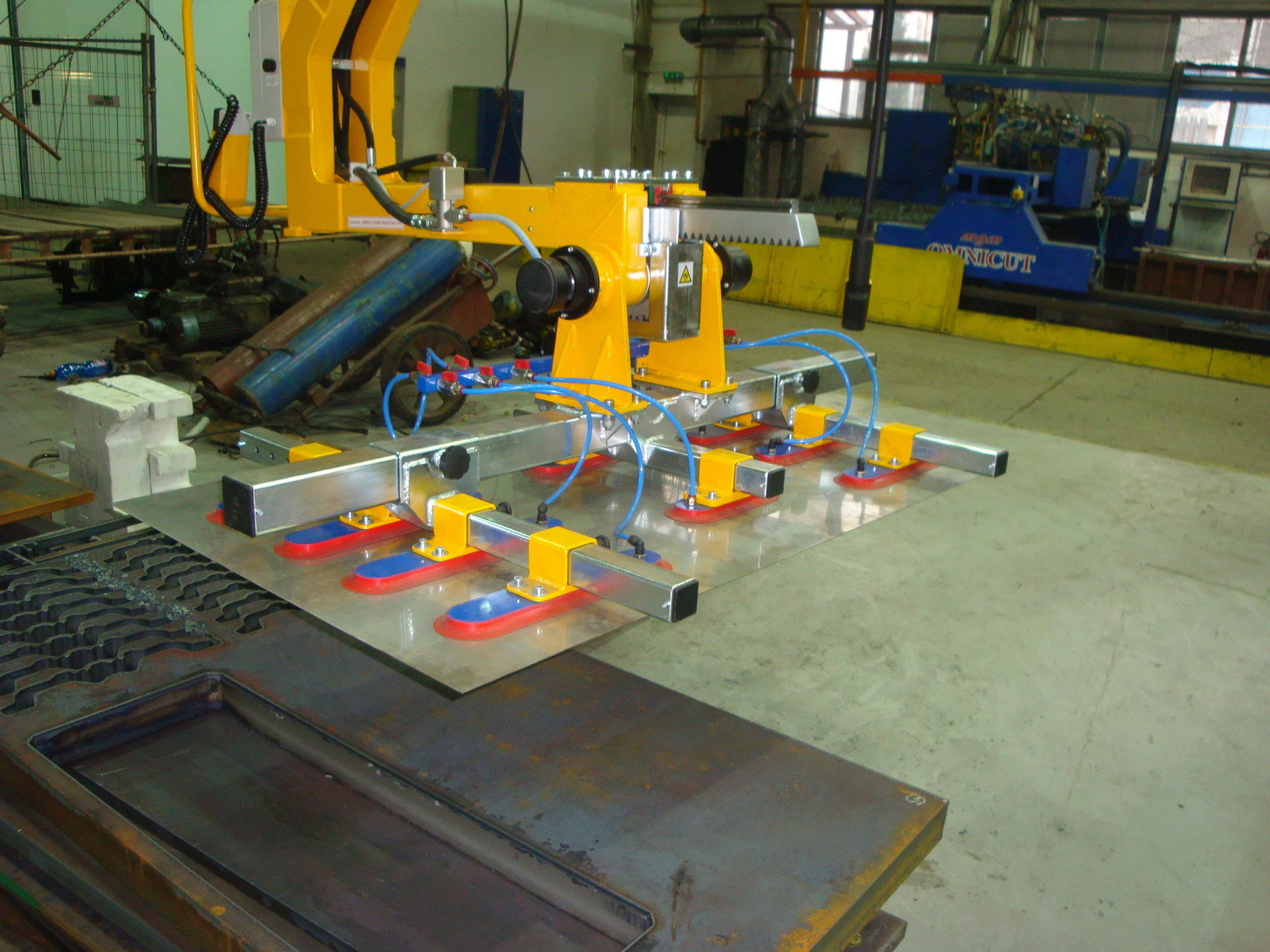

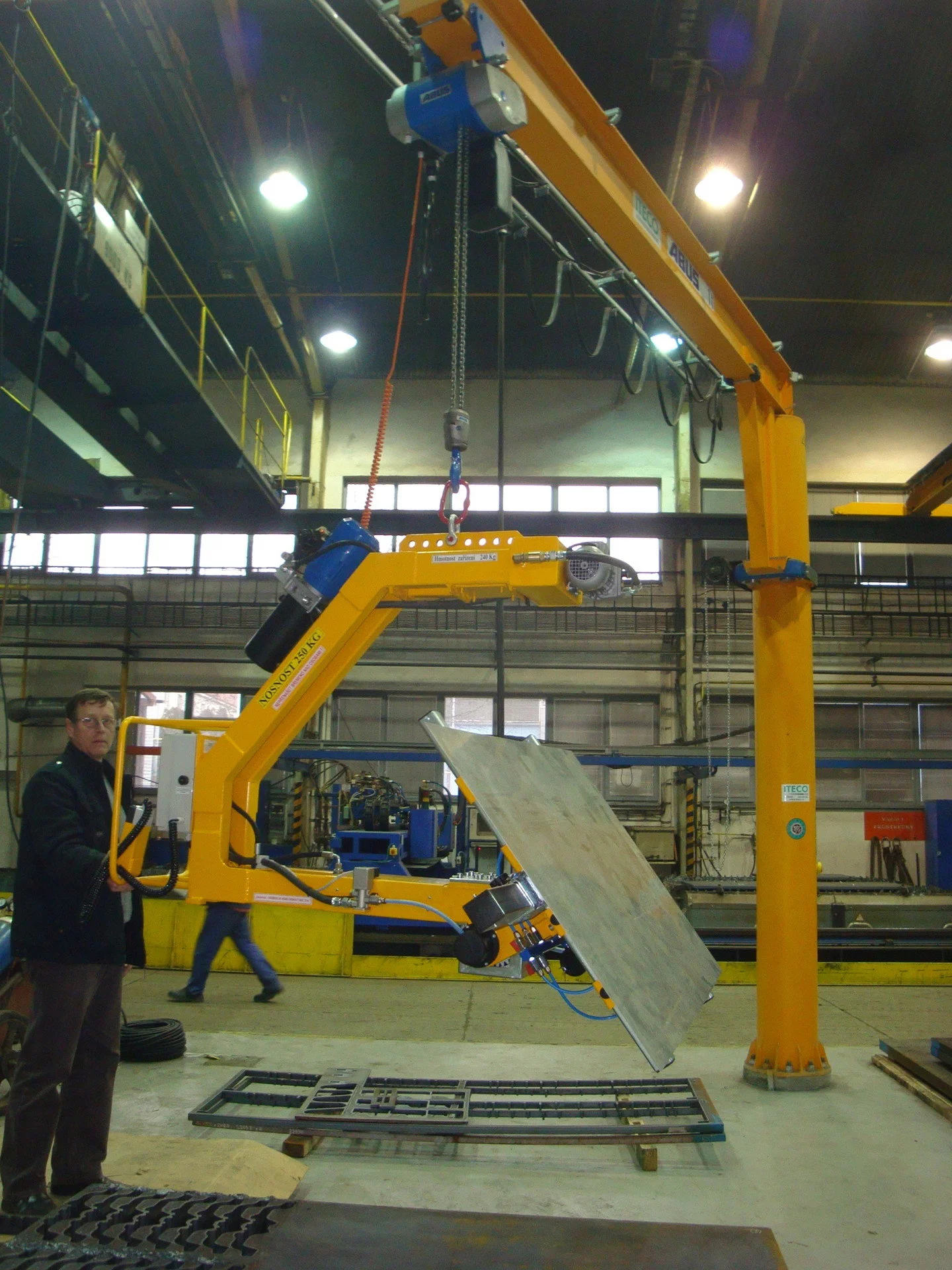

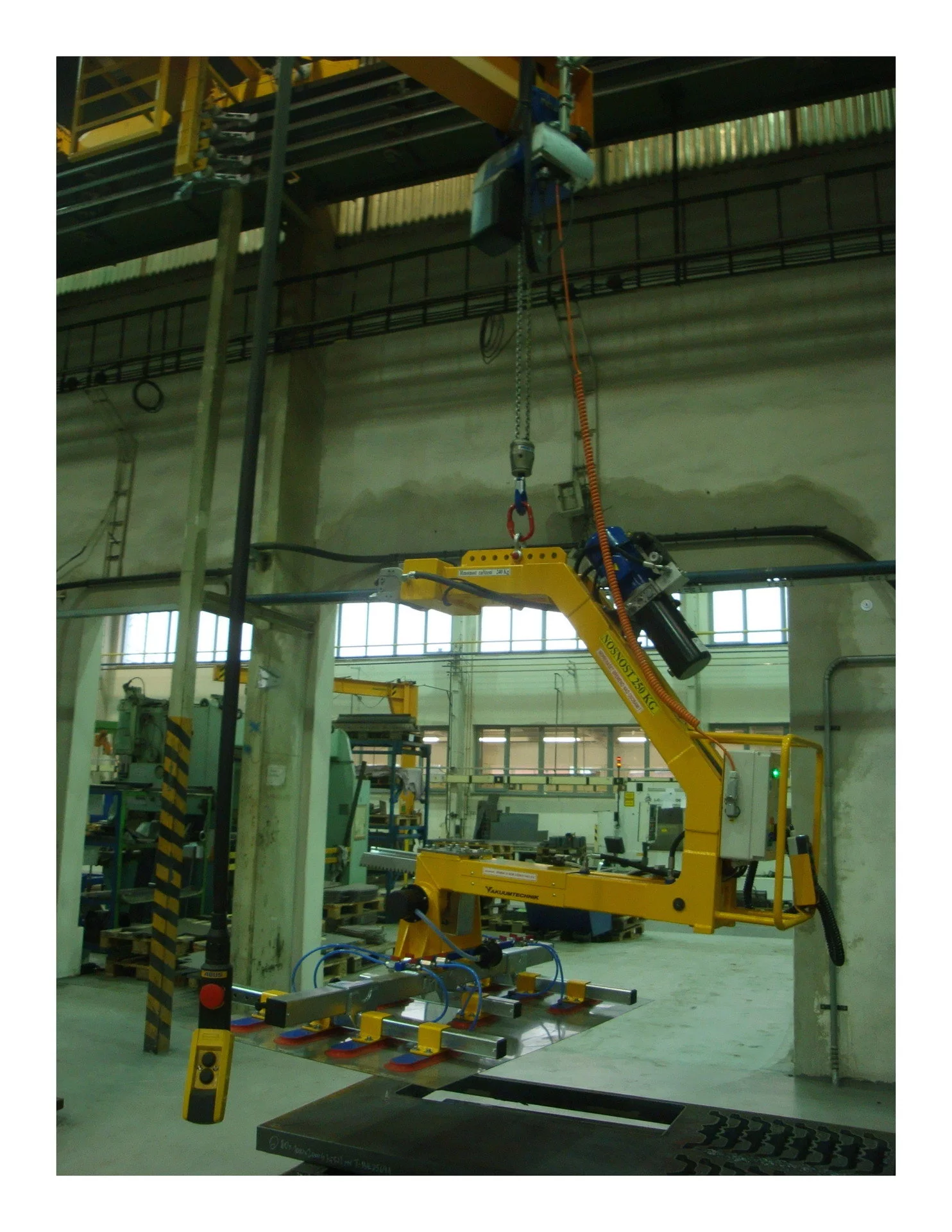

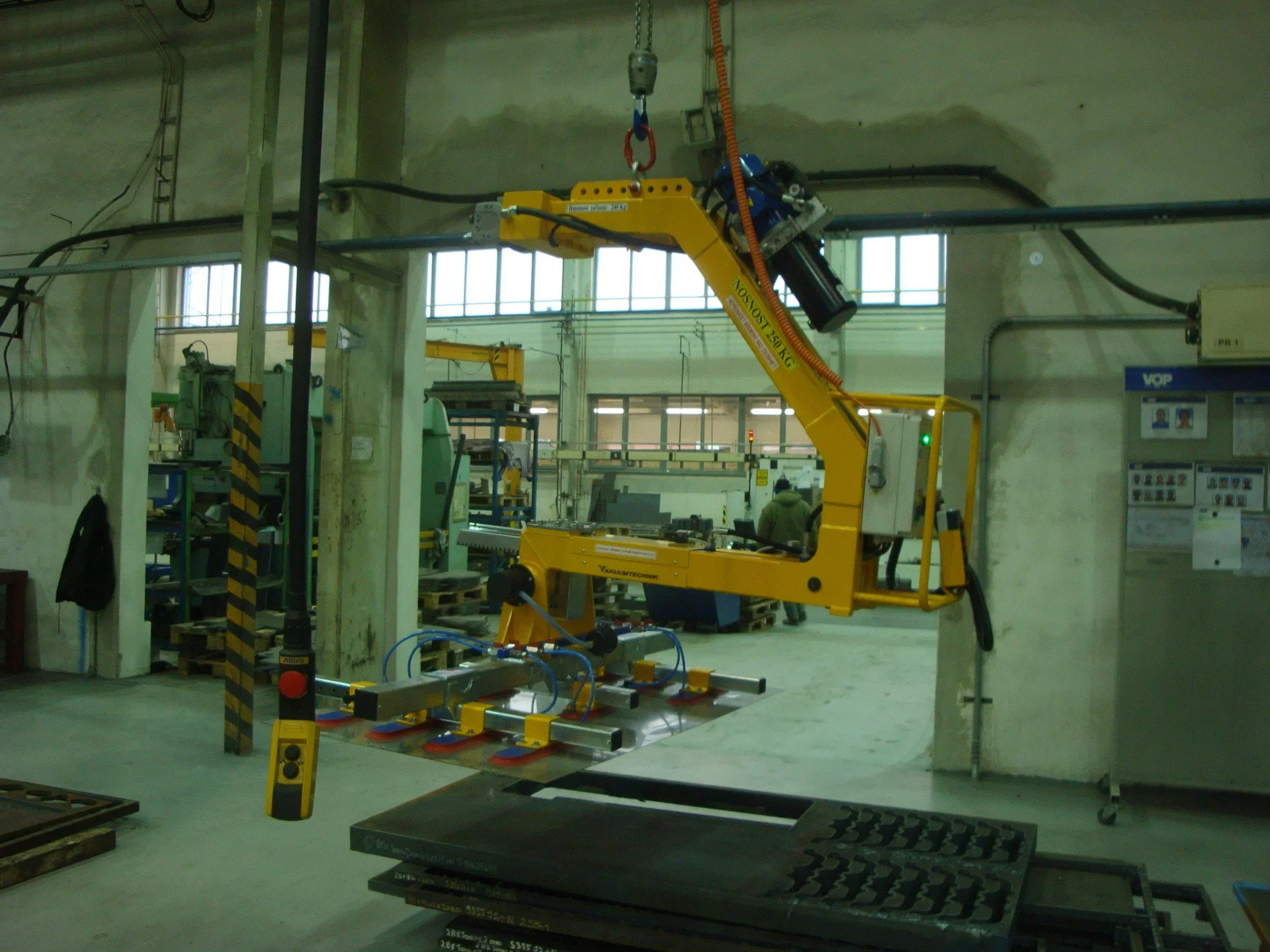

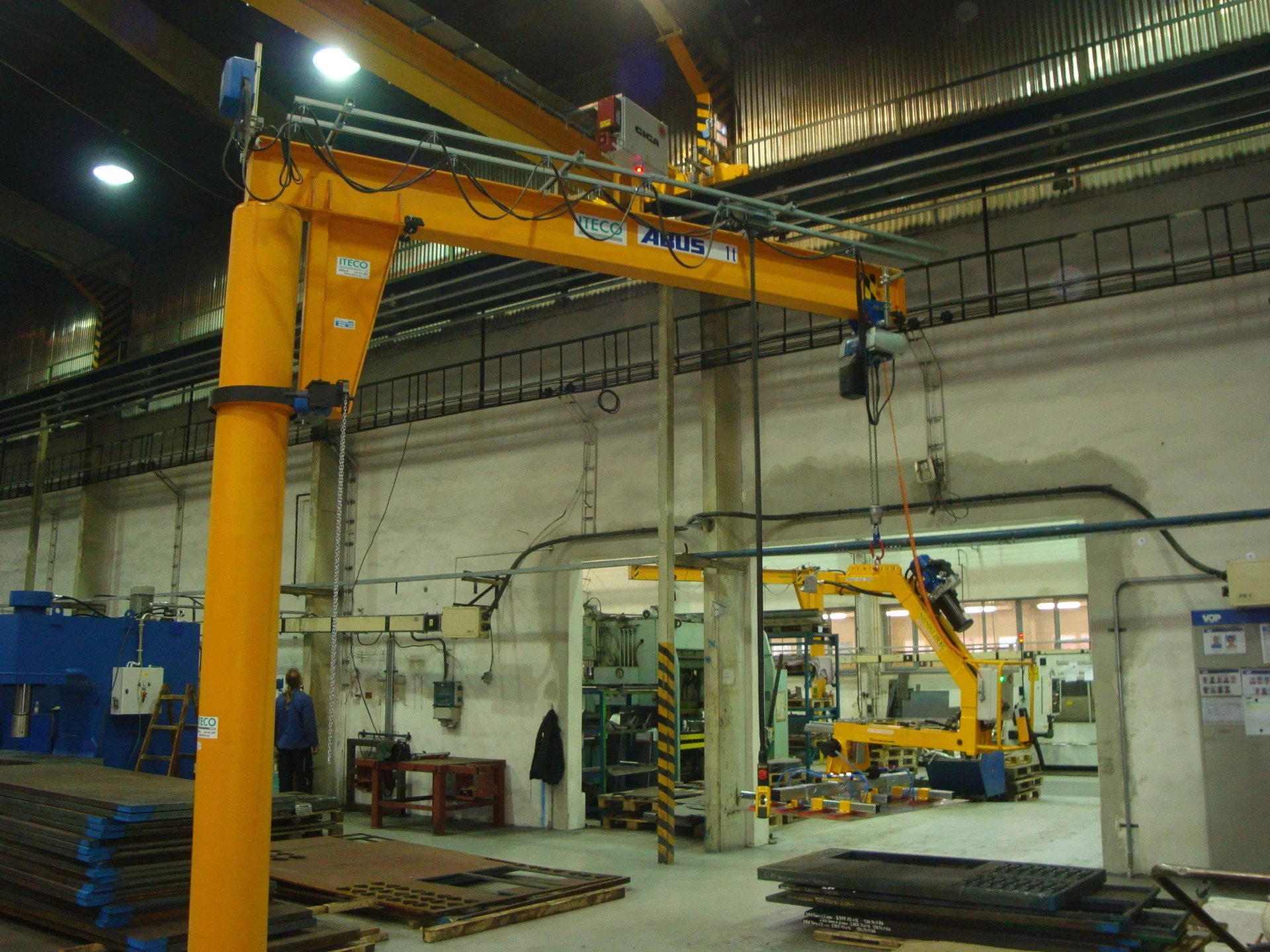

Photo gallery

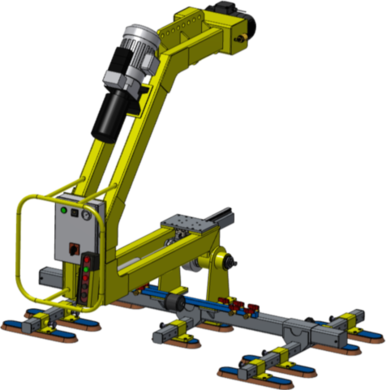

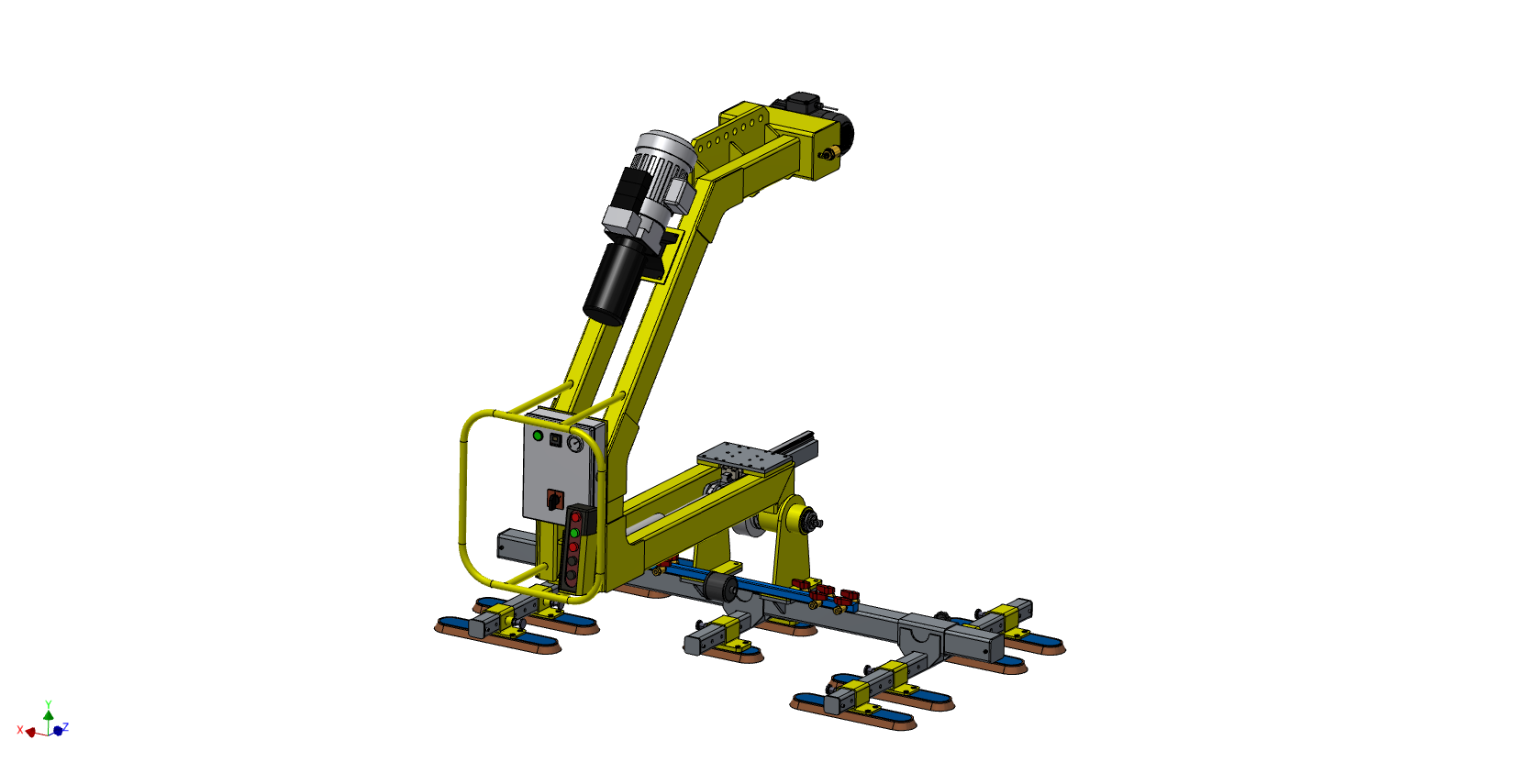

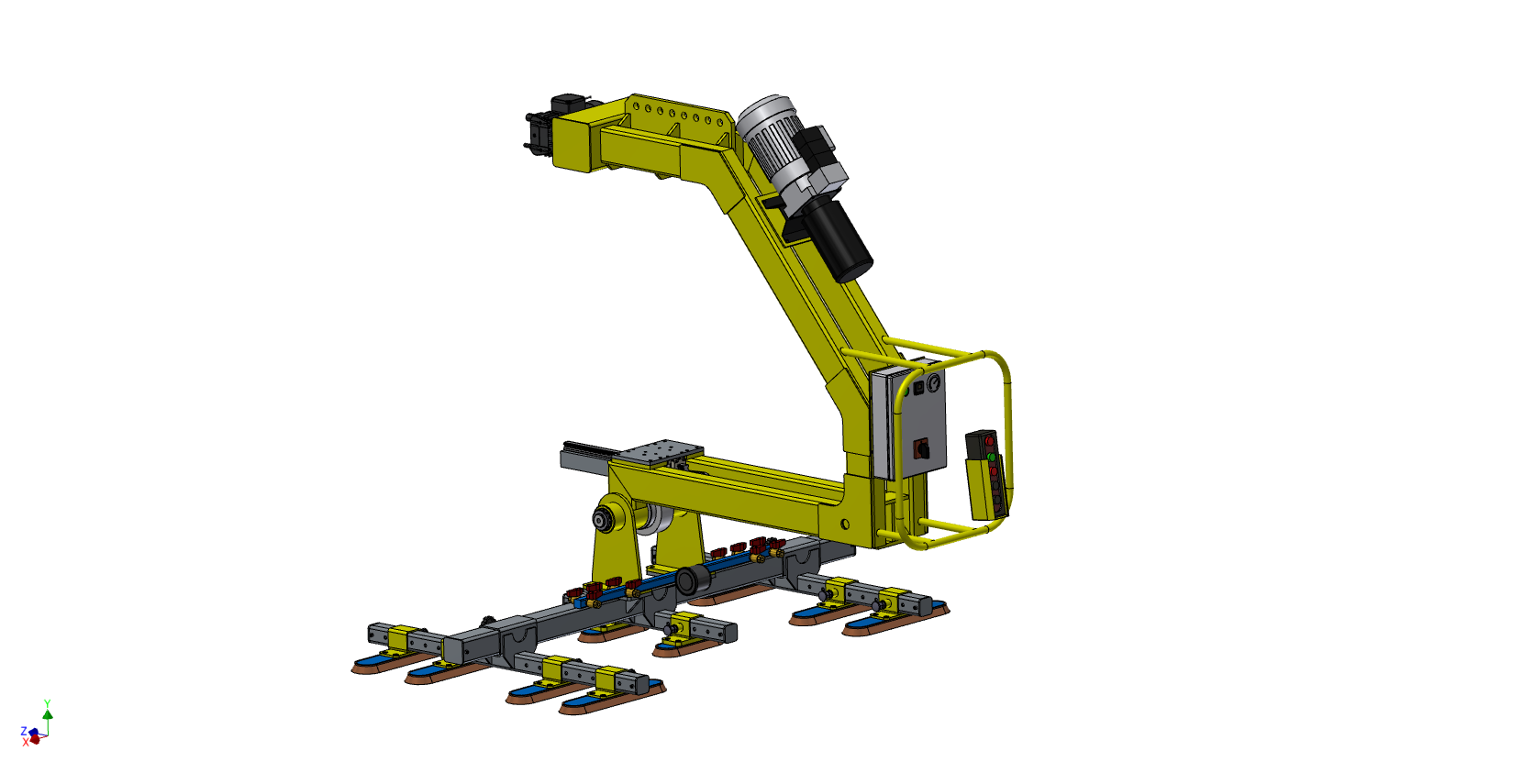

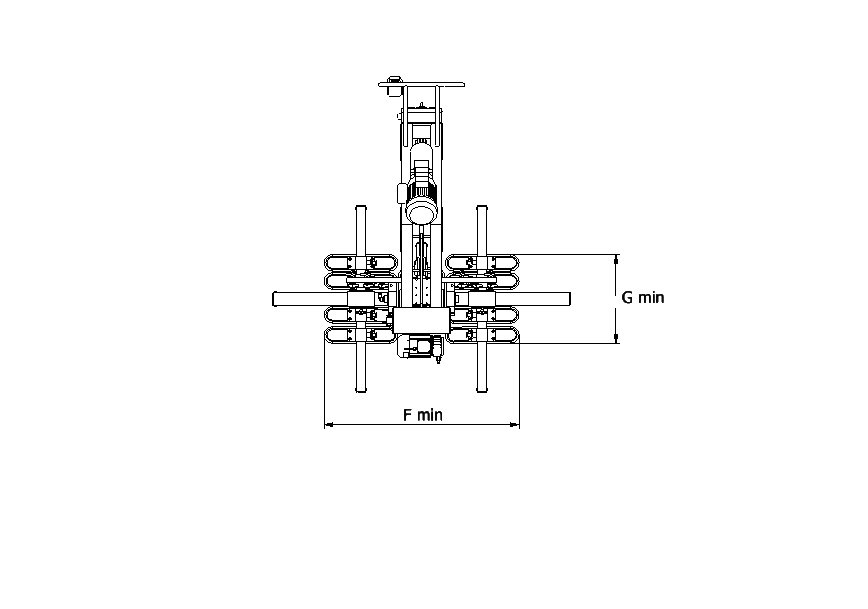

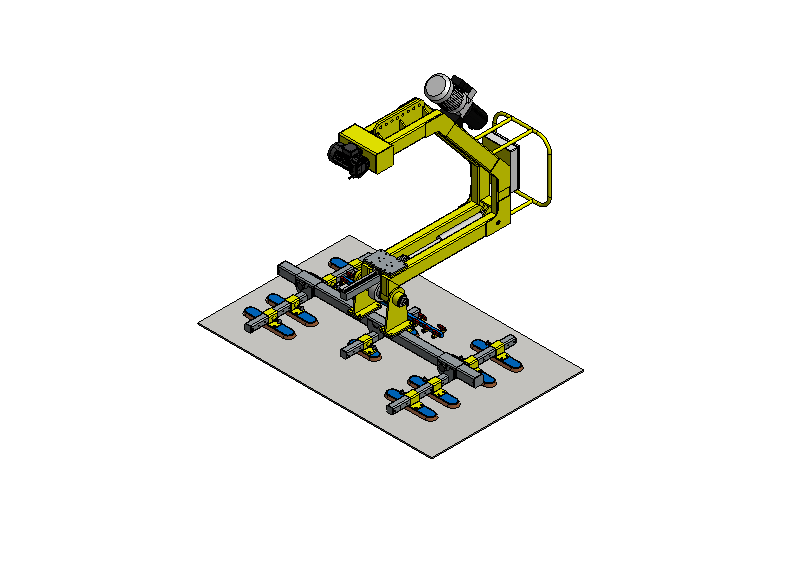

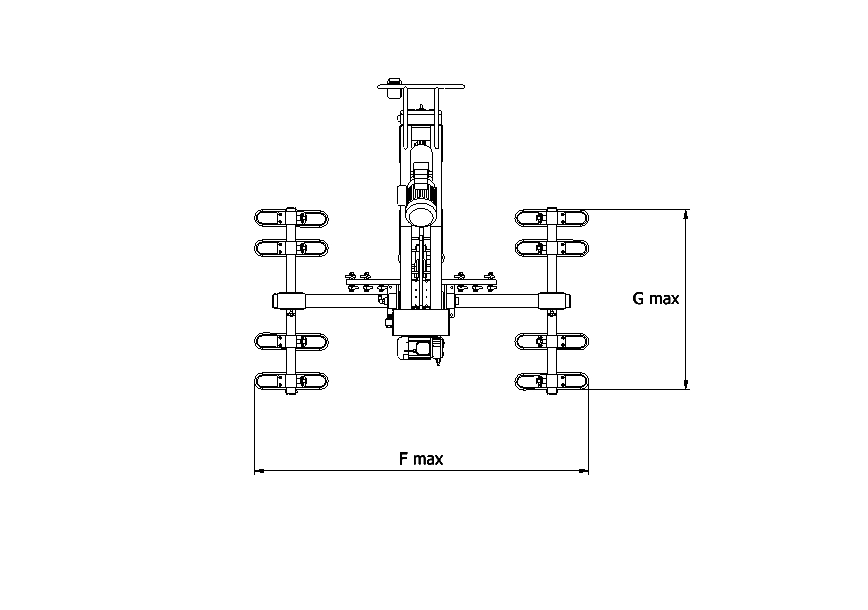

3D models + drawings
