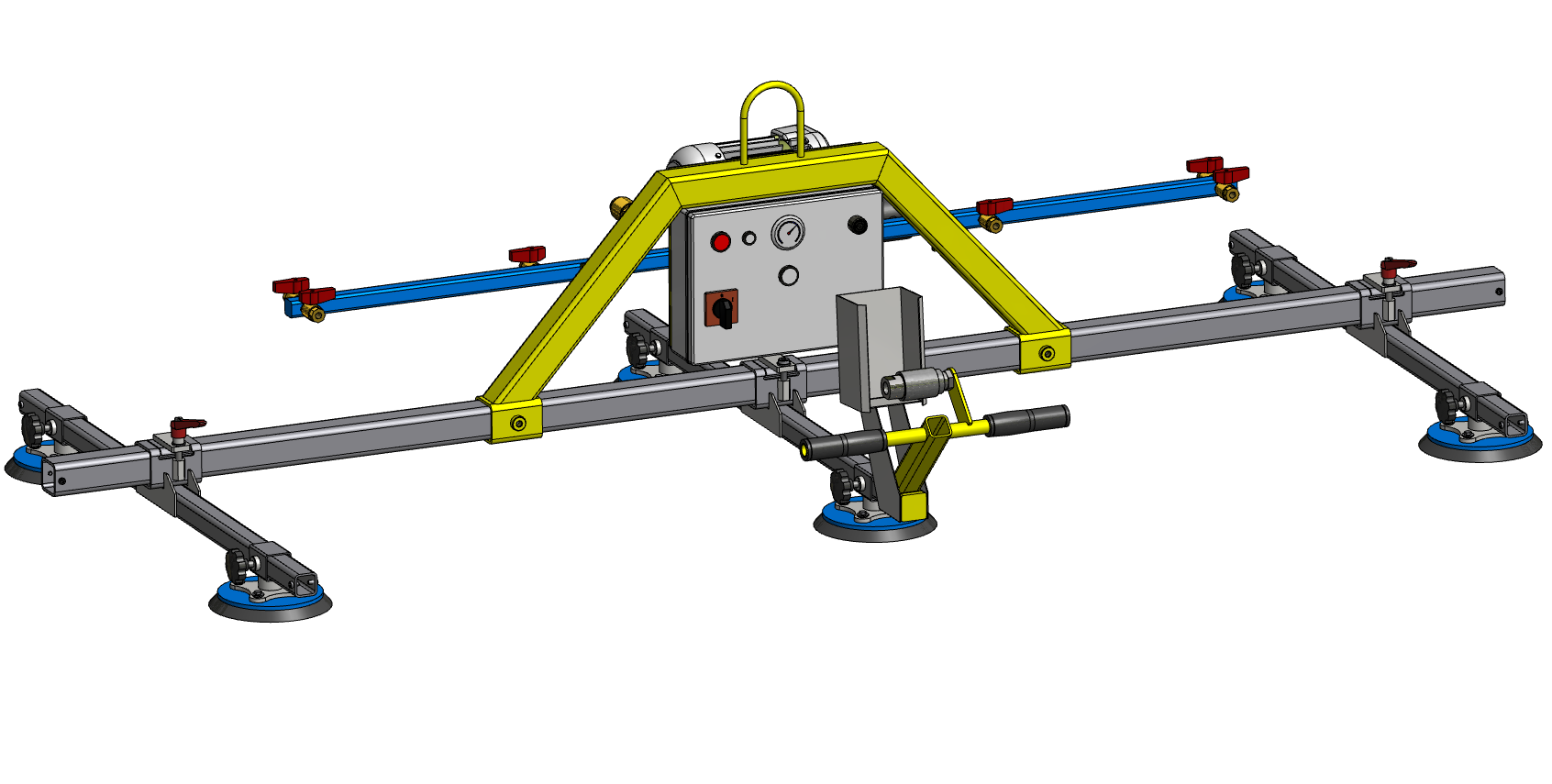

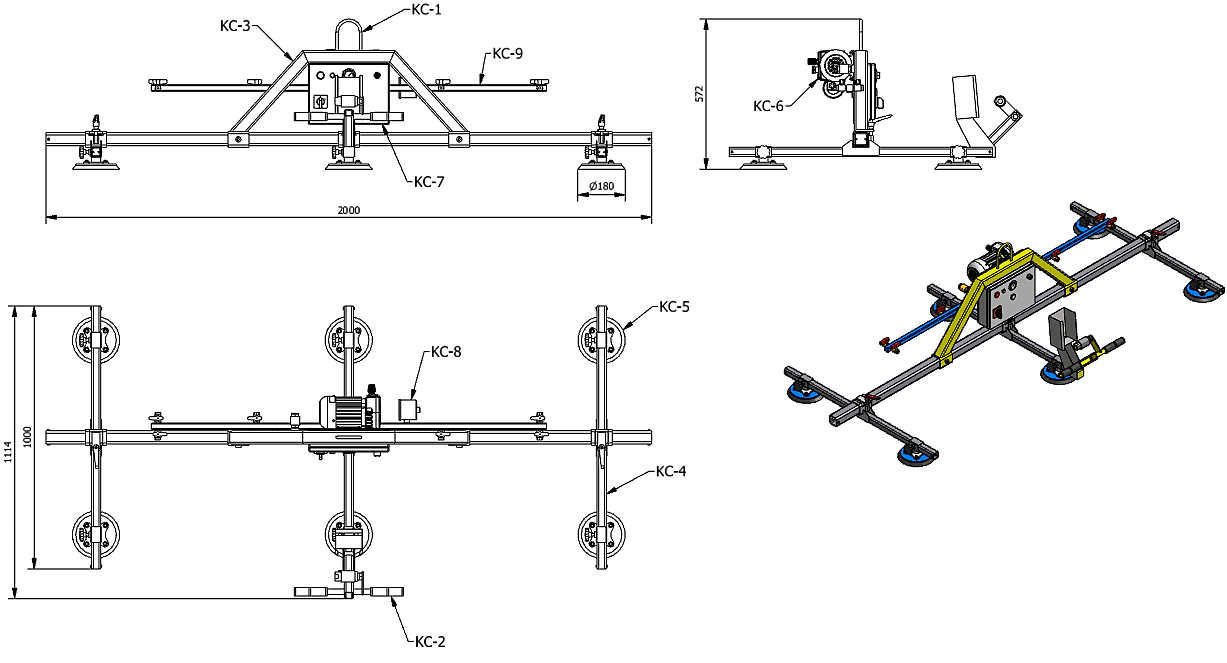

VACUUM MANIPULATOR - VM 100/6-2,5x1

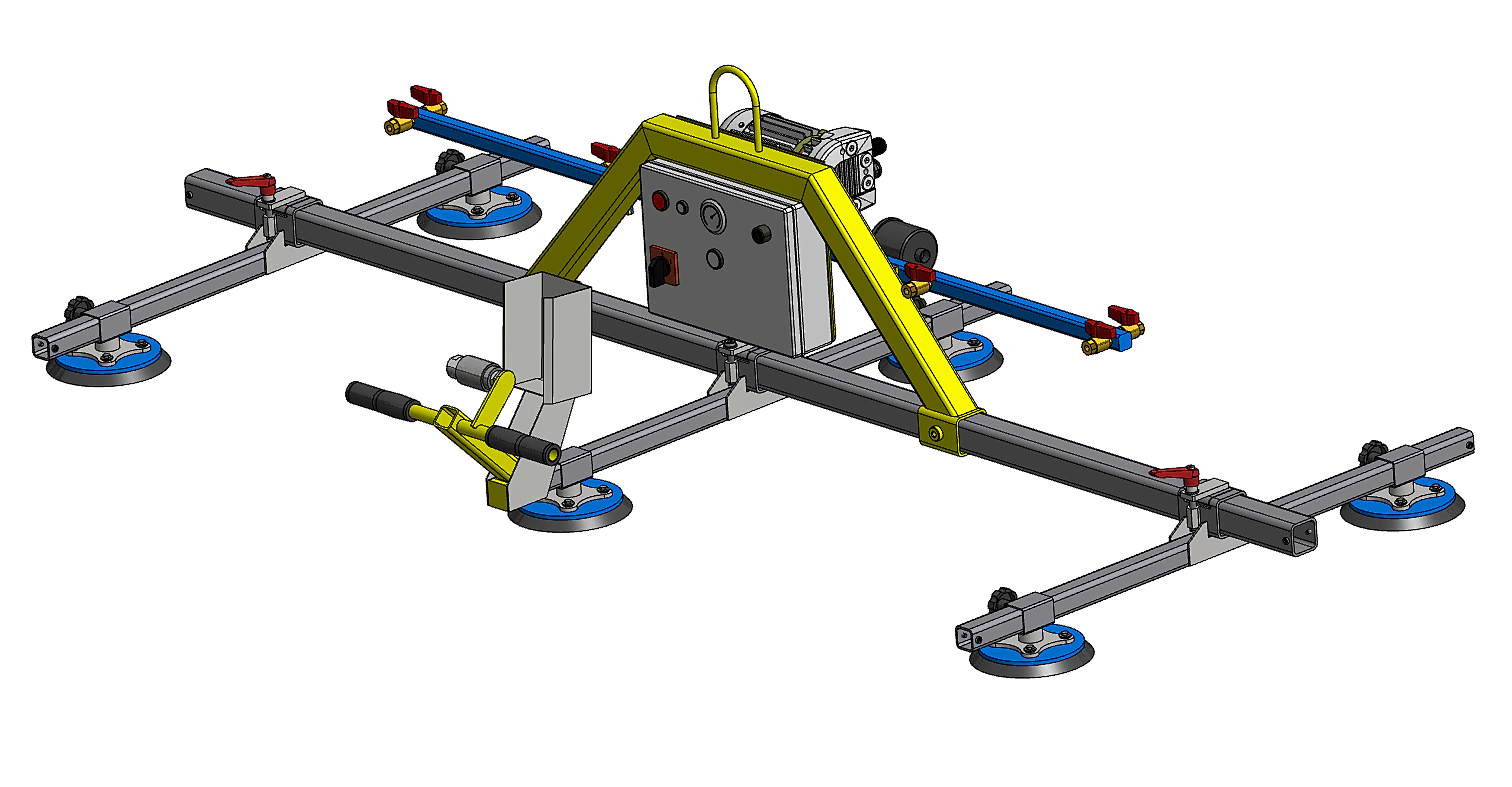

- main supporting steel structure with hinge
- cross beams manually adjustable in the "x" axis
- six suction cups 180 mm in diameter
- suction cups manually adjustable in “y¨ axis
- vacuum pump – design (400V three phase system, or 230V single phase system)
- vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
- acoustic and visual signalisation of insufficientvacuum in suction cups

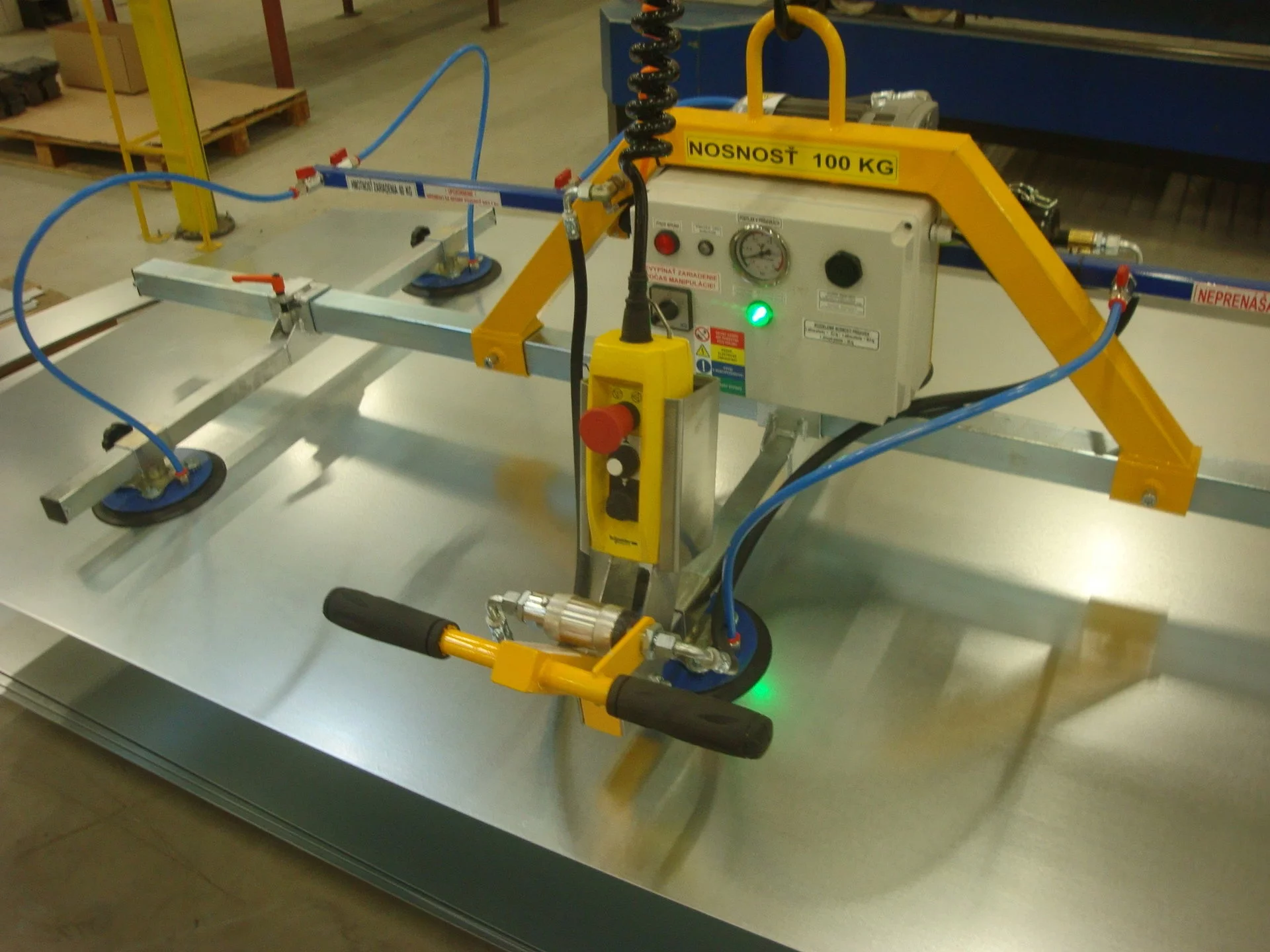

- GRIP/ RELEASE the load through a manual valve conveniently located on the VM control handle
- double-acting control for mechanical load extraction via manual valve (electromagnetic - via spiral push-button controller - extra charge)
- spiral hose for connecting a manipulator up to 3 meters
- quick-clamping system el. connection via connector
Application:

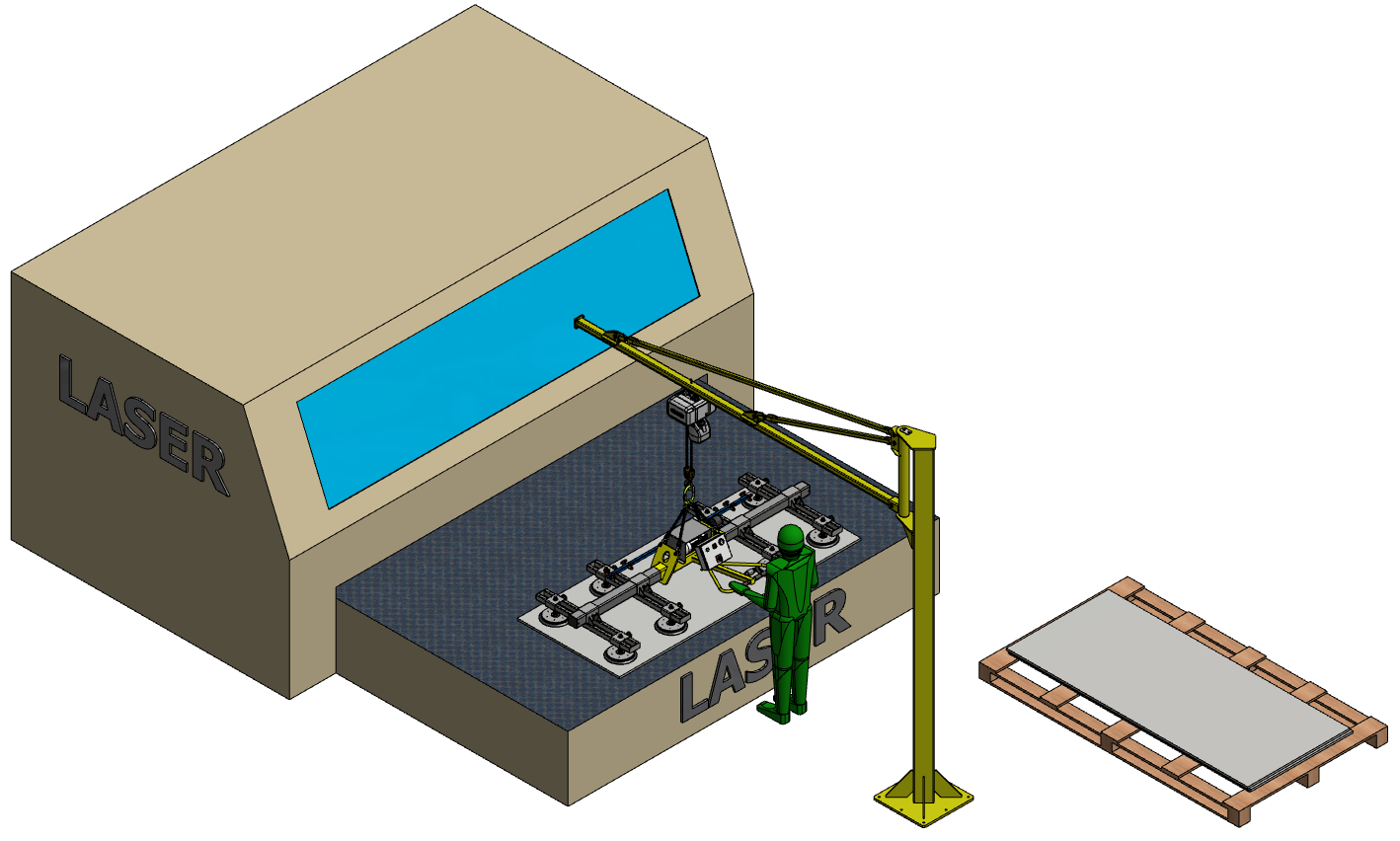

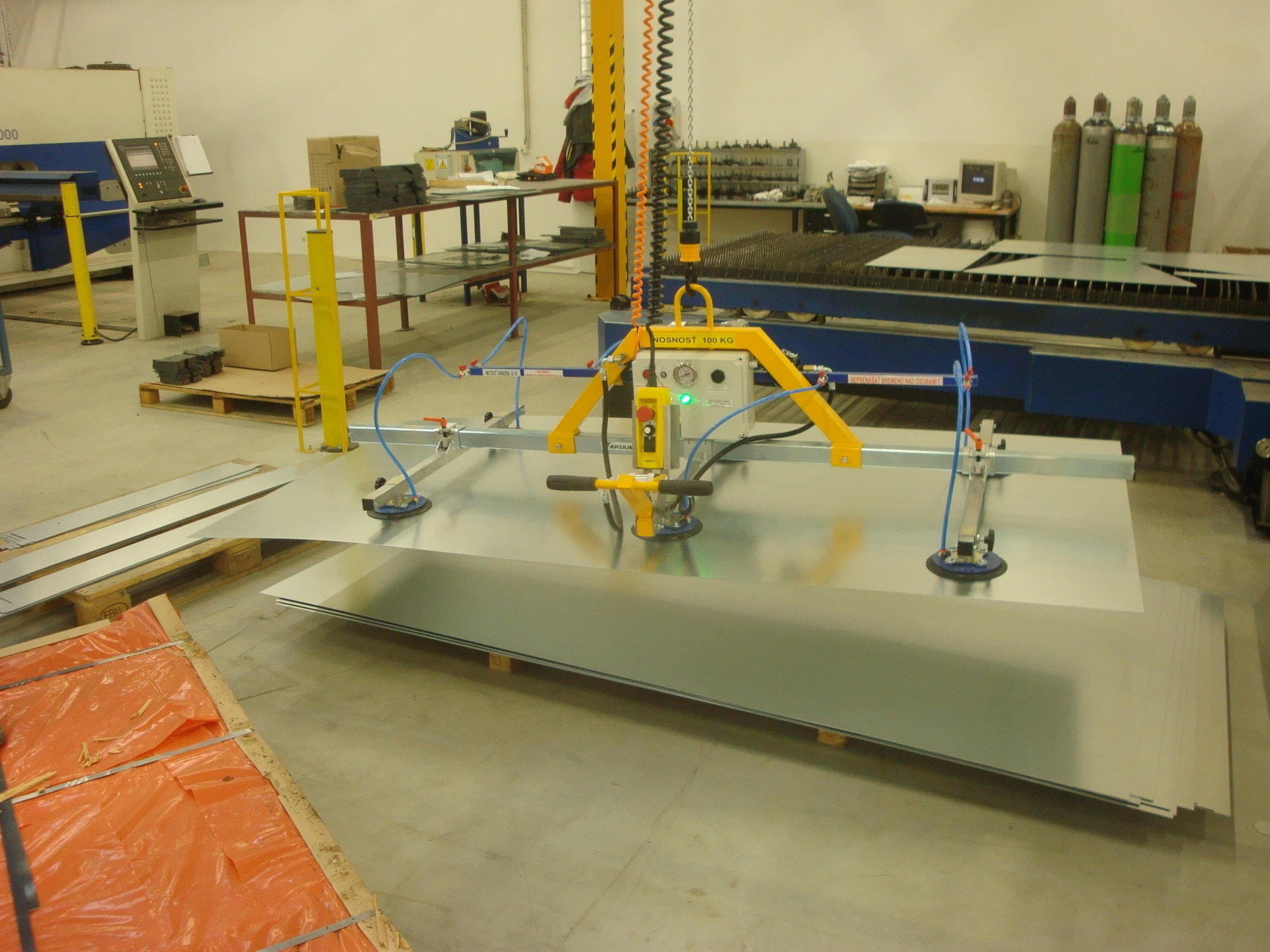

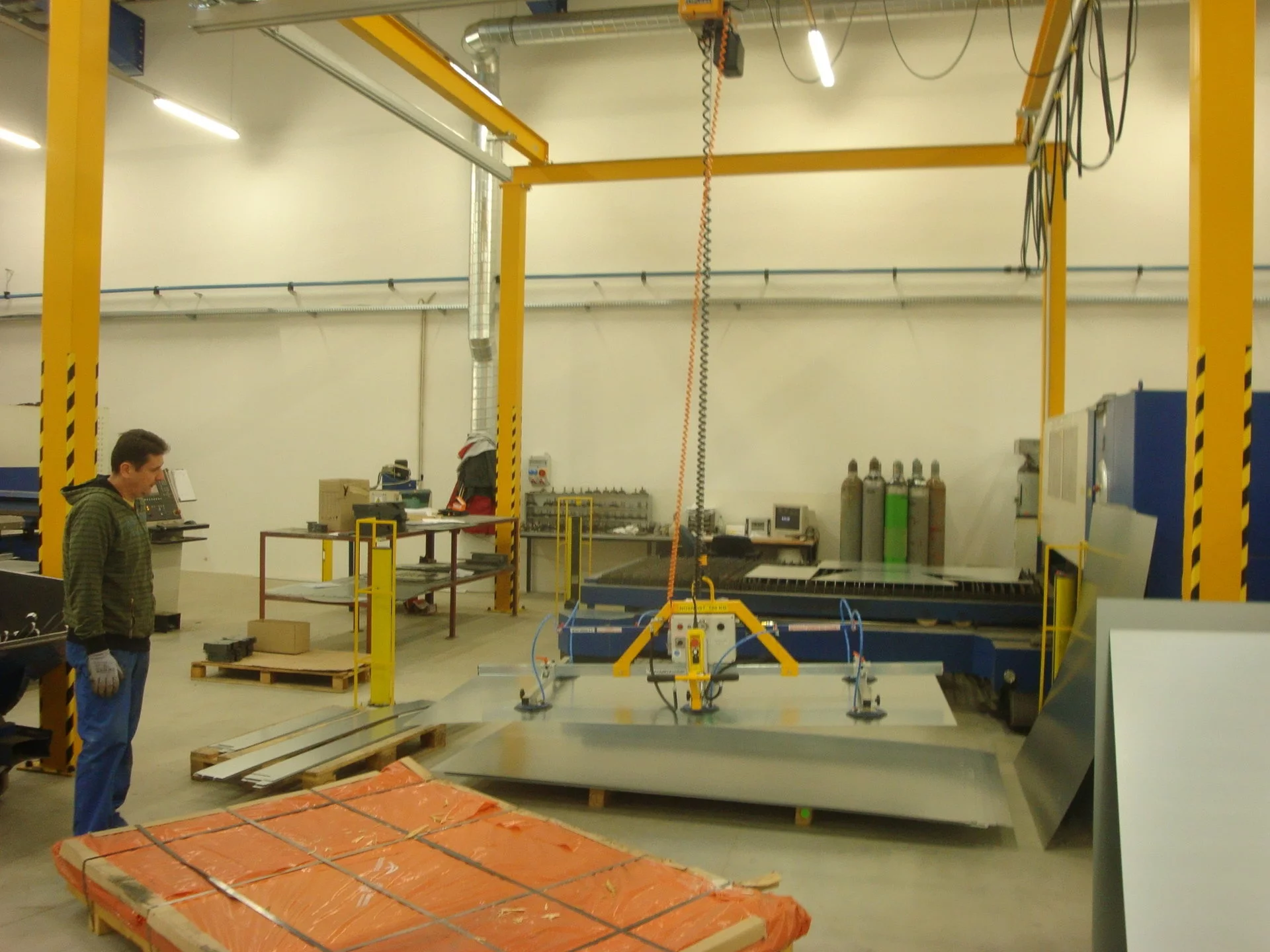

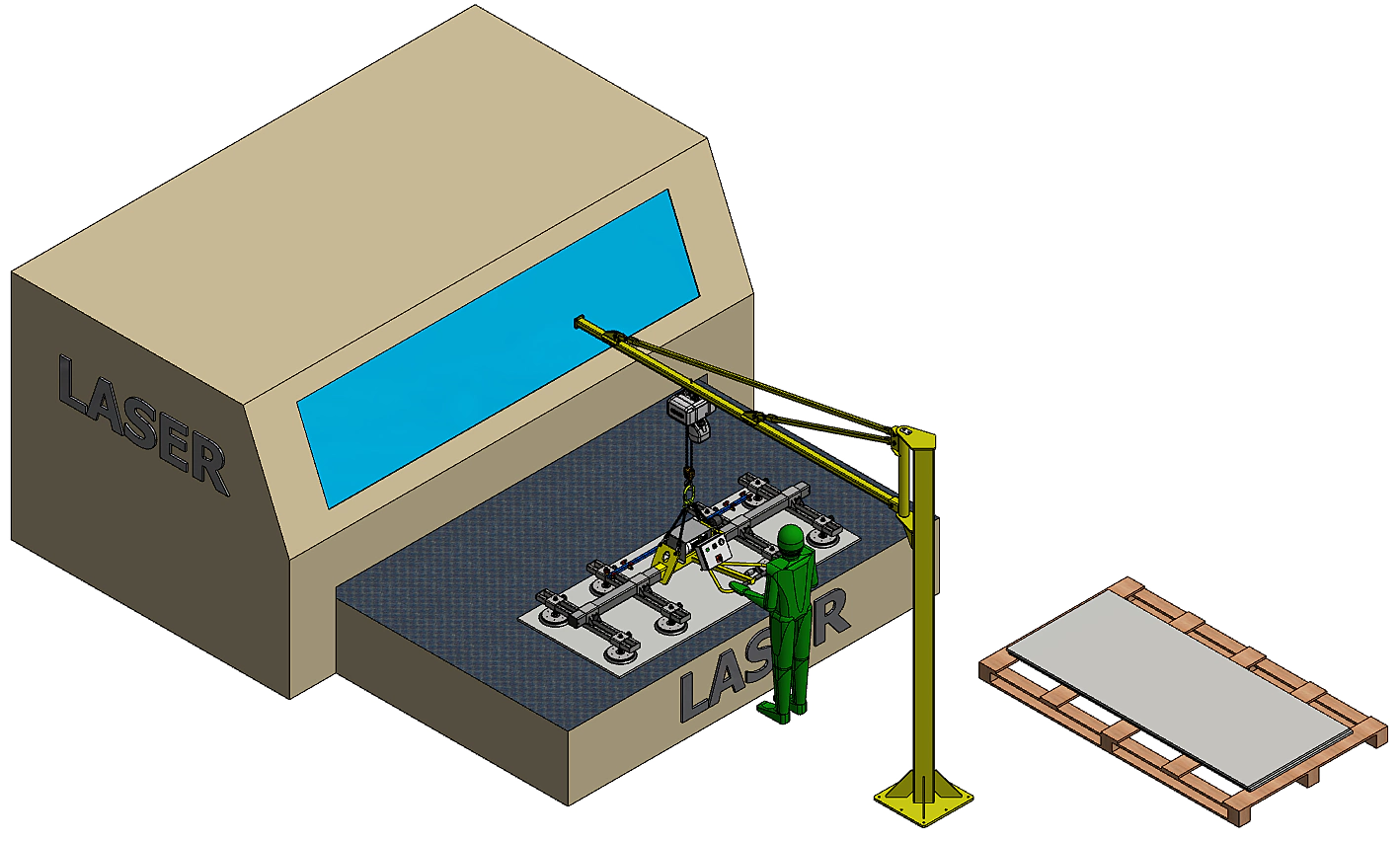

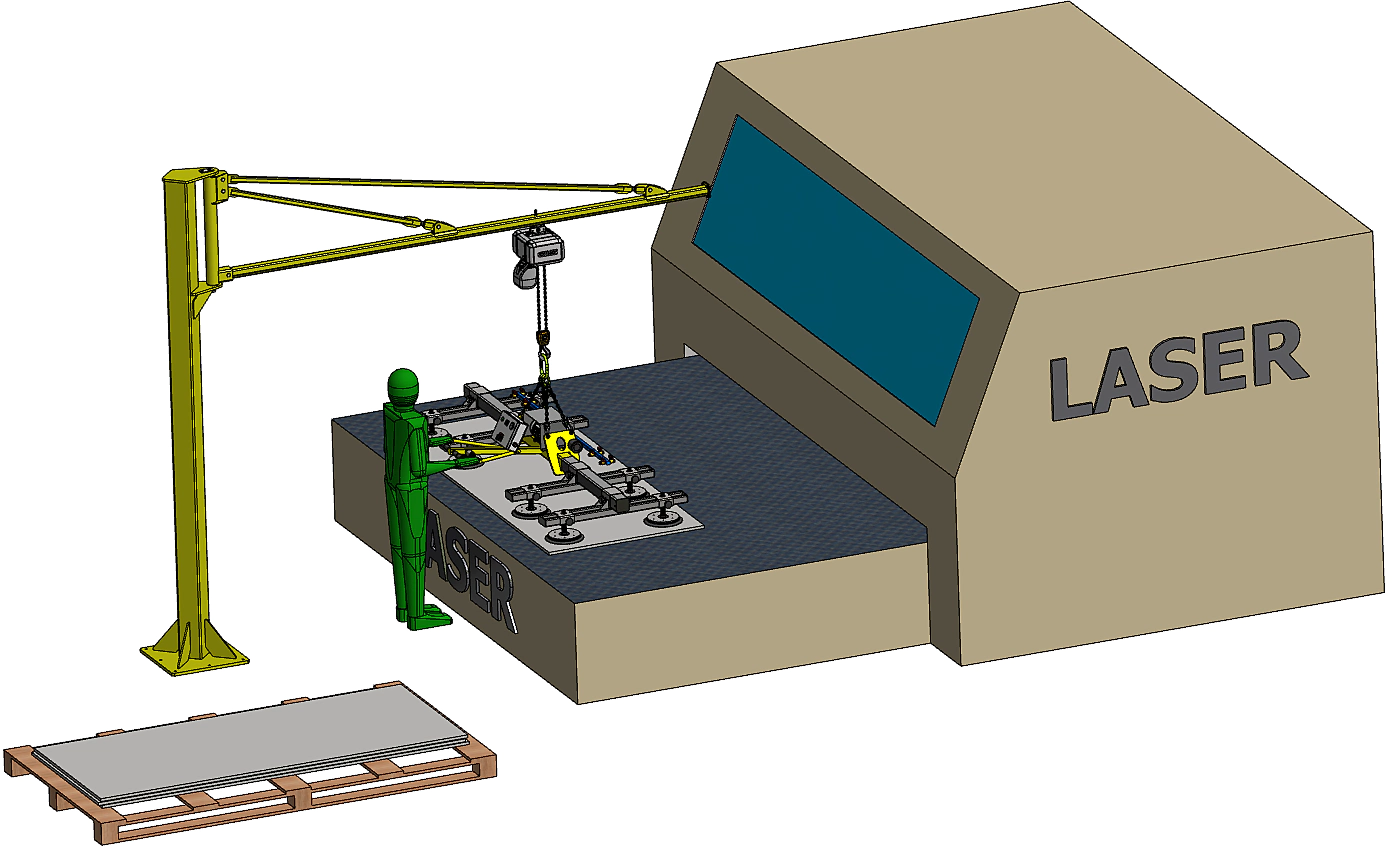

The vacuum manipulator VM 100/6-2,5x1 js a handy little gripping device that allows you to grip and handle small,, medium or large-sized flat loads up to 100 kg in a horizontal position within the work area, which is given by therange of the lifting equipment (crane or any other lifting device) the vacuum manipulator will be suspended on.
Potential types of loads to be handled:
✓ steel sheets, boards and non-ferrous metals (includingnon-magnetic)
✓ glass plates and boards
✓ plastic plates and boards
✓ stone with grinded surface
✓ wooden plates and boards covered with air-tight finish
Benefits:
- Lightweight - easy to operate equipment, suitable for very thin materials such as sheets
- Variable – transverse beams and suction cups on the beam can beeasily adjusted by hand
- Reliable - high reliability and minimalmaintenance are ensured
- Safe – safety guaranteed in every situation
Basic technical information:
| Maximum load capacity (WLL) | 100 kg (with negative pressure –0.6 MPa (-60 kPa)) |
| Designed for manipulation | in horizontal position, to be lifted on a lifting device |
| Weight | 60 kg |
| Max. dimensions of load | 3000x1500 mm |
| Min. dimensions of load | 2000x1000 mm |
| Power supply | a) 3 PE (PEN) 400VAC/50Hz/15VAC |
| b) 1 N PE 230VAC/50Hz/24VDC |
Information table:

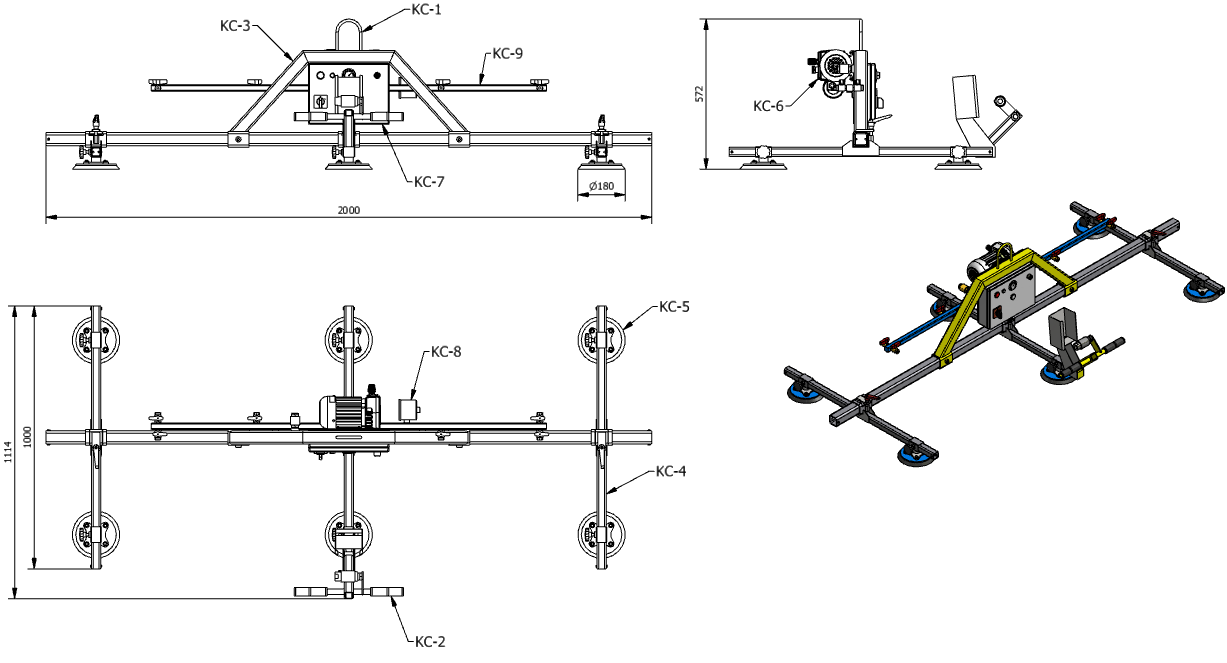

| Number of suction cups / diameter (mm) | LOAD CAPACITY(kg) | WEIGHT (kg) | Width (mm)(mm) | Depth (mm) | Height (mm) | Suction cup diameter (mm) |
|---|---|---|---|---|---|---|
| 6/180 | 100 | 60 | 2520 | 1010 | 572 | 180 |
