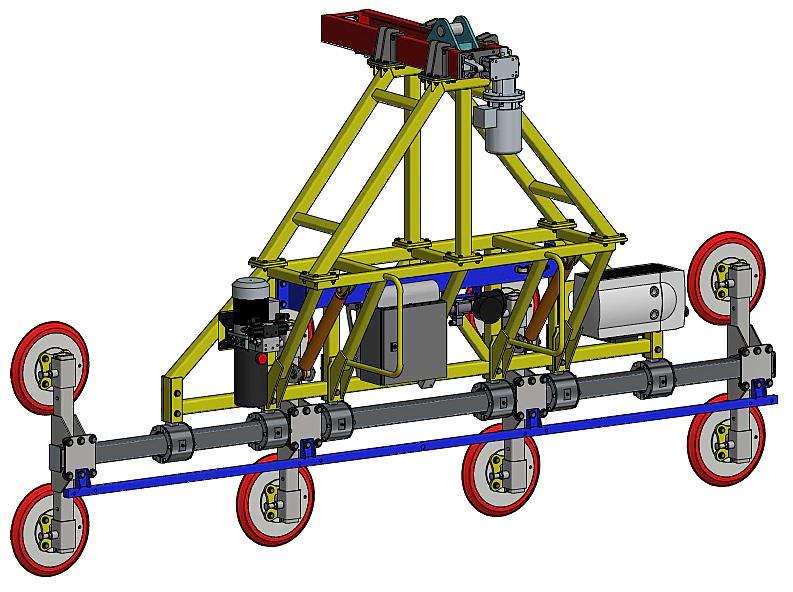

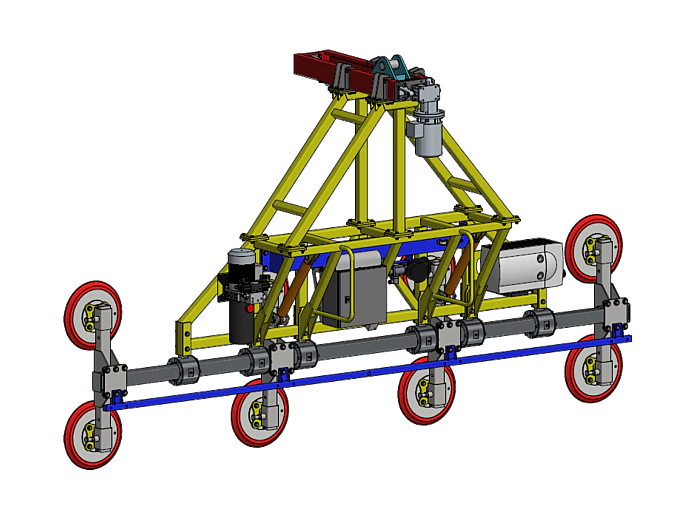

Basic description:

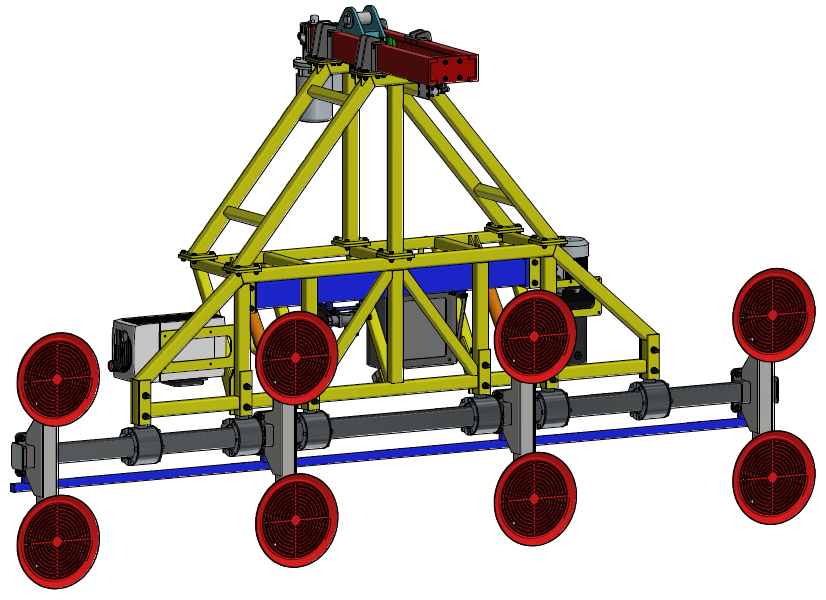

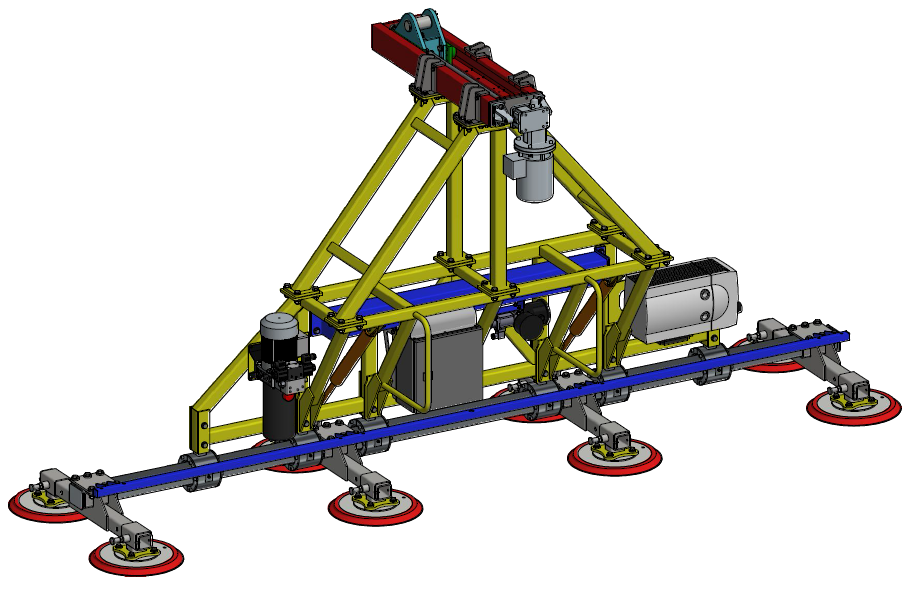

- Main supporting steel structure with a multipositional electric suspension for changing the optimal center of gravity

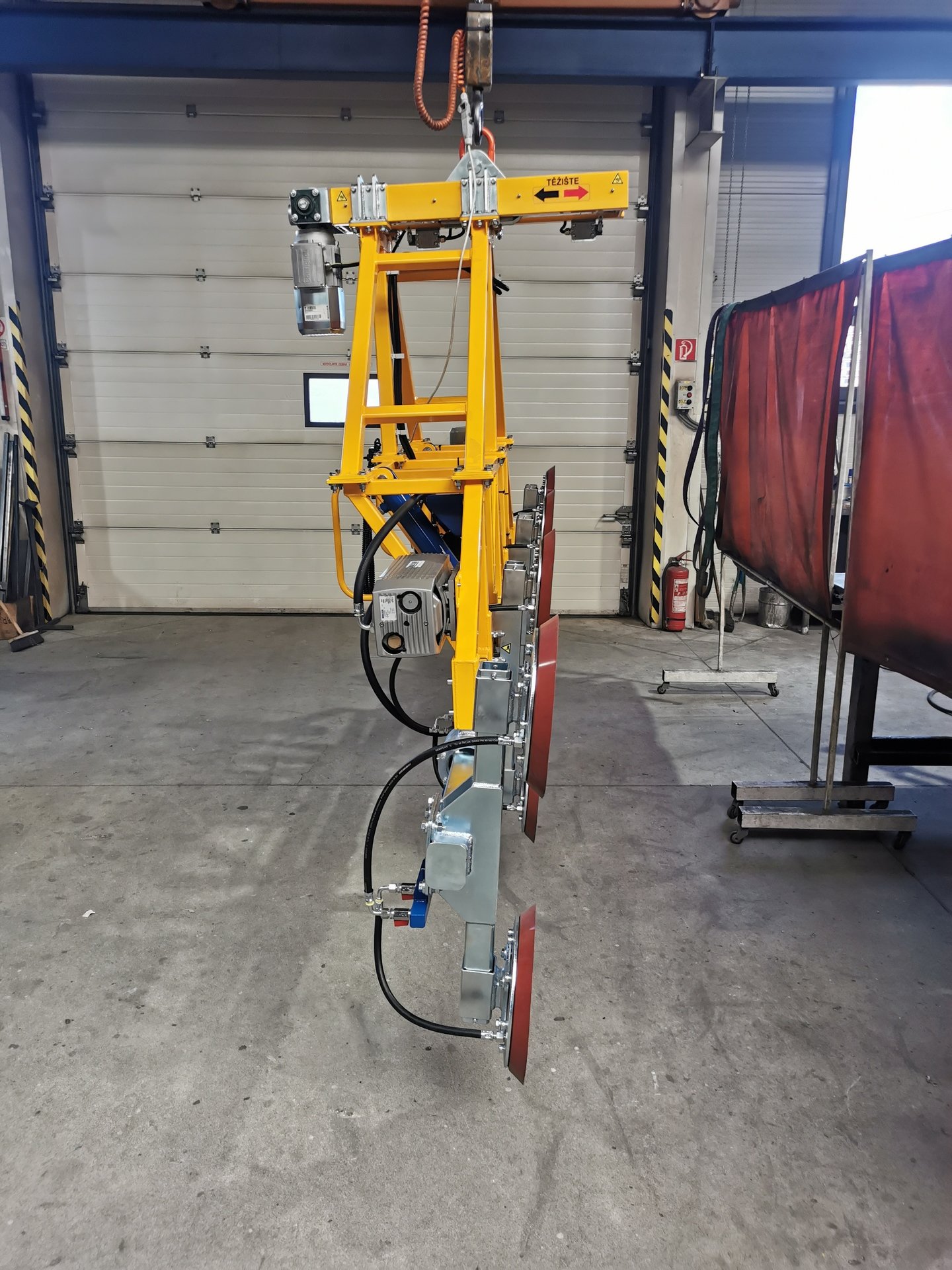

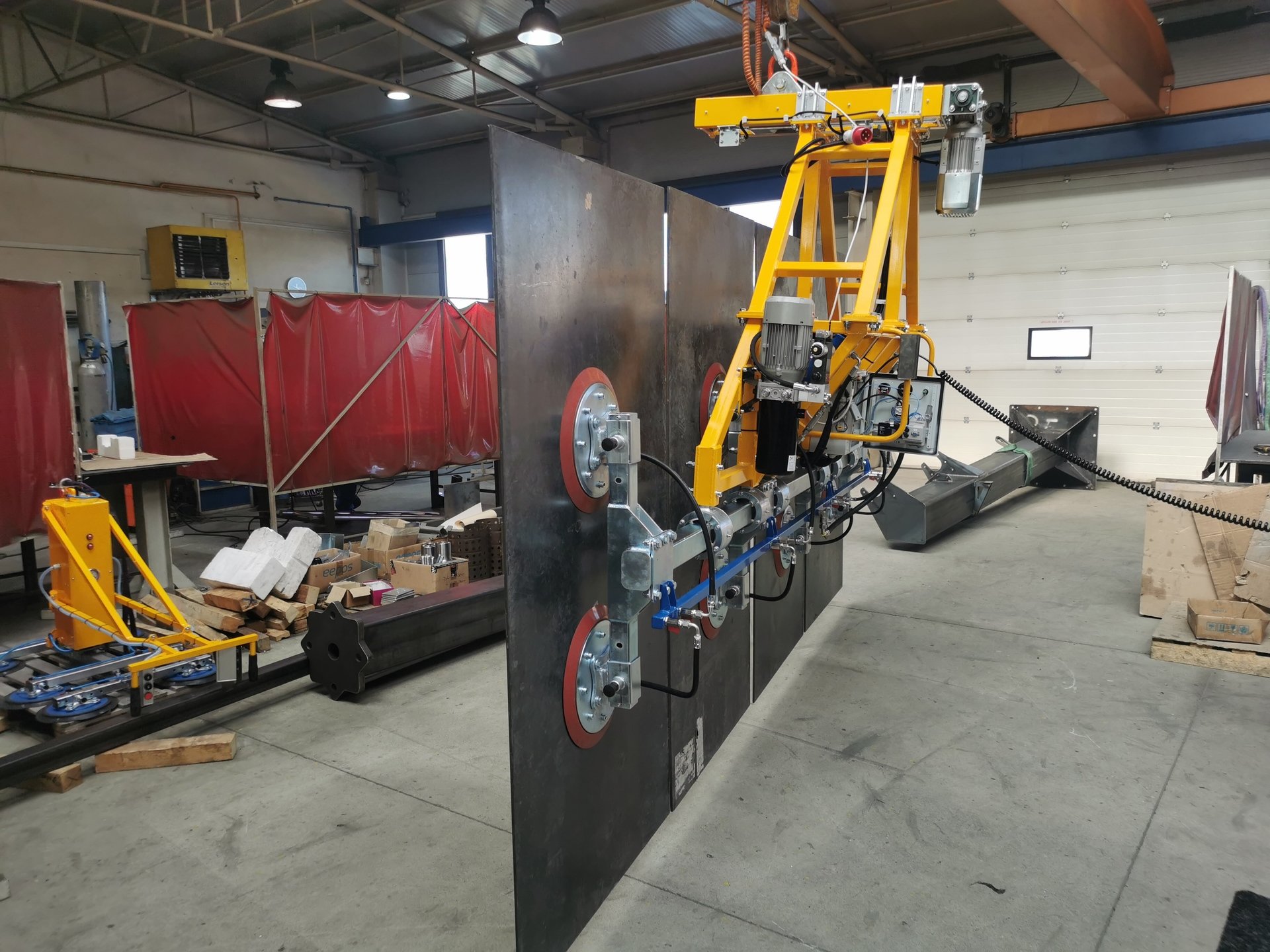

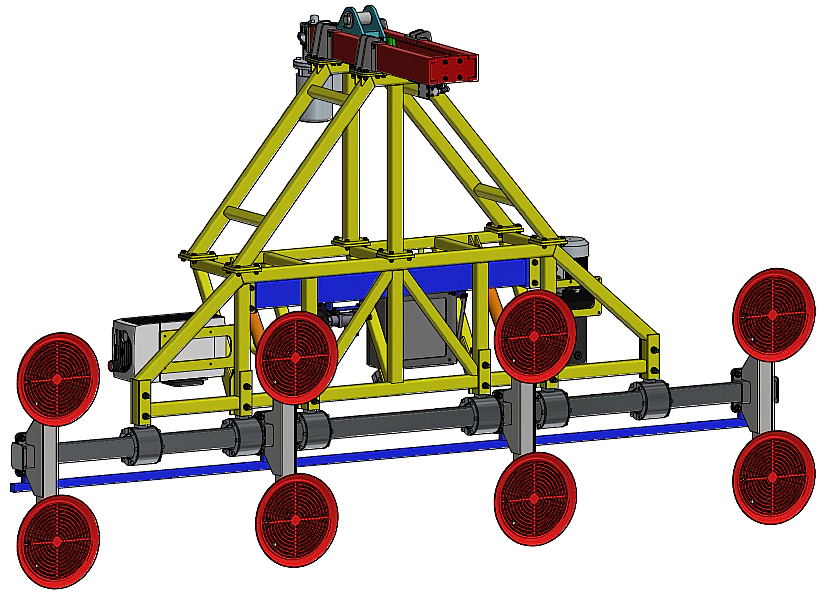

- hydraulically tilting suction cups of max. 90 ° angle

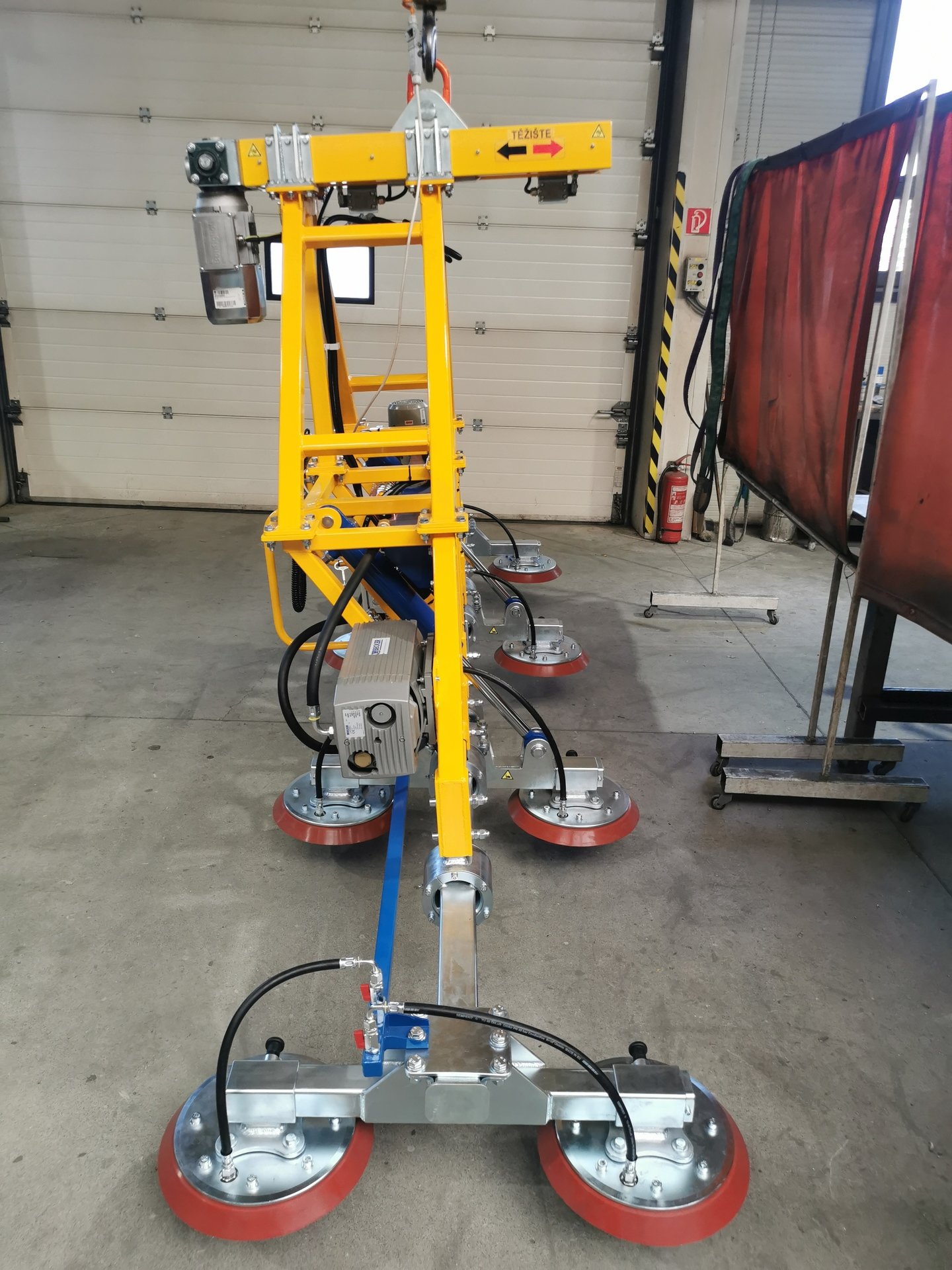

- Eight suction cups 300 mm in diameter
- manually adjustable suction cups with locking in the "y" axis
- vacuum pump - 400V three-phase system
- the vacuum tank ensures safe lifting of the load even in the event of an unexpected failure of the compressed air.

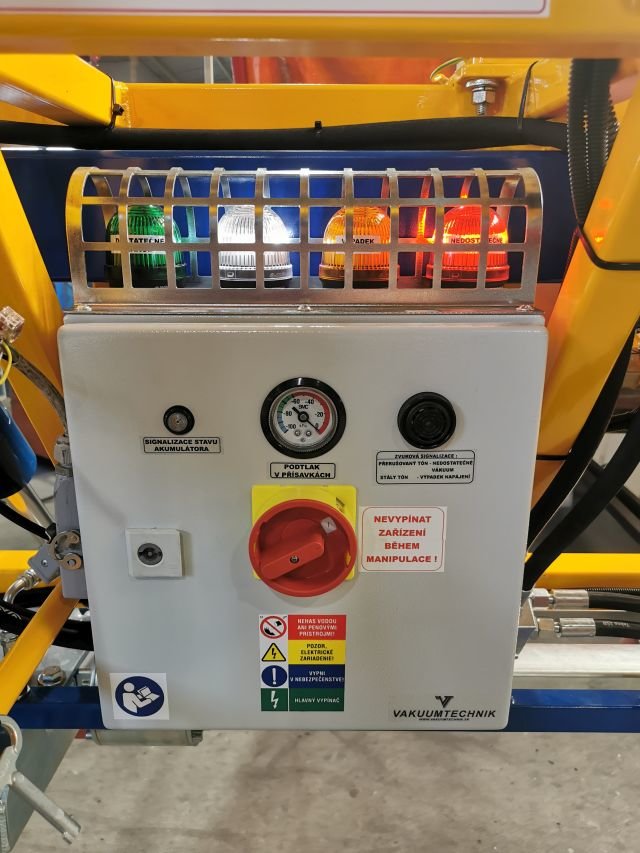

- acoustic and visual signalisation of insufficient vacuum in suction cups

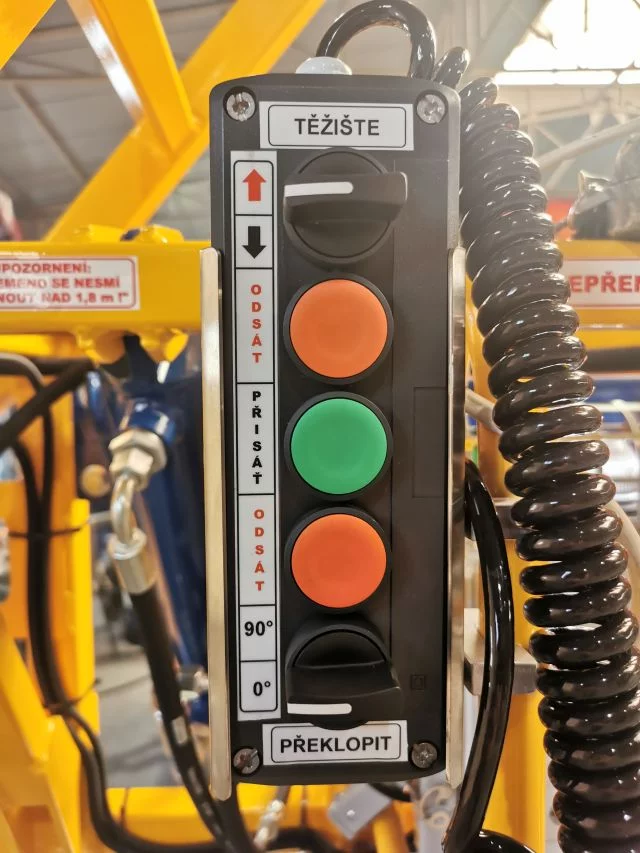

- GRIP - through push-button remote control conveniently located at the control handles on the spiral cable up to 3 m
- RELEASE - through push-buttons remote control conveniently located at the control handles on the spiral cable up to 3 m
- TILTING the load by 0 ° / 90 ° through push-button control on a spiral cable up to 3 m
- FWD / REV center of gravity movement through push-button control on a spiral cable up to 3 m
- spiral cable for connecting a manipulator up to 3 meters
- quick-clamping system el. connection through connector
