VACUUM MANIPULATOR - VM 9000/3 - 2800

Basic description:

  • main supporting steel structure with a two-pointsuspension
  • - two end suction cups with dimensions 1050x700 mm
    - one central suction cup with dimensions 1150x750 mm
  • vacuum pump – design (400V three phase system)
  • vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
  • acoustic and visual signalisation of insufficient vacuum in suction cups
  • GRIP/ RELEASE the load through a manual valve conveniently located on the VM control handle
  • double-acting control to suck off the loadmechanically (electromagnetically using a spiral-button control - for asurcharge)
  • spiral cable for connecting the handler up to 3 m
  • quick-clamping system of electrical connection via a connector

Application:

The vacuum manipulator VM 9000/3-2800 is a handy gripping device that allows you to grip and handle  medium or large-sized flat loads up to 9000 kg in a horizontal position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the vacuum manipulator will be suspended on.

Potential types of loads to be handled:

✓ aluminum blocks
✓ steel formats of sheets, plates and non-ferrous metals (also non-magnetic)
✓ stone with sanded surface

Benefits:

  • Simple very convenient anddedicated device that is easy to operate
  • Variable transverse beams and suction cups on the beam can beeasily adjusted by hand
  • Reliable high reliability and minimalmaintenance are ensured
  • Safe safety guaranteed in every situation

Basic technical information:

Maximum load capacity9000 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin horizontal position, to be lifted on a lifting device
Weight785 kg
Max. dimensions of load4000x2000 mm
Min. dimensions of load1200x800 mm
Power supply3+PE (PEN) 400VAC/50Hz/15VAC

Information table:

Number of suction cups / diameter (mm)LOAD CAPACITY (kg)WEIGHT (kg)Overall width (mm)Overall depth (mm)Overall height (mm)Suction cup diameter (mm)
1/1150x7509000785280017108501x 1150x750
2/1050x700 2x 1050x700

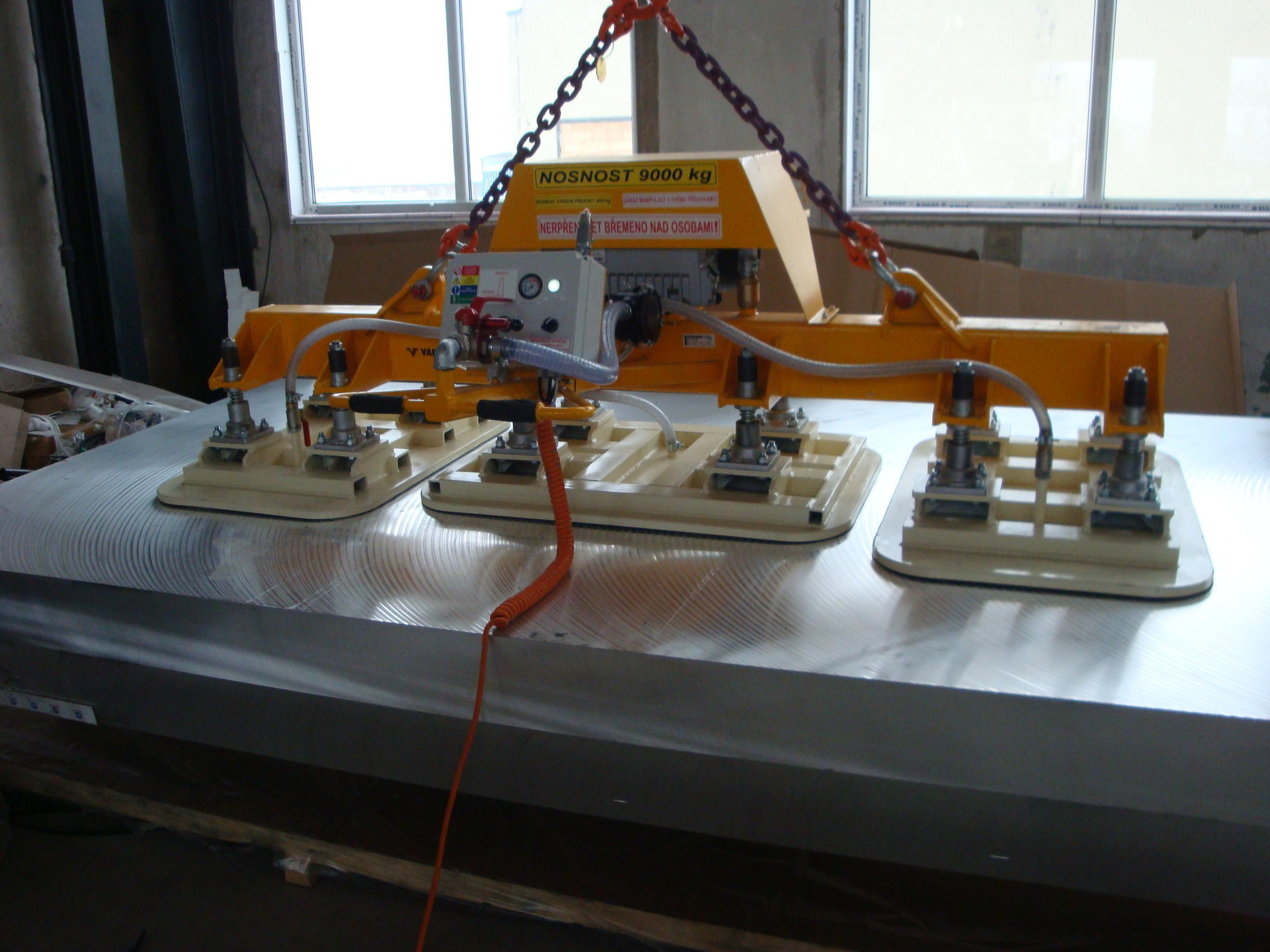

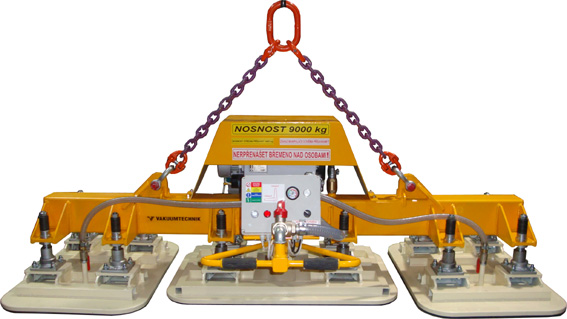

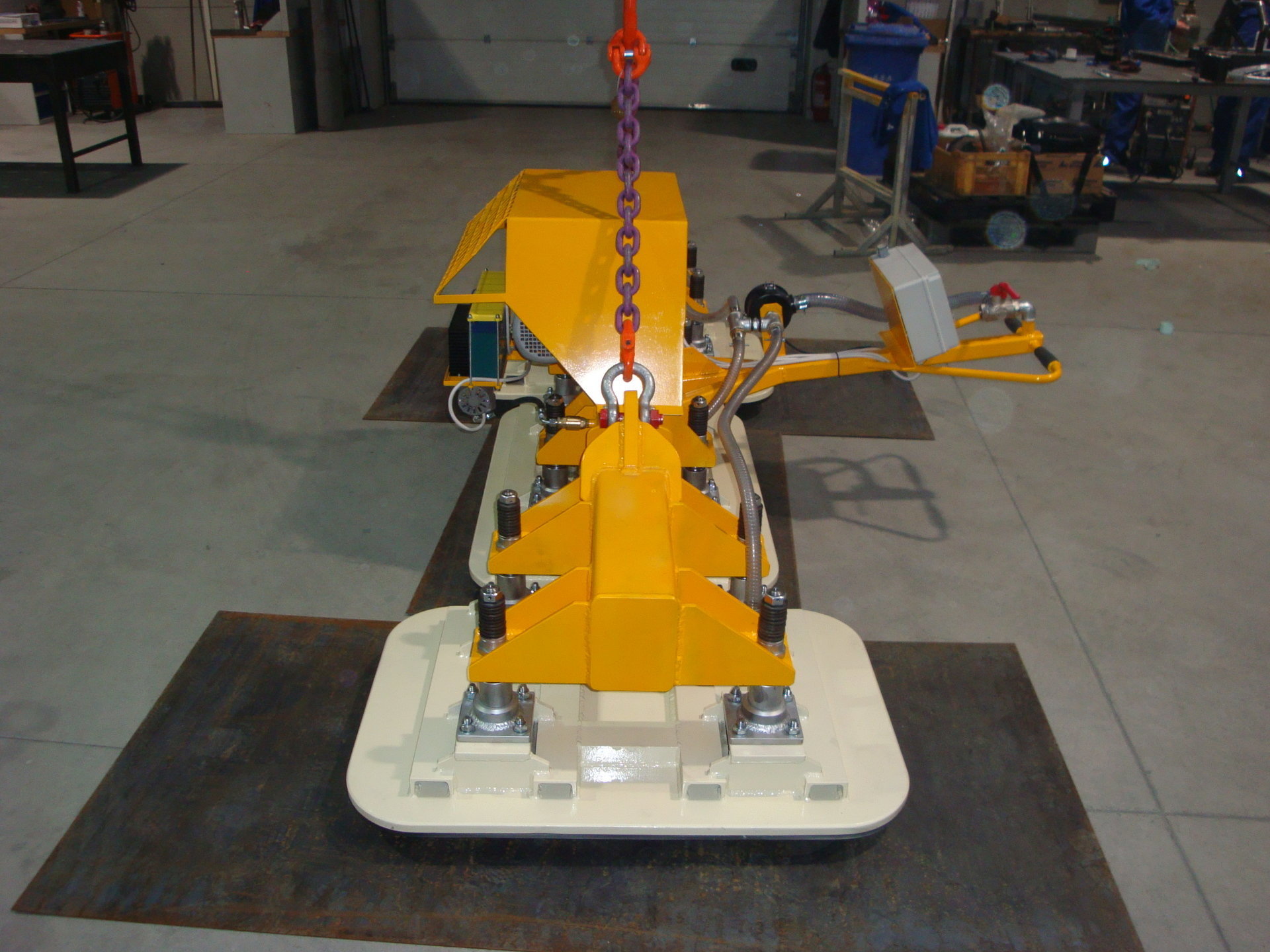

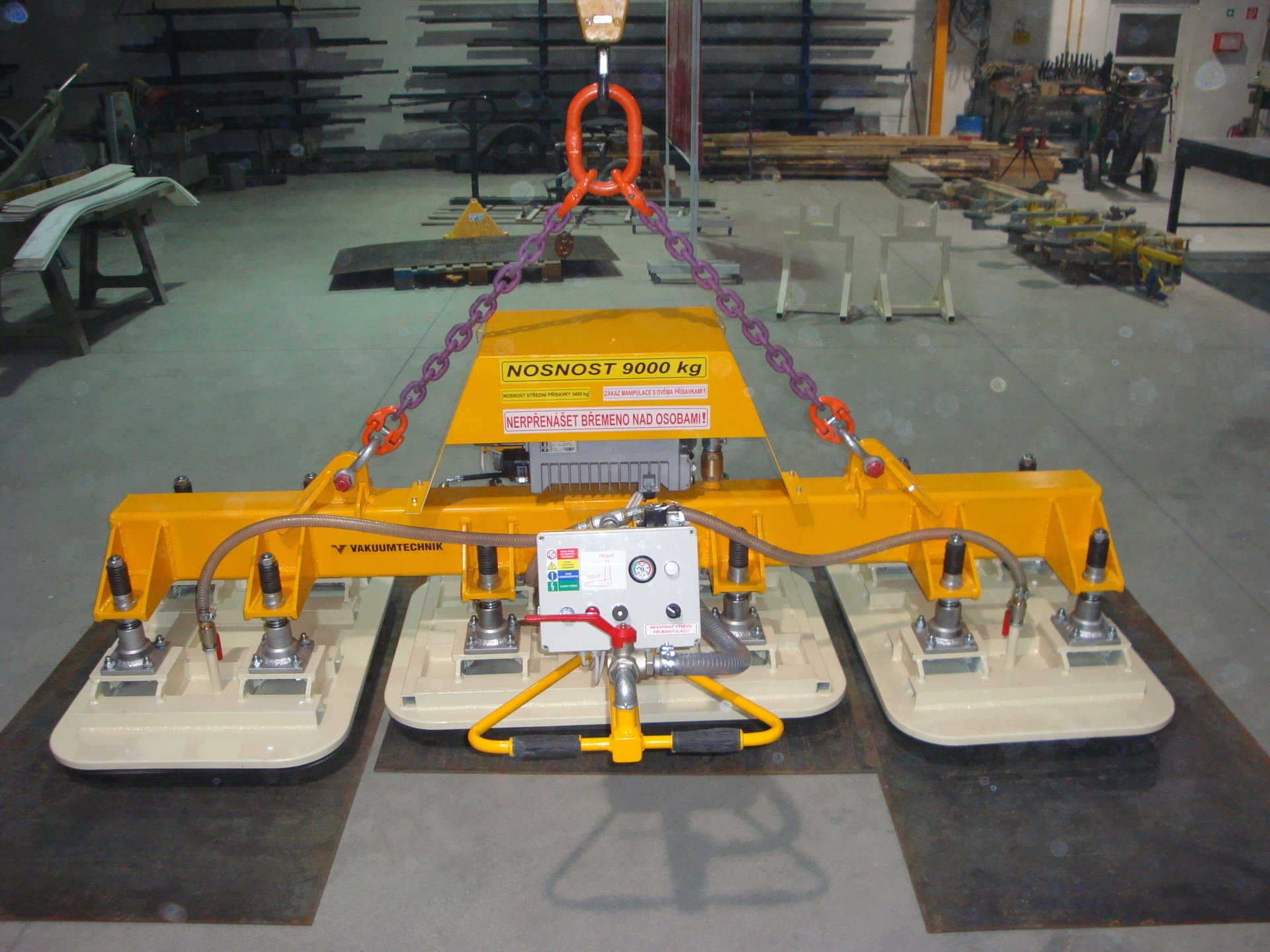

Photo gallery

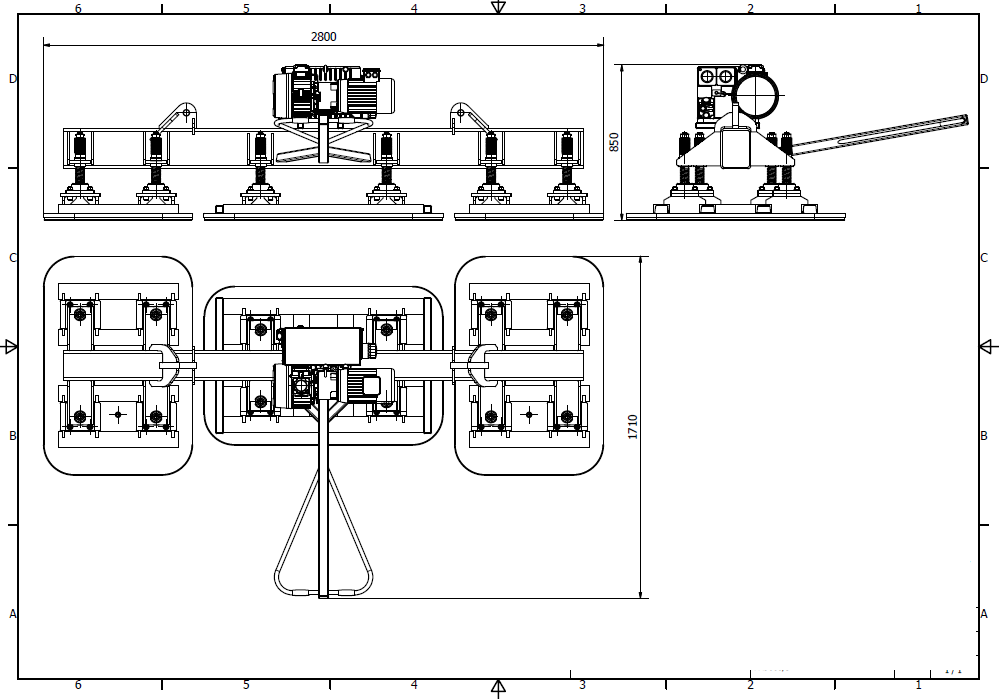

3D models + drawings
