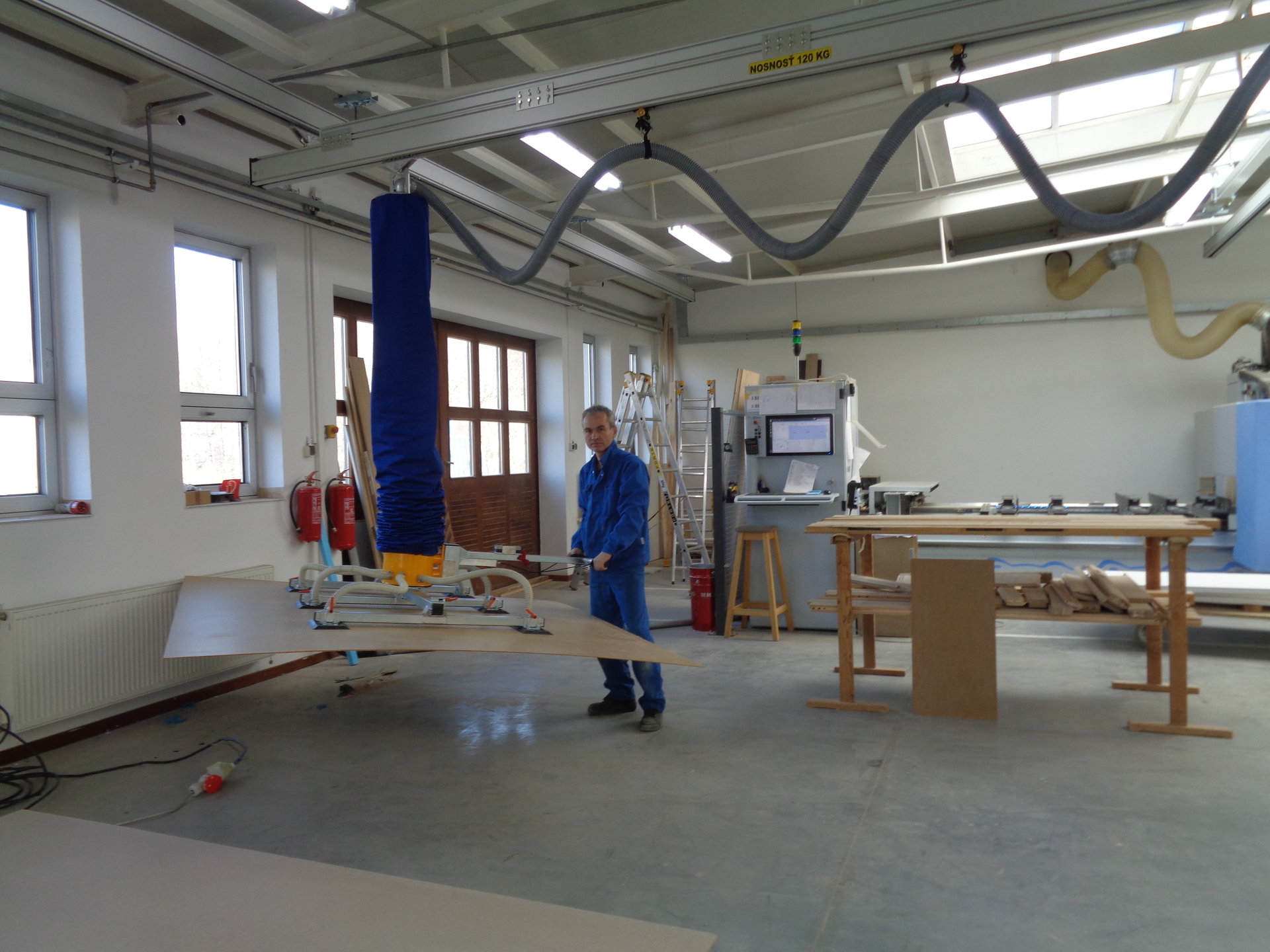

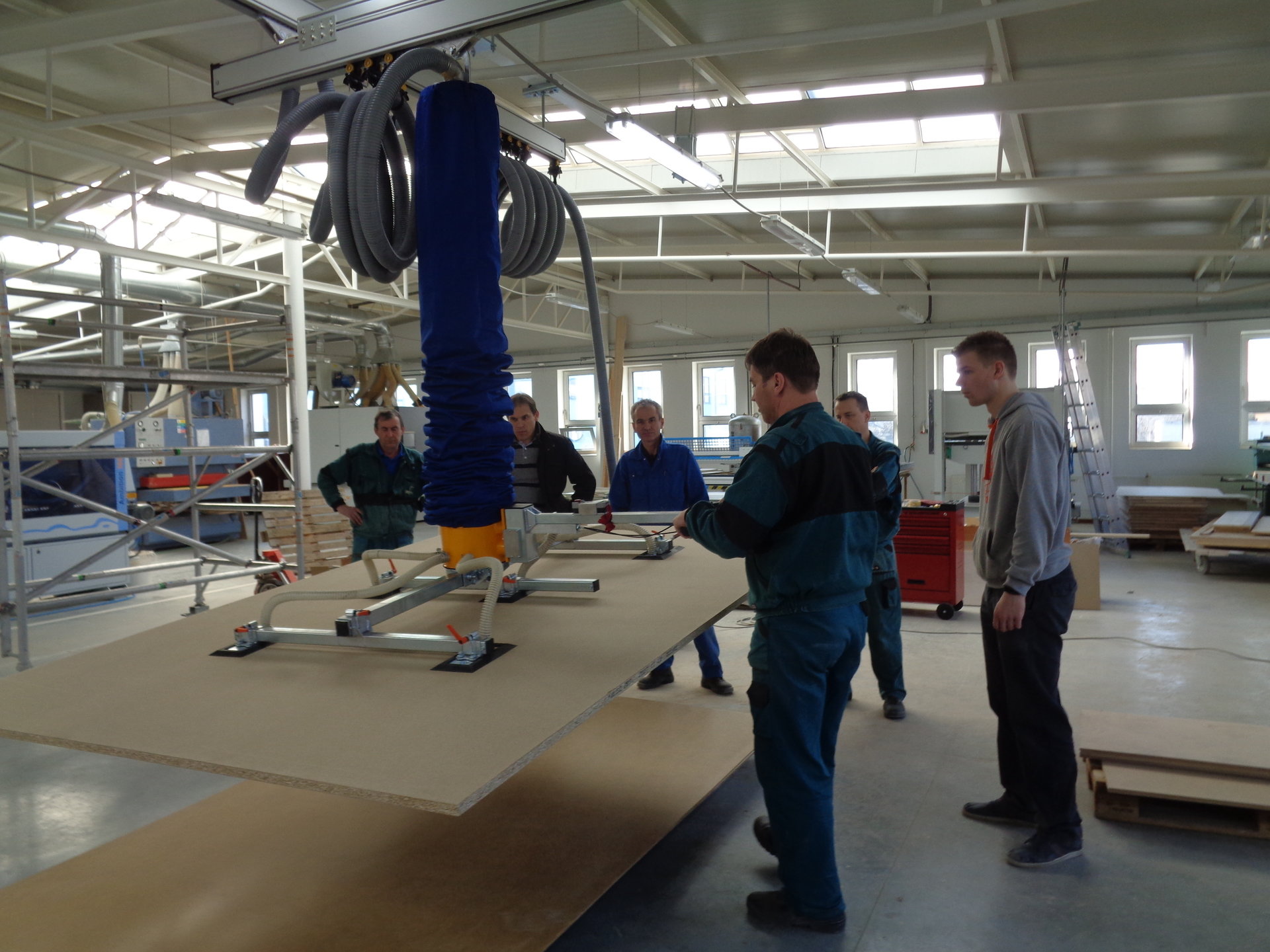

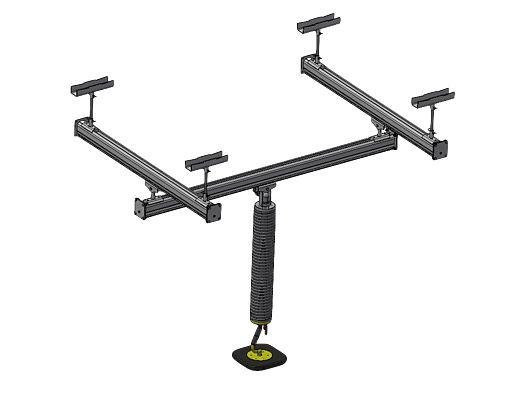

The Vacuum Tube Lifter - VHZ Rail is ideal for applications where large area should be handled and aninherent supporting column structure is required. One of its strengths is theeasiness of manual travel, ensuring fast, reliable and cost-effective transportof material. Multiple modular components ensure flexibility. Customimplementation is guaranteed. VHZ Rail Vacuum Hose Lifter is the right answerfor your needs if you need to lift and handle loads quickly and easily. Itsadvantage is the single medium responsible for grasping and lifting the load.It is a vacuum. No electric hoist and no pneumatic or hydraulic rollers arenecessary. The operator controls the lifting and lowering of the load using acontrol handle. When you increase the vacuum in the system, the load lifted;when you decrease the vacuum in the system, the load is lowered.

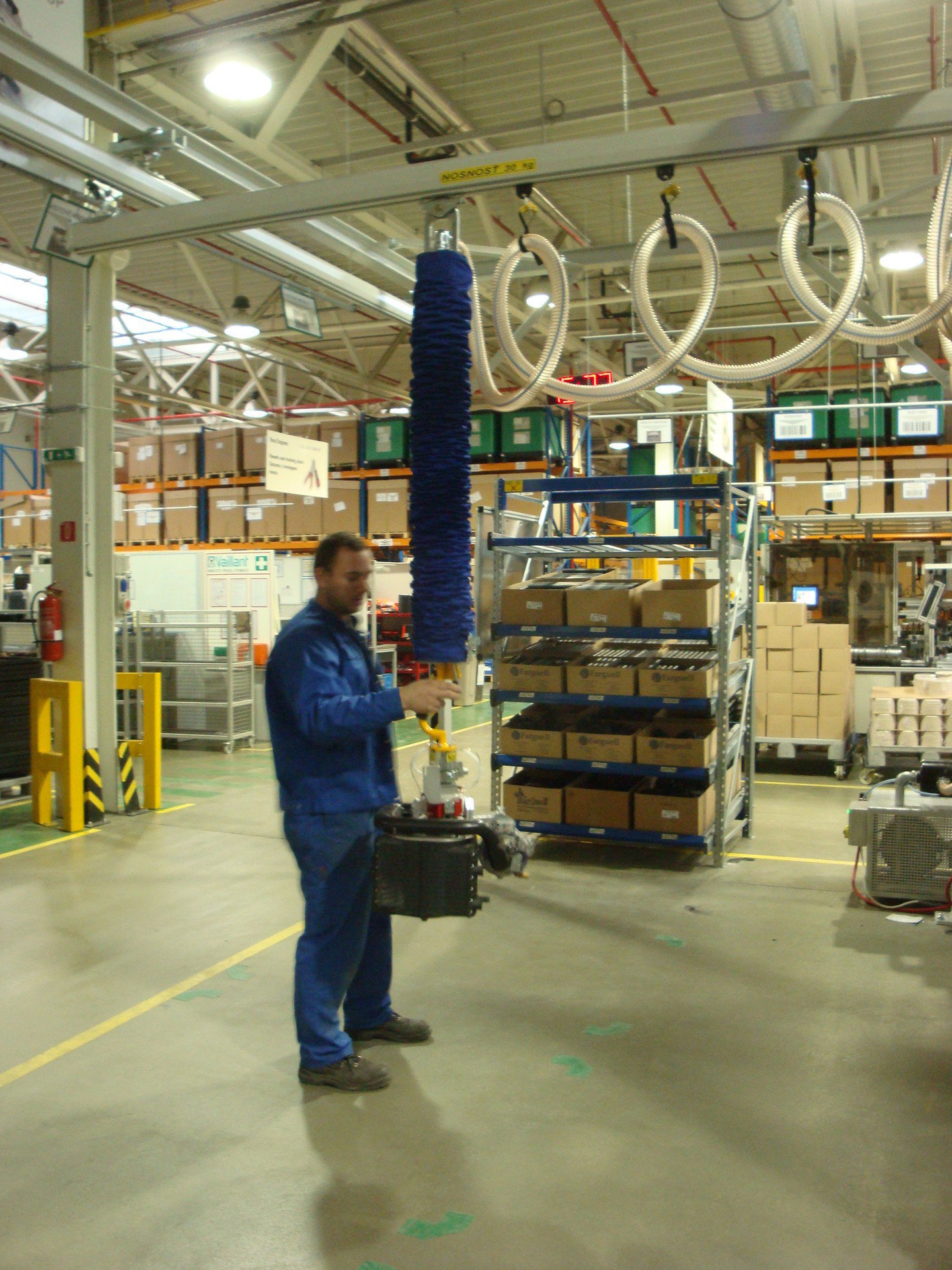

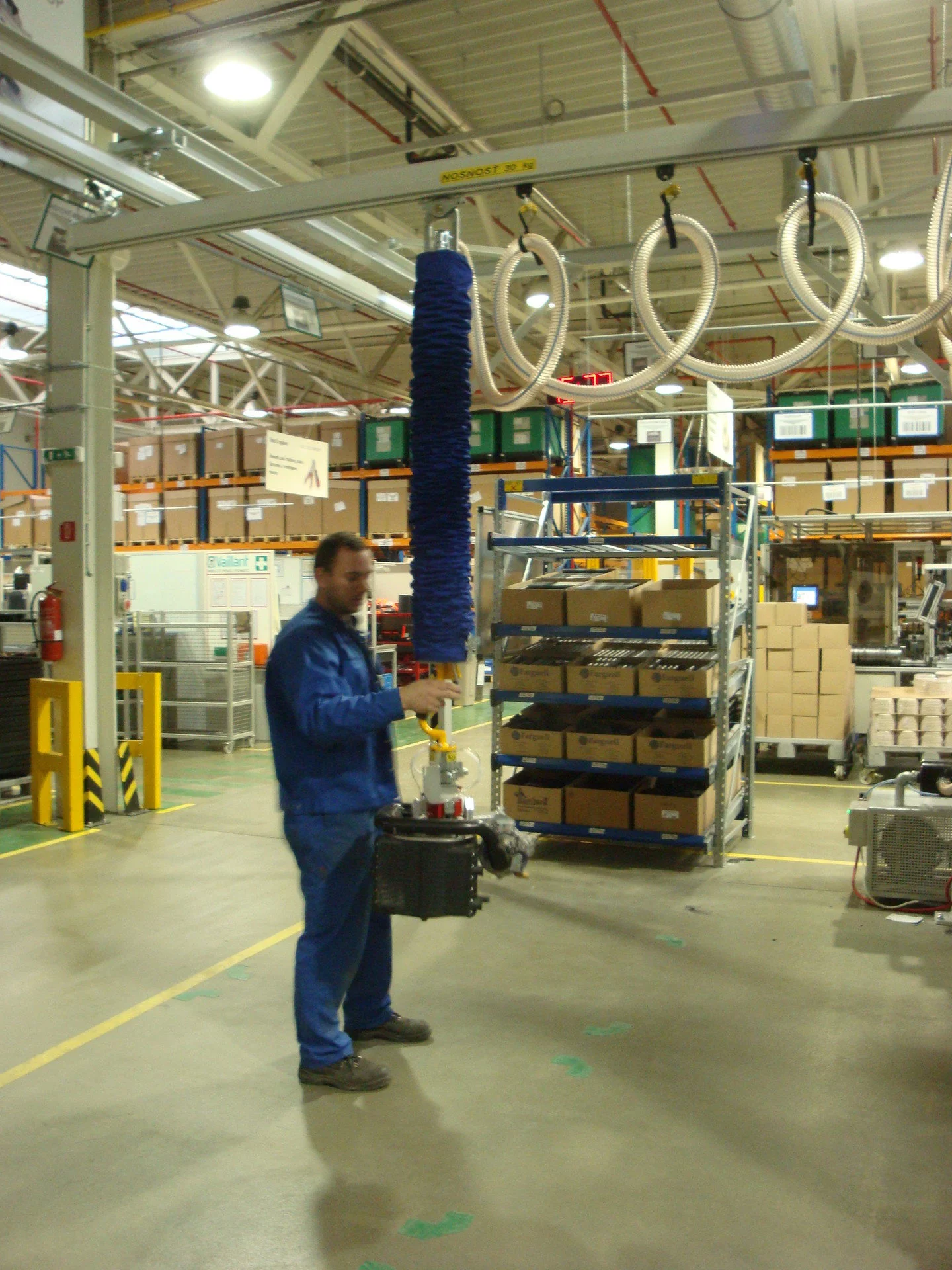

VACUUM TUBE LIFTER - VHZ Rail

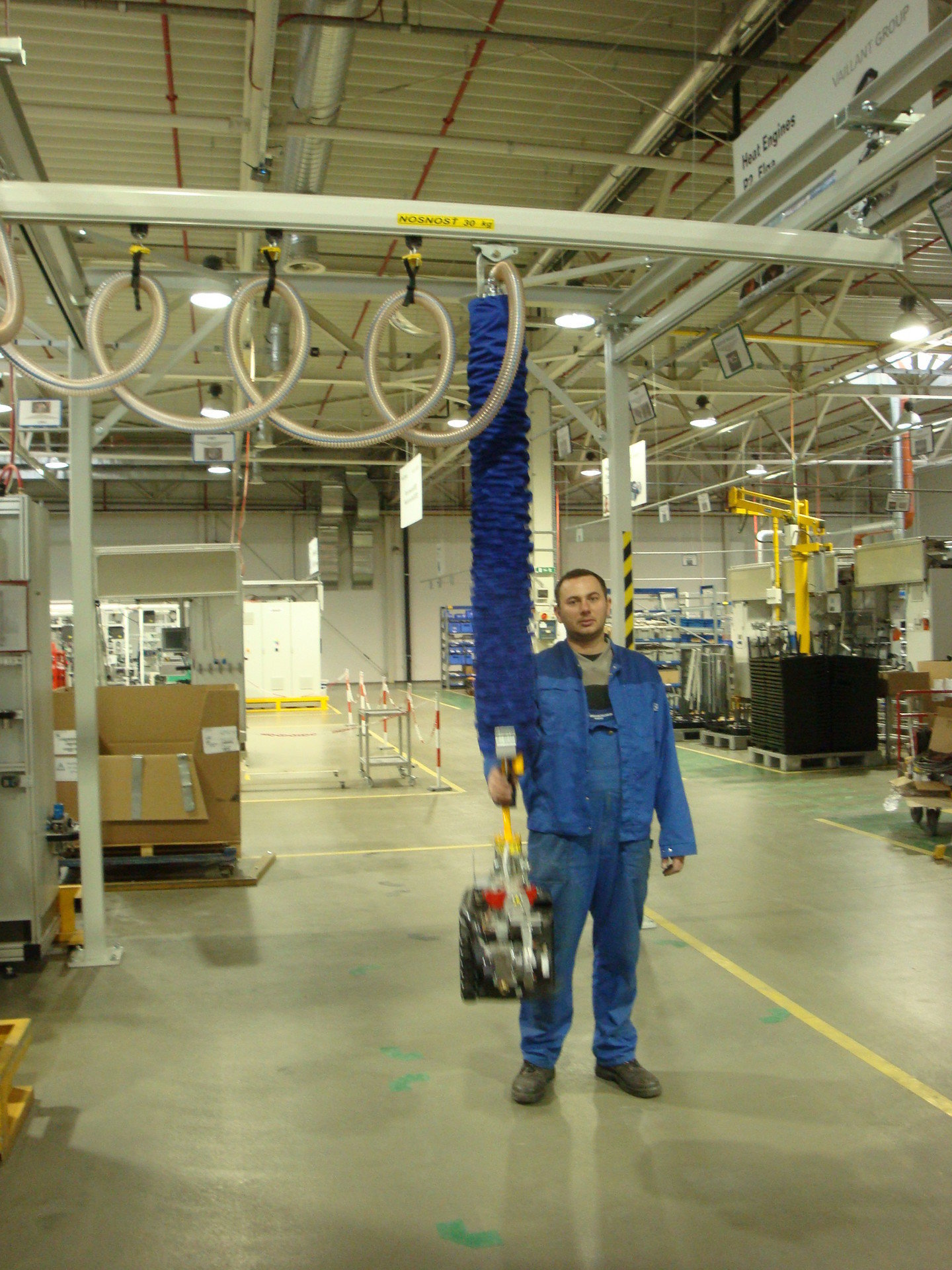

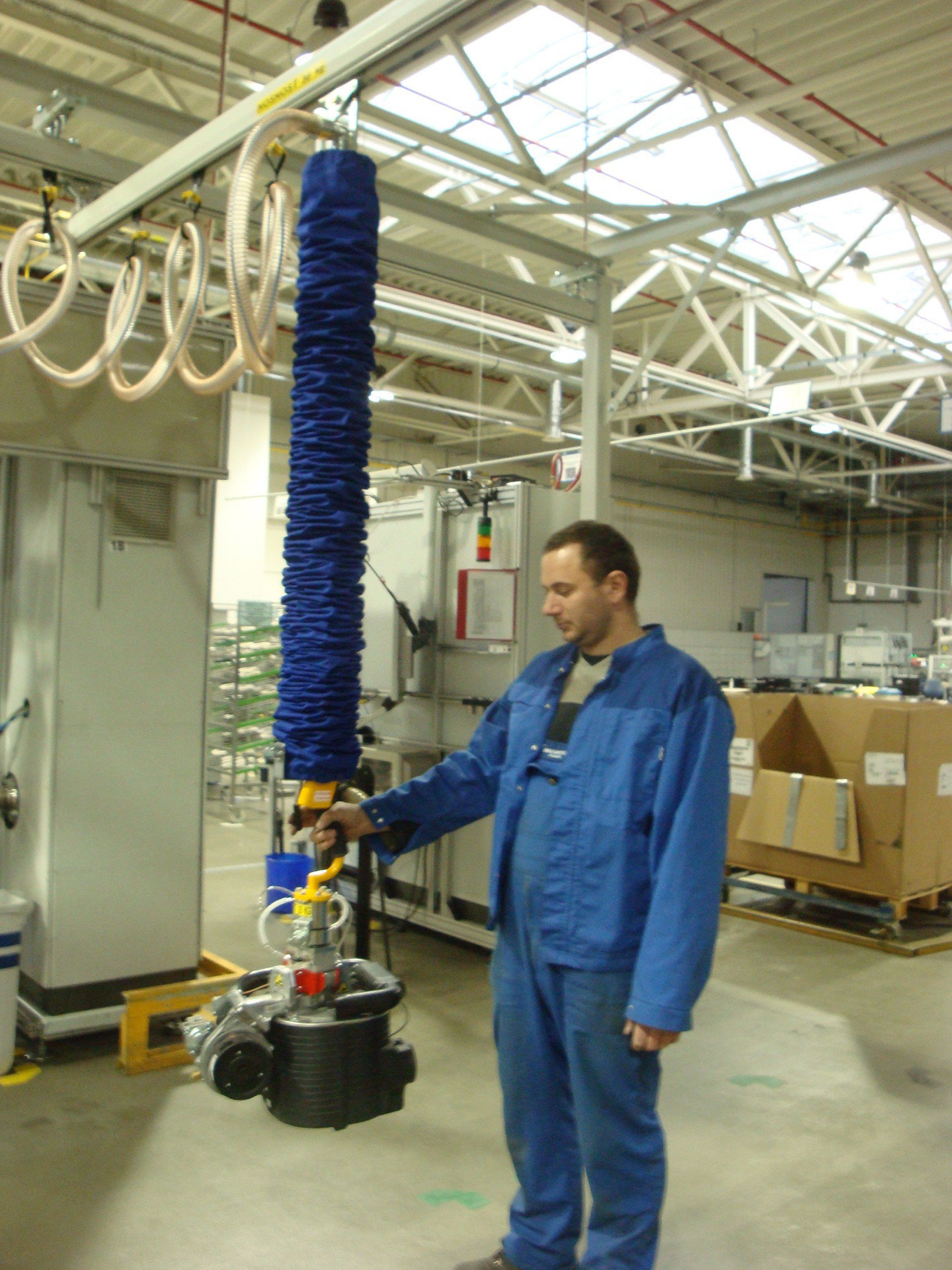

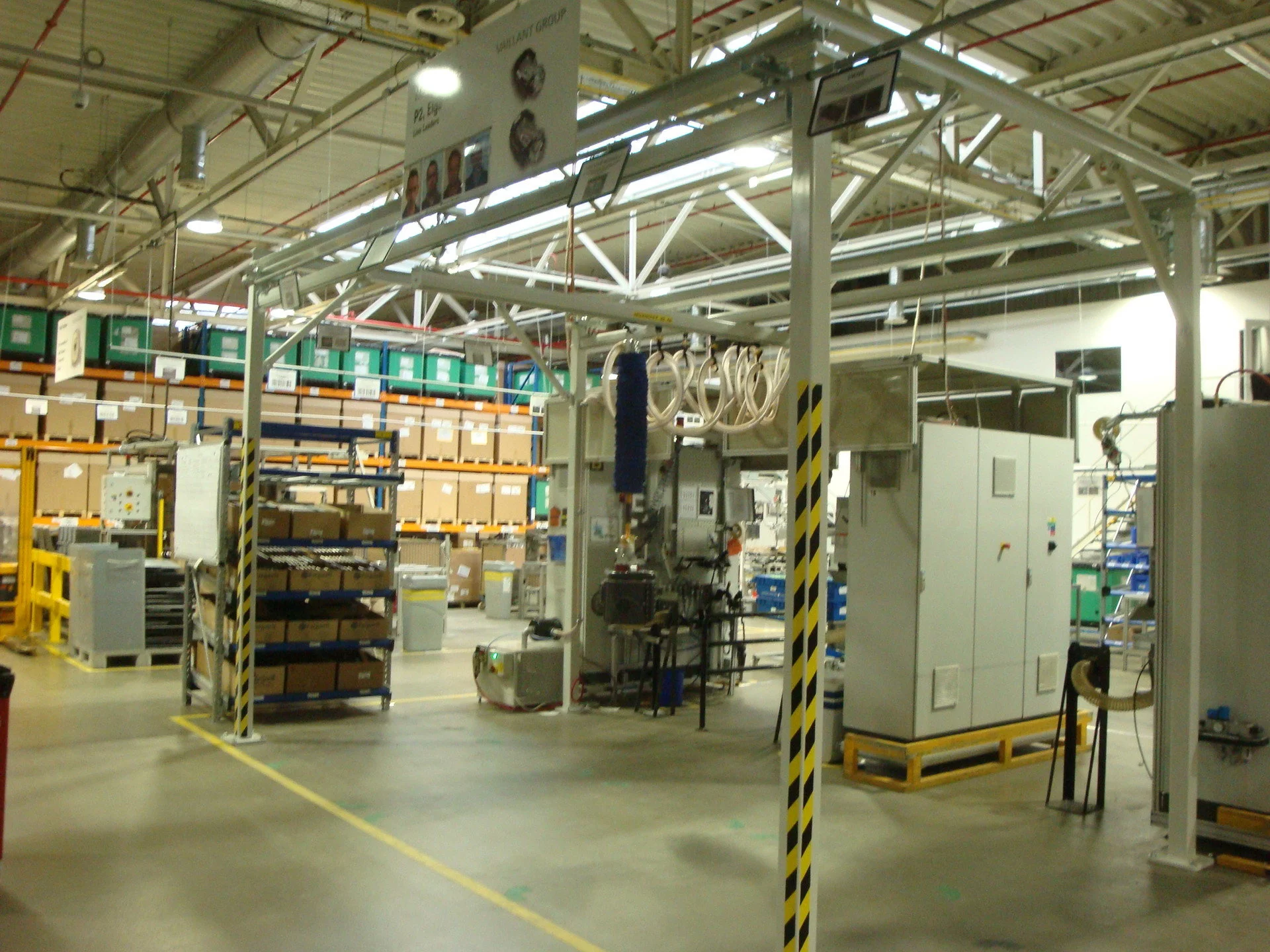

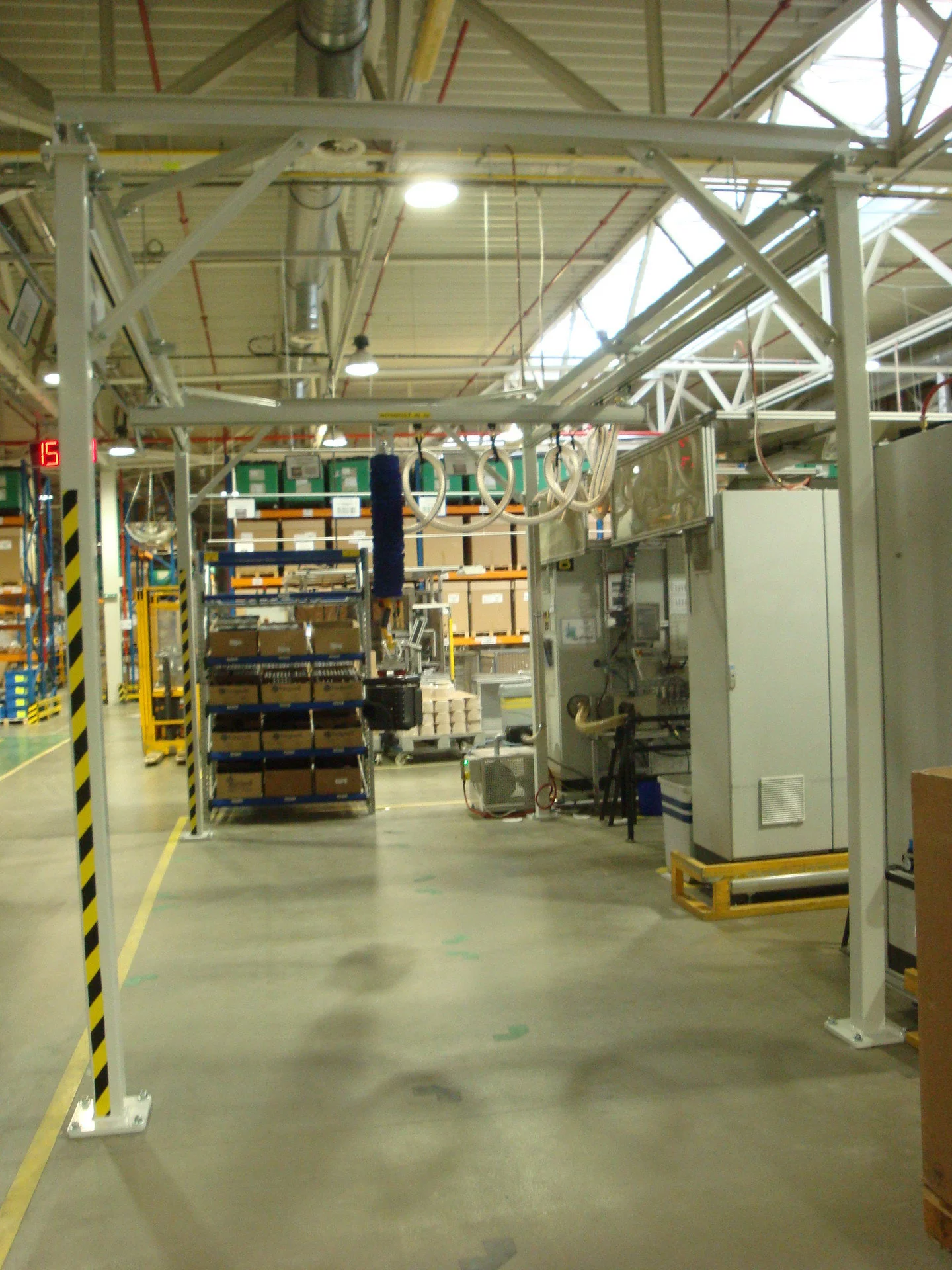

The Vacuum Tube Lifter - VHZ Rail is a universal handling system with its inherentlarge-scale column structure, with light manual cross bridge, manual travel andsimple operation.
Application:

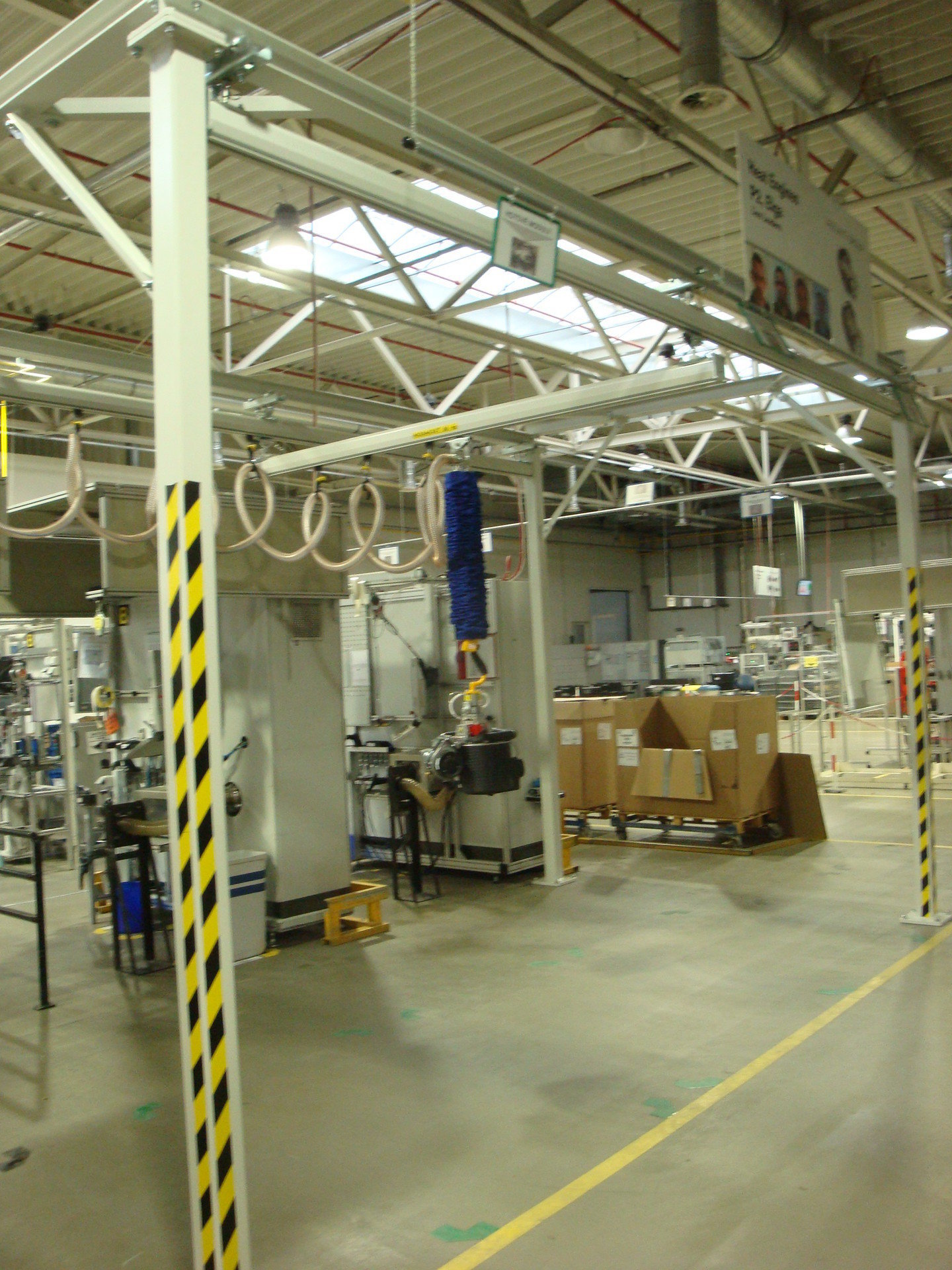

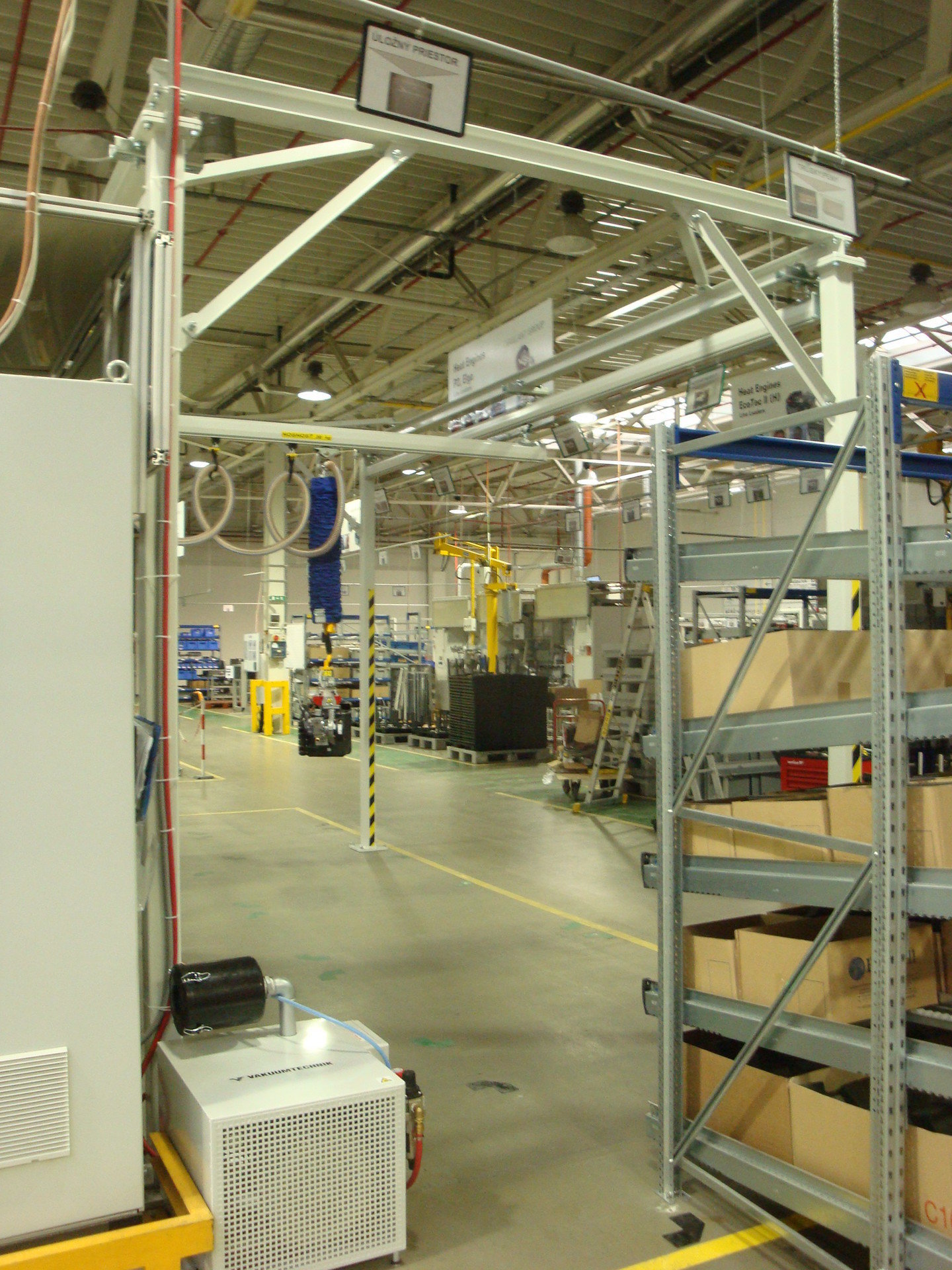

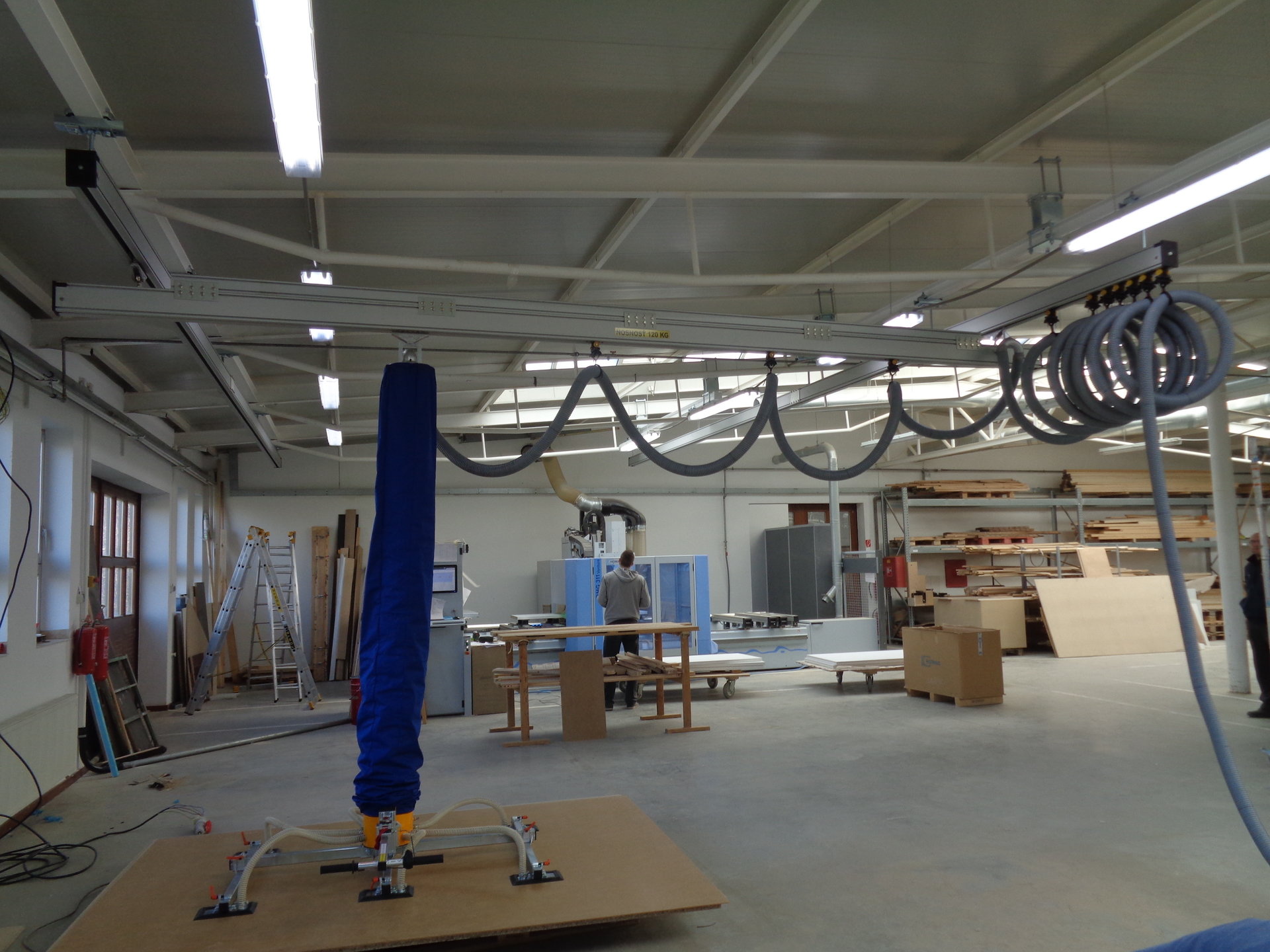

The Vacuum Tube Lifter - VHZ Rail is a universal handling system that is easy to operate and suitable fortransporting materials on linear routes as well as for transporting materialswithin the entire site. The device allows you to grasp, lift and handlesmall-sized or large-sized loads in a horizontal position within the work area,which is given by the range of the VHZ Rail Vacuum Tube Lifter. This device canbe mounted with lifting capacity ranging from 30 kg to 150 kg.
Benefits:
- Reliable – high reliability andminimal maintenance are ensured
- Safe – safety guaranteed inevery situation
- Variable – variable dimensions,optional connection of additional sections, various terminal vacuum ormechanical tools for grasping loads can be delivered
- Practical – its versatility and a wide range of structural systems will meeteven the most demanding requirements of the industry
Potential types of loads to be handled:
- Cardboard boxes
- Paper or textile bags
- Barrels
- Wooden plates and boards covered with air-tight finish
- Plastic plates and boards
- Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
- Stone with grinded surface
- Glass plates and boards
Basic technical information:
| Maximum lifting capacity | 30, 50, 75, 100, 150 kg |
| Intended handling | in horizontal position |
| Vertical movement | do 1700 mm |
| Lifting speed | 0-50 m/min |
| Power supply | 3+PE (PEN) 400VAC/50Hz/15VAC |
Information table:

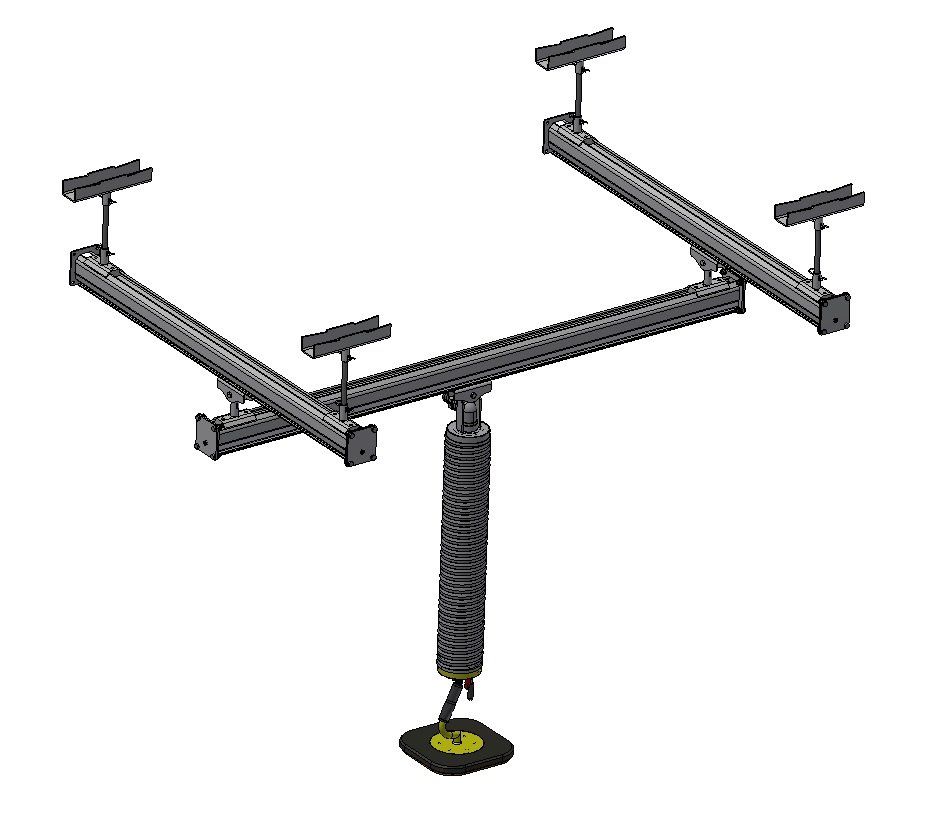

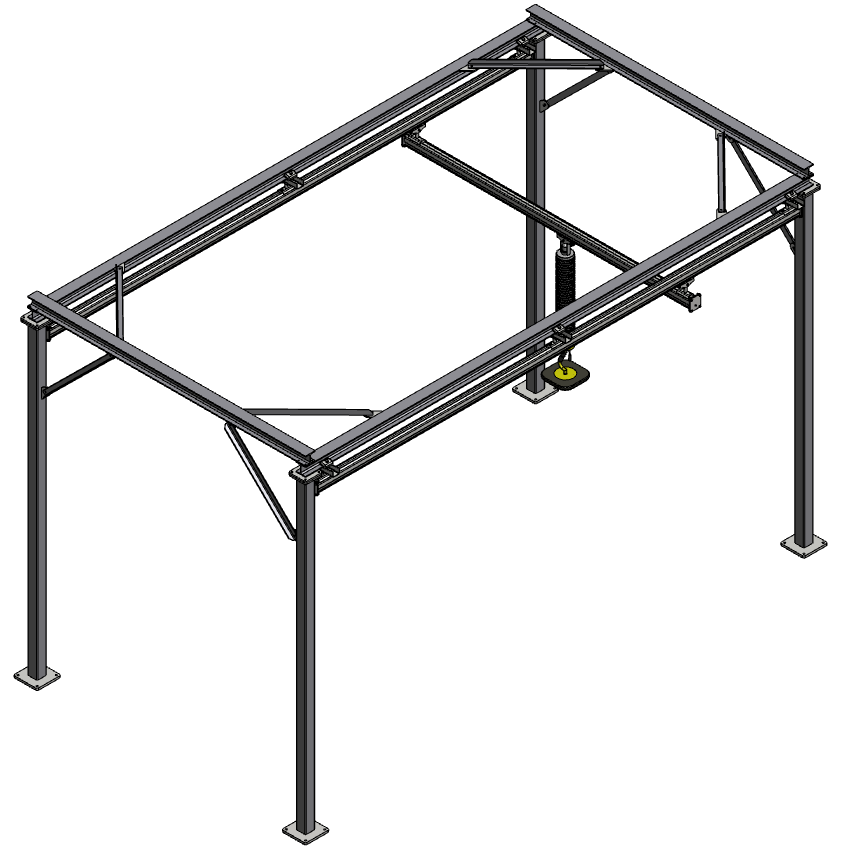

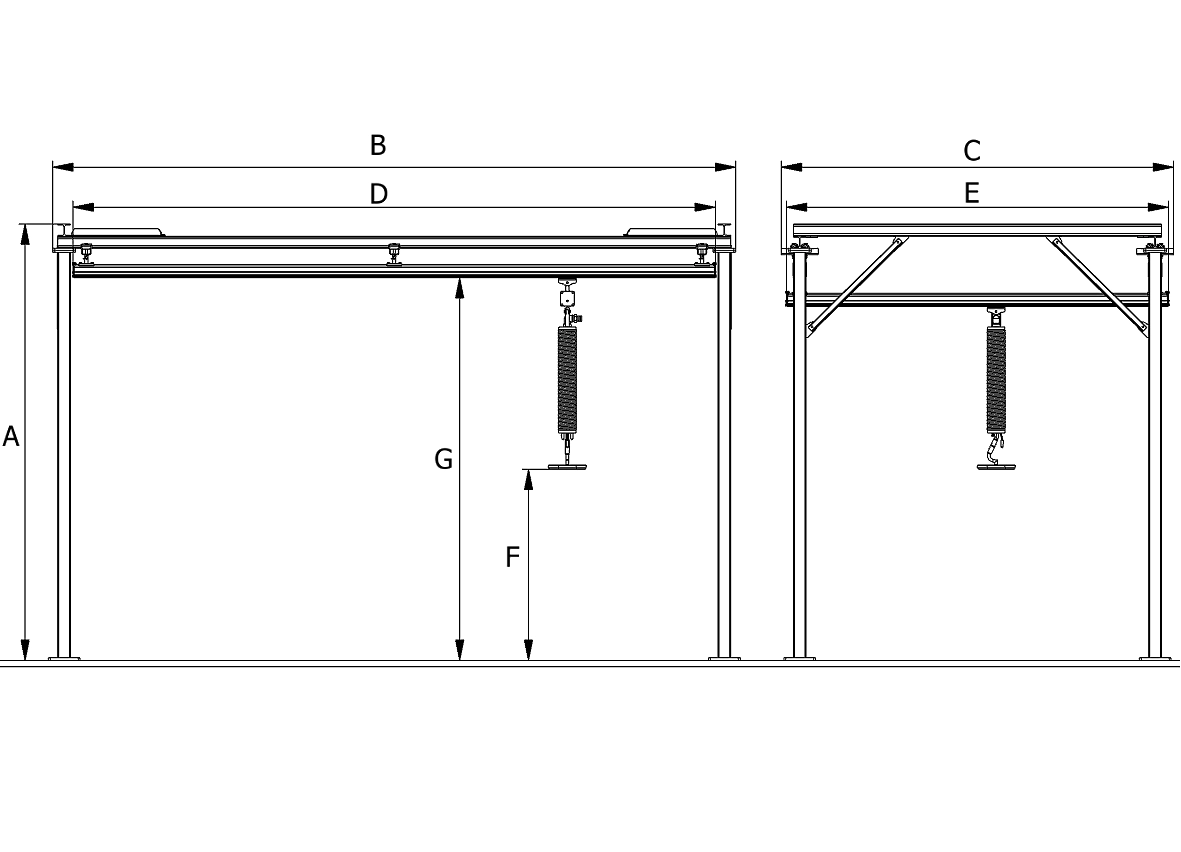

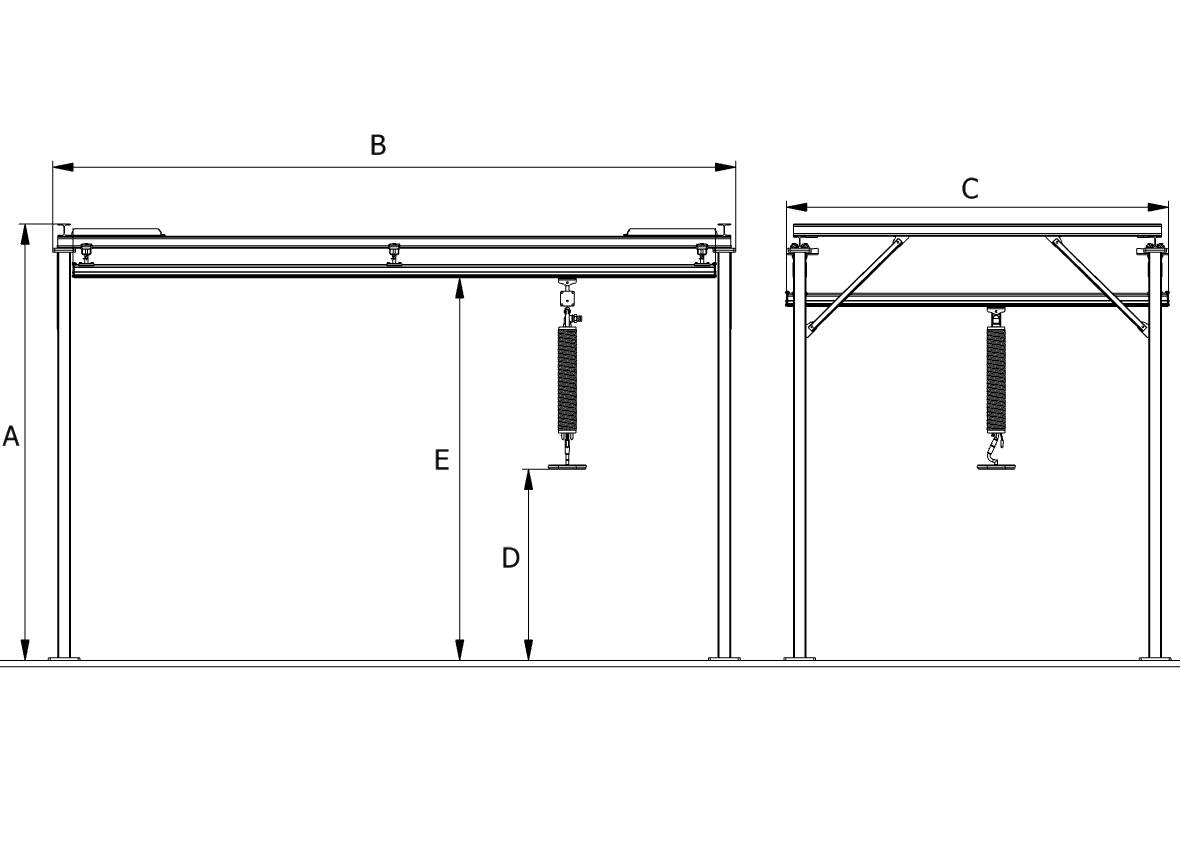

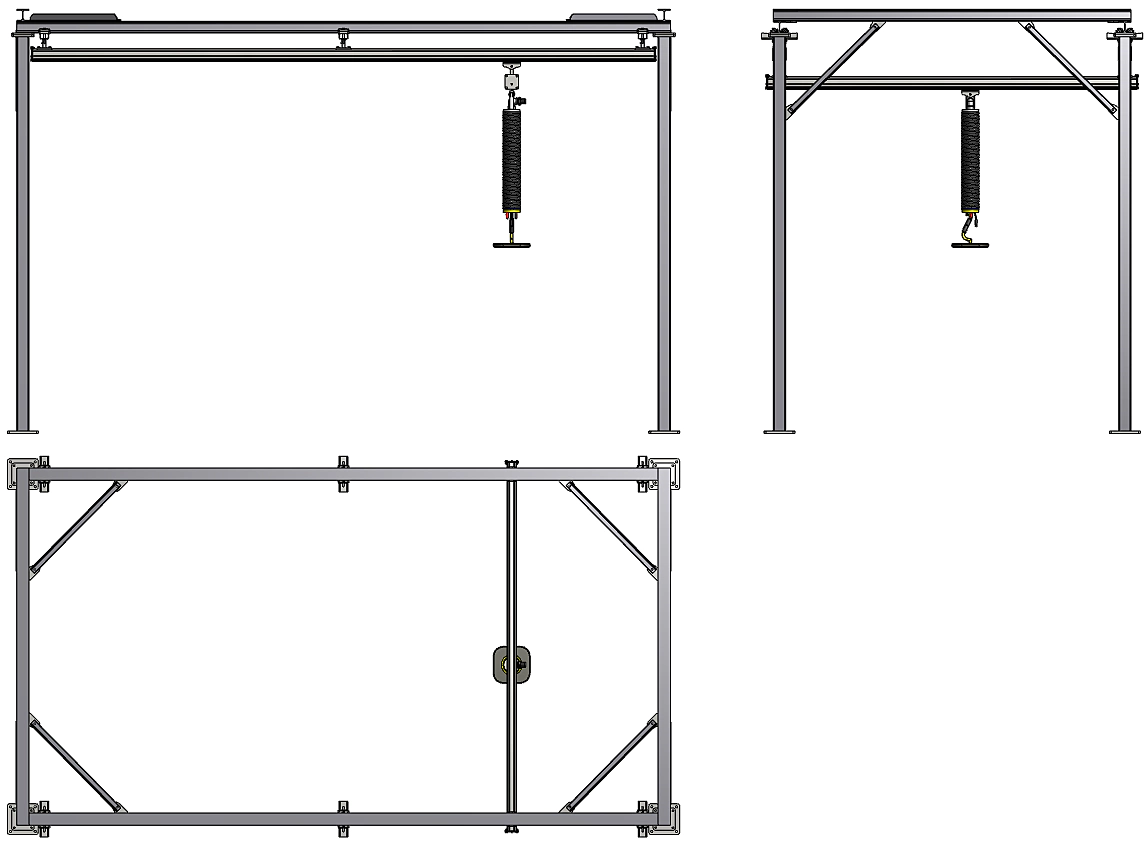

| TYPE VHZ | LIFTING CAPACITY (kg) | CONTROL | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|
| VHZ Rail 30 | 30 | One-handed/ obojručné | min. 3000 max. 4500 | min. 2000 max. 20000 | min. 1000 max. 8000 | 1700 | min. 3000 max. 4000 |
| VHZ Rail 50 | 50 | One-handed/ obojručné | min. 3000 max. 4500 | min. 2000 max. 20000 | min. 1000 max. 8000 | 1700 | min. 3000 max. 4000 |
| VHZ Rail 75 | 75 | One-handed/ obojručné | min. 3000 max. 4500 | min. 2000 max. 20000 | min. 1000 max. 8000 | 1700 | min. 3000 max. 4000 |
| VHZ Rail 100 | 100 | One-handed/ obojručné | min. 3000 max. 4500 | min. 2000 max. 20000 | min. 1000 max. 8000 | 1700 | min. 3000 max. 4000 |
| VHZ Rail 150 | 150 | One-handed/ obojručné | min. 3000 max. 4500 | min. 2000 max. 20000 | min. 1000 max. 8000 | 1700 | min. 3000 max. 4000 |
