VACUUM MANIPULATOR - VM 1000/7-6000

Basic description:

  • main supporting steel structure with a two-pointsuspension
  • seven suction cups 370 mm in diameter
  • suction cups manually adjustable in “x¨ axis
  • vacuum pump – design (400V three phase system, or 230Vsingle phase system)
  • vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
  • acoustic and visual signalisation of insufficient vacuum in suction cups
  • GRIP/ RELEASE the load through a manual valve conveniently located on the VM control handle
  • double-acting control to suck off the loadmechanically (electromagnetically using a spiral-button control - for asurcharge)
  • spiral cable for connecting the handler up to 3 m
  • quick-clamping system of electrical connection via a connector

Application:

The vacuum manipulator VM 1000/7-2,5x1 is a handy little gripping device that allows you to grip and handle narrow and long flat loads up to 1000 kg in a horizontal position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the vacuum manipulator will be suspended on.

Potential types of loads to be handled:

✓    Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
✓    Glass plates and boards
✓    Plastic plates and boards
✓    Stone with grinded surface
✓    Wooden plates and boards covered with air-tight finish

Benefits:

  • Simple very convenient anddedicated device that is easy to operate
  • Variable transverse beams and suction cups on the beam can beeasily adjusted by hand
  • Reliable high reliability and minimalmaintenance are ensured
  • Safe safety guaranteed in every situation

Basic technical information:

Maximum load capacity1000 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin horizontal position, to be lifted on a lifting device
Weight270 kg
Max. load dimensions8000x1000 mm
Min. load dimensions1500x400 mm
Power supplya) 3+PE (PEN) 400VAC/50Hz/15VAC
b) 1+N+PE 230VAC/50Hz/24VDC

Information table:

Number of suction cups / diameter (mm)LOAD CAPACITY (kg)WEIGHT (kg)Width (mm)Overall depth (mm)Overall height (mm)Suction cup diameter (mm)
7/37010002707100570780370

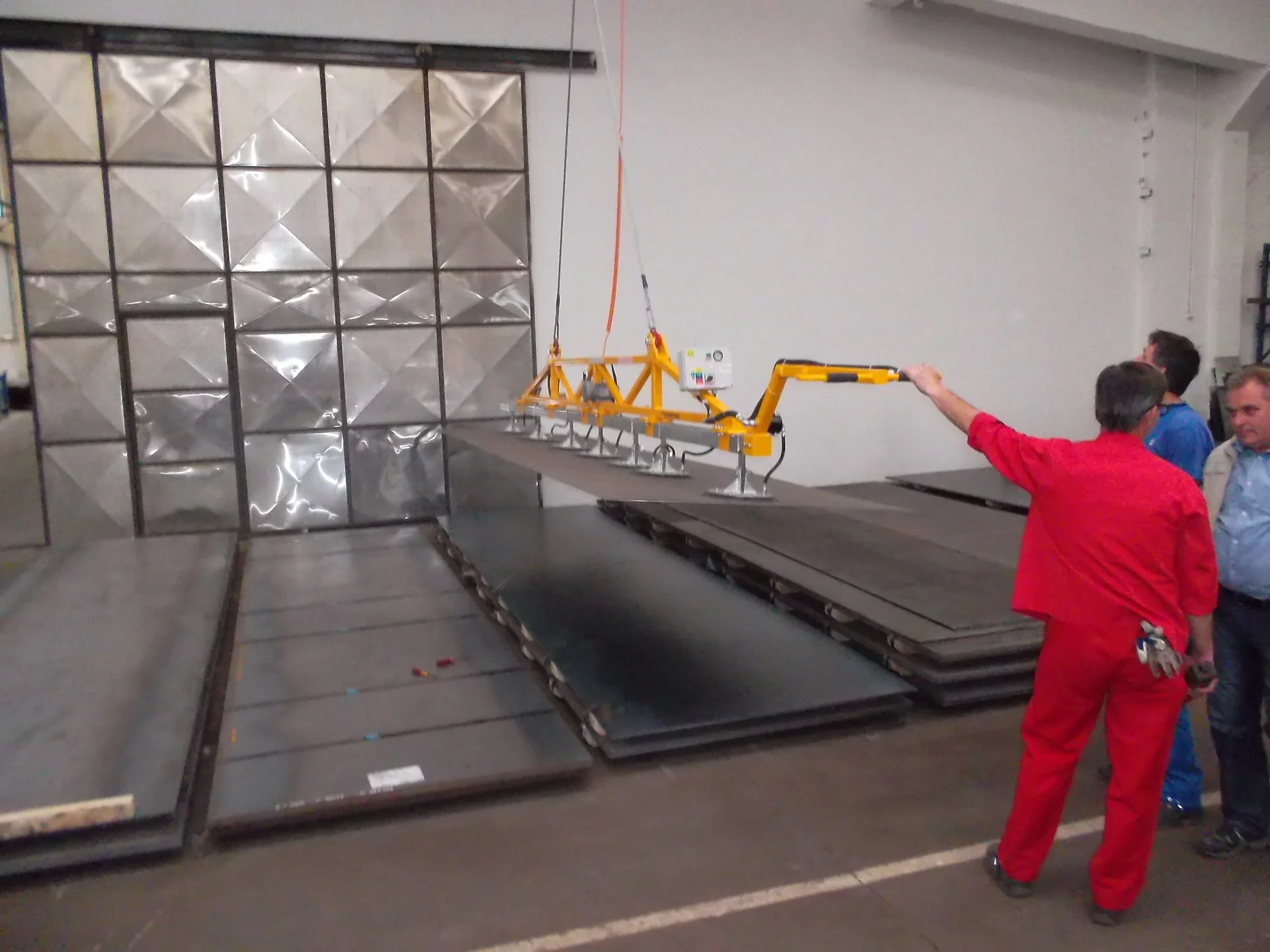

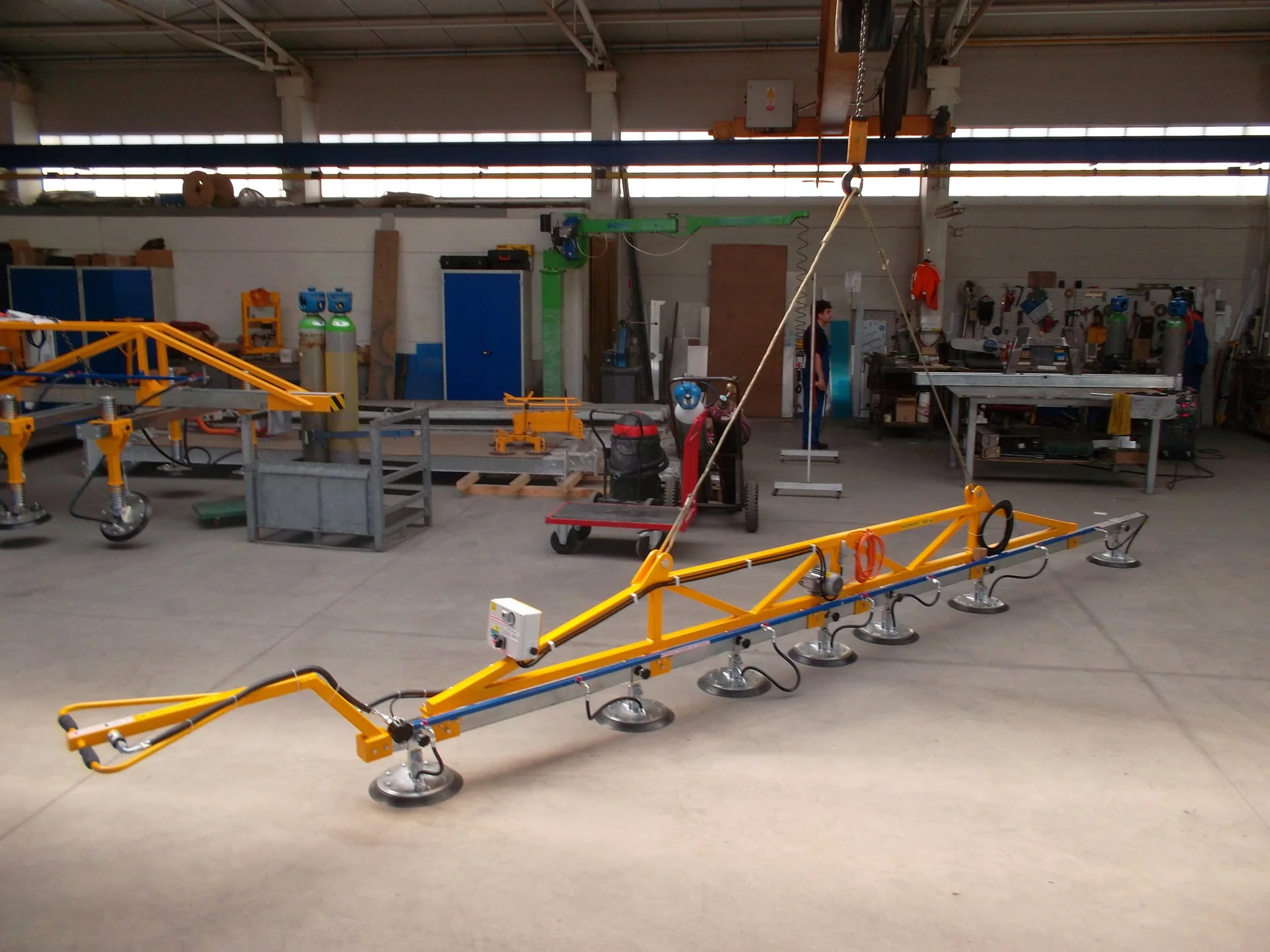

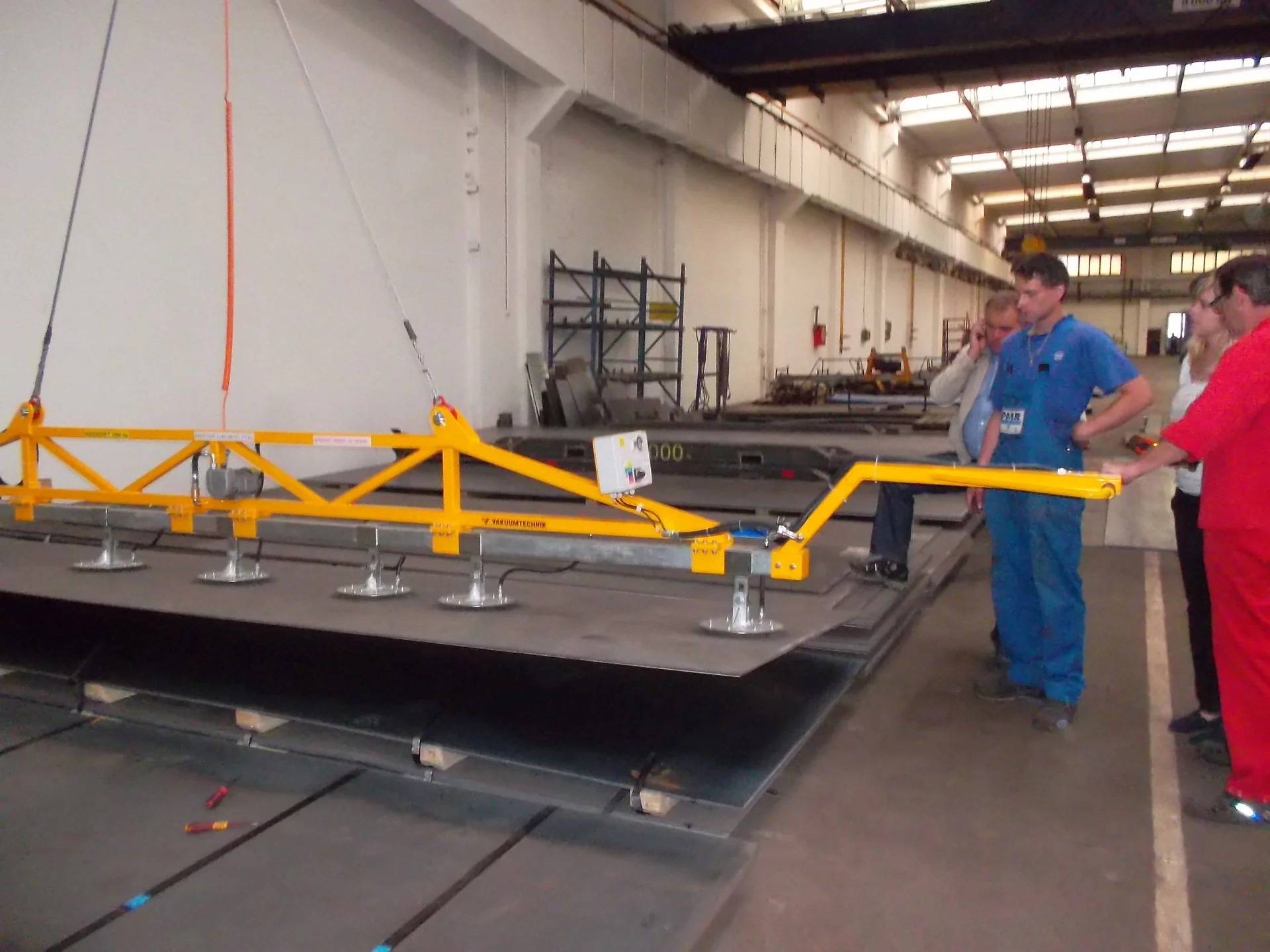

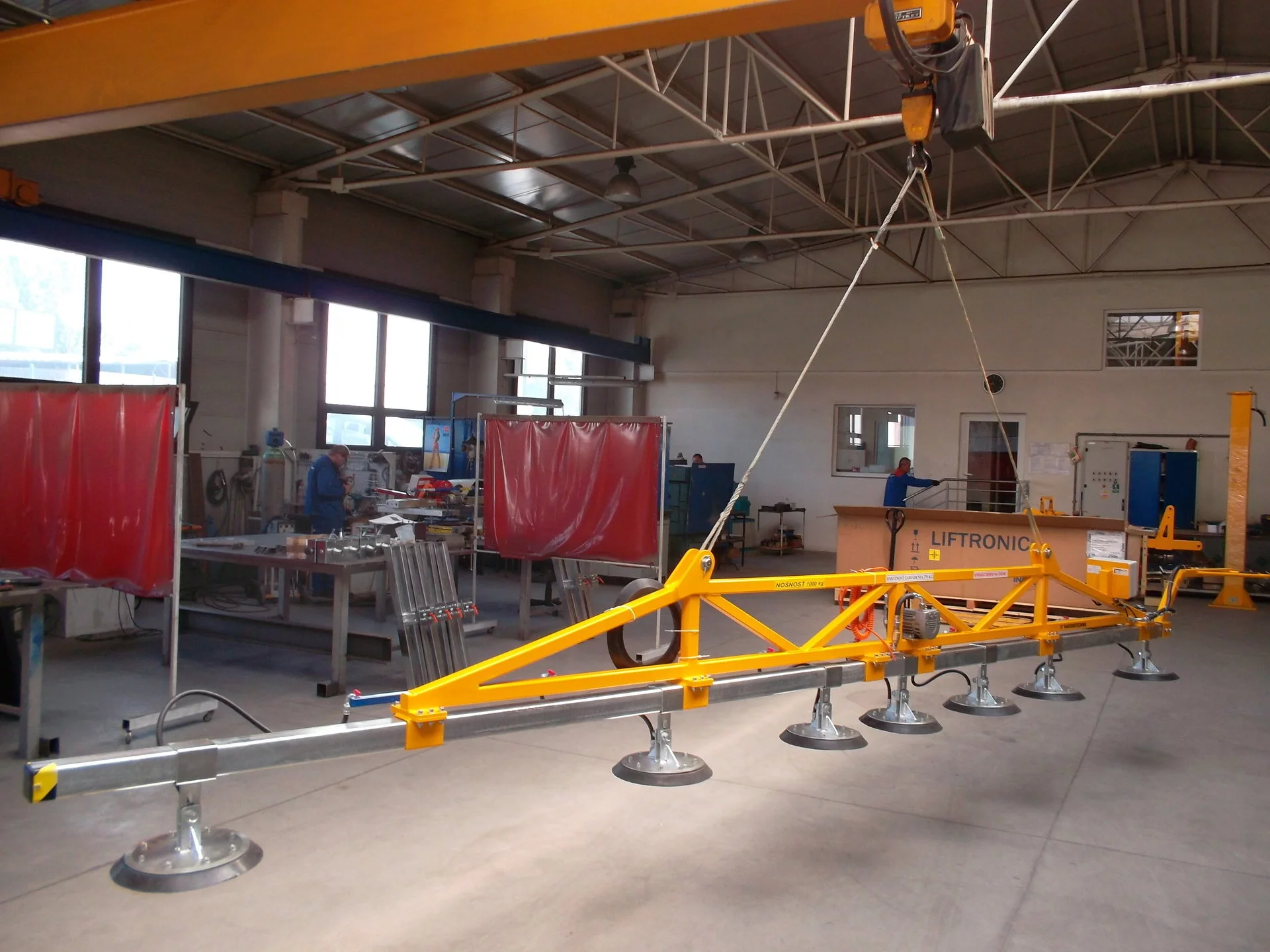

Photo gallery

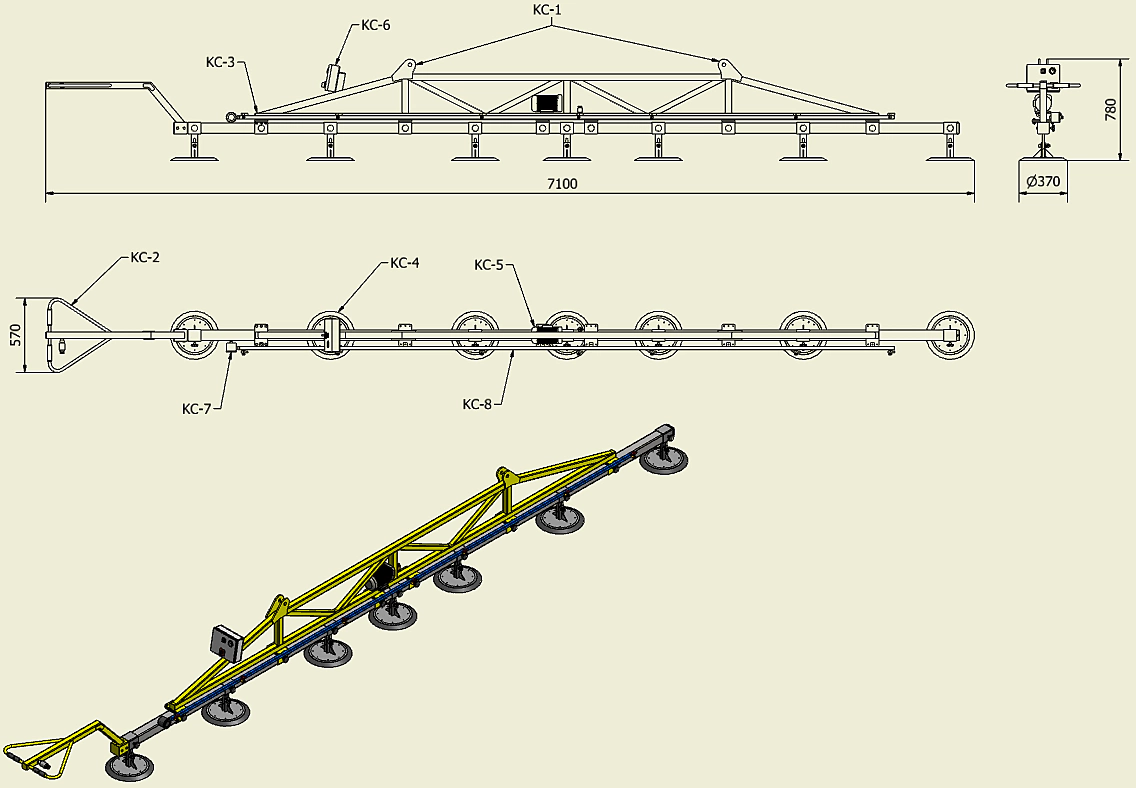

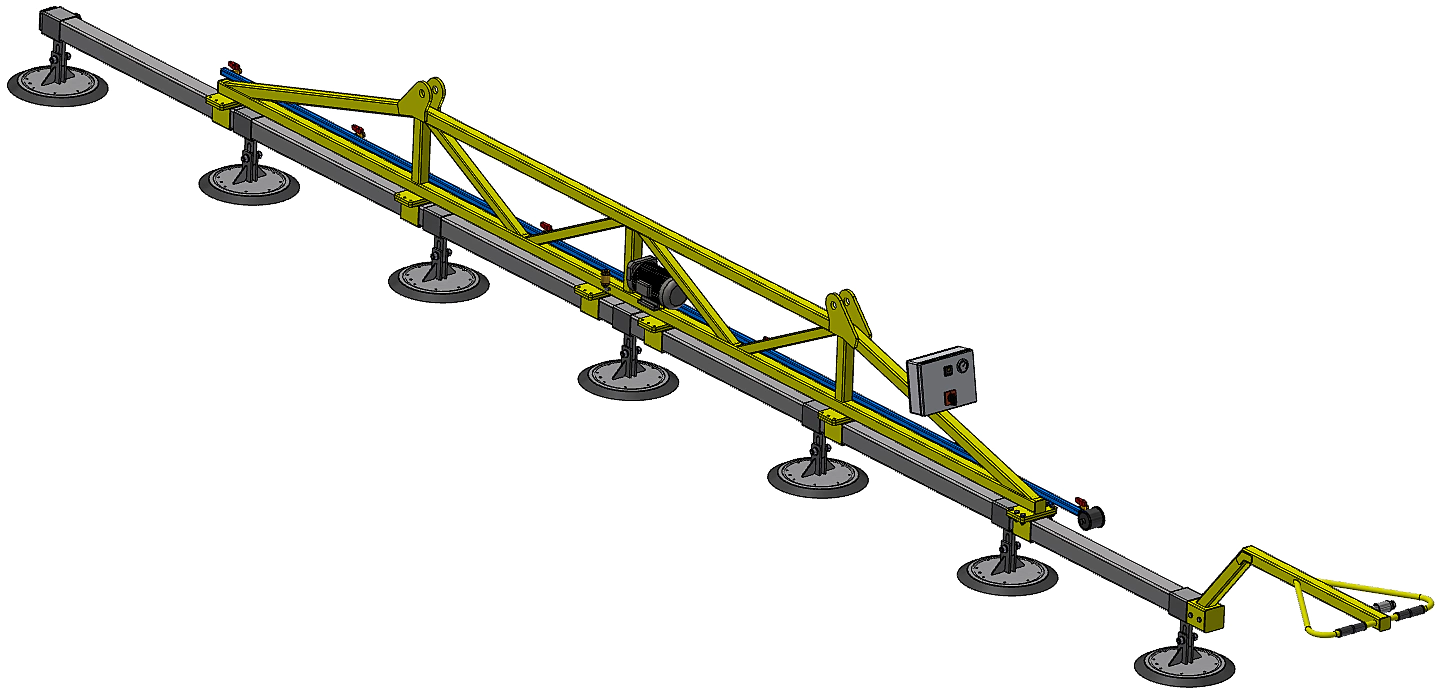

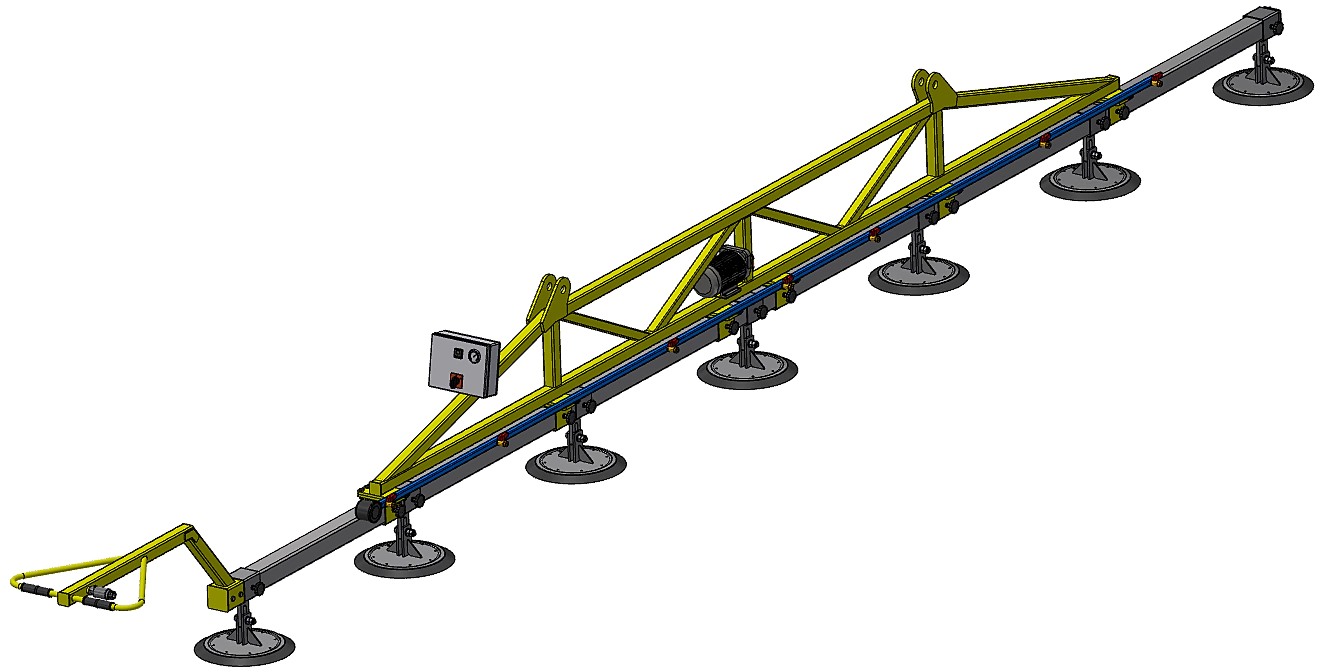

3D models + drawings
