VACUUM MANIPULATOR - VM 150/8 - 6000(10000)/TLSK

Basic description:

  • Main supporting steel structure with a double-pointsuspension
  • Eight suction cups 240 mm in diameter
  • Possibility to telescopically extend the vacuum manipulator by manually extending the outer four suction cups in the "x" axis
  • Vacuum pump – design (400V three phase system, or 230Vsingle phase system)
  • Vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
  • Acoustic and visual signalisation of insufficientvacuum in suction cups
  • GRIP/ RELEASE the load through a manual valve conveniently located on the VM control handle
  • Double-acting control to suck off the loadmechanically (electromagnetically using a spiral-button control - for asurcharge)
  • Spiral cable for connecting the handler up to 3 m
  • Quick-clamping system of electrical connection via a connector

Application:

The vacuum manipulator VM 150/8 - 6000(9000)/TLSK js a handy little gripping device that allows you to grip and handle narrow sheets, medium sized flat loads up to 150 kg in a horizontal position within the work area, which is given by therange of the lifting equipment (crane or any other lifting device) the vacuum manipulator will be suspended on.

Potential types of loads to be handled:

  • ✓    sandwich panels
    ✓    steel sheets, boards and non-ferrous metals (includingnon-magnetic)
    ✓    plastic plates and boards
    ✓    stone with grinded surface
    ✓    wooden plates and boards covered with air-tight finish

Benefits:

  • Variable - possibility to telescopically extend the vacuum manipulator by manually extending the outer two suction cups in the "x" axis
  • Lightweight - easy to operate equipment, suitable for very thin materials such as sheets
  • Reliable - high reliability and minimalmaintenance are ensured
  • Safe – safety guaranteed in every situation

Basic technical information:

Maximum load capacity (WLL)150 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin horizontal position, to be lifted on a lifting device
Weight330 kg
Max. dimensions of load13000x1000 mm
Min. load dimensions2000x300 mm
Power supplya) 3 PE (PEN) 400VAC/50Hz/15VAC
b) 1 N PE 230VAC/50Hz/24VDC

Information table:

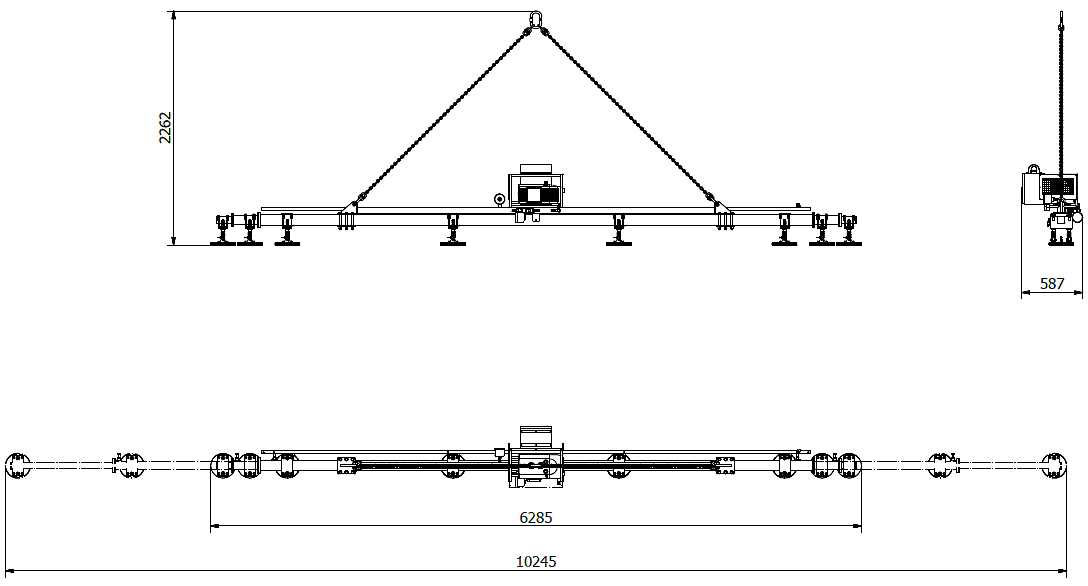

Number of suction cups / diameter (mm)LOAD CAPACITY (kg)WEIGHT (kg)Lenght (mm)Depth (mm)Height (mm)
8/2401503306285(10245)587600 (2262)

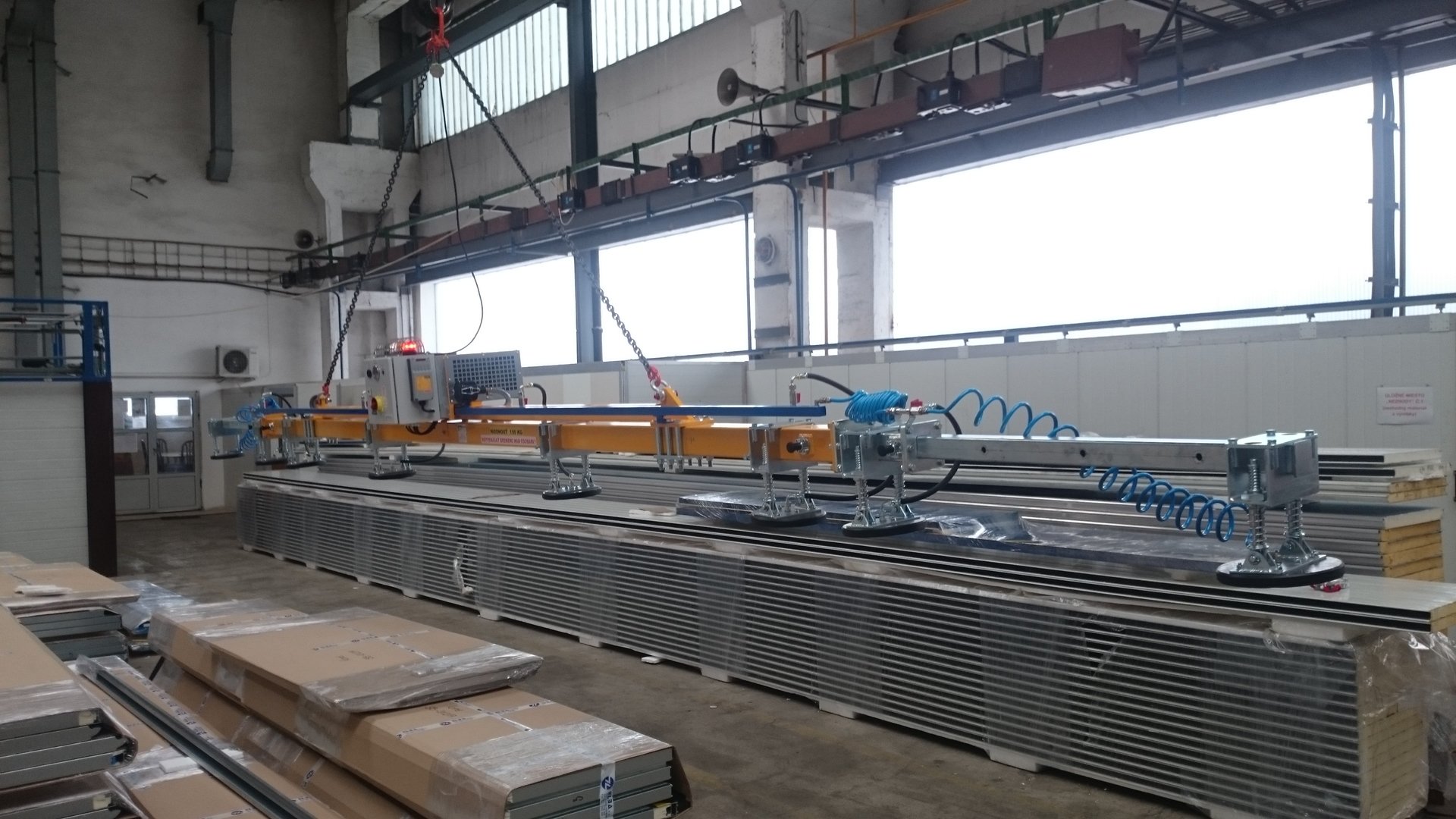

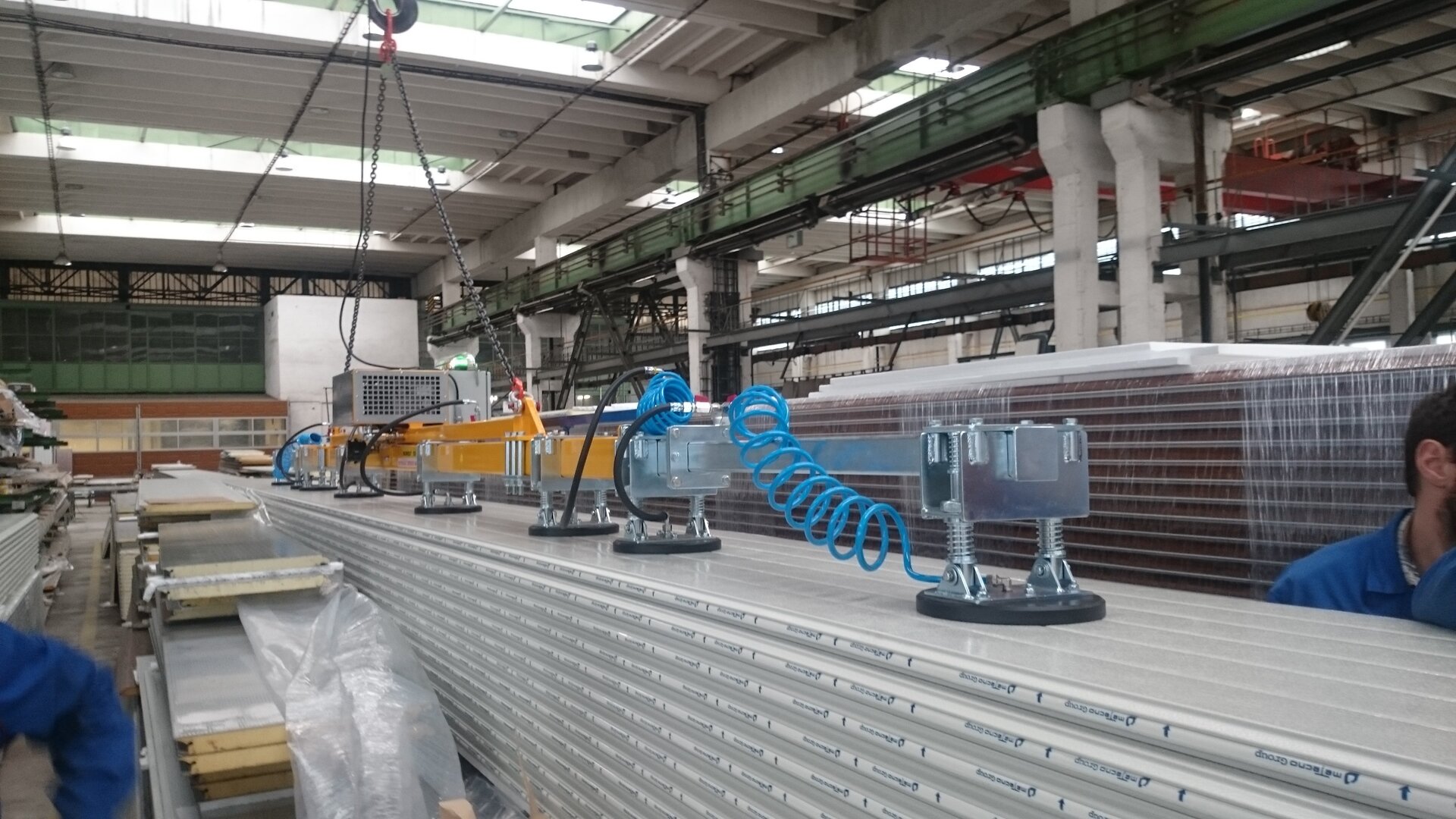

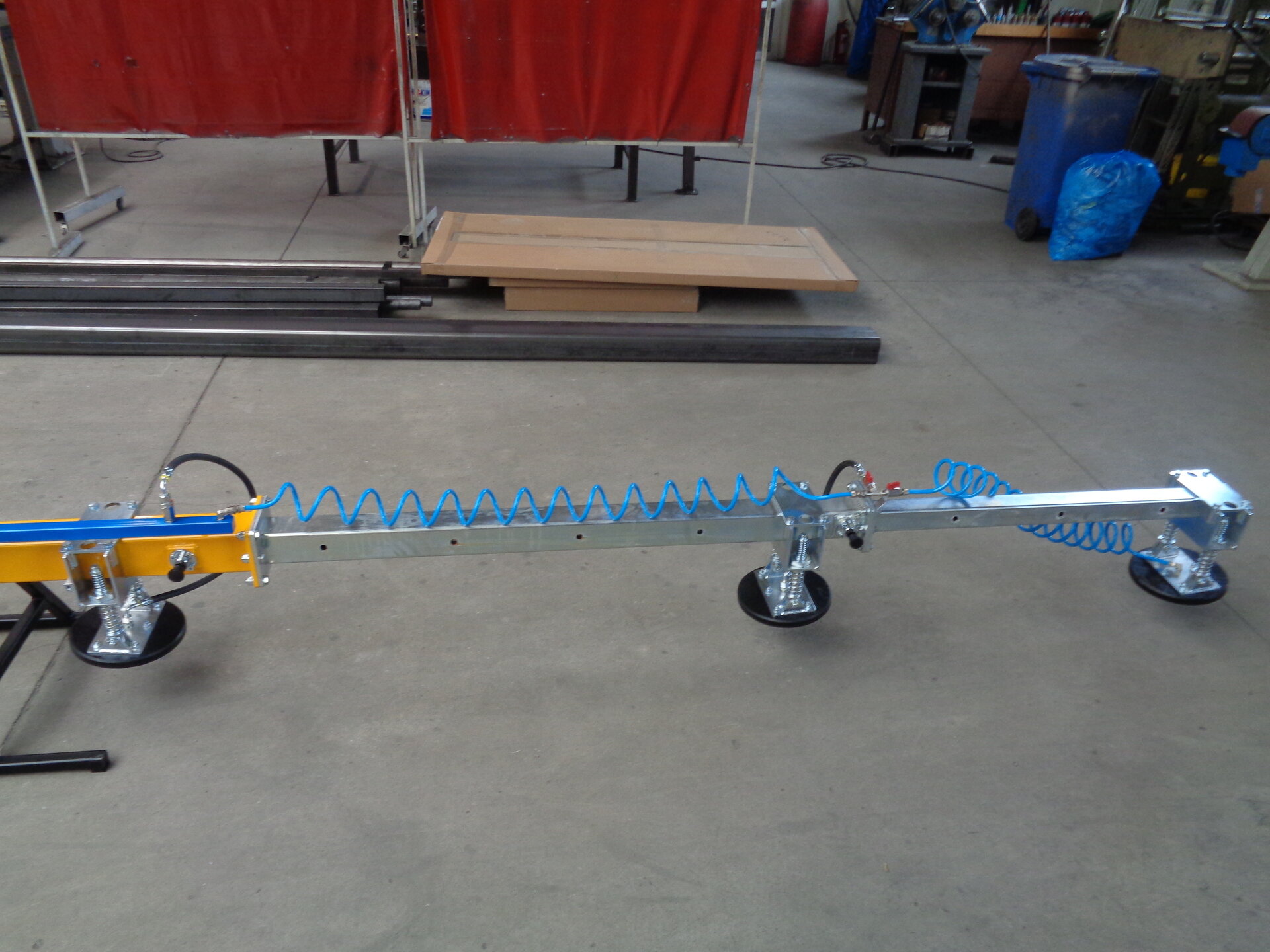

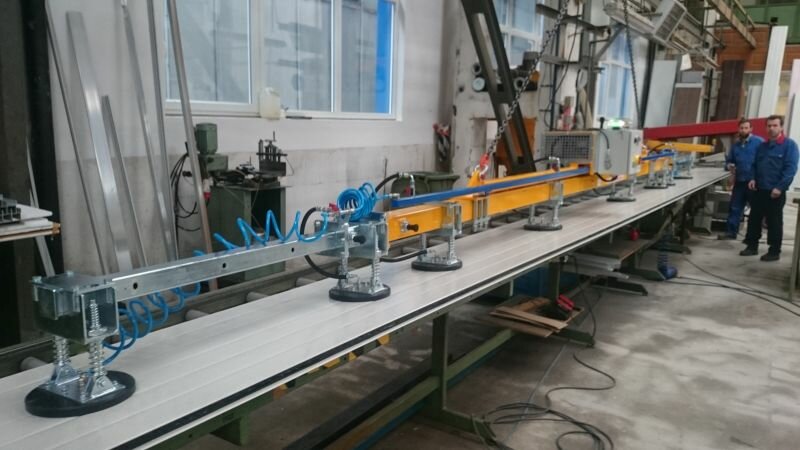

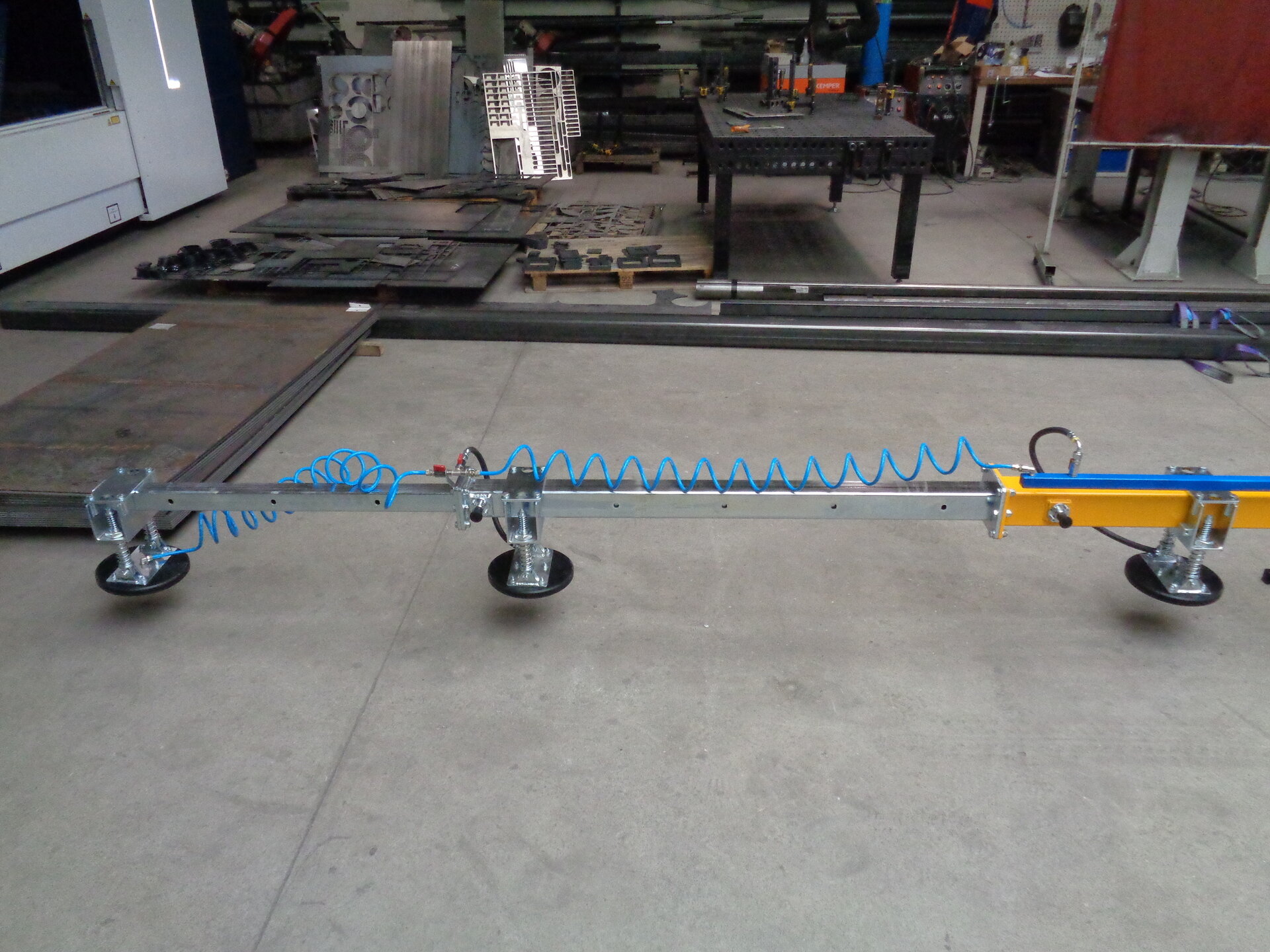

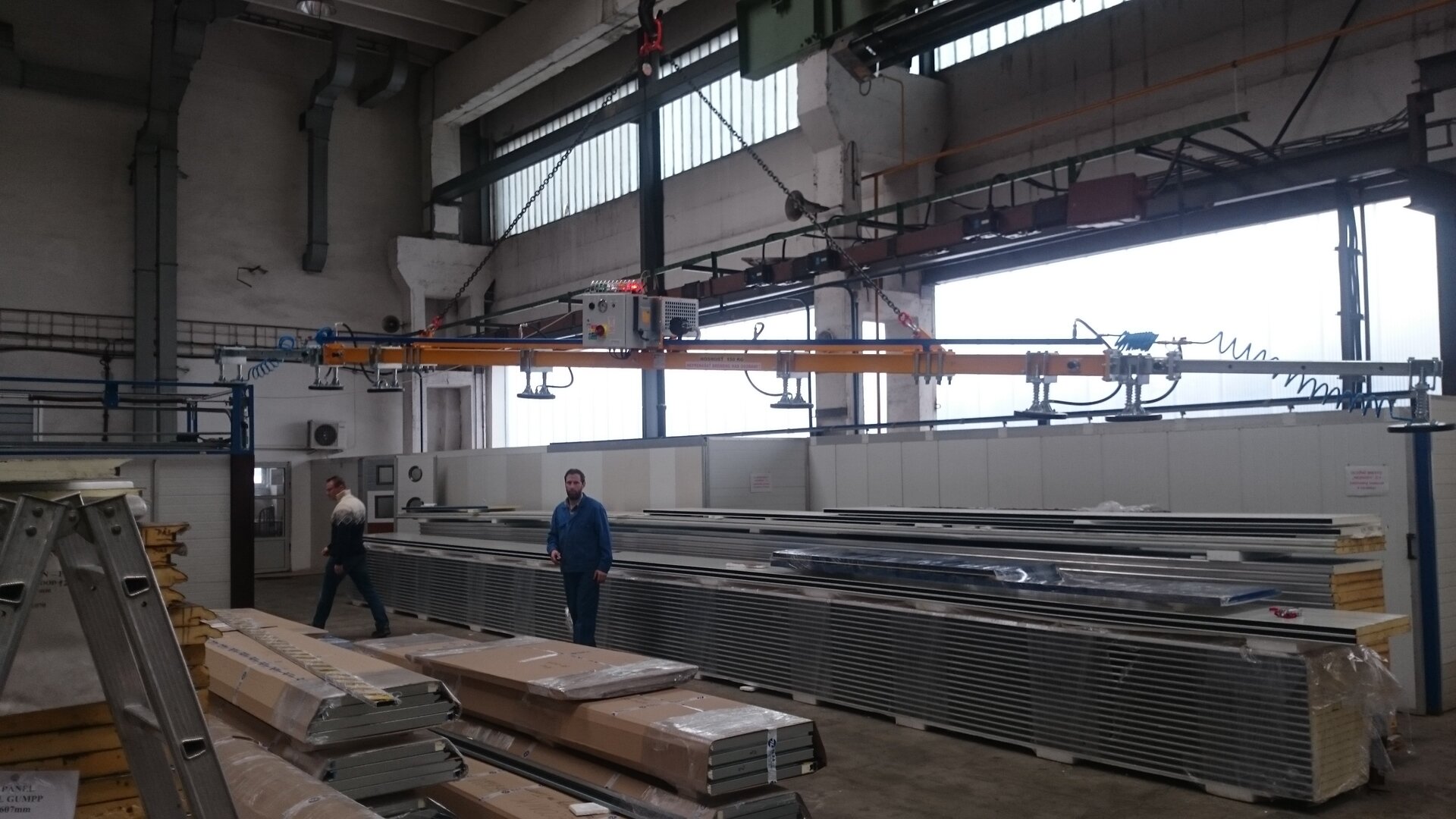

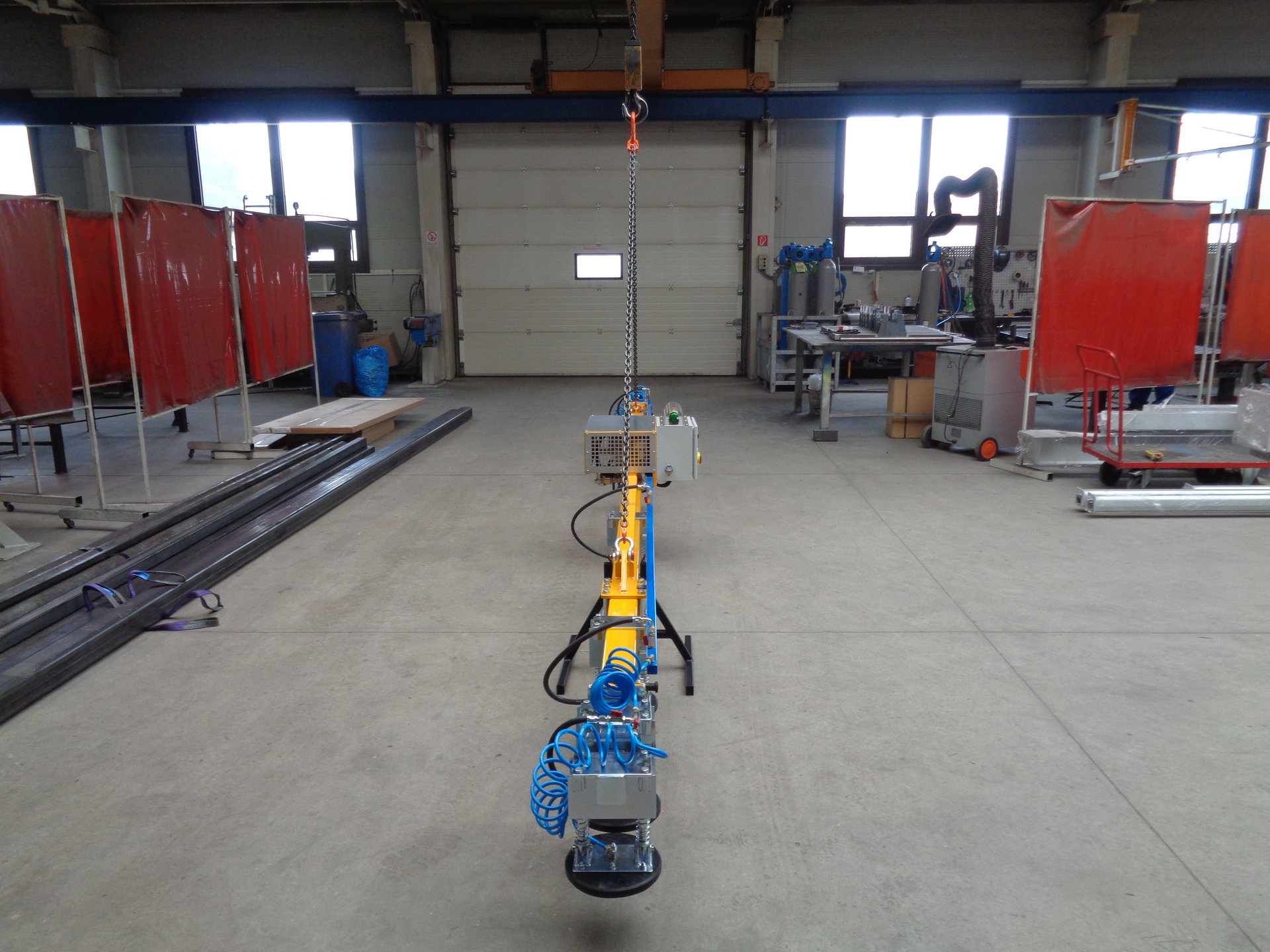

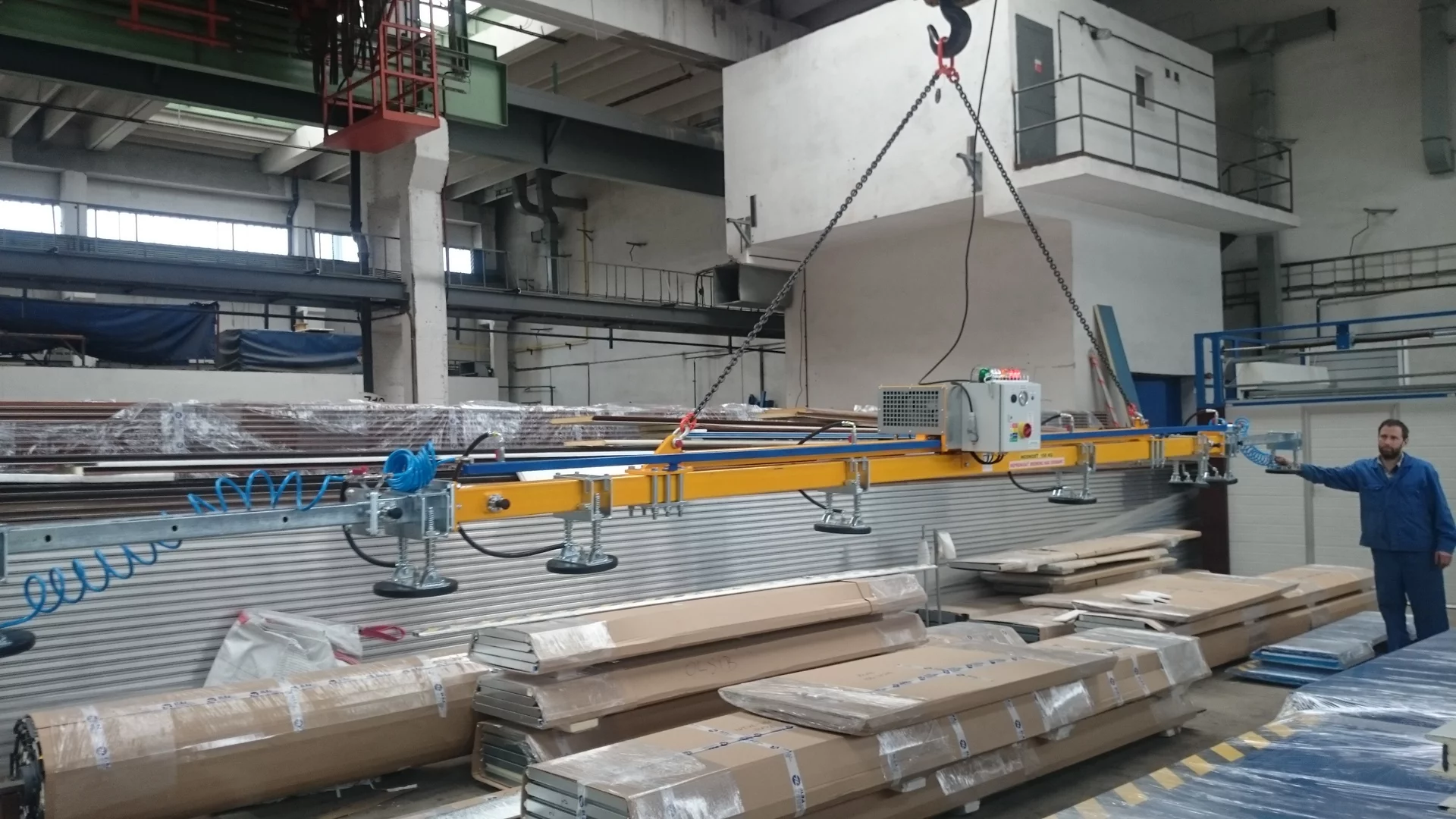

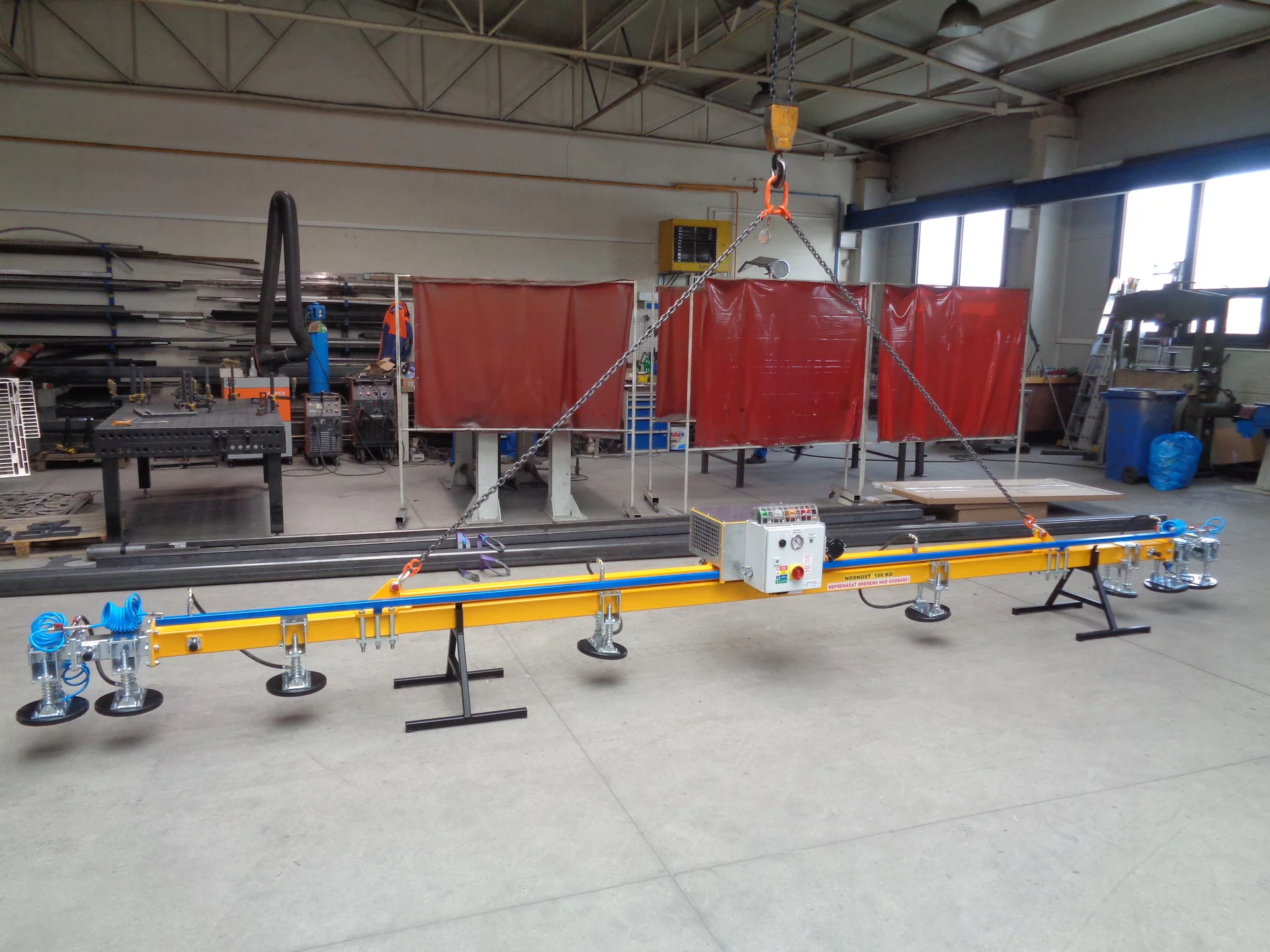

Photo gallery

Vákuový uchopovač VM 150/8-6000(9000)/TLSK

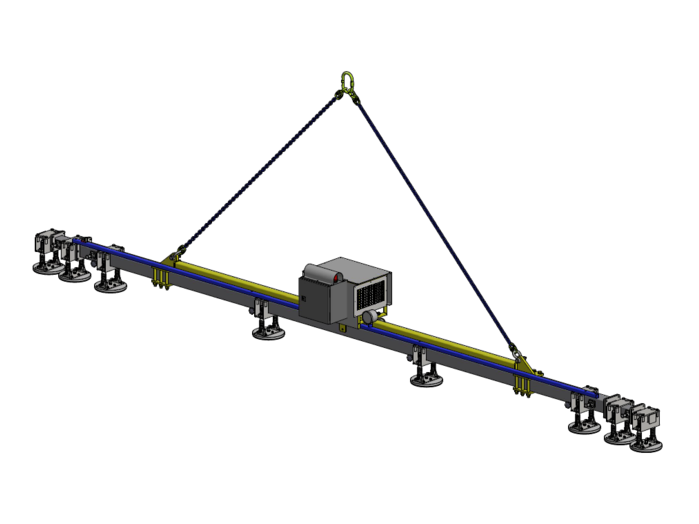

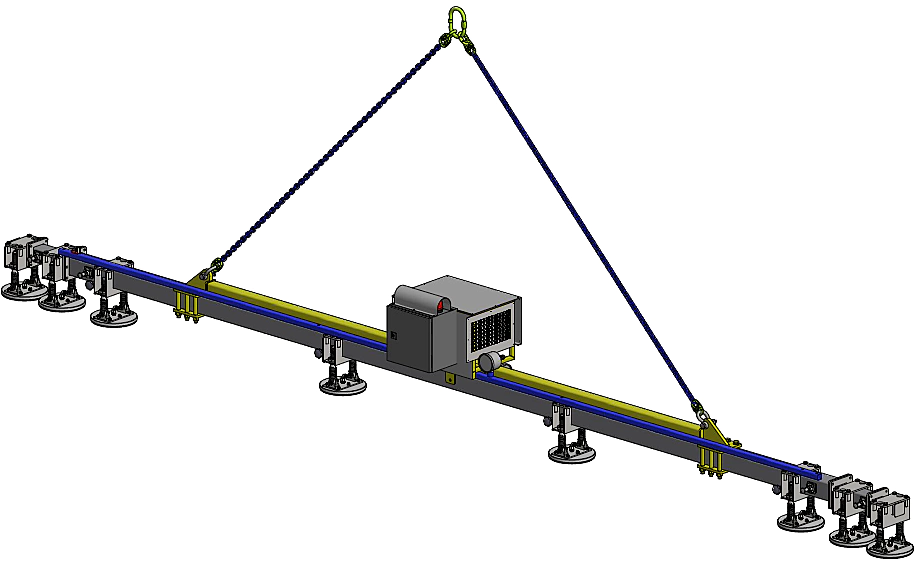

3D models / drawings
