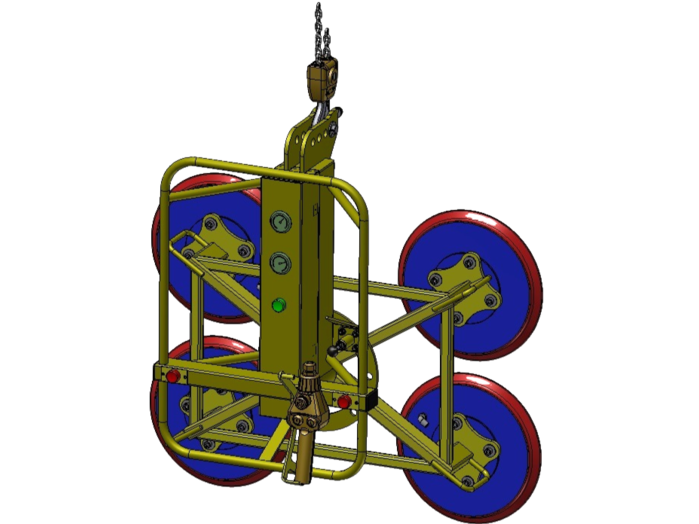

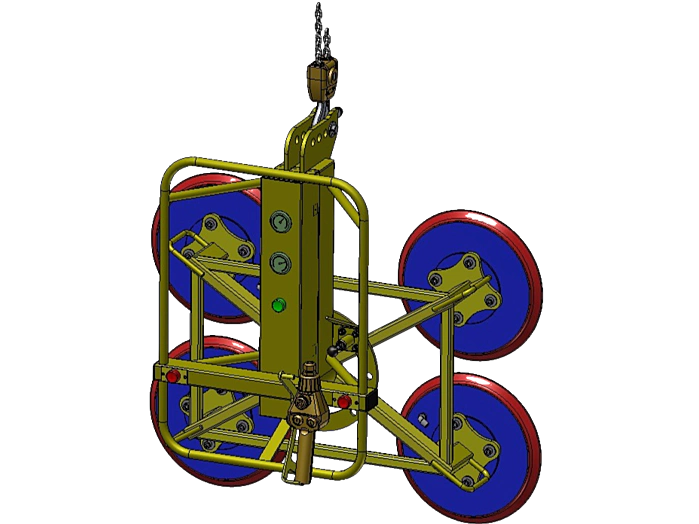

VACUUM MANIPULATOR - VM 400/4 - 360°-EL
- Main supporting steel structure with a multipositional suspension
- manually rotating suction cup by max. 360 ° angle
- manually telescopic adjustable all suction cups
- four suction cups with a diameter of 365 mm
- Ejector – design (compressed air, min. pressure 0.6bar)
- the vacuum tank ensures safe lifting of the load even in the event of an unexpected failure of the compressed air.
- GRIP - through a button placed near the control handles
- RELEASE - through buttons placed near the control handles
- ROTATION by 0° / 360° - manually
- spiral hose for connecting a manipulator up to 3 meters
Application:
The vacuum manipulator VM 400/4-360°-EL is a handy littlegrasping device that allows you to grasp and handle large-sized flat loads upto 400 kg in a vertical position within the work area, which is given by therange of the lifting equipment (crane or any other lifting device) the grasperwill be suspended on.
Potential types of loads to be handled:
- Glass plates and boards
- Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
- Plastic plates and boards
- Stone with grinded surface
- Wooden plates and boards covered with air-tight finish
Benefits:
- Simple – very convenient anddedicated device that is easy to operate
- Reliable –high reliability and minimal maintenance are ensured
- Safe – safety guaranteed in every situation
- Medium – compressed air
Basic technical information:
| Maximum load capacity | 400 kg (with negative pressure –0.6 bar (-60 kPa)) |
| Designed for manipulation | in vertical position, to be lifted on a lifting device |
| Weight | 65 kg |
| Max. dimensions of load | 2500x2500 mm |
| Min. dimensions of load | 800x1000 mm |
| Power supply | a) 3 PE (PEN) 400VAC/50Hz/15VAC |
| b) 1 N PE 230VAC/50Hz/24VDC |

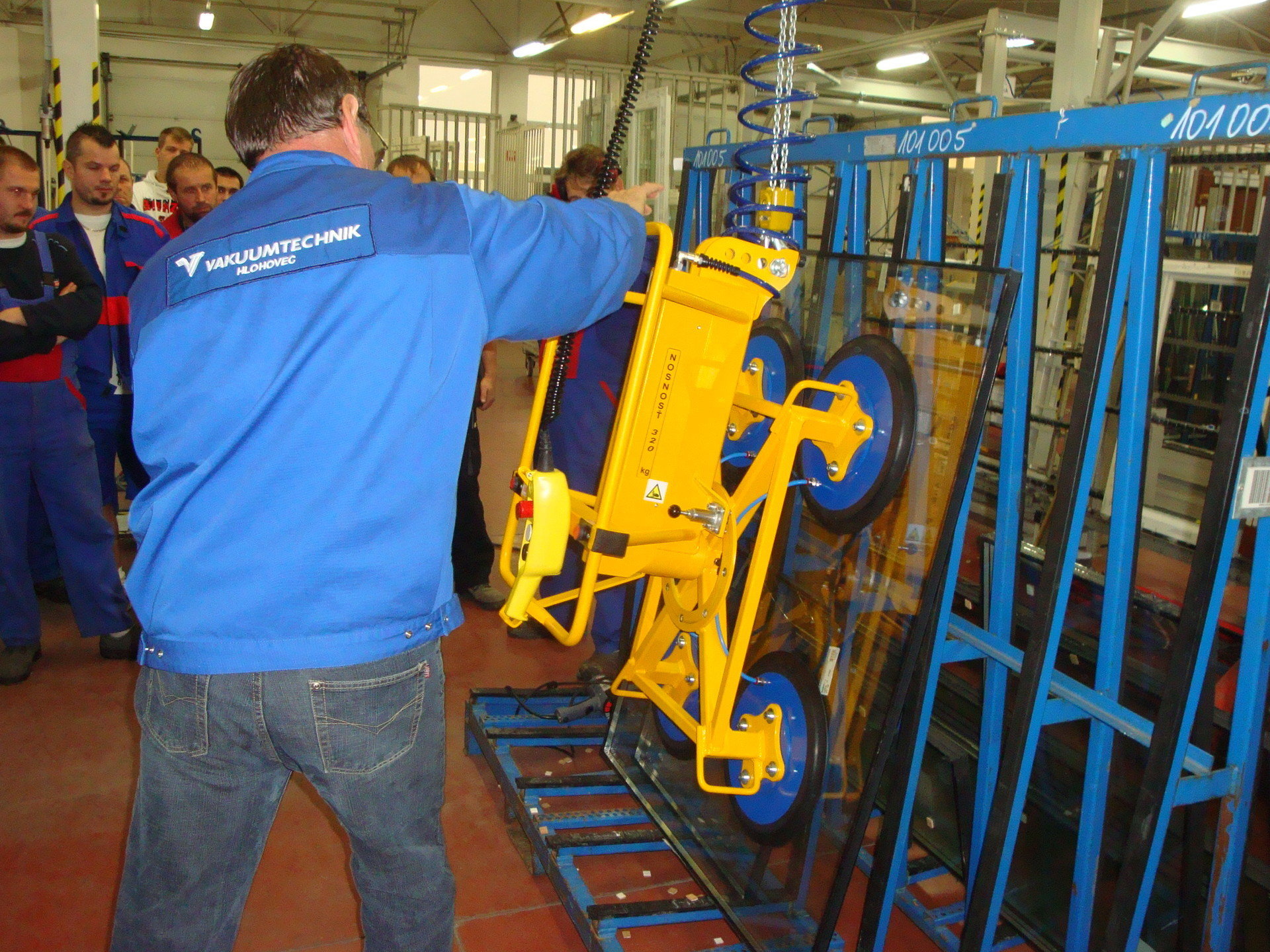

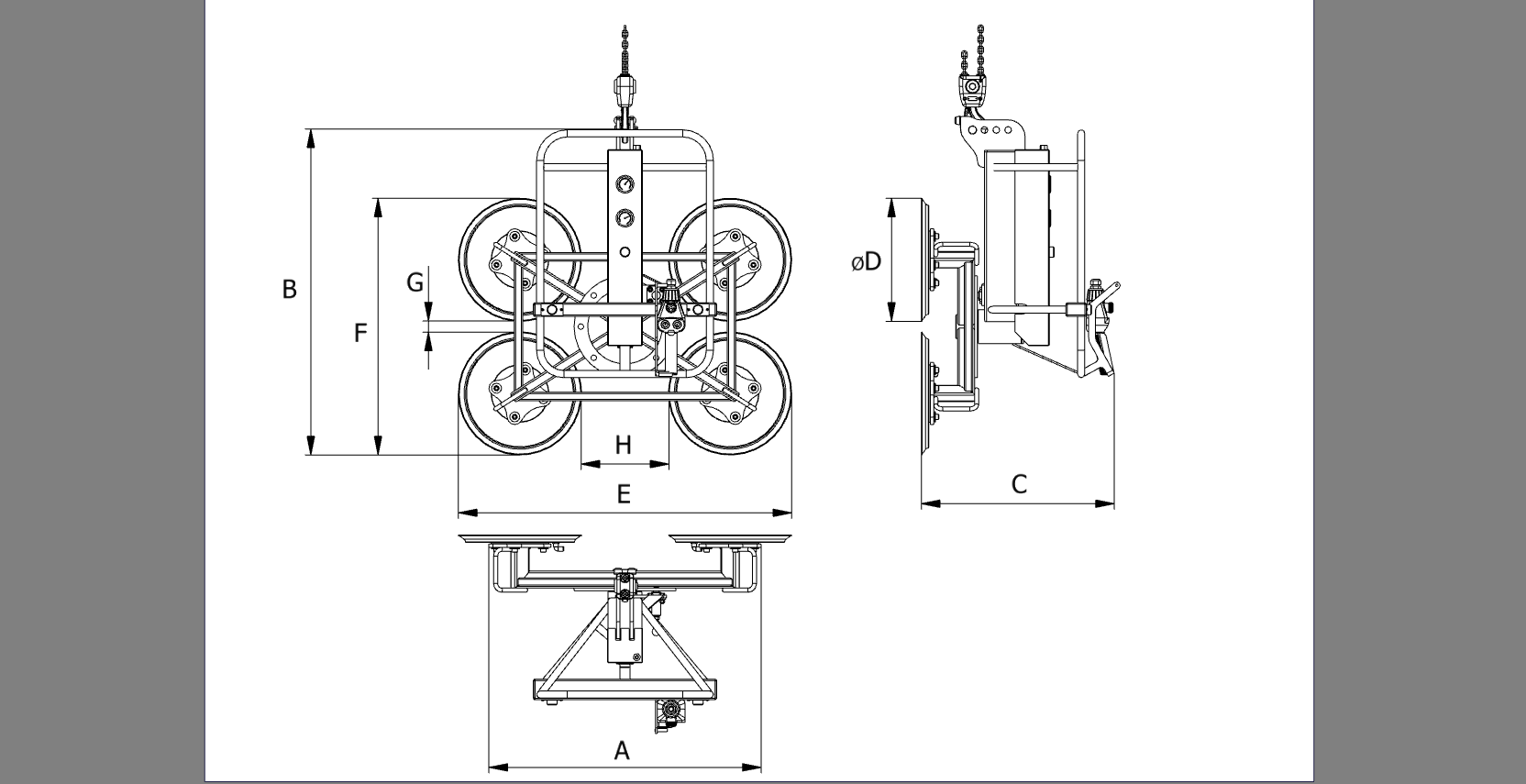

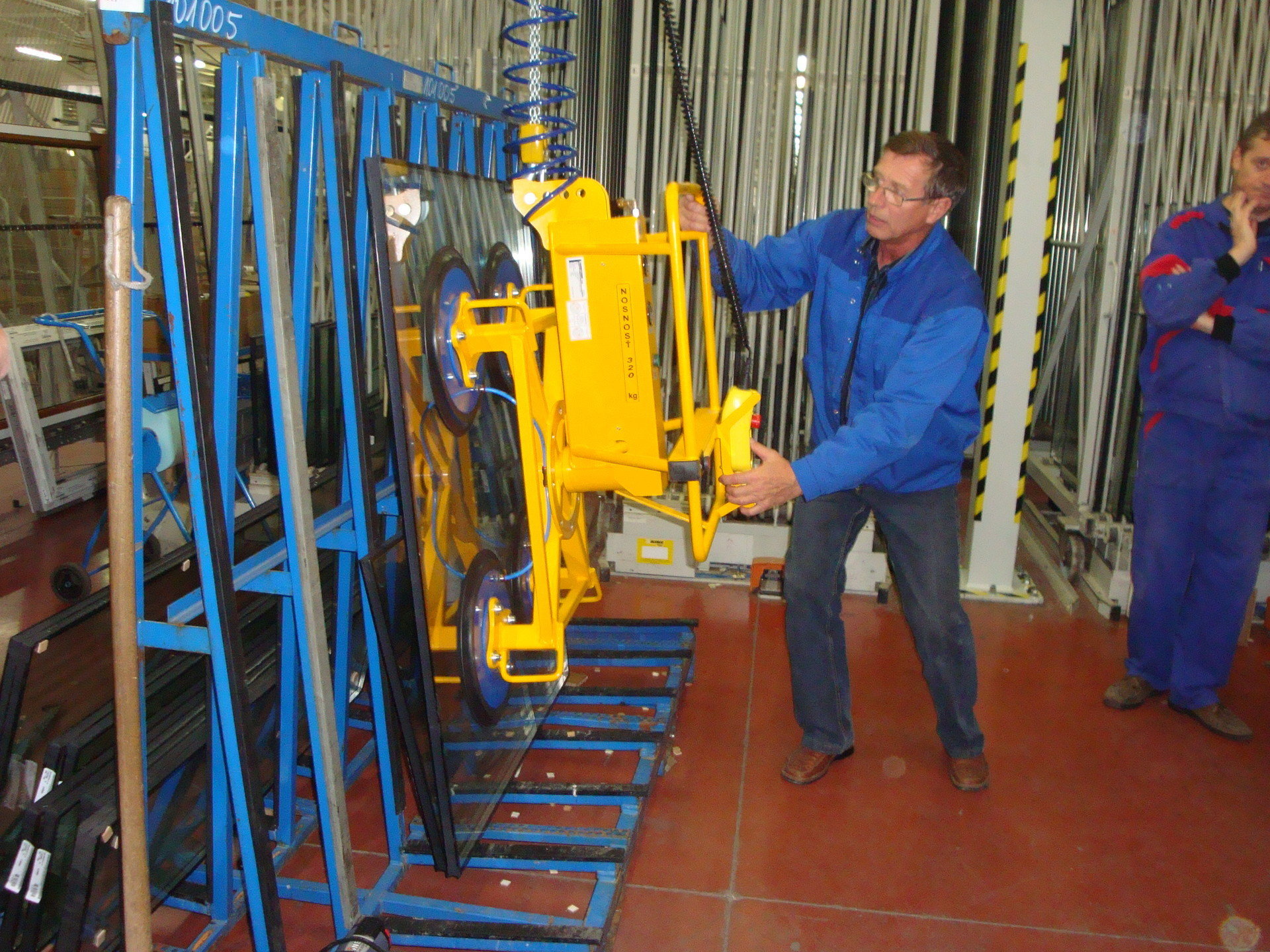

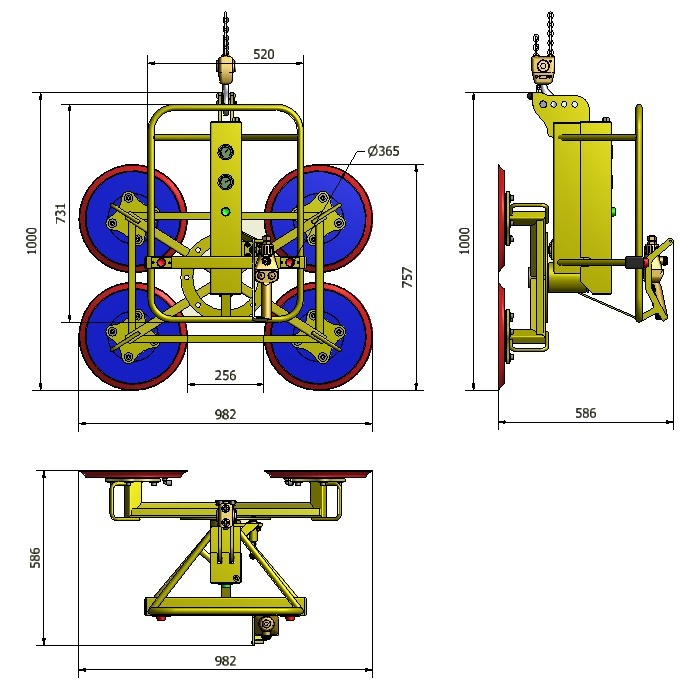

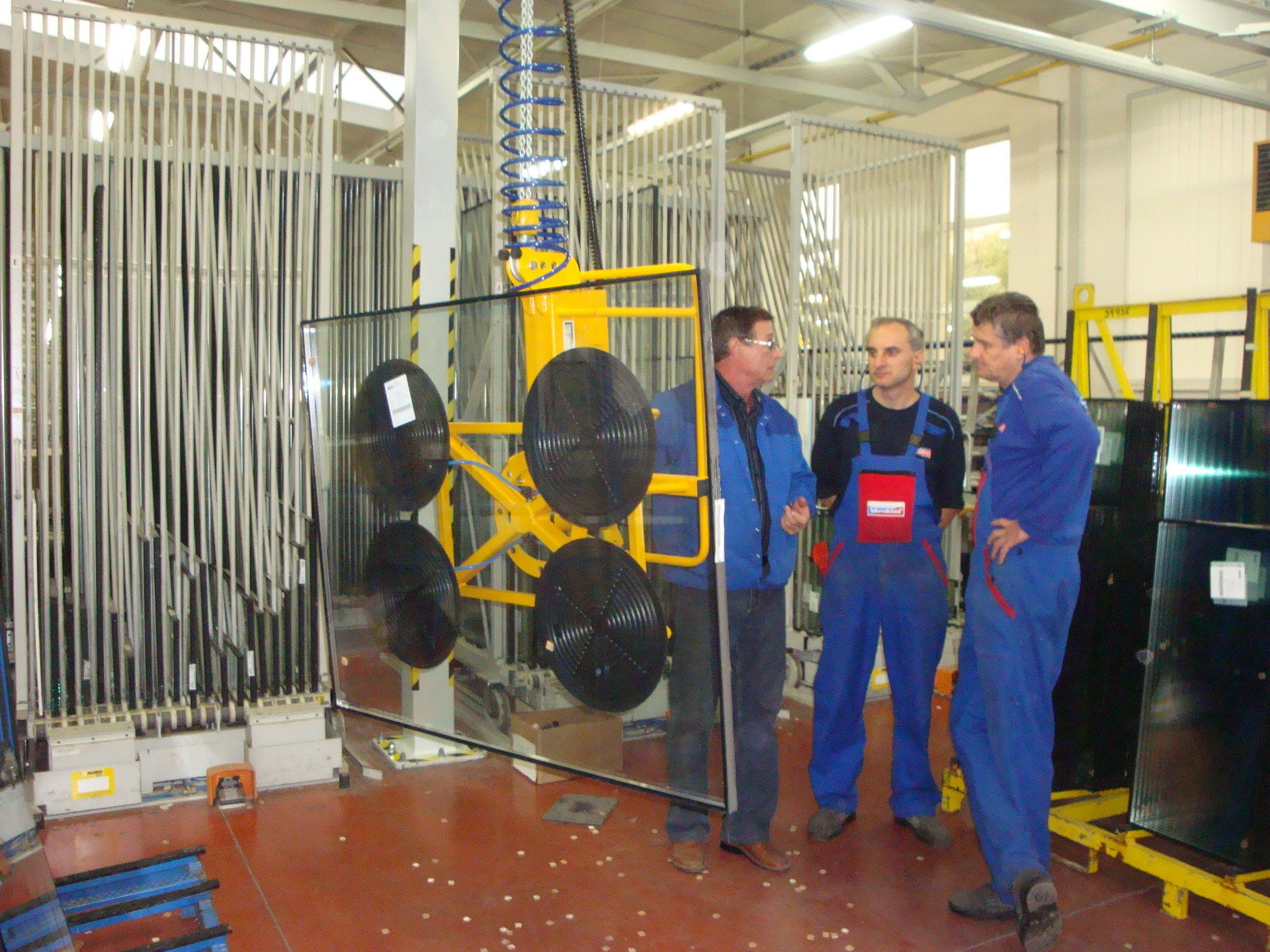

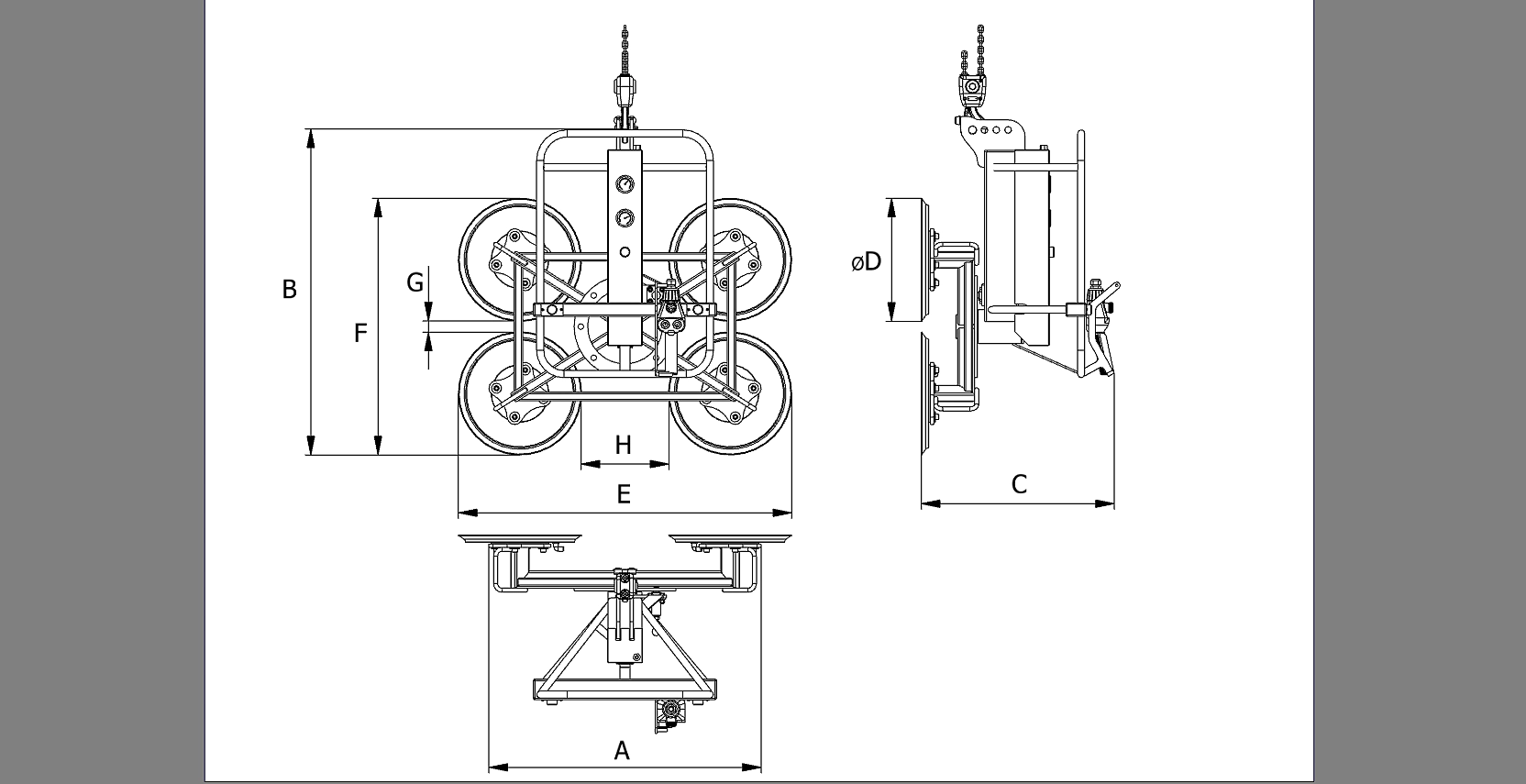

Information table:
| Number of suction cups / diameter (mm) | LIFTING CAPACITY(kg) | WEIGHT (kg) | Overall width (mm) | Overall depth (mm) | Overall height (mm) |
|---|---|---|---|---|---|
| 4/365 | 320 | 145 | 982 | 586 | 1000 |
| Suction cup area (mm) | Suction cup spacing (mm) | ||||
| 982x757 | 256 mm |
