VACUUM MANIPULATOR - VM 1200/8 - 90°/HYD

Basic description:

  • Main supporting steel structure with a multipositional suspension
  • hydraulically tilting suction cups of max. 90 ° angle
  • eight rectangular suction cups with the size of one suction cup 630x360 mm
  • manually adjustable suction cups with locking
  • vacuum pump - 400V three-phase system
  • the vacuum tank ensures safe lifting of the load even in the event of an unexpected failure of the compressed air.
  • acoustic and visual signalisation of insufficient vacuum in suction cups
  • GRIP - through push-button remote control conveniently located at the control handles on the spiral cable up to 3 m
  • RELEASE - through push-buttons remote control conveniently located at the control handles on the spiral cable up to 3 m
  • TILTING the load by 0 ° / 90 ° through push-button control on a spiral cable up to 3 m
  • spiral cable for connecting a manipulator up to 3 meters
  • quick-clamping system el. connection through connector

Application:

The vacuum manipulator VM 1200/8-90°/HYD is a handy grasping device that allows you to grasp and handle large-sized flat loads up to 500 kg in both horizontal and vertical position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the grasper will be suspended on.

Potential types of loads to be handled:

  • Glass plates and boards
  • Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
  • Plastic plates and boards
  • Stone with grinded surface
  • Wooden plates and boards covered with air-tight finish


Benefits:

  • Simple – very convenient anddedicated device that is easy to operate
  • Variable - possibility to manually and easily telescopically adjust the suction cups themselves after the traverse
  • Reliable - guarantees high reliability and minimal maintenance
  • Safe – safety guaranteed in every situation

Basic technical information:

Maximum load capacity 1200 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin a horizontal or vertical position, suspended on a lifting device
Weight730 kg
Max. dimensions of load8000x2000 mm
Min. dimensions of load1000x2000 mm
Power supply3+PE (PEN) 400VAC/50Hz/15VAC

Information table:

Number of suction cups / dimensions (mm)MAX. CAPACITY (kg)WEIGHT (kg)Max. width (mm)Overall depth (mm)Max. height (mm)Suction cup diameter (mm)
8/630x3601200730684216371031630x360

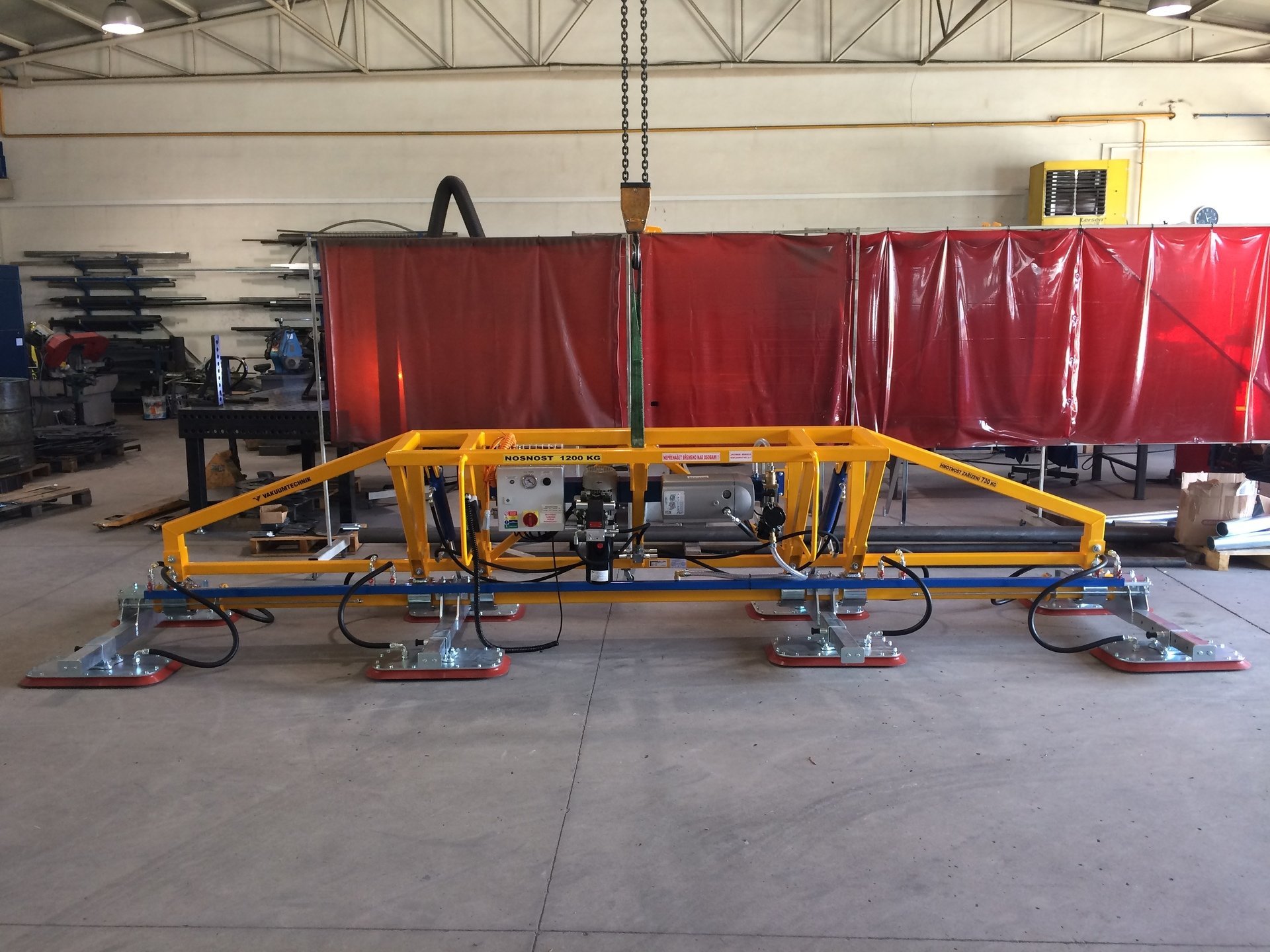

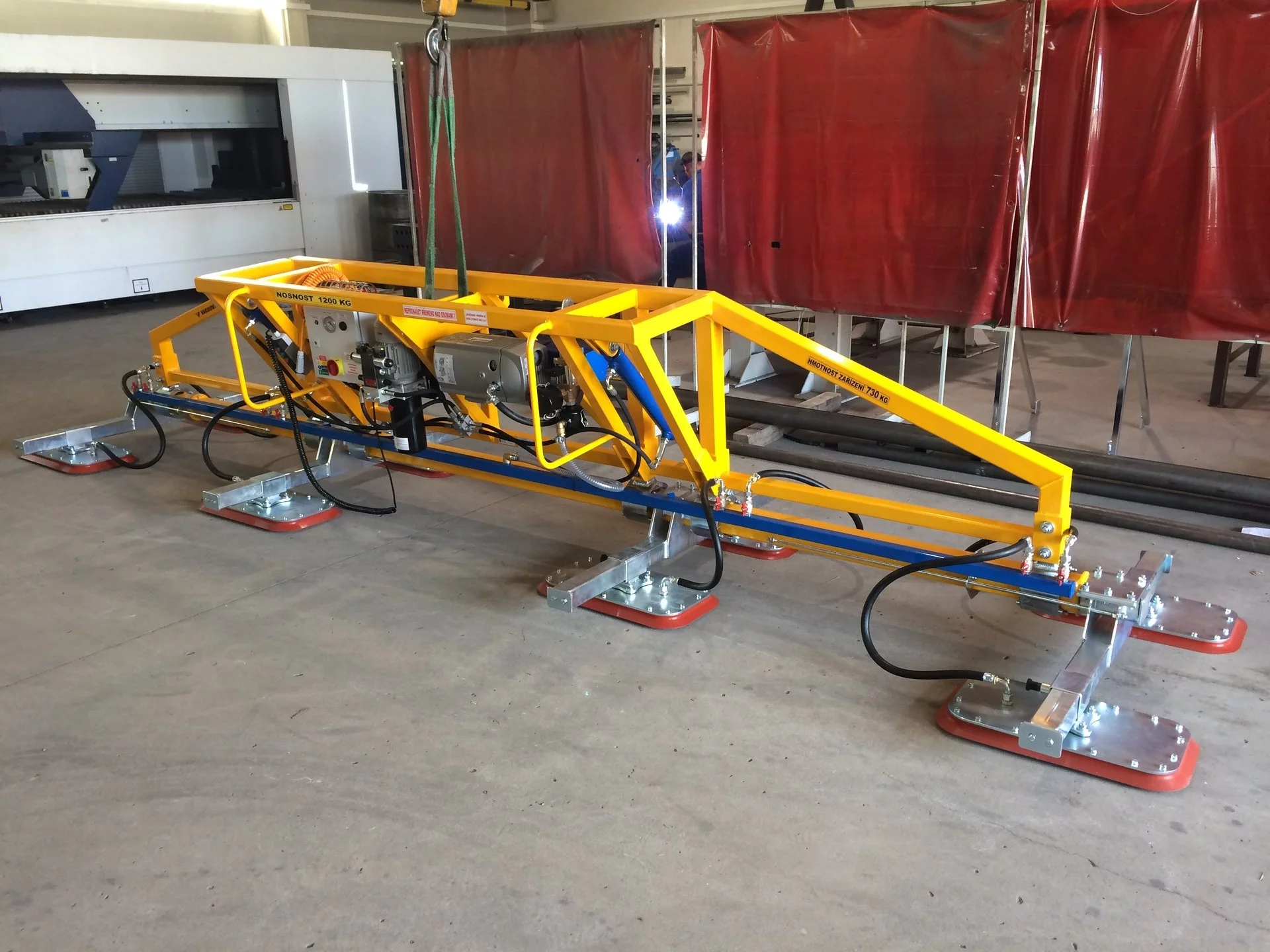

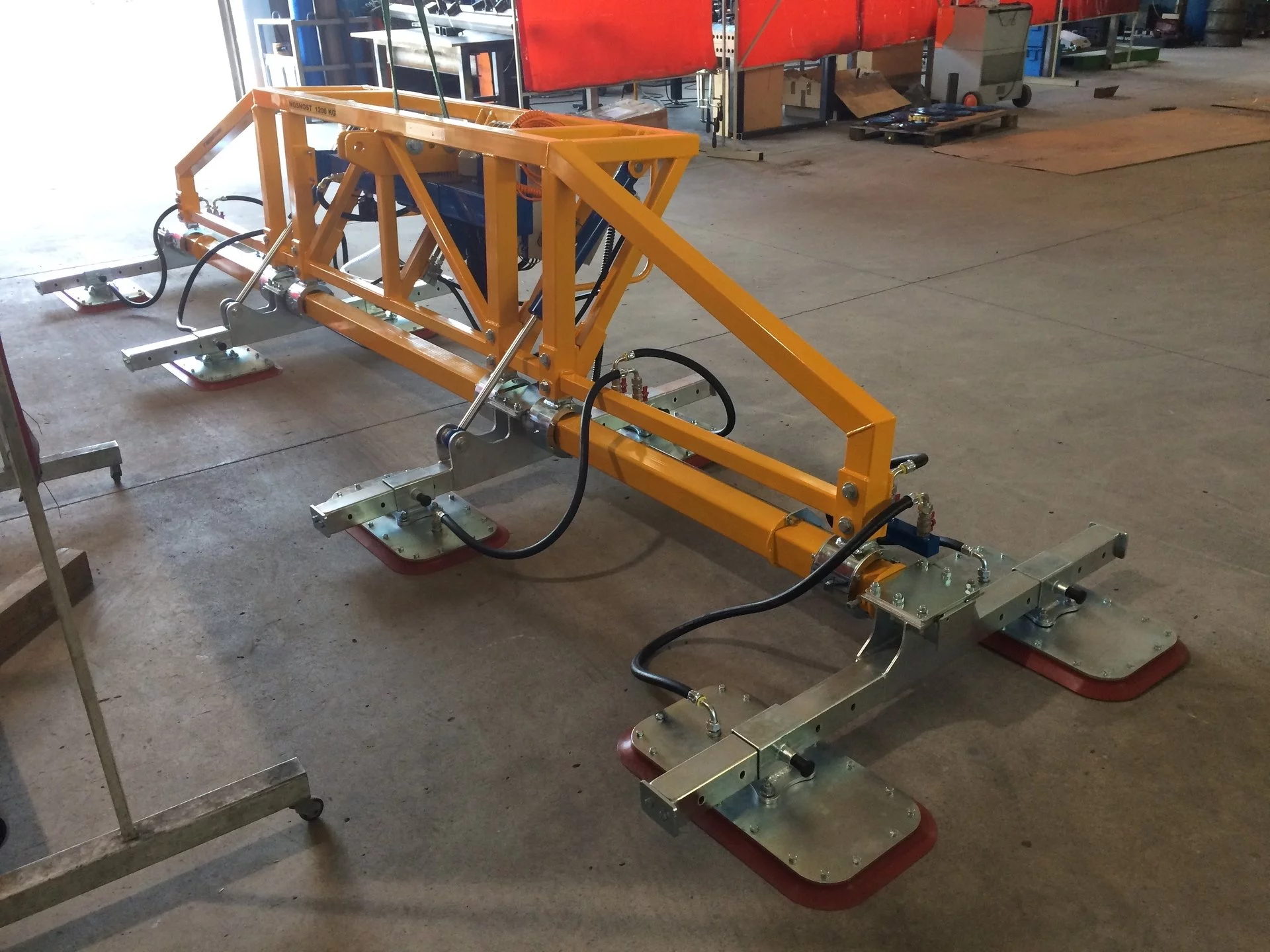

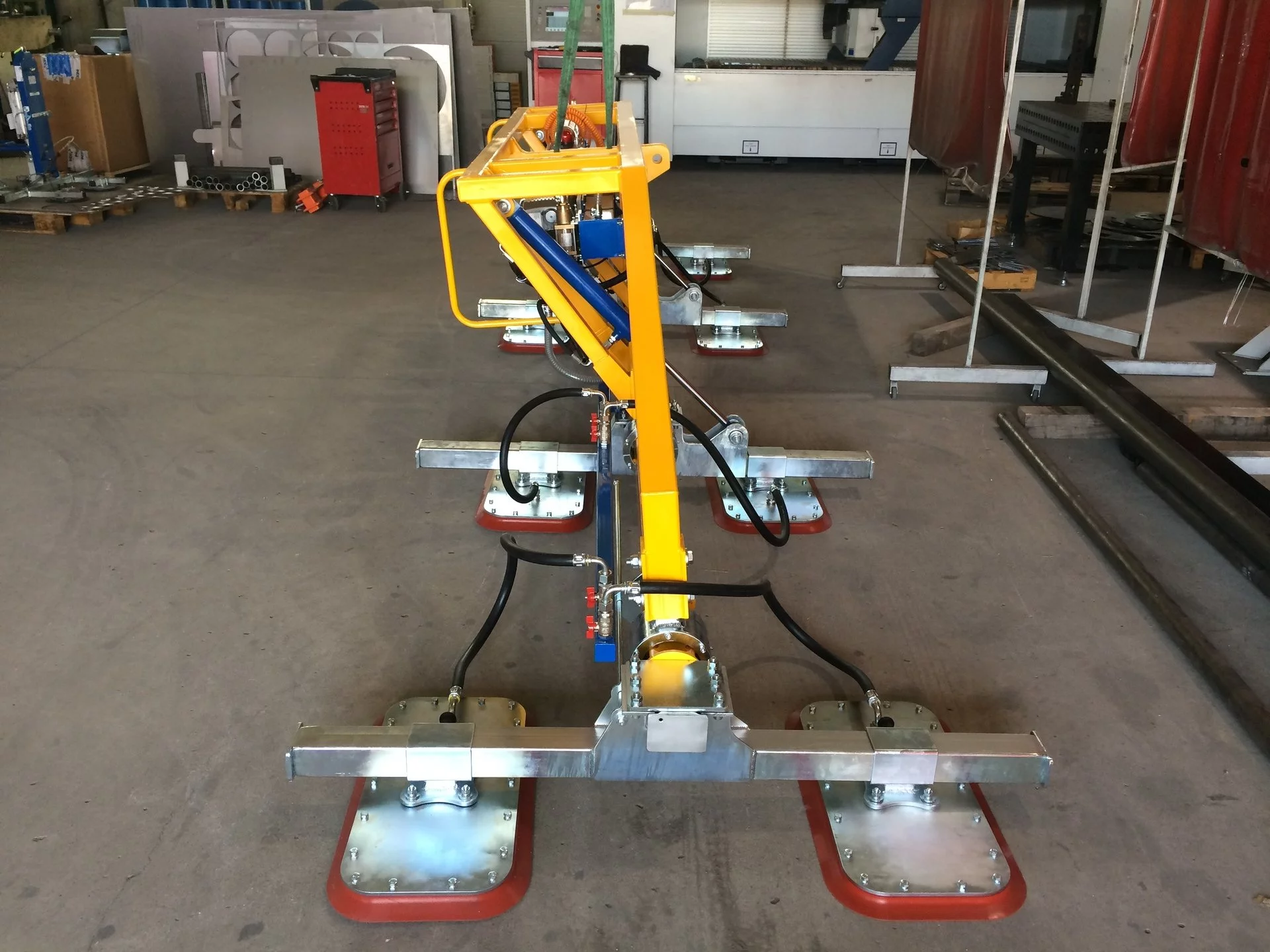

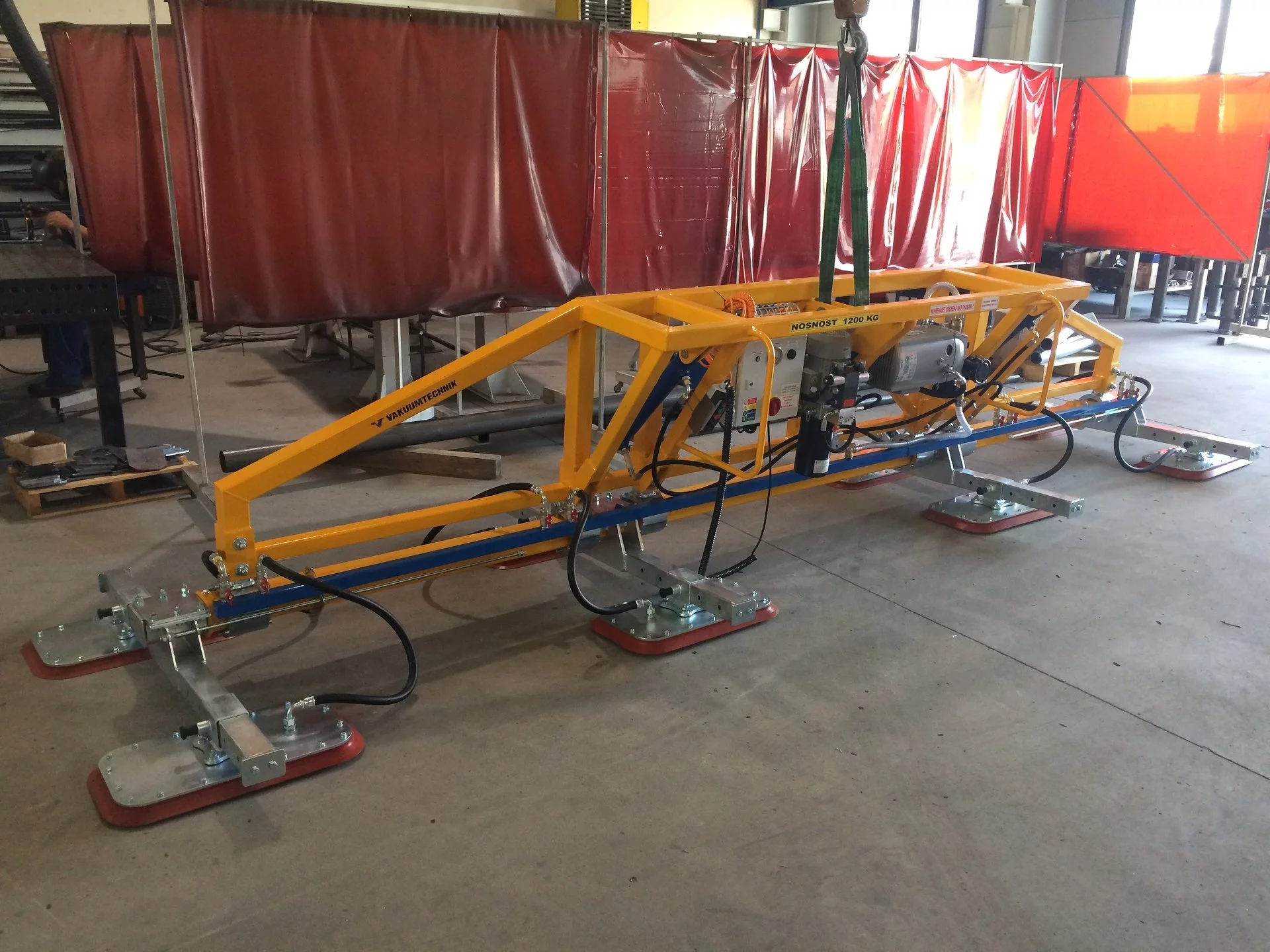

Photo gallery

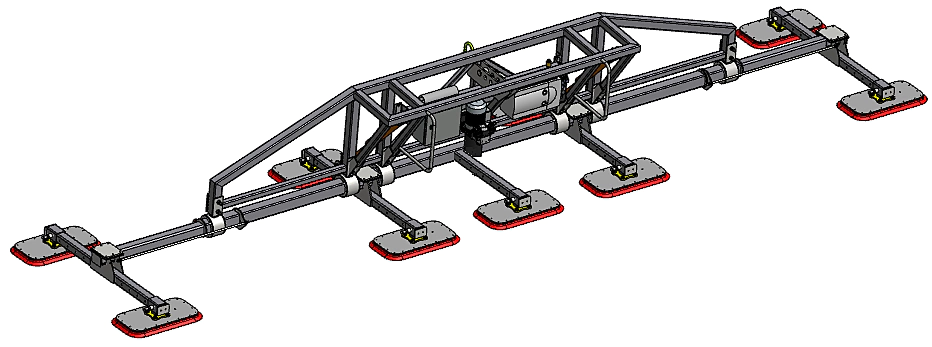

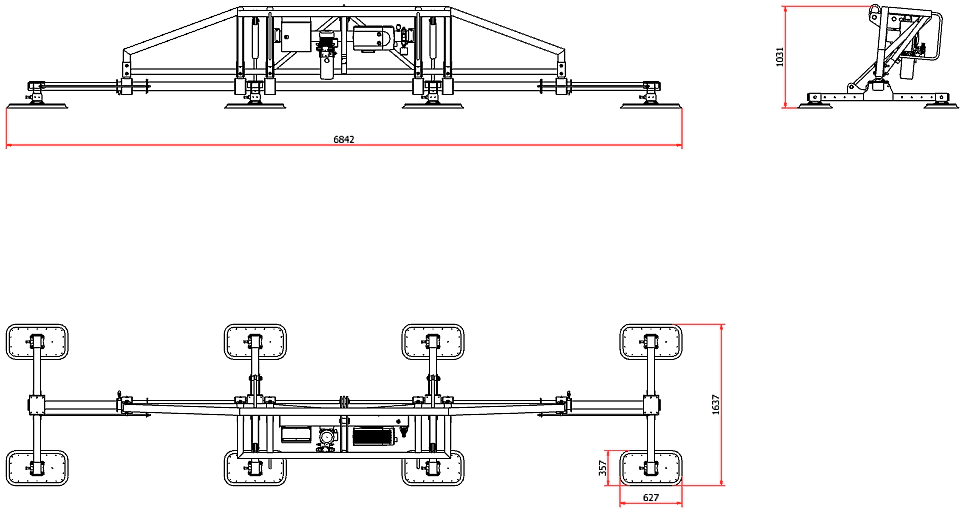

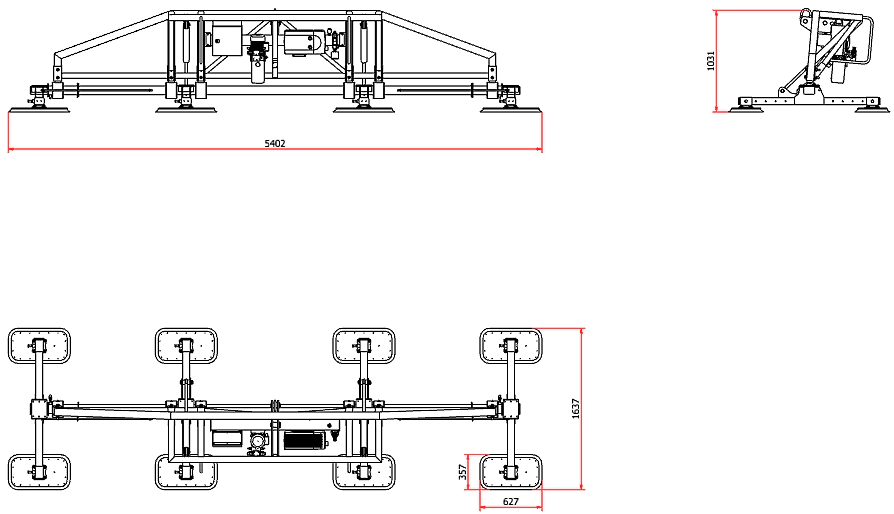

3D models / drawings
