VACUUM MANIPULATOR - VM 3000/12 - 4x1,25

Basic description:

  • main supporting steel structure with a four-pointsuspension
  • cross beams manually adjustable in the "x" axis
  • twelve suction cups 400 mm in diameter
  • suction cups manually adjustable in “y¨ axis
  • vacuum pump – design (400V three phase system, or 230Vsingle phase system)
  • vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
  • acoustic and visual signalisation of insufficient vacuum in suction cups
  • GRIP/ RELEASE the load through a manual valve conveniently located on the VM control handle
  • double-acting control to suck off the load mechanically (electromagnetically using a spiral-button control - for asurcharge)
  • spiral cable for connecting the handler up to 3 m
  • quick-clamping system of electrical connection via a connector

Application:

The vacuum manipulator VM 3000/12-4x1,25 is a handy gripping device that allows you to grip and handle small, medium or large-sized flat loads up to 3000 kg in a horizontal position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the vacuum manipulator will be suspended on.

Potential types of loads to be handled:

✓    Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
✓    Glass plates and boards
✓    Plastic plates and boards
✓    Stone with grinded surface
✓    Wooden plates and boards covered with air-tight finish

Benefits:

  • Simple very convenient anddedicated device that is easy to operate
  • Variable transverse beams and suction cups on the beam can beeasily adjusted by hand
  • Reliable high reliability and minimalmaintenance are ensured
  • Safe safety guaranteed in every situation

Basic technical information:

Maximum load capacity3000 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin horizontal position, to be lifted on a lifting device
Weight535 kg
Max. dimensions of load6000x2000 mm
Min. dimensions of load2000x1000 mm
Power supply3+PE (PEN) 400VAC/50Hz/15VAC

Information table:

Number of suction cups / diameter (mm)LOAD CAPACITY (kg)WEIGHT (kg)Overall width (mm)Overall depth (mm)Overall height (mm)Suction cup diameter (mm)
12/4003000535415014991602400

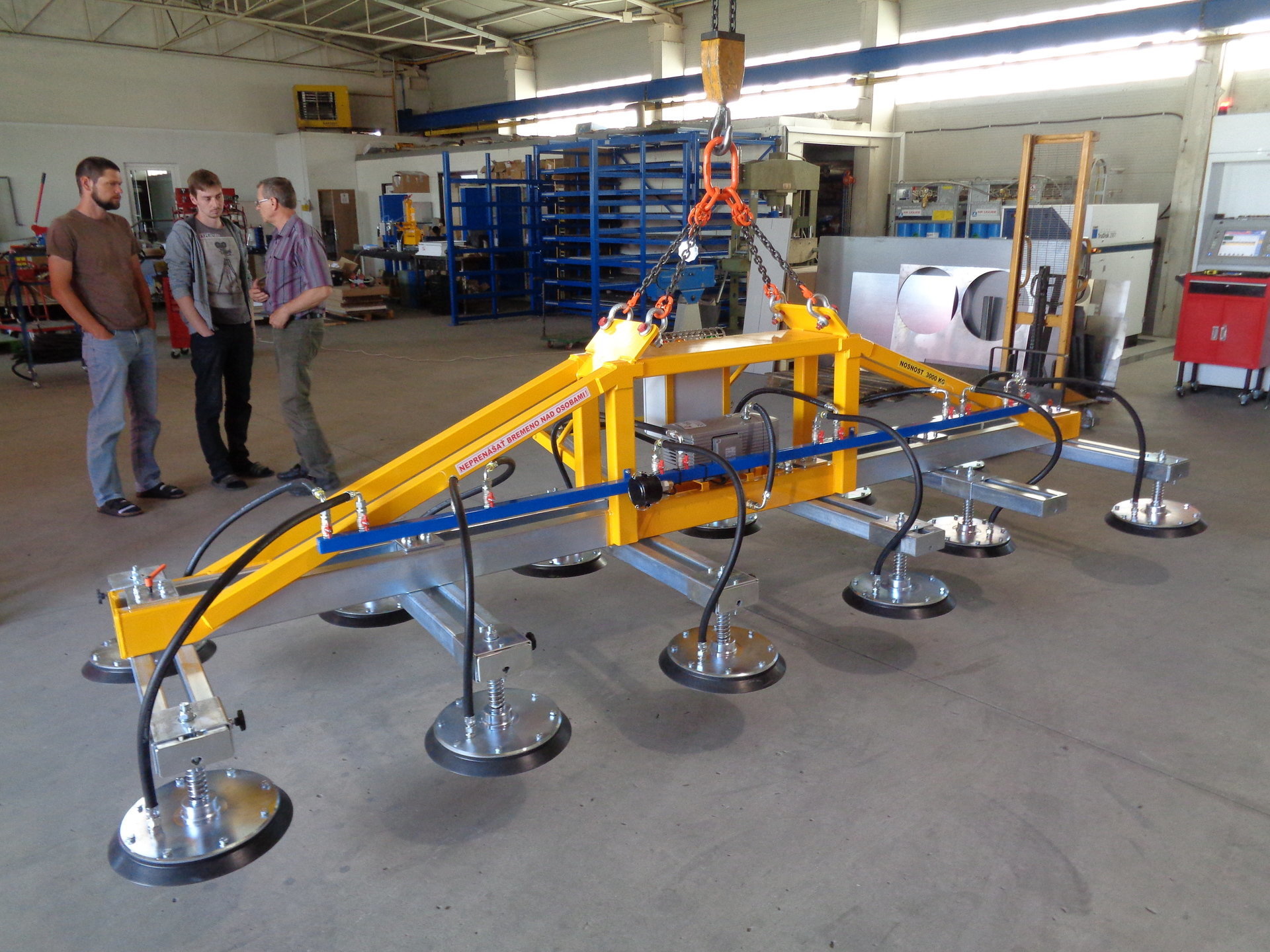

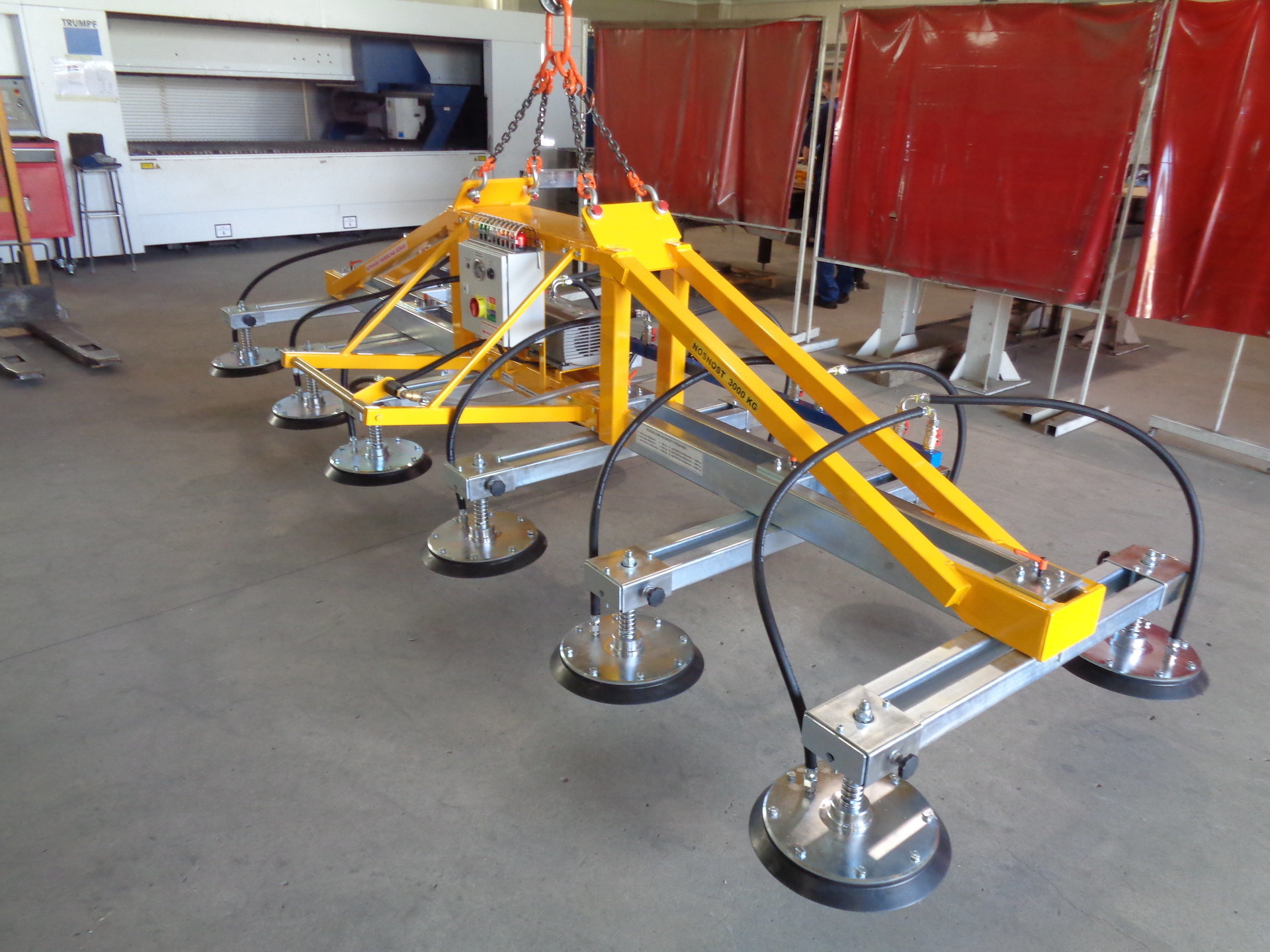

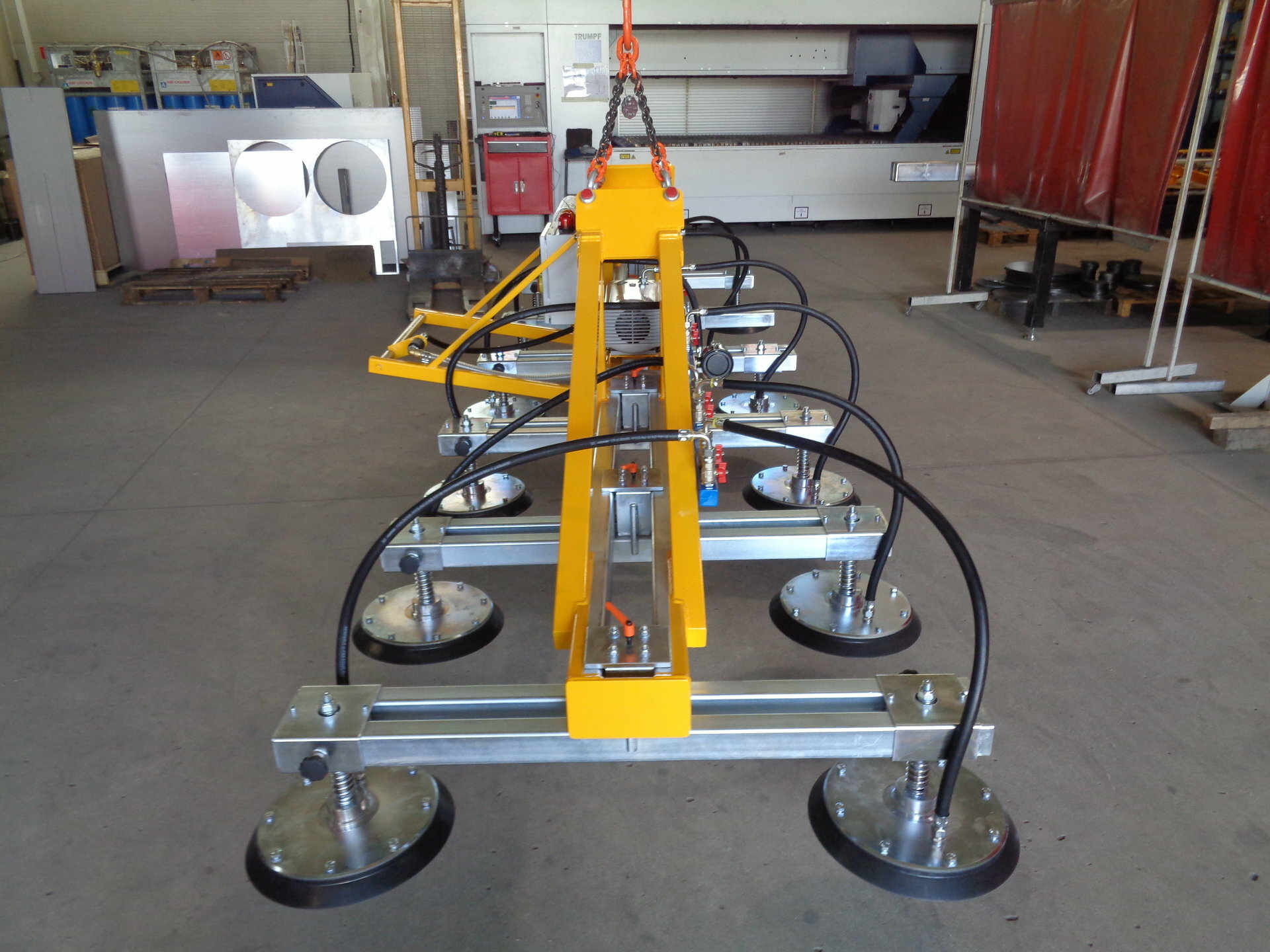

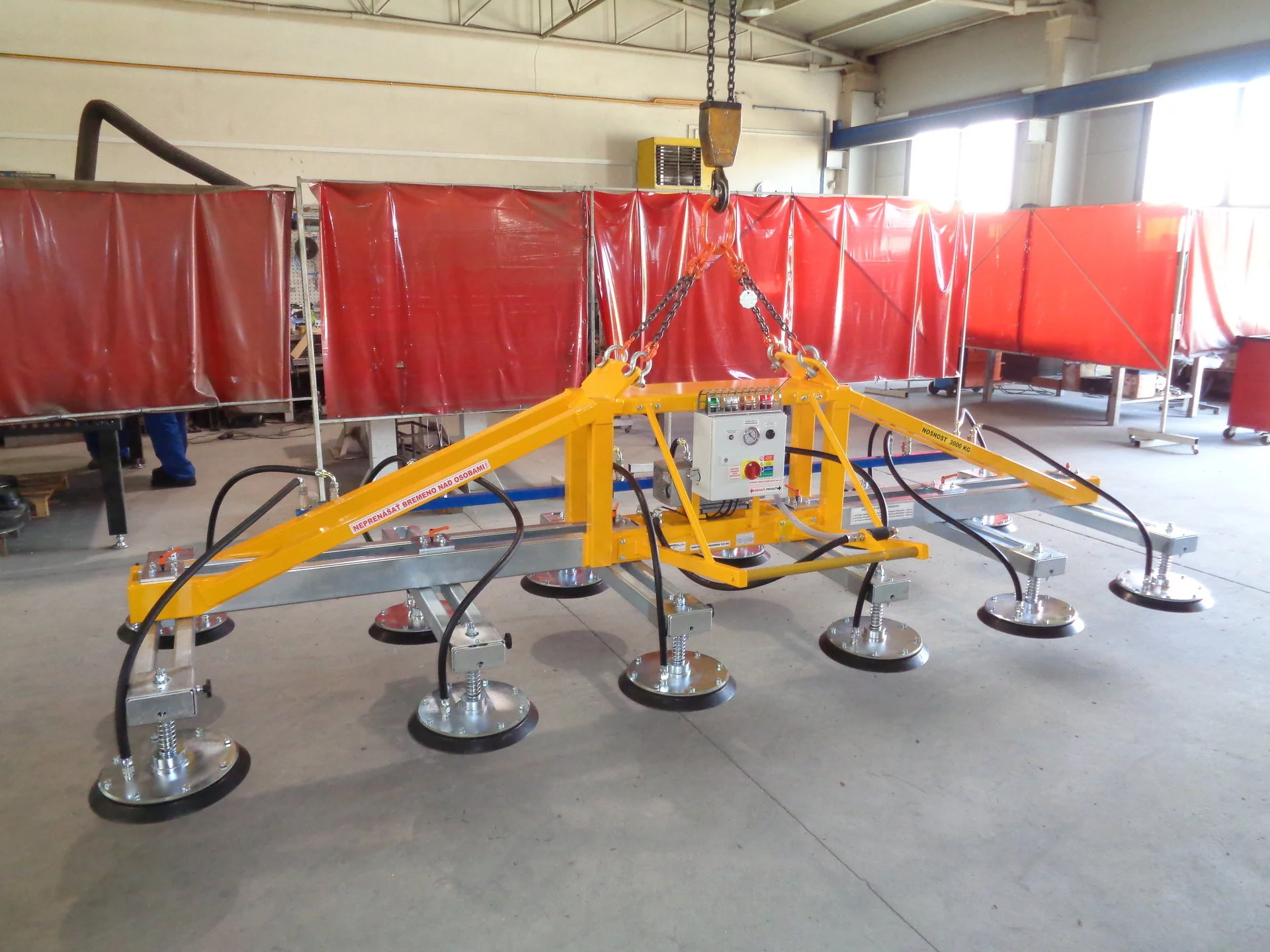

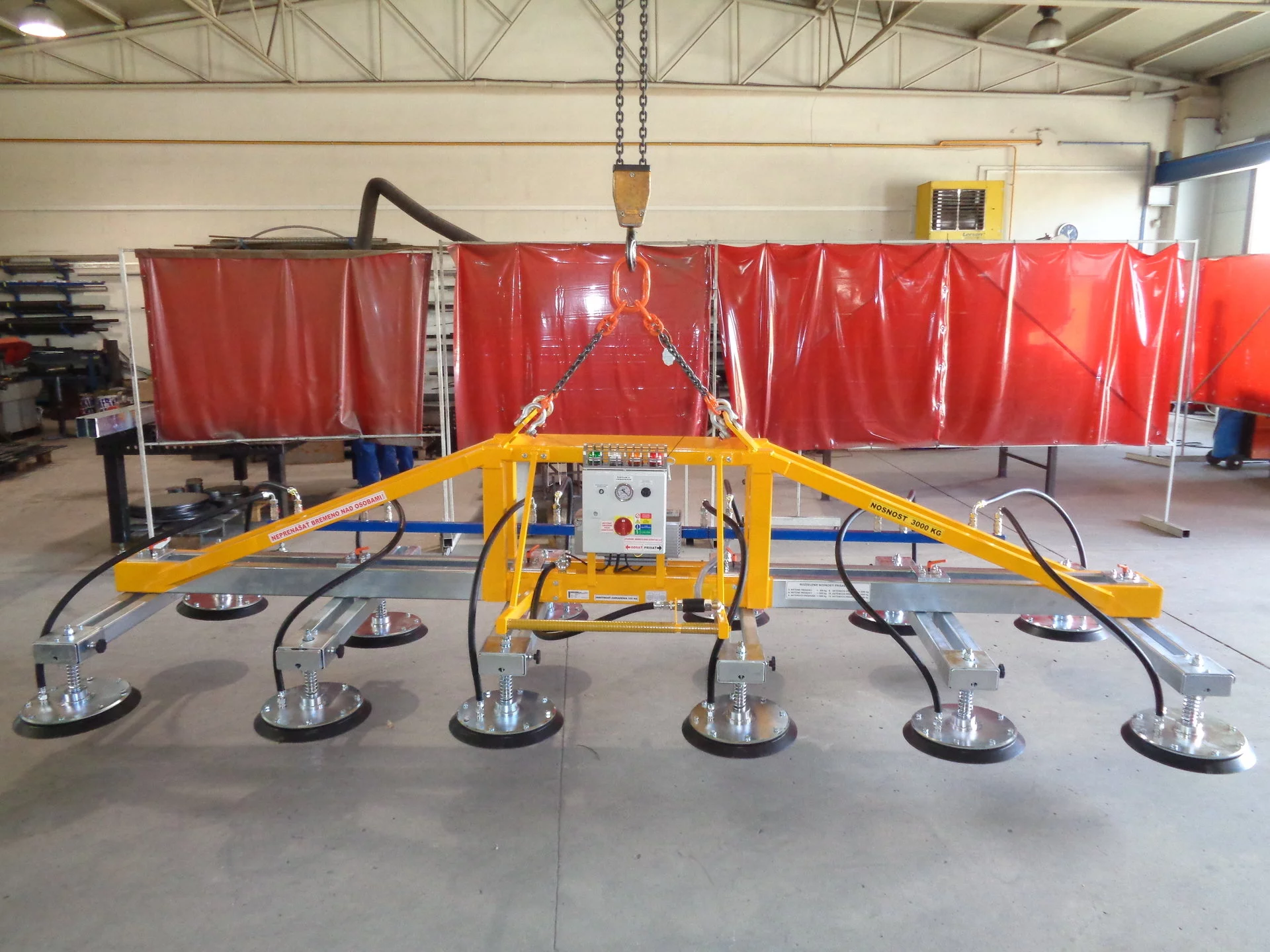

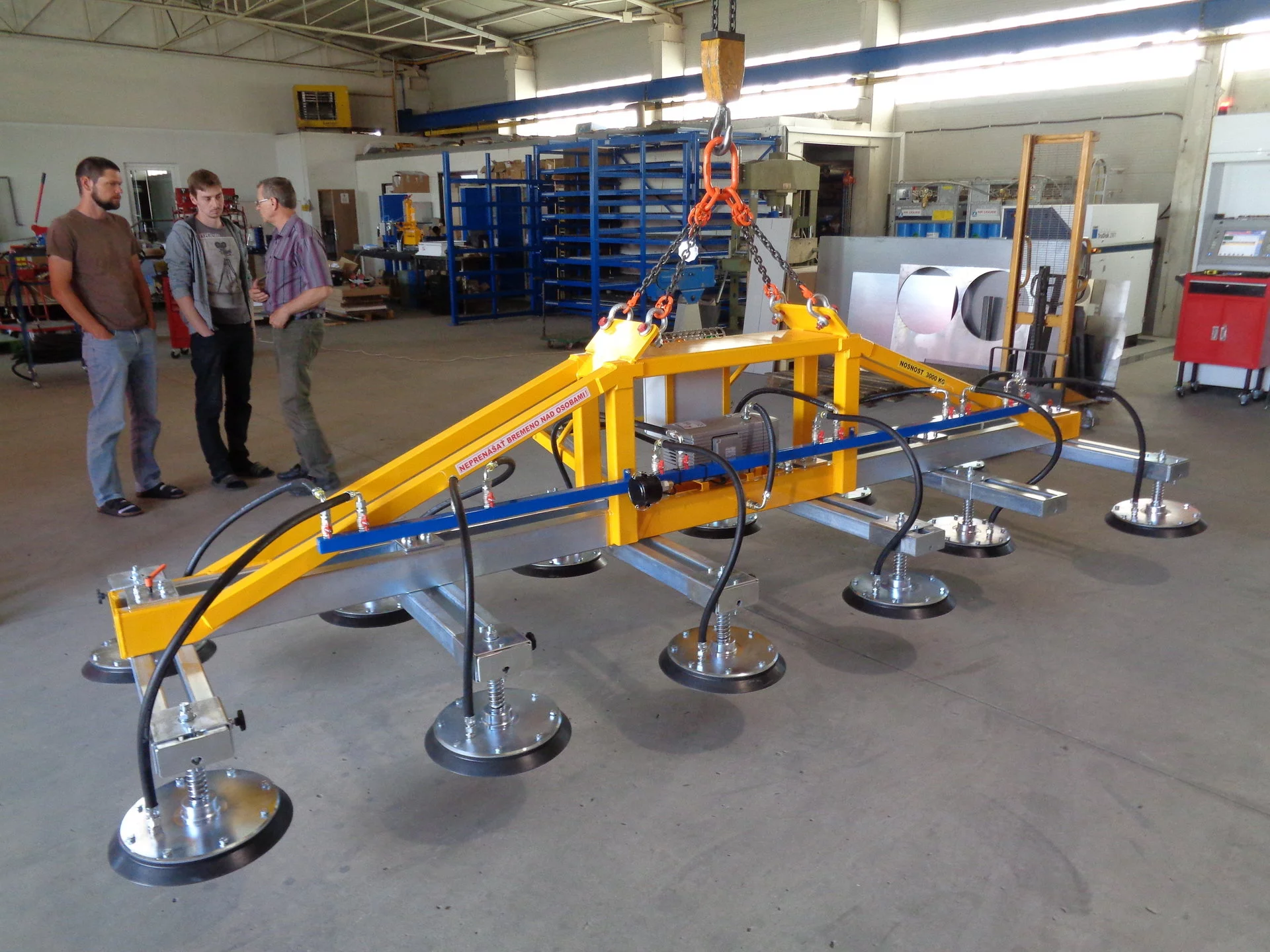

Photo gallery

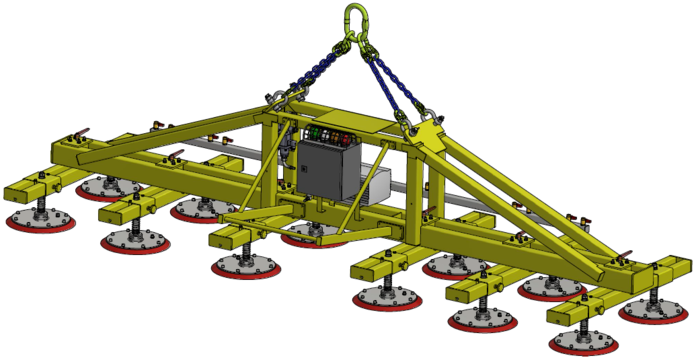

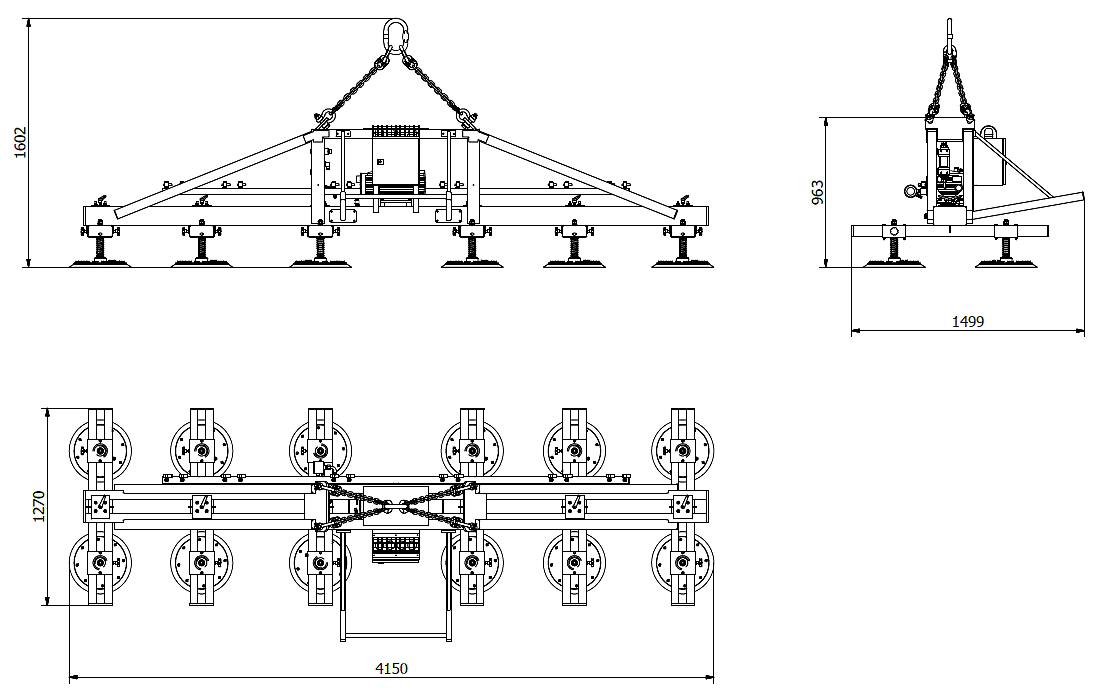

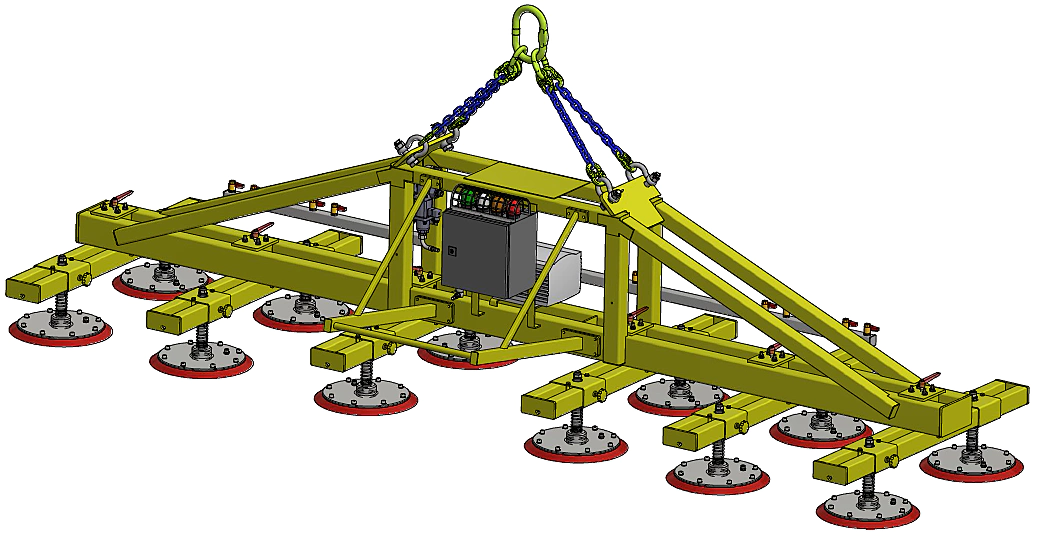

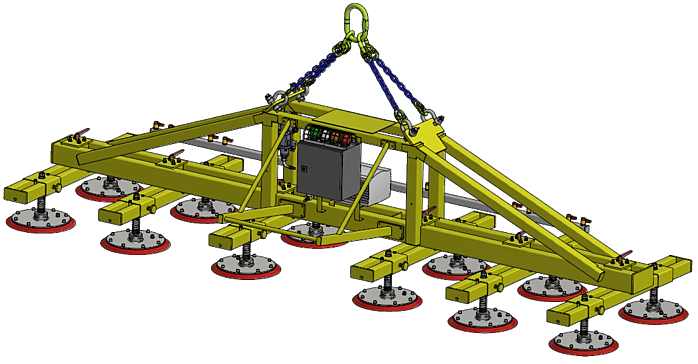

3D models + drawings
