Vacuum Tube Lifter VHZ Classic is the right answer for your needs if you need to lift and handle loadsquickly and easily. Its advantage is the single medium responsible for graspingand lifting the load. It is a vacuum. No electric hoist and no pneumatic orhydraulic rollers are necessary. The operator controls the lifting and loweringof the load using a control handle. When you increase the vacuum in the system,the load lifted; when you decrease the vacuum in the system, the load islowered.
VACUUM TUBE LIFTER - VHZ Classic

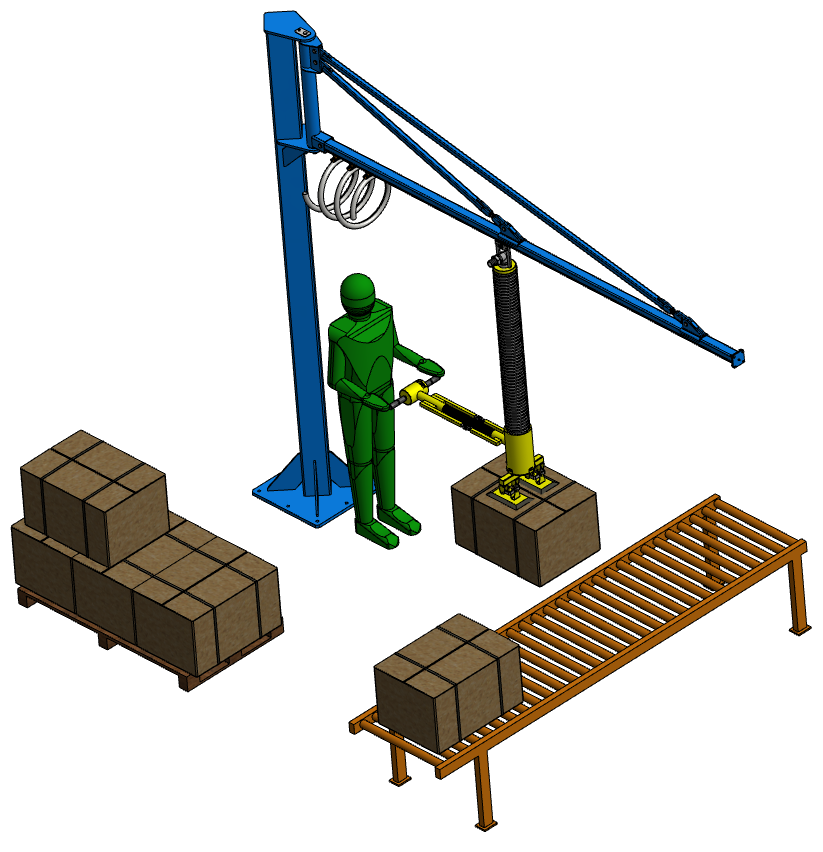

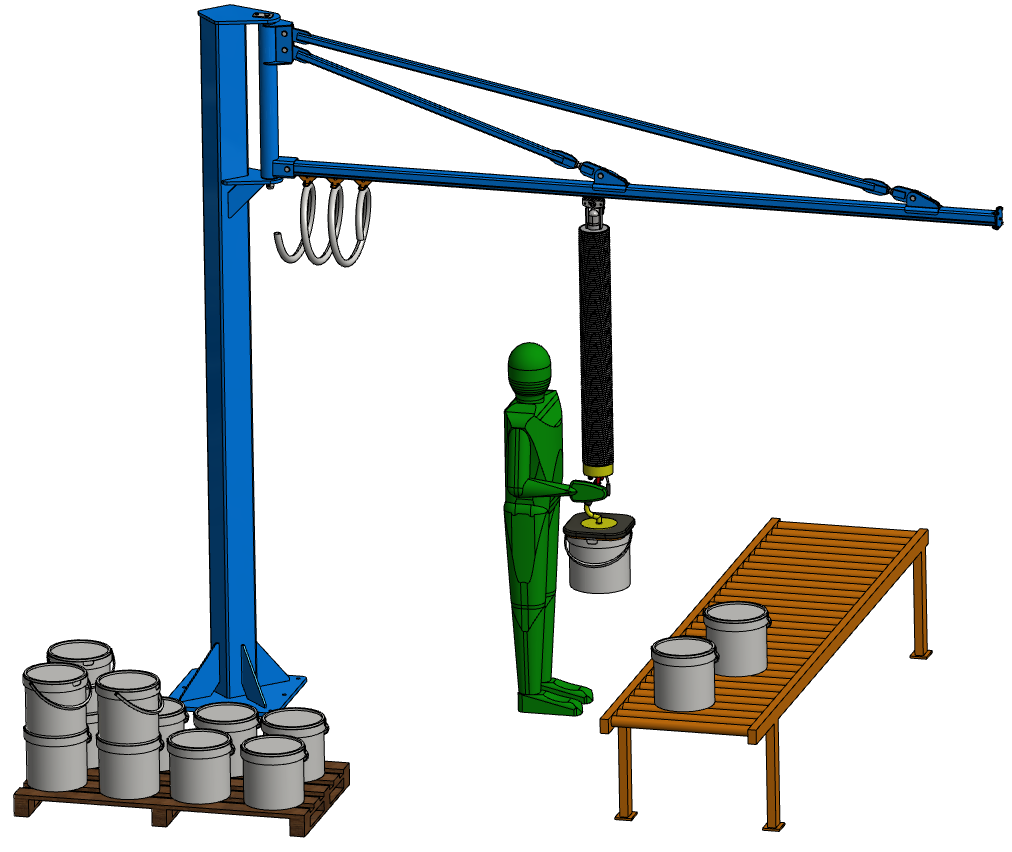

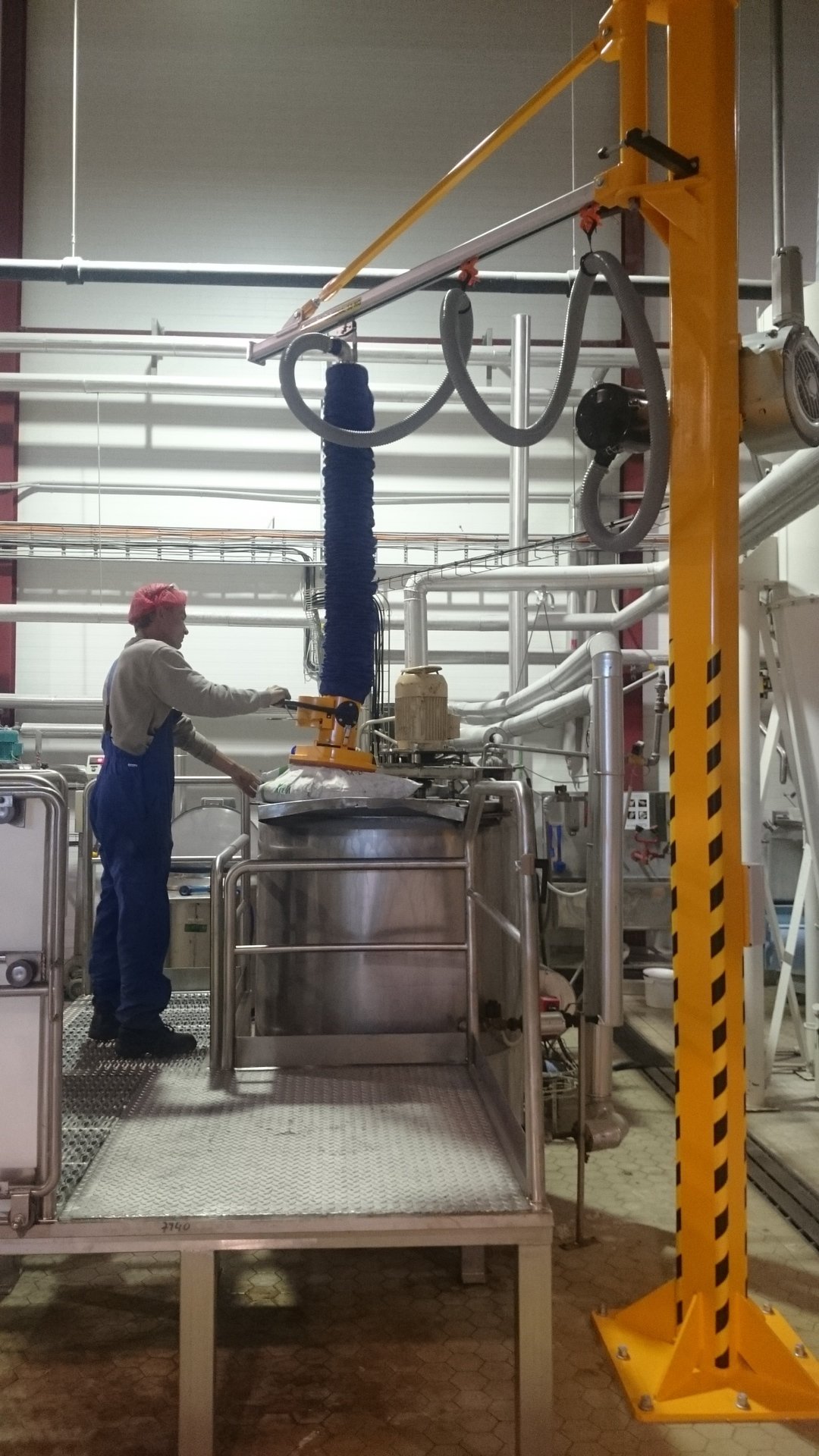

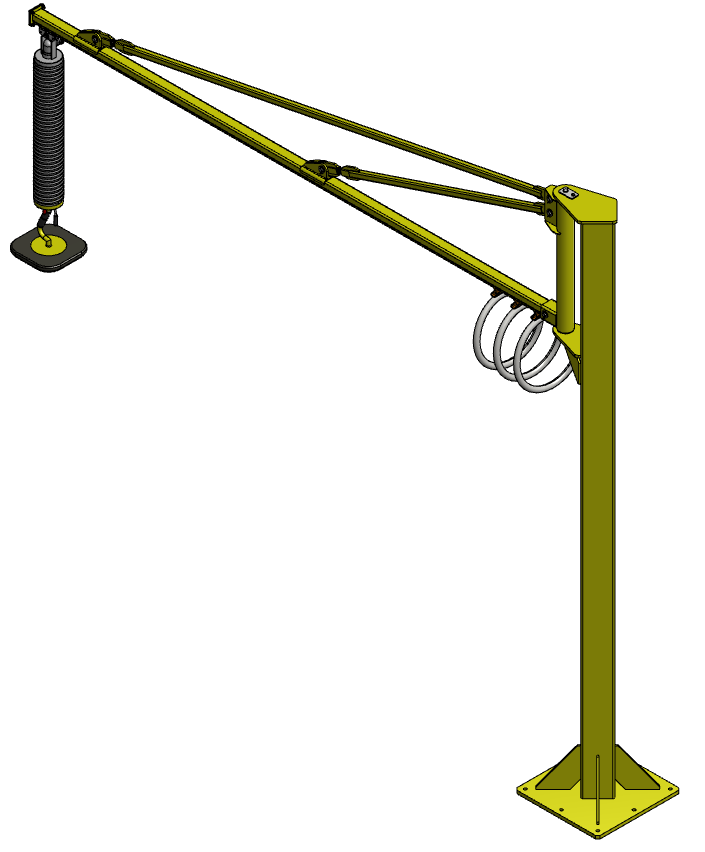

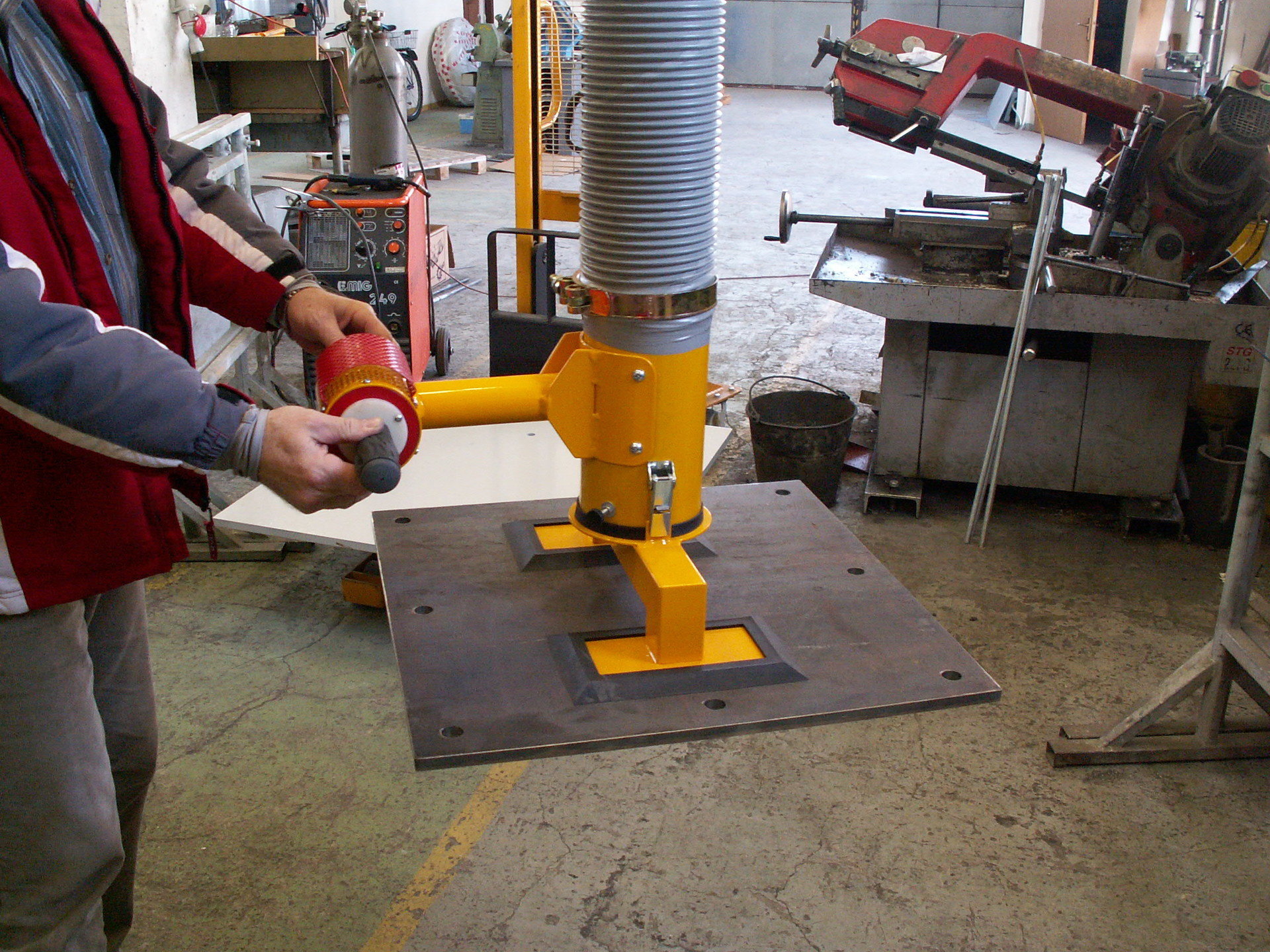

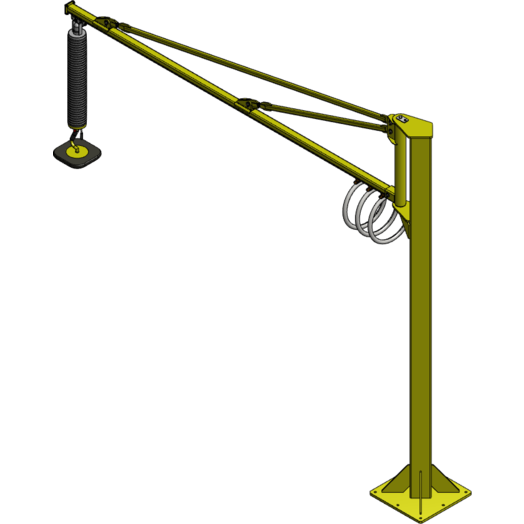

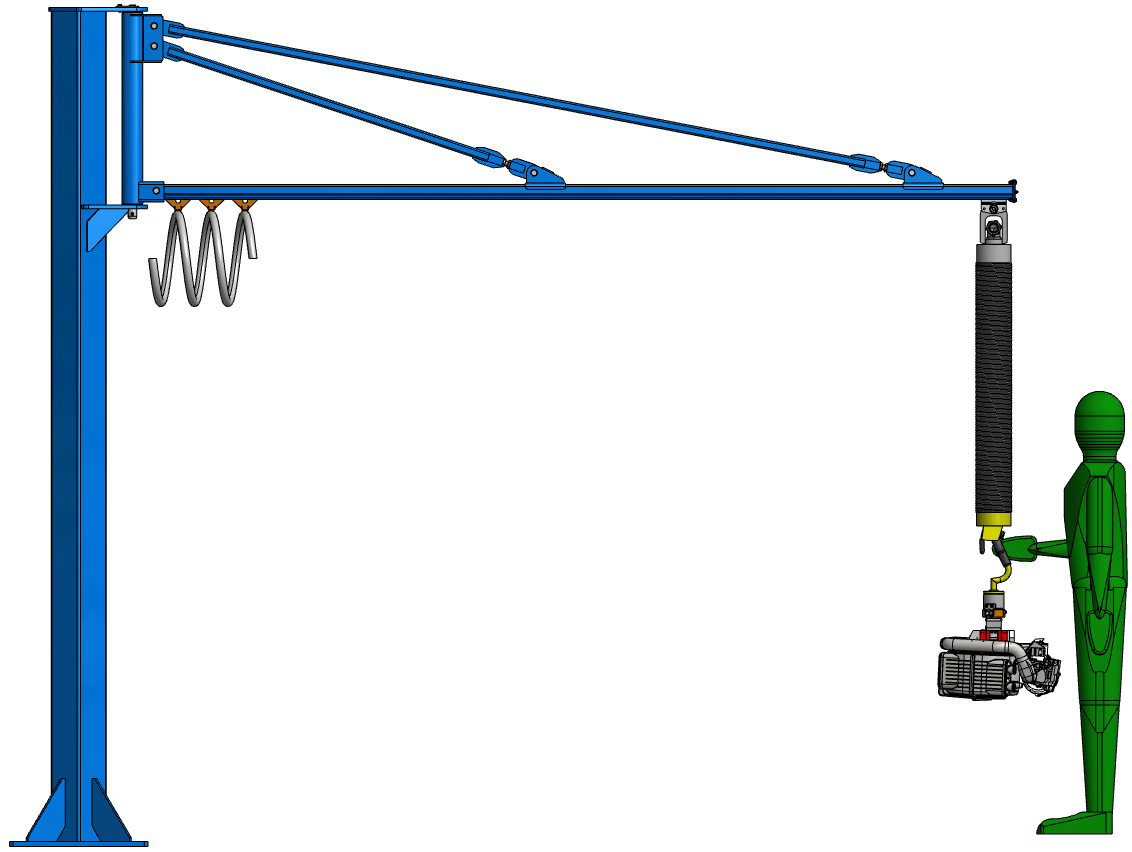

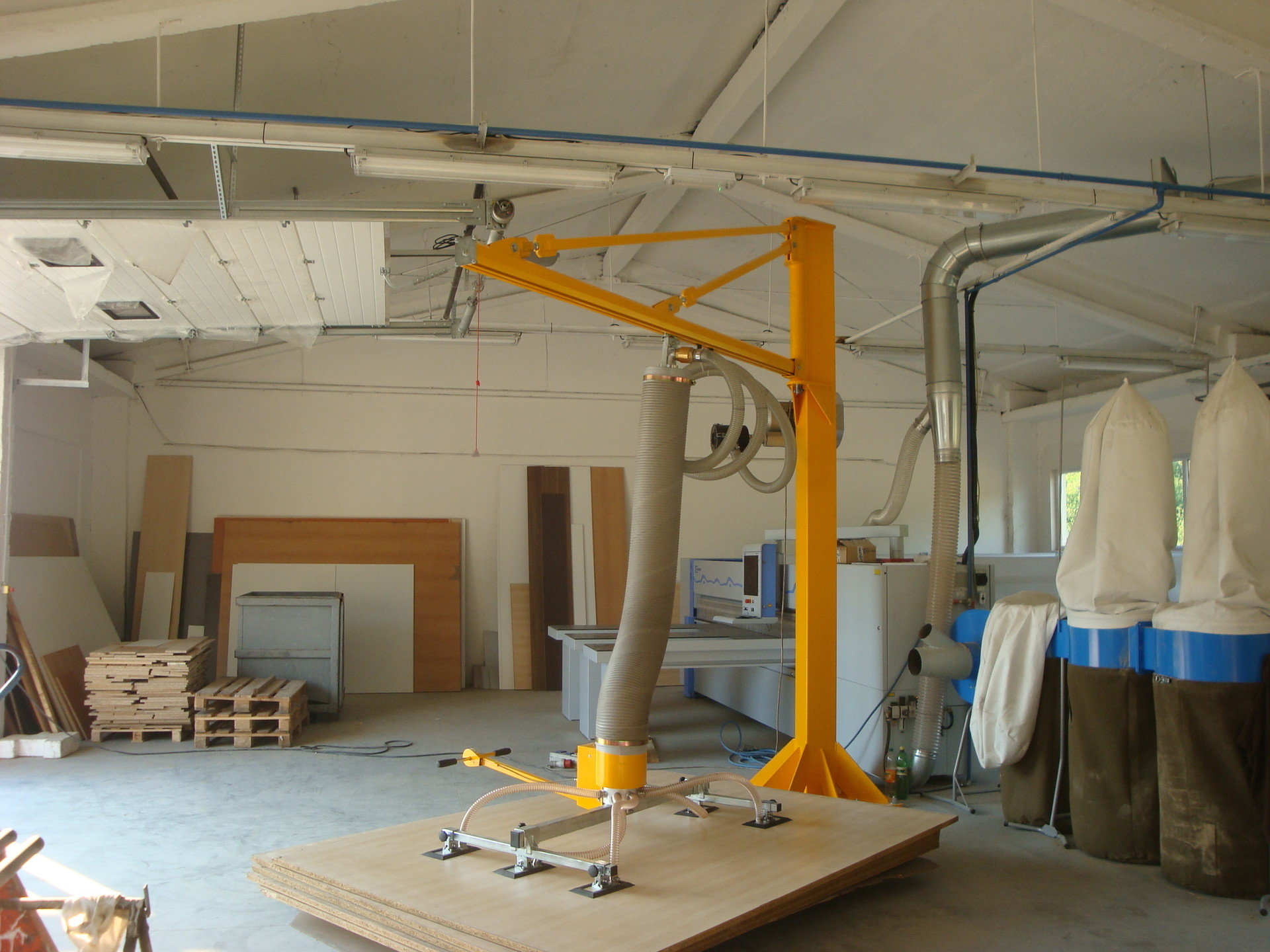

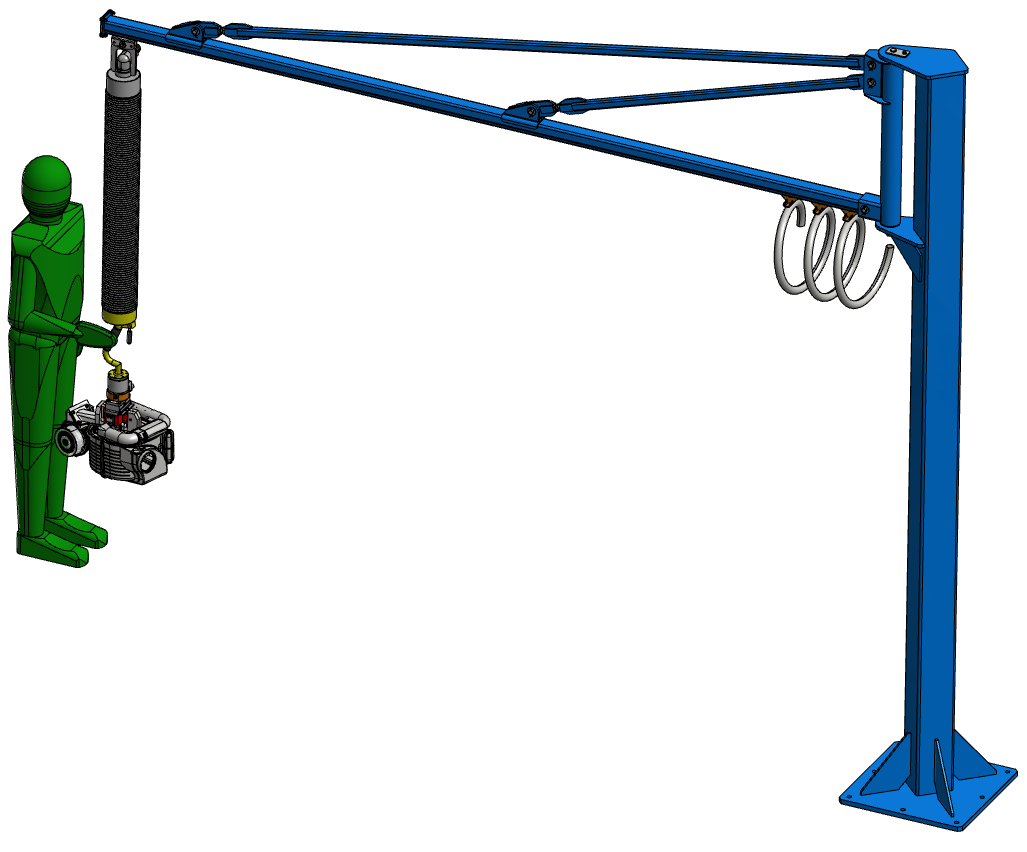

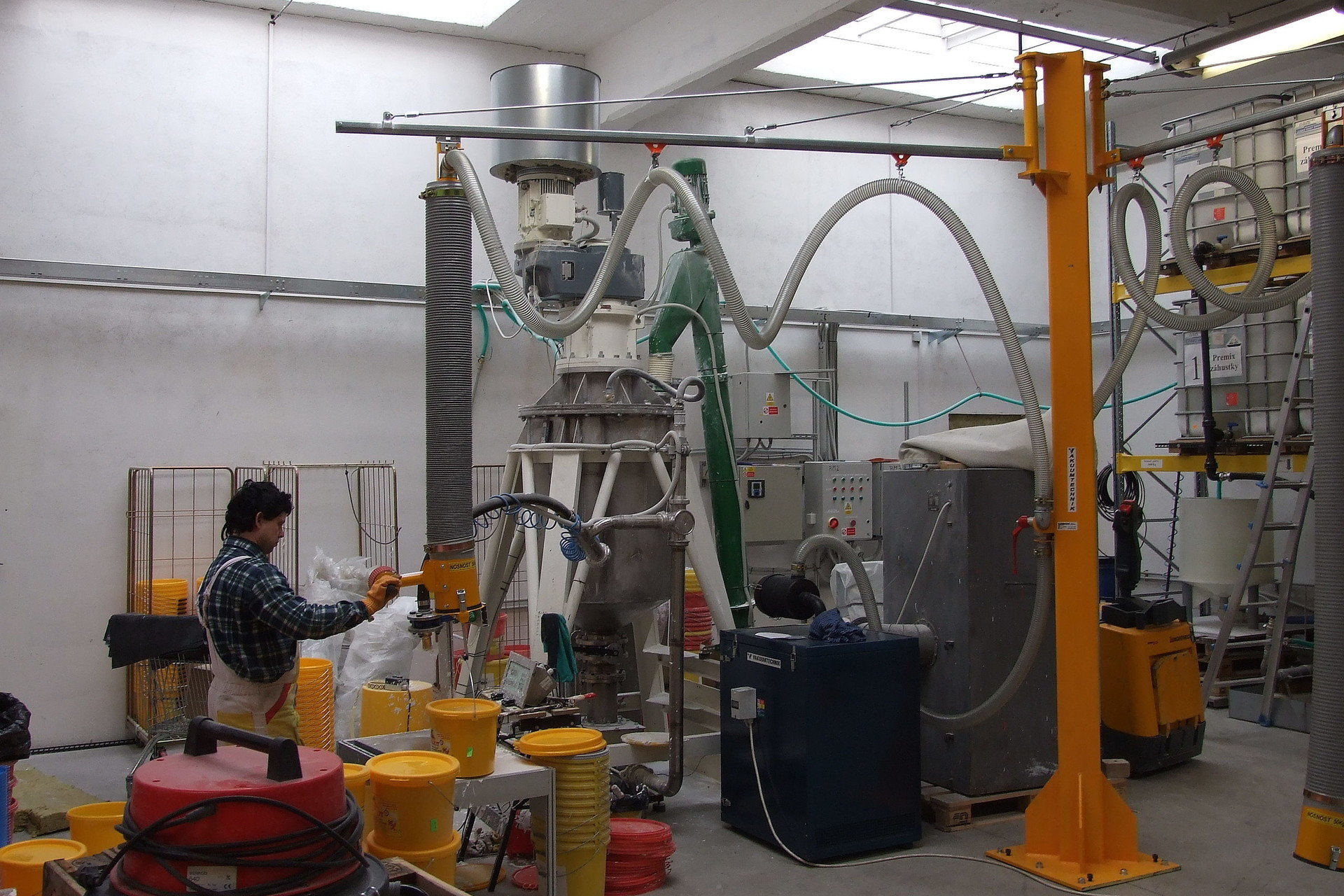

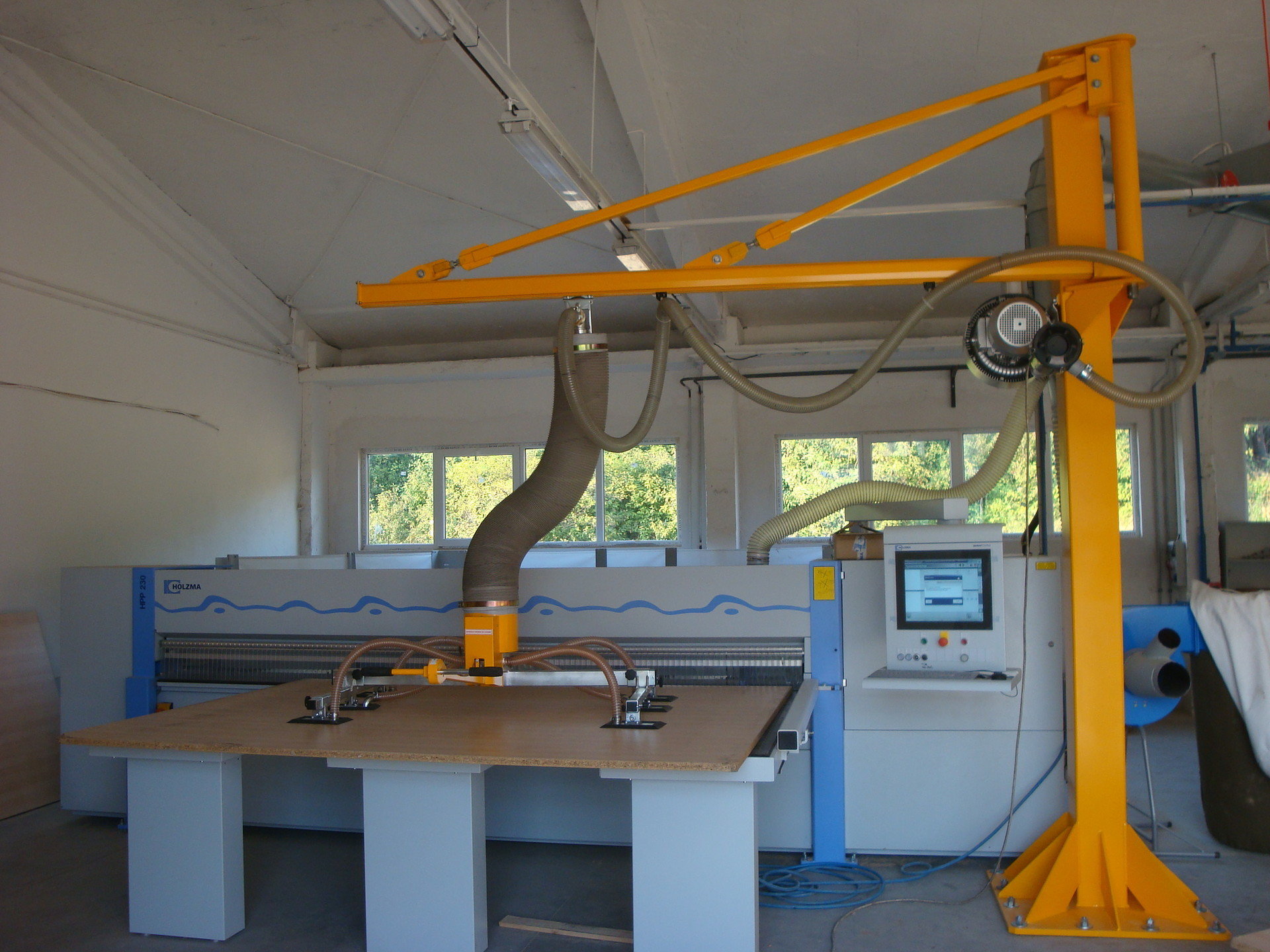

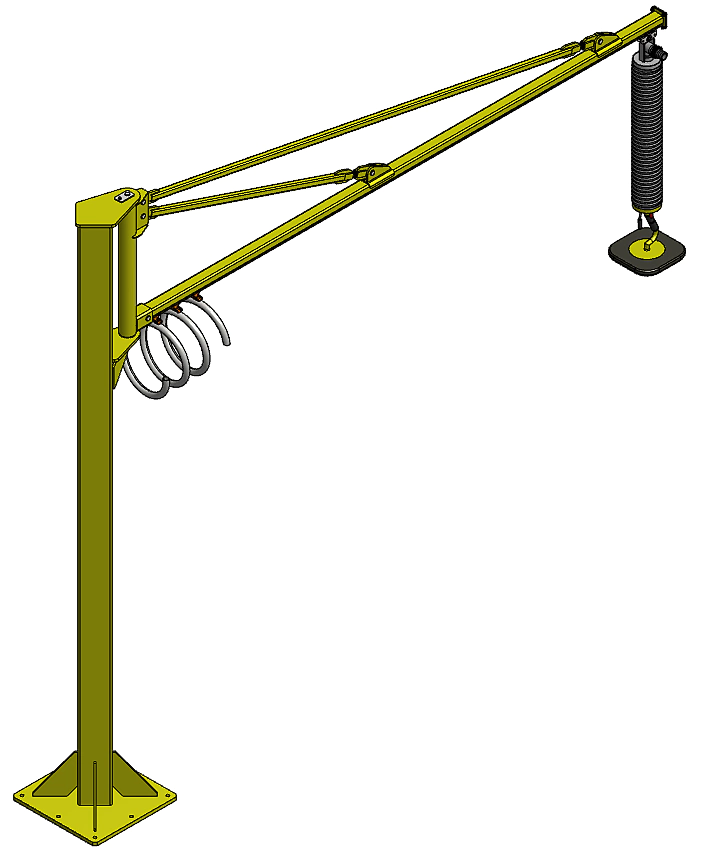

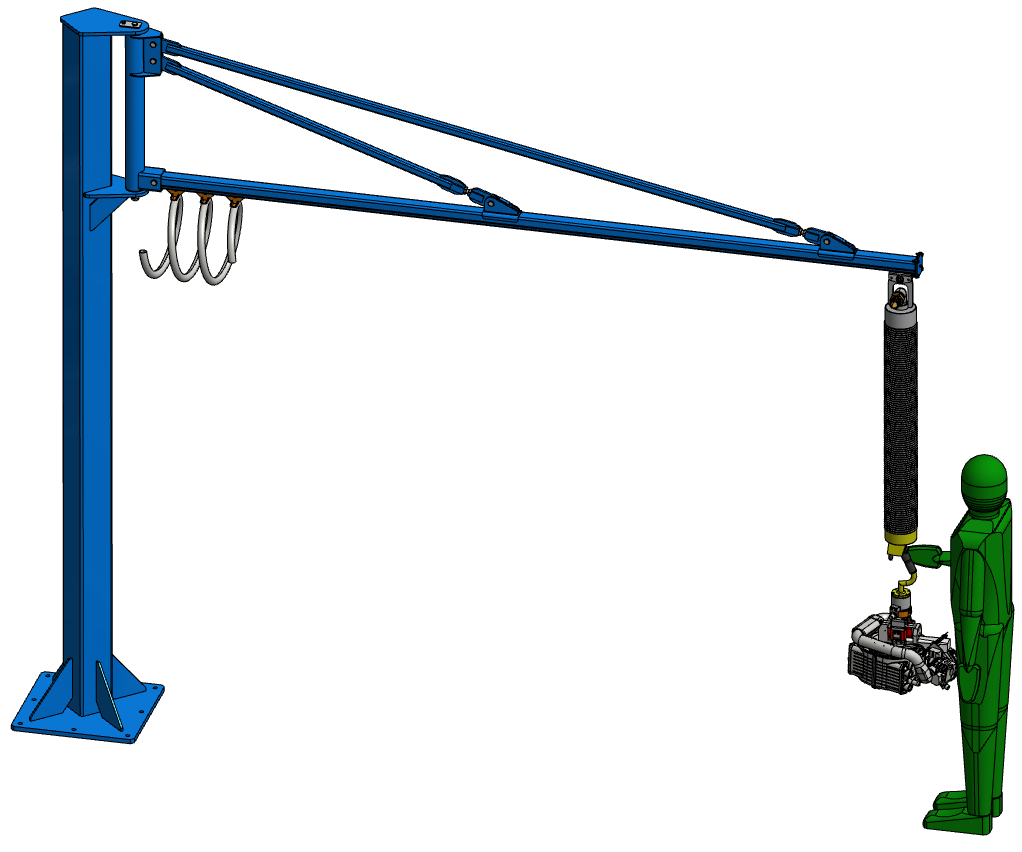

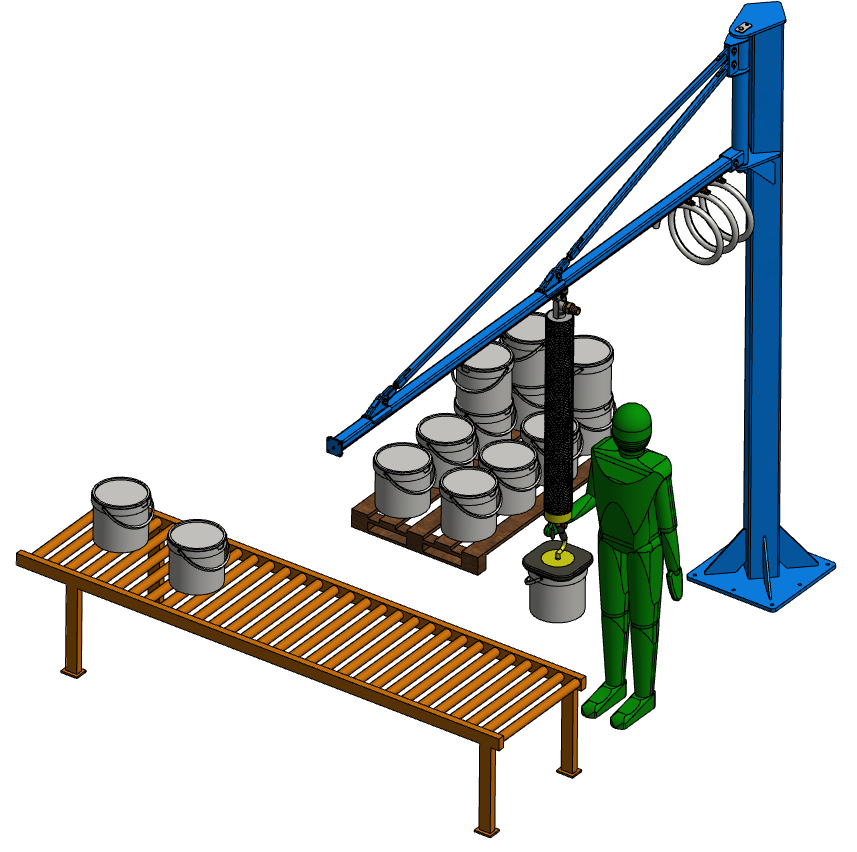

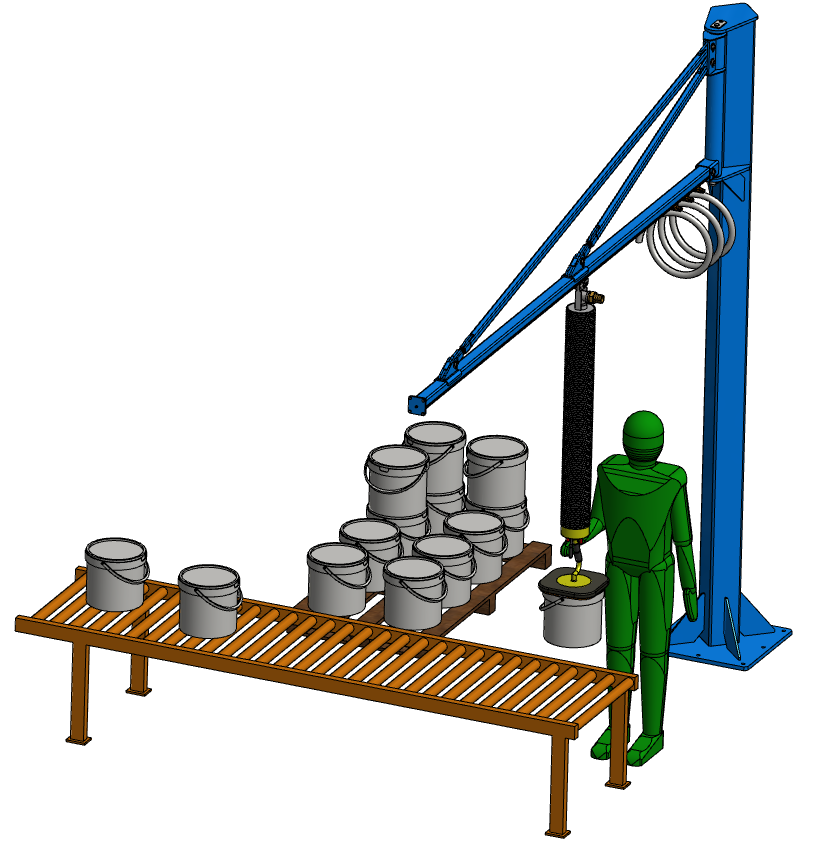

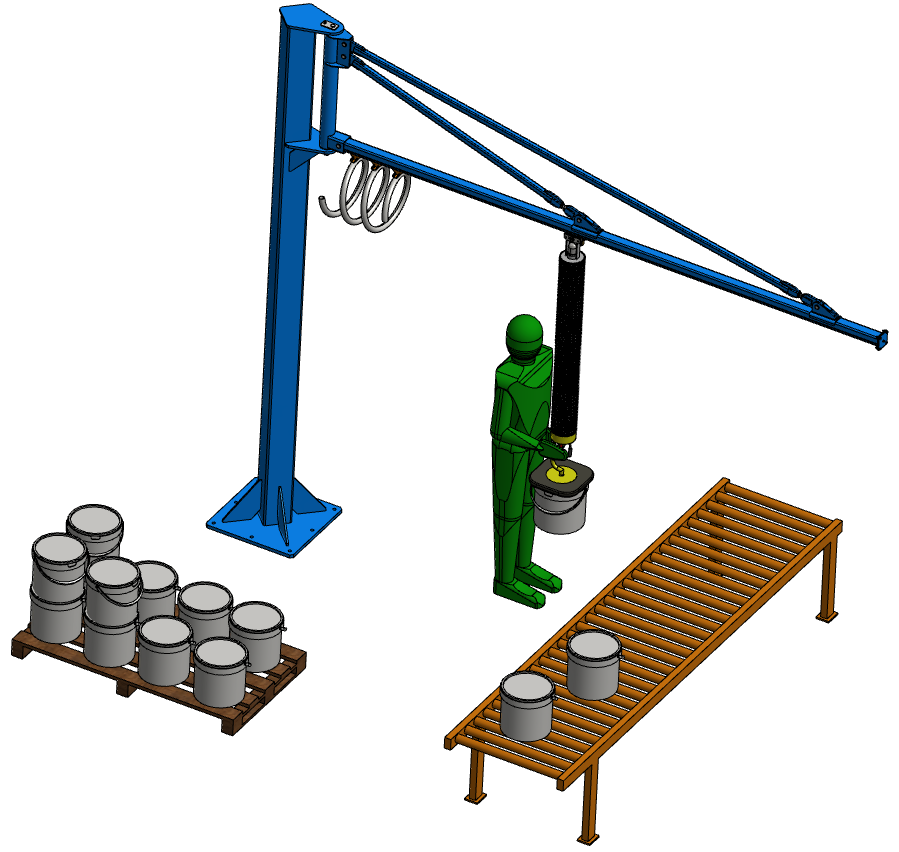

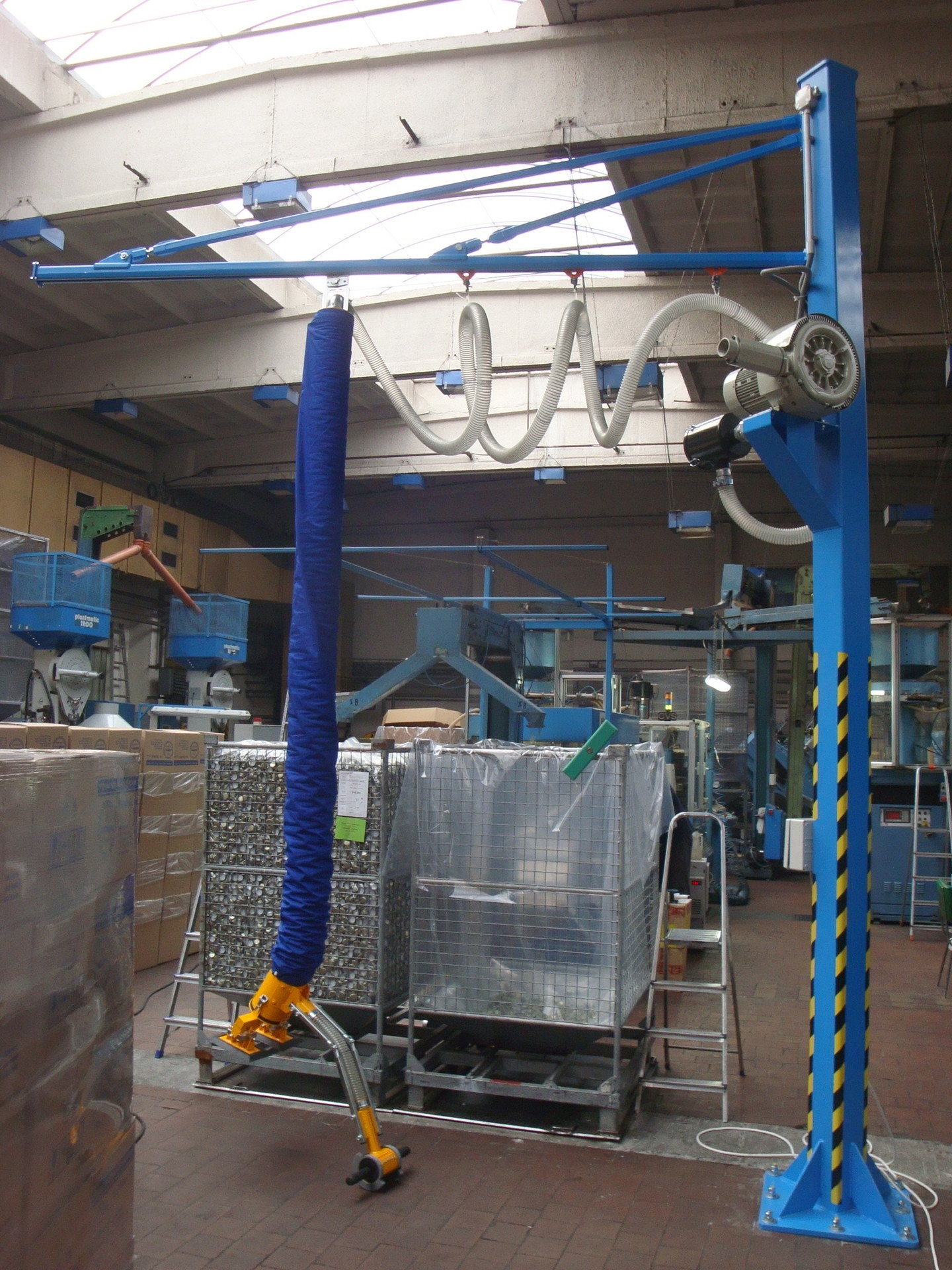

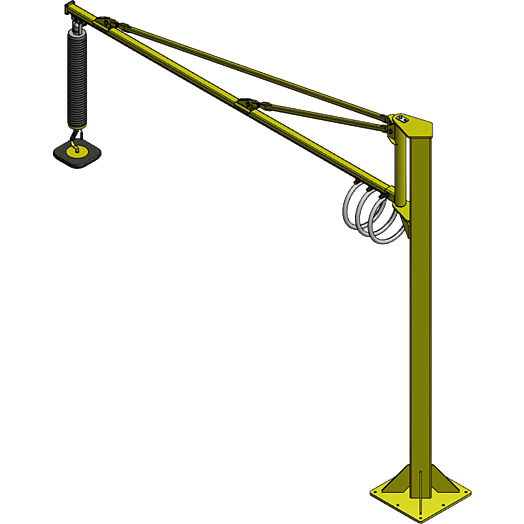

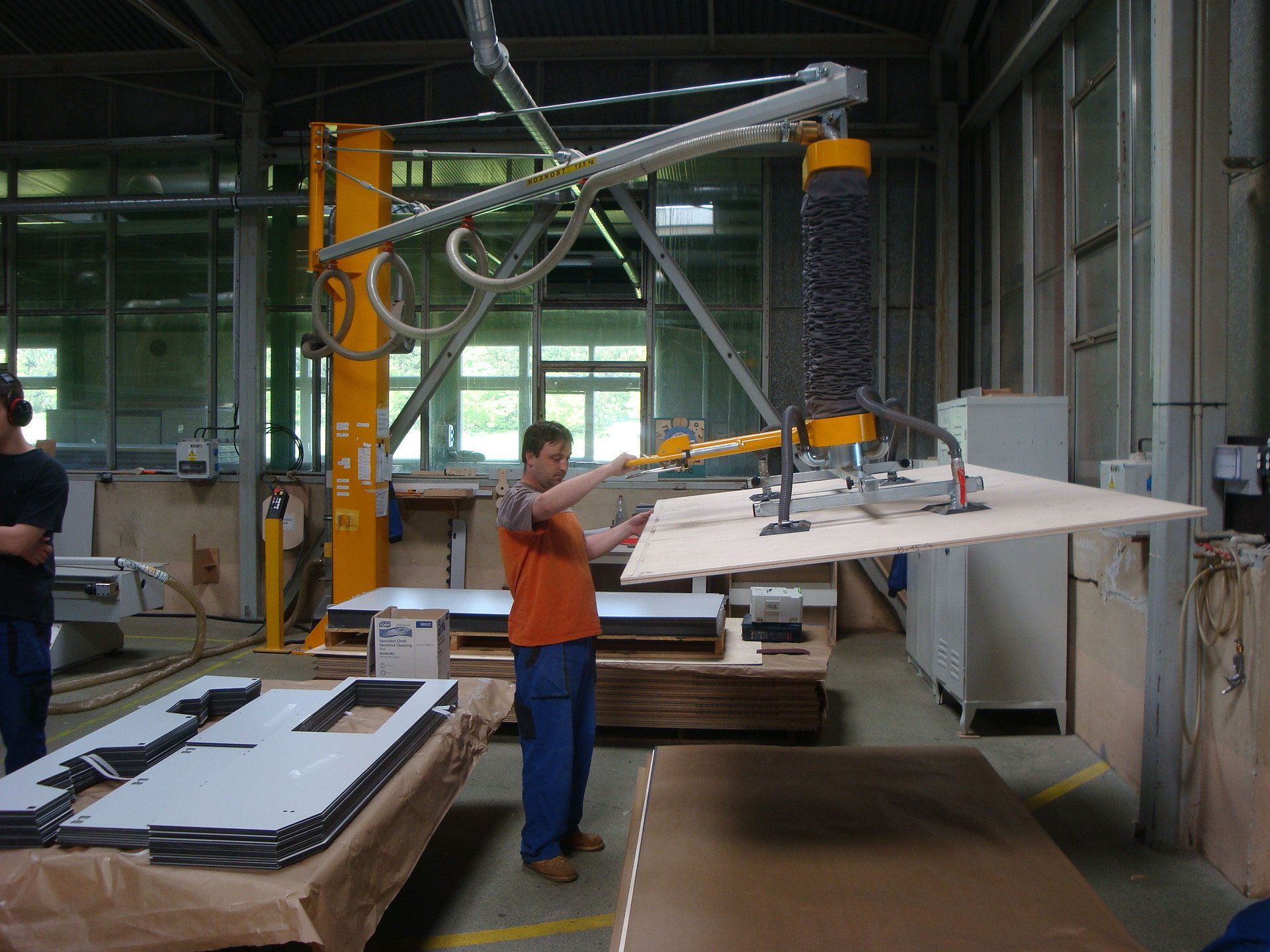

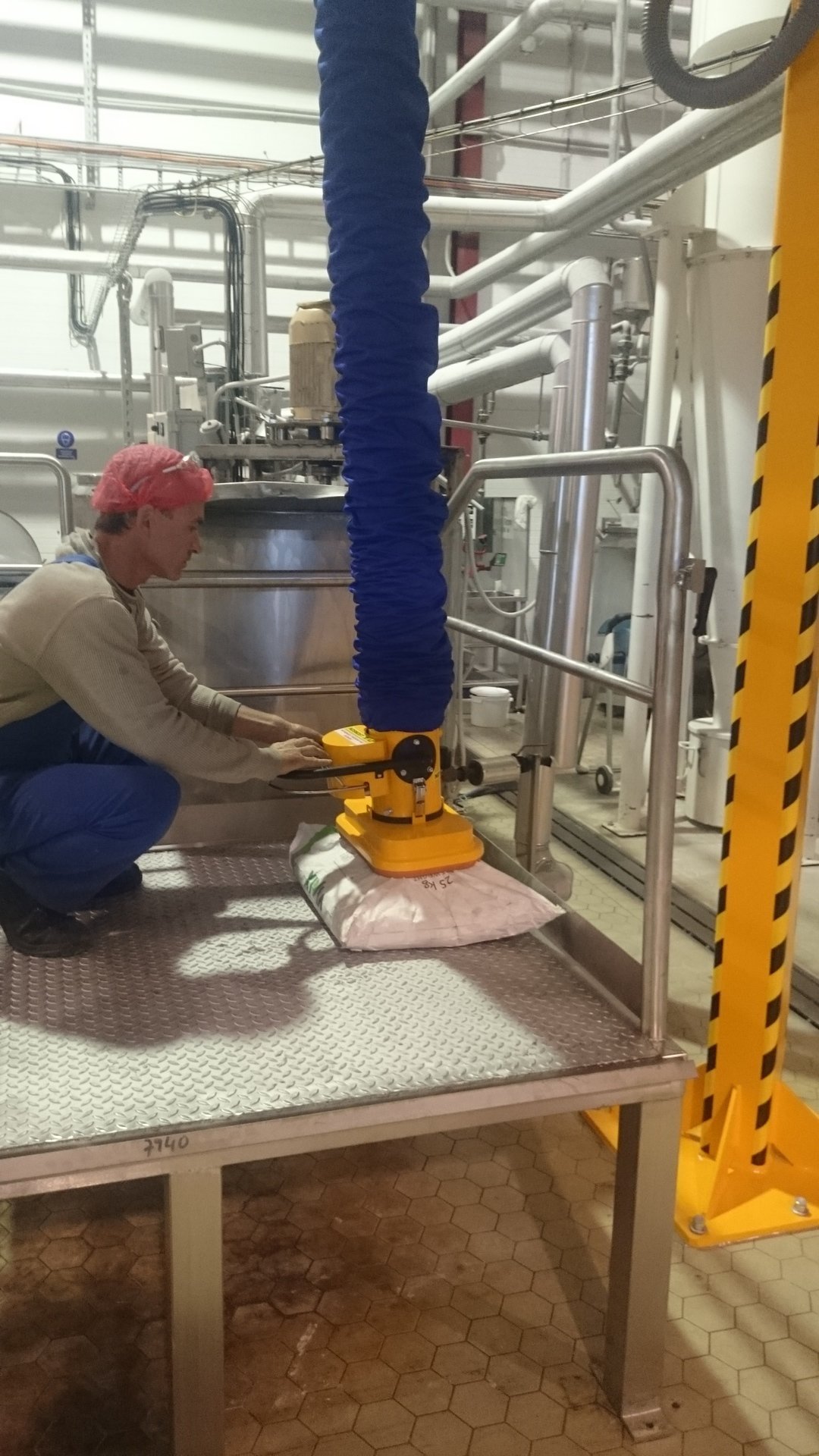

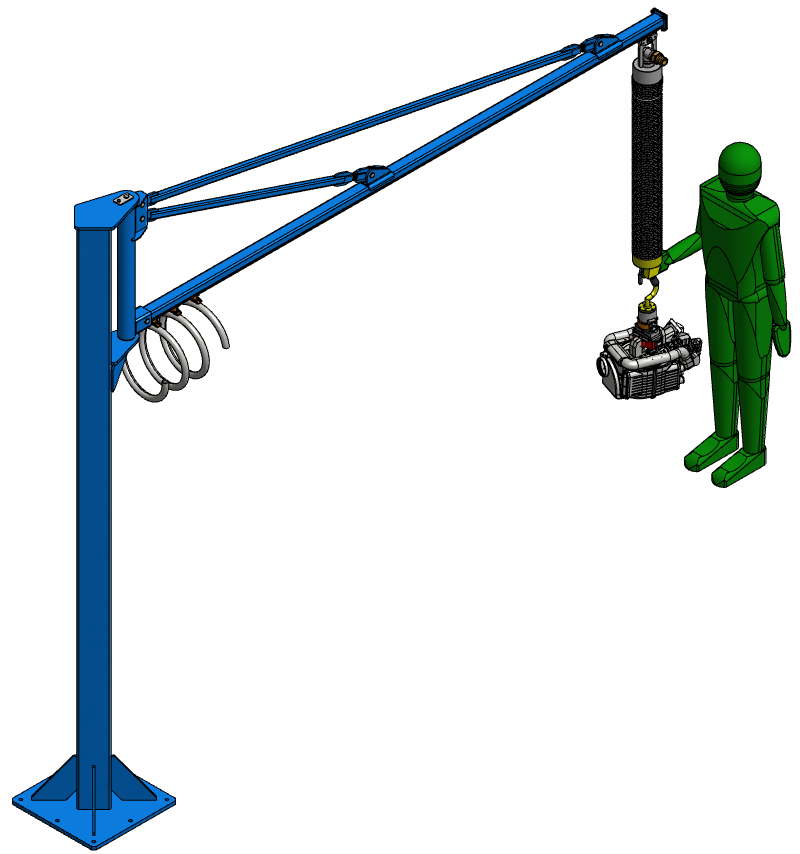

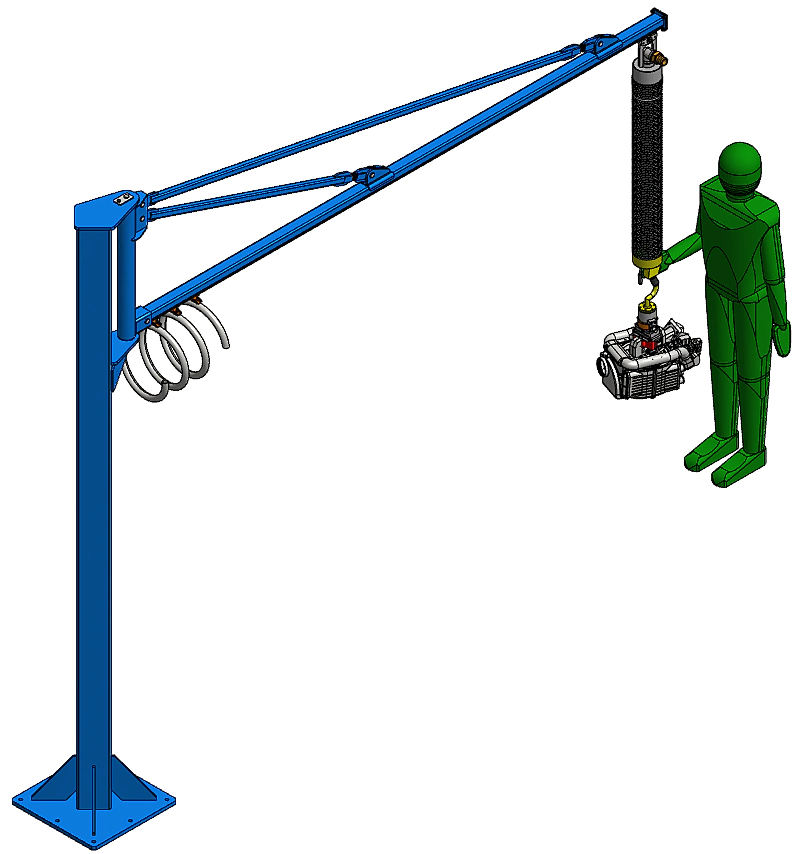

The Vacuum Tube Lifter - VHZ Classic is a universal handling system with its inherent columnstructure, with light manual rotation, travel and simple operation.
Application:

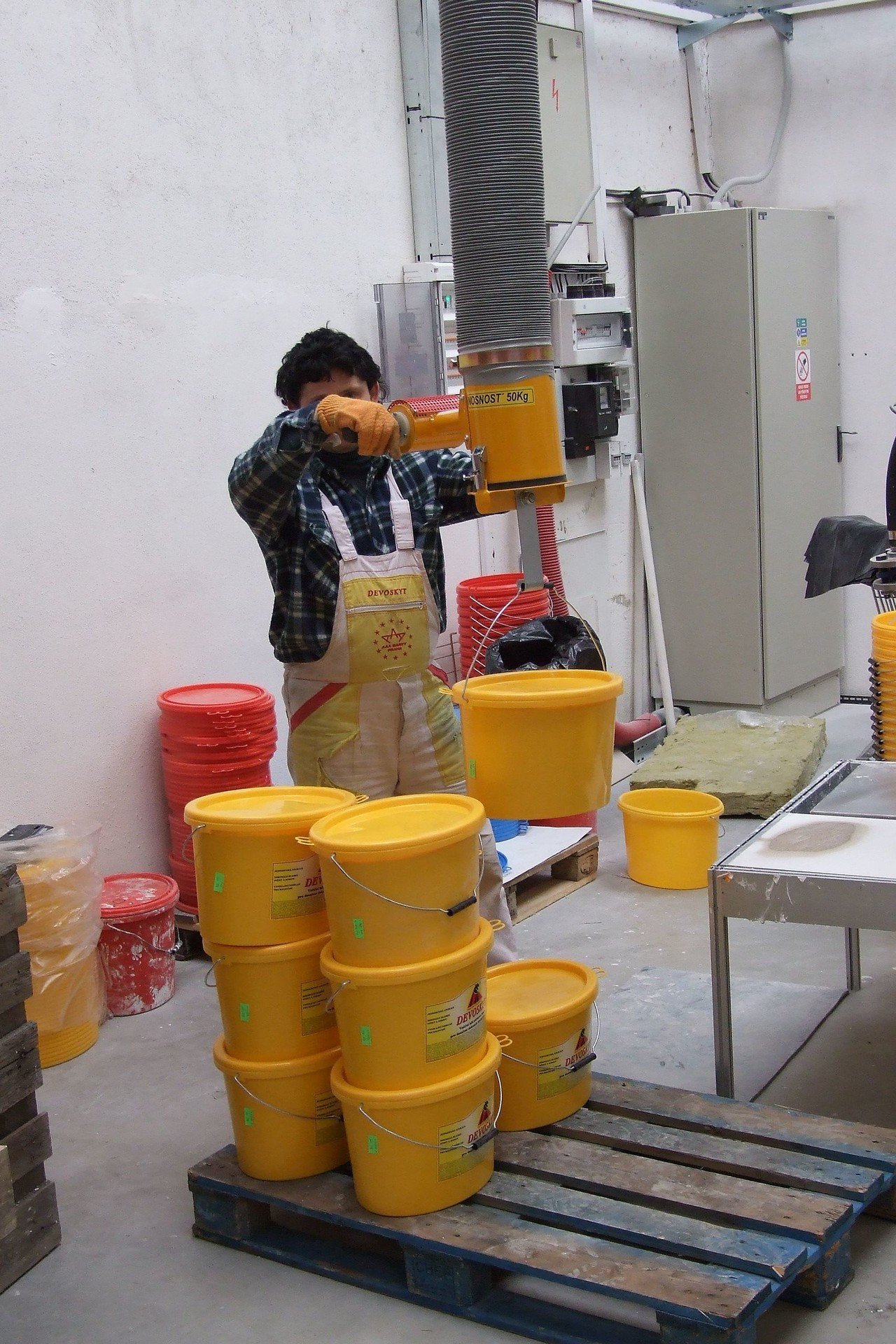

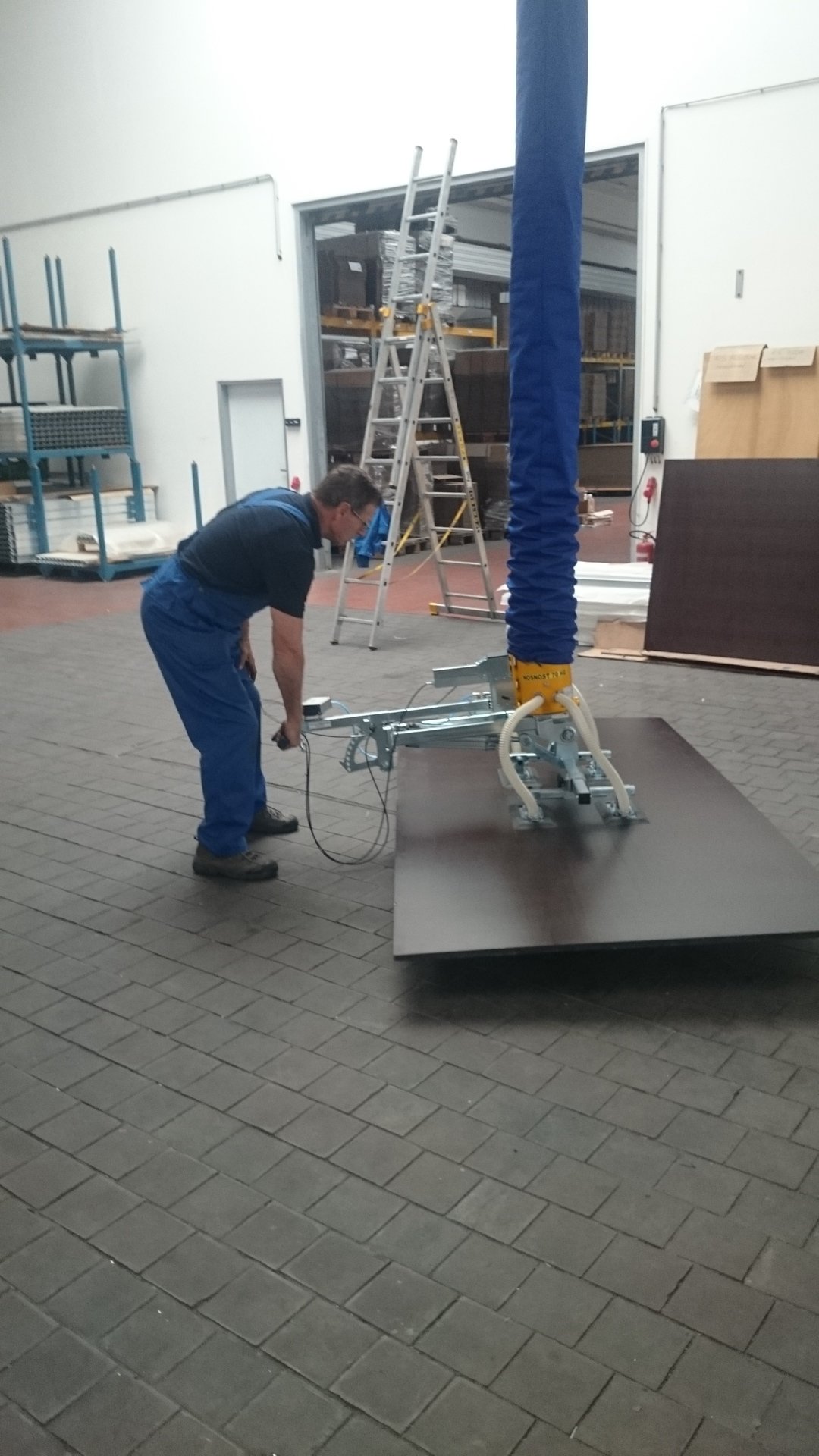

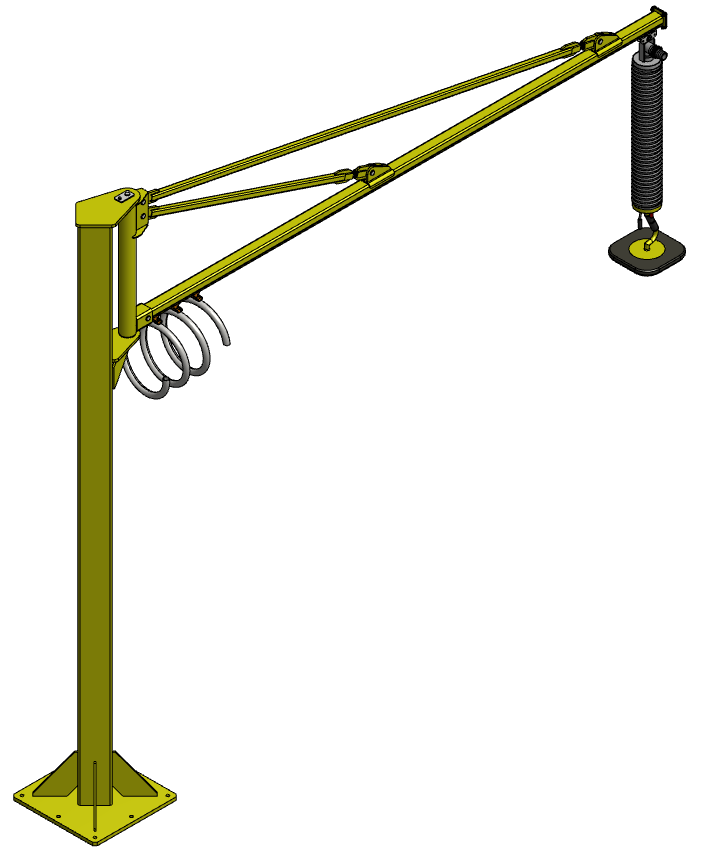

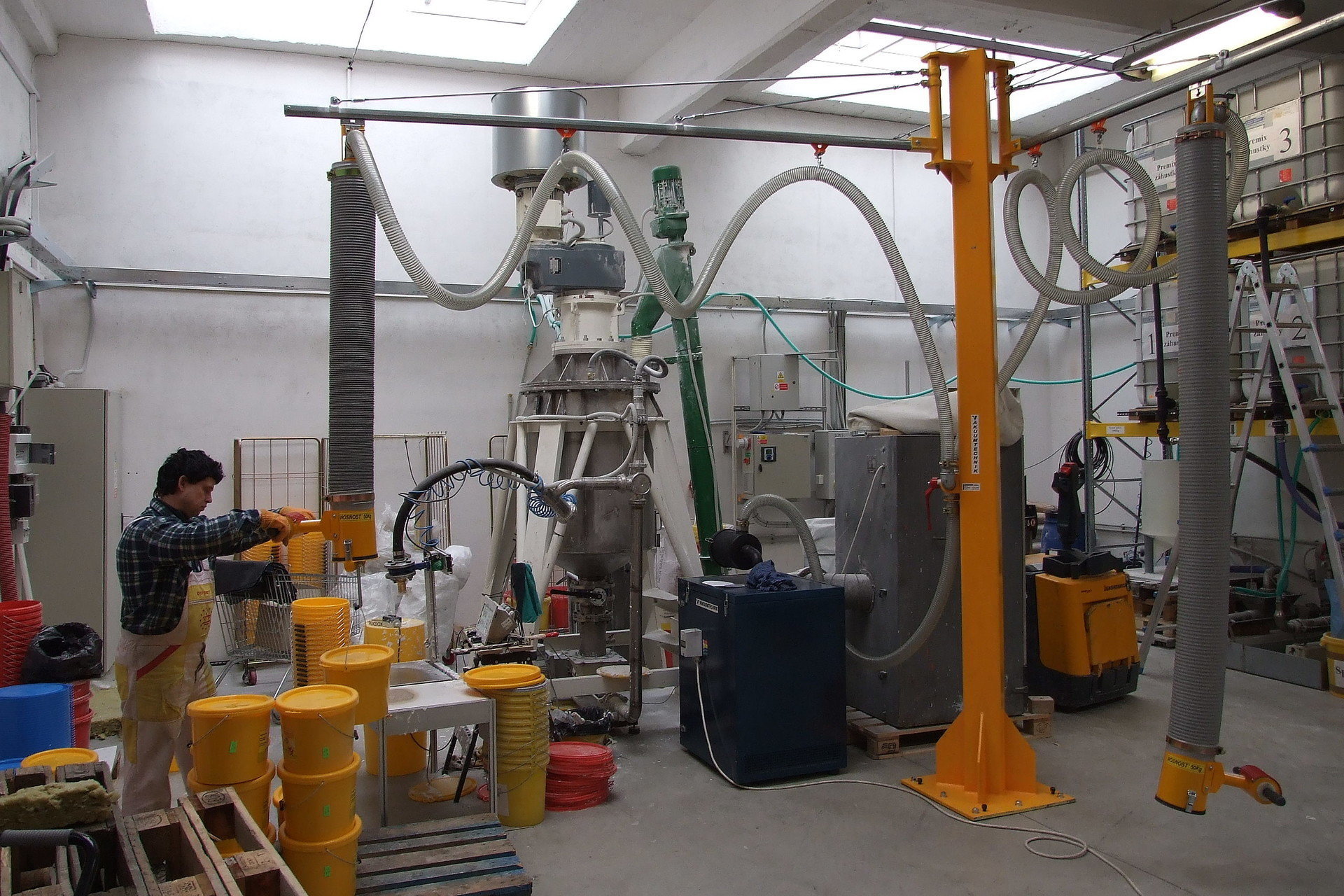

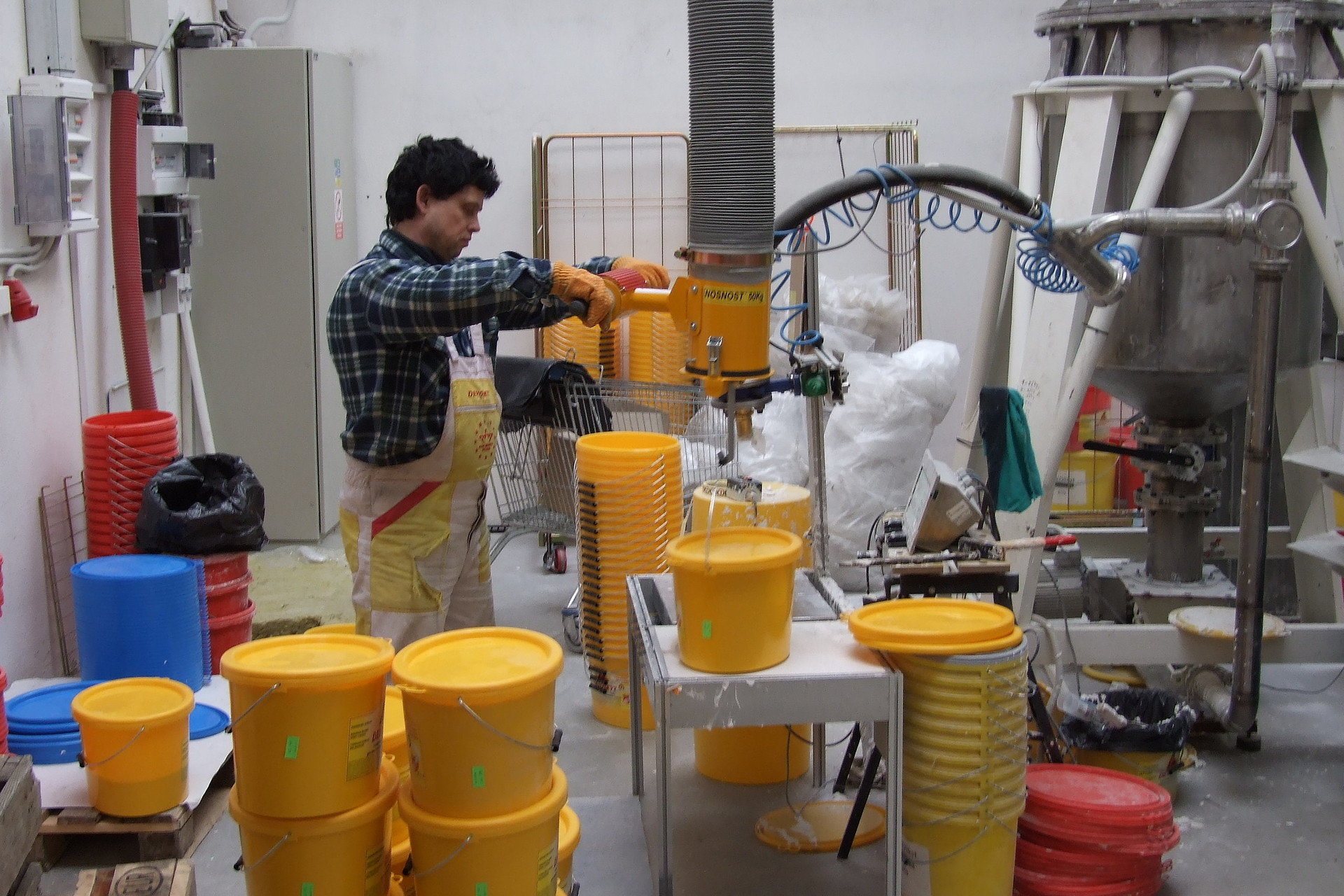

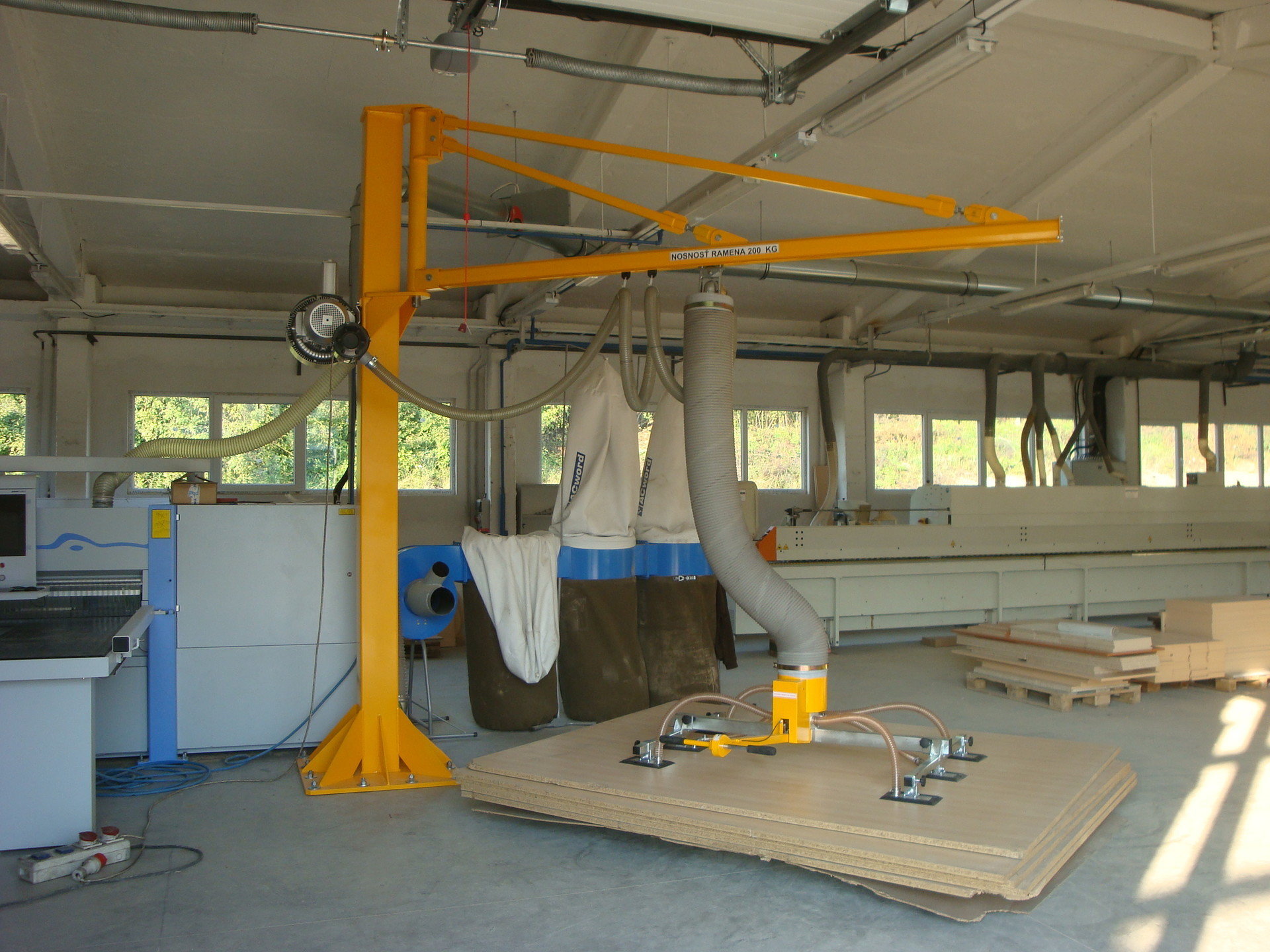

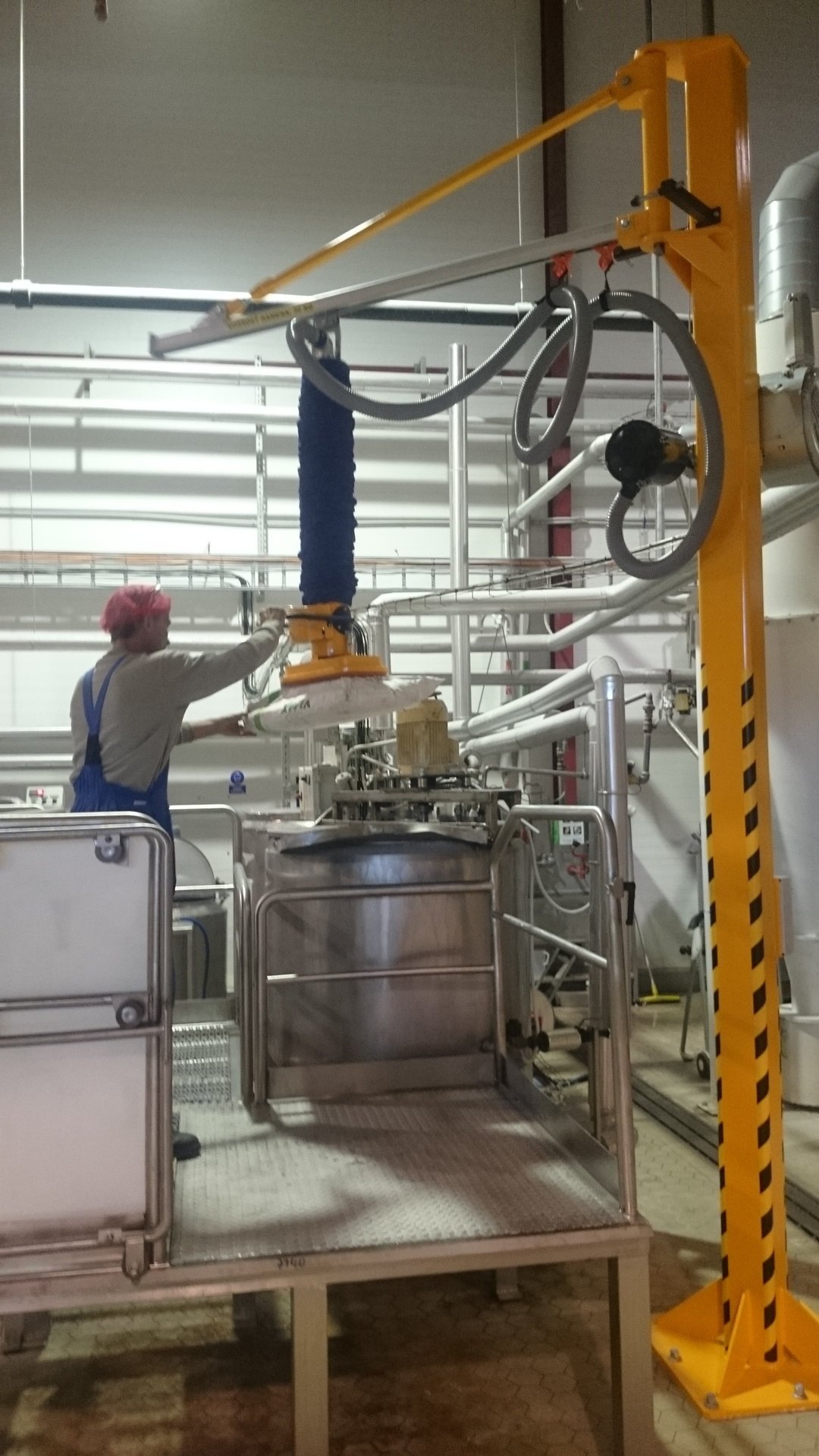

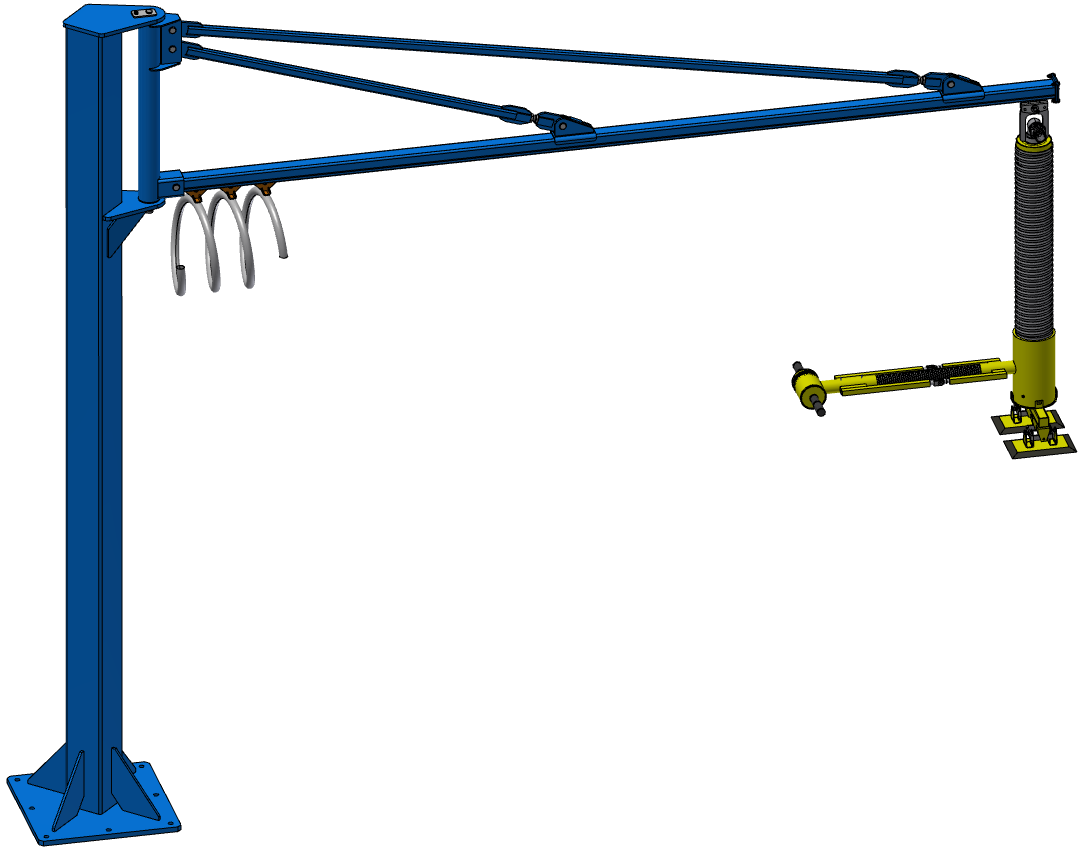

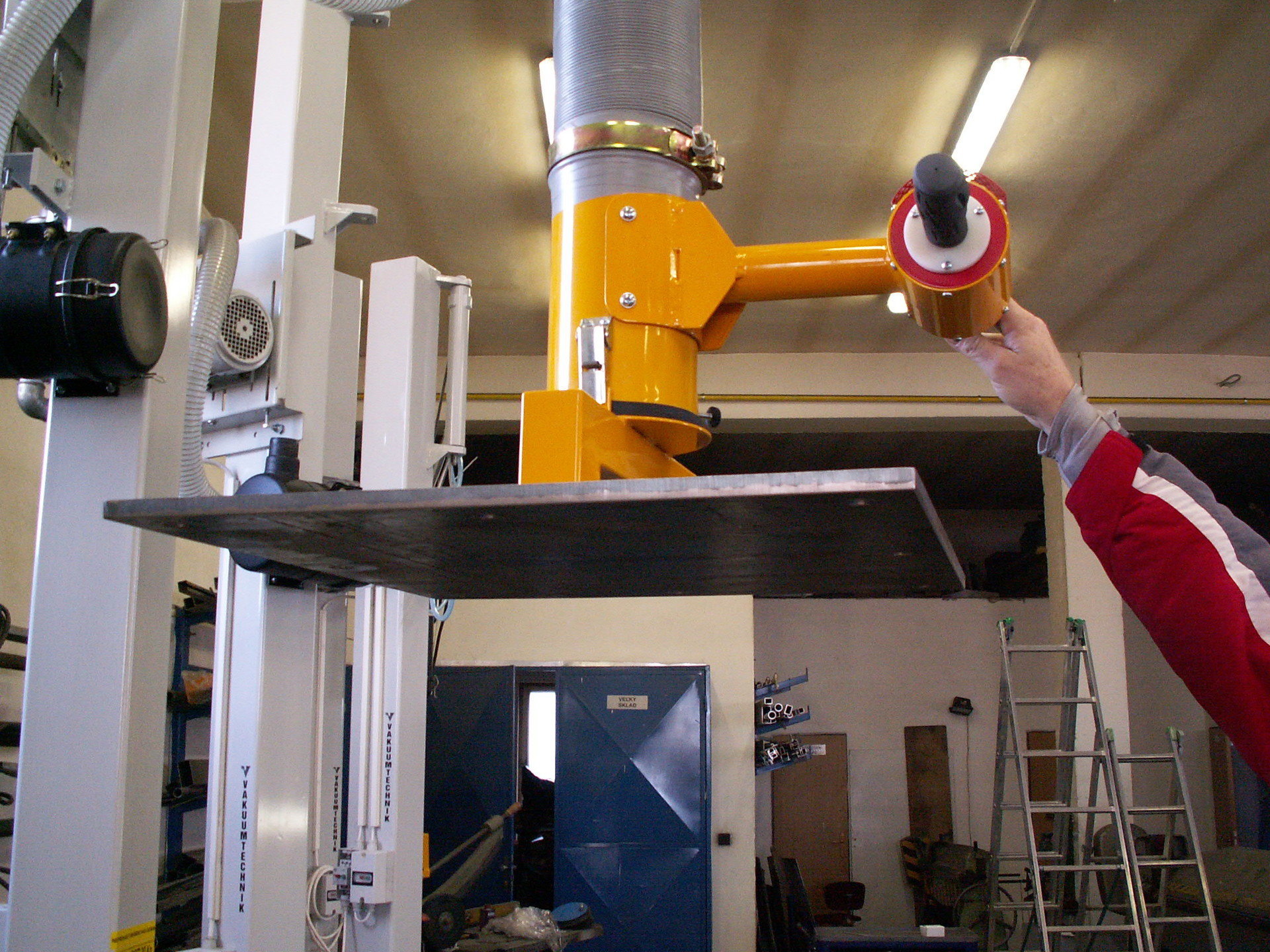

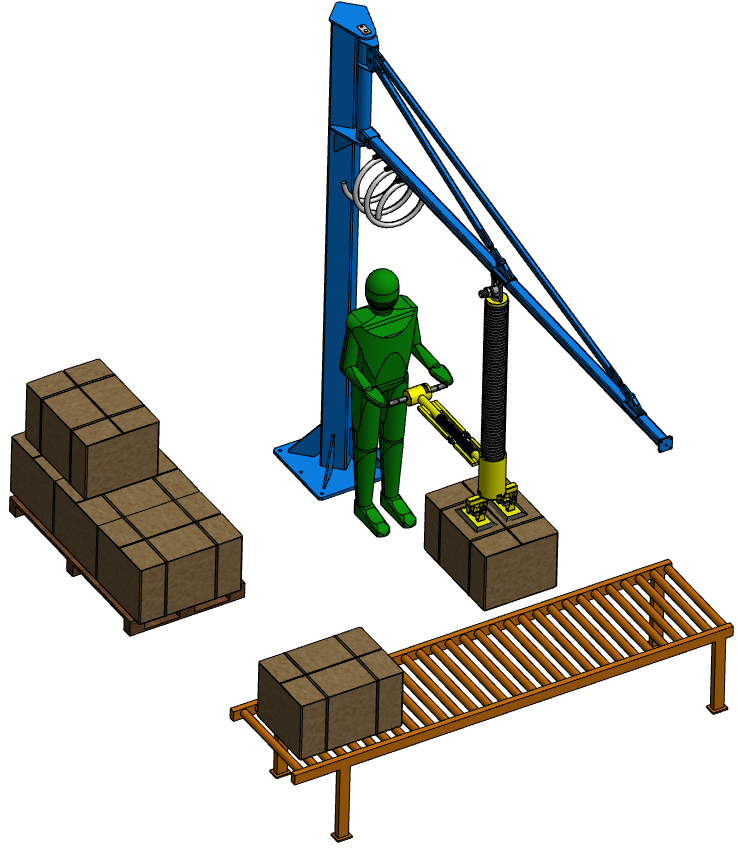

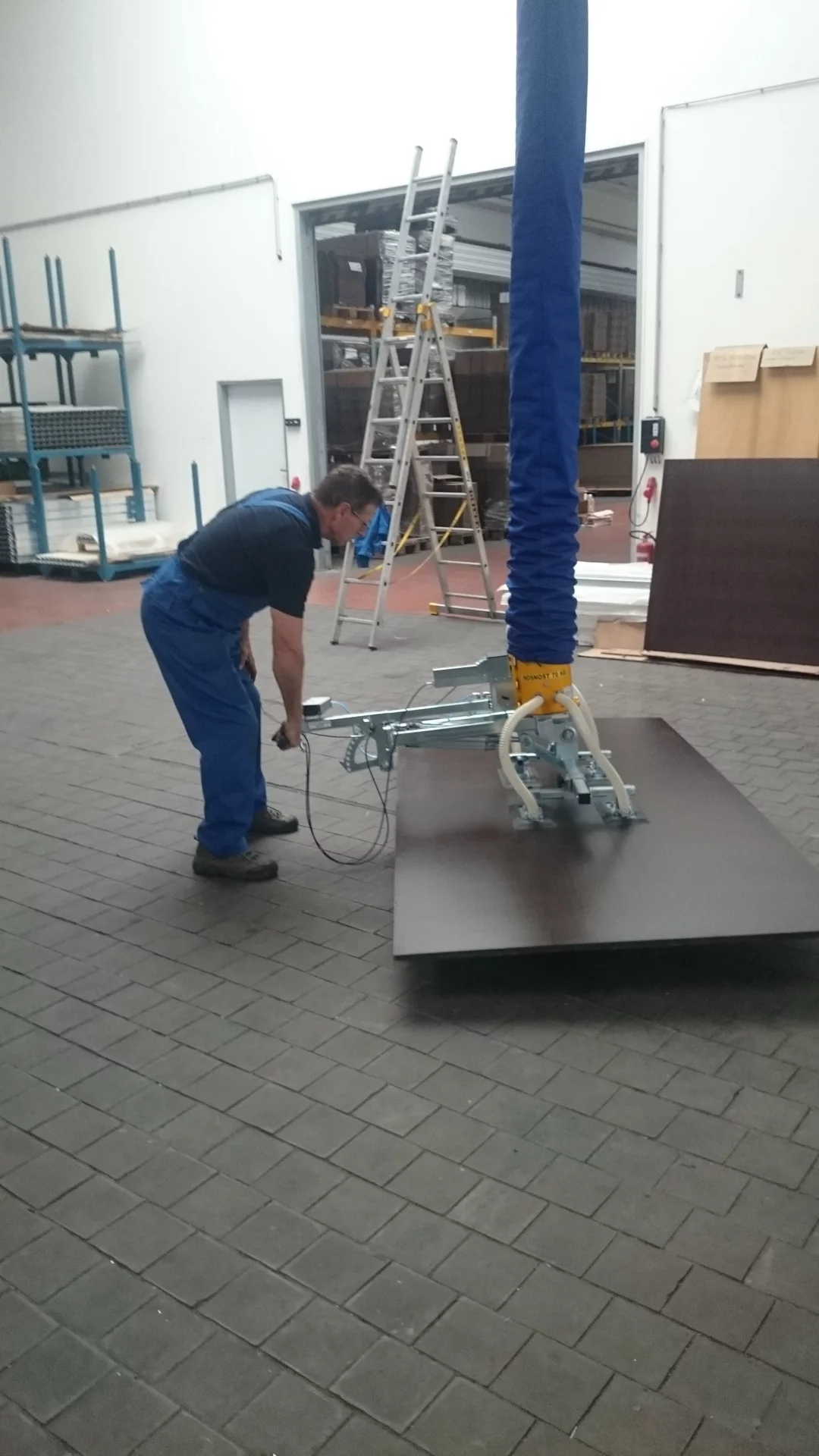

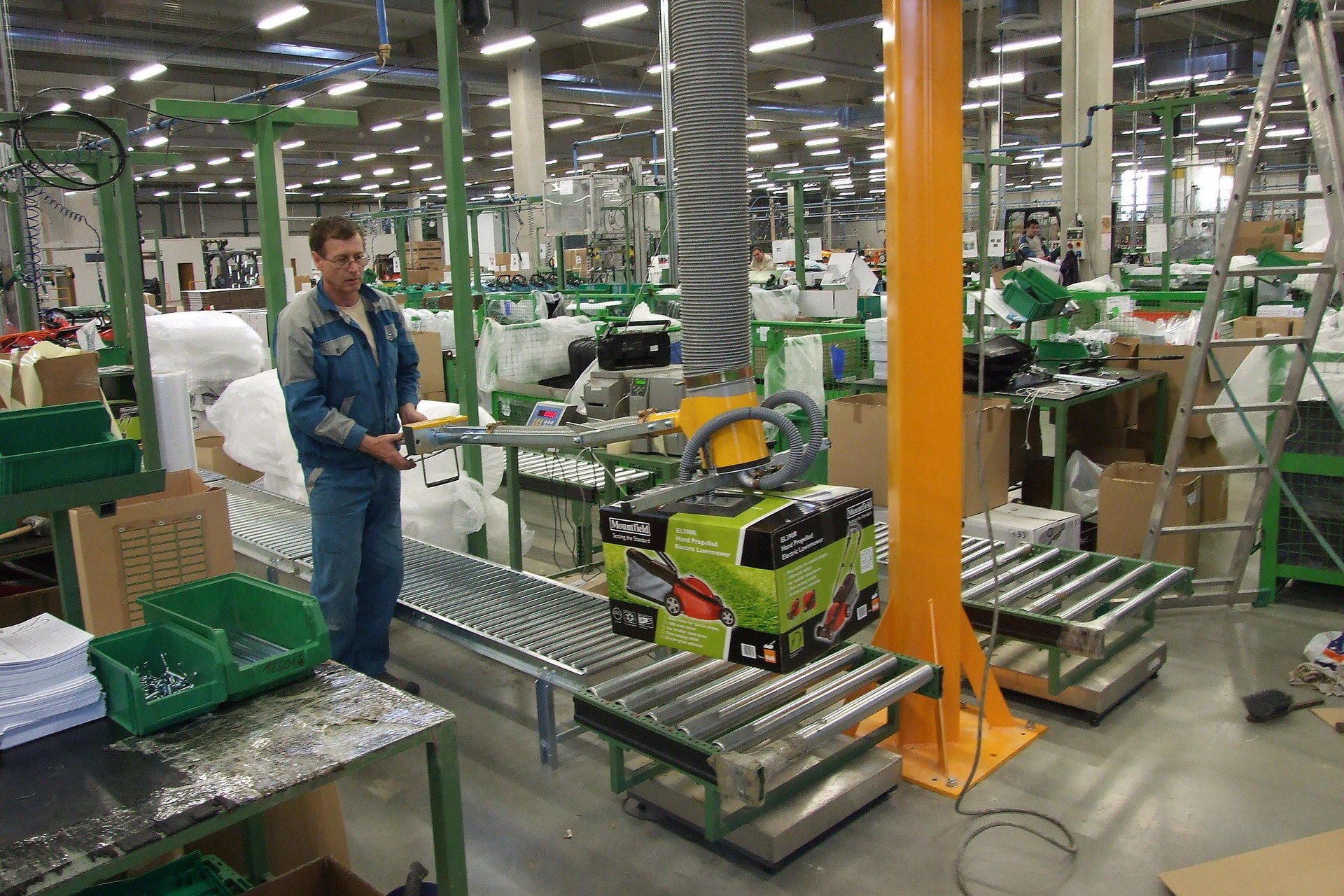

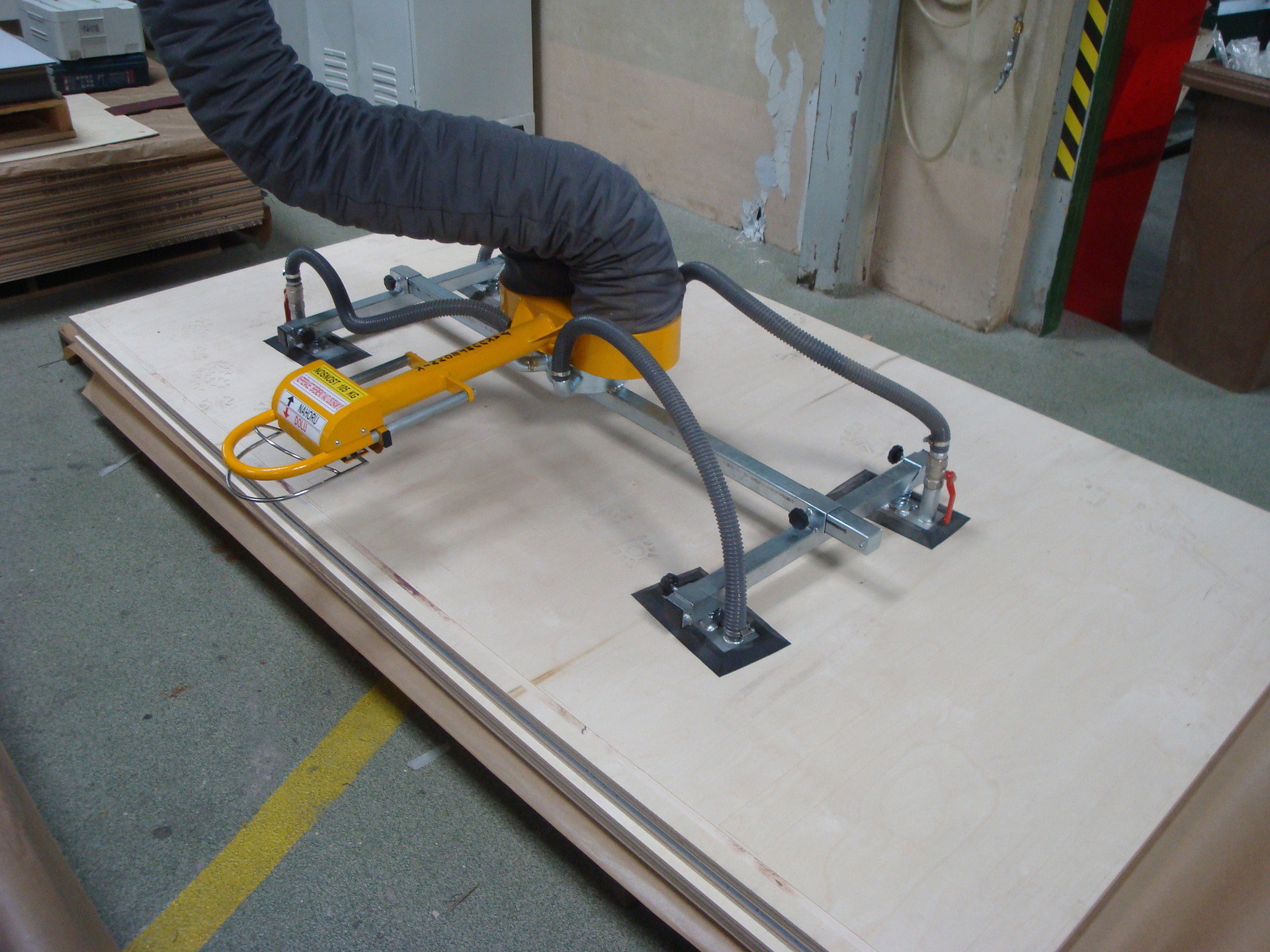

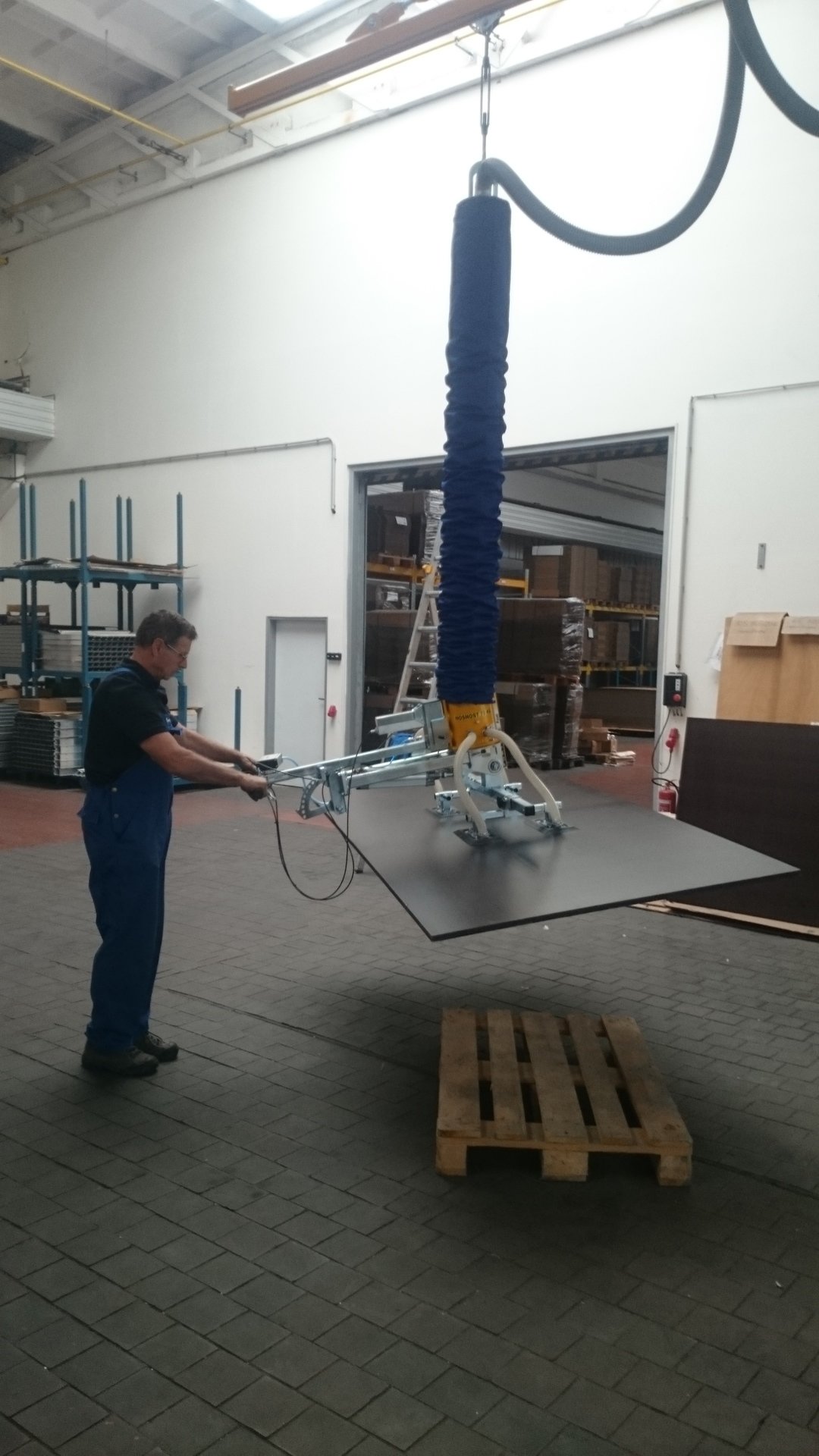

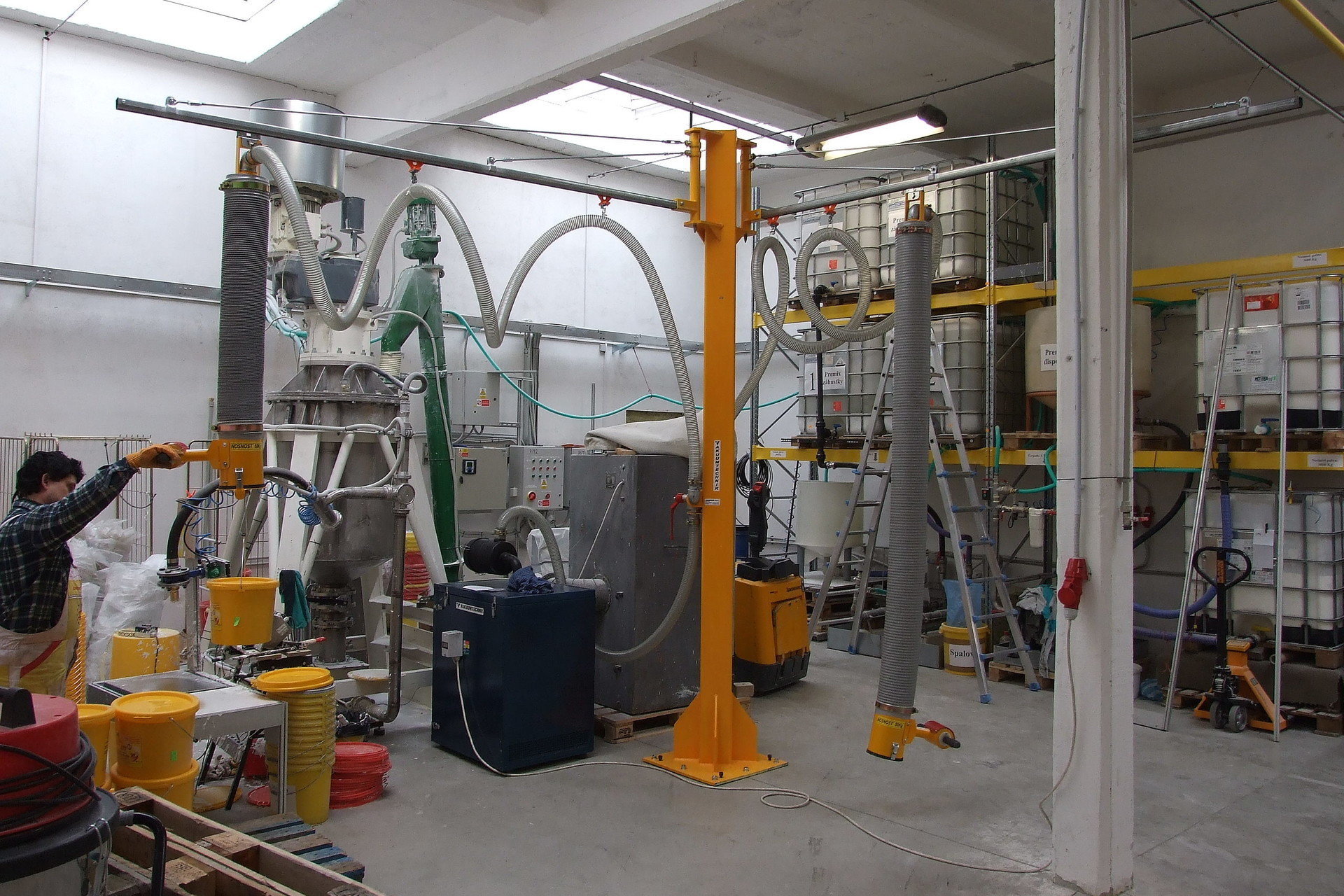

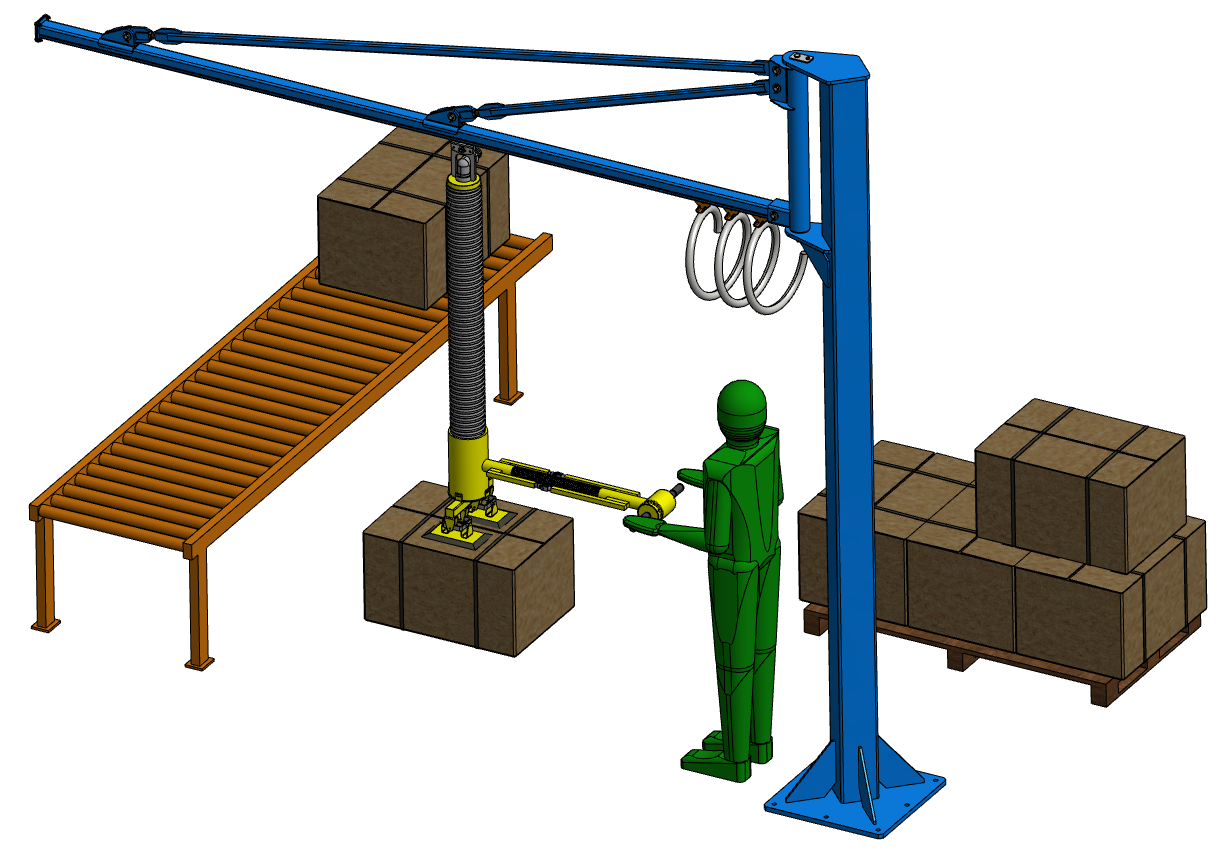

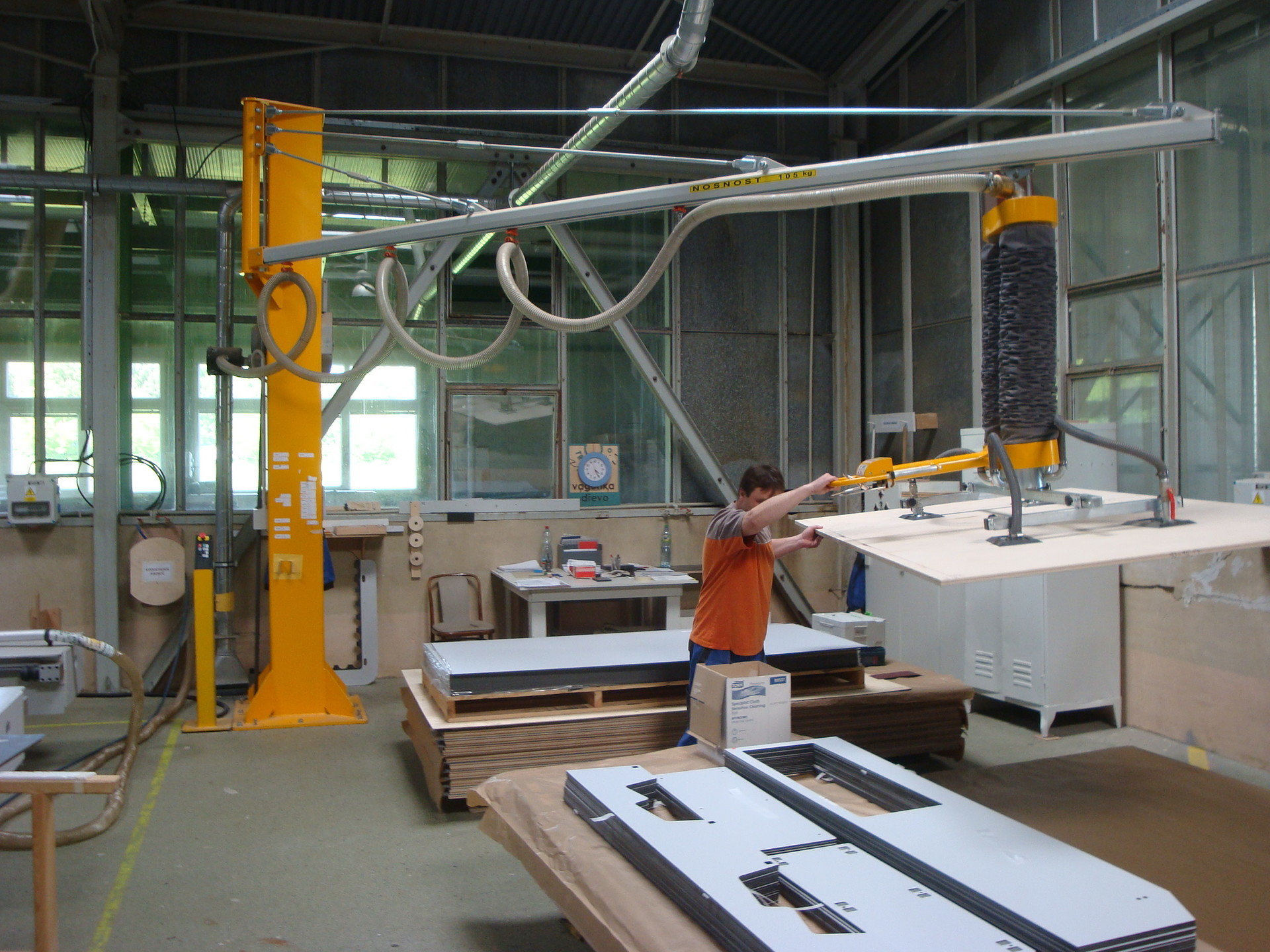

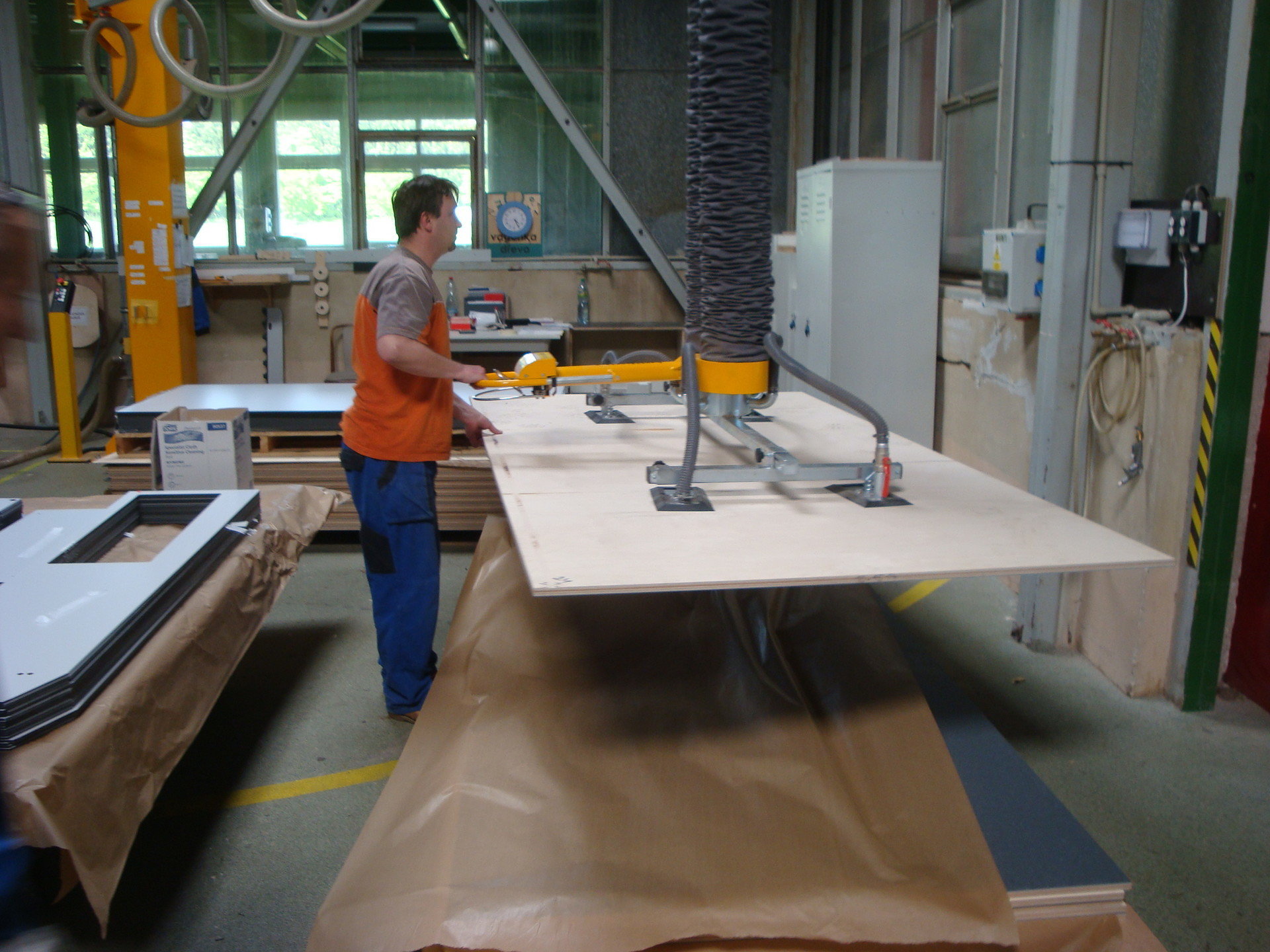

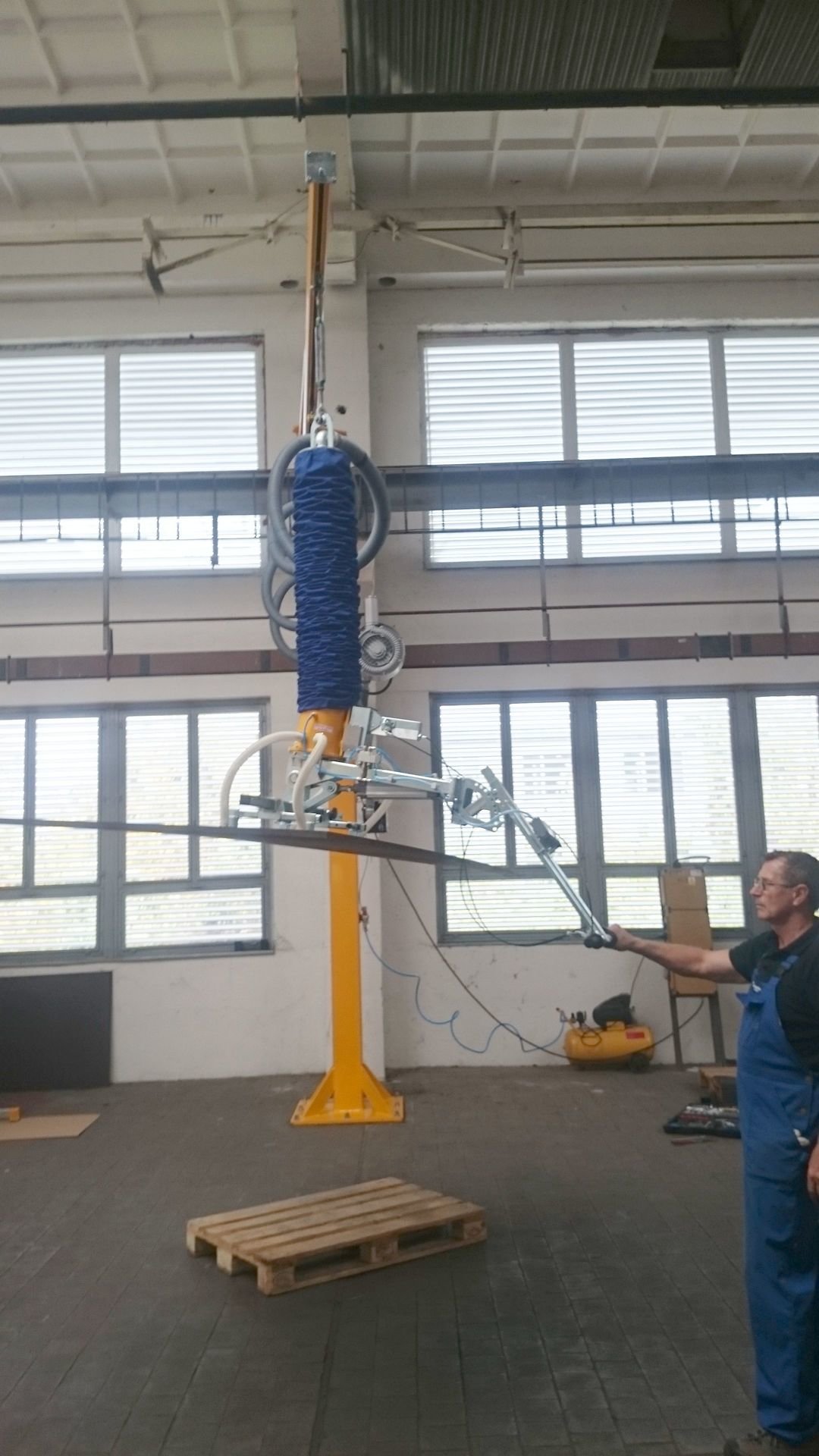

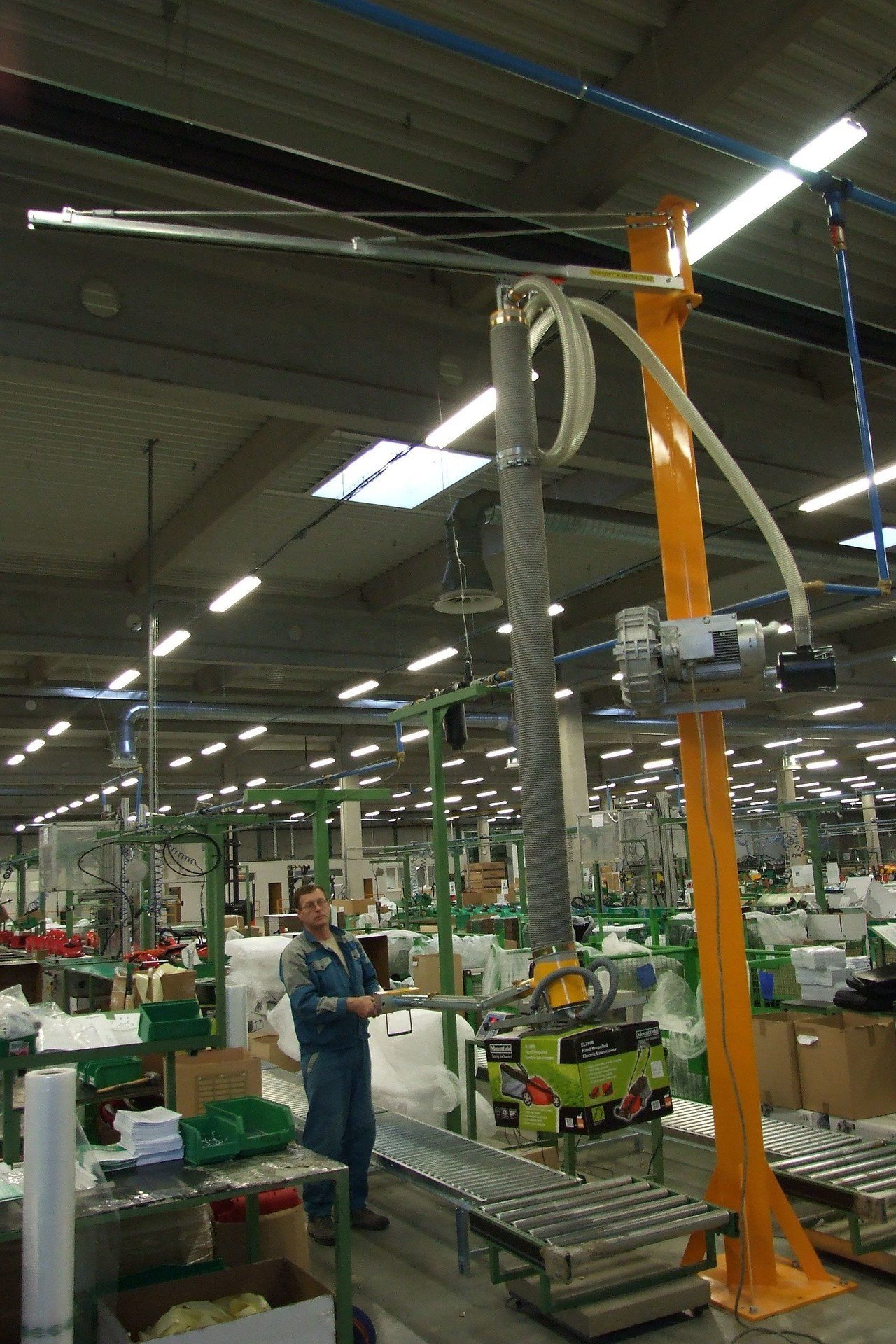

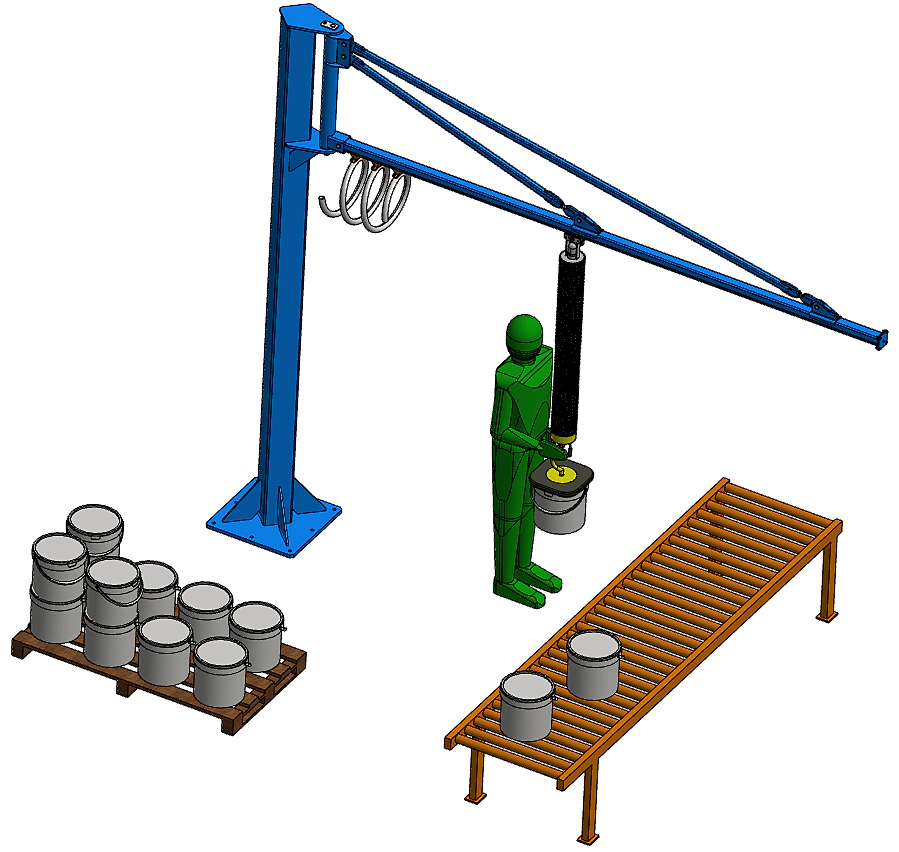

he Vacuum Tube Lifter VHZ Classic is a universal handling system that is easy to operate. It is mounted ona concrete floor in the hall at user’s place. The device allows you to grasp,lift and handle small-sized or large-sized loads in a horizontal positionwithin the work area, which is given by the range of the VHZ Classic VacuumHose Lifter. This device can be mounted with lifting capacity ranging from 30kg to 150 kg.
Benefits:
- Reliable - high reliability andminimal maintenance are ensured
- Safe - safety guaranteed inevery situation

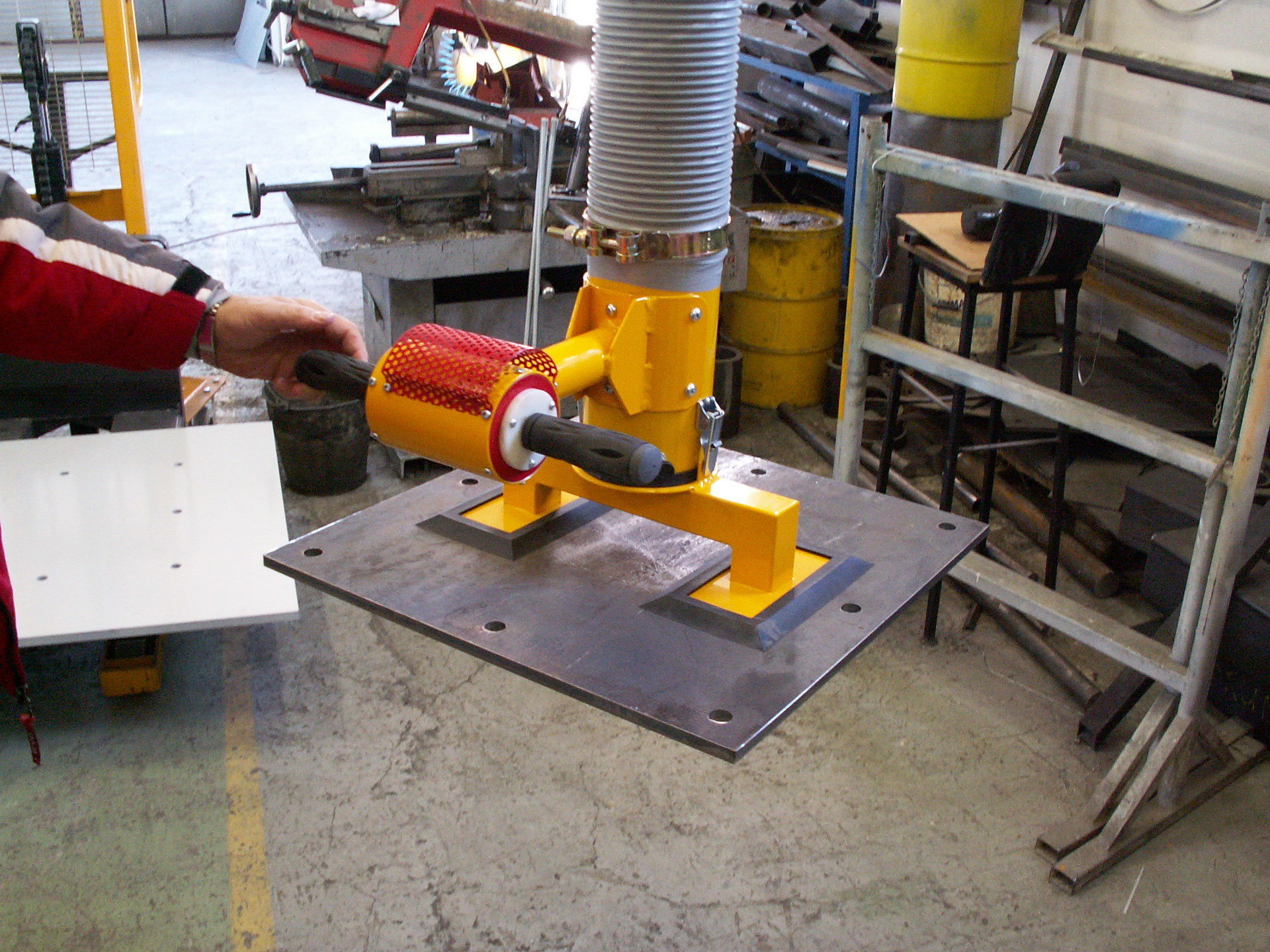

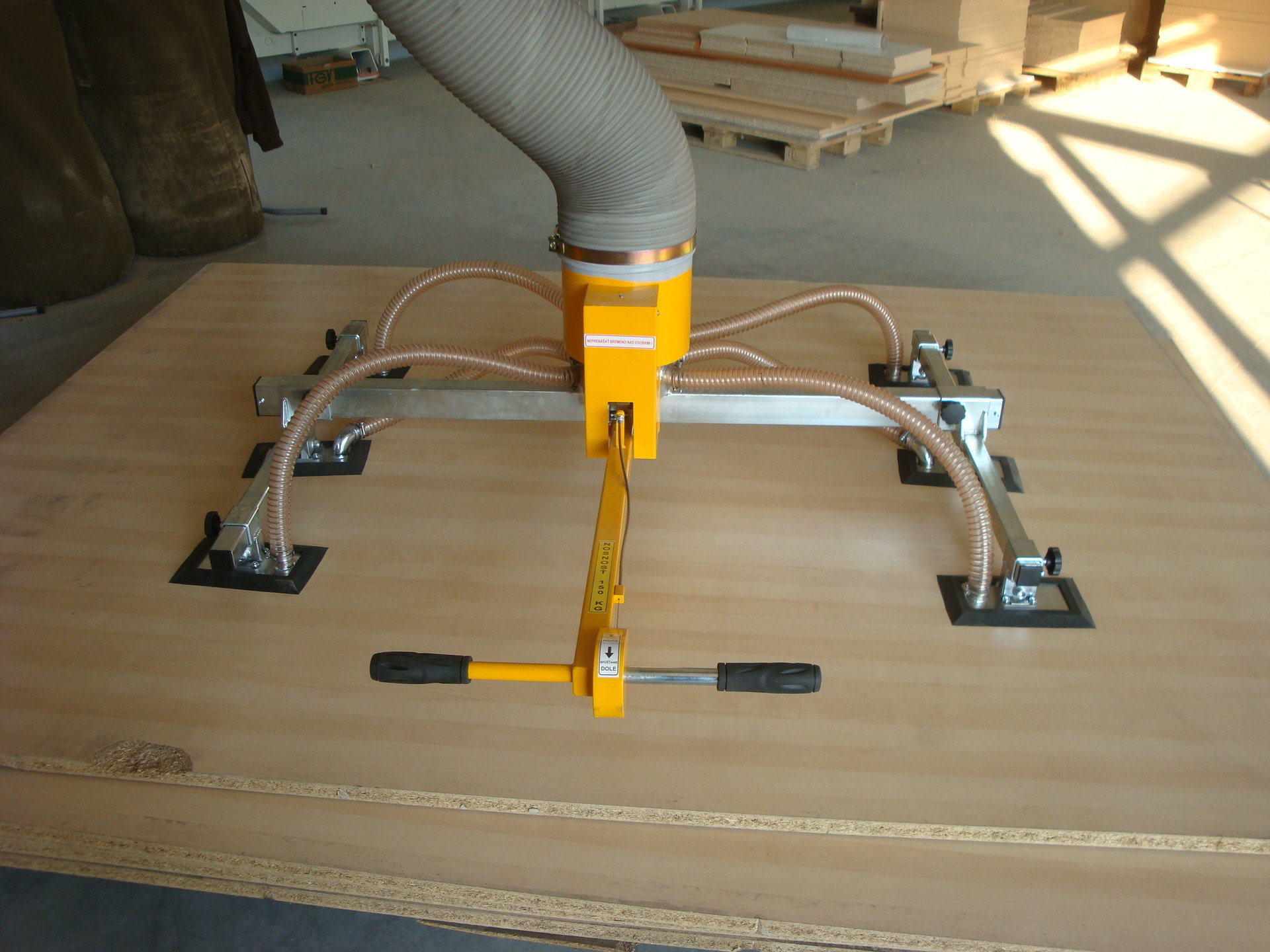

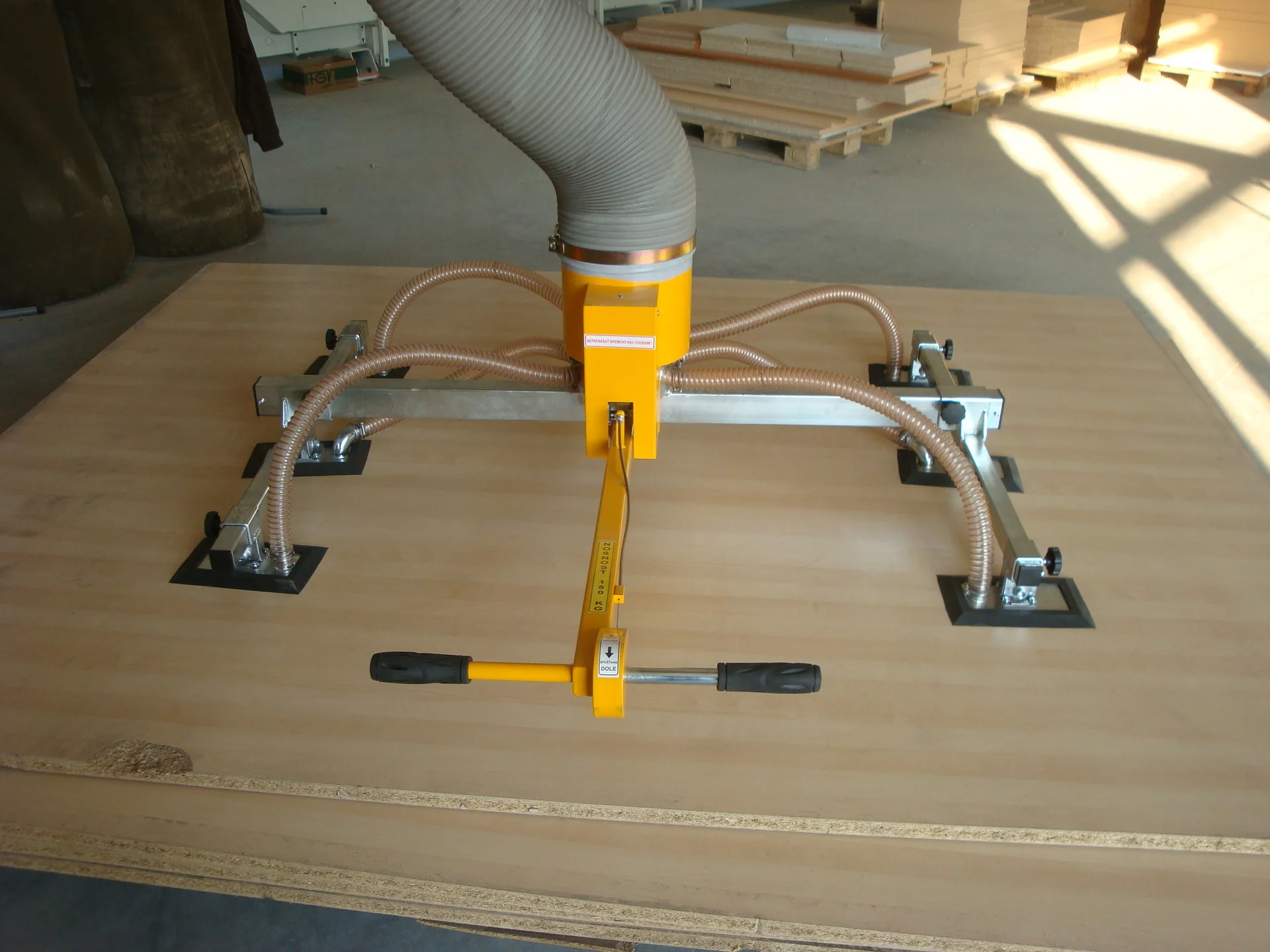

- Variable - various terminal vacuum ormechanical tools for grasping loads can be delivered
- Practical - its versatilityand a wide range of structural systems will meet even the most demandingrequirements of the industry

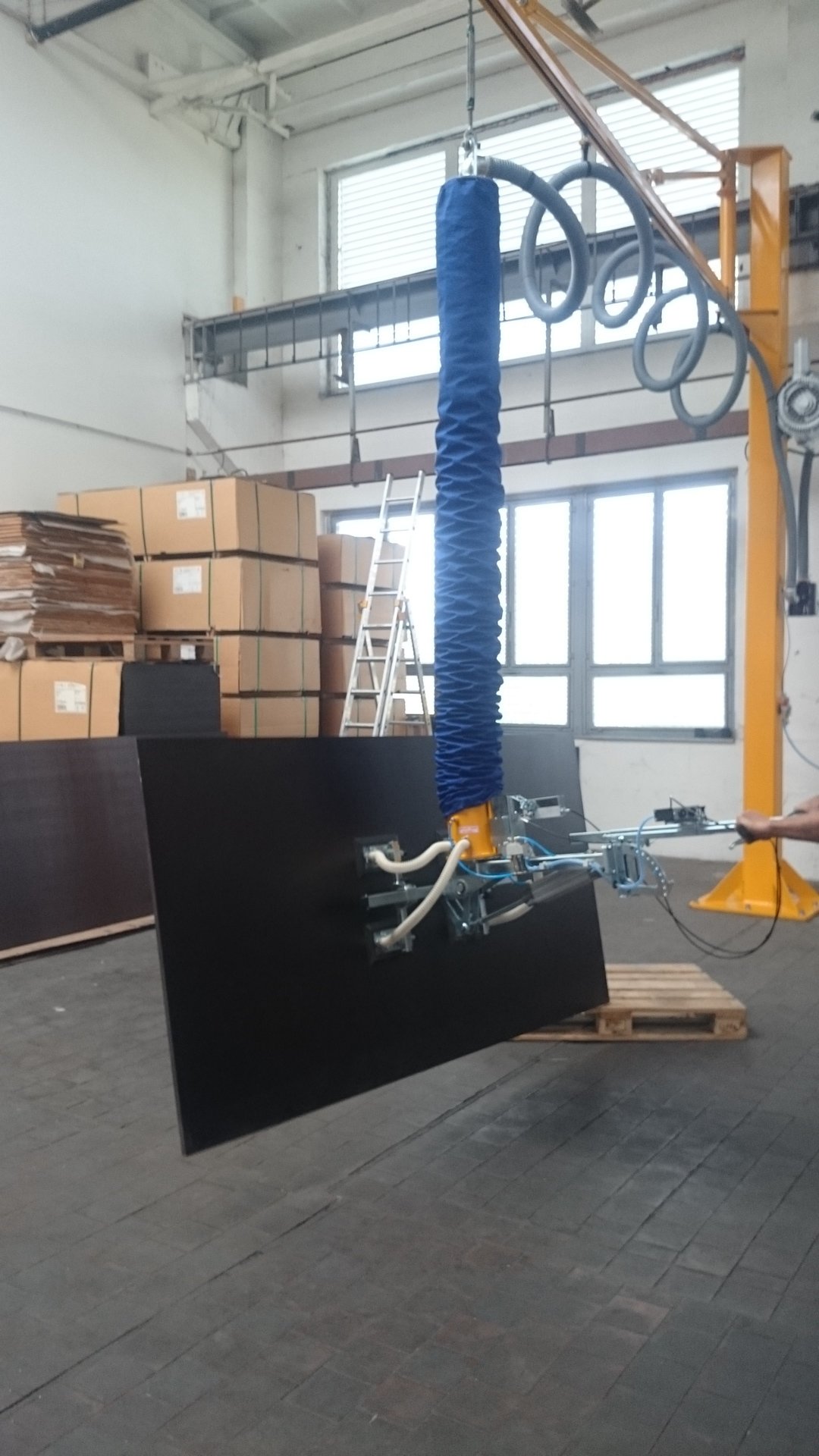

Potential types of loads to be handled:
- Cardboard boxex

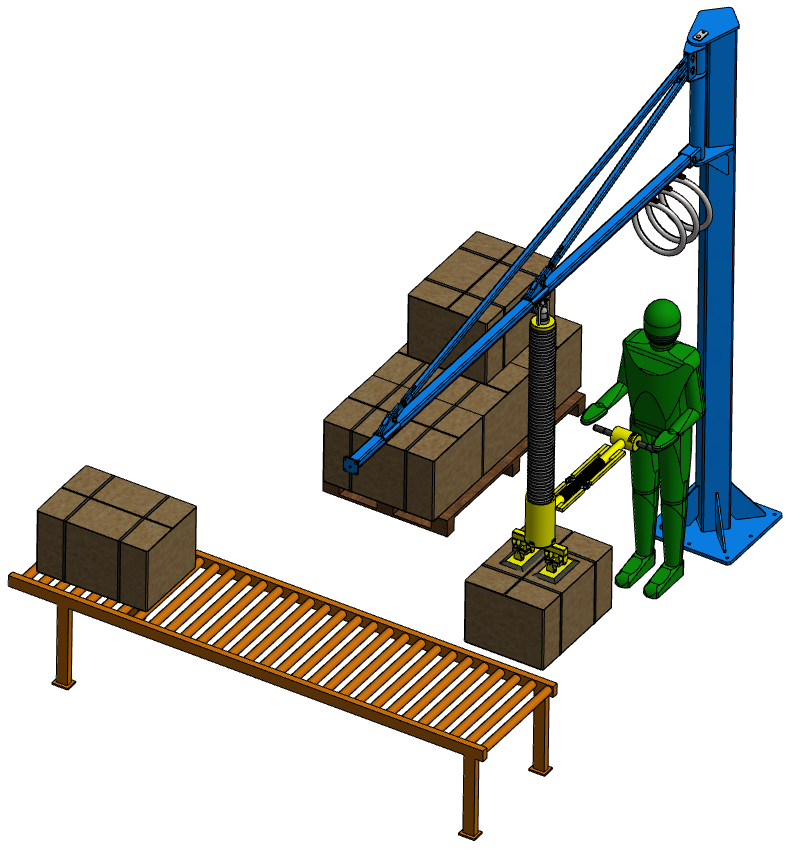

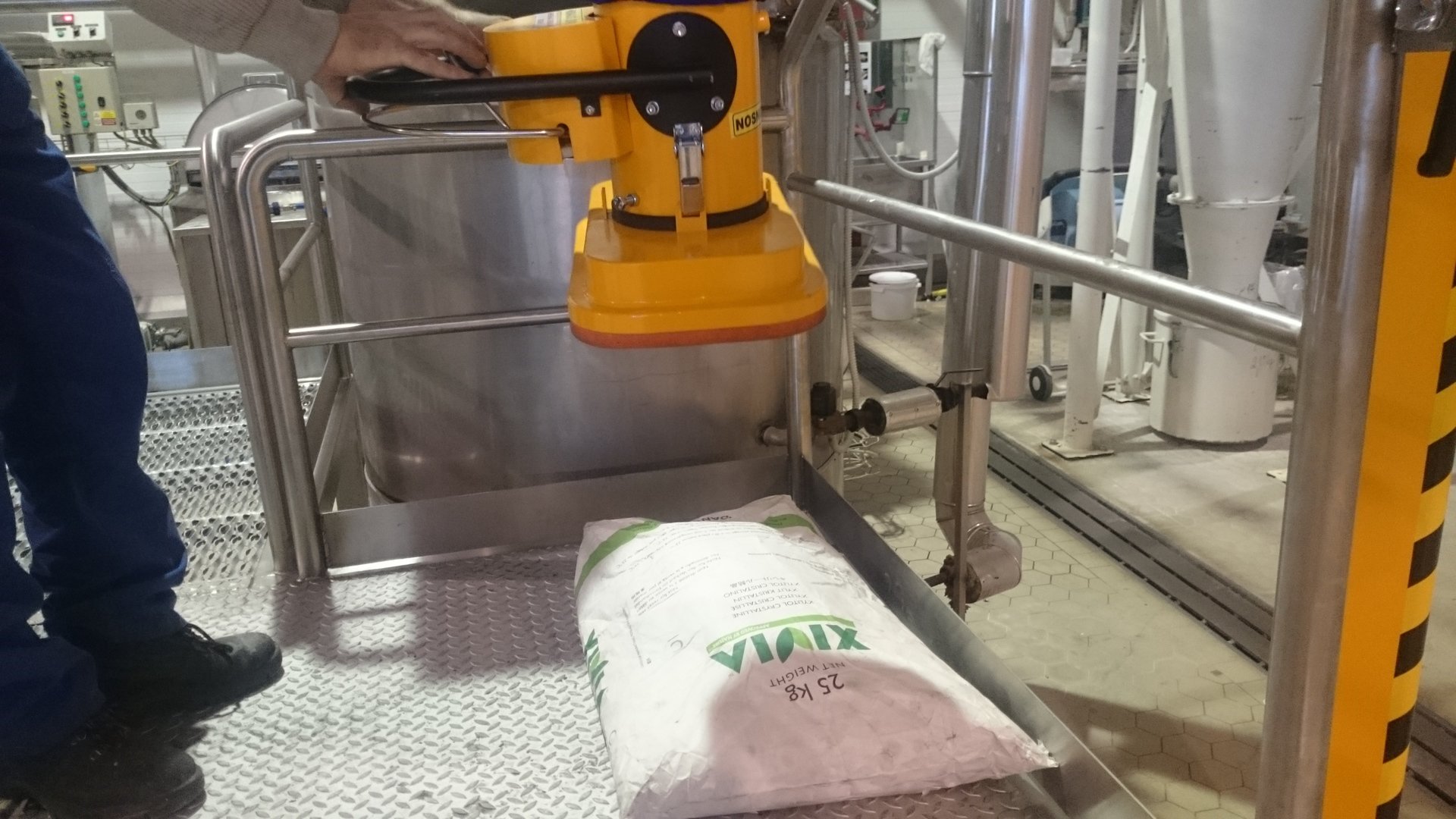

- Paper or textile bags
- Barrels
- Wooden plates and boards covered with air-tight finish
- Plastic plates and boards
- Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
- Stone with grinded surface
- Glass plates and boards
Basic technicalinformation:
| Maximum lifting capacity | 30, 50, 75, 100, 150 kg |
| Intended handling | in horizontal position |
| Vertical movement | do 1700 mm |
| Lifting speed | 0-50 m/min |
| Power supply | 3+PE (PEN) 400VAC/50Hz/15VAC |
Information table:

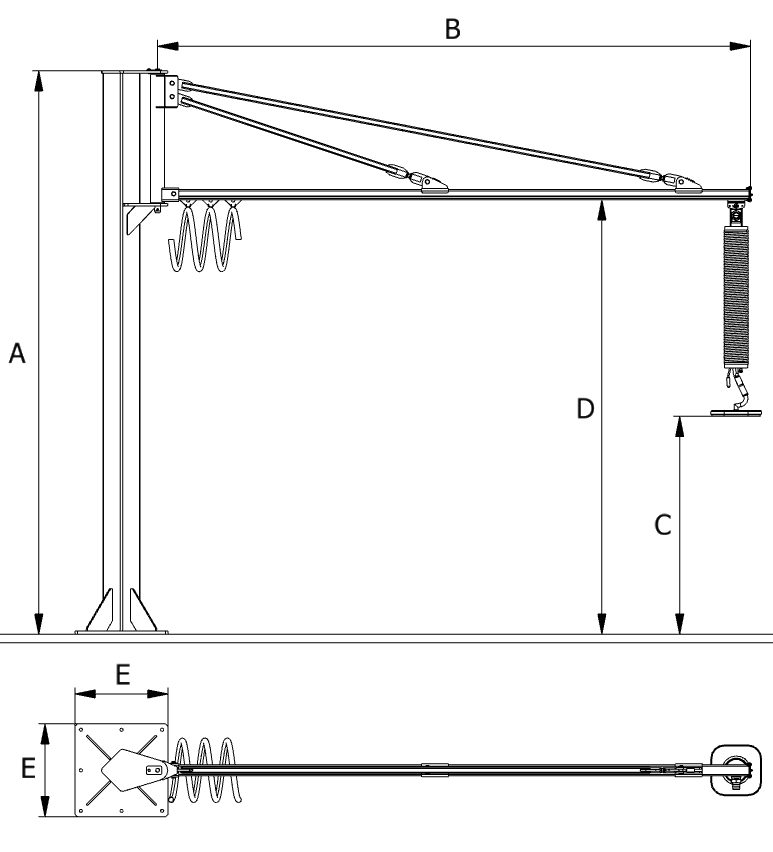

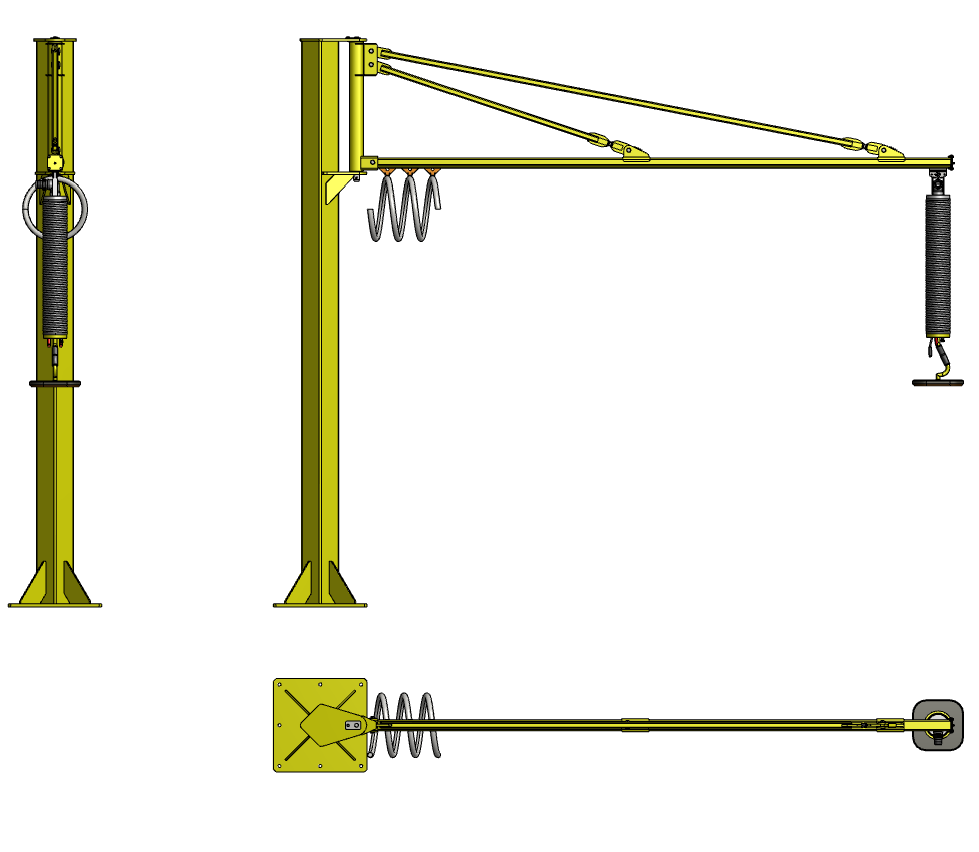

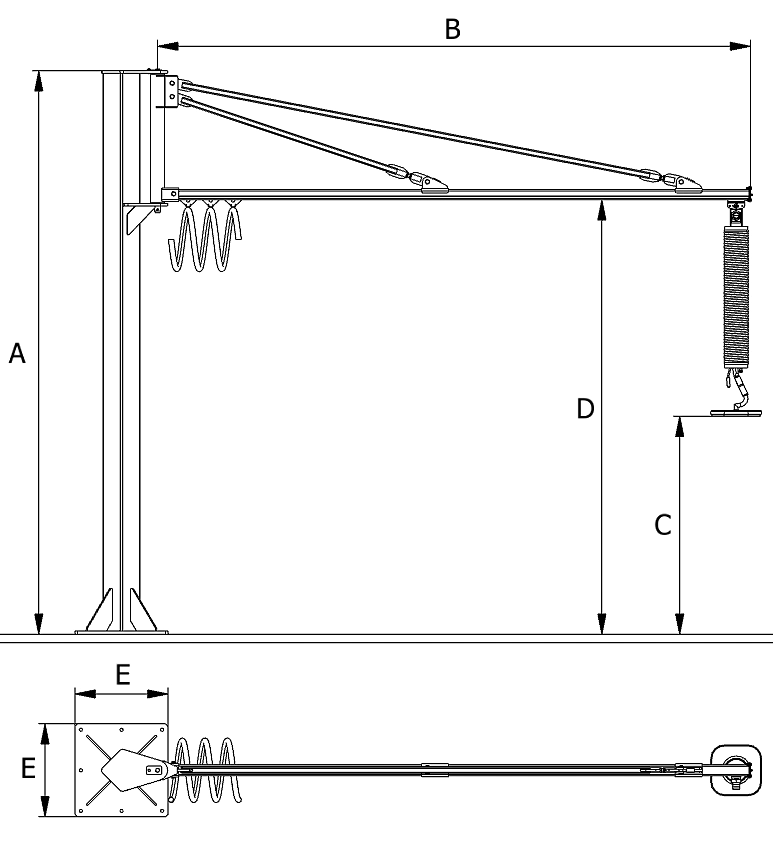

| TYPE VHZ | LIFTING CAPACITY (kg) | CONTROL | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|
| VHZ Classic 30 | 30 | One-handed | min. 3600 max. 5000 | min. 2000 max. 5000 | 1700 | min. 3000 max. 4000 | 900 |
| VHZ Classic 50 | 50 | One-handed | min. 1100 max. 5000 | min. 2000 max. 5000 | 1700 | min. 3000 max. 4000 | 900 |
| VHZ Classic 75 | 75 | One-handed | min. 1100 max. 5000 | min. 2000 max. 5000 | 1700 | min. 3000 max. 4000 | 900 |
| VHZ Classic 100 | 100 | One-handed | min. 1100 max. 5000 | min. 2000 max. 5000 | 1700 | min. 3000 max. 4000 | 900 |
| VHZ Classic 150 | 150 | One-handed | min. 1100 max. 5000 | min. 2000 max. 5000 | 1700 | min. 3000 max. 4000 | 900 |
