VACUUM MANIPULATOR - VM 250/4-360°/E/T

Basic description:

  • Main supporting steel structure with a multipositional suspension
  • manually rotating suction cup by max. 360 ° angle
  • manually telescopic adjustable all suction cups
  • Ejector – design (compressed air, min. pressure 0.6bar)
  • the vacuum tank ensures safe lifting of the load even in the event of an unexpected failure of the compressed air.
  • GRIP - through a button placed near the control handles
  • RELEASE - through buttons placed near the control handles
  • ROTATION by 0° / 360° - manually
  • spiral hose for connecting a manipulator up to 3 meters

Application:

The vacuum manipulator VM 250/4-360°/E/T is a handy littlegrasping device that allows you to grasp and handle large-sized flat loads upto 250 kg in a vertical position within the work area, which is given by therange of the lifting equipment (crane or any other lifting device) the grasperwill be suspended on. zavesený.

Potential types of loads to be handled:

  • Glass plates and boards
  • Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
  • Plastic plates and boards
  • Stone with grinded surface
  • Wooden plates and boards covered with air-tight finish

Benefits:

  • Simple – very convenient anddedicated device that is easy to operate
  • Reliable high reliability and minimal maintenance are ensured
  • Safe safety guaranteed in every situation
  • Medium – compressed air

Basic technical information:

Maximum load capacity250 kg (with negative pressure –0.6 bar (-60 kPa))
Maximum load capacityin vertical position, to be lifted on a lifting device
Weight75 kg
Max. dimensions of load3000x2500 mm
Min. dimensions of load800x650 mm
Power supplycompressed air, min. pressure 6 bar

Information table:

Number of suction cups / diameter (mm)MAX. CAPACITY (kg)WEIGHTA (mm)B (mm)C (mm)D (mm)E (mm)
4/300250757061119455300787

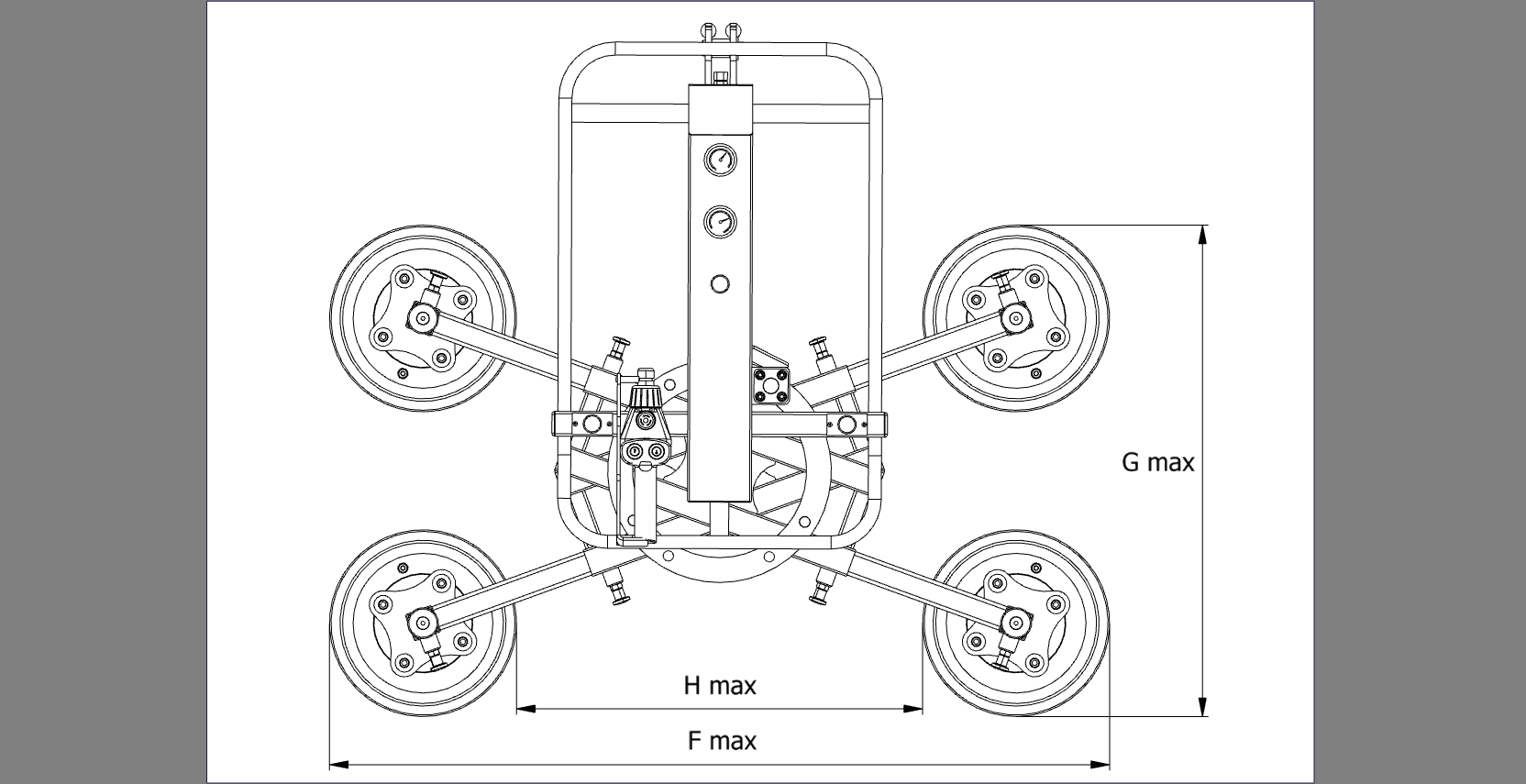

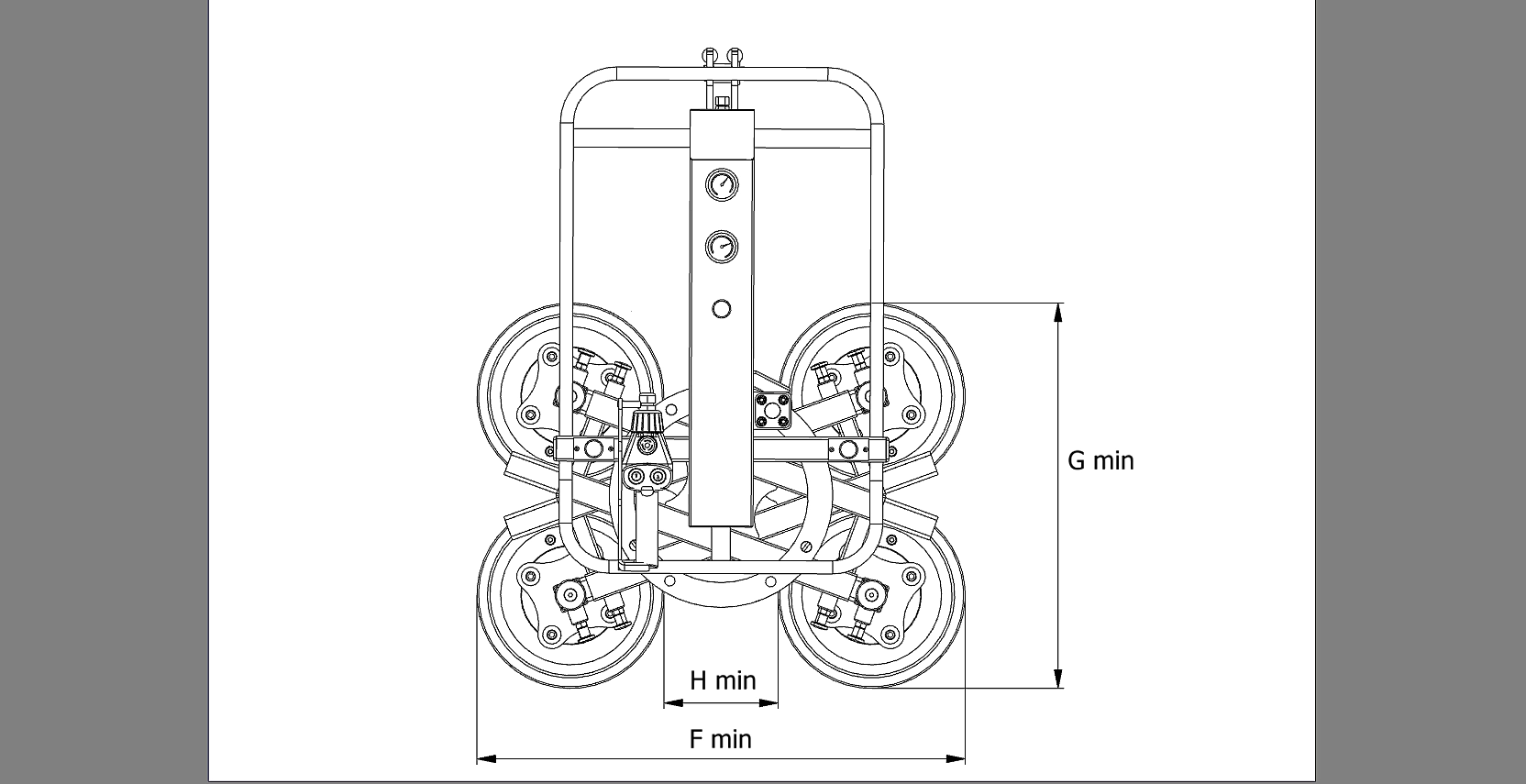

F min (mm)F max (mm)G min (mm)G max (mm)H max (mm)H min (mm)
7861256621792656184

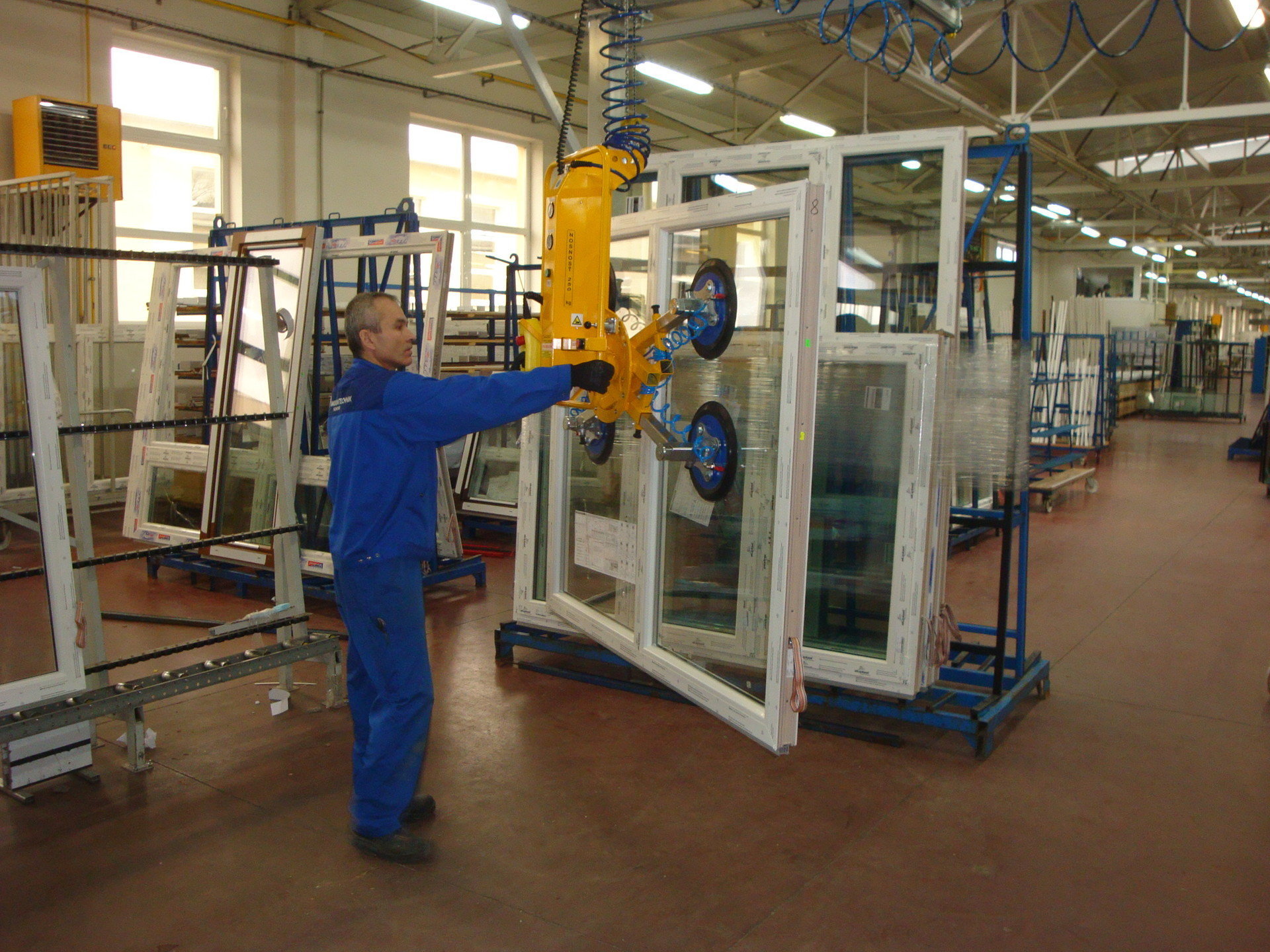

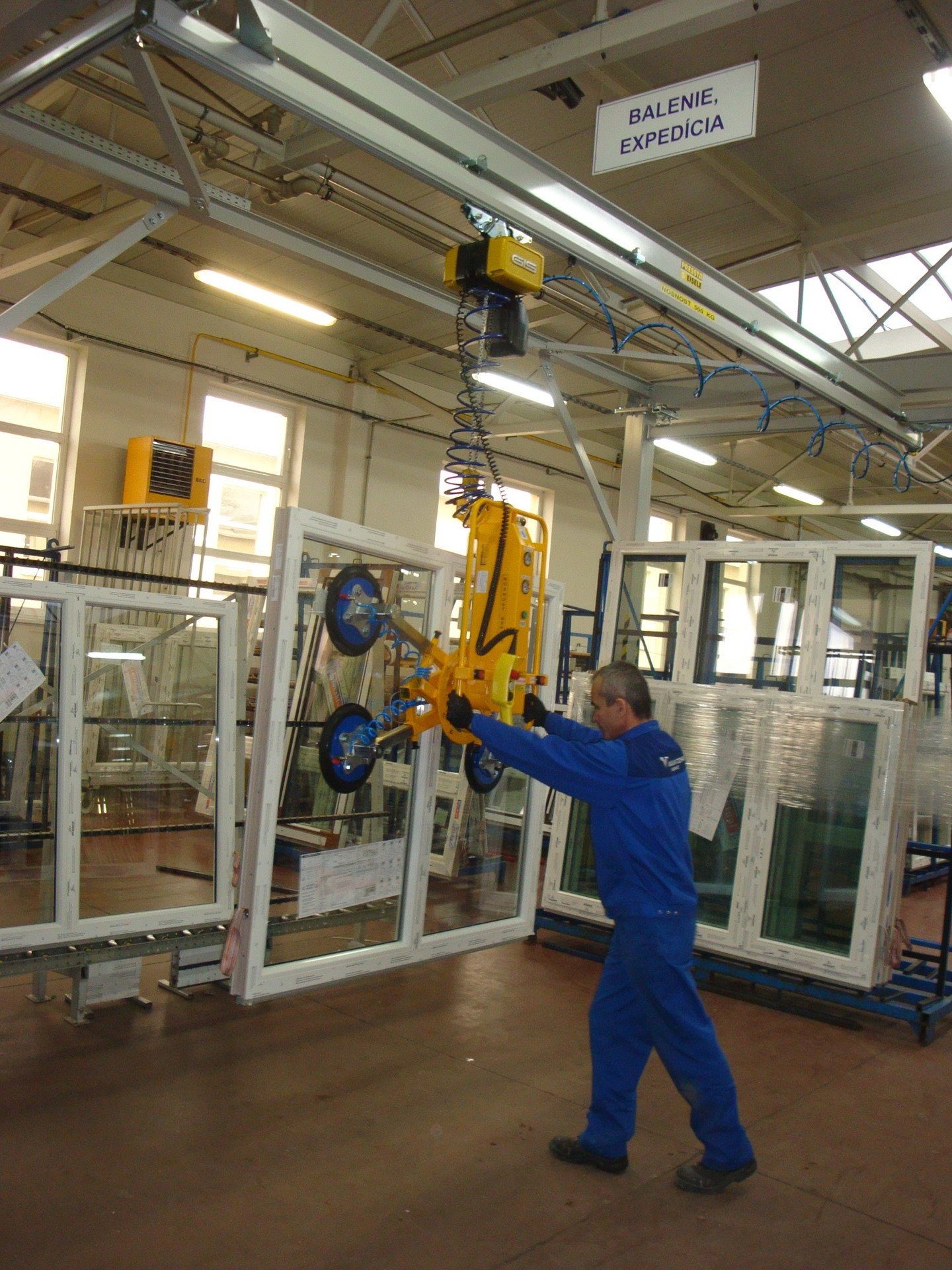

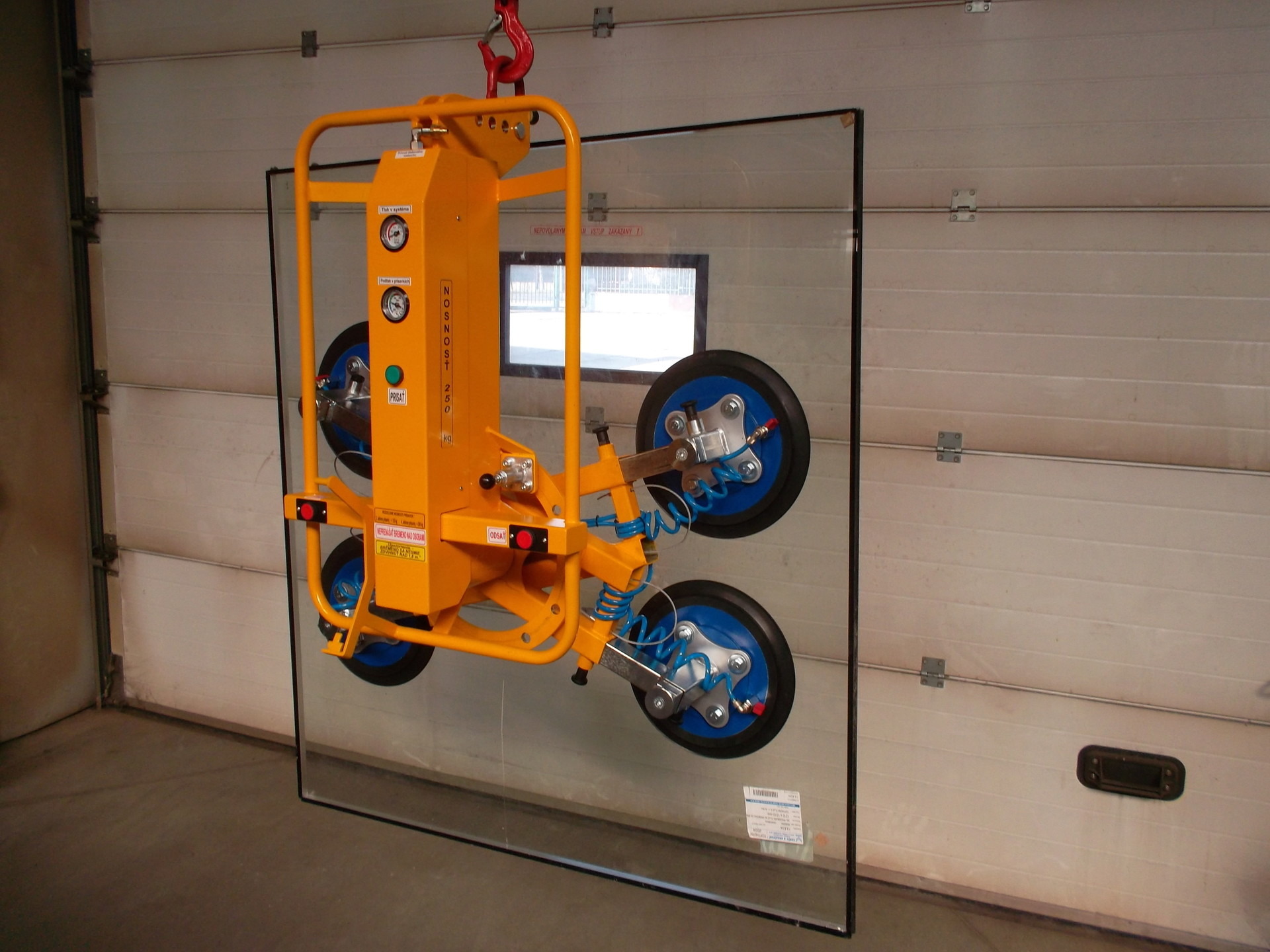

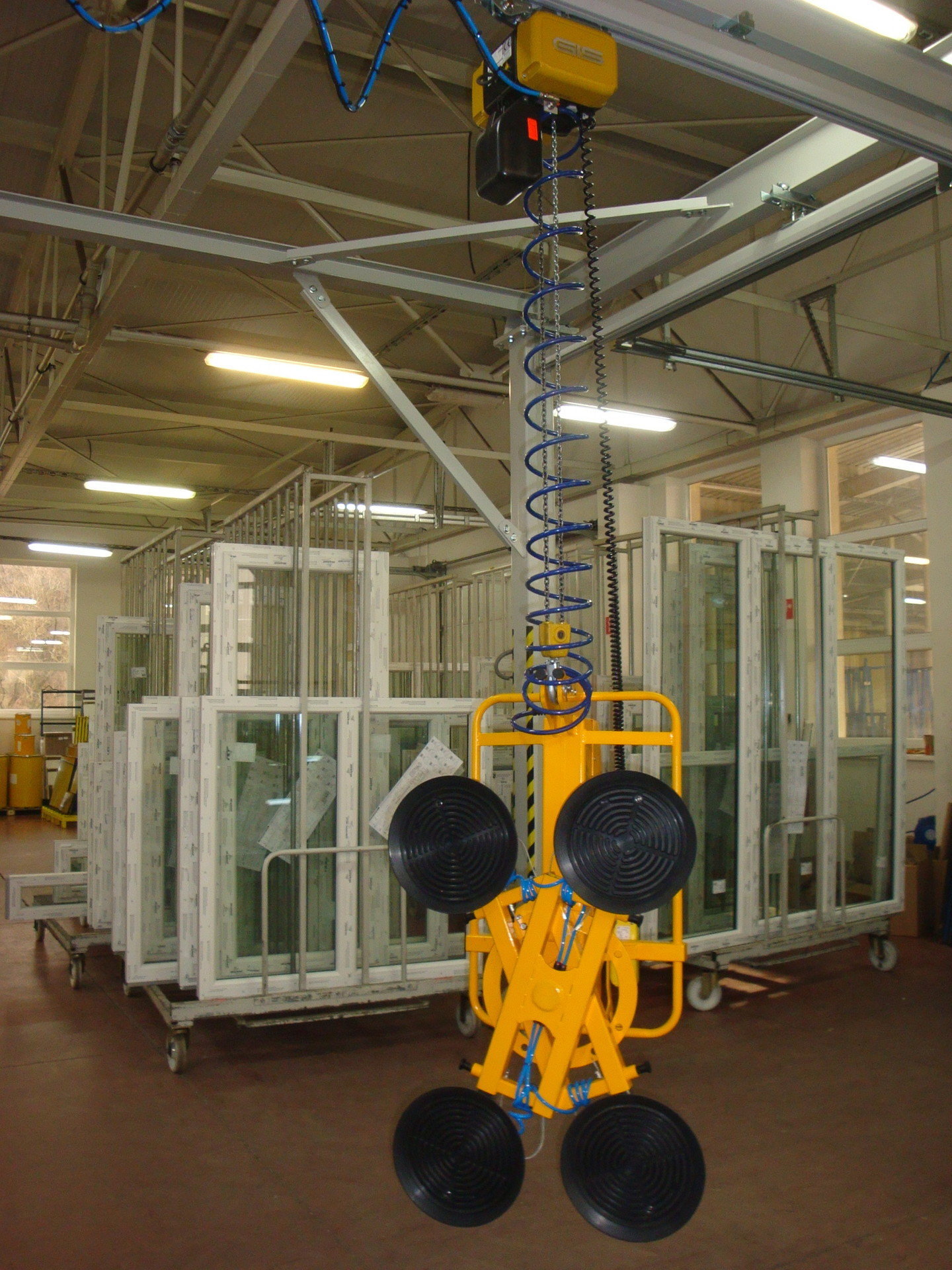

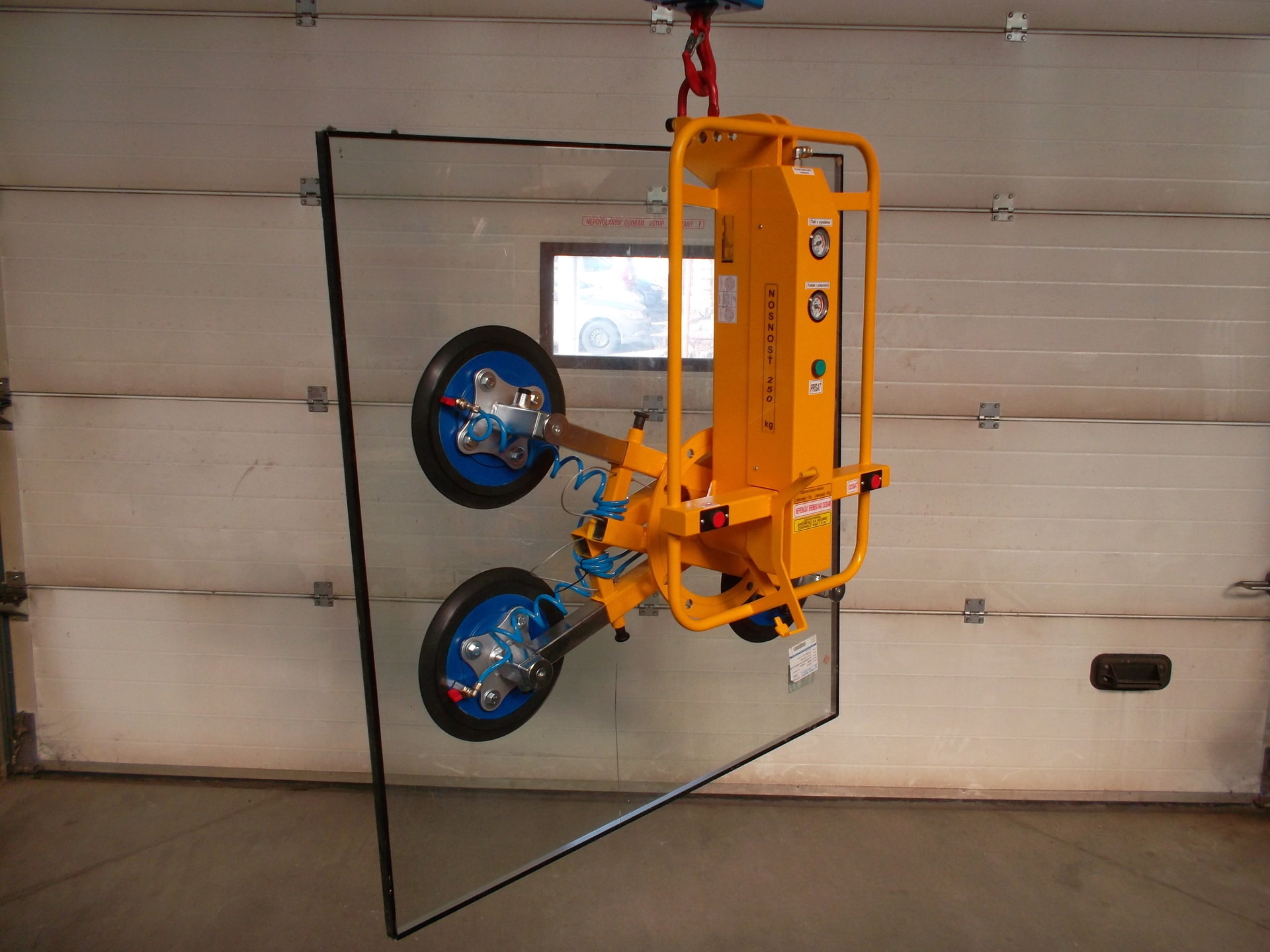

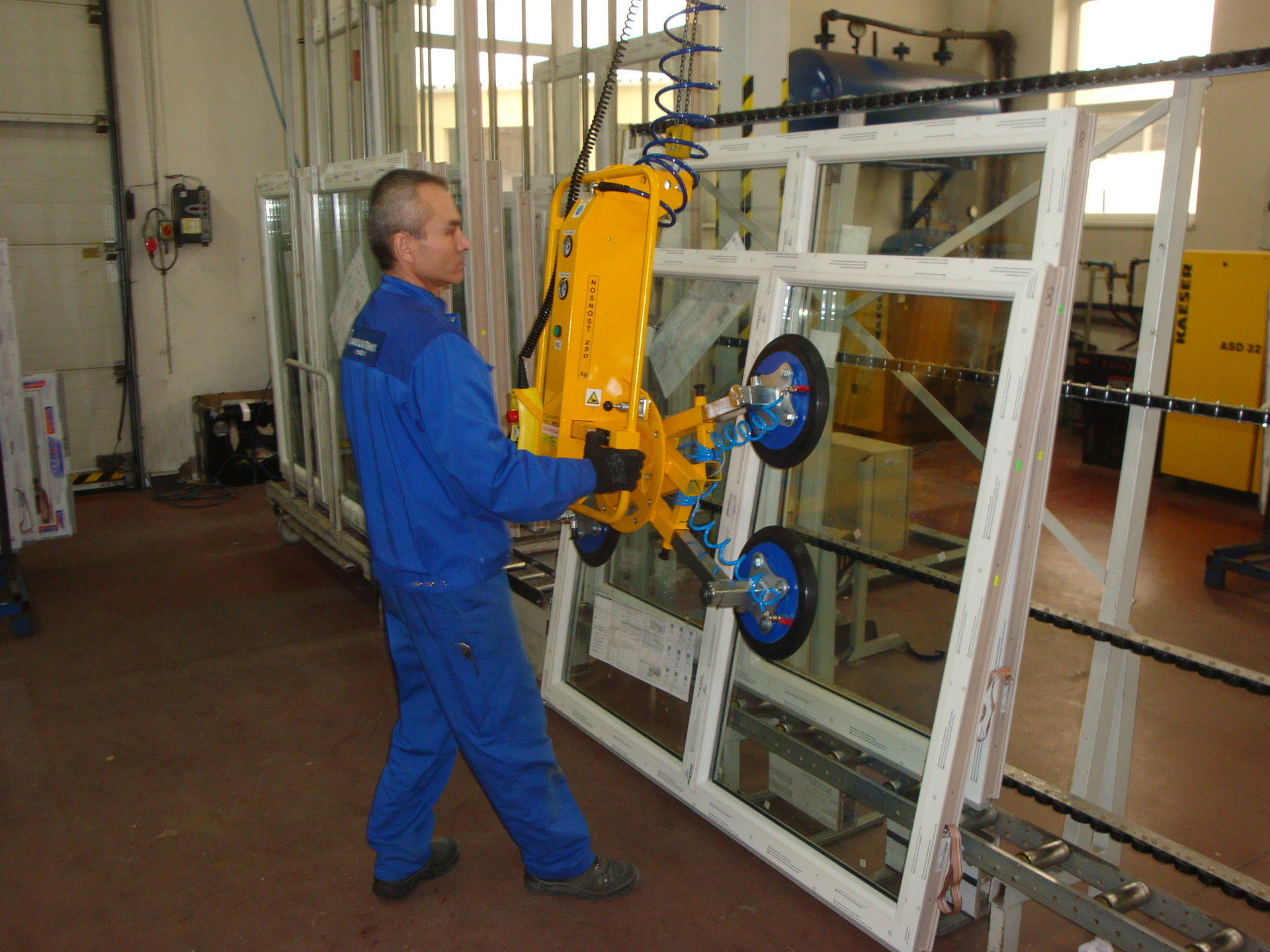

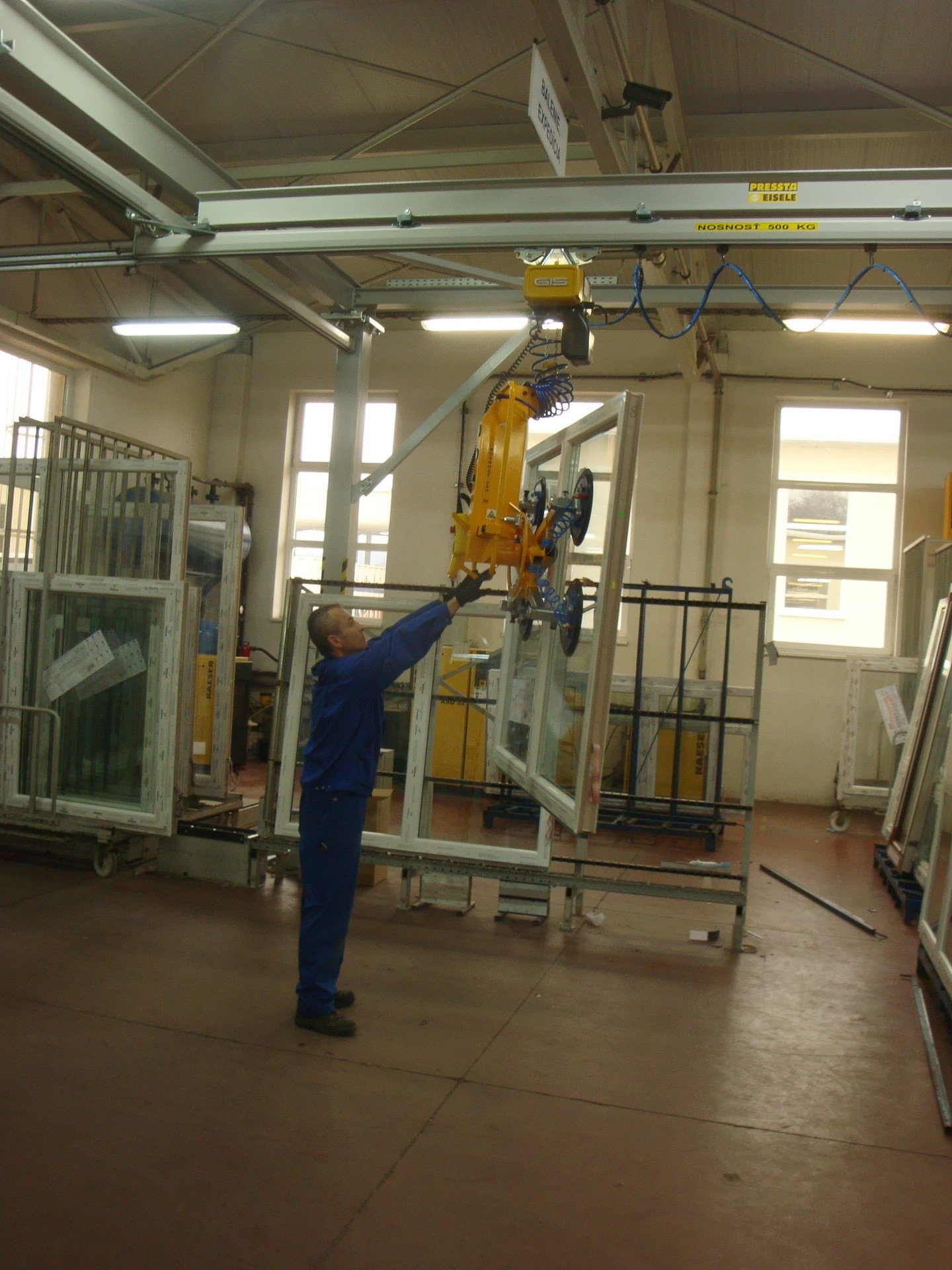

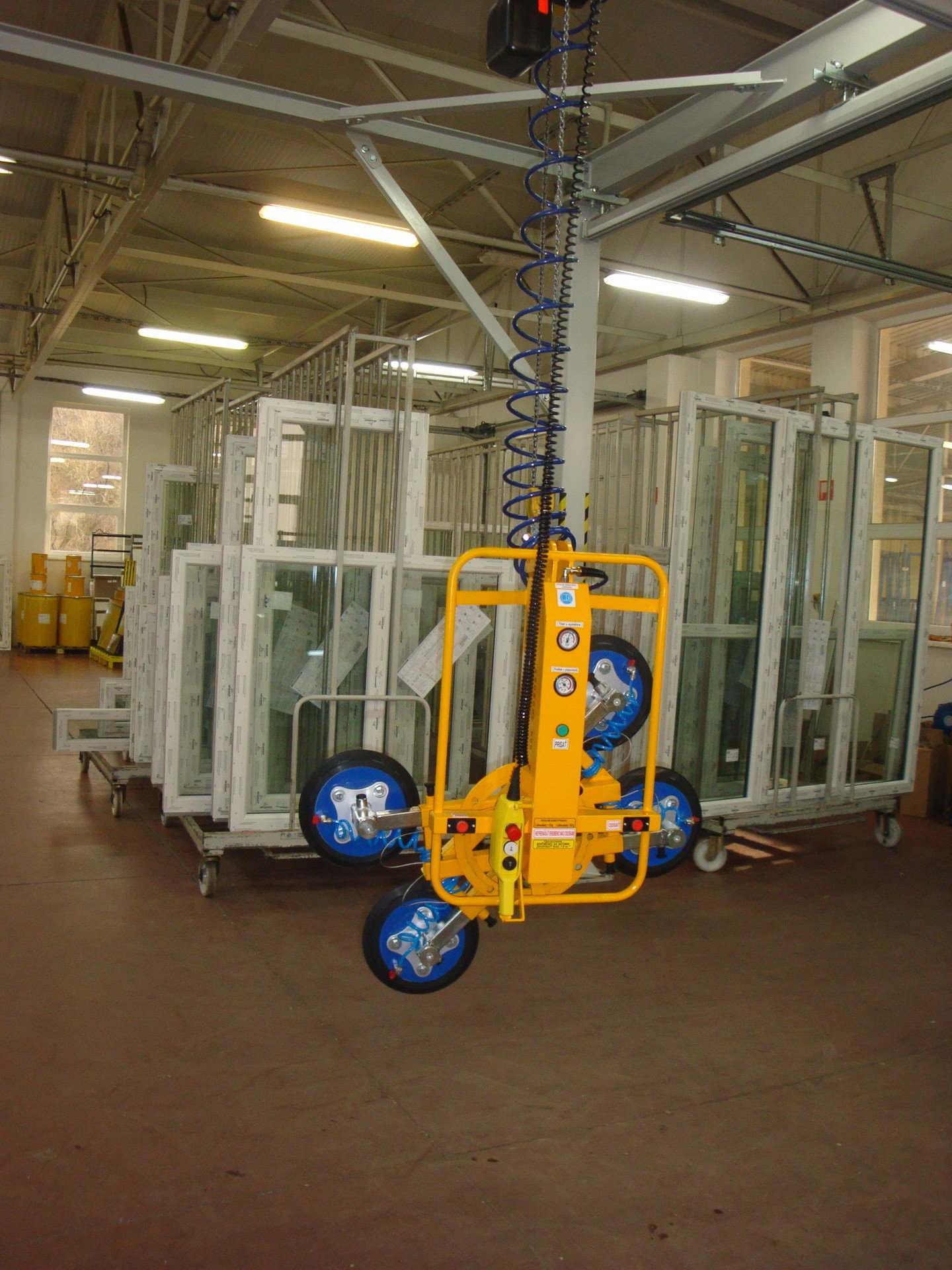

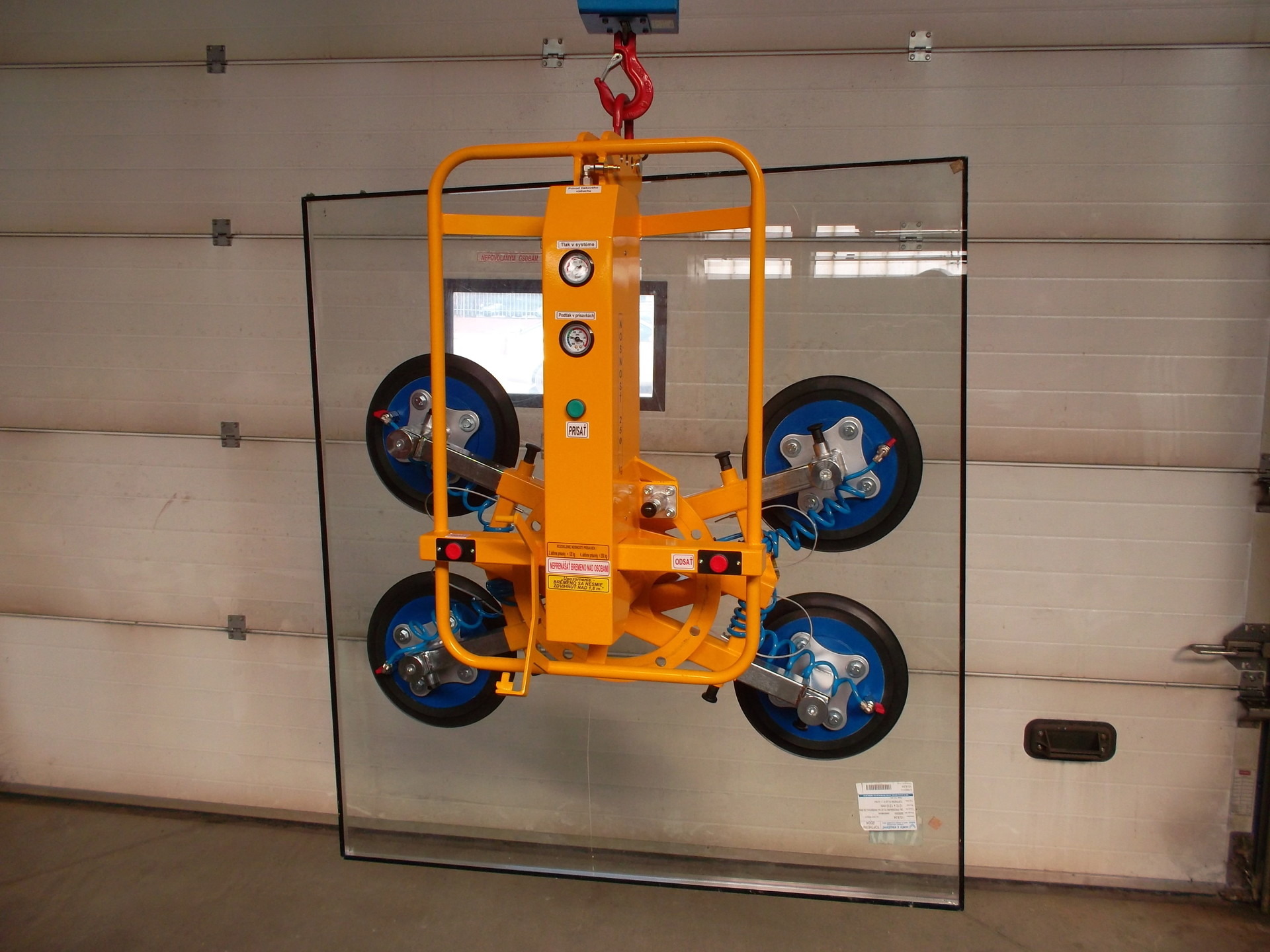

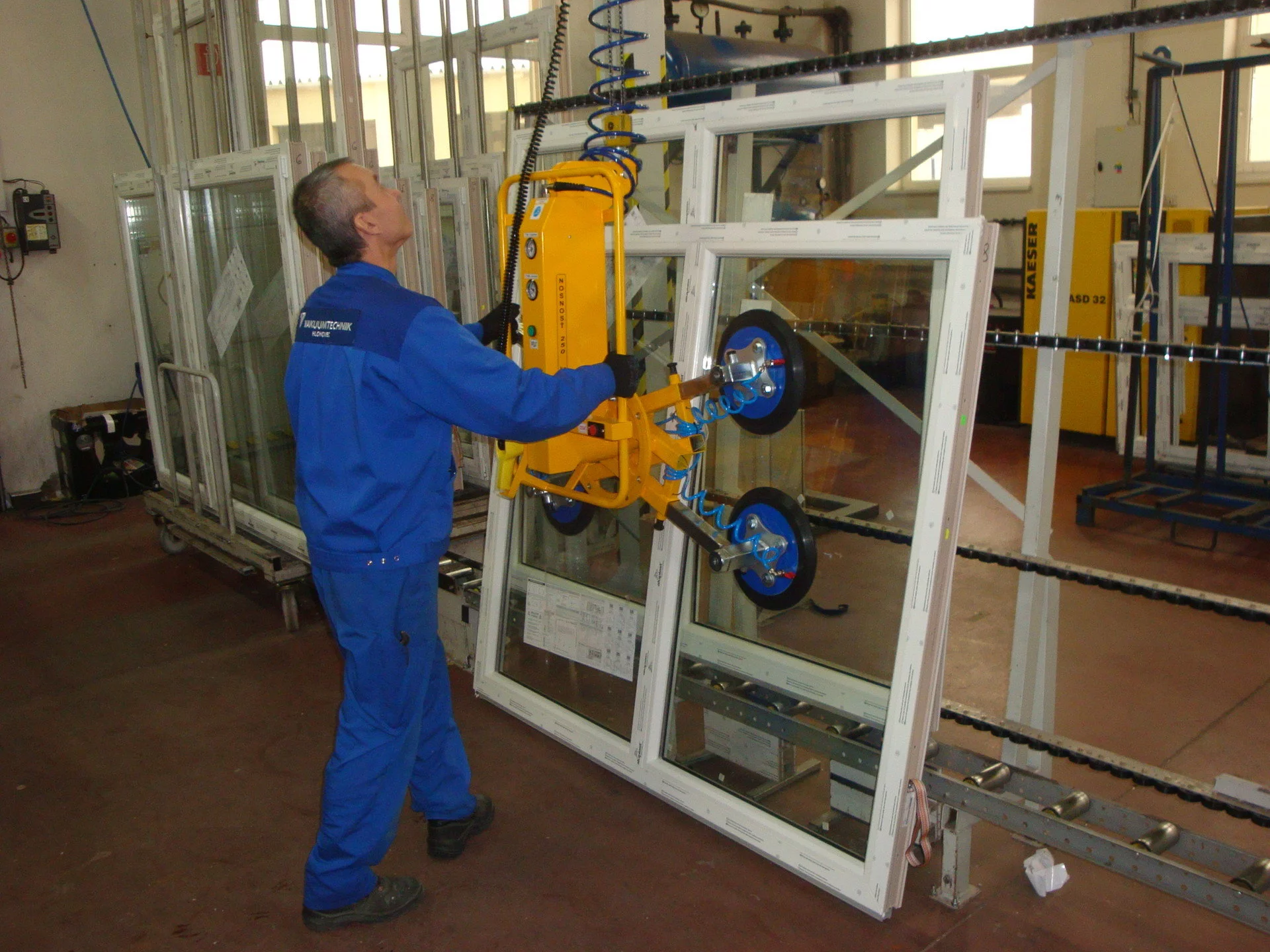

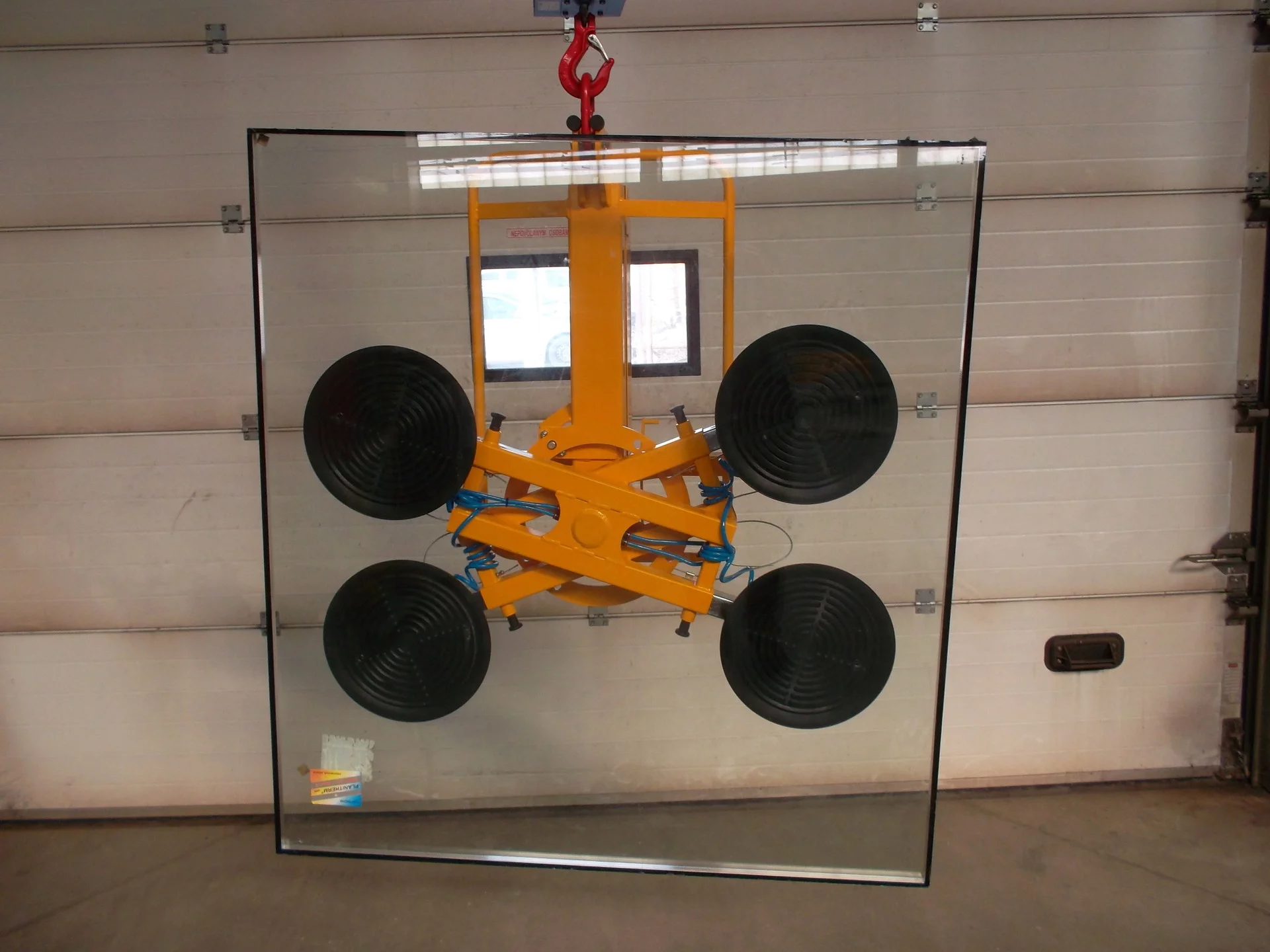

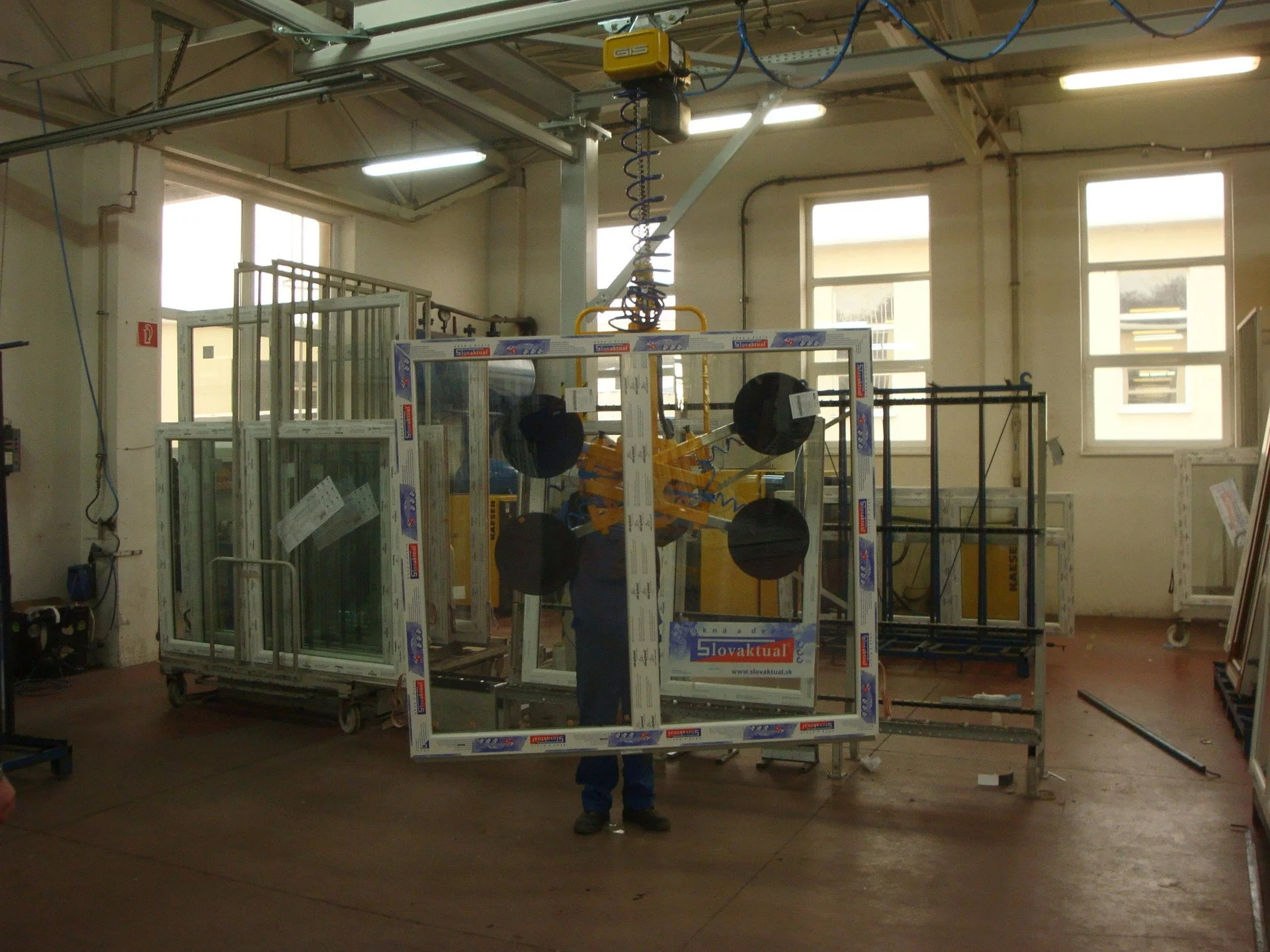

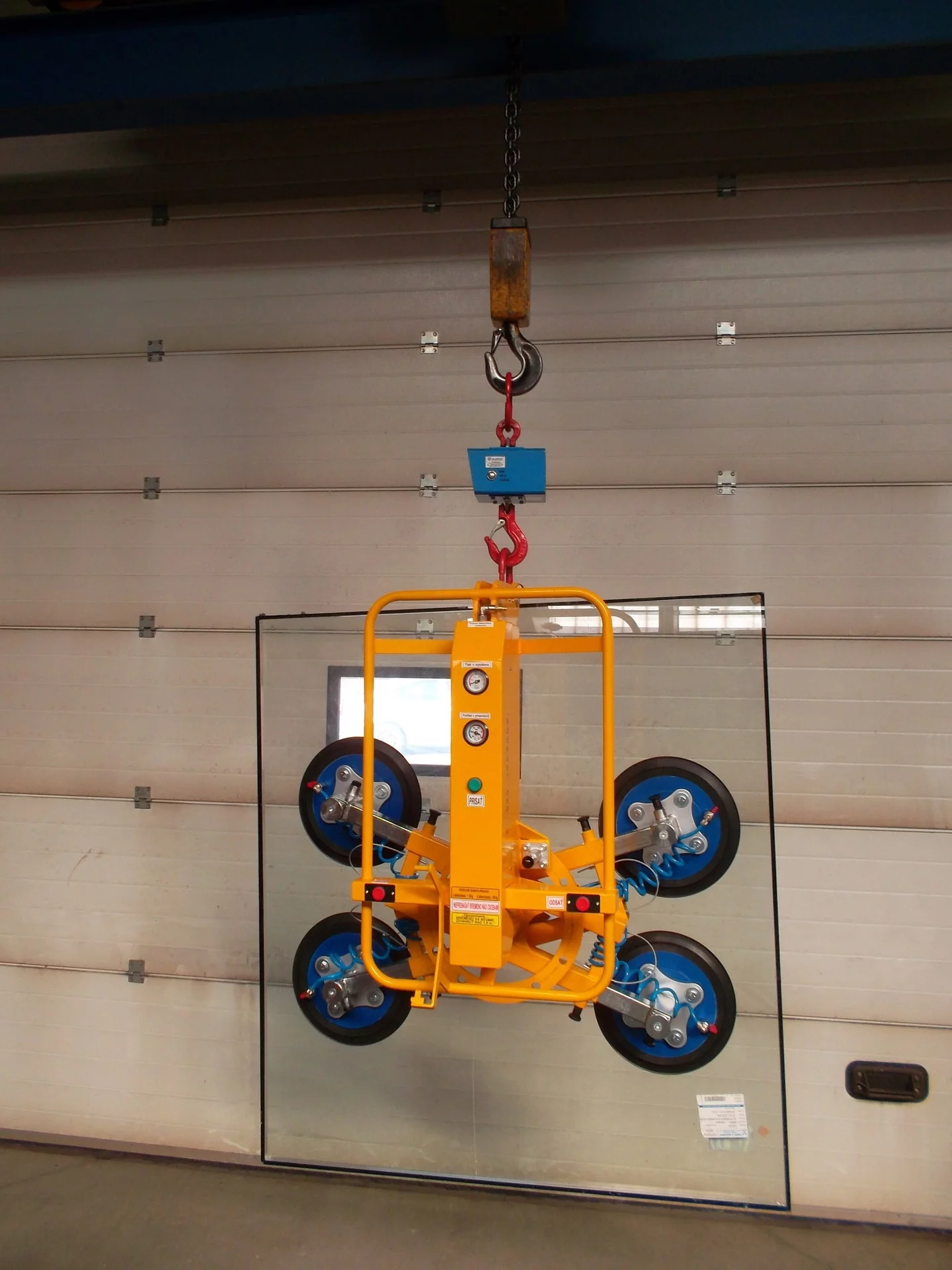

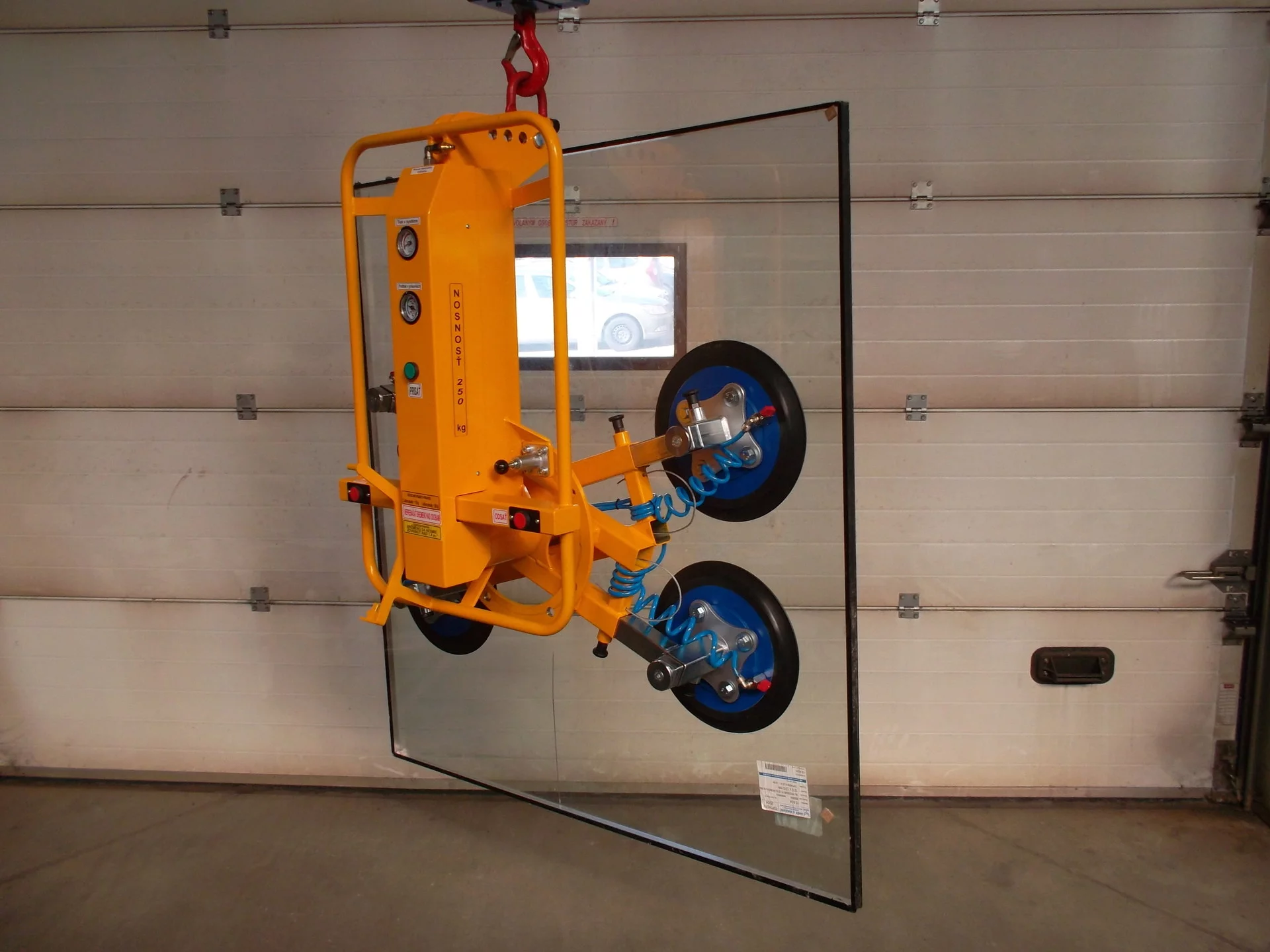

Photo gallery

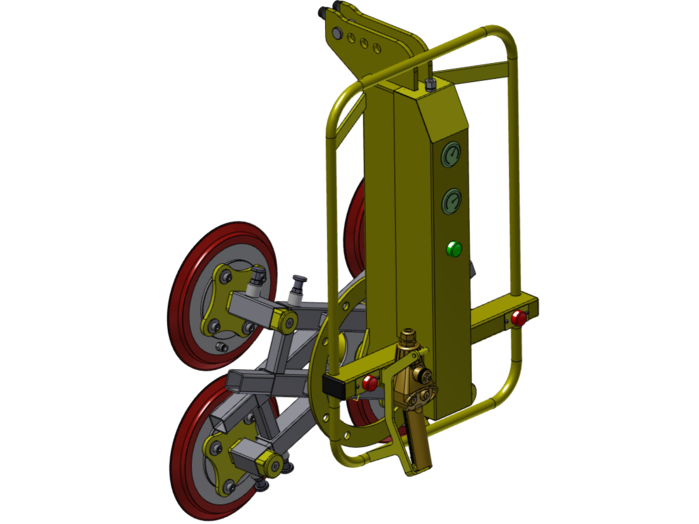

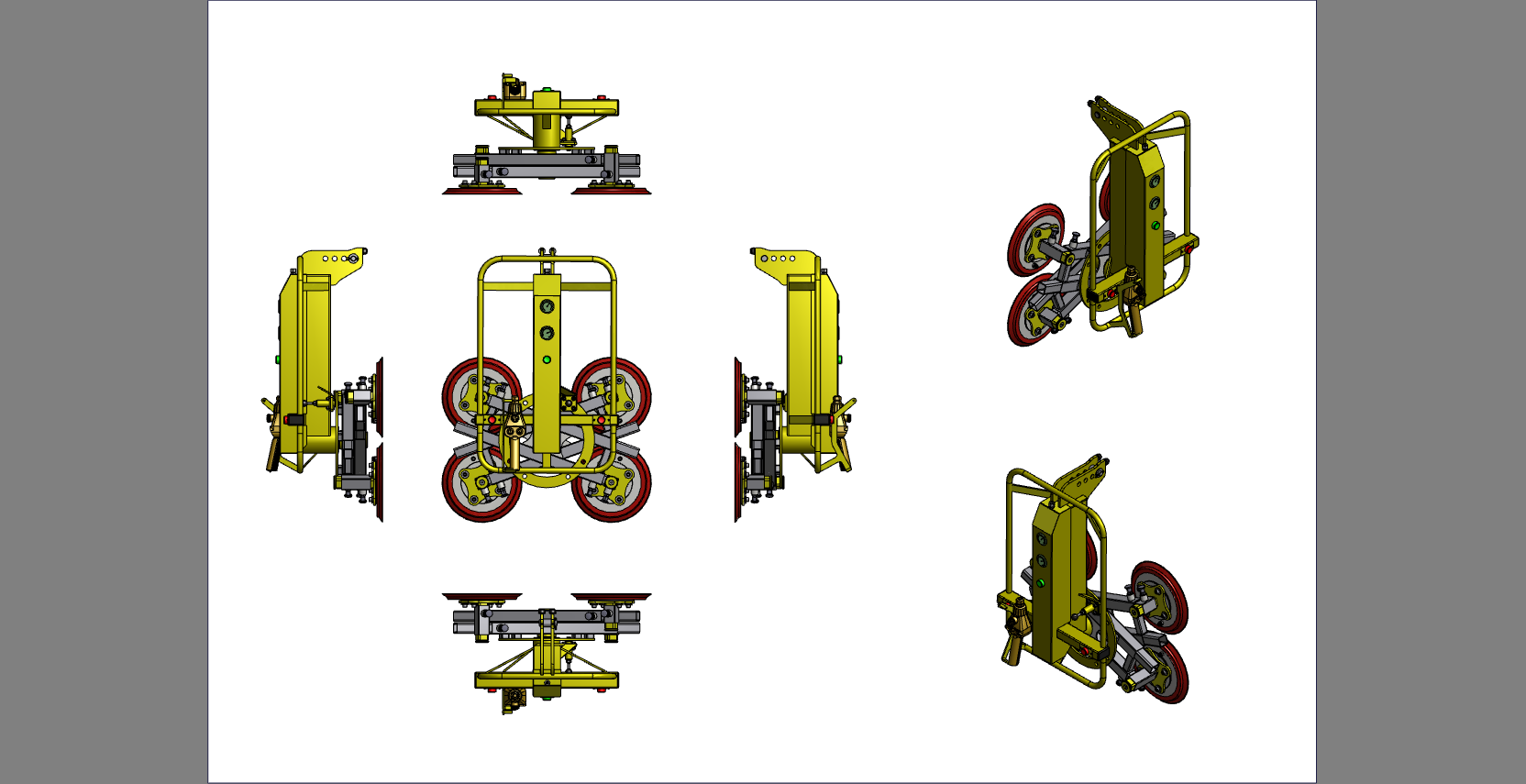

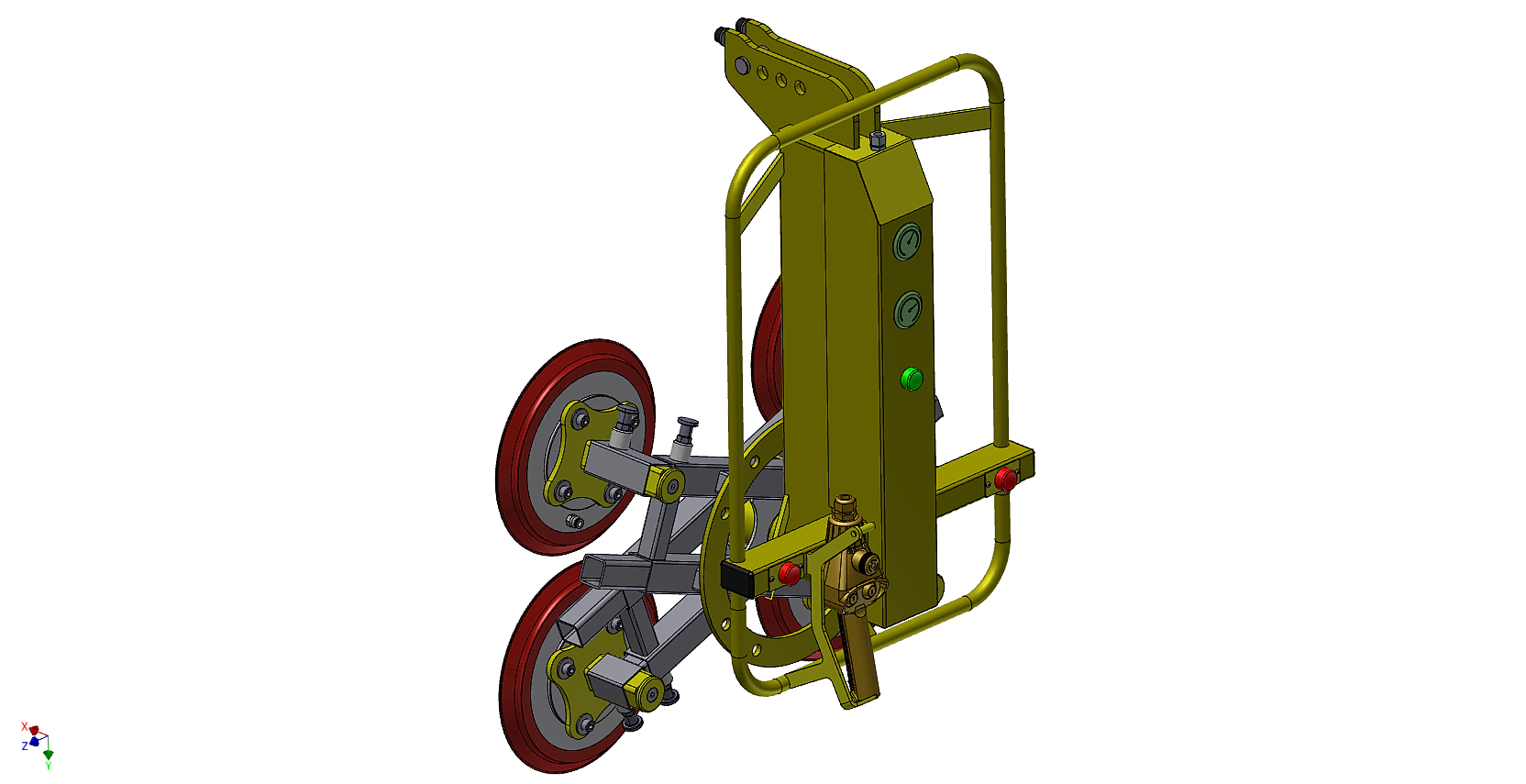

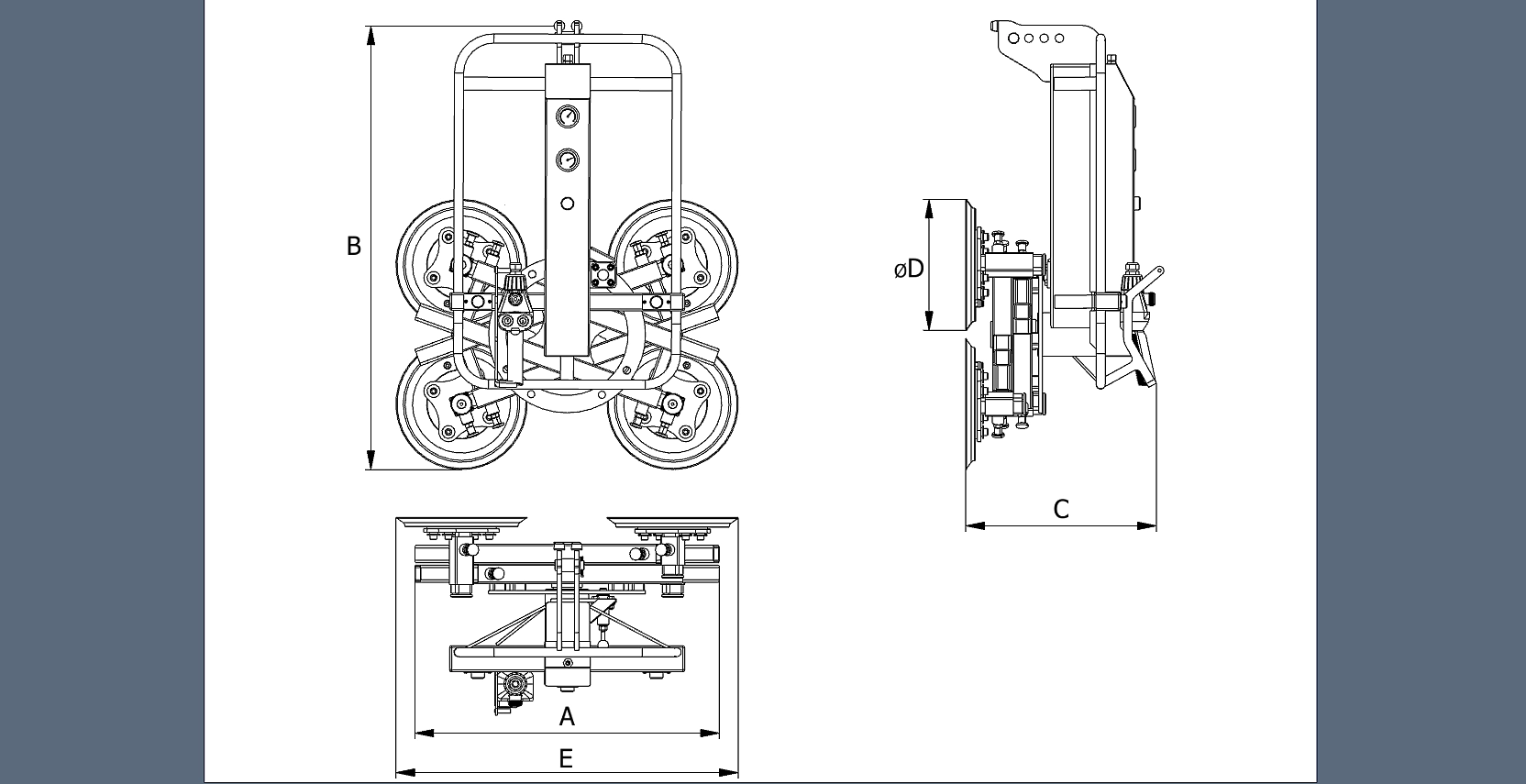

3D models + drawings
