VACUUM MANIPULATOR - VM 280/4 - 90°/PNEU/T/E/EL

Basic description:

  • Main supporting steel structure with a multipositional suspension
  • Pneumatically rotating suction cups with max. angle 90°
  • Four suction cups 300 mm in diameter
  • Ejector – design (compressed air, min. pressure 0.6bar)
  • the vacuum tank ensures safe lifting of the load even in the event of an unexpected failure of the compressed air.
  • GRIP - through a button placed near the control handles
  • RELEASE - through buttons placed near the control handles
  • ROTATION by 0° / 90° - pneumatically
  • spiral hose for connecting a manipulator up to 3 meters

Application:

The vacuum manipulator VM 280/4-90°/PNEU/T/E/EL is a handy little grasping device that allows you to grasp and handle large-sized flat loads upto 280 kg in a vertical position within the work area, which is given by therange of the lifting equipment (crane or any other lifting device) the grasper will be suspended on. zavesený.

Potential types of loads to be handled:

  • Glass plates and boards
  • Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
  • Plastic plates and boards
  • Stone with grinded surface
  • Wooden plates and boards covered with air-tight finish

Benefits:

  • Simple – very convenient anddedicated device that is easy to operate
  • Reliable high reliability and minimal maintenance are ensured
  • Safe safety guaranteed in every situation
  • Medium – compressed air
                    - 3 PE (PEN) 400VAC/50Hz/15VAC

Basic technical information:

Maximum load capacity280 kg (with negative pressure –0.6 MPa (-60 kPa))
Designed for manipulationin vertical position, to be lifted on a lifting device
Weight126 kg
Max. dimensions of load2500x2500 mm
Min. dimensions of load800x800 mm
Power supplycompressed air, min. pressure 6 bar
3 PE (PEN) 400VAC/50Hz/15VAC

Information table:

Number of suction cups / dimensions (mm)MAX. CAPACITY (kg)WEIGHT (kg)Overall width (mm)Overall depth (mm)Overall height (mm)
4/300280126779 až 15234781419

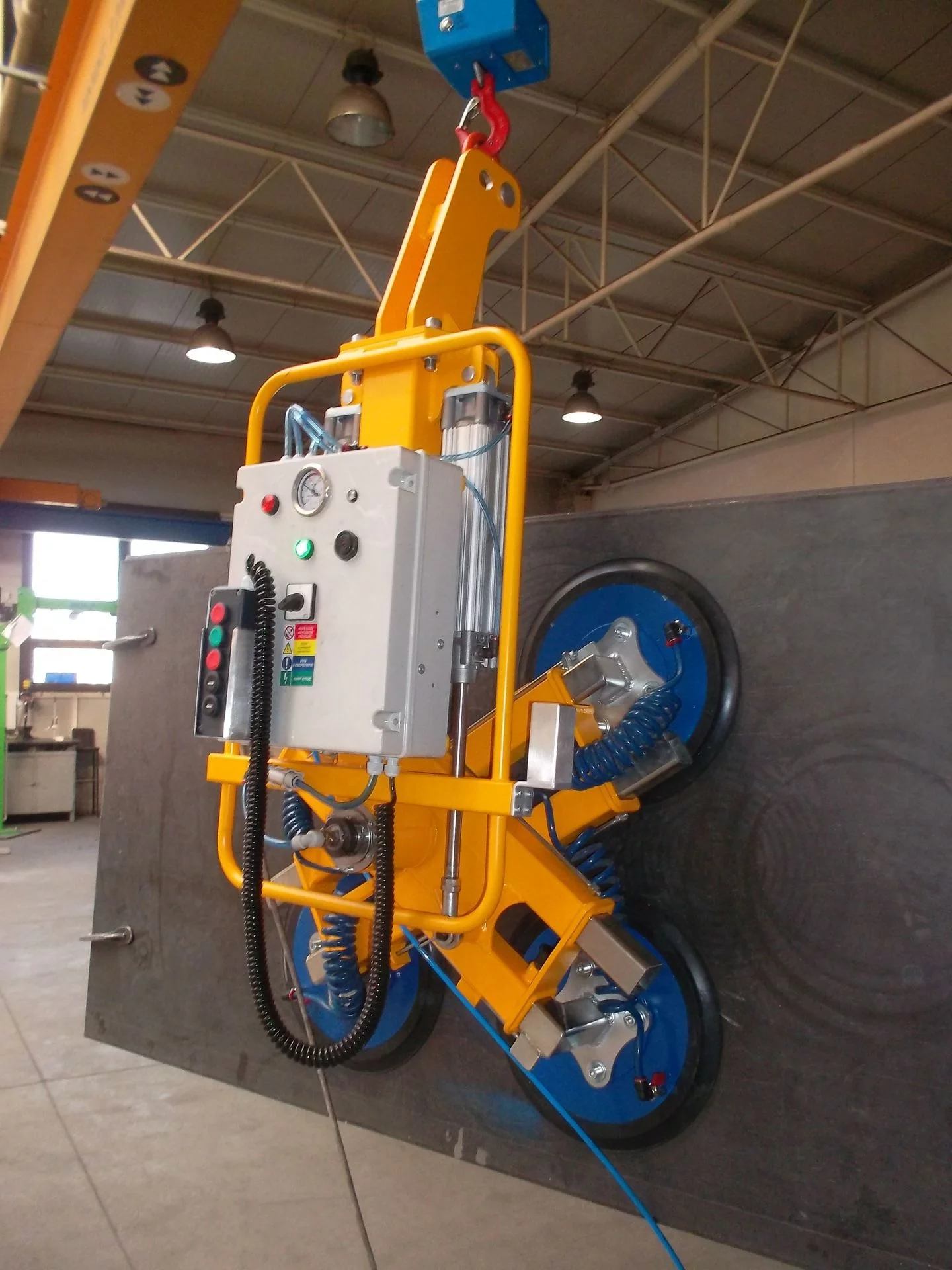

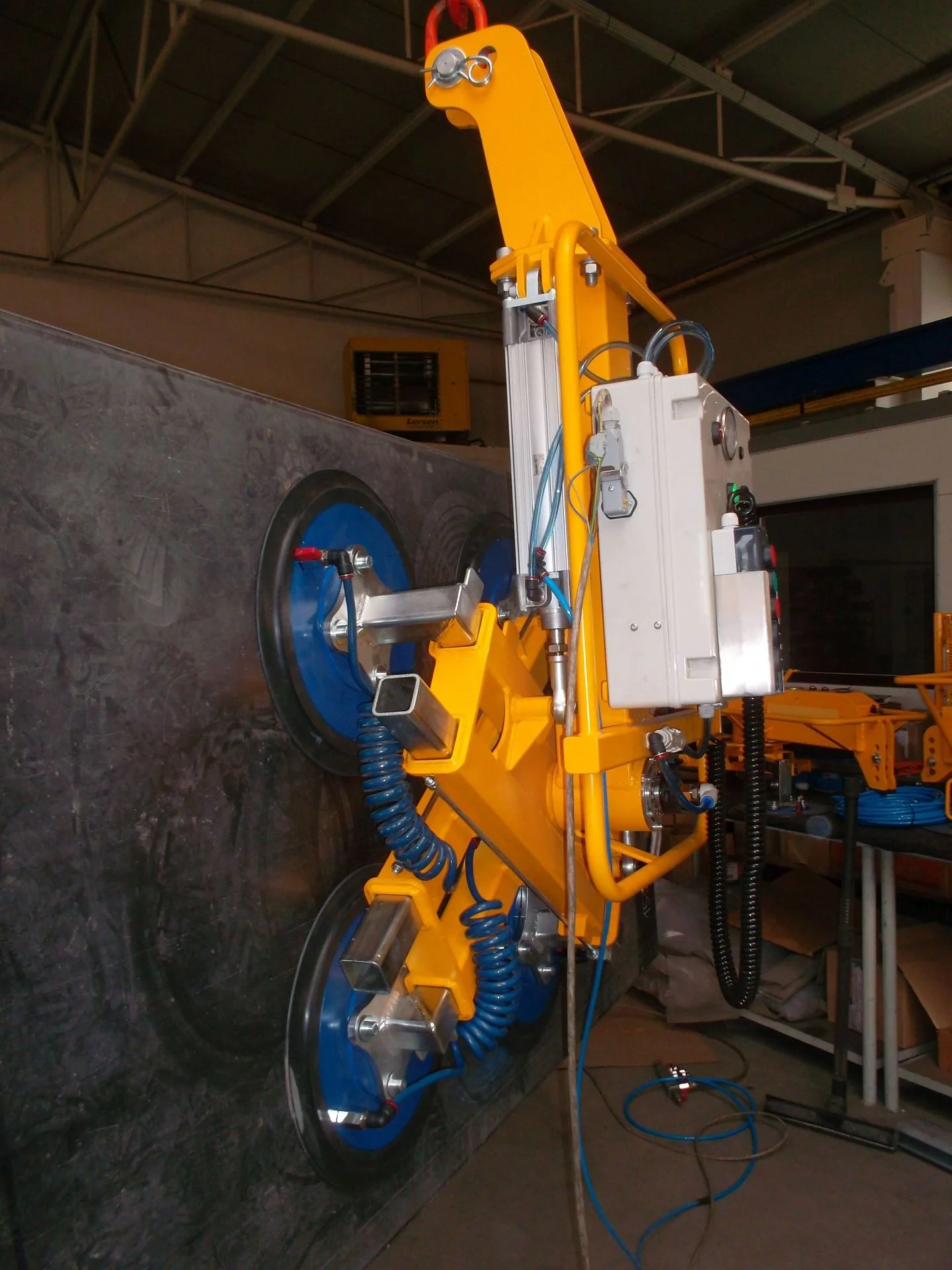

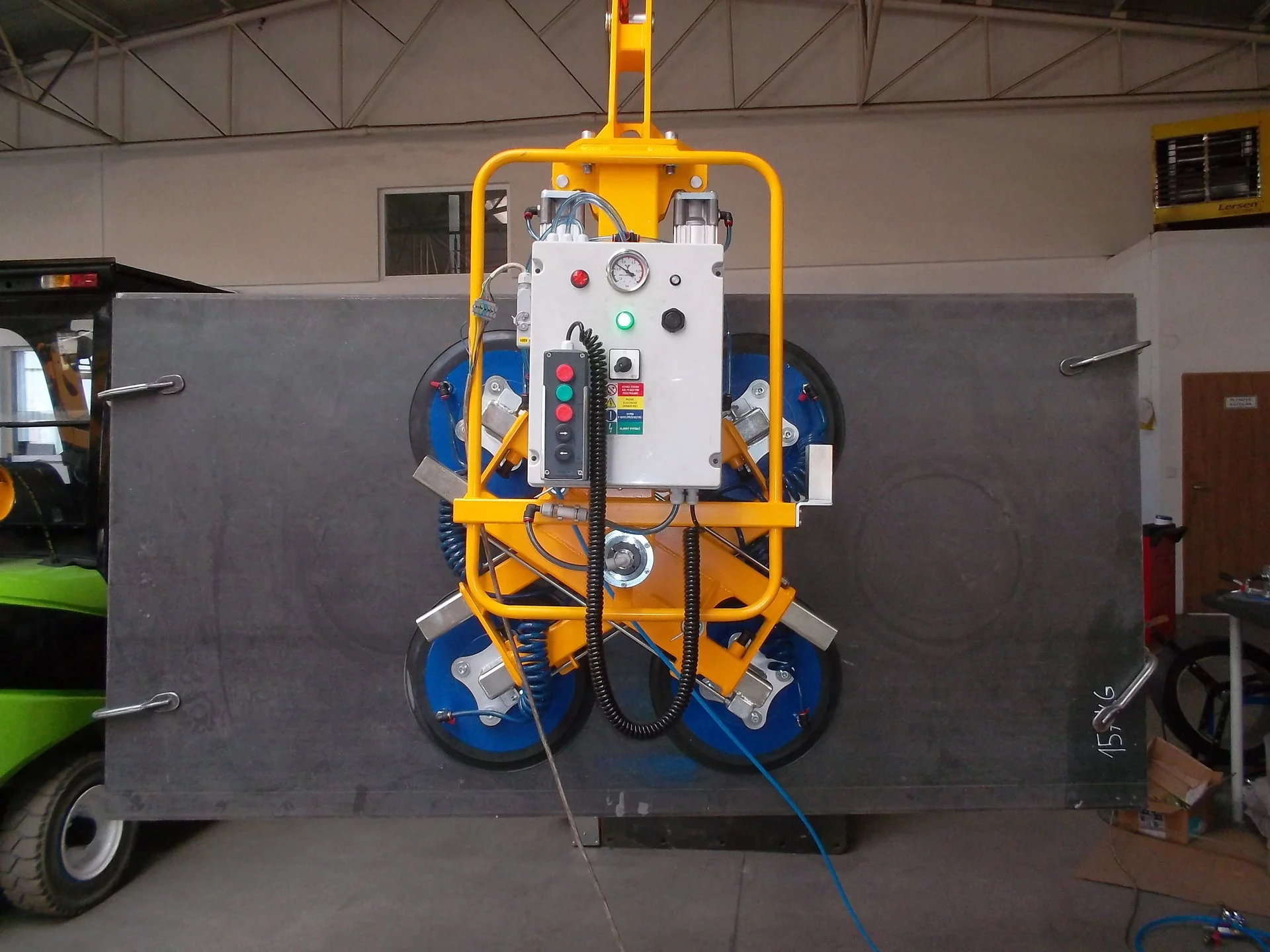

Photo gallery

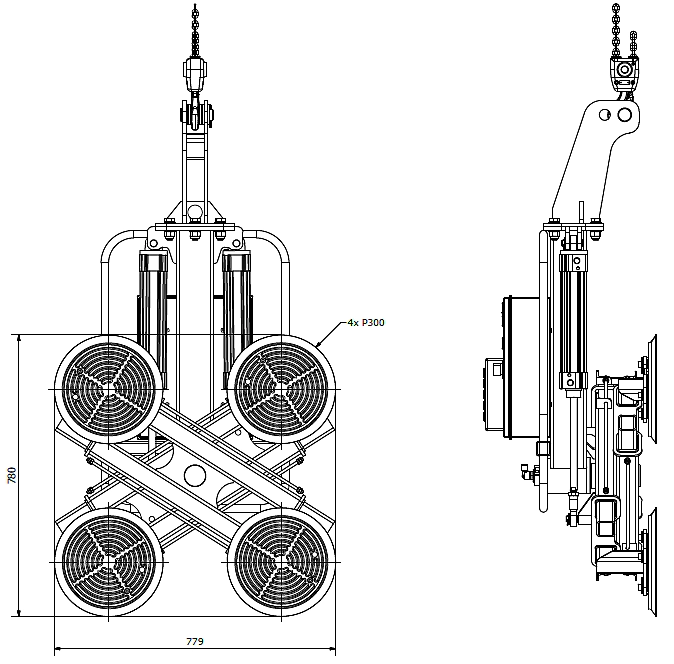

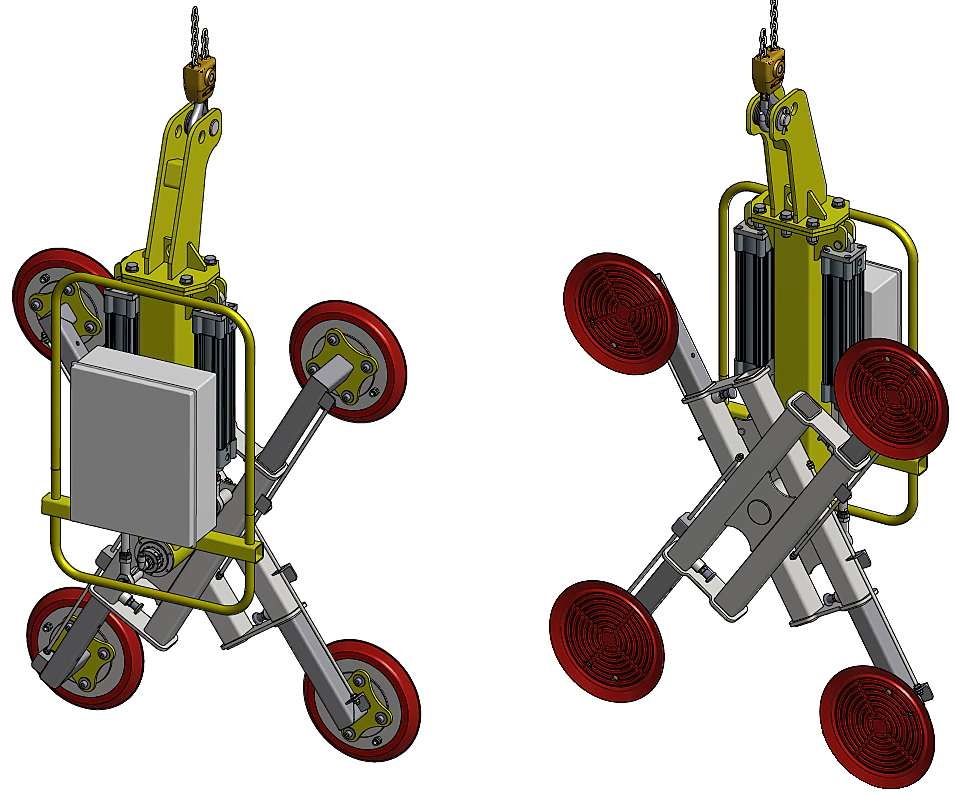

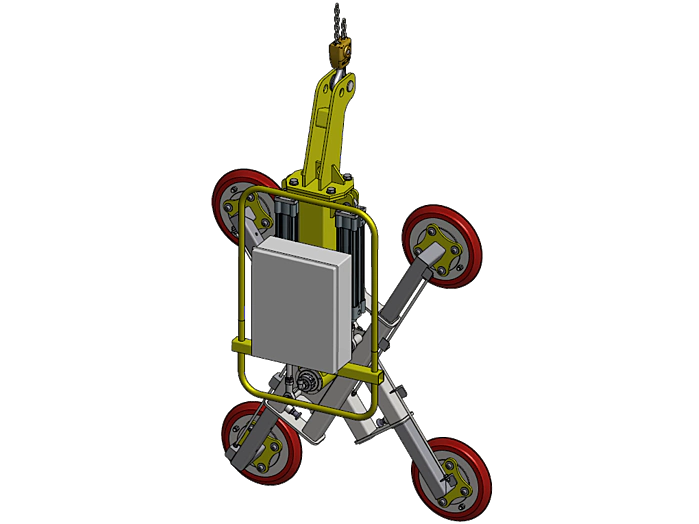

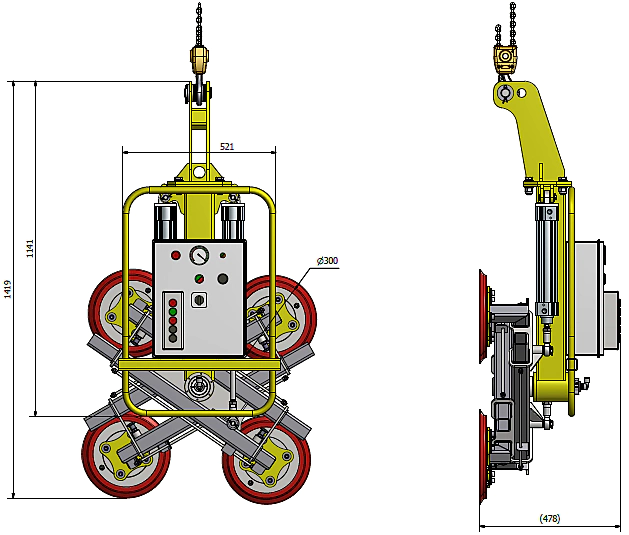

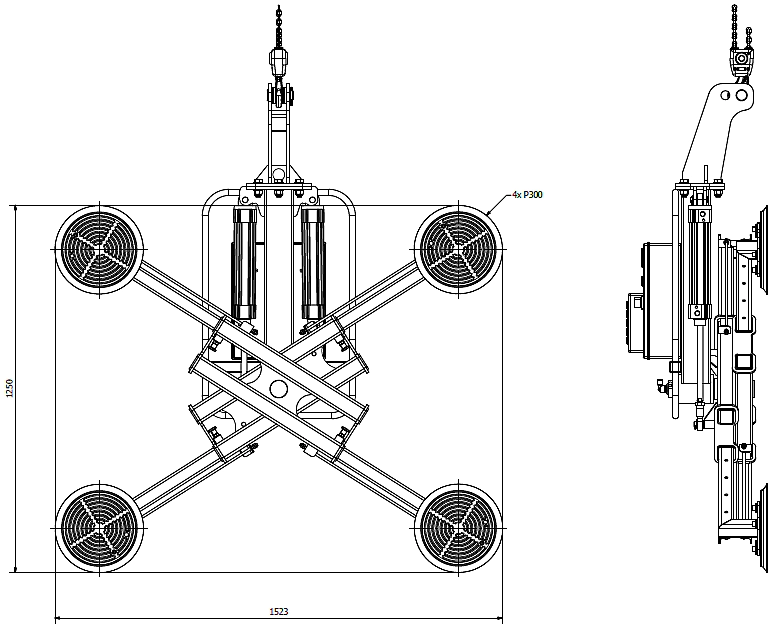

3D models + drawings
