JV-SK Manual Overhead Crane is ideal for applications where large areashould be handled and an inherent supporting column structure is required. One of its strengths is the easiness of manual travel, ensuring fast, reliable and cost-effective transport of material. Multiple modular components ensure flexibility. Custom implementation is guaranteed.
MANUAL LIGHT OVERHEAD CRANE - JV-SK

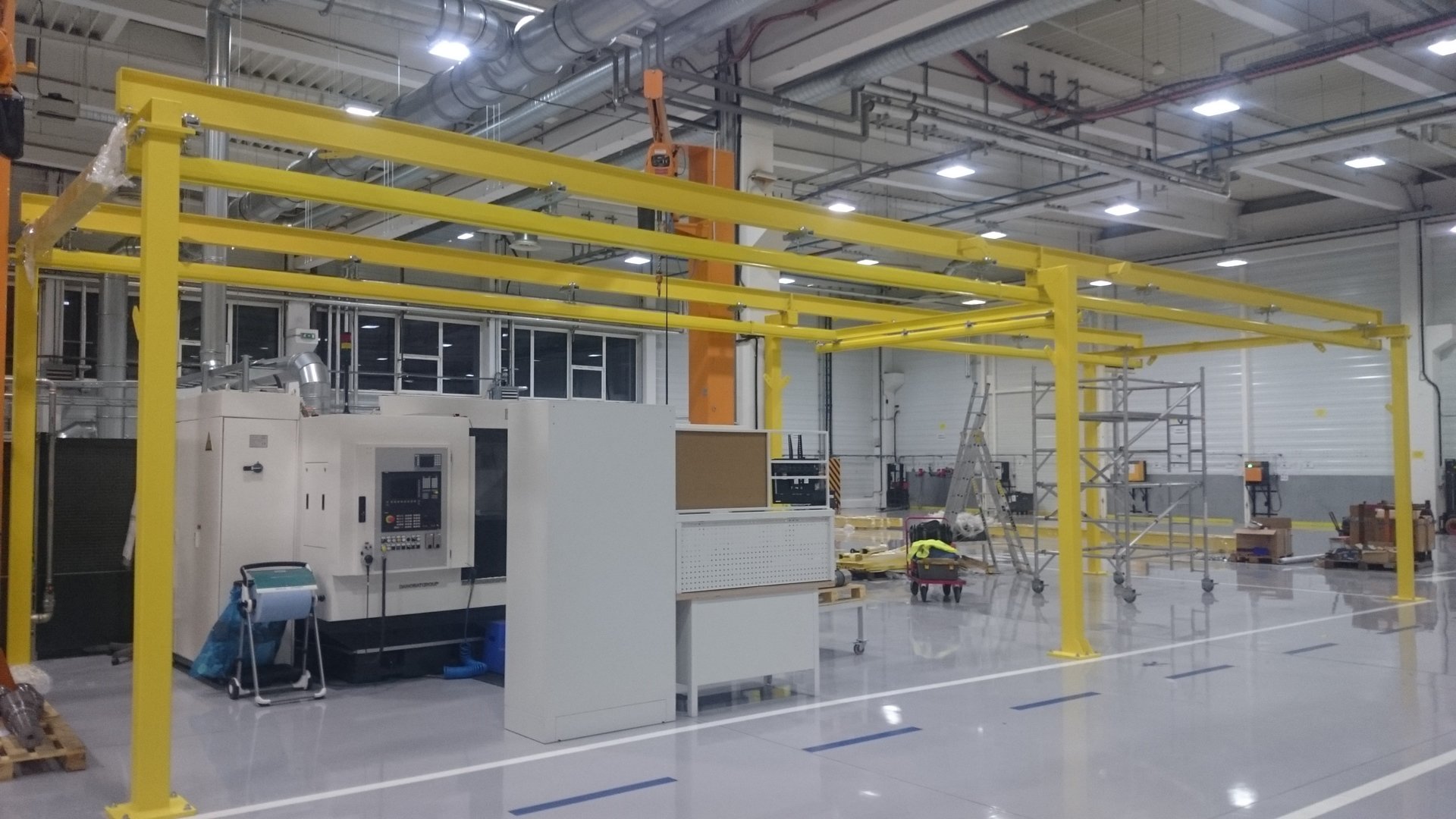

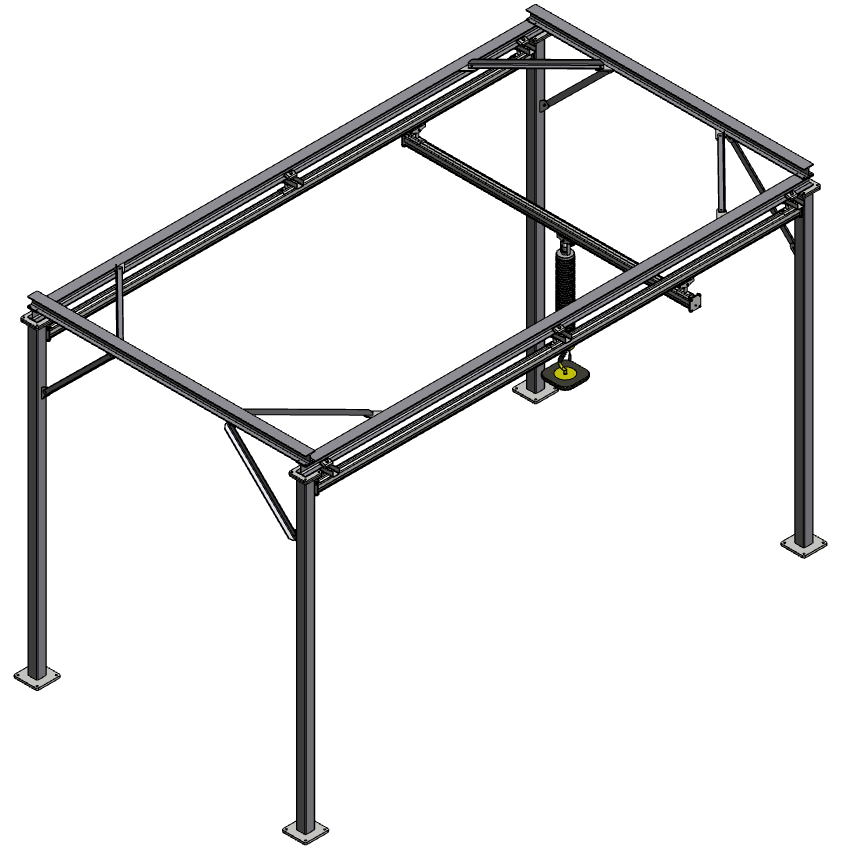

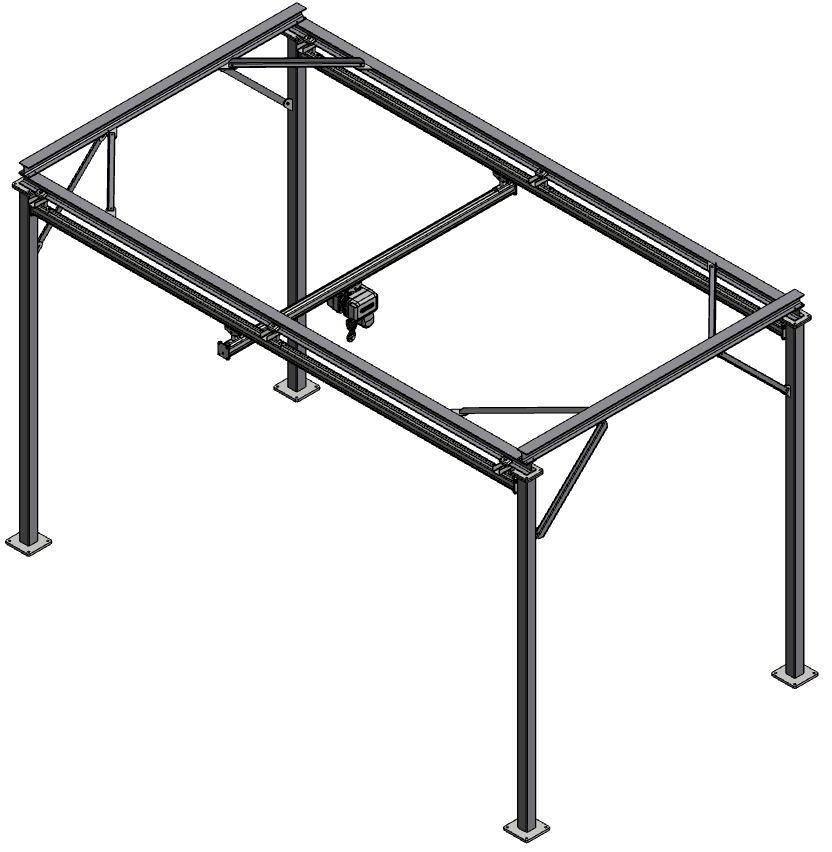

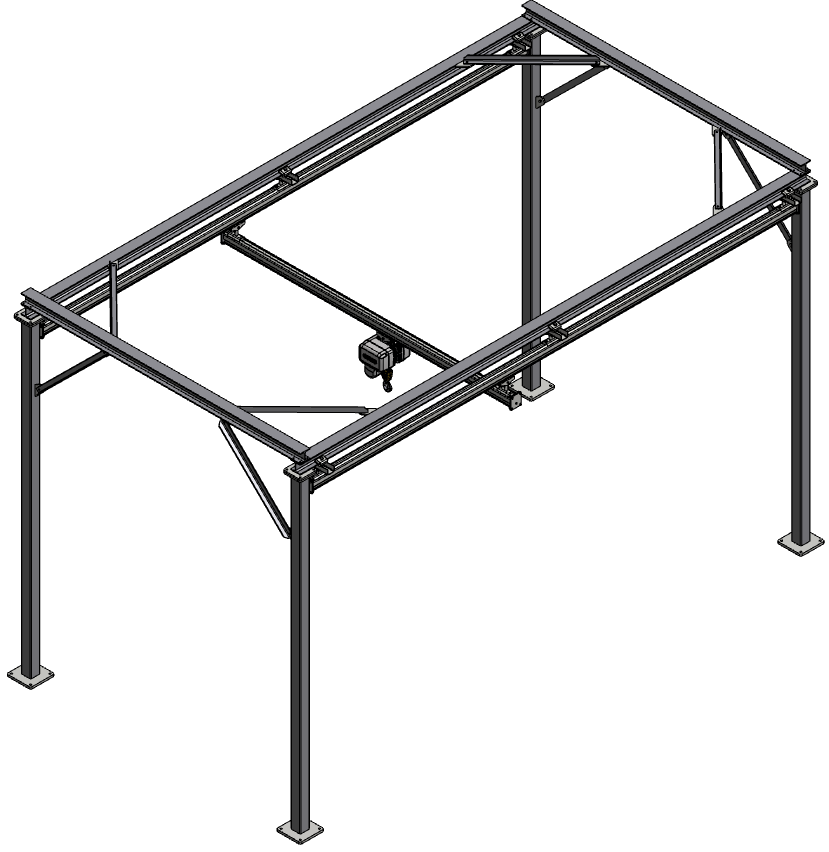

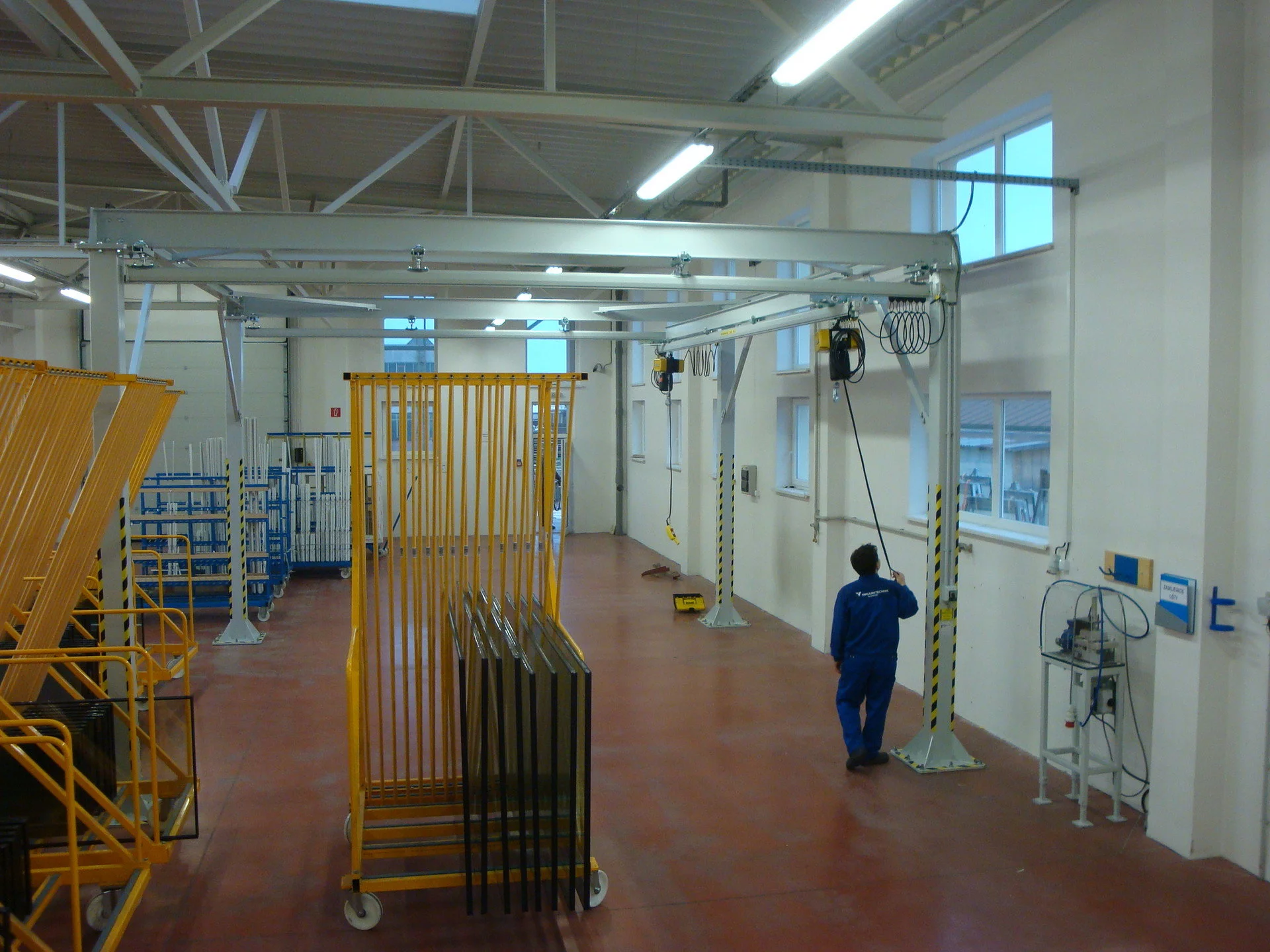

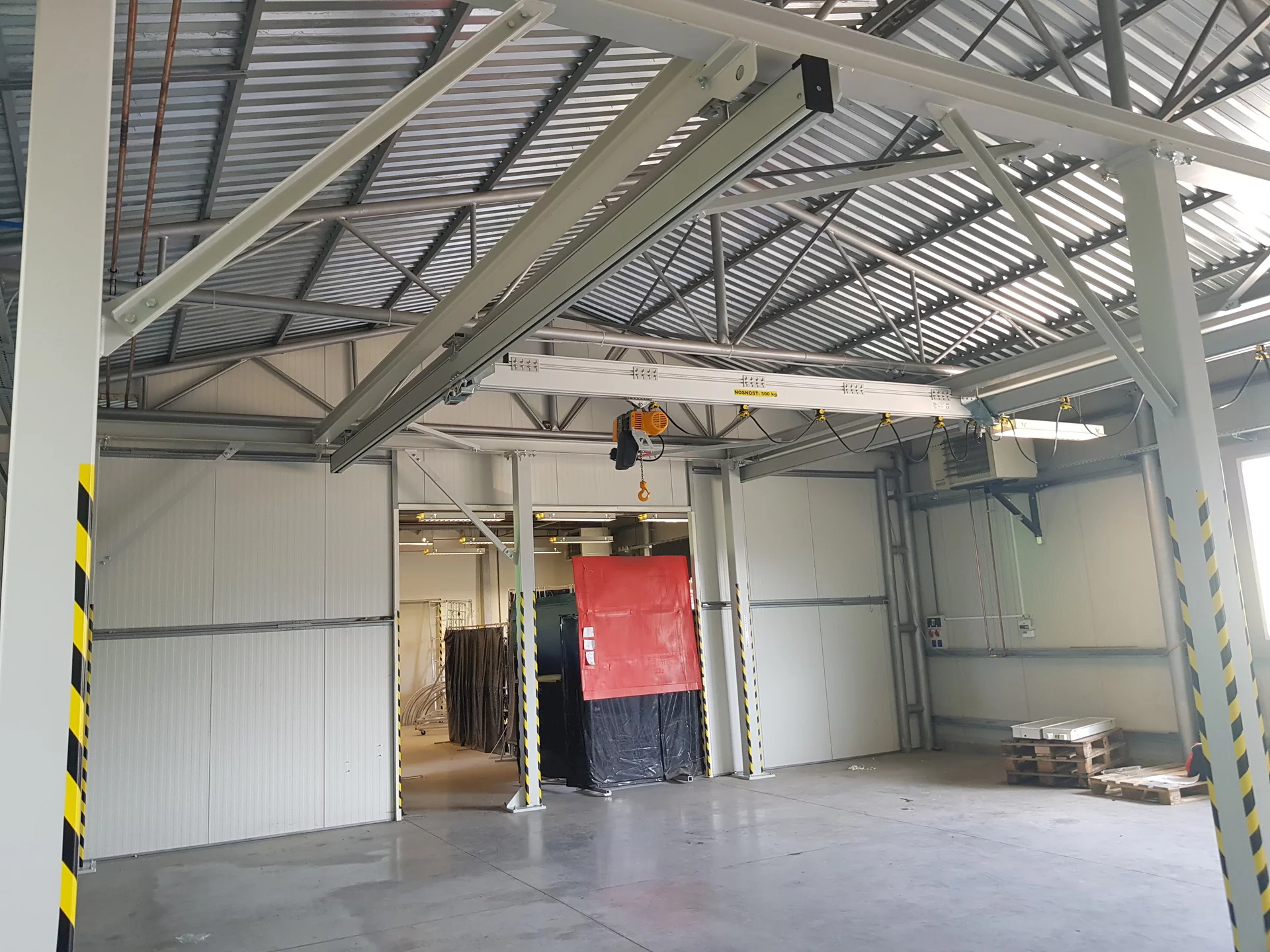

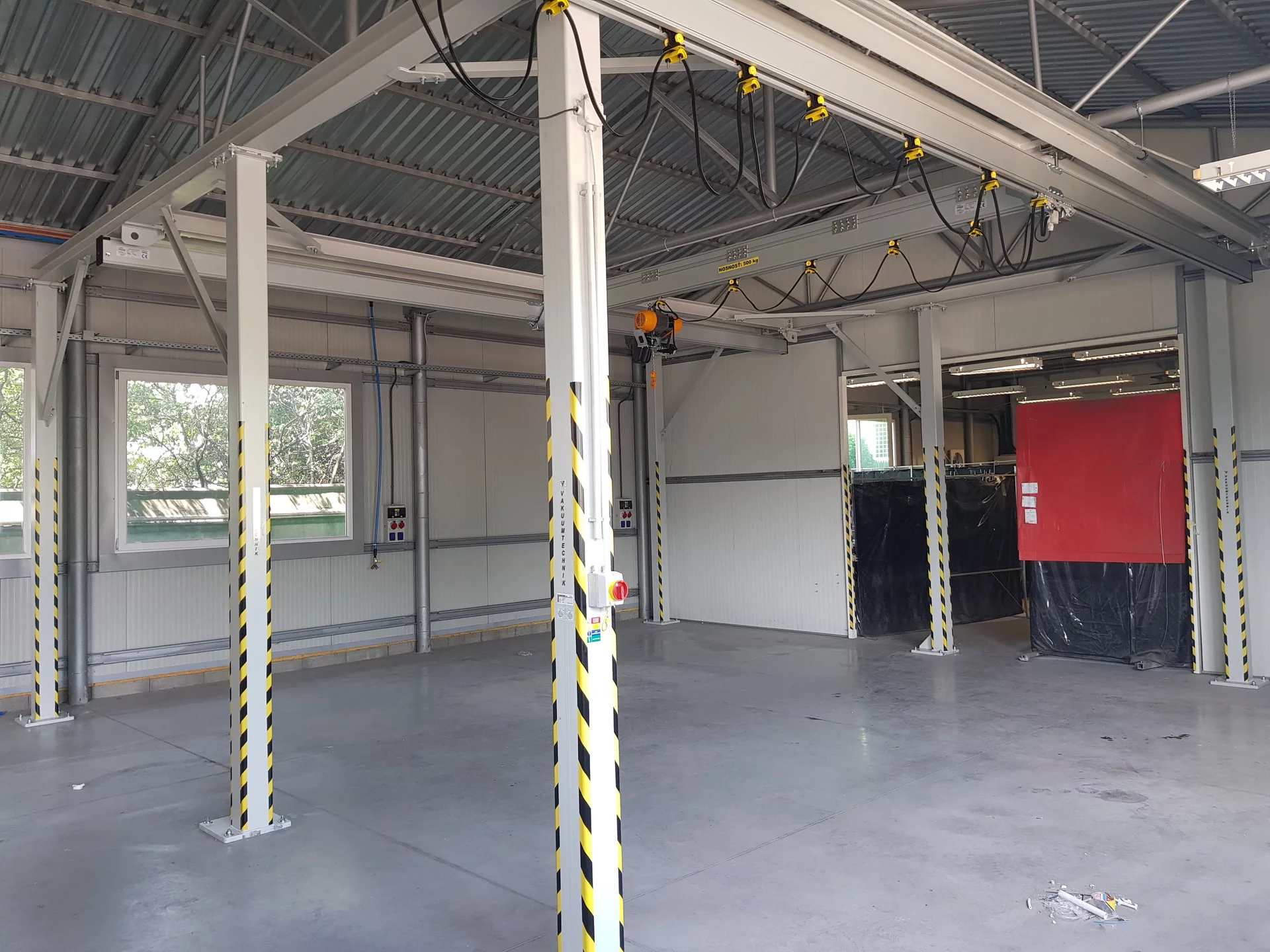

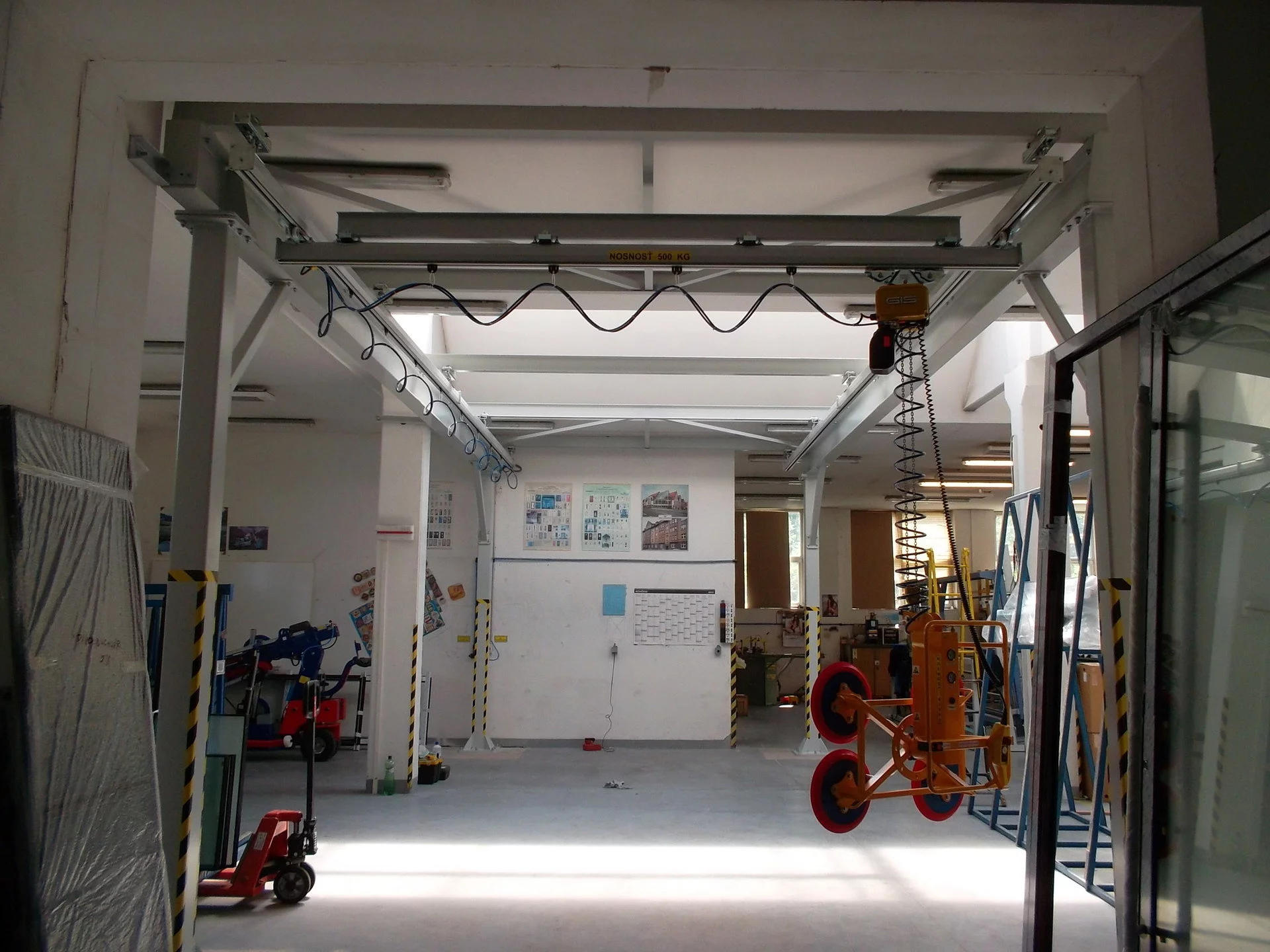

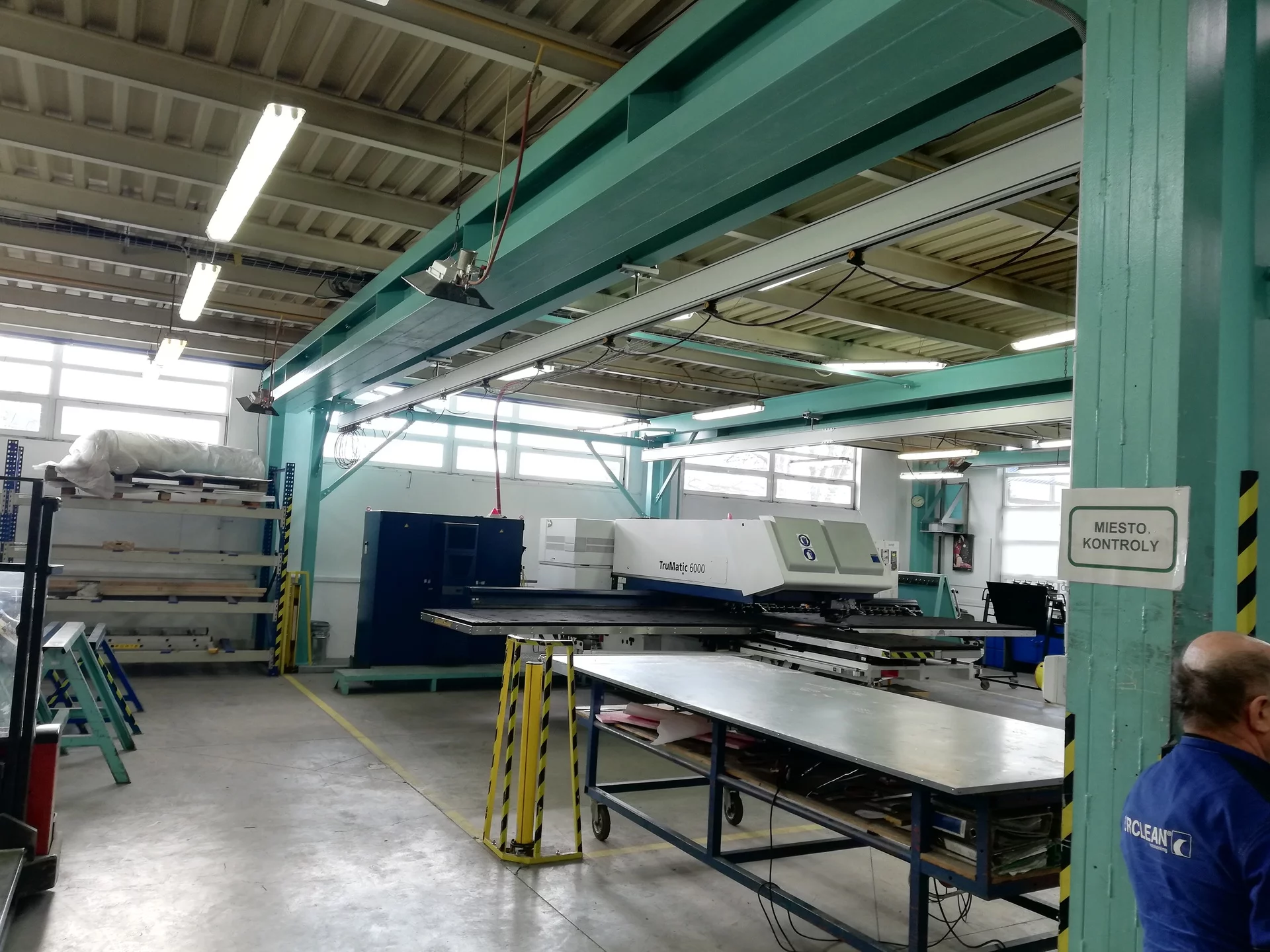

JV-SK Manual Overhead Crane with its inherent column structure is a universal lifting device with a light manual travel and electricall ift.
Application:

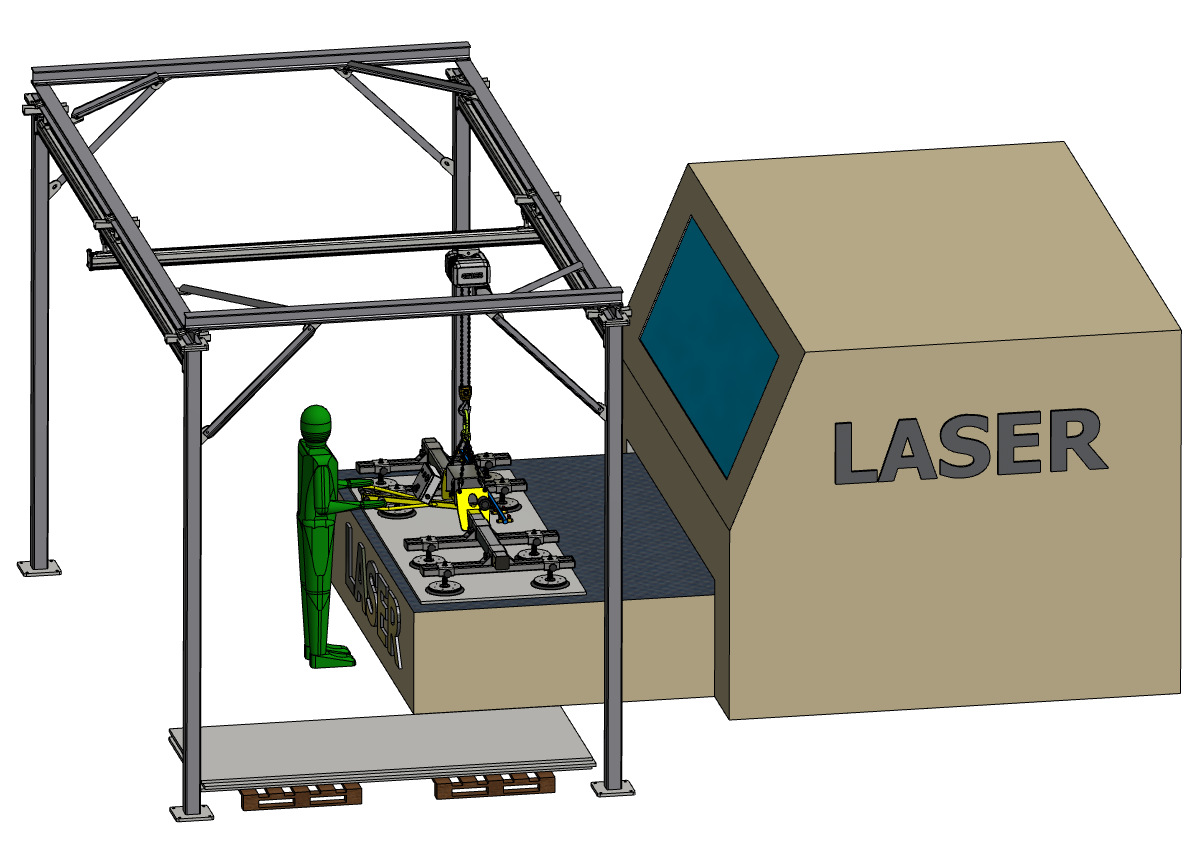

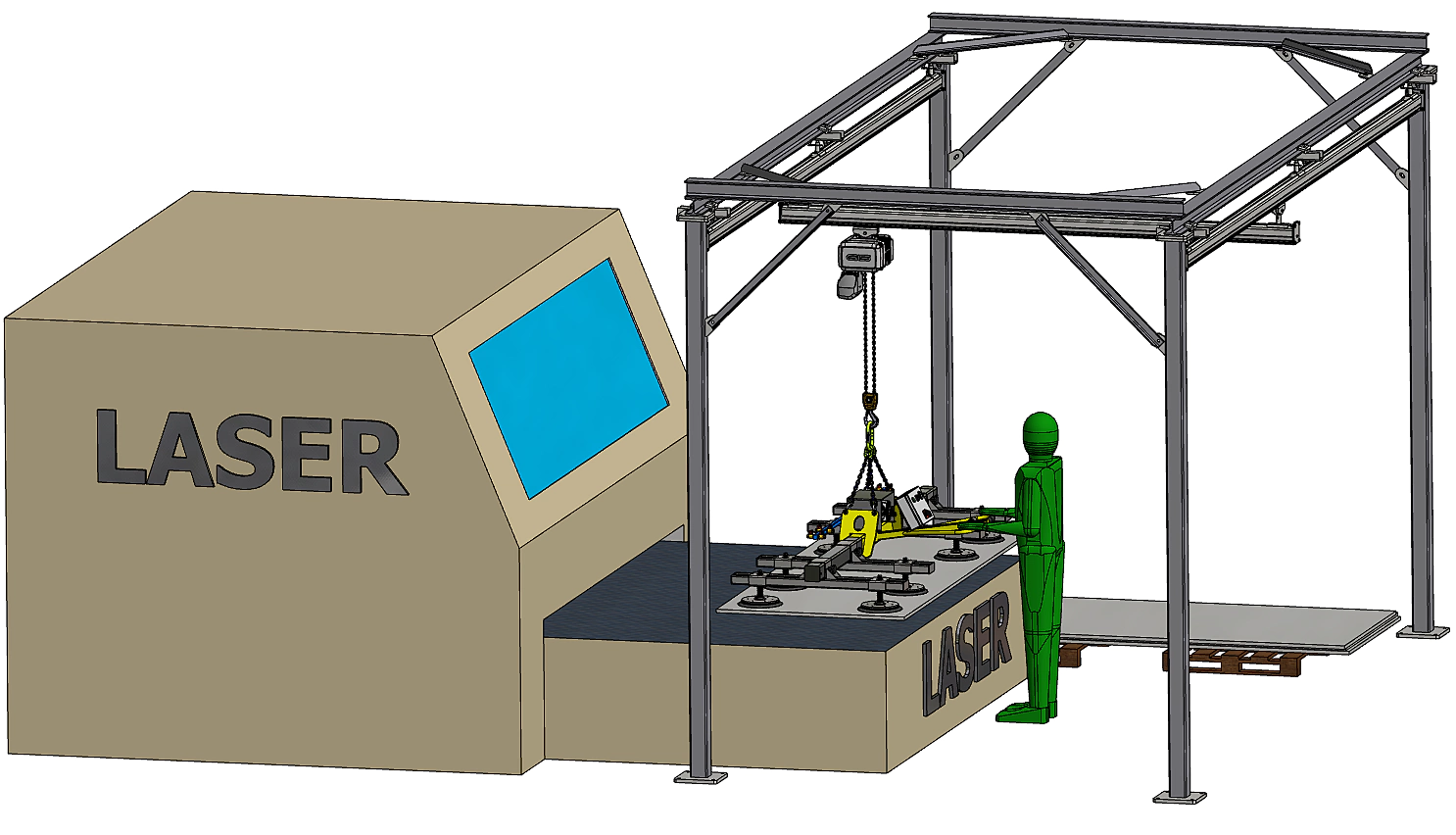

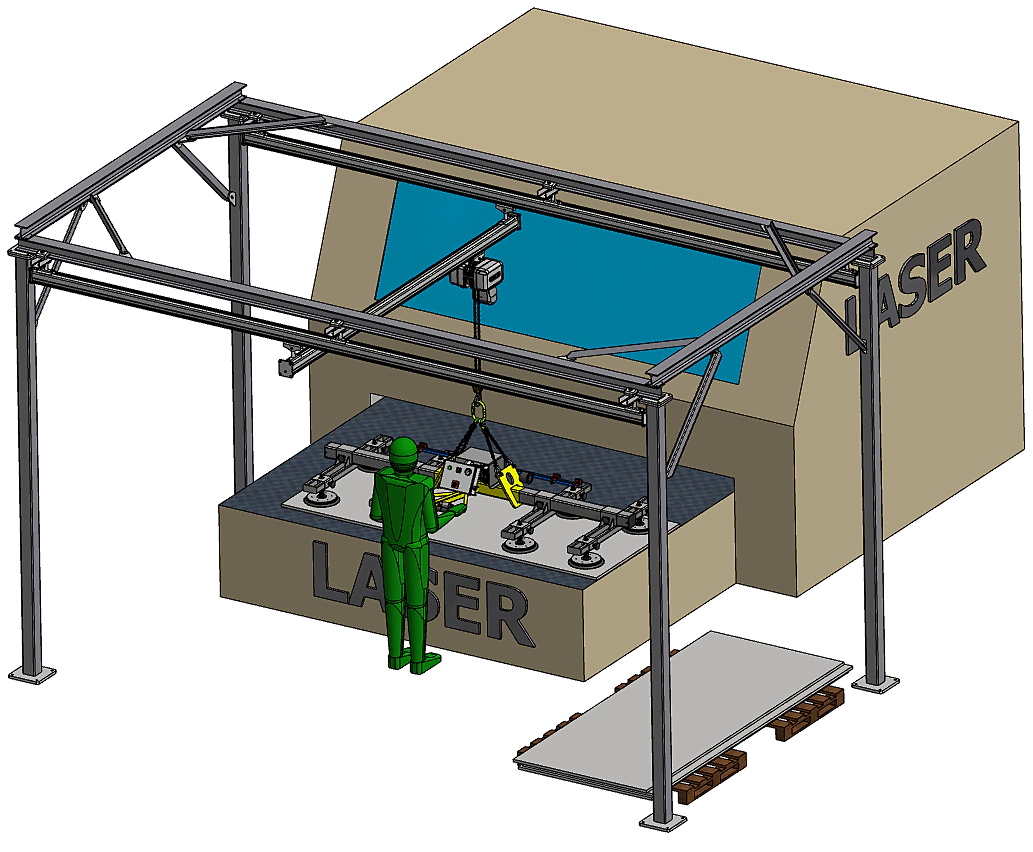

JV-SK Manual Overhead Crane is a universal lifting device suitable fortransporting materials on linear routes as well as for transporting materialswithin the entire site. This device can be mounted with lifting capacityranging from 150 kg to 1000 kg.
Benefits:
- Variable dimensions, option to connect additional sections
- System of closed-profile rails
- Possibility to mount several bridges
- Manual guidance of the suspended tool in two axes “x¨ and “y¨
Basic technical information:
| Lifting capacity (WLL) | 125, 250, 500 a 1000 kg |
| Lifting speed | 17/2,8 m/min (125 kg), 10/1,7 m/min (250 kg), 7,6/1,3 m/min (500 kg), 7,1/1,2 m/min (1000 kg) |
| Travel speed of electric hoist | manual pusher |
| Speed of crane travel | manual pusher |
| Power supply | 3+PE (PEN) 50 Hz 400V / TN-C |
Information table:

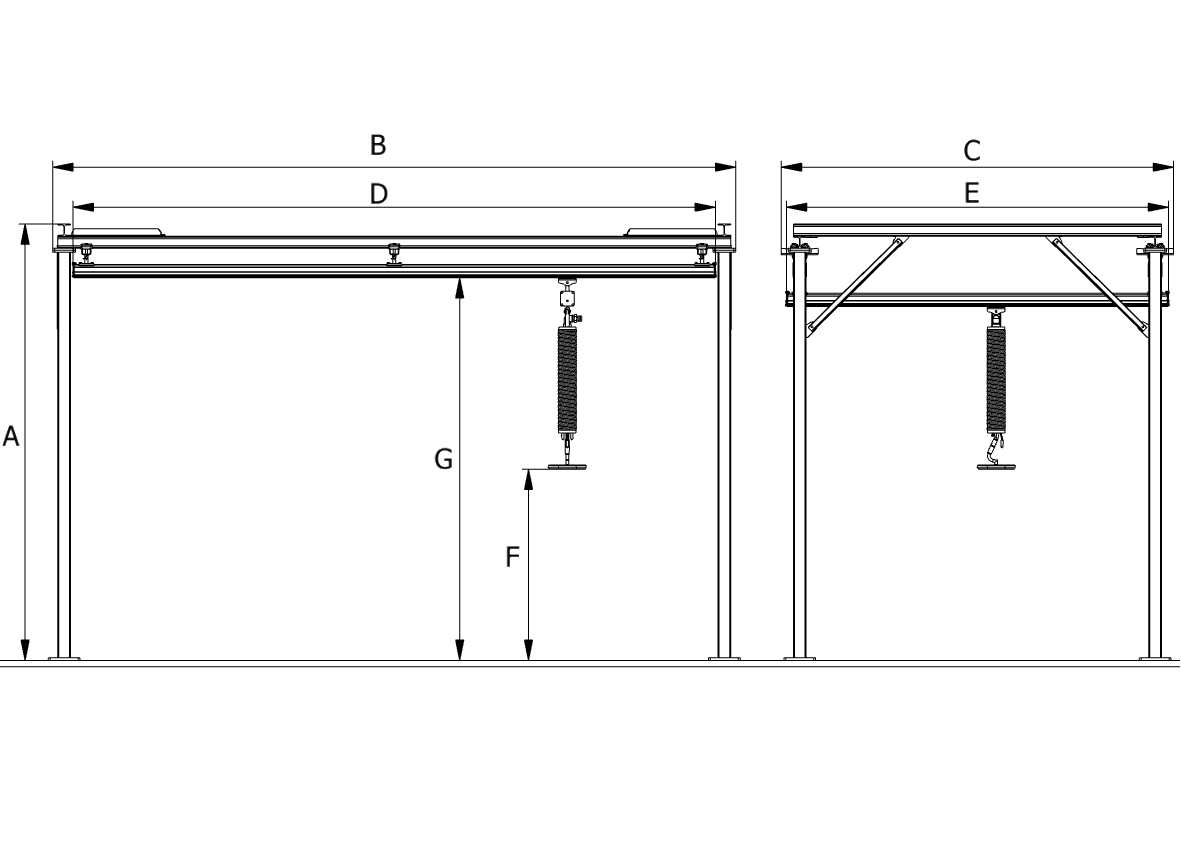

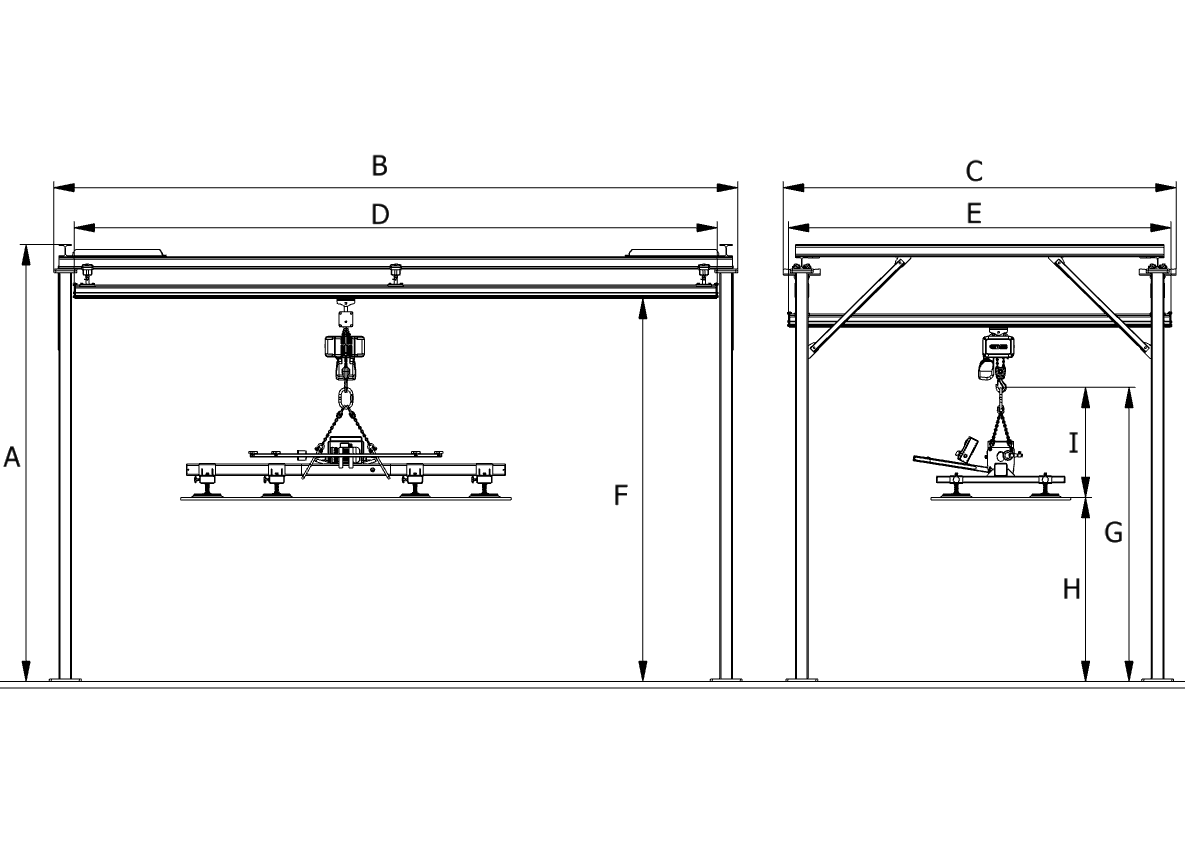

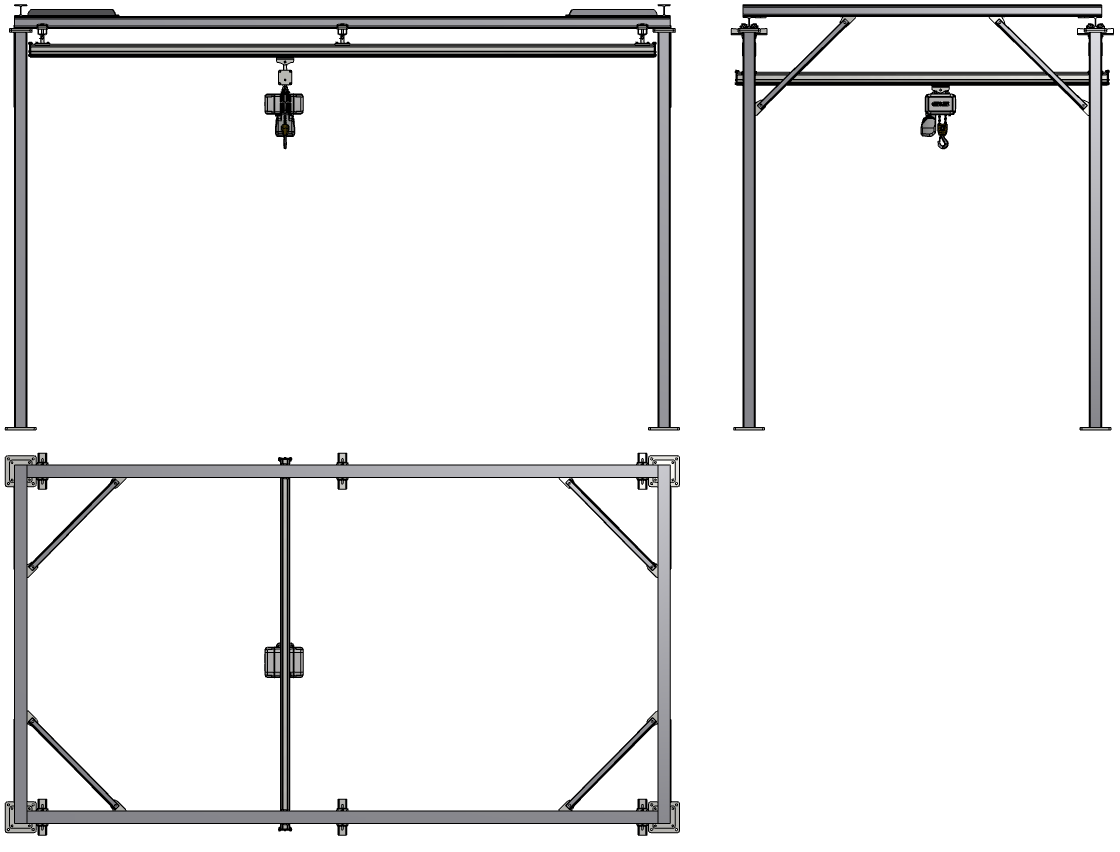

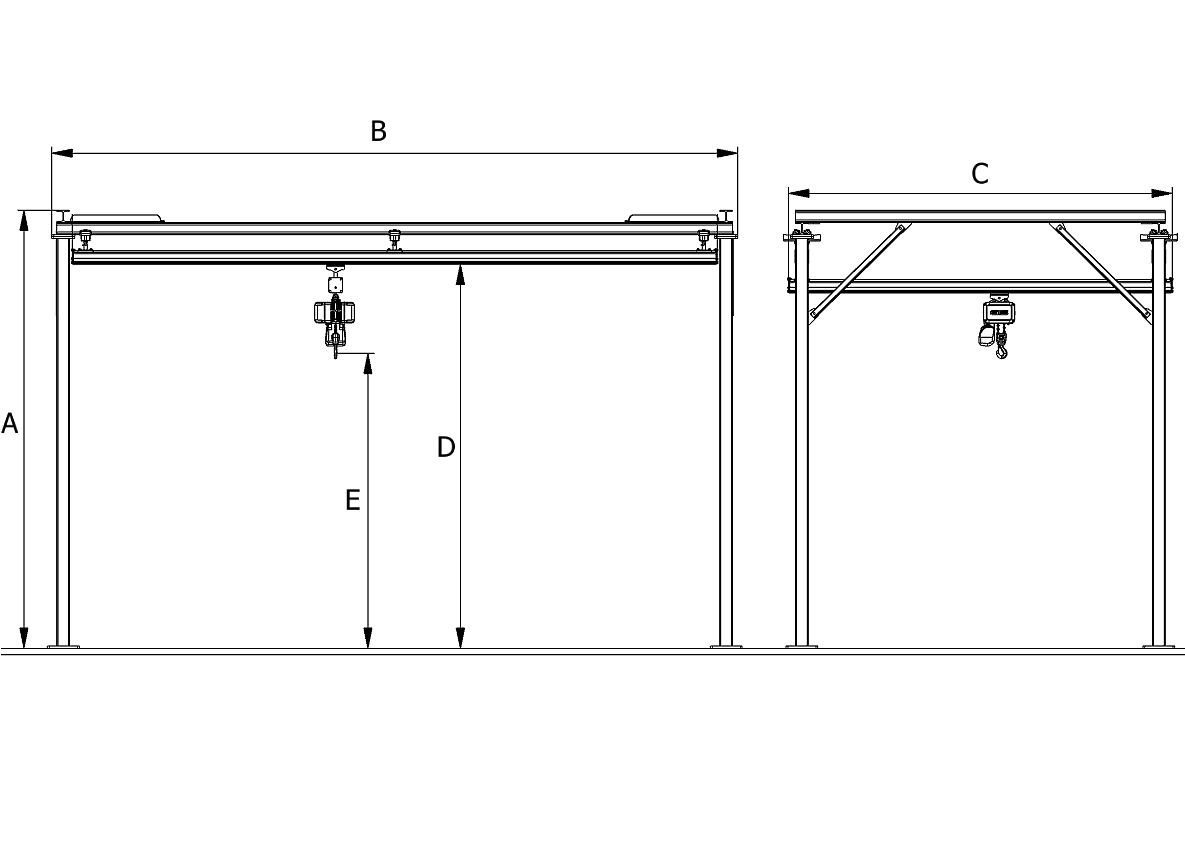

| TYPE JV-SK | MAX. CAPACITY (kg) | Profile system | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|
| JV-SK 125 | 125 | EEPOS | min. 3500 max. 5000 | min. 2000 max. 99000 | min. 1000 max. 8000 | min. 3000 max. 4500 | min. 2500 max. 3500 |
| JV-SK 250 | 250 | EEPOS | min. 3500 max. 5000 | min. 2000 max. 99000 | min. 1000 max. 8000 | min. 3000 max. 4500 | min. 2500 max. 3500 |
| JV-SK 500 | 500 | EEPOS | min. 3500 max. 5000 | min. 2000 max. 99000 | min. 1000 max. 8000 | min. 3000 max. 4500 | min. 2500 max. 3500 |
| JV-SK 1000 | 1000 | EEPOS | min. 3500 max. 5000 | min. 2000 max. 99000 | min. 1000 max. 8000 | min. 3000 max. 4500 | min. 2500 max. 3500 |
