VACUUM MANIPULATOR - VM 500/8 - 90°/HYD

Basic description:

  • Main supporting steel structure with a multipositional suspension
  • hydraulically tilting suction cups of max. 90 ° angle
  • Eight suction cups 300 mm in diameter
  • manually adjustable suction cups with locking
  • vacuum pump - 400V three-phase system
  • the vacuum tank ensures safe lifting of the load even in the event of an unexpected failure of the compressed air.
  • acoustic and visual signalisation of insufficient vacuum in suction cups
  • GRIP - through push-button remote control conveniently located at the control handles on the spiral cable up to 3 m
  • RELEASE - through push-buttons remote control conveniently located at the control handles on the spiral cable up to 3 m
  • TILTING the load by 0 ° / 90 ° through push-button control on a spiral cable up to 3 m
  • spiral cable for connecting a manipulator up to 3 meters
  • quick-clamping system el. connection through connector

Application:

The vacuum manipulator VM 500/8-90°/HYD is a handy grasping device that allows you to grasp and handle large-sized flat loads up to 500 kg in both horizontal and vertical position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the grasper will be suspended on.

Potential types of loads to be handled:

  • Glass plates and boards
  • Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
  • Plastic plates and boards
  • Stone with grinded surface
  • Wooden plates and boards covered with air-tight finish

Benefits:

  • Simple – very convenient anddedicated device that is easy to operate
  • Variable - possibility to manually and easily telescopically adjust the suction cups themselves after the traverse
  • Reliable - guarantees high reliability and minimal maintenance
  • Safe safety guaranteed in every situation

Basic technical information:

Maximum load capacity500 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin a horizontal or vertical position, suspended on a lifting device
Weight220 kg
Max. dimensions of load2500x1500 mm
Min. dimensions of load1000x1000 mm
Power supplya) 3+PE (PEN) 400VAC/50Hz/15VAC

Information table:

Number of suction cups / diameter (mm)LIFTING CAPACITY(kg)WEIGHTOverall width (mm)Overall depth (mm)Overall height (mm)Suction cup diameter (mm)
4/30050022018128201785365

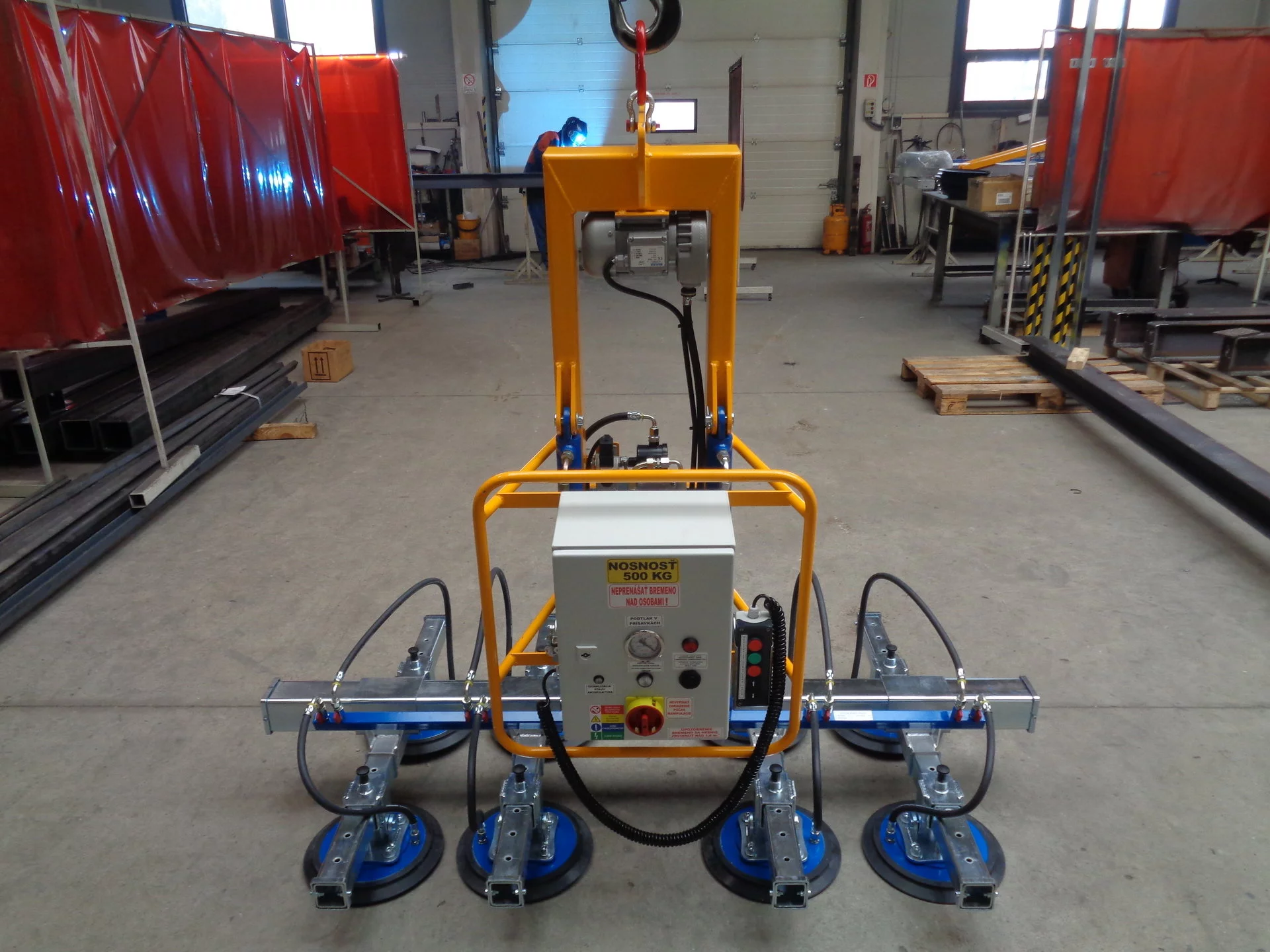

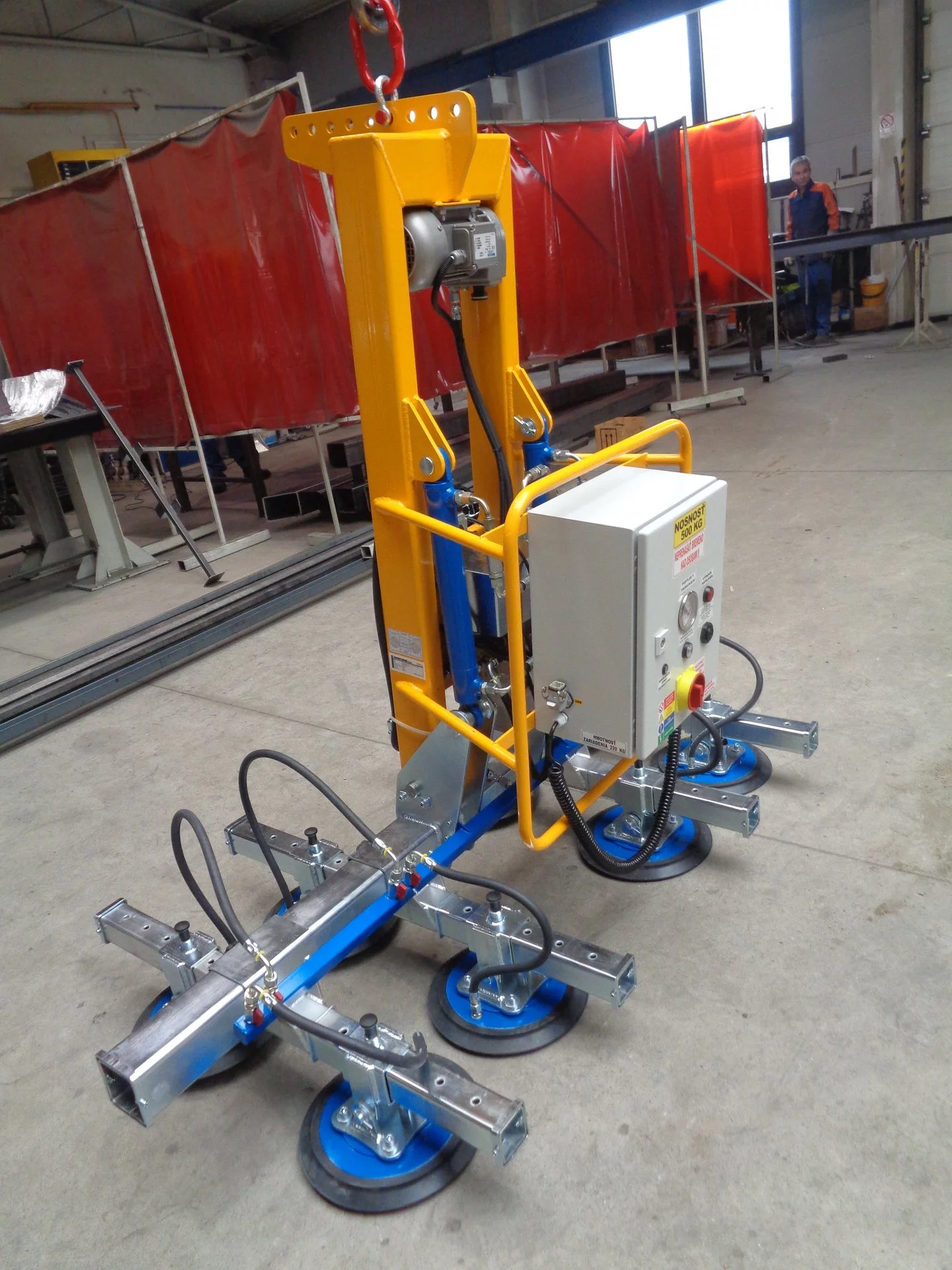

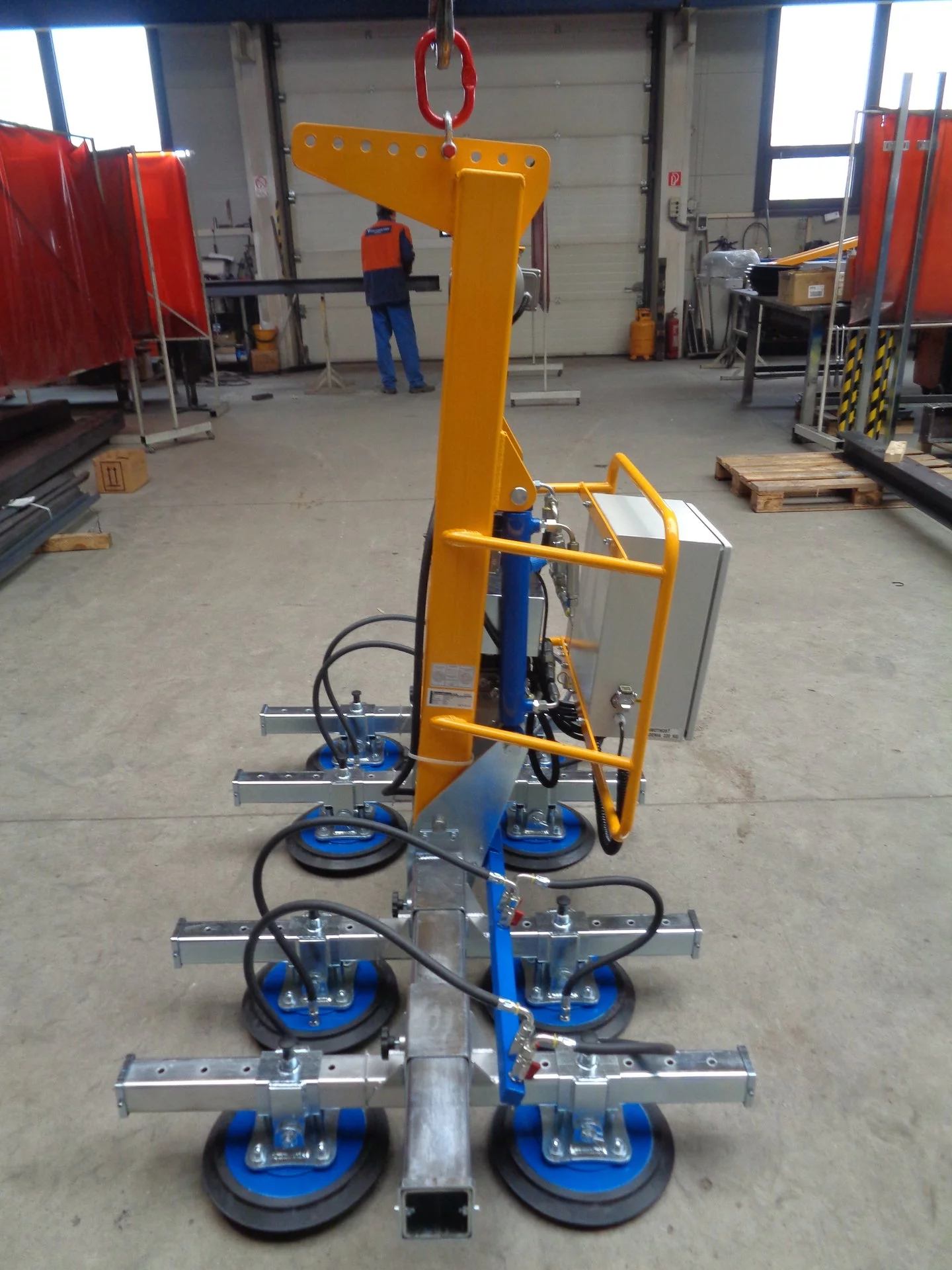

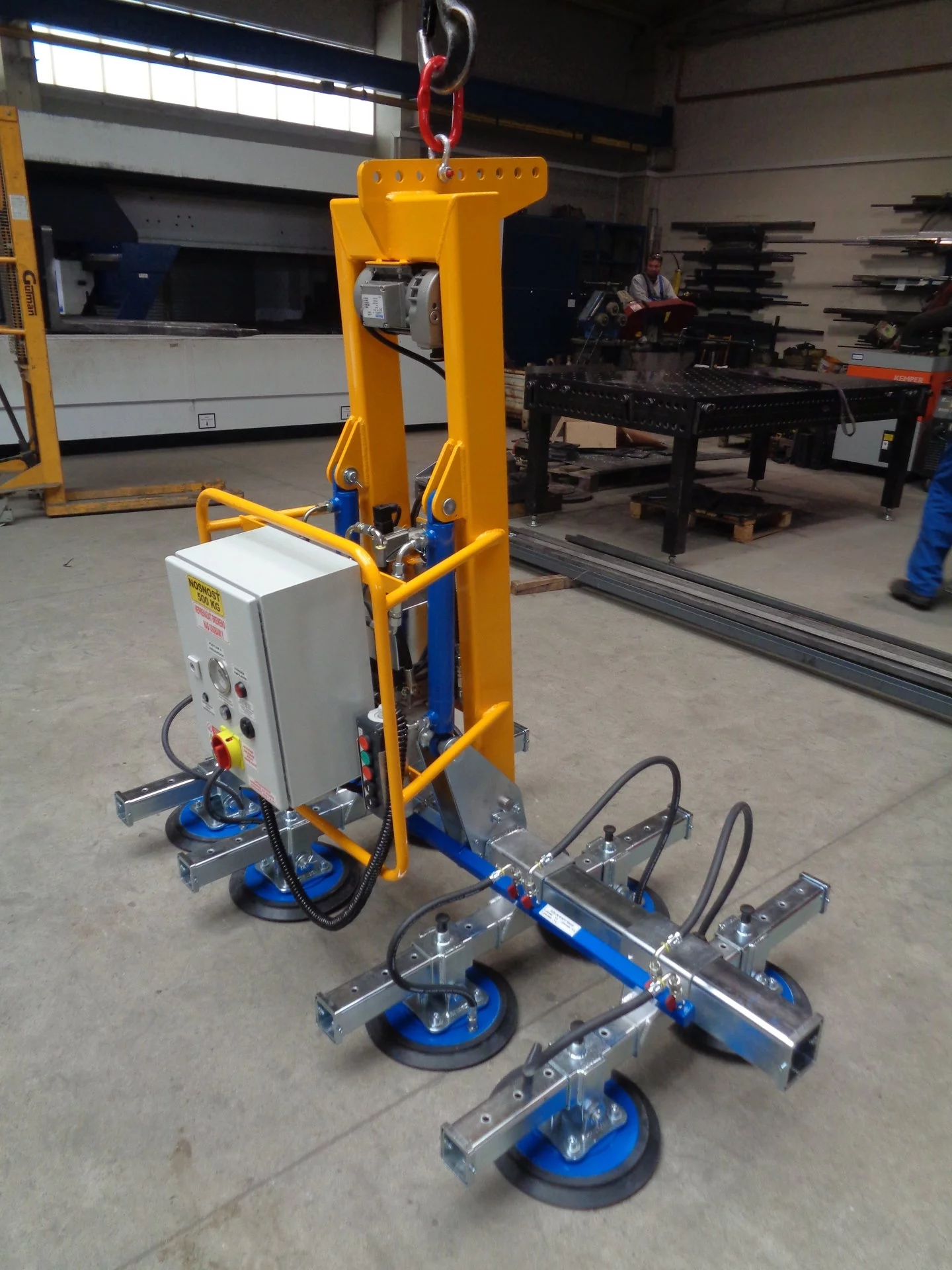

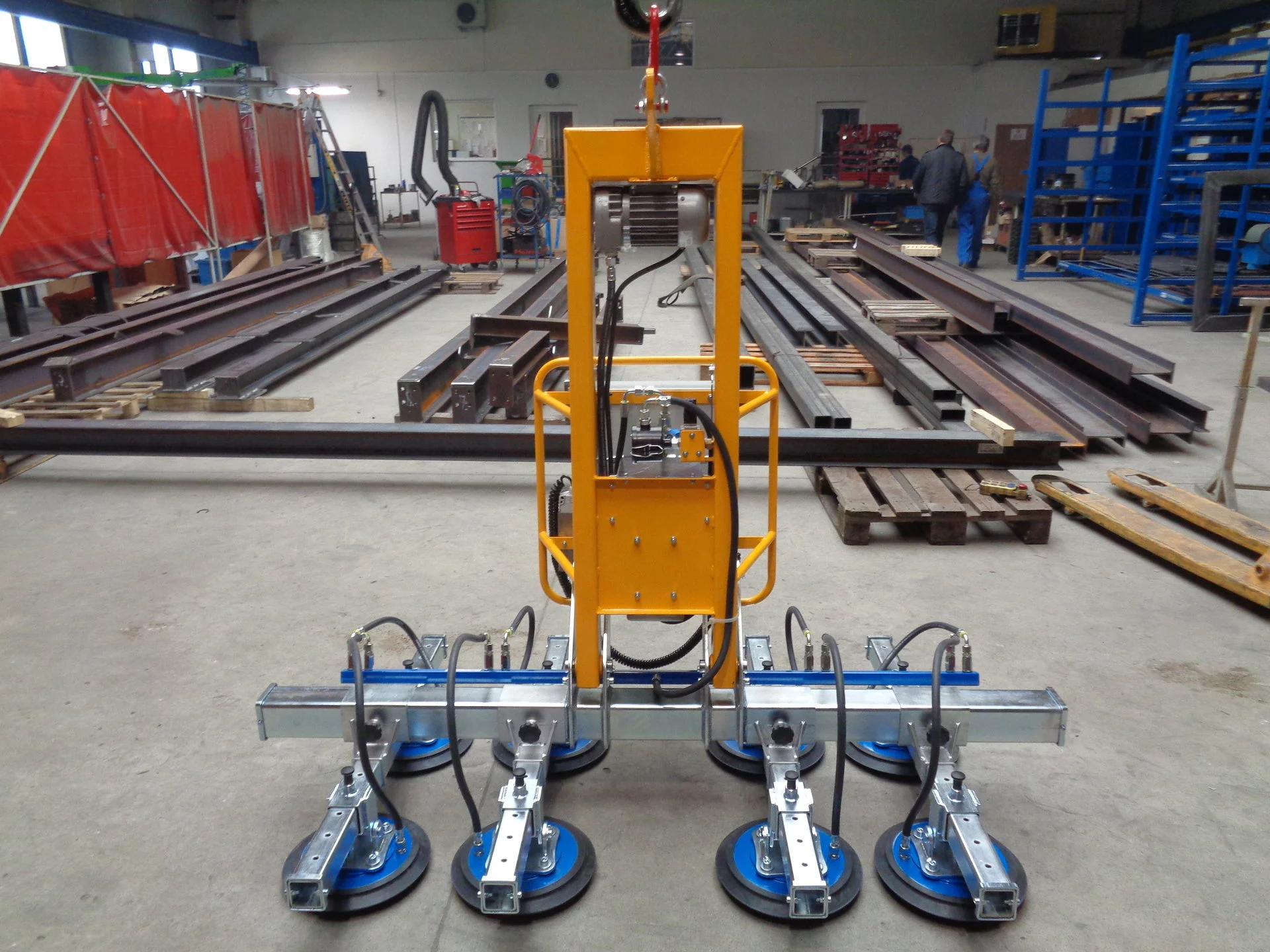

Photo gallery

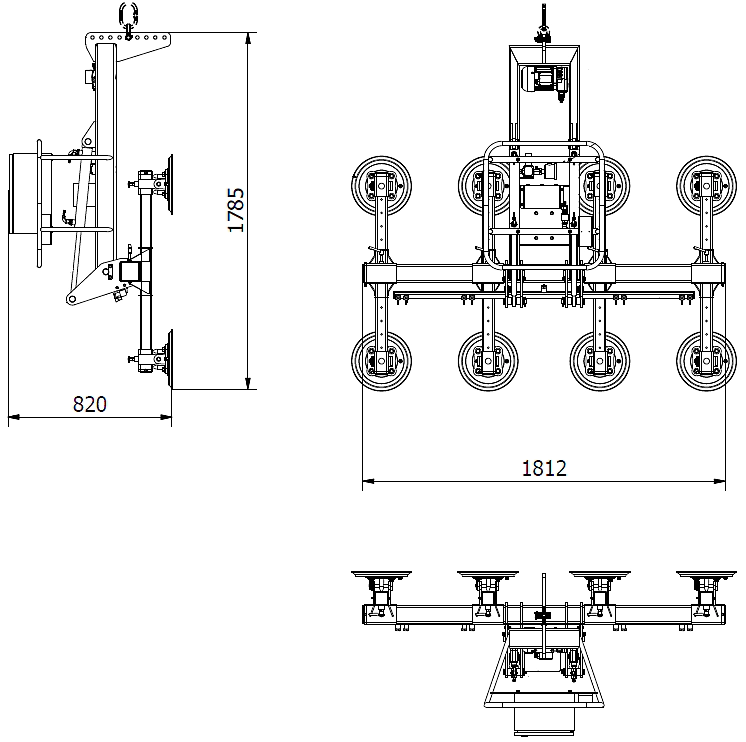

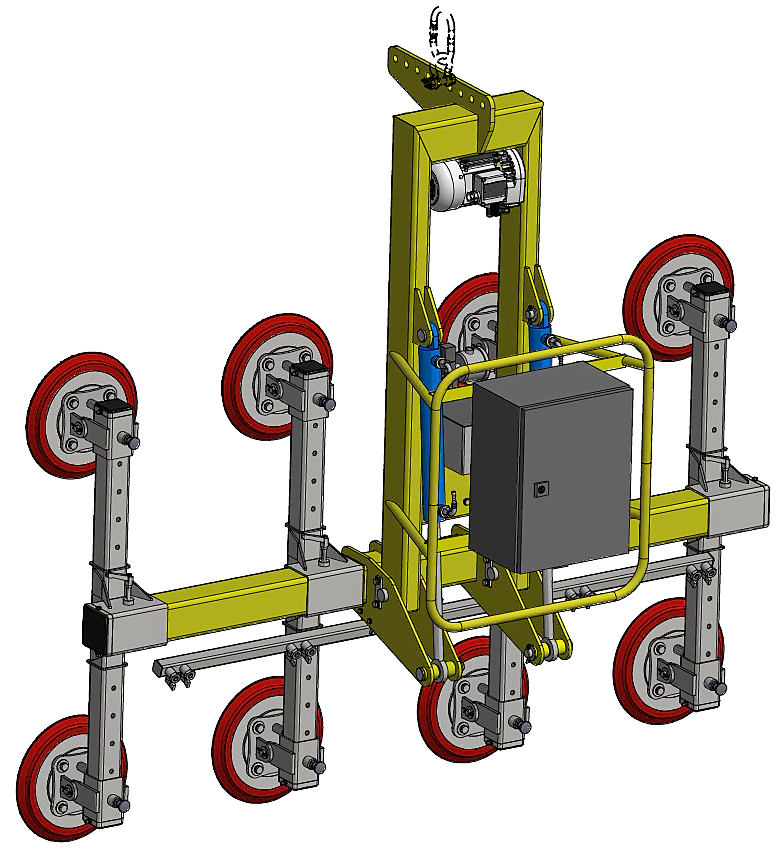

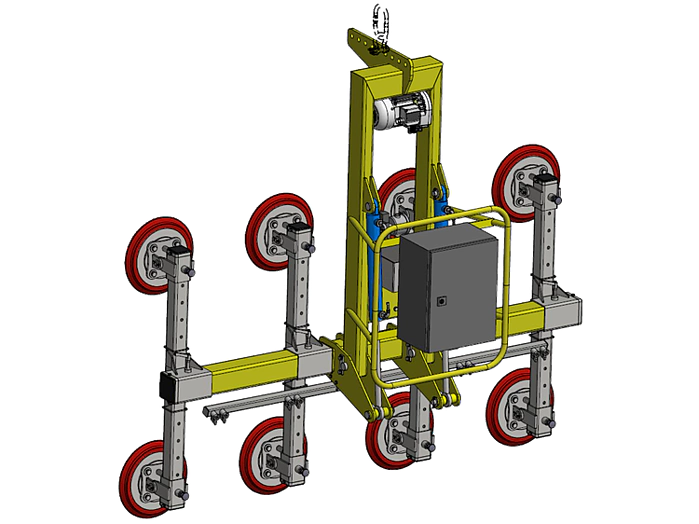

3D models + drawings
