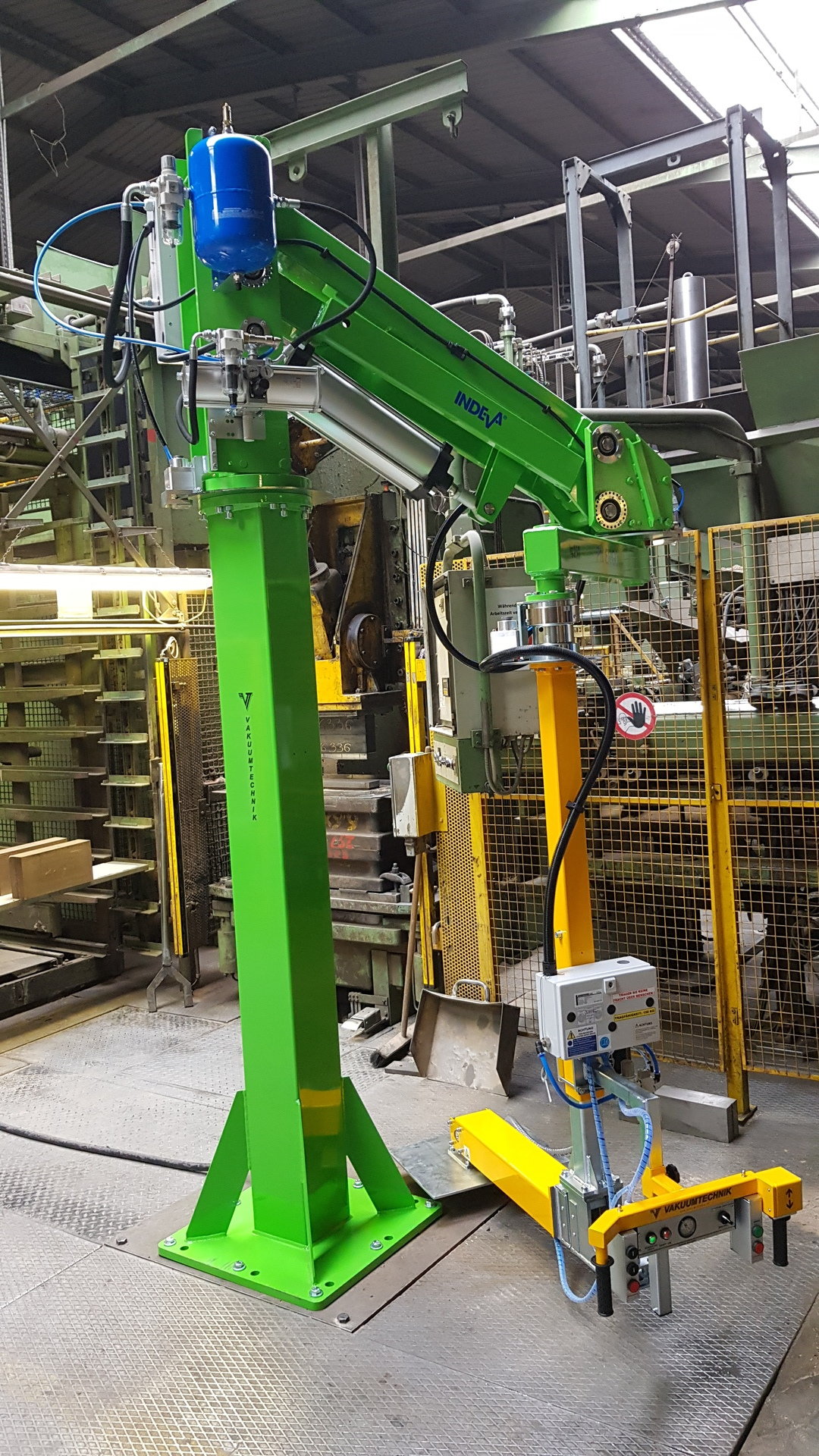

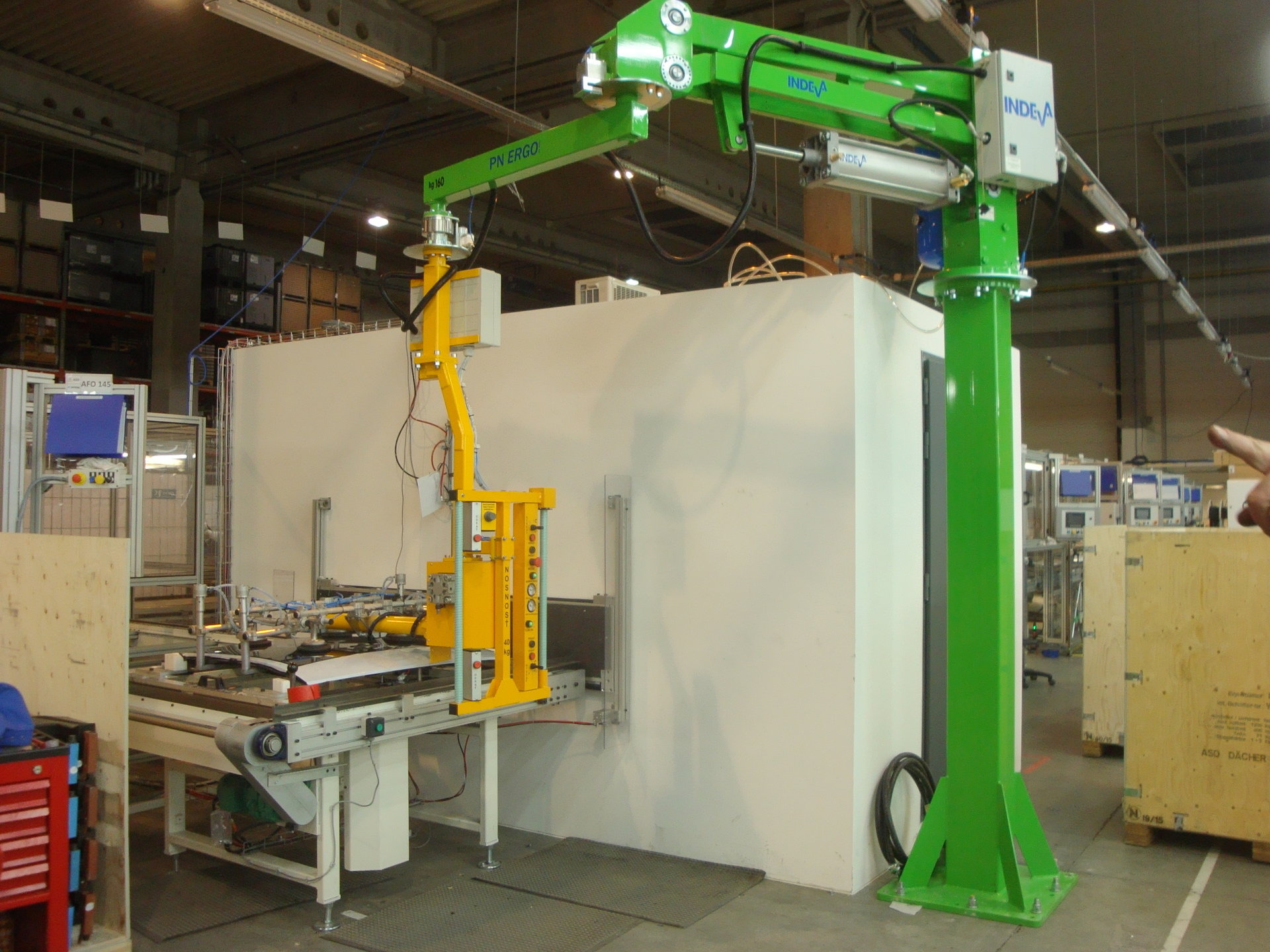

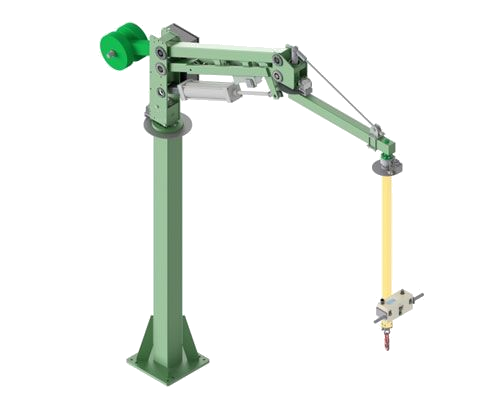

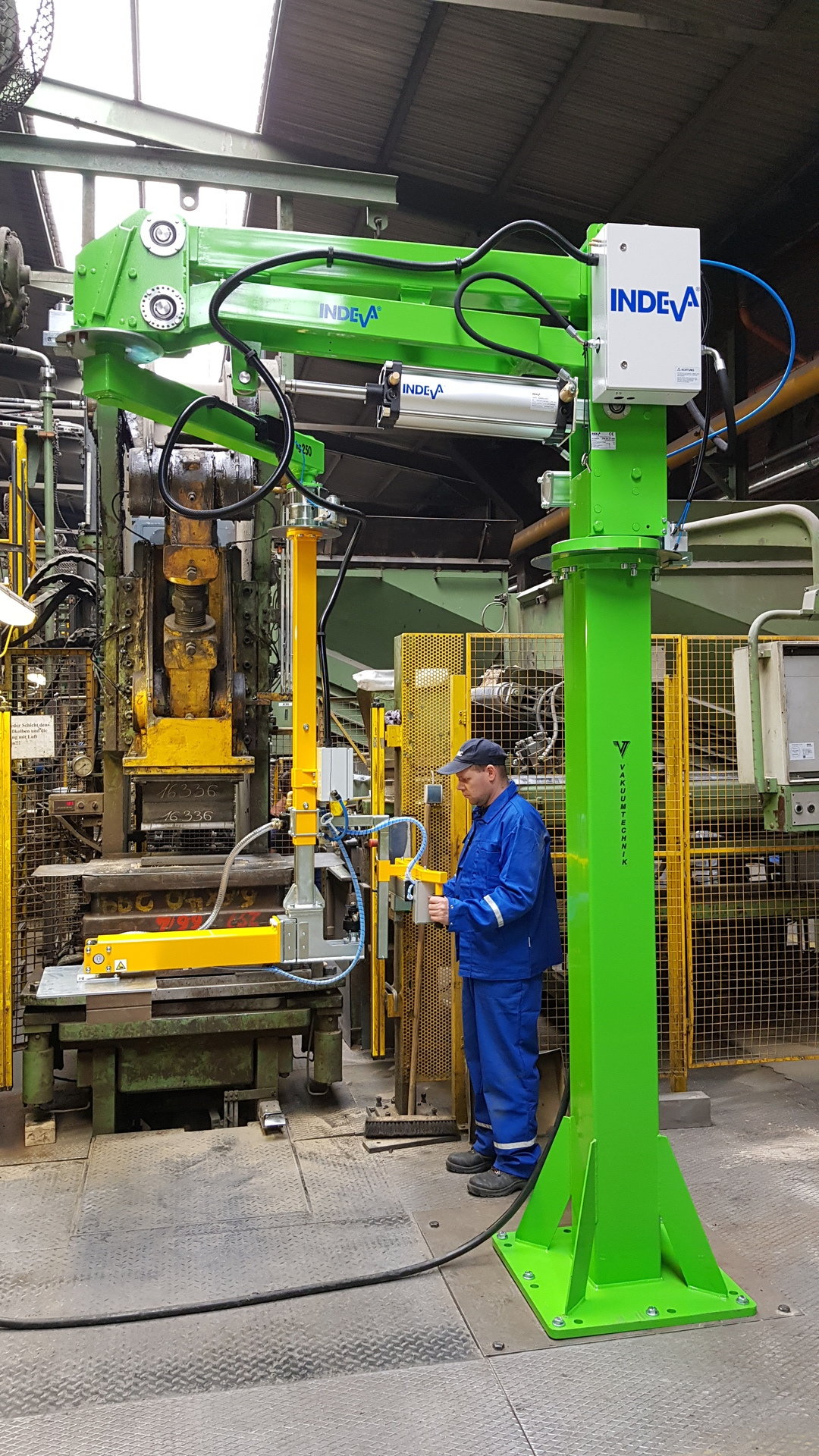

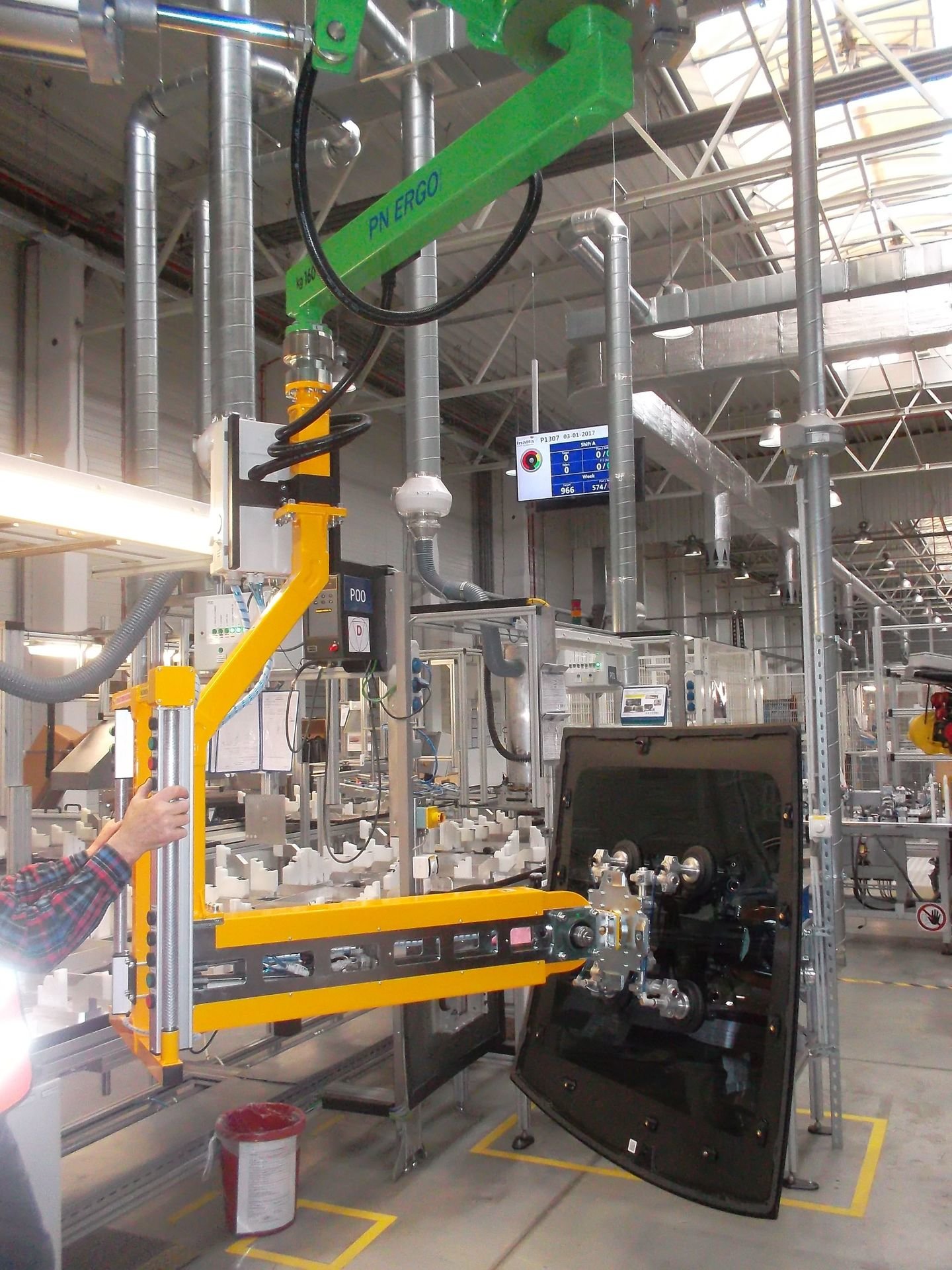

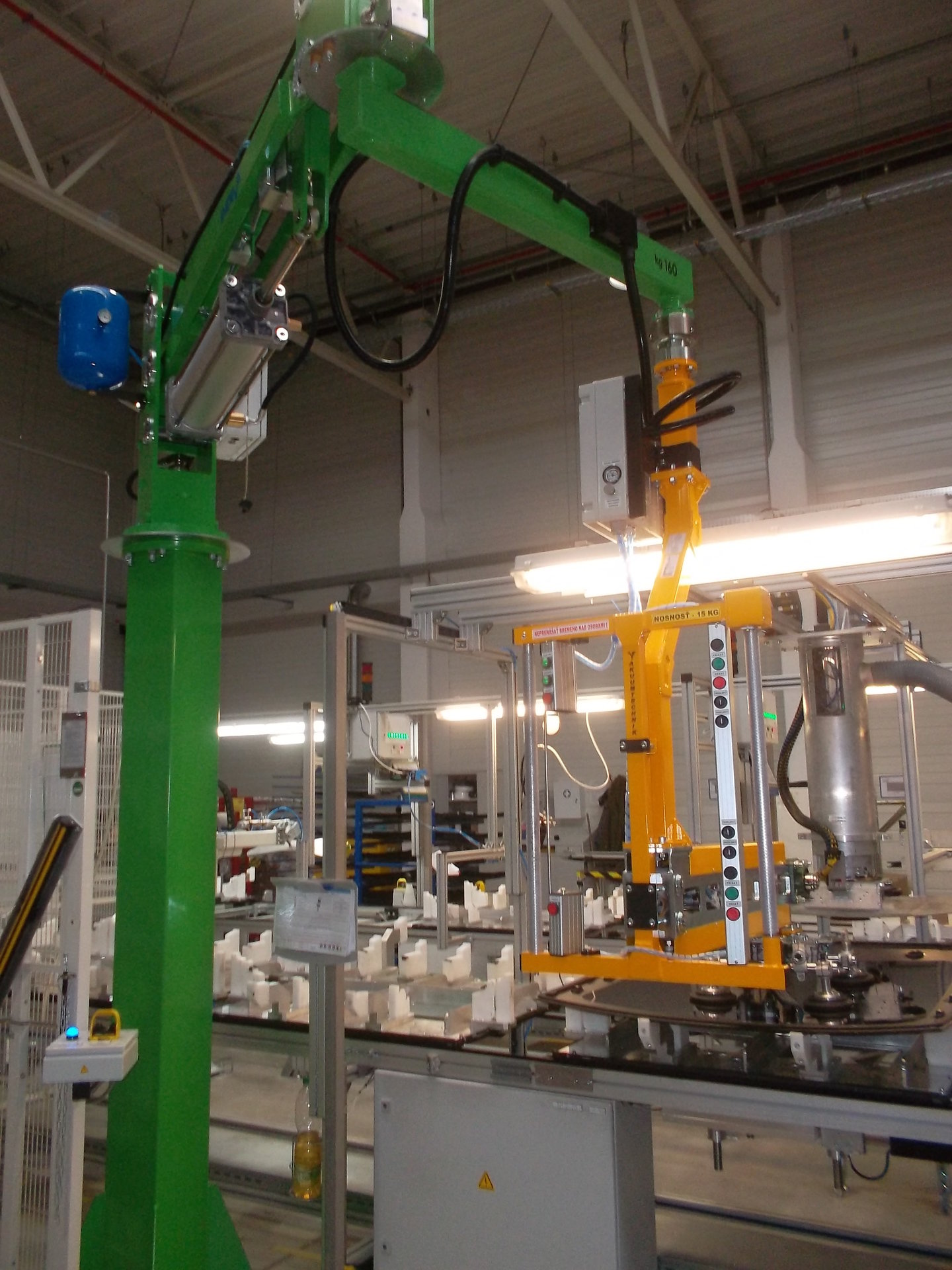

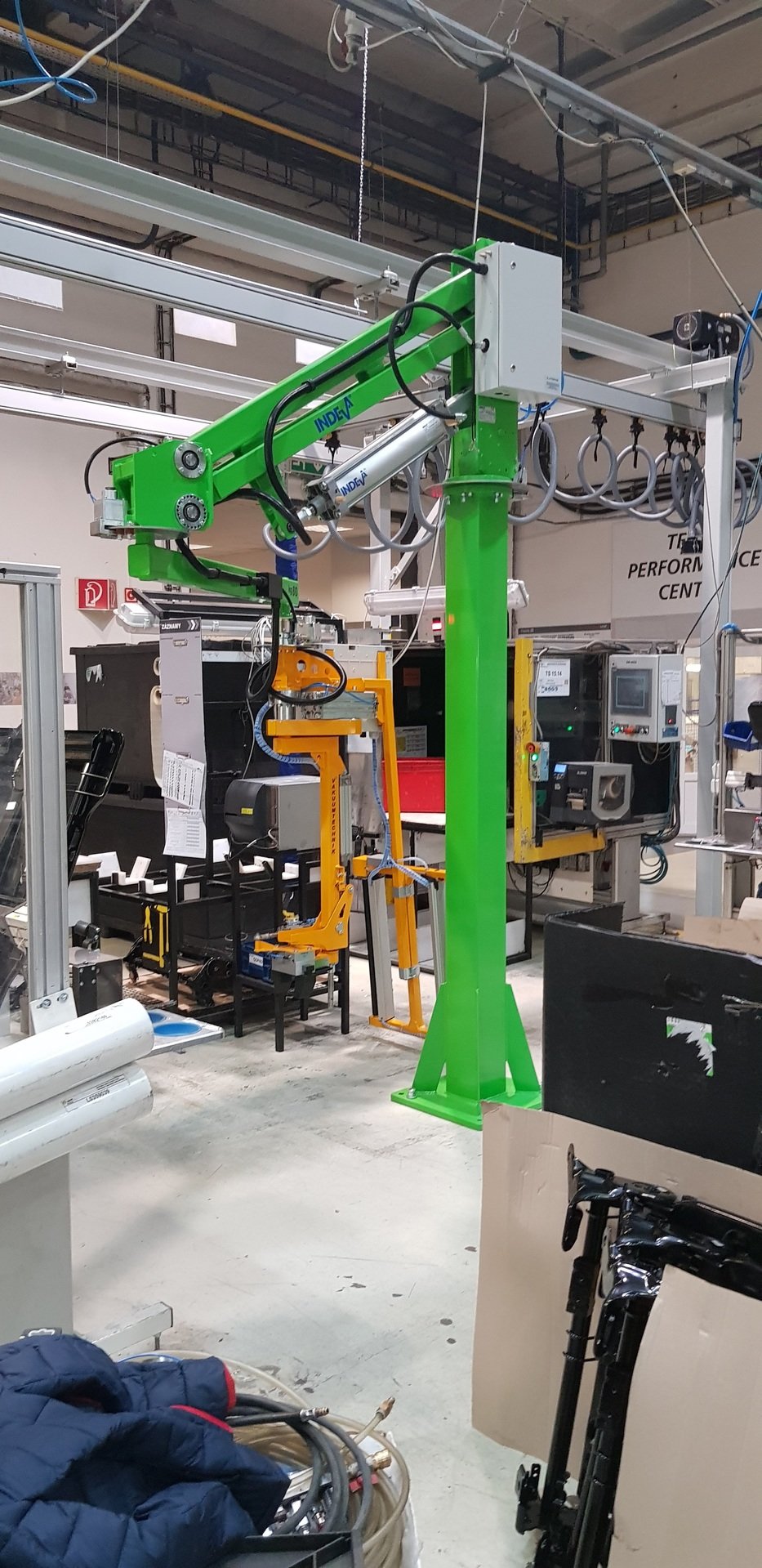

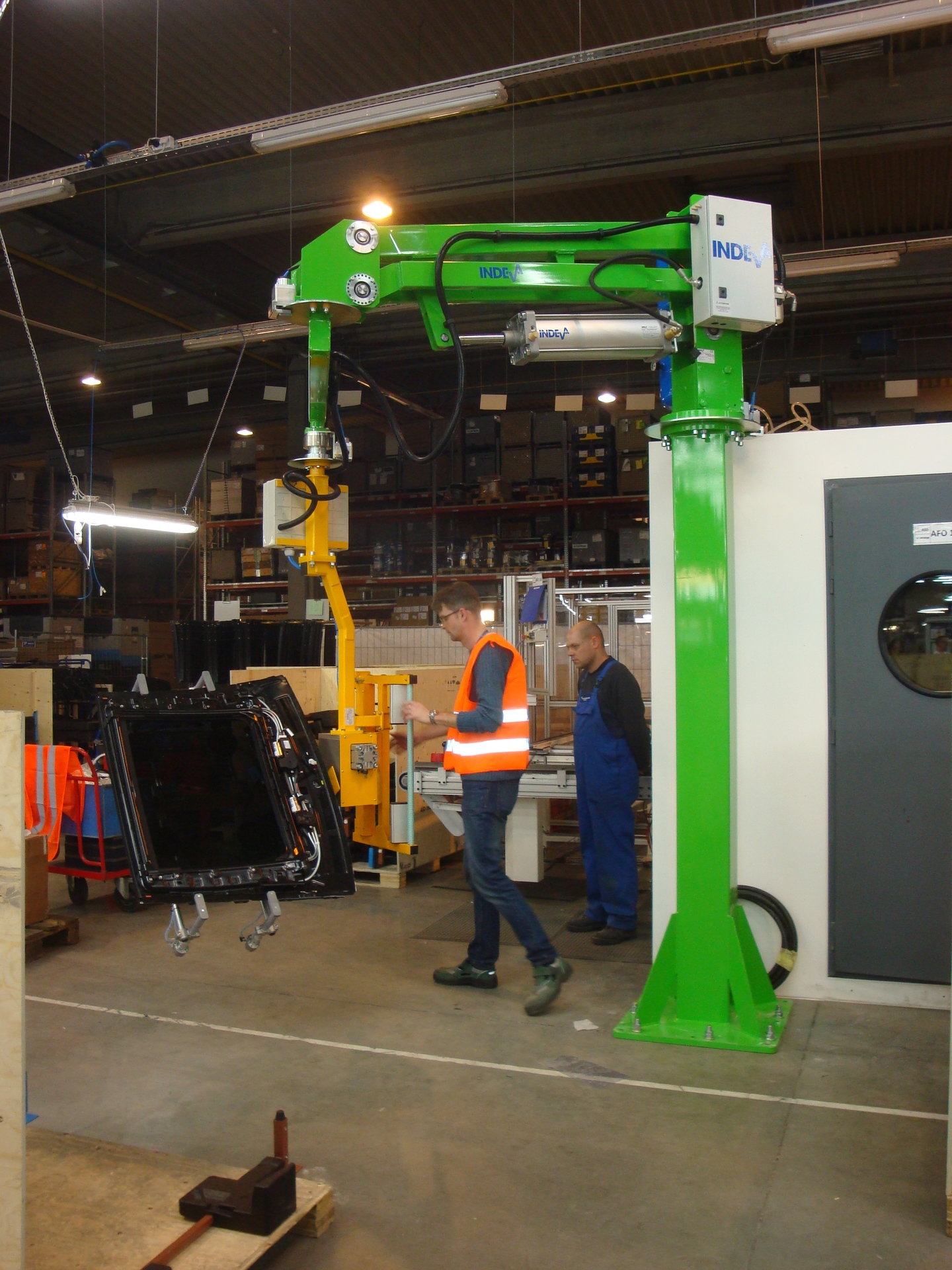

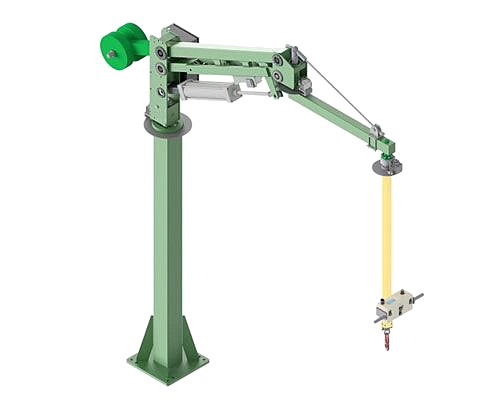

PN ERGO - column construction is a lifting device that is installed on the concrete floor of the user's hall with chemical anchors, or on a mobile steel pallet (option).
Manipulator with a fixed arm, suitable for handling offset loads.
This device can be implemented in graduated load ranges from 80 kg to 310 kg.

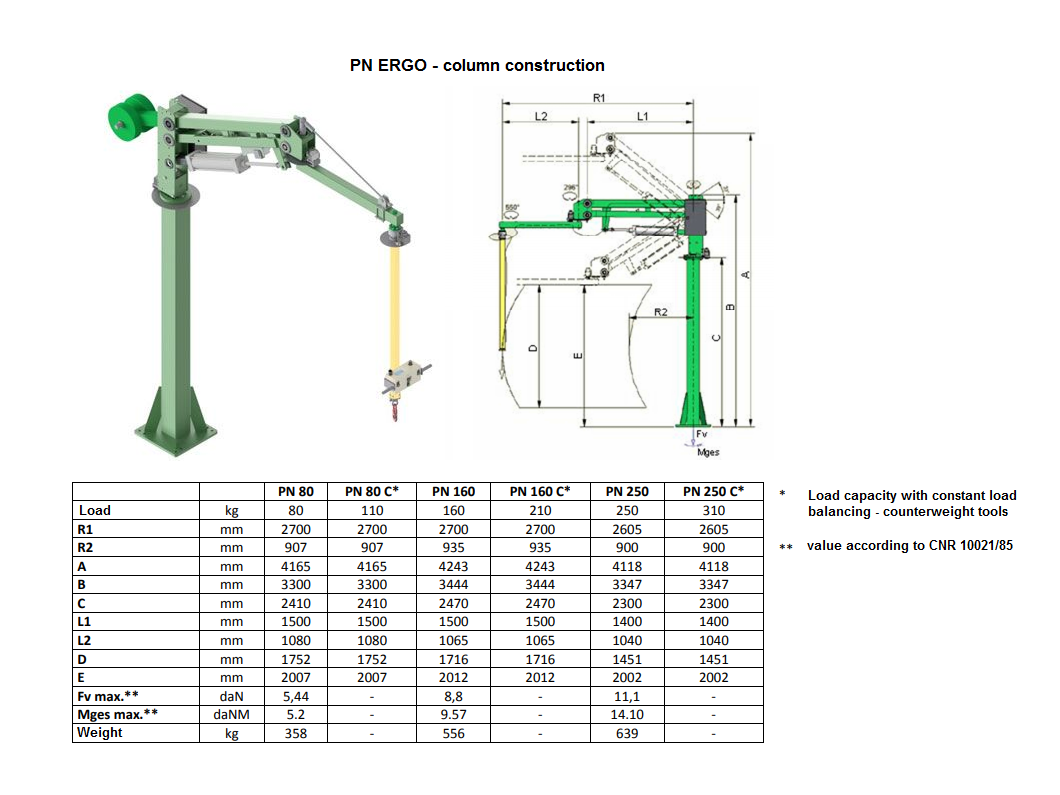

| Maximum lifting capacity | 80kg, 110kg*, 160kg, 210kg*,250kg a 310kg* |
| Shoulder lengths: | 2600mm, 2700mm |

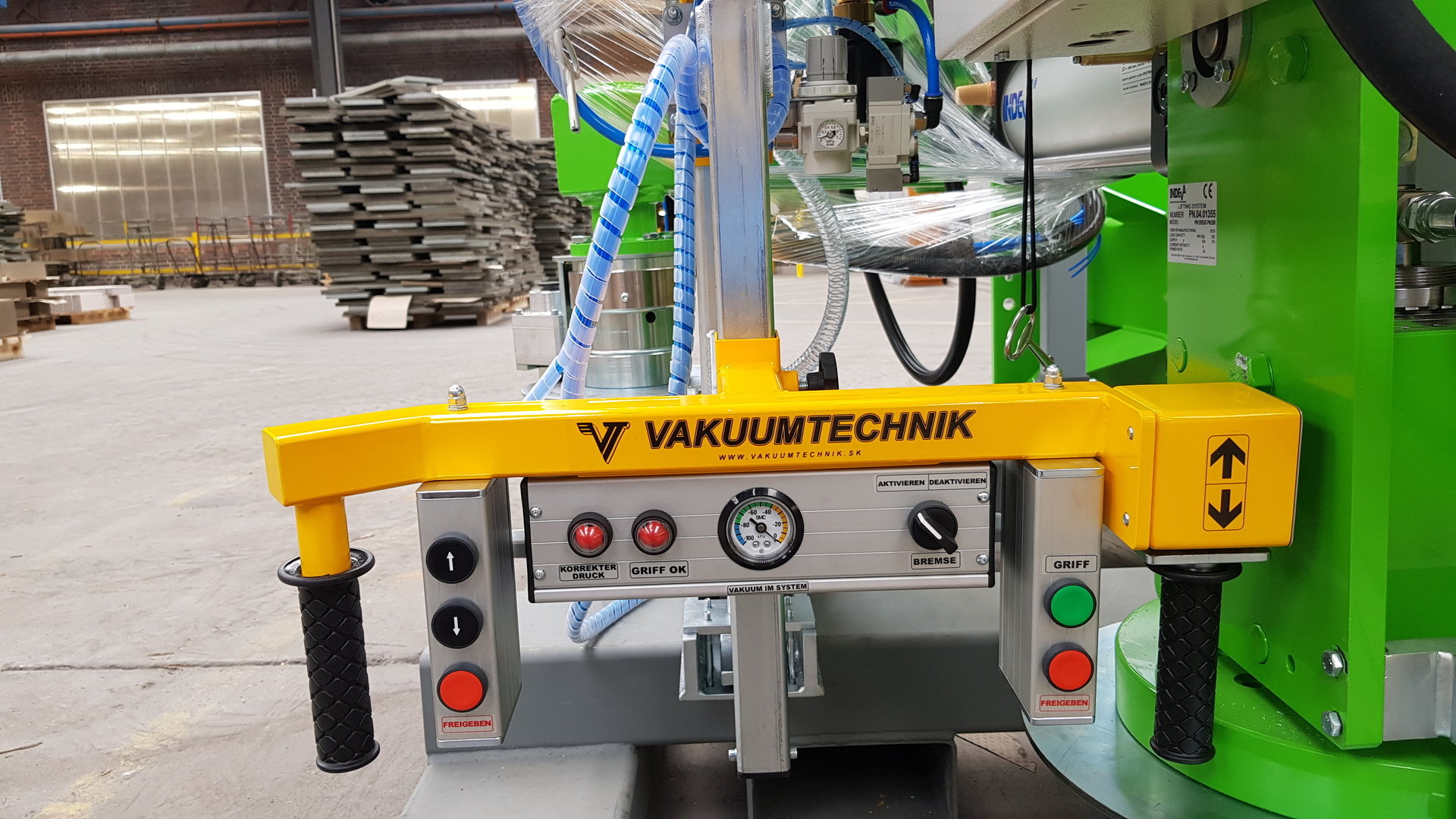

| Control: | pneumatic |
| Operating pressure: | min. 6,5 bar |
| Operating temperatures: | +5° až +50° C |
| Noise emissions: | <70 dB |
| Safety: | - possible design with explosion protection in hazardous environments according to ATEX standards |
| - in the event of a pressure failure, slow lowering of the load handler to the ground |
*manipulators with constant load balancing (tools) with a fixed counterweight
