VACUUM MANIPULATOR - VM 200/1-180°/EP

Basic description:

  • main supporting steel structure with a multipositional suspension
  • Hydraulically tilting suction cup with max. angle 180°
  • suction cups in size 630x360 mm
  • Vacuum pump – 400V design, three phase system
  • vacuum tank ensures safe lifting of the load even in the event of an unexpected power failure of the pump
  • acoustic and visual signalisation of insufficient vacuum in suction cups
  • GRIP - thrugh push-button control conveniently located at the control handles on the spiral cable up to 3 m
  • RELEASE - thrugh a push-buttons control conveniently located at the control handles on the spiral cable up to 3 m
  • TILTING the load by 0 ° / 180 ° via push-button control on a spiral cable up to 3 m
  • spiral cable for connecting a manipulator up to 3 meters
  • quick-clamping system el. connection via connector

Application:

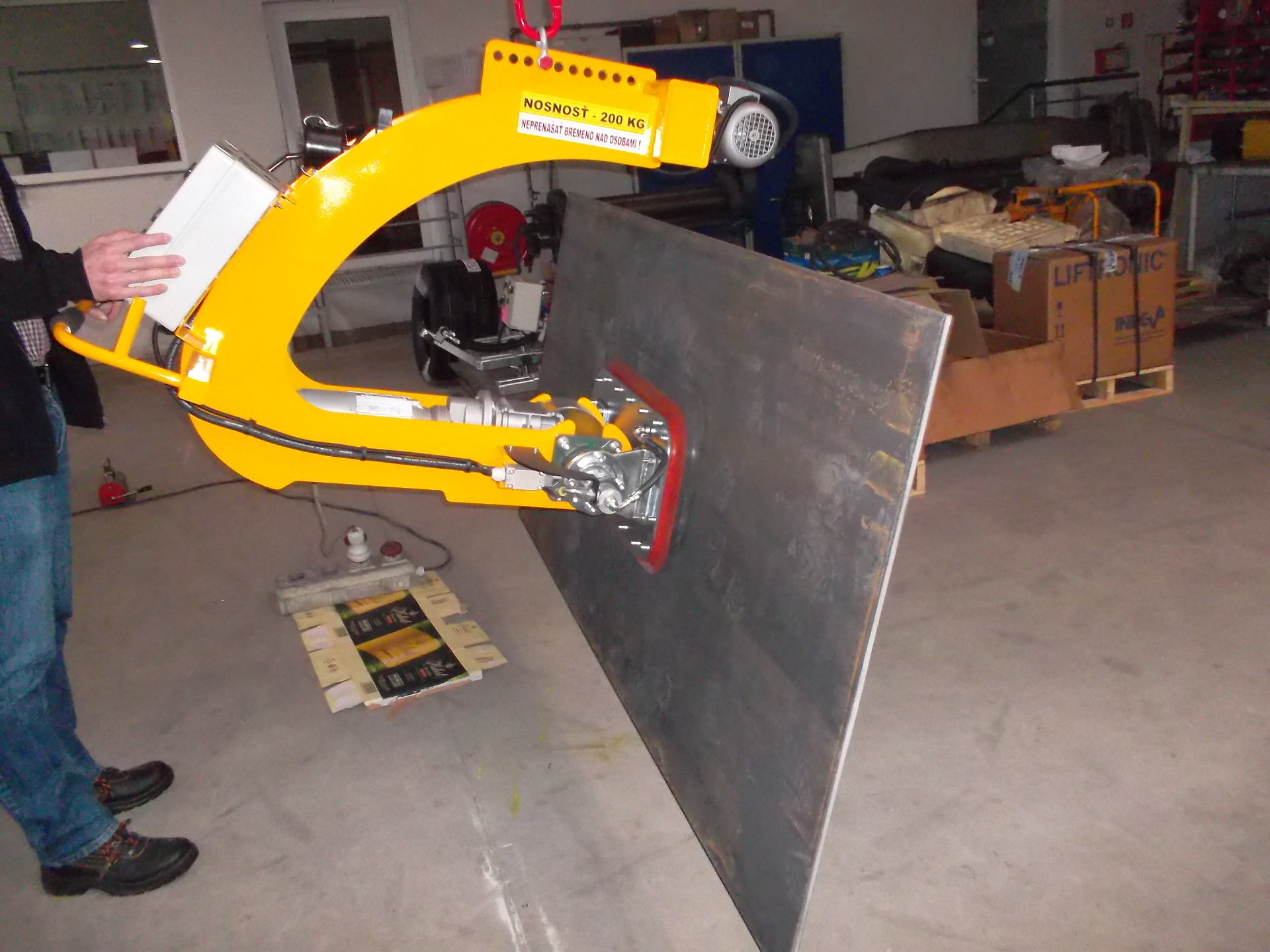

The vacuum manipulator VM 200/1-180°/HYD is a handy little gripping device that allows you to grip and handle small, medium or large-sized flat loads up to 200 kg in a horizontal or vertical position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the vacuum manipulator will be suspended on.

Potential types of loads to be handled:


✓    Glass plates and boards
✓    Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
✓    Plastic plates and boards
✓    Stone with grinded surface
✓    Wooden plates and boards covered with air-tight finish

Benefits:

Simple – very convenient anddedicated device that is easy to operate

Variable – transverse beams and suction cups on the beam can beeasily adjusted by hand

Safe – safety guaranteed in every situation

Basic technical information:

Maximum load capacity200 kg (with negative pressure –0.6 MPa (-60 kPa))
Designed for manipulationin a horizontal or vertical position
Weight135 kg
Max. load dimensions2000x1000 mm
Min. load dimensionsbremena650x400 mm
Power supply3+PE (PEN) 400VAC/50Hz/15VAC

Information table:

Number of suction cups / dimensions (mm)MAX. CAPACITY (kg)WEIGHT (kg)Max. width (mm)Max. depth (mm)Max. height (mm)Diameter of suction cup (mm)
1/630x360200135704,513081007630x360

Photo gallery

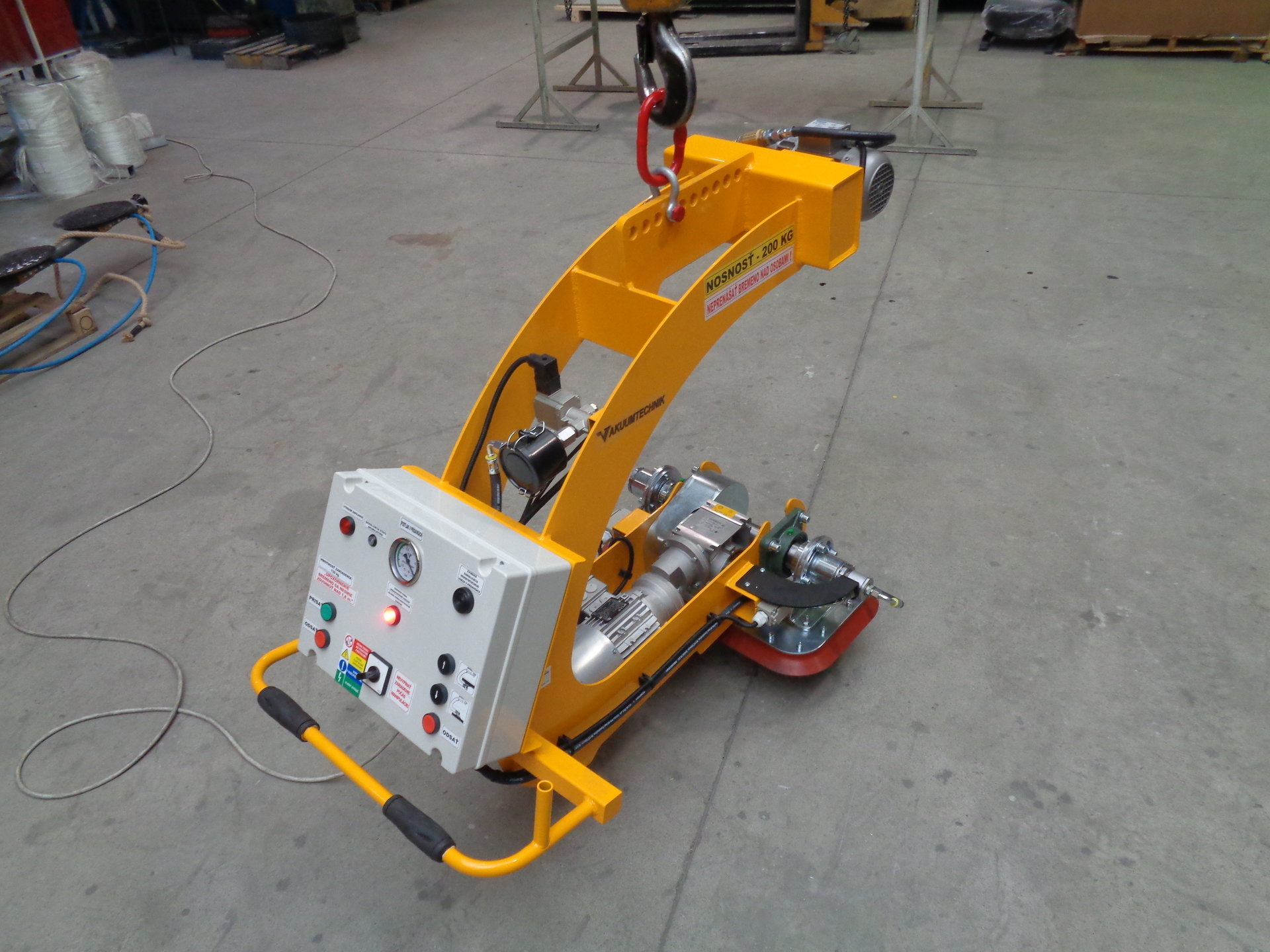

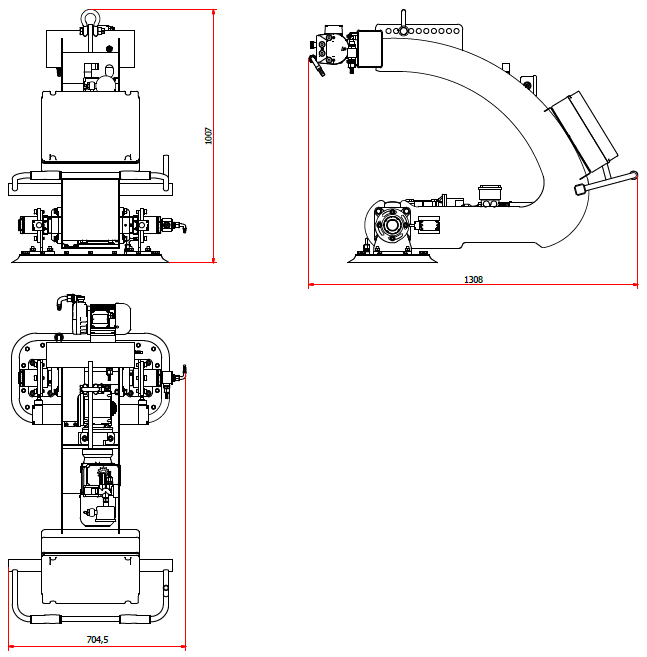

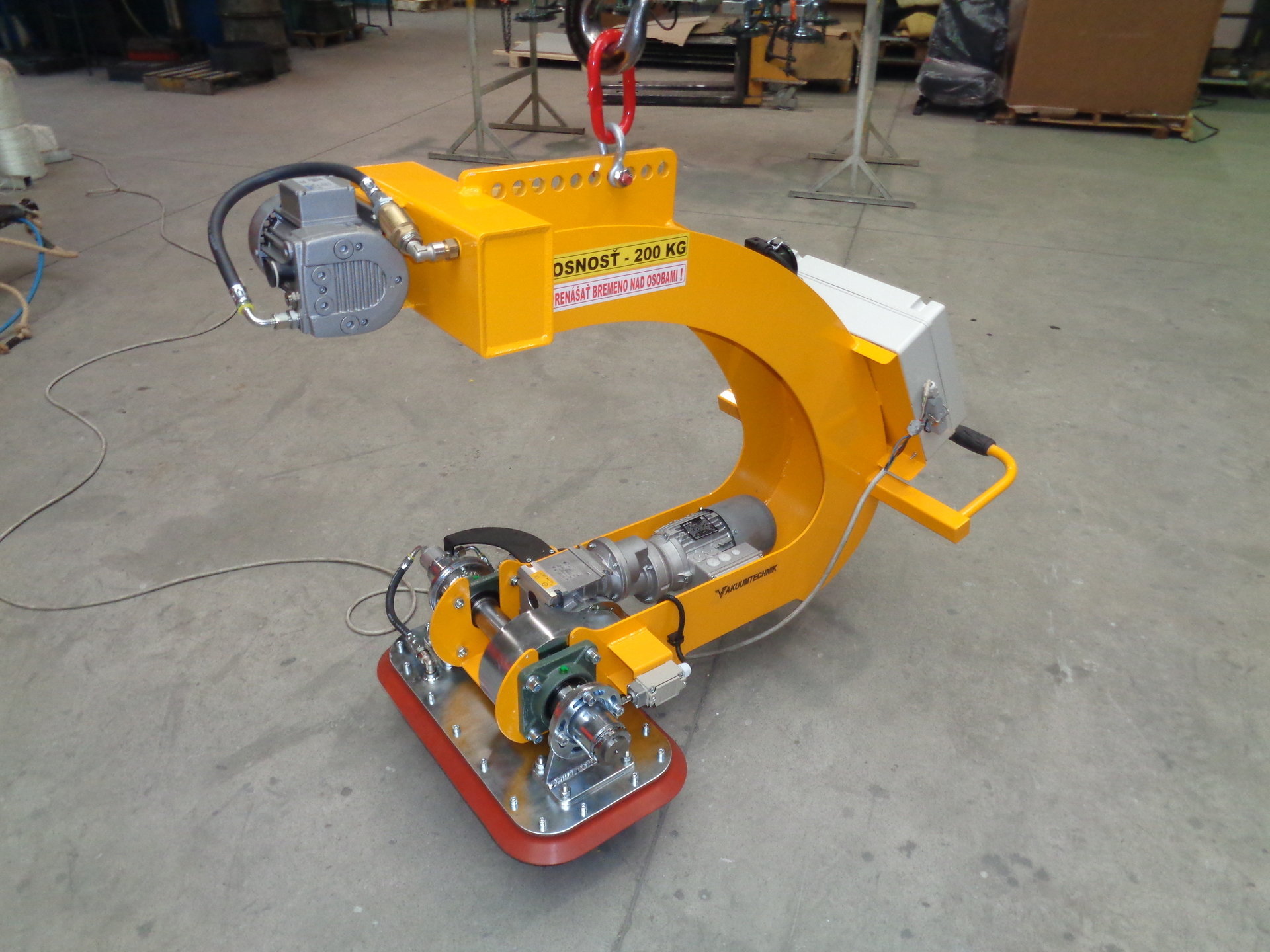

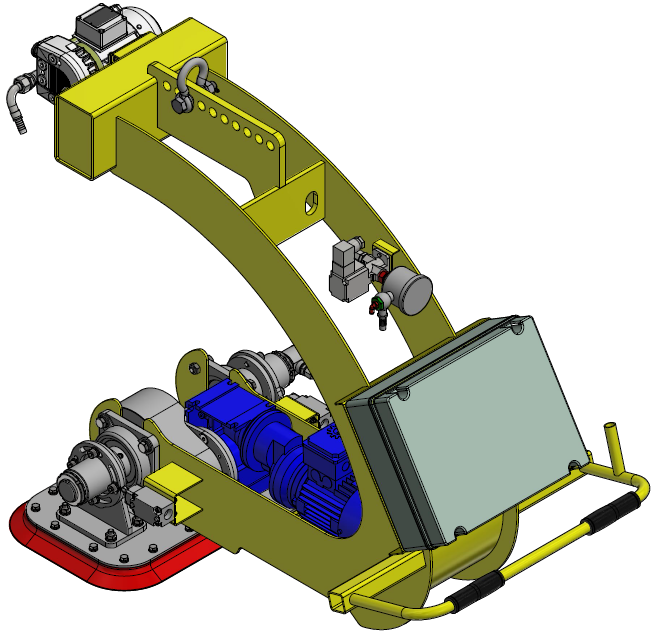

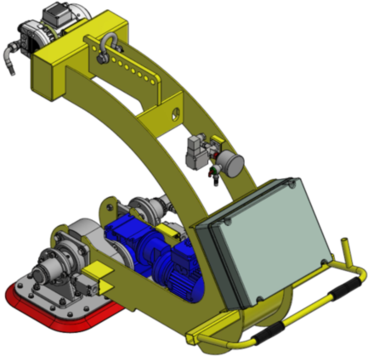

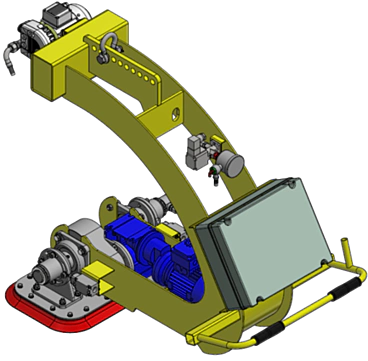

3D models + drawings
