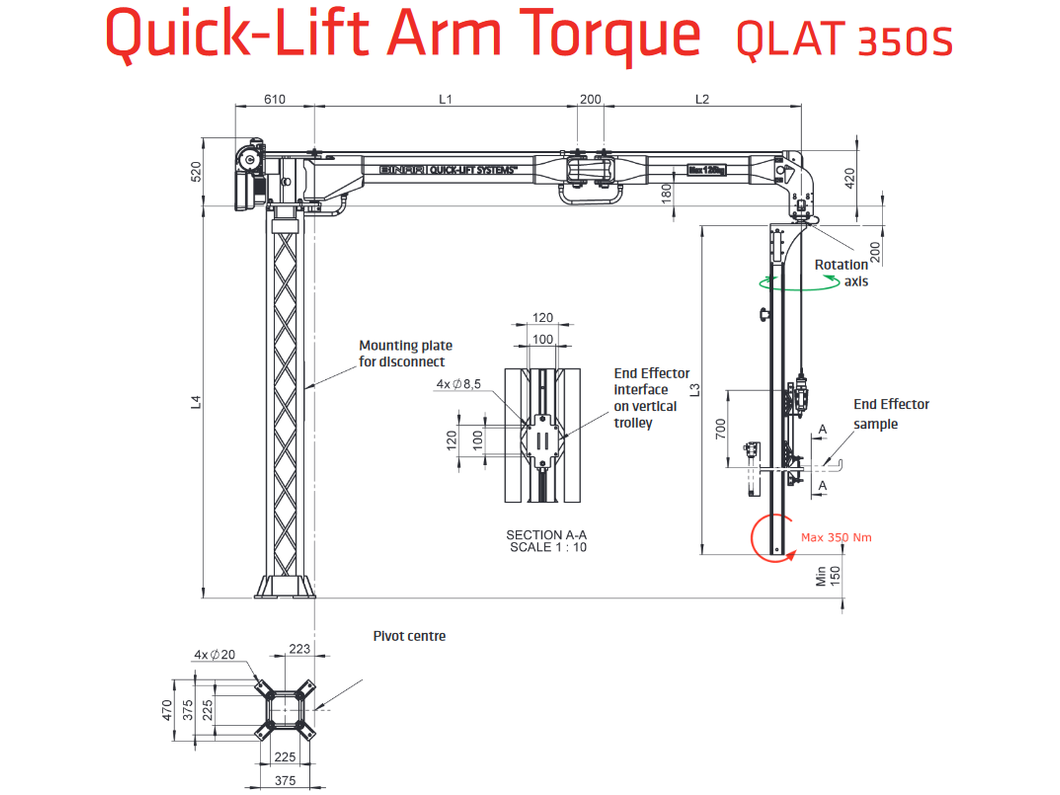

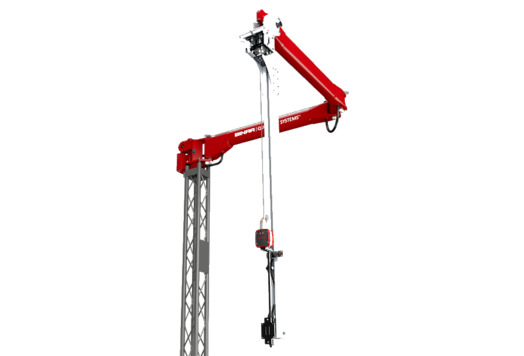

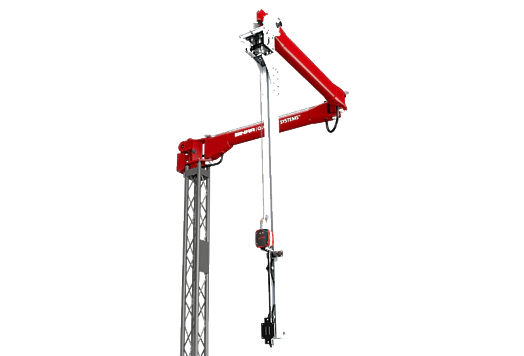

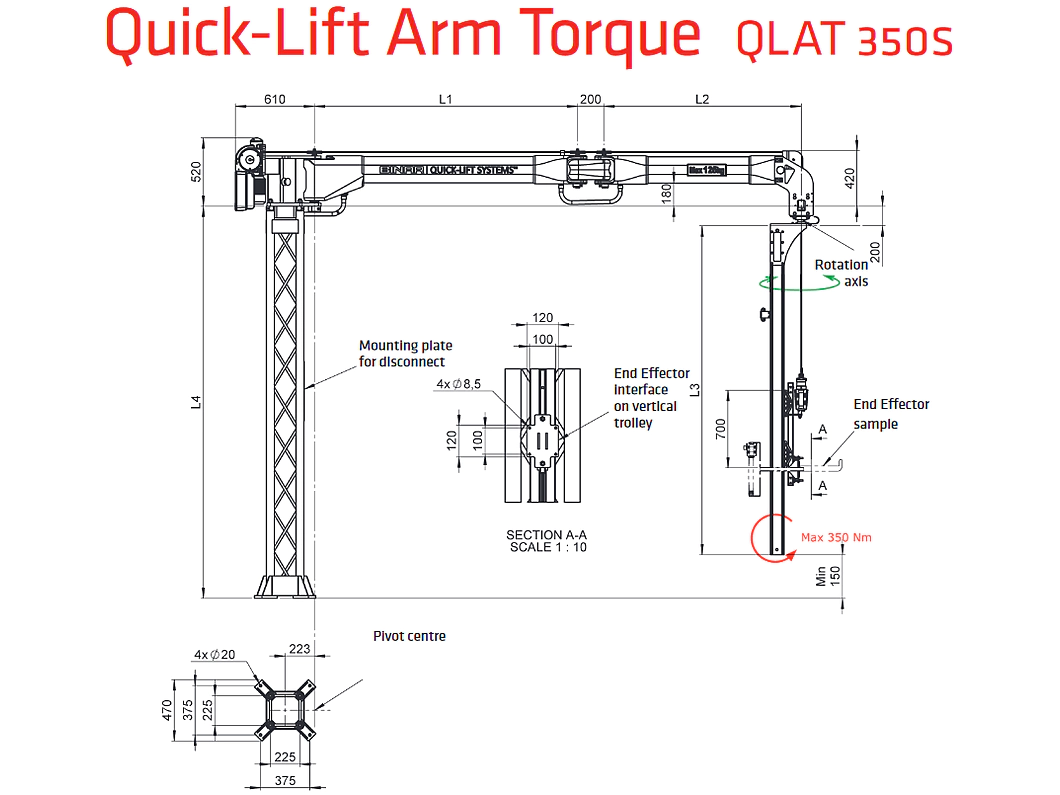

Electronic balancer Quick-lift Arm Torque 350s - column construction is a lifting lift, which is installed on the concrete floor of the user's hall with chemical anchors, or on a mobile steel pallet (option) Manipulator with a fixed arm, suitable for handling offset loads.
This device can be realized in a load capacity of up to 125 kg.
Intelligent lifting device which meets the highest standards of ergonomics, working environment, safety and efficiency.
Provides possibility to effortlessly handle eccentric loads. Easy to use, thanks to outstanding reaction, regardless of load weight.
The solution includes an adaptation of vertical torque arm and torque trolley, mounting of the torque attachment onto the horizontal arm at Binar Quick-Lift Systems AB.
A special calculation needs to be performed to determine the horizontal and vertical arm lengths. This has to be done by Binar Quick-Lift Systems AB in corporation with resale office and the customer.
Electronic balancer Quick-lift Arm (QLATs) - column construction is a lifting device that is installed on the concrete floor of the user's hall with chemical anchors, or on a mobile steel pallet (option) Manipulator with a fixed arm, suitable for handling offset loads.
This balancer can be realized with a load capacity of 125 kg.
| TYPE | QLAT 350s |
|---|---|
| Maximum load: | 125 kg |
| Stroke drive: | Continuously controlled asynchronous electric motor |
| Lift: | 2700 mm |
| Arm boom length: | 4200 mm |
| Electrical connection: | 230V, 50–60 Hz, 1 phase, 10 A |
| Product_Leaflet_QLAT_350s_EN_BQLS.pdf |
