VM 1500/1 - 90°HYD

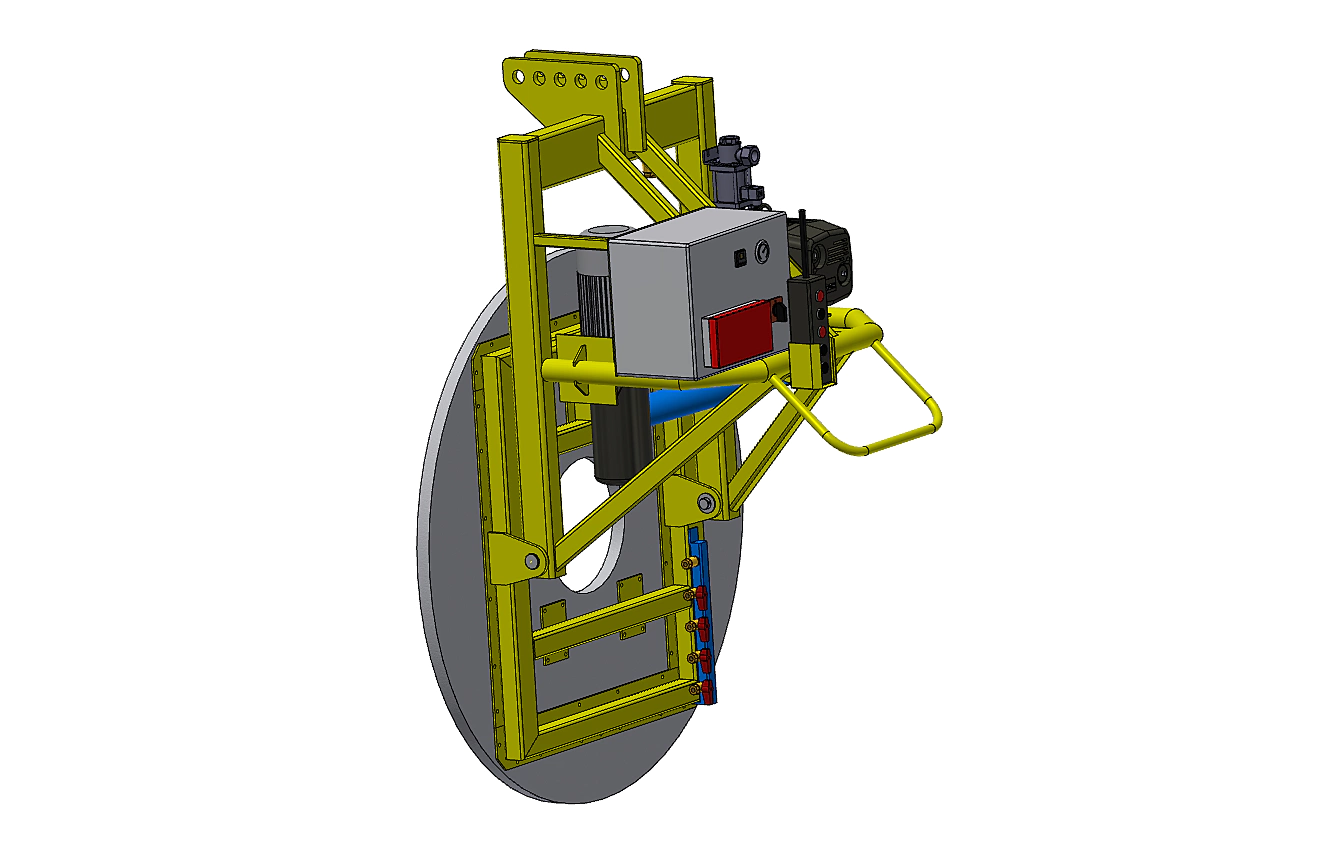

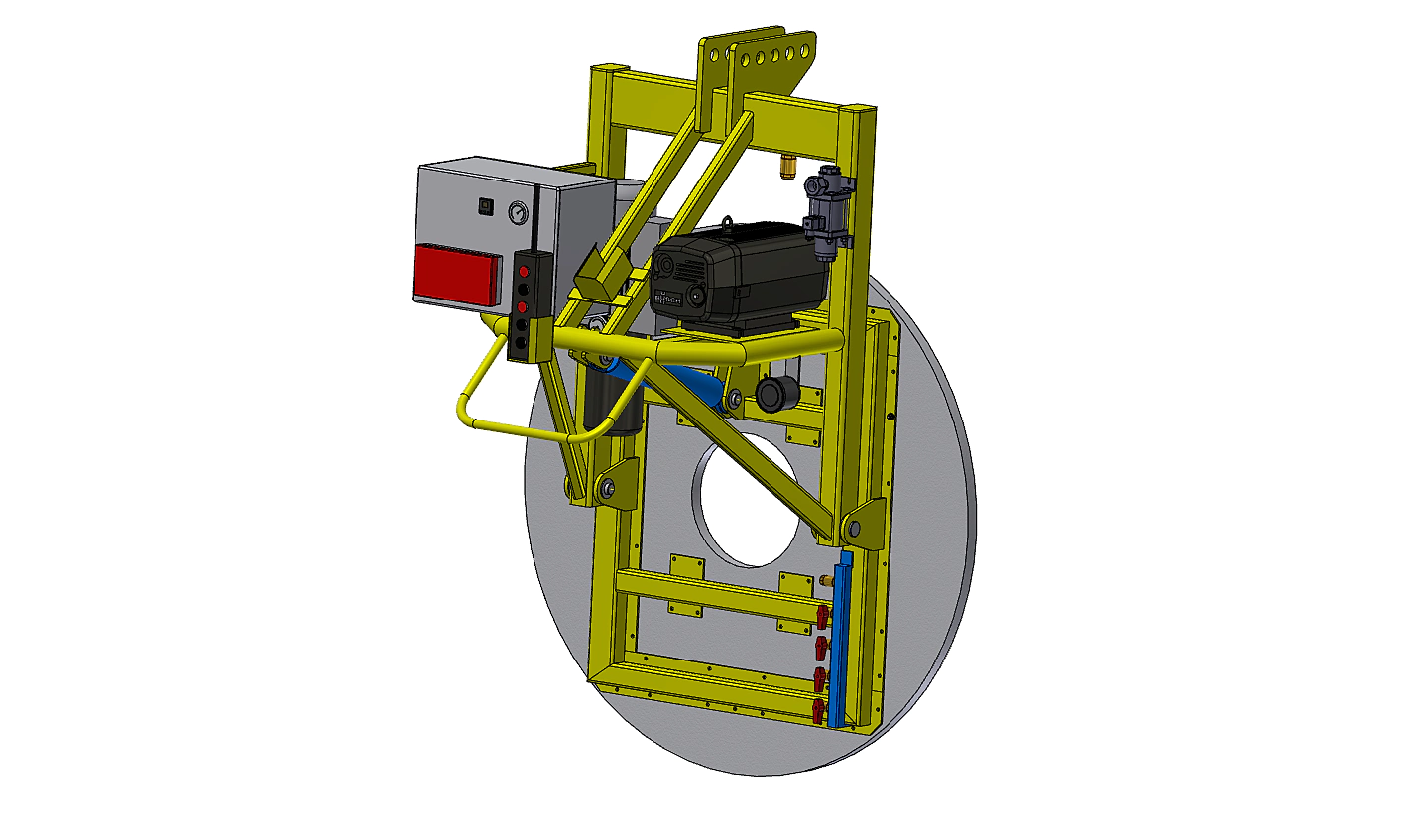

VACUUM MANIPULATOR - VM 1500/1-90°HYD

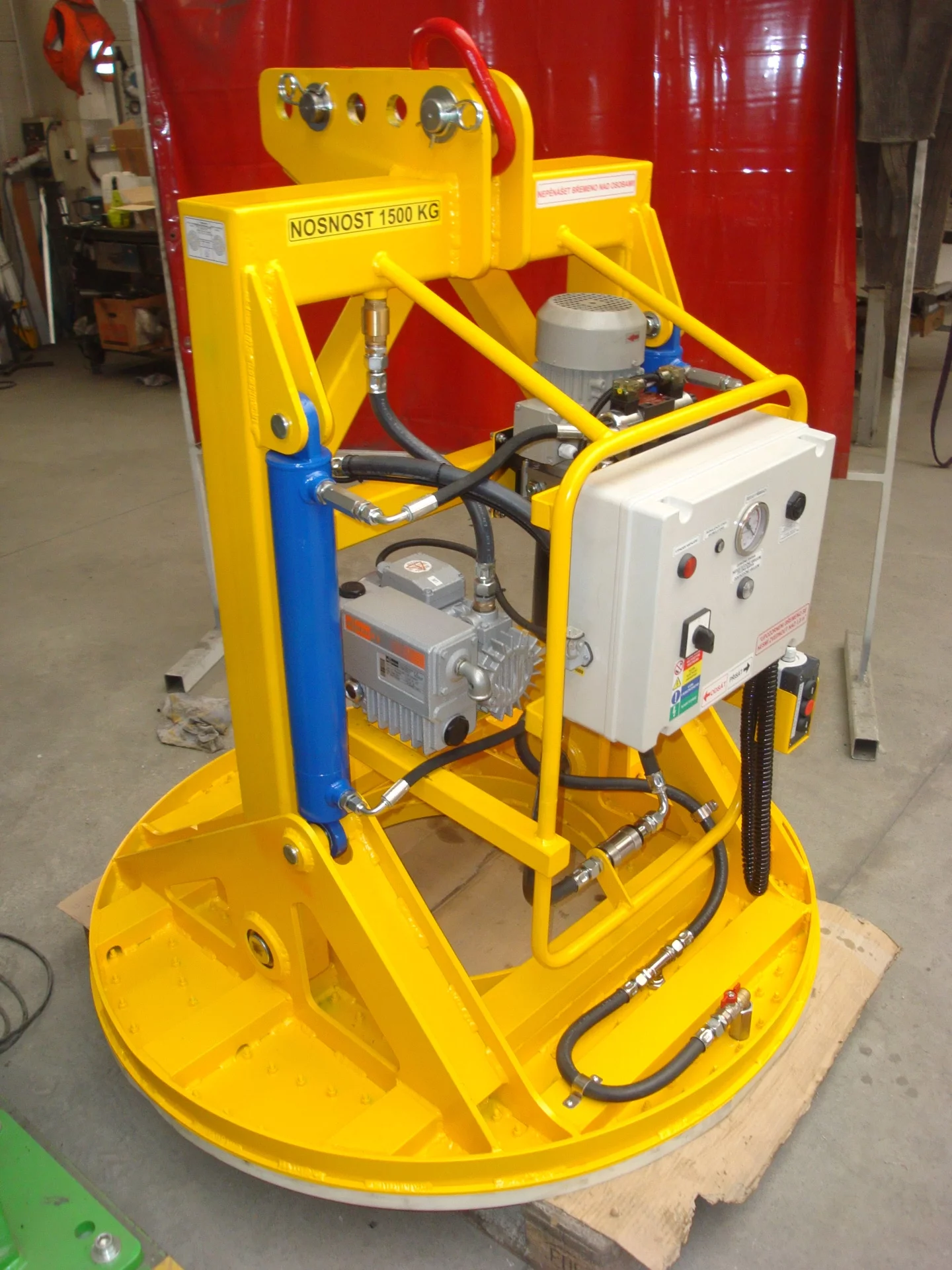

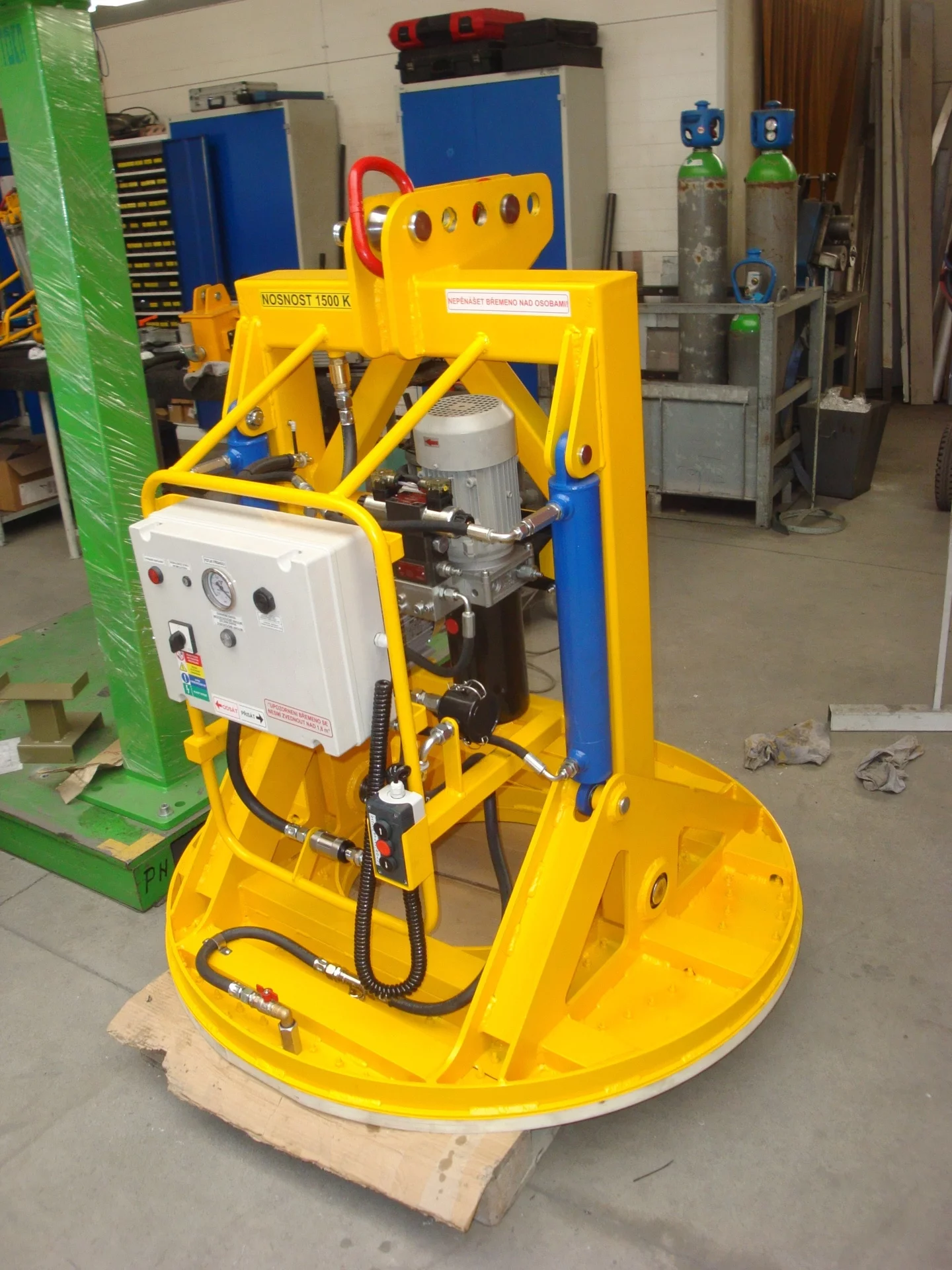

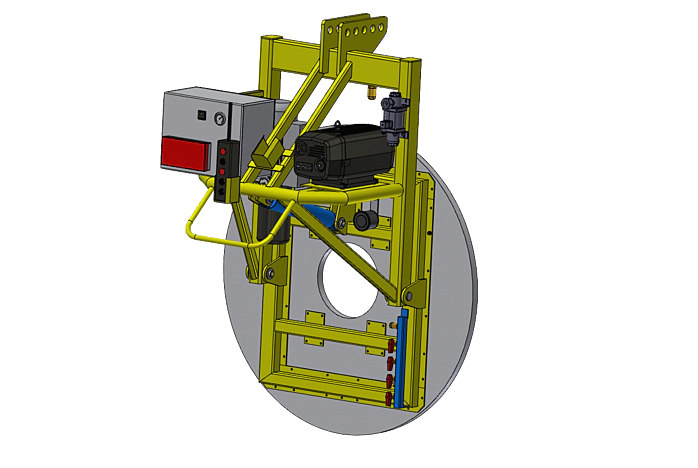

Basic description:
- main supporting steel structure with a multipositionalsuspension
- hydraulically tilting suction cup with max. angle 90°
- special large-format suction cup with a diameter of 1220 mm
- two vacuum circuits for smaller and larger load diameters
- manually adjustable vacuum circuits in suction cups
- Vacuum pump – 400V design, three phase system
- vacuum tank ensures safe lifting of the load even in the event of an unexpected power failure of the pump
- acoustic and visual signalisation of insufficient vacuum in suction cups
- GRIP - thrugh push-button remote control conveniently located at the control handles on the spiral cable up to 3 m
- RELEASE - thrugh a push-button remote control conveniently located at the control handles on the spiral cable up to 3 m
- TILTING the load by 0 ° / 90 ° via push-button control on a spiral cable up to 3 m
- spiral cable for connecting a manipulator up to 3 meters
- quick-clamping system el. connection via connector
Application:

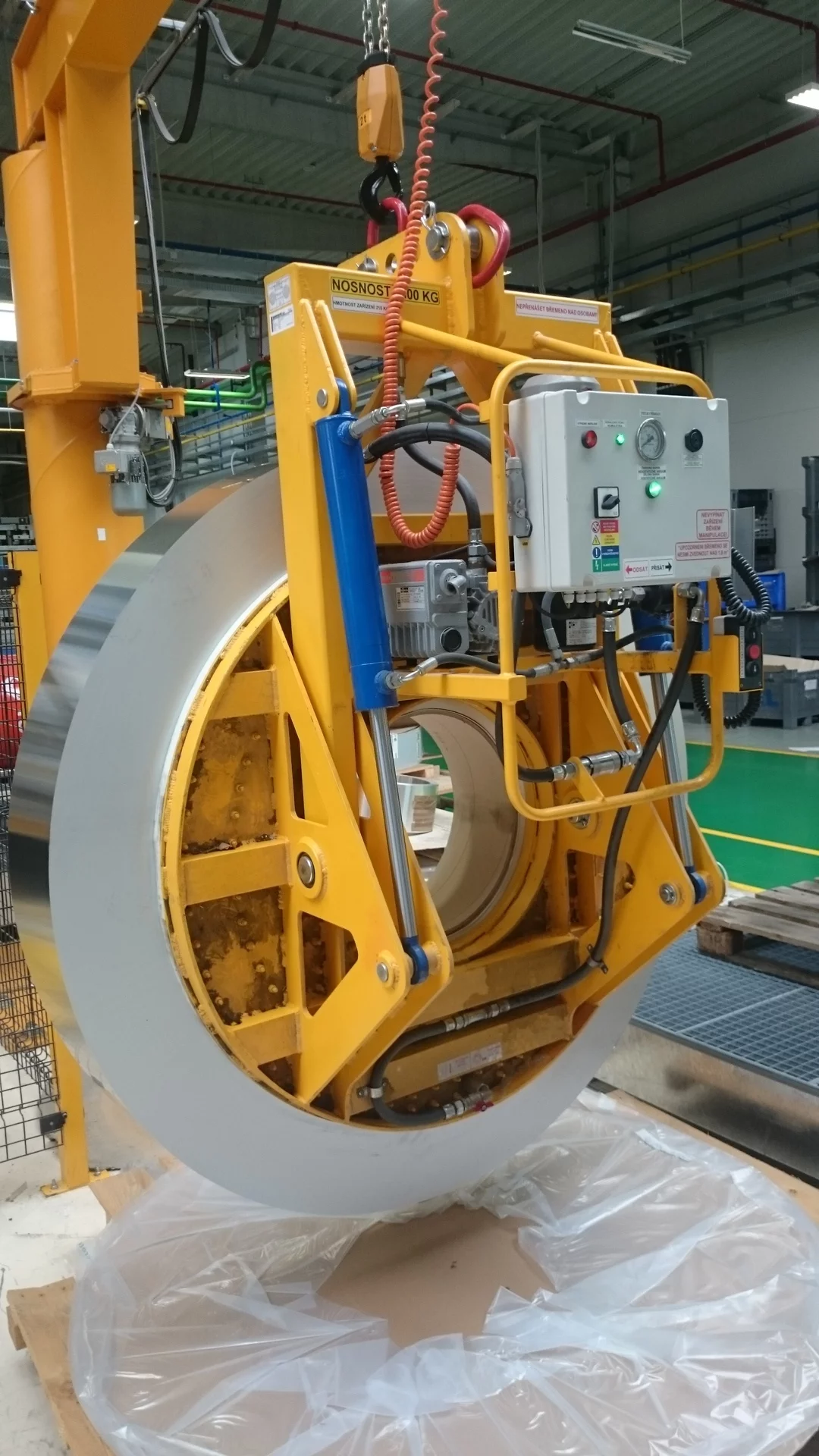

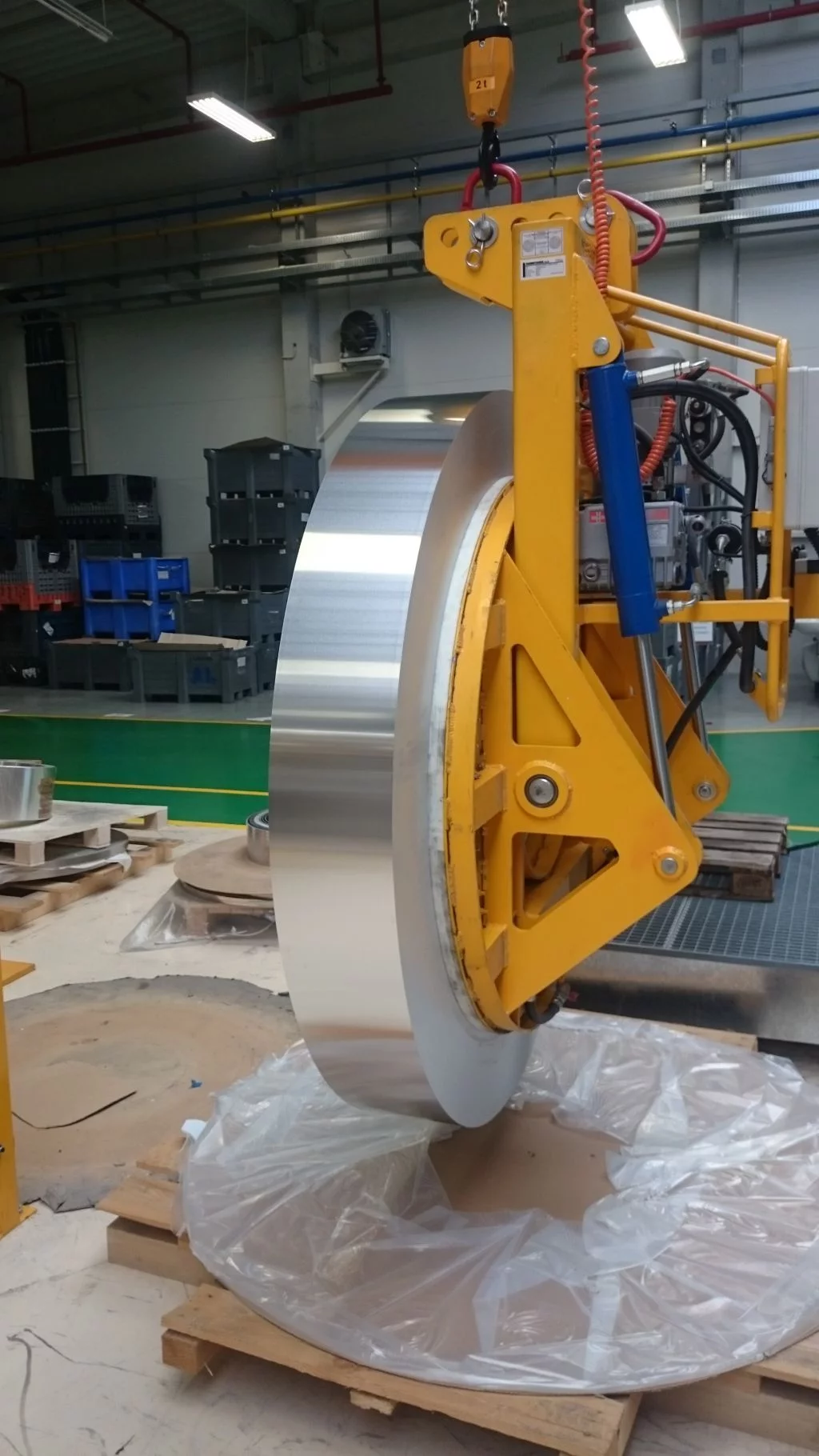

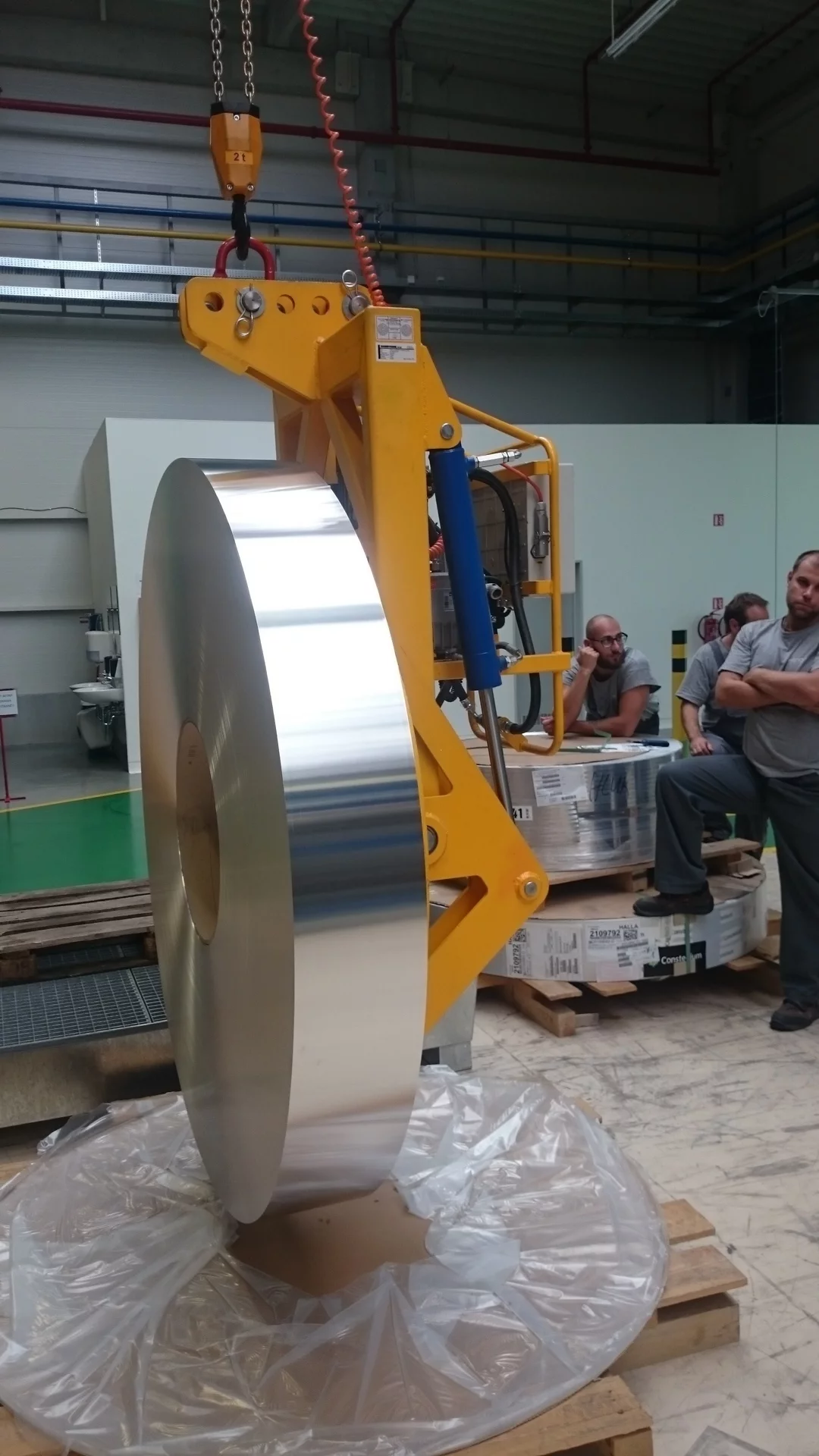

Vacuum manipulator VM 1500/1-90°/ HYD is a special gripping device enabling to grip and manipulate scrolls weighing up to 1500 kg in a horizontal and vertical position in the working space, which is given by the reach of the lifting device (crane or other lifting device) will be hung.
Potential types of loads to be handled:
- aluminium scrolls
- papercrolls
- steel scrolls
- plastic scrolls
Benefits:
- Simple - a very practical and purpose-built device with simple operation
- Reliable - guarantees high reliability and minimal maintenance
- Safe - guaranteed safe in every situation
Basic technical information:
| Maximum load capacity | 1500 kg (with negative pressure –0.6 bar (-60 kPa)) |
| Designed for manipulation | in a horizontal or vertical position |
| Weight | 395 kg |
| Max. load dimensions | ø 1800 mm (recommended) |
| Min. load dimensions | ø 350 mm |
| Power supply | a) 3 PE (PEN) 400VAC/50Hz/15VAC |

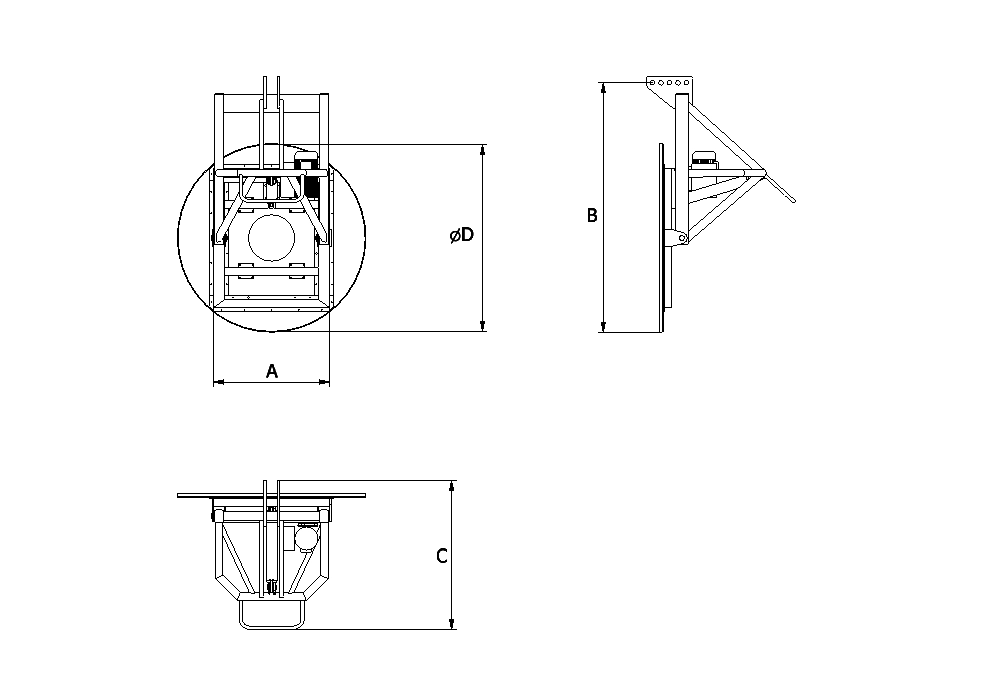

Information table:
| Number of suction cups / diameter (mm) | LOAD CAPACITY (kg) | WEIGHT (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|
| 1/1243 | 1500 | 395 | 1243 | 1655 | 964 | 1243 | 300 |
