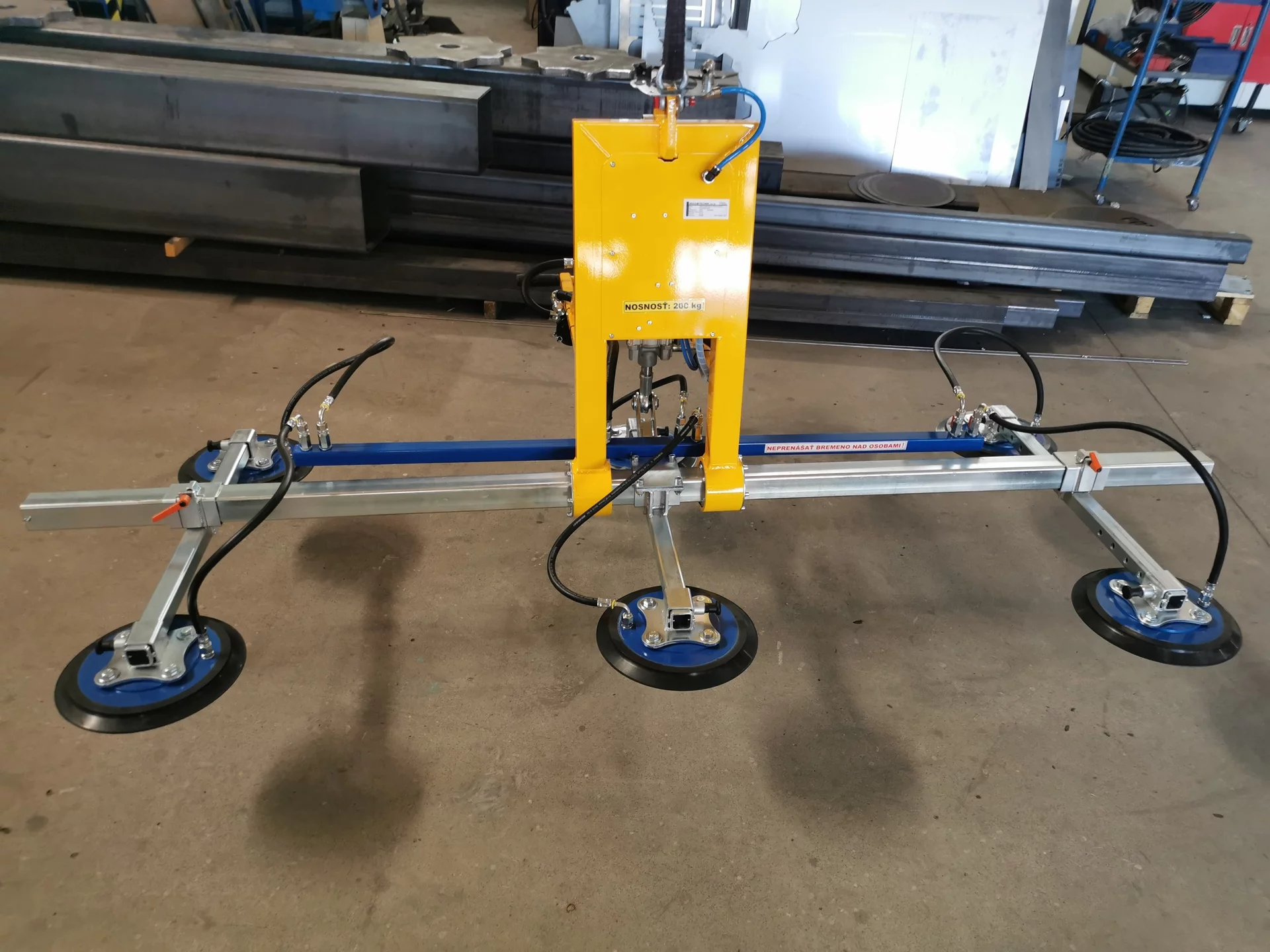

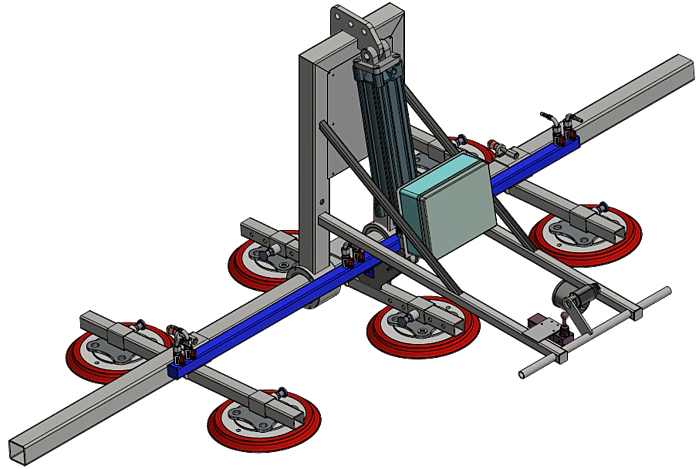

VACUUM MANIPULATOR - VM 200/6 -90°/PNEU/E

Basic description:

  • Main supporting steel structure with a multipositional suspension
  • Manually adjustable crossbeams with locking in the "x" axis
  • Pneumatically tilting suction cups with max. angle 90°
  • Six suction cups 300 mm in diameter
  • Manually adjustable suction cups with locking in the "y" axis
  • Possibility of manual vacuum shut-off on all suction cups for handling smaller loads
  • Ejector – design (compressed air, min. pressure 0.6bar)
  • The vacuum tank ensures safe lifting of the load even in the event of an unexpected failure of the compressed air.

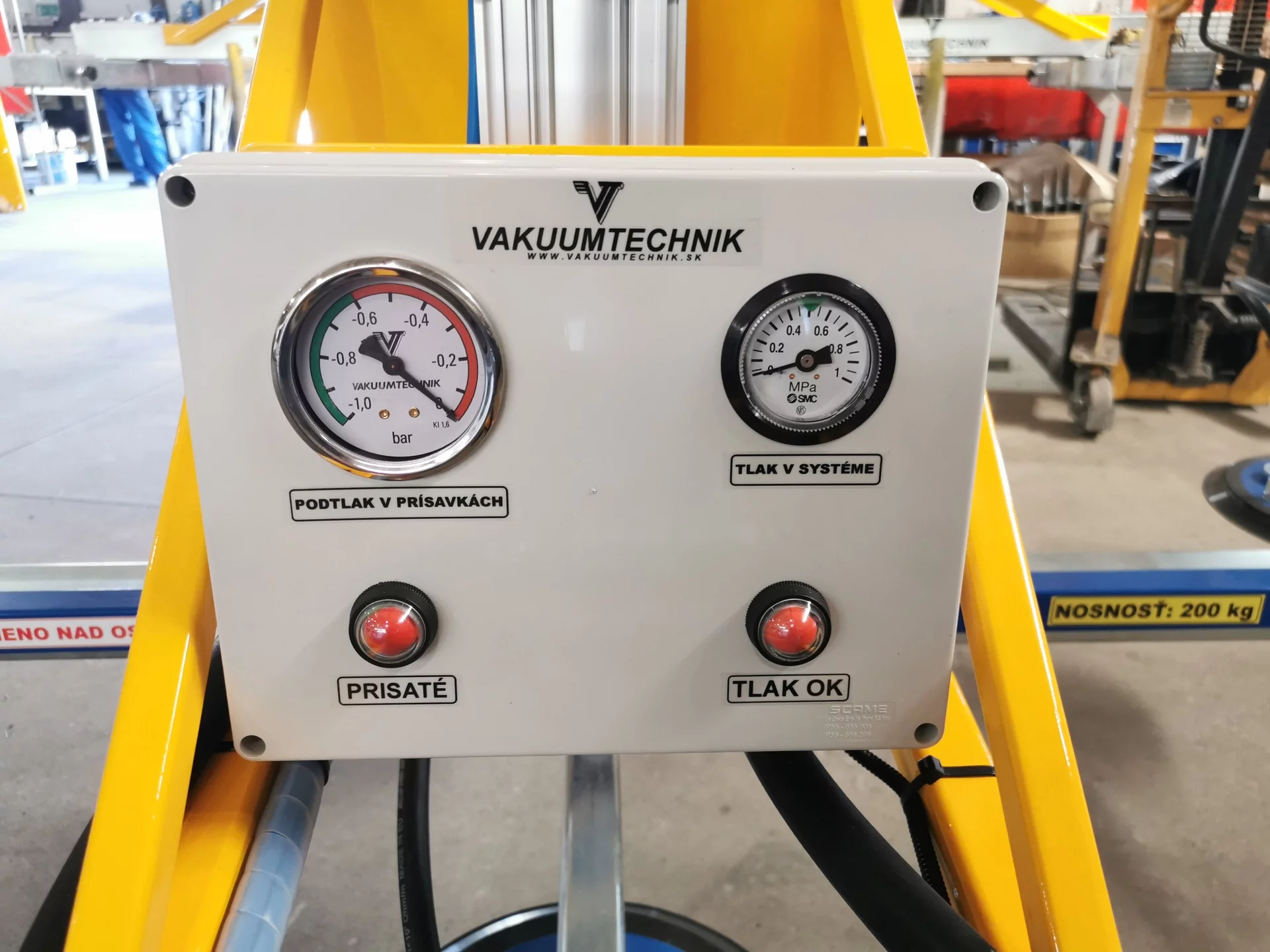

  • Acoustic and visual signalisation of insufficient vacuum in suction cups

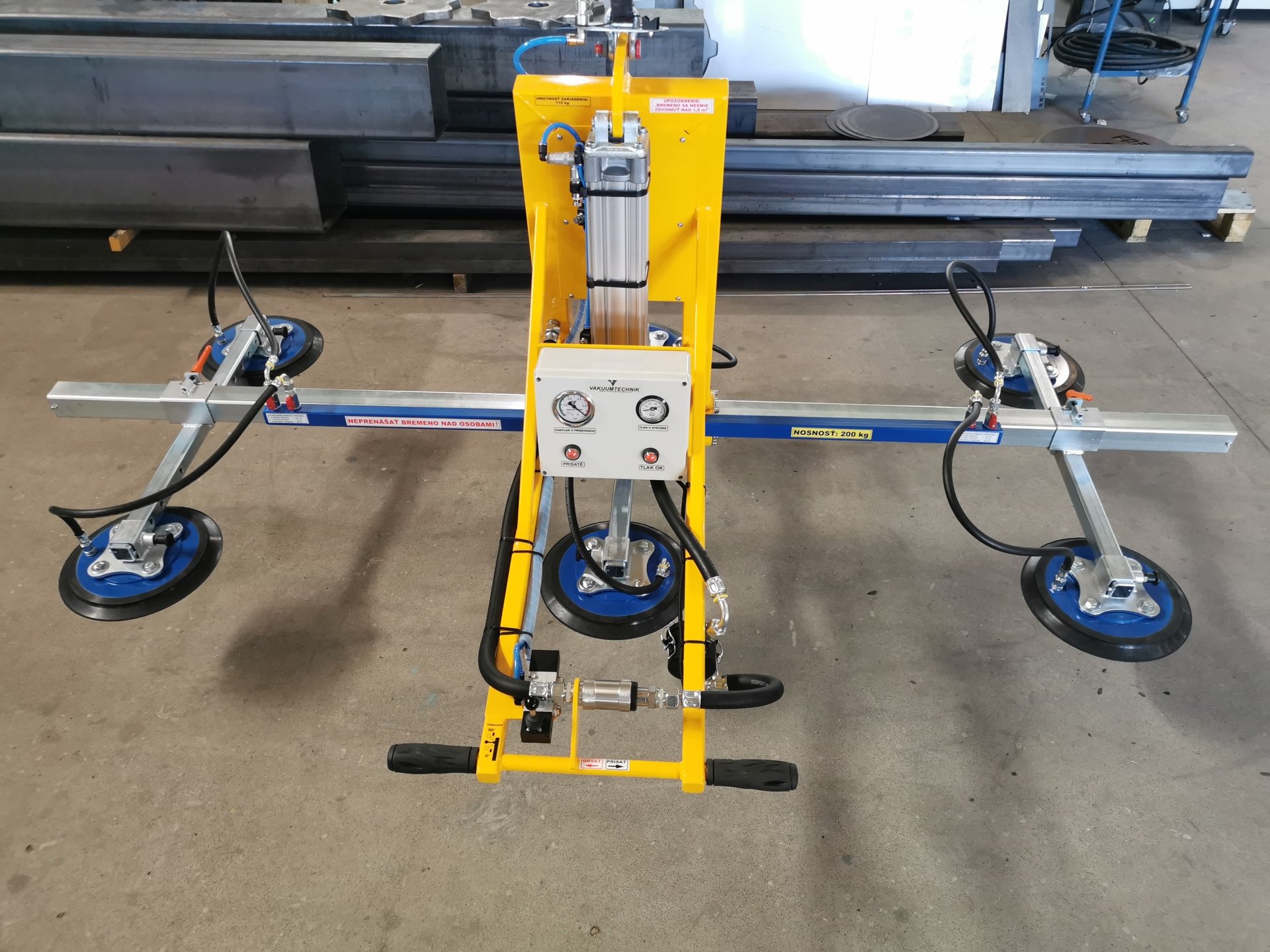

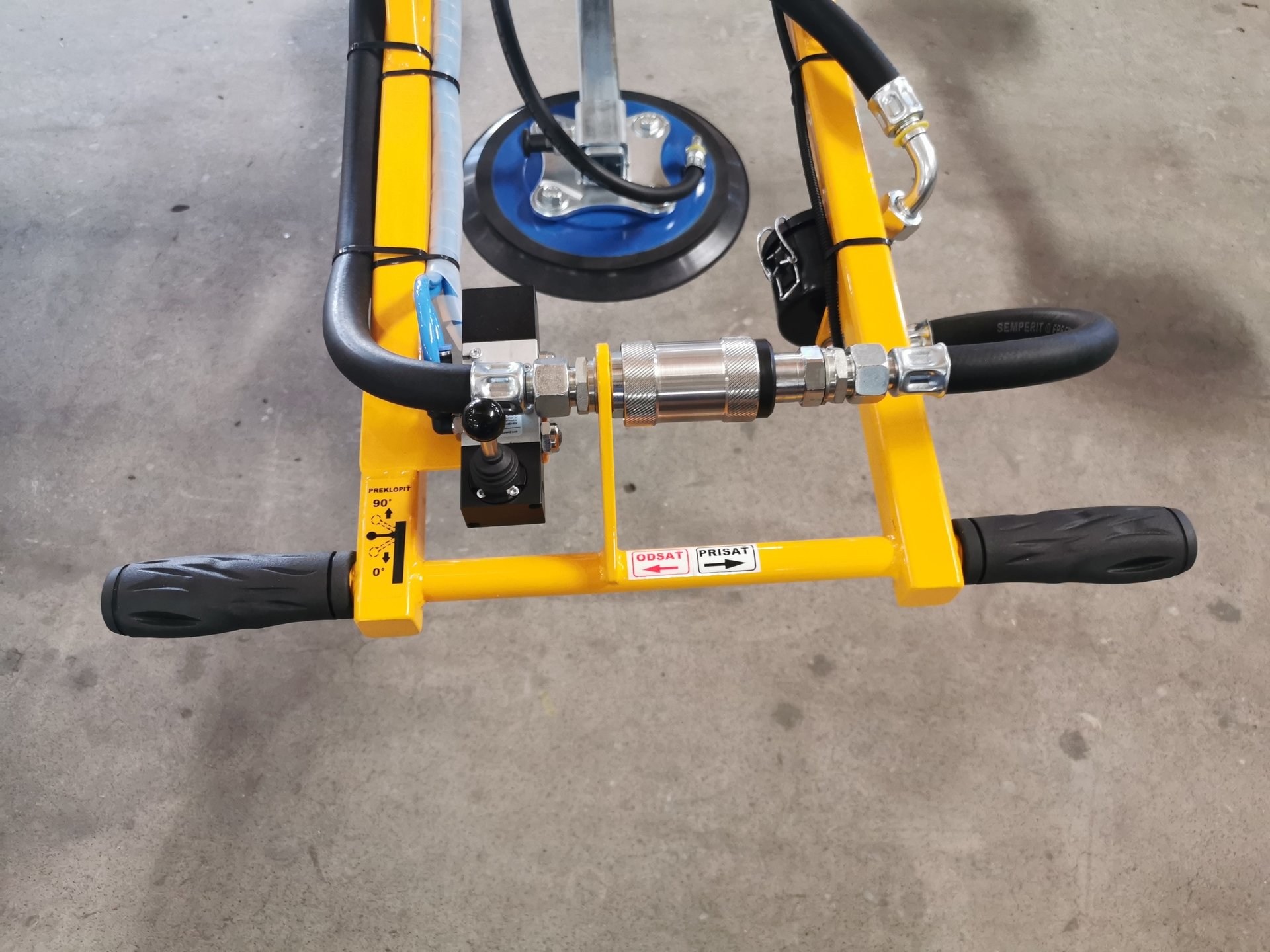

  • GRIP/ RELEASE the load through a manual valve conveniently located on the VM control handle
  • Double-acting control for mechanical load extraction via manual valve
  • TILTING the load by 0 ° / 90 ° through push-button control on a spiral cable up to 3 m
  • Spiral cable for connecting a manipulator up to 3 meters
  • Quick-clamping system el. connection through connector

Application:

The vacuum manipulator VM 200/6-90°/PNEU/E is a handy grasping device that allows you to grip and handle large-sized flat loads up to 200 kg in both horizontal and vertical position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the grasper will be suspended on.

Potential types of loads to be handled:

  • Glass plates and boards
  • Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
  • Plastic and plexiglass boards and boards
  • Stone with grinded surface
  • Wooden plates and boards covered with air-tight finish

Benefits:

  • Simple – very convenient anddedicated device that is easy to operate
  • Variable - possibility to manually and easily telescopically adjust the suction cups themselves after the traverse
  • Reliable - guarantees high reliability and minimal maintenance
  • Safe – safety guaranteed in every situation

Basic technical information:

Maximum load capacity (WLL)200 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin a horizontal or vertical position, suspended on a lifting device
Weight110 kg
Max. load dimensions4000x2000 mm
Min. load dimensions300x1000 mm
Power supplya) 3 PE (PEN) 400VAC/50Hz/15VAC
b) 1 N PE 230VAC/50Hz/24VDC

Information table:

NUMBER OF SUCTION CUPS DIAMETER (mm)LOAD CAPACITY (kg)WEIGHT (kg)WIDTH (mm)DEPTH (mm)HEIGHT (mm)SUCTION CUP DIAMETER (mm)
4/30020011025001339944 (1344)300

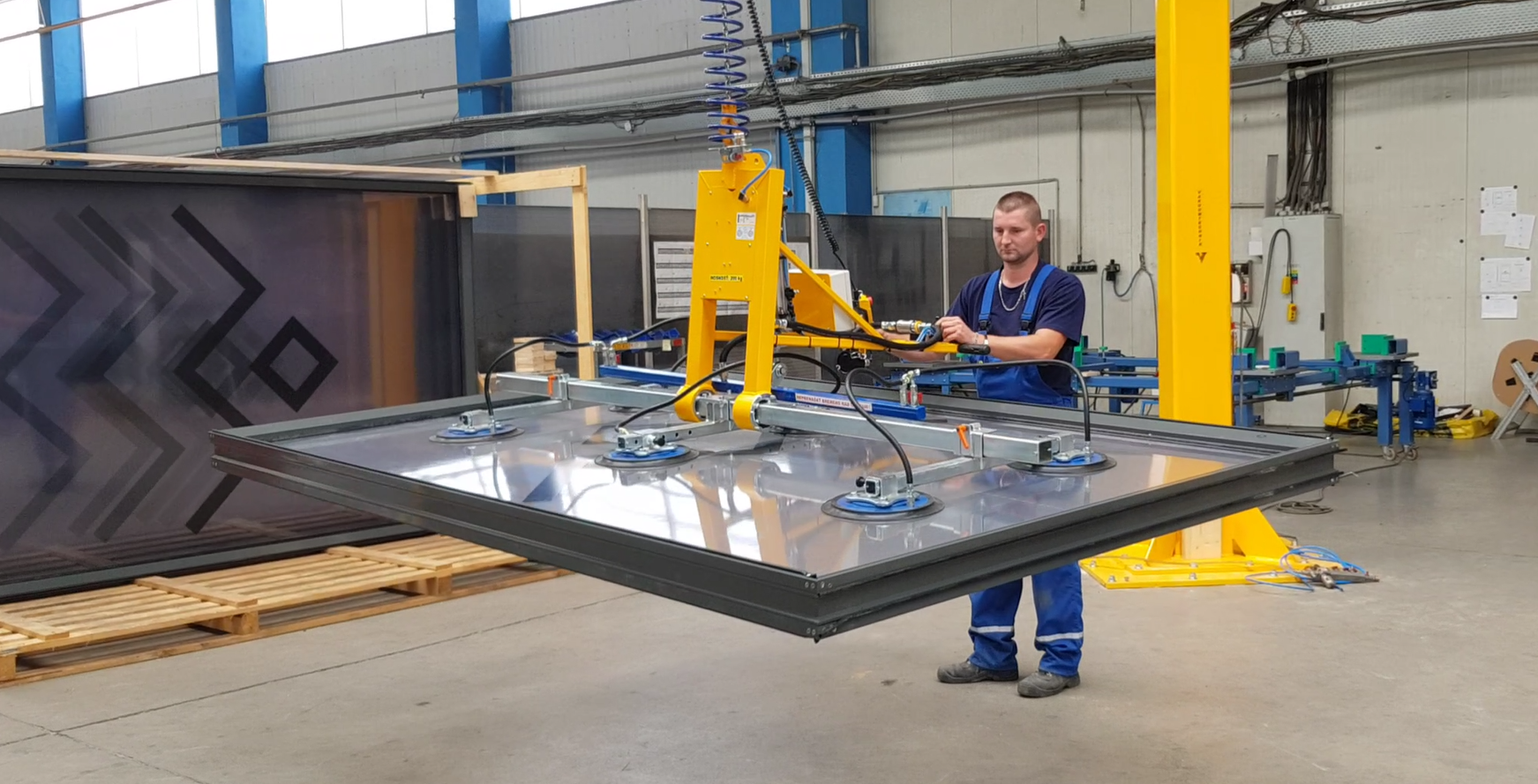

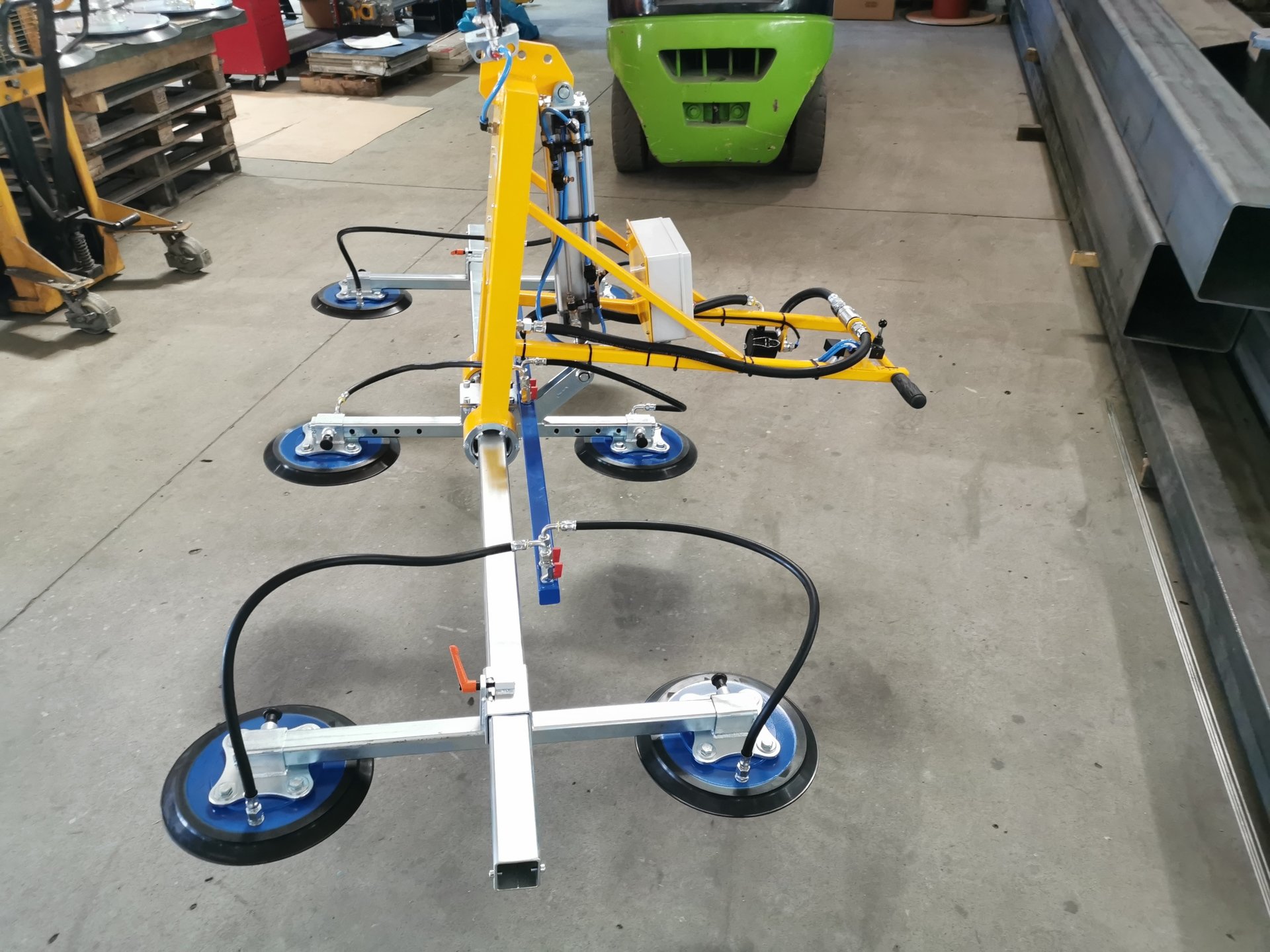

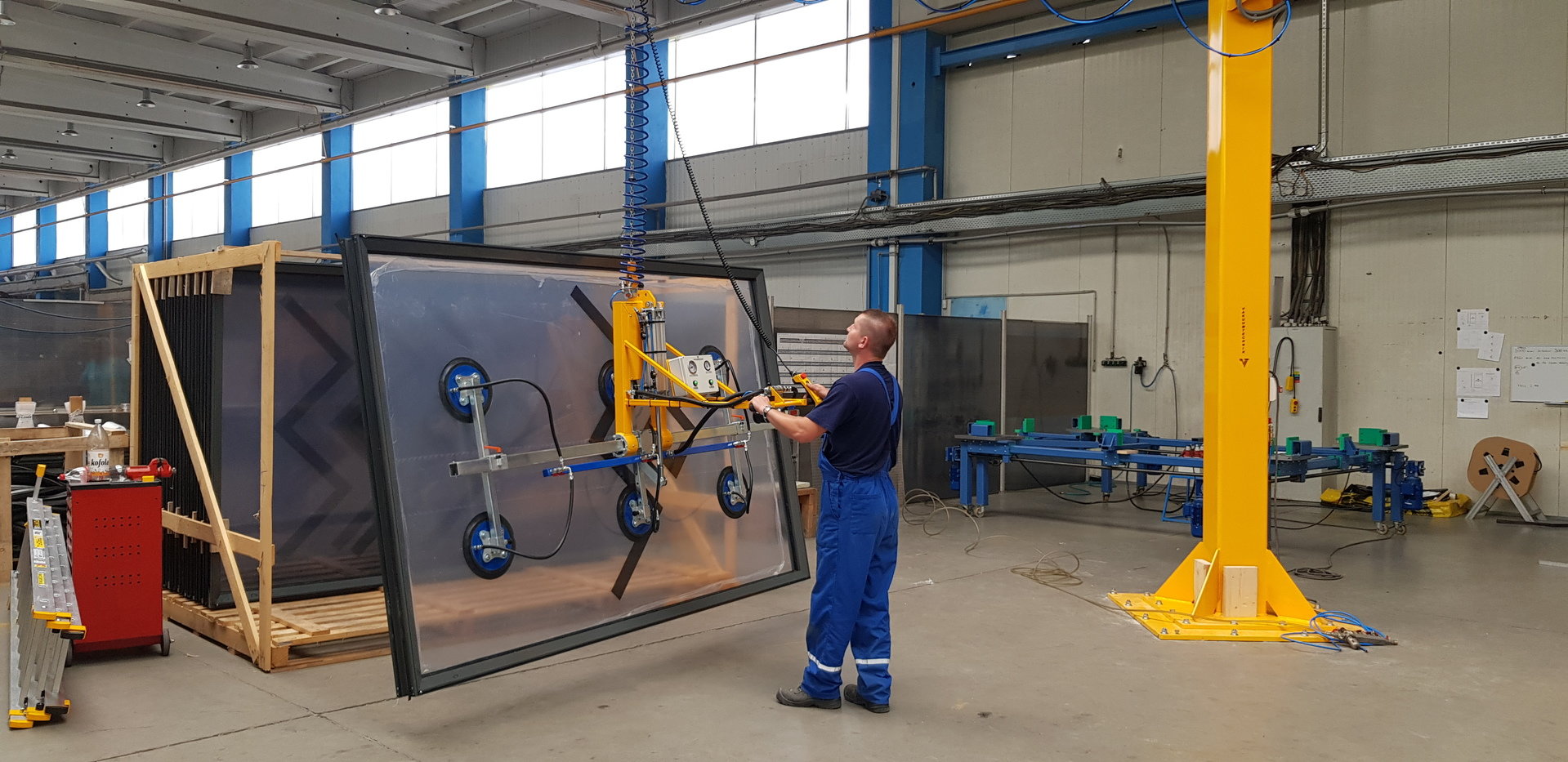

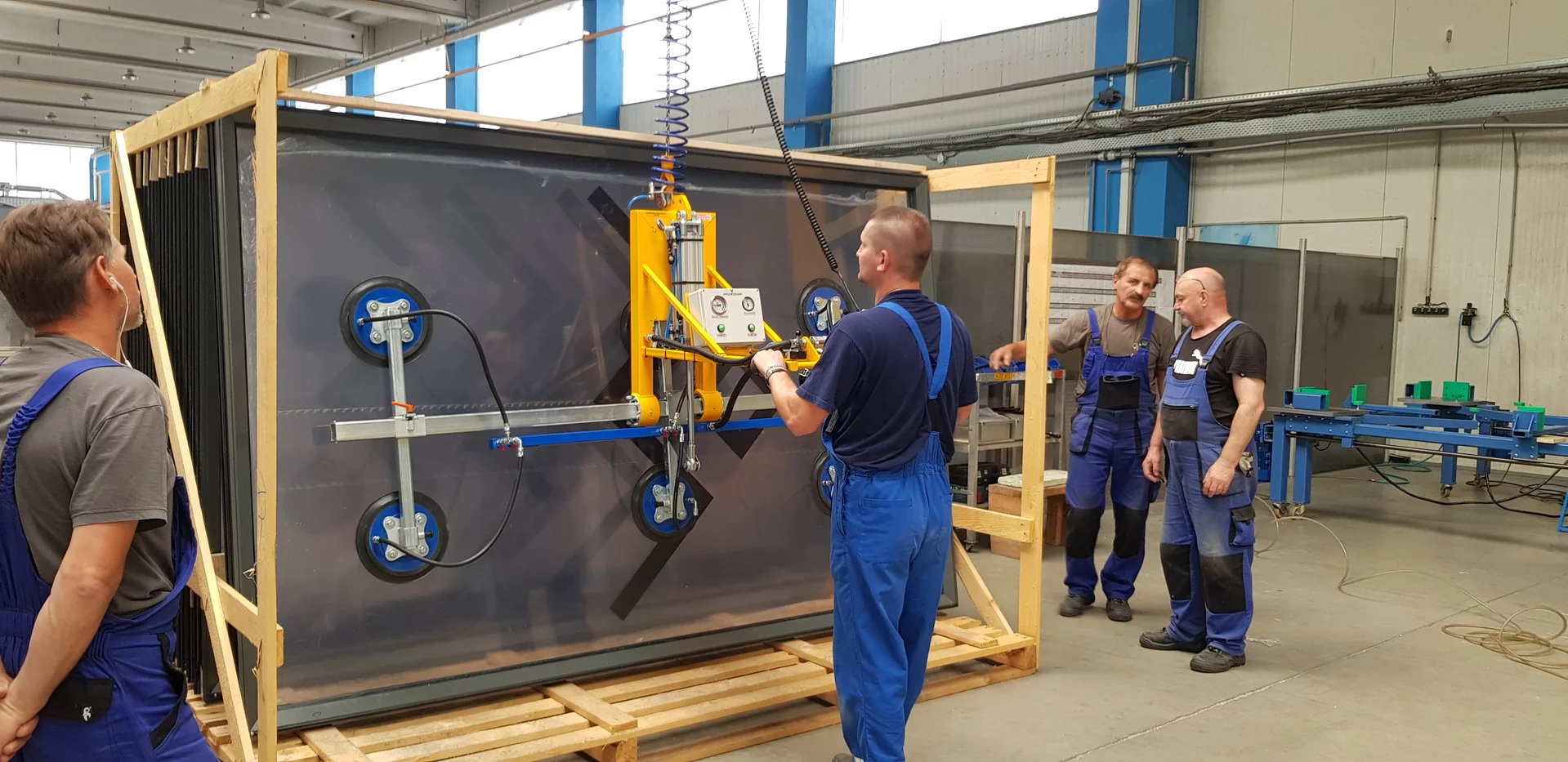

Photo gallery

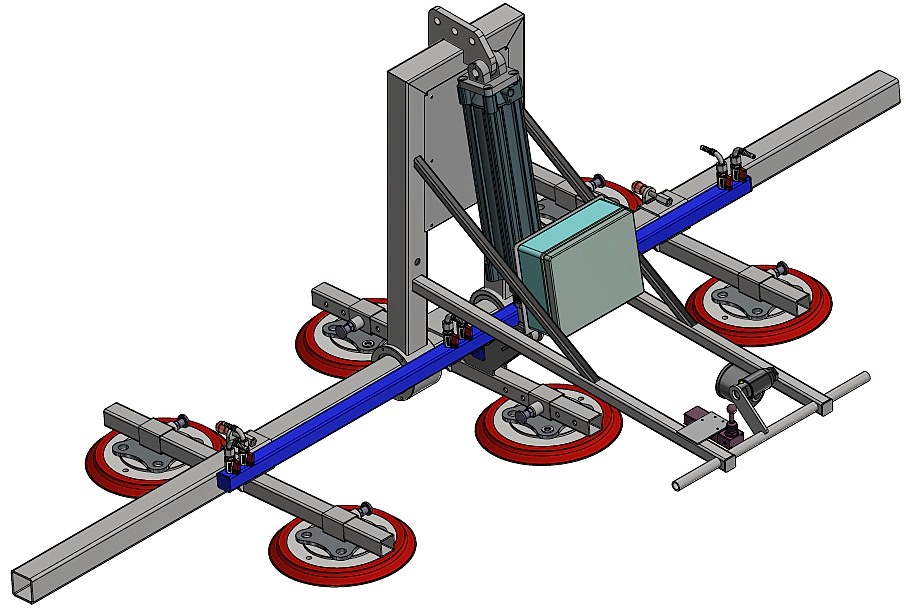

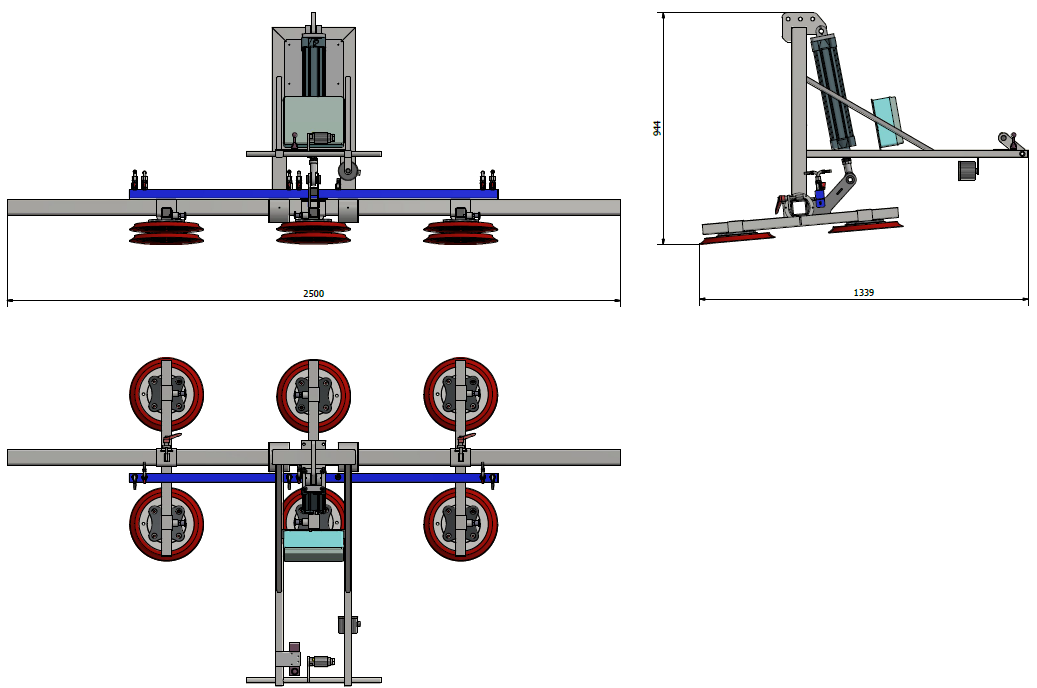

3D models / drawings
