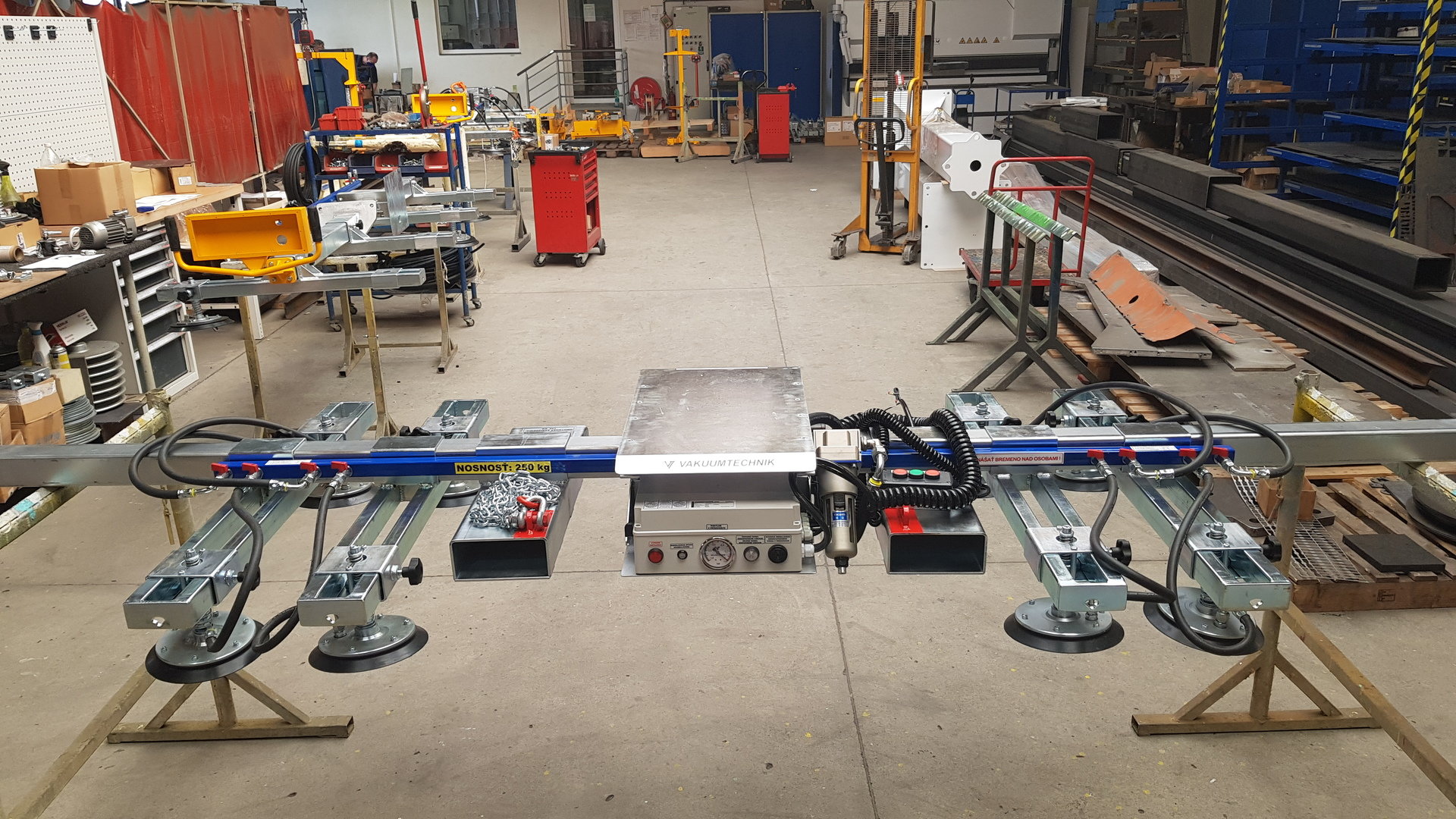

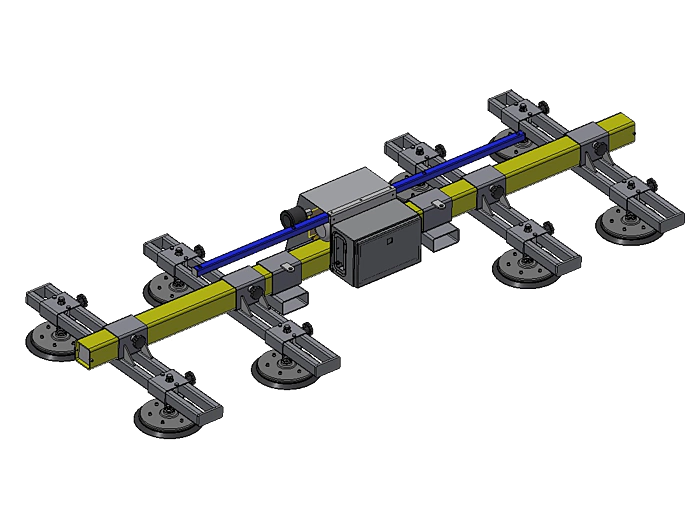

VACUUM MANIPULATOR - VM 250/8-2,5x1/VZV

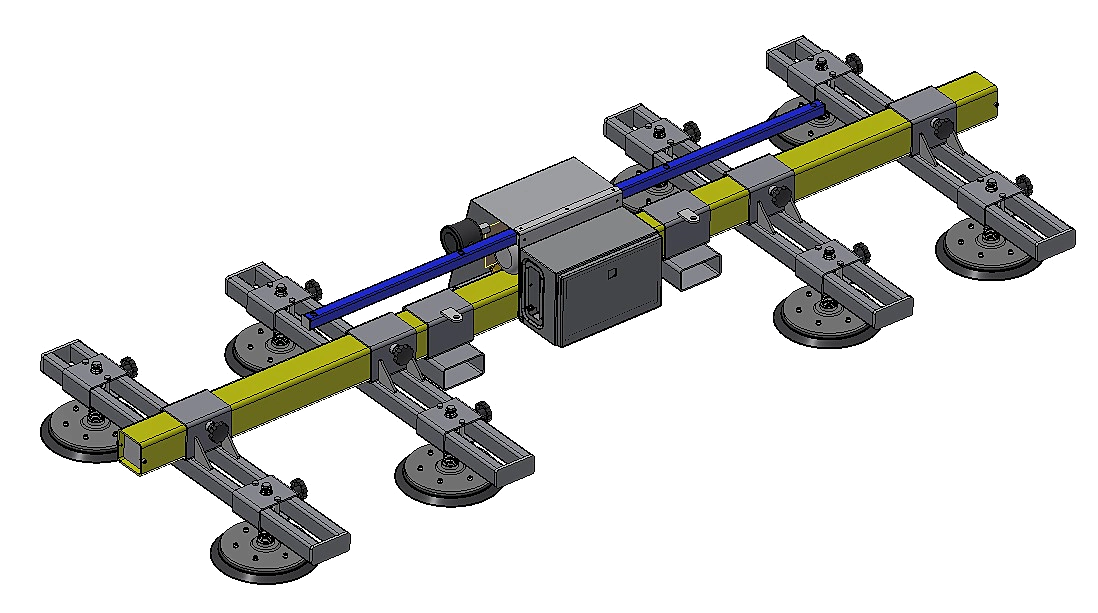

Basic description:

main supporting steel structure with two brackets for attachment to a forklift

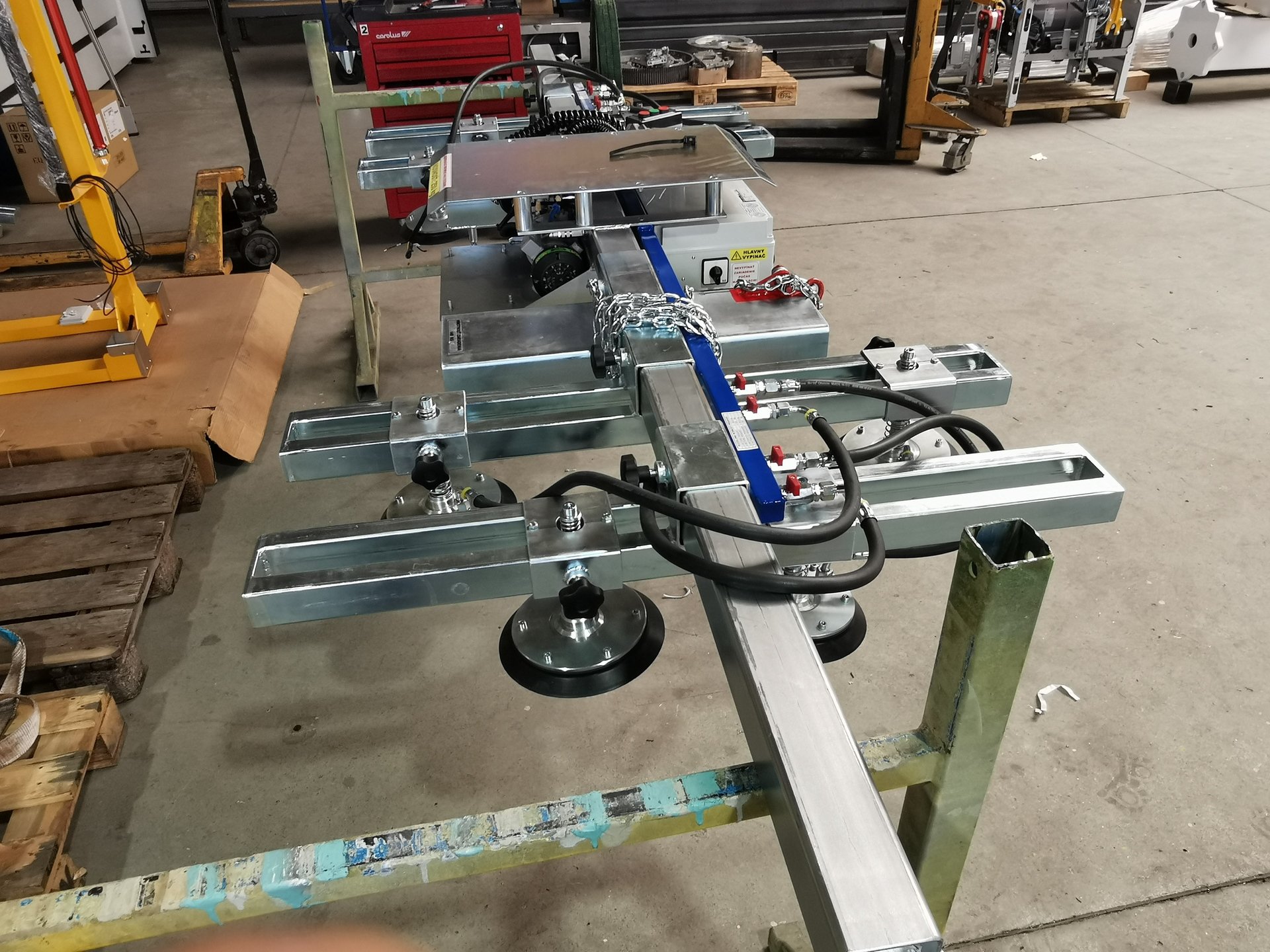

cross beams manually adjustable in the "x" axis

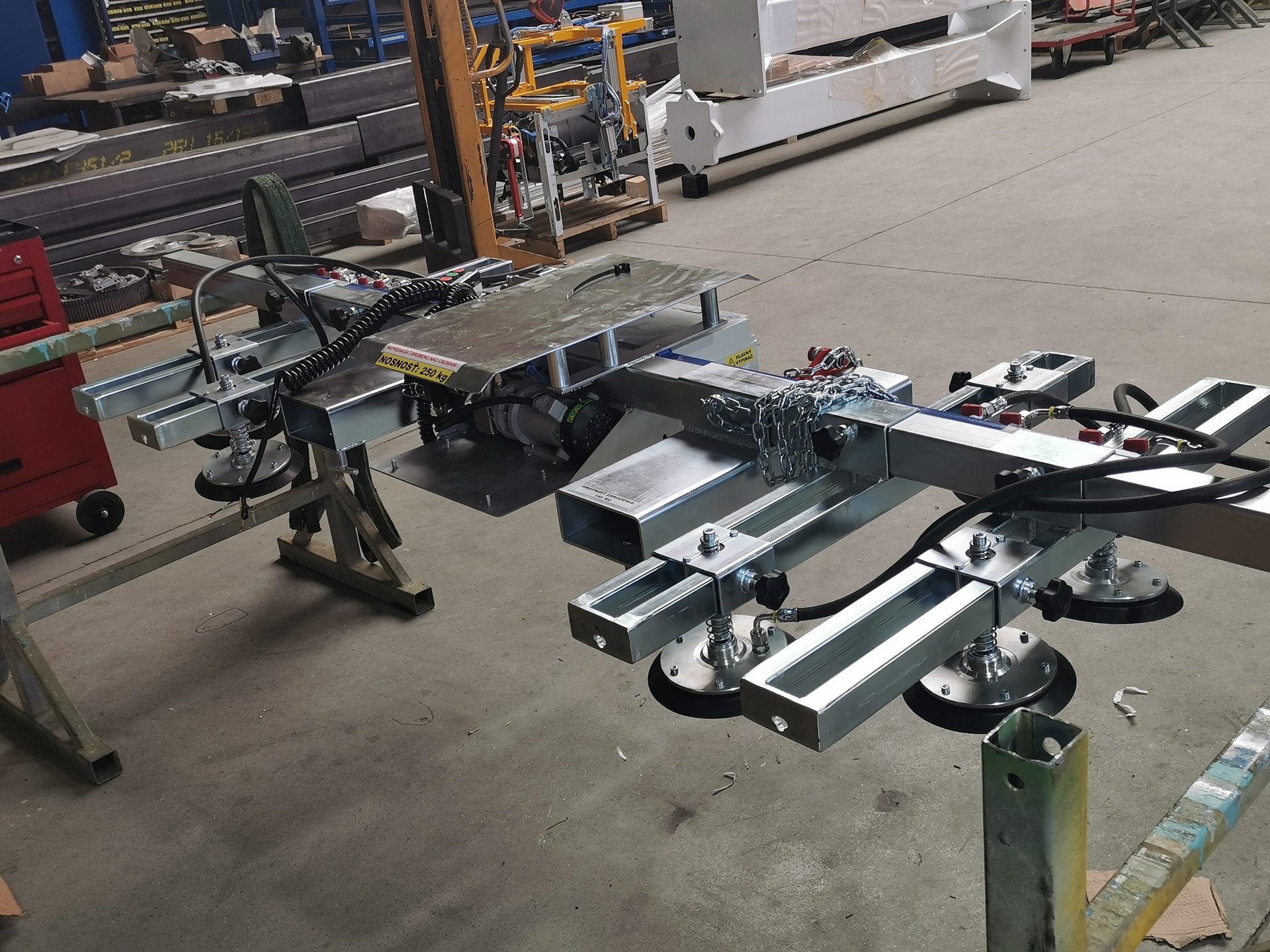

eight suction cups 255 mm in diameter
vacuum pump – design (24V sústava)
vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
acoustic and visual signalisation of insufficient vacuum in suction cups
GRIP - thrugh push-button control conveniently located at the control handles on the spiral cable up to 3 m
RELEASE - thrugh a push-buttons control conveniently located at the control handles on the spiral cable up to 3 m
double-acting control to suck off the load mechanically (electromagnetically using a spiral-button control - for asurcharge)
spiral cable for connecting the handler up to 3 m
quick-clamping system of electrical connection via a connector

Application:

The vacuum manipulator VM 250/8-2,5x1/VZV is a handy gripping device that allows you to grip and handle small, medium or large-sized flat loads up to 250 kg in a horizontal position in the work area, which is given by the reach of the forklift truck

Potential types of loads to be handled:

✓    Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
✓    Glass plates and boards
✓    Plastic plates and boards
✓    Stone with grinded surface
✓    Wooden plates and boards covered with air-tight finish

Benefits:

Simple – very convenient anddedicated device that is easy to operate
Variable - possibility to manually and easily adjust the transverse beams and the suction cups themselves after the beam
Reliable – high reliability and minimalmaintenance are ensured
Safe – safety guaranteed in every situation

Basic technical information:

Maximum load capacity	250 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulation	in horizontal position, to be lifted on a lifting device
Weight	130 kg
Max. load dimensions	3000x1500 mm
Min. dimensions of load	1000x1000 mm
Power supply	24 V, DC

Information table:

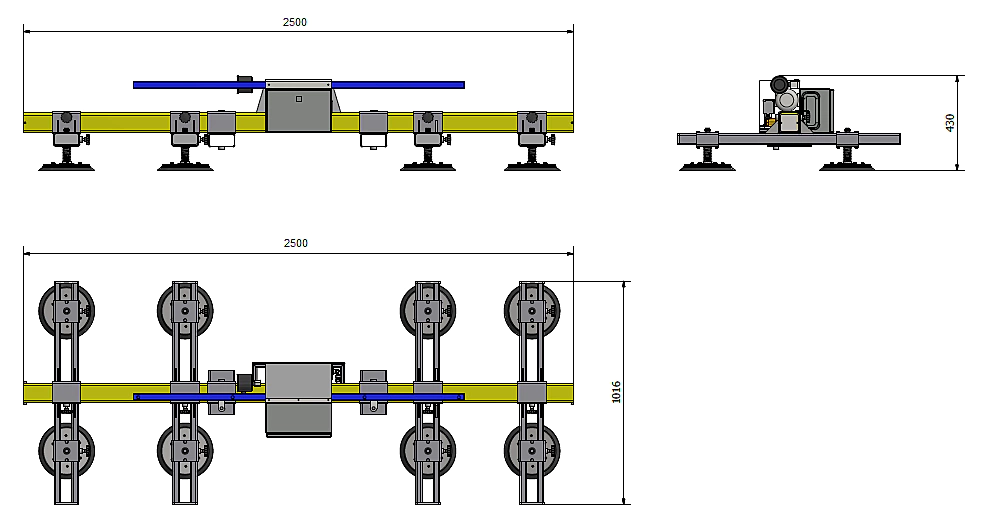

Number of suction cups / diameter (mm)	LOAD CAPACITY (kg)	WEIGHT (kg)	Lenght (mm)	Width (mm)	Height (mm)
8/255	250	130	2500	1016	430
