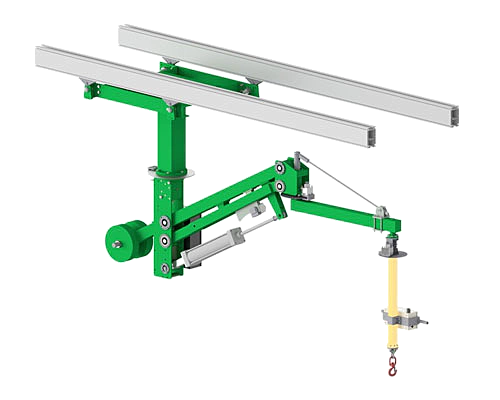

PN ERGO - overhead construction

PN ERGO - ovrehead constrruction is a sophisticated balance lifting device with its own column construction, manual rotation and pneumatic lifting.

Application:

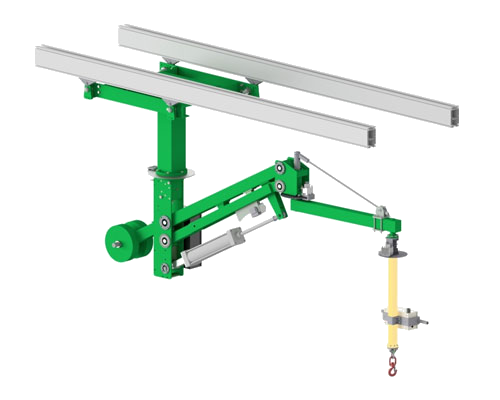

PN ERGO - overhead construction is a lifting device that is installed on the ceiling construction of the user's hall.
Manipulator with a fixed arm, suitable for handling offset loads.

This device can be implemented in graduated load ranges from 80 kg to 310 kg.

Benefits:

RELIABLE
- pneumatic system guarantees high reliability and minimal maintenance
SAFE
- guaranteed safe and ergonomic for the operator in every situation
VARIABLE
- cooperates with vacuum, pneumatic, mechanical tools for gripping the load
- suitable for handling offset loads.
EFFECTIVE
- with its versatility and wide range of construction systems, it will meet even the most demanding requirements of the industry

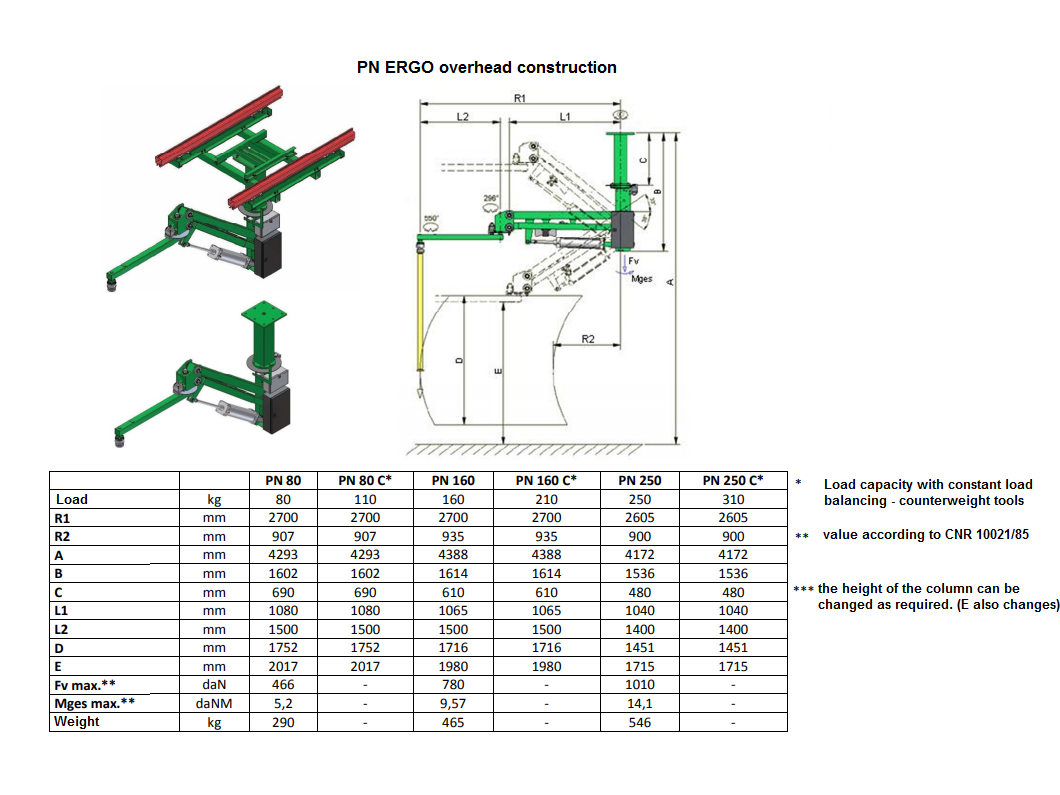

Basic technical information:


Maximum lifting capacity	80kg, 110kg, 160kg, 210kg,250kg a 310kg*
Shoulder lengths:	2600mm, 2700mm
Control:	pneumatic
Operating pressure:	min. 6,5 bar
Operating temperatures:	5° až 50° C
Noise emissions:	<70 dB
Safety:	- possible design with explosion protection in hazardous environments according to ATEX standards
	- in the event of a pressure failure, slow lowering of the load handler to the ground

*manipulators with constant load balancing (tools) with a fixed counterweight

PN ERGO - overhead construction - download datasheet

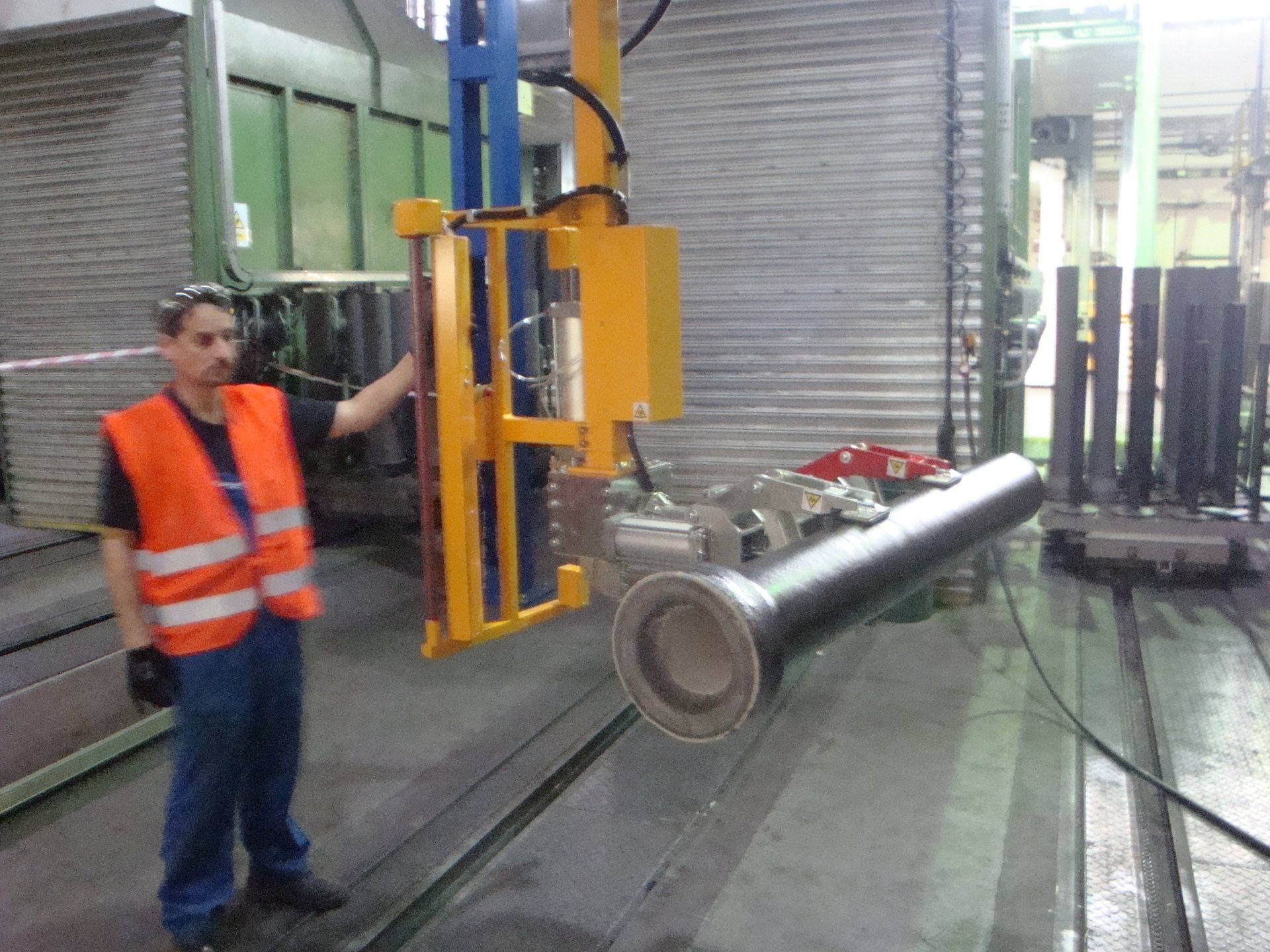

Photo gallery
