VACUUM ROTARY STAND - VRS 20/1-180°/360°/P/EL

Basic description:

  • main load-bearing steel structure with a foot for anchoring the stand to the ground
  • tilting suction cup by max. 180 ° angle via electric gearbox
  • one suction cup with a diameter of 210 mm

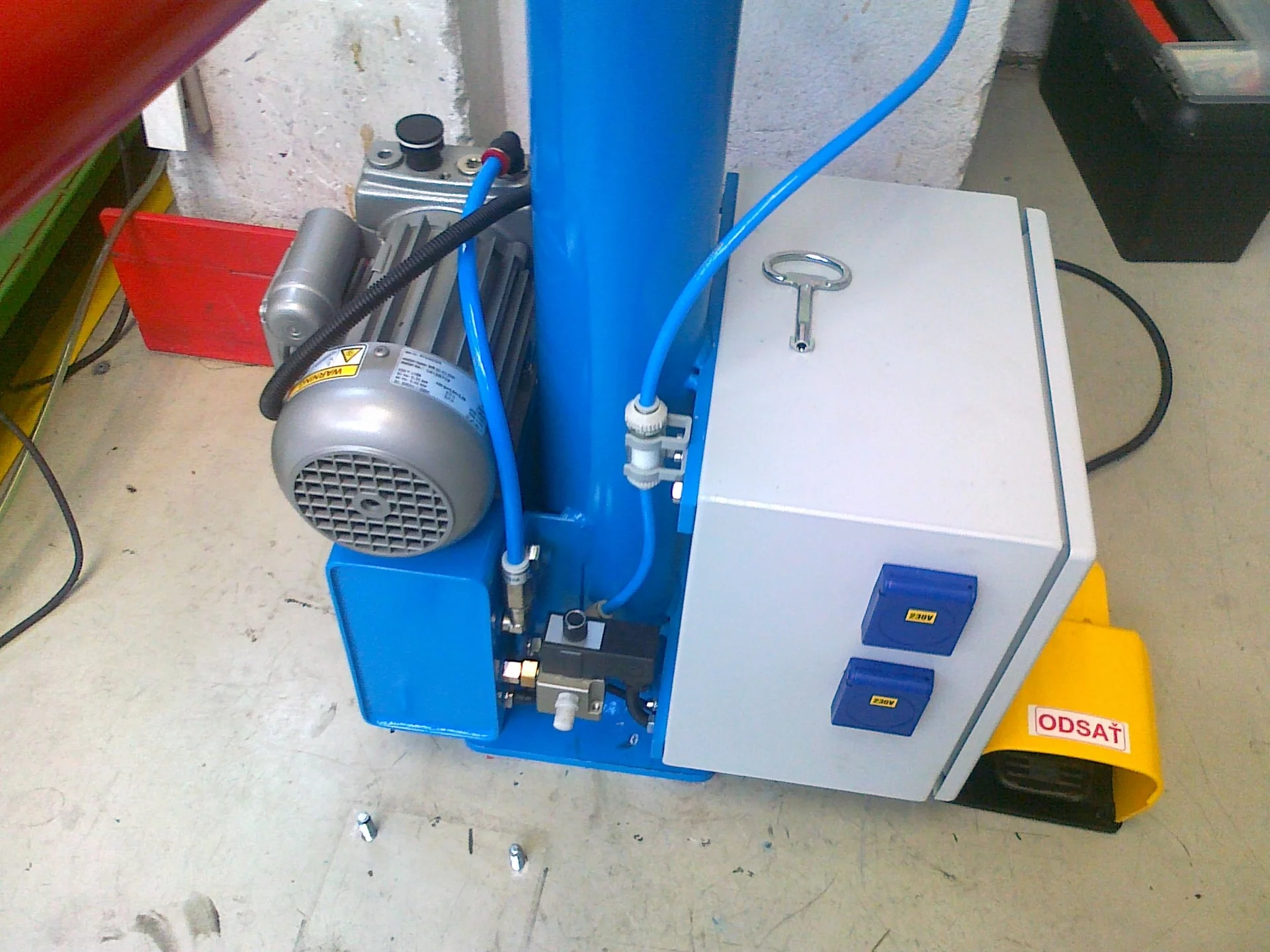

  • vacuum pump - 400V three-phase system design
  • vacuum tank ensures safe lifting of the load even in the event of an unexpected power failure of the pump
  • acoustic and visual signalisation of insufficient vacuum in suction cups

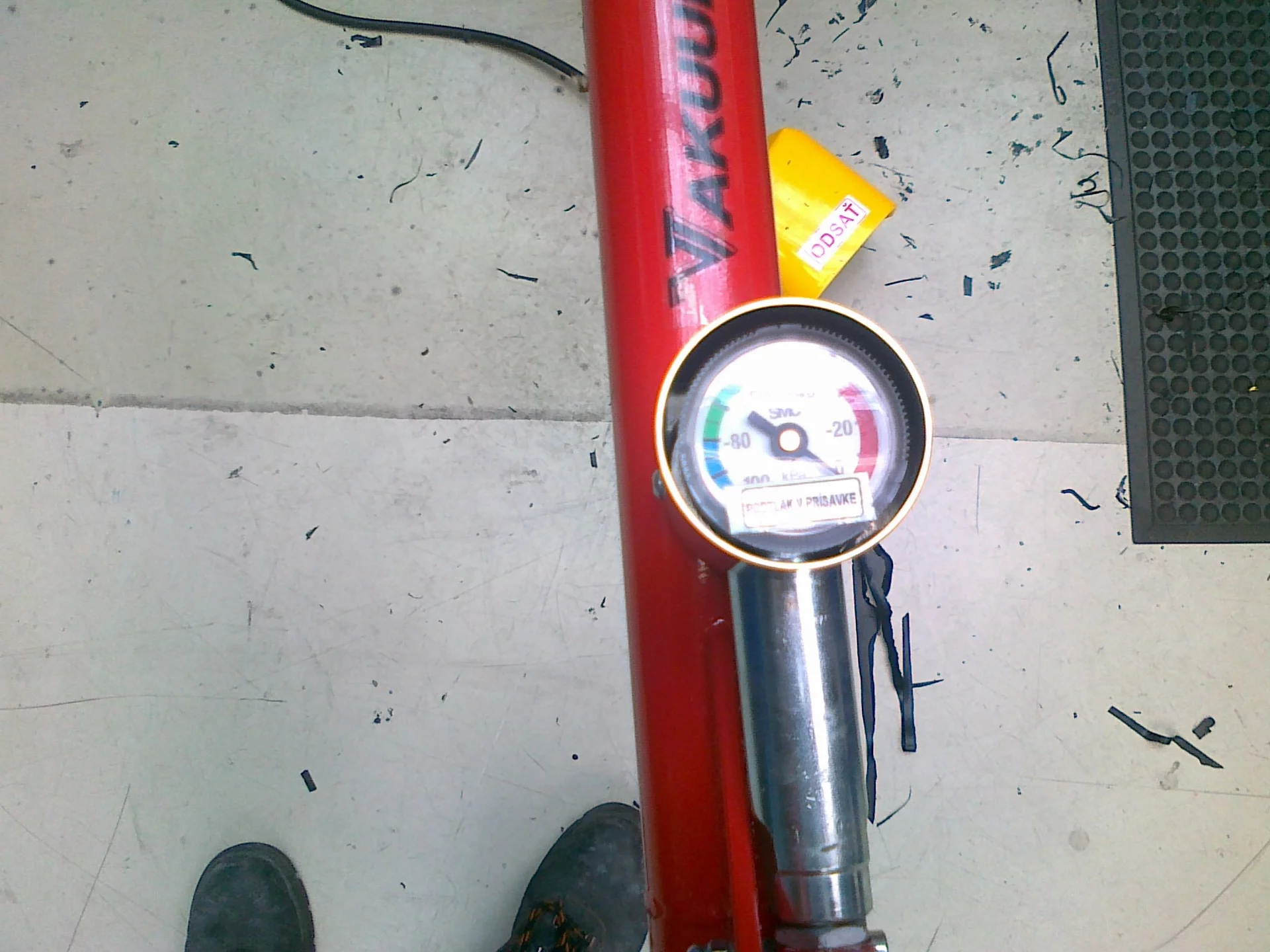

  • vacuum analogue manometer on the state of vacuum in the suction cup
  • GRIP - through a foot switch located on the ground near the vacuum rotary stand
  • RELEASE - through a foot switch located on the ground near the vacuum rotary stand
  • TILTING the load by 0 ° / 180 ° via two buttons conveniently located on top of the vacuum rotary stand
  • ROTATE the load by 0 ° / 360 ° via a foot switch located on the ground near the vacuum rotary stand
  • - 2x socket 230V, 50 Hz placed on el. substations
    - main switch
  • cable for electrical connection of the stand

Application:

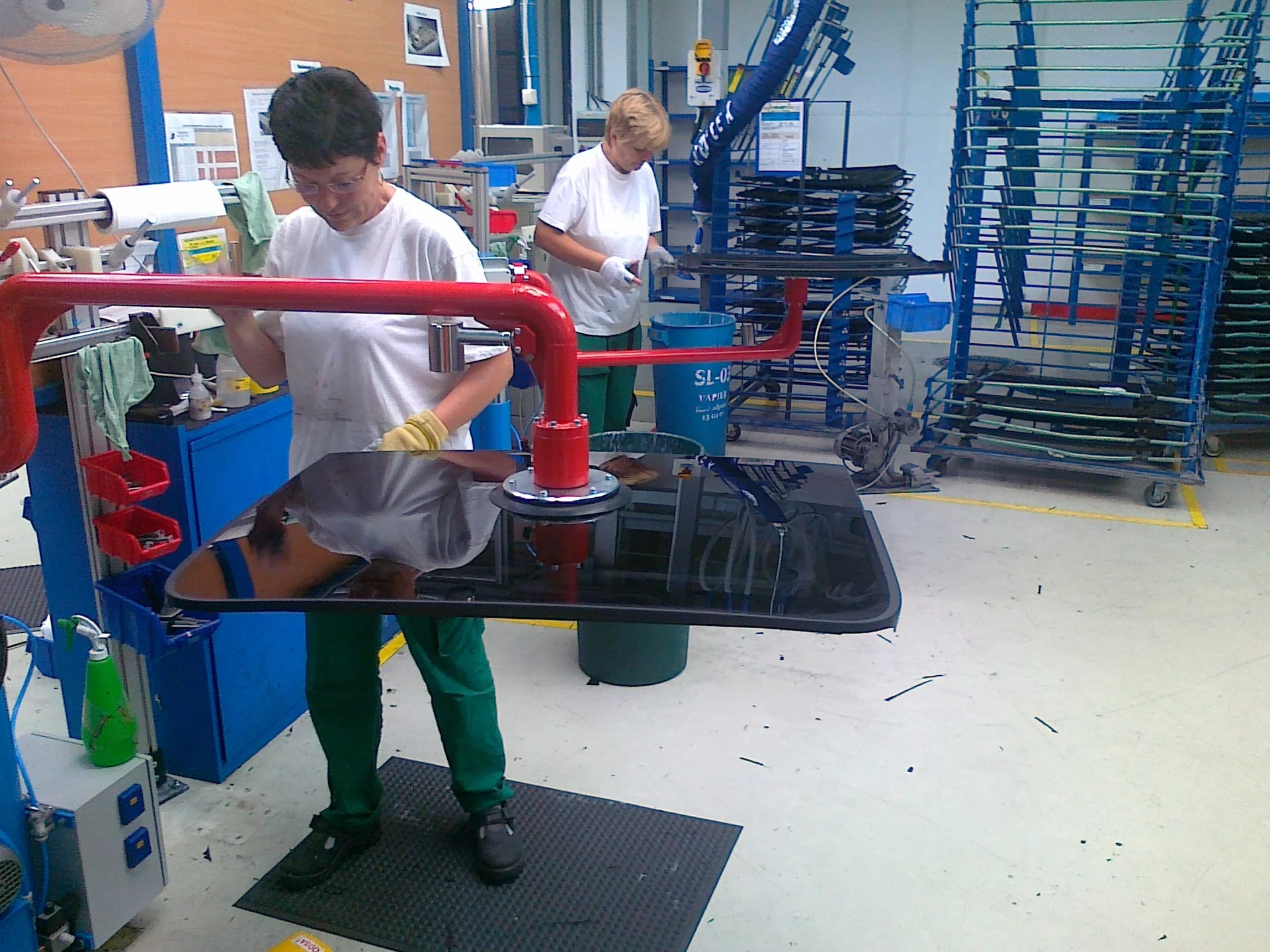

Vacuum rotary stand VRS 20 / 1-180 ° / 360 ° / P / EL is a gripping device enabling gripping of glass, car sunroof, roof window to the house up to max. weighing 20 kg in a horizontal and vertical position in the working space, which is given by the reach of the arm of the rotating stand.

Potential types of loads to be handled:

  • glass sheets and plates
  • sunroofs for cars
  • skylights to the house

Basic technical information:

Maximum load capacity20 kg (with negative pressure –0.6 MPa (-60 kPa))
Designed for manipulationin a horizontal or vertical position
Max. load dimensions1500x1500 mm
Min. load dimensions220x220 mm
Total electrical input0,6 kW
CoverageIP 54
Powering the device3 PE (PEN) 400VAC/50Hz/15VAC

Information table:

Number of suction cups / diameter (mm)LOAD CAPACITY (kg)WEIGHT (kg)Width (mm)Depth (mm)Height (mm)Suction cup size (mm)
1/21020---14445061122210

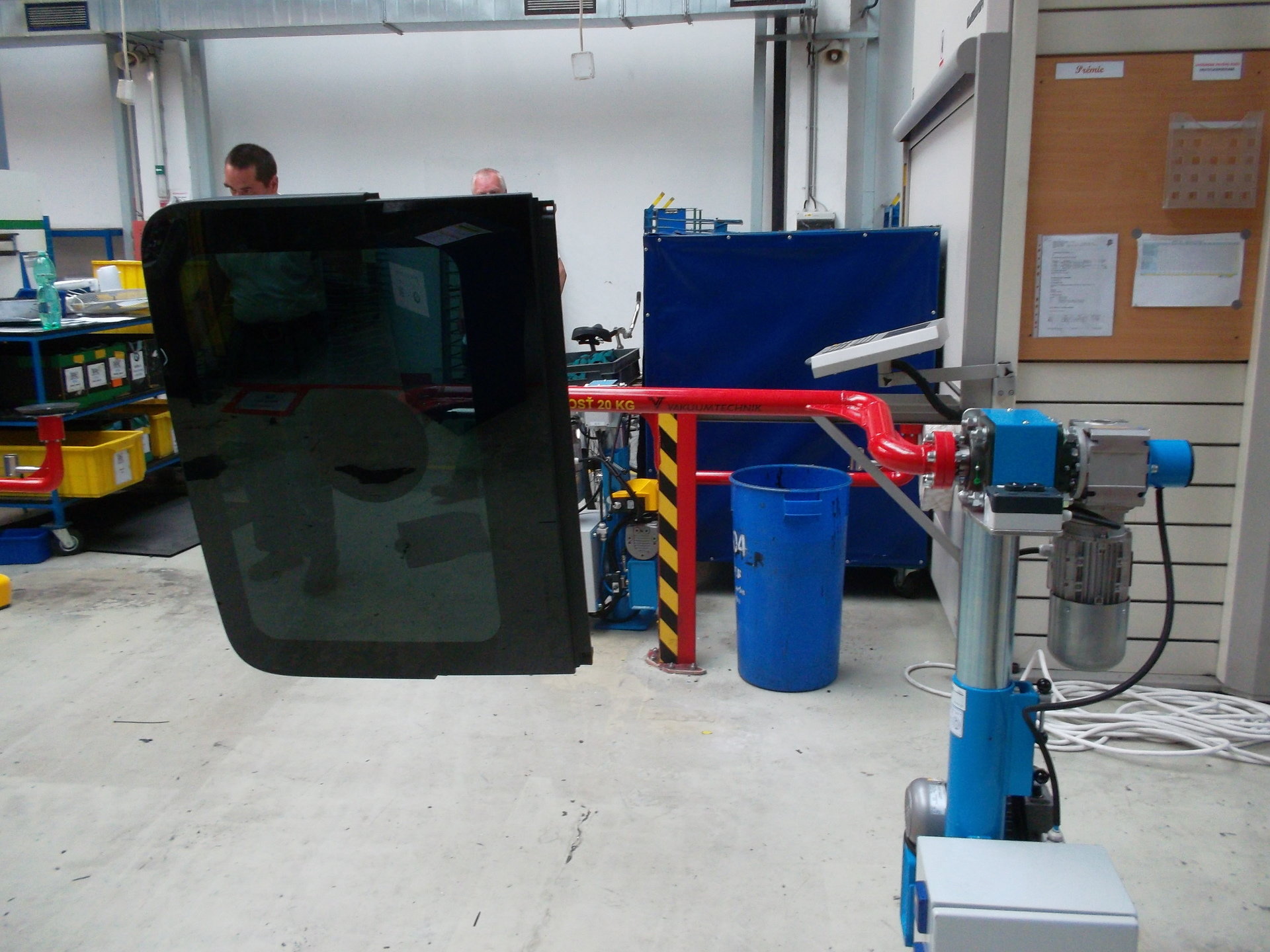

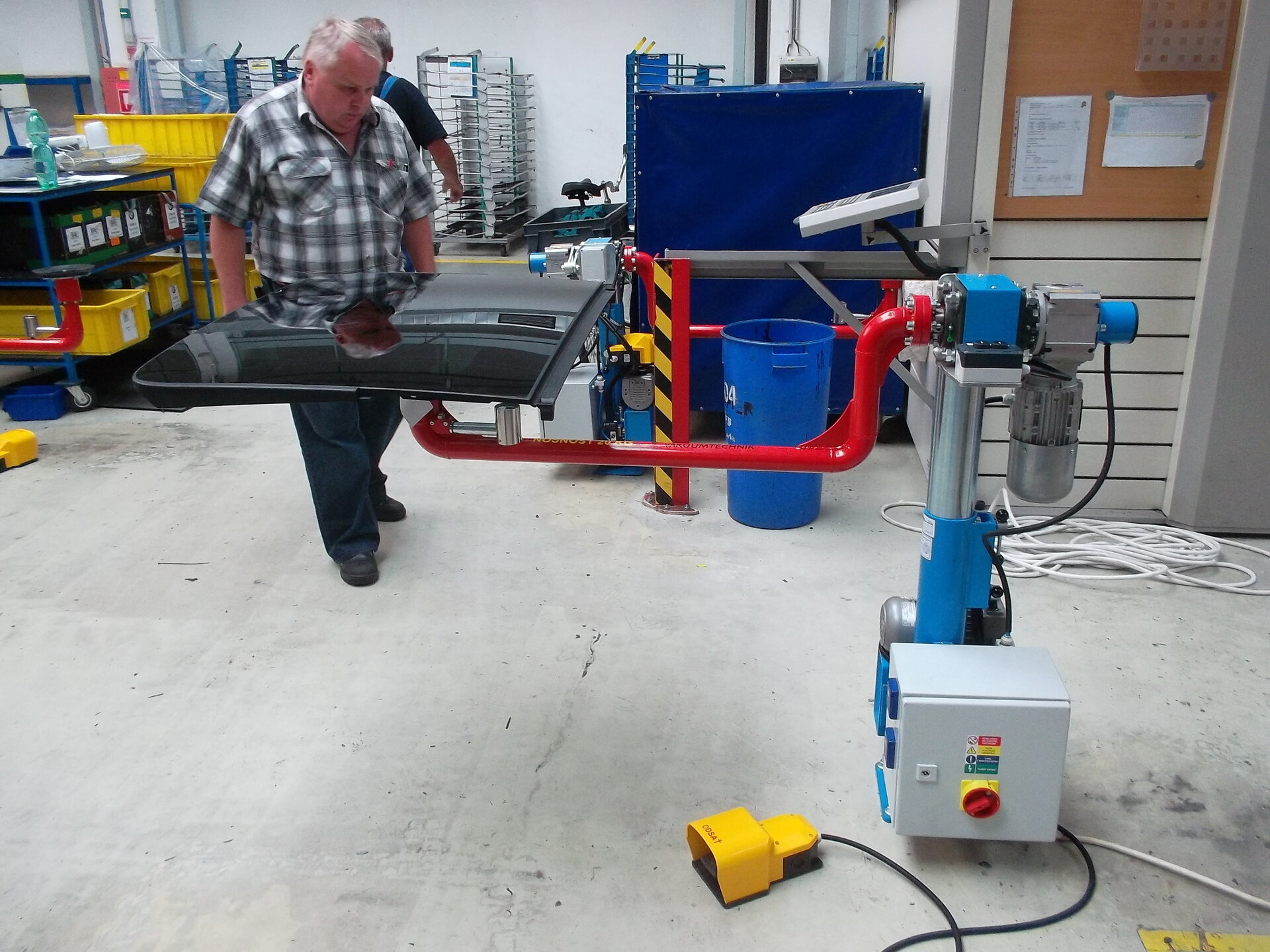

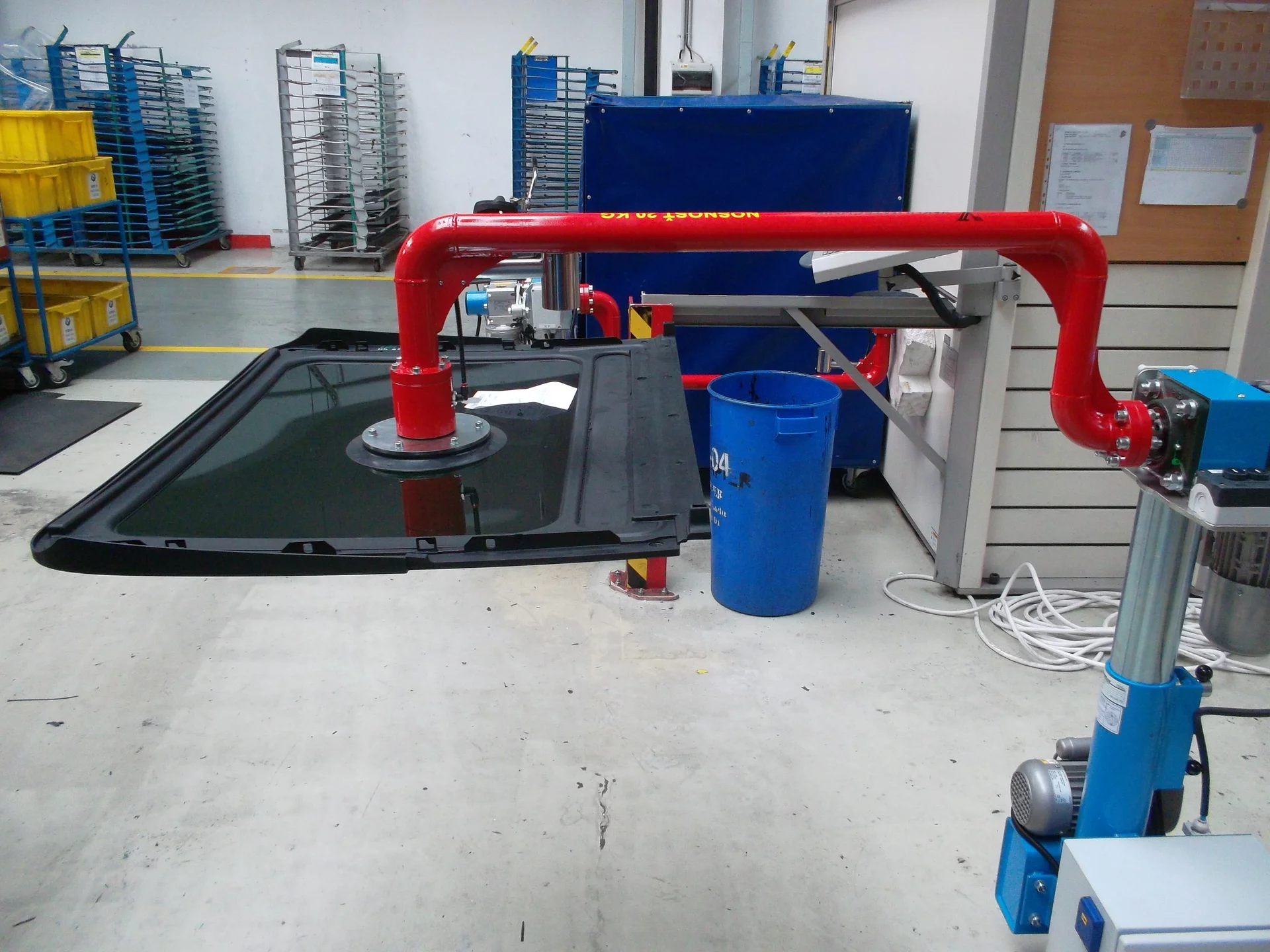

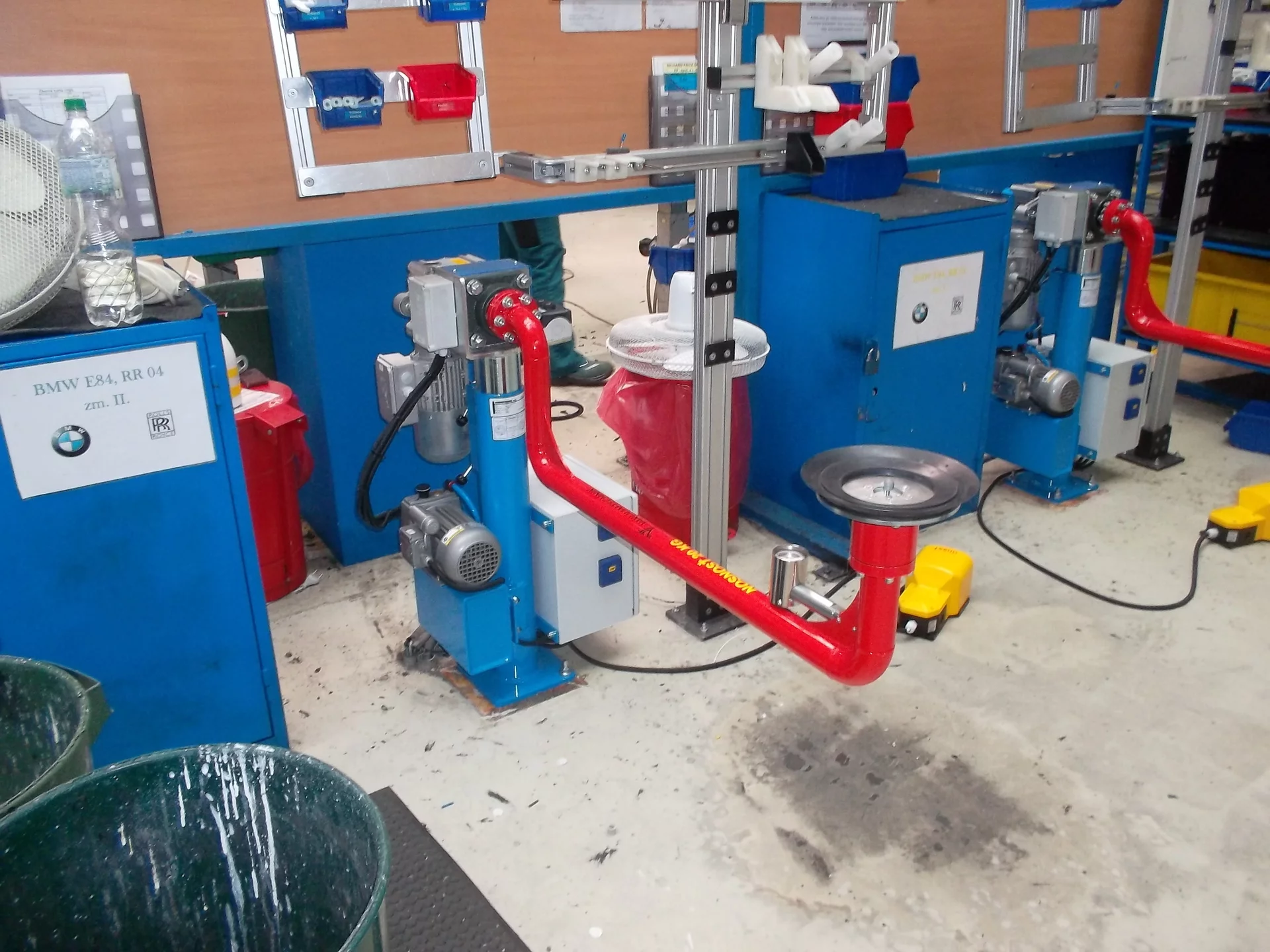

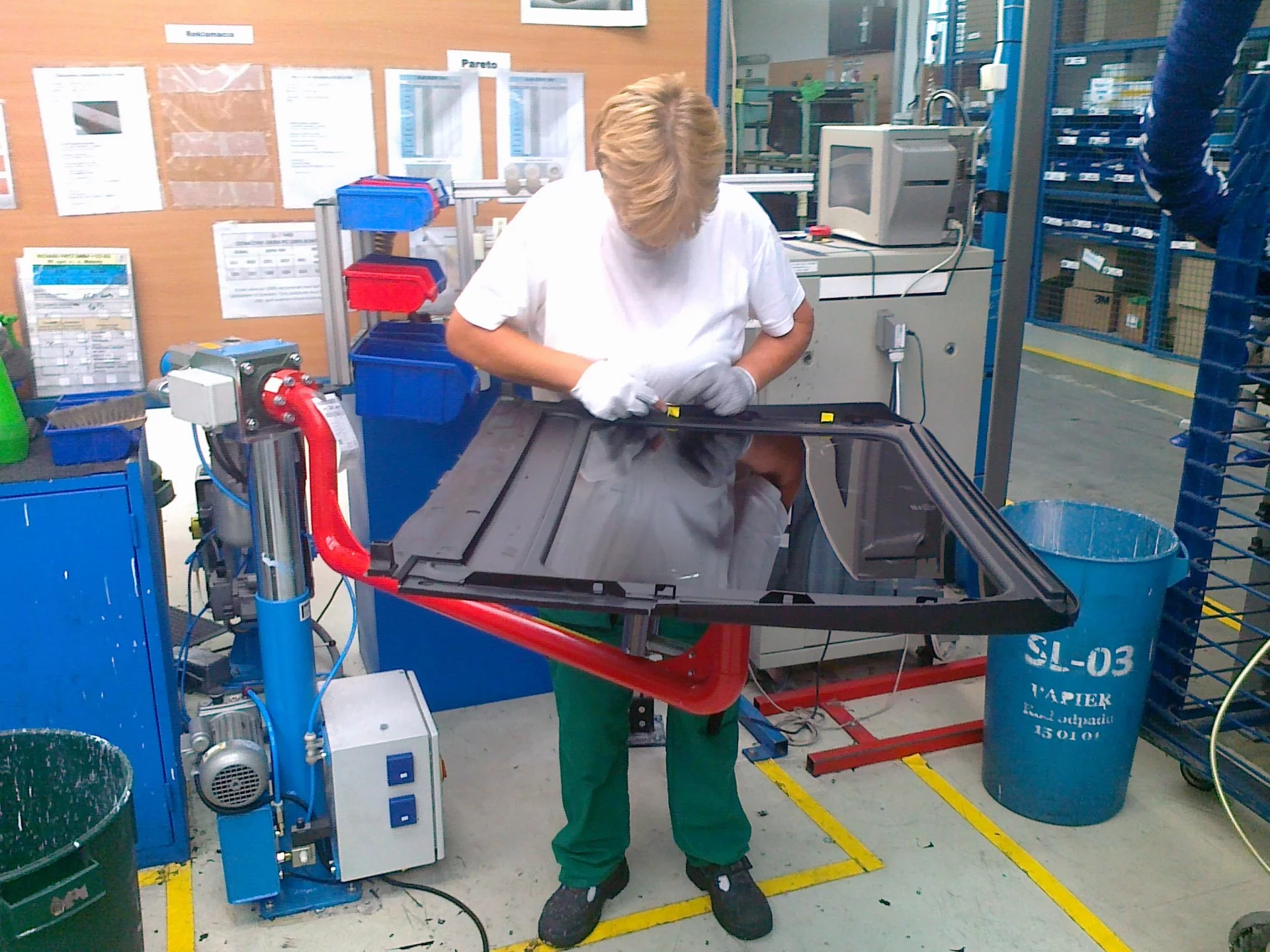

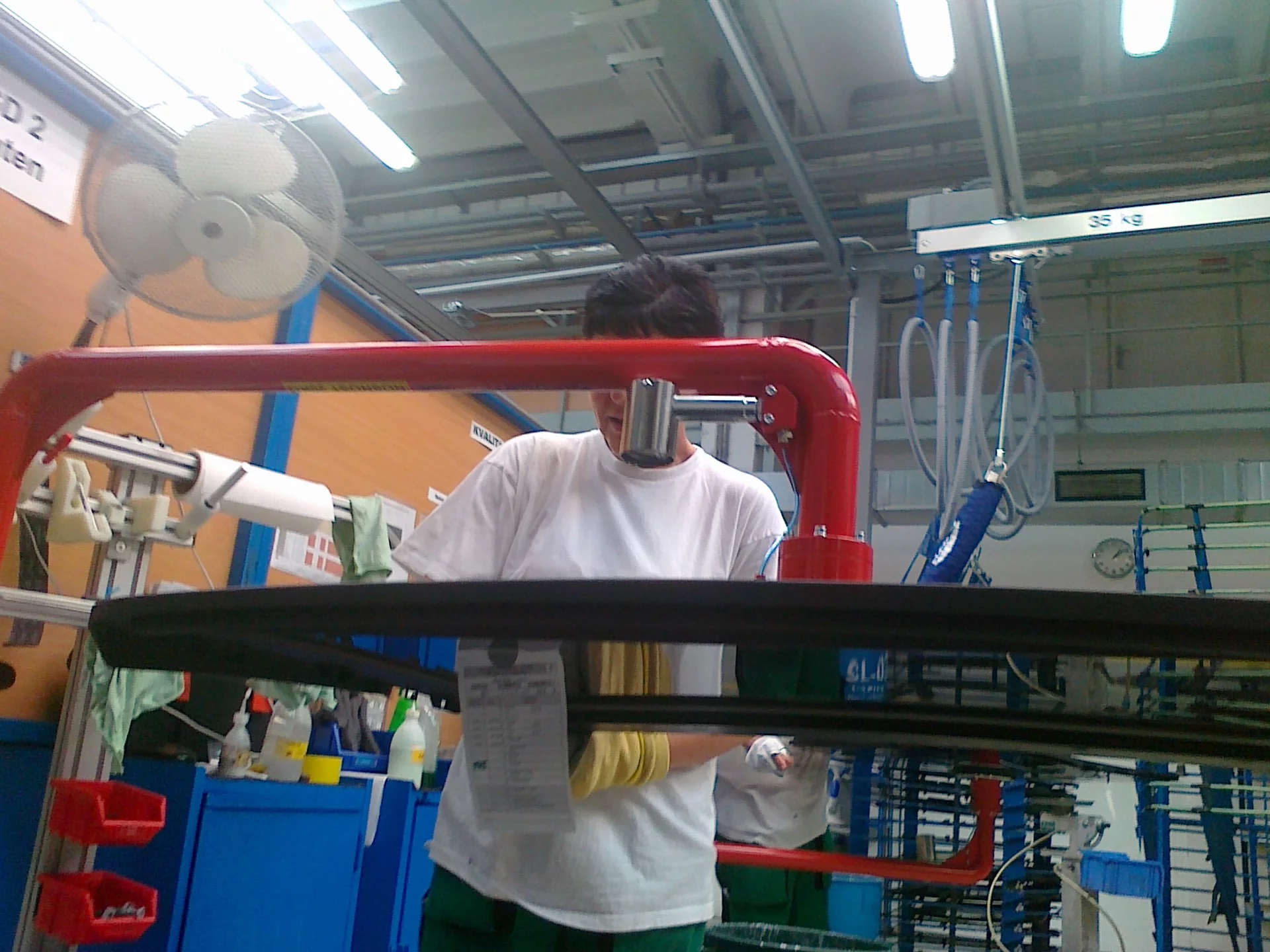

Photo gallery

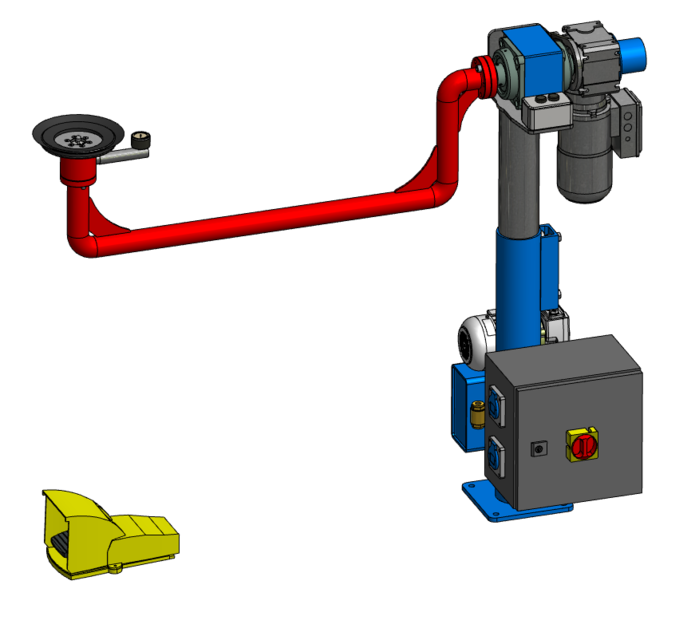

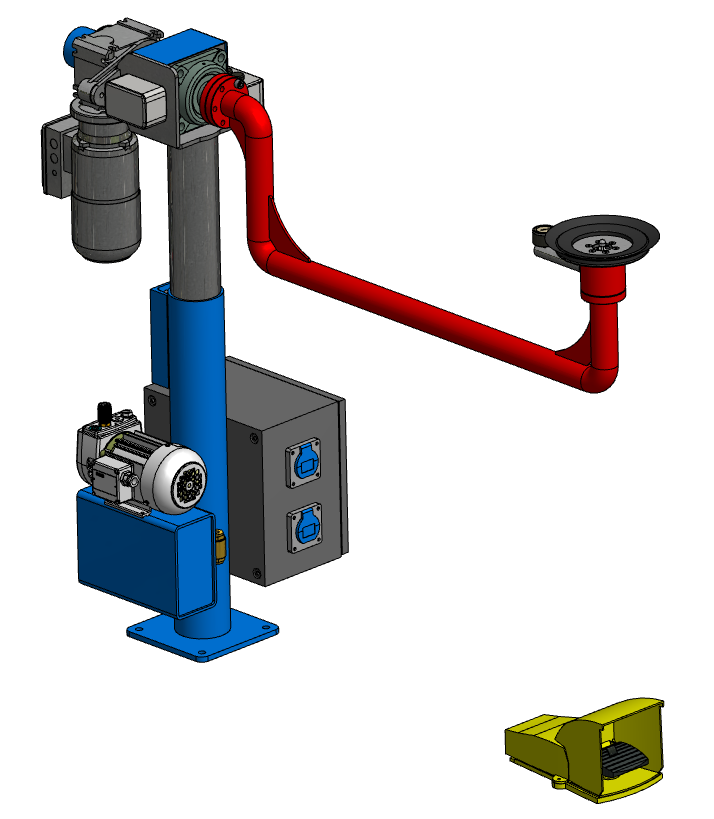

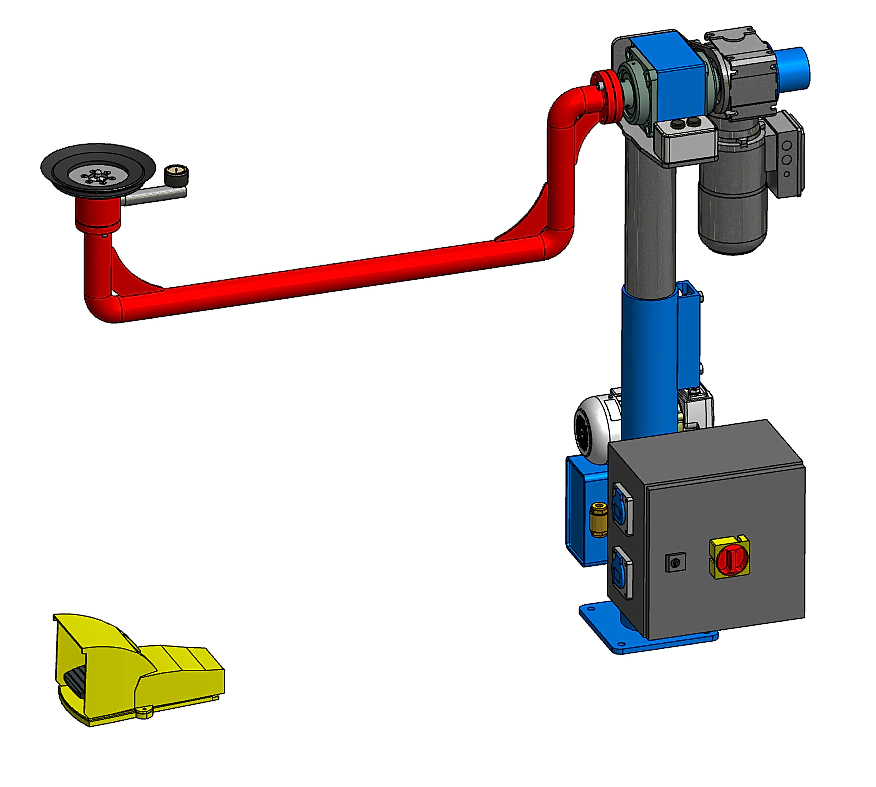

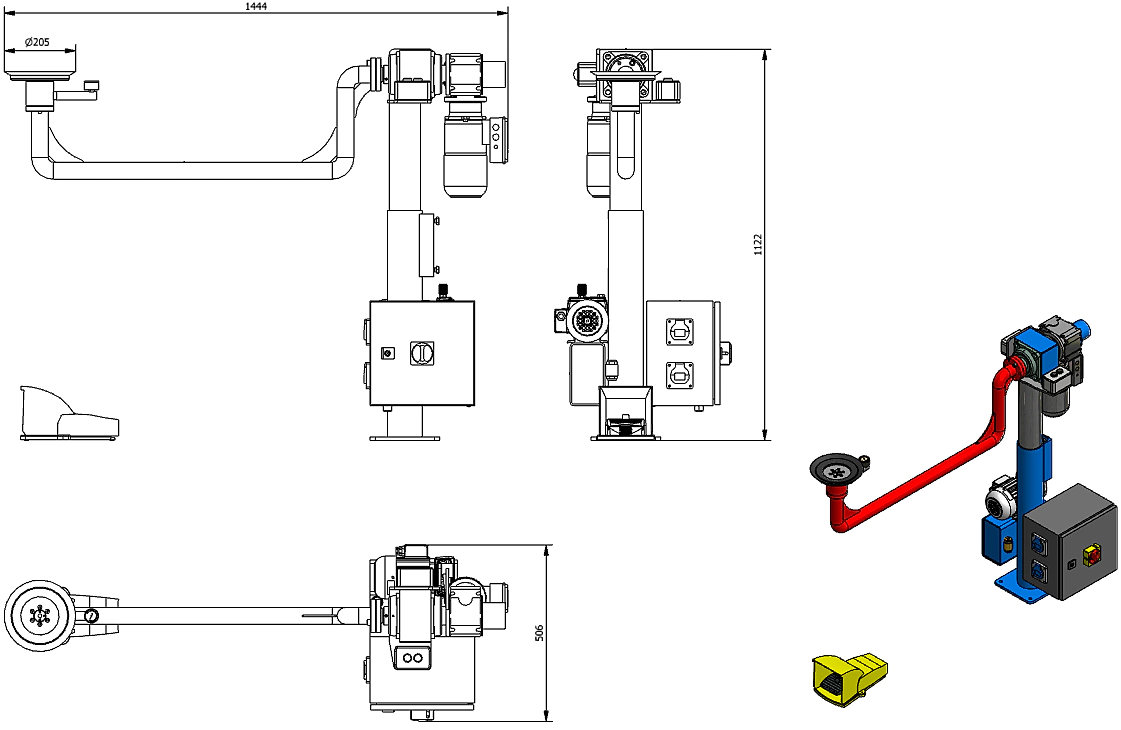

3D models / drawings
